Page 1

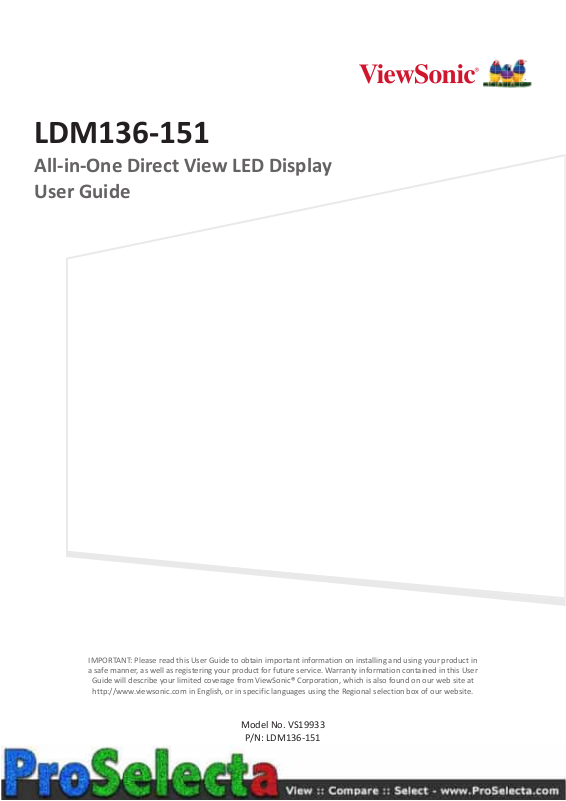

LDM136-151

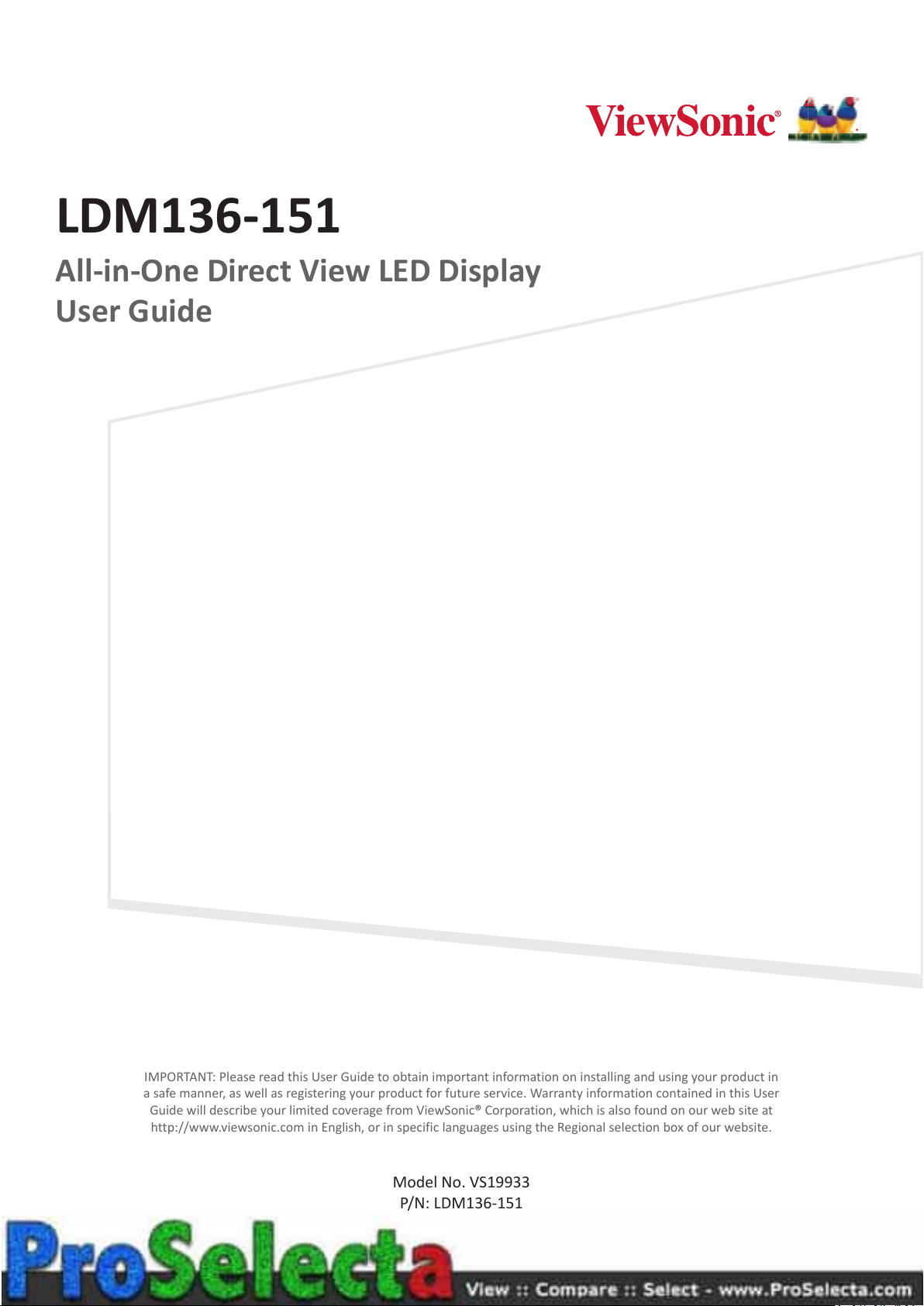

All-in-One Direct View LED Display
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
Model No. VS19933
P/N: LDM136-151
Page 2
Thank you for choosing ViewSonic®
As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding
the world’s expectations for technological evolution, innovation, and simplicity.
At ViewSonic®, we believe that our products have the potential to make a positive
impact in the world, and we are confident that the ViewSonic® product you have
chosen will serve you well.
Once again, thank you for choosing ViewSonic®!
2
Page 3
Safety Precau�ons
Please read the following Safety Precau�ons before you start using the device.
• Keep this user guide in a safe place for later reference.
• Read all warnings and follow all instructions.
• Ensure there is no direct airflow from air conditioning blowing on the display.
• Do not use the device near water. To reduce the risk of fire or electric shock, do
not expose the device to moisture.
• Avoid exposing the device to direct sunlight or other sources of sustained heat.
• Do not install near any heat sources such as radiators, heat registers, stoves, or
other devices (including amplifiers) that may increase the temperature of the
device to dangerous levels.
• When moving the device, be careful not to drop or bump the device on
anything.
• Do not place the device on an uneven or unstable surface. The device may fall
over resulting in an injury or a malfunction.
• Verify the wall can support the display's weight. If not, reinforce the wall before
installation.
• Do not place any heavy objects on the device or connection cables.
• If smoke, an abnormal noise, or a strange odor is present, immediately turn the
device off and call your dealer or ViewSonic®. It is dangerous to continue using
the device.
• Do not attempt to circumvent the safety provisions of the polarized or
grounding-type plug. A polarized plug has two blades with one wider than the
other. A grounding-type plug has two blades and a third grounding prong. The
wide blade and the third prong are provided for your safety. If the plug does not
fit into your outlet, obtain an adapter and do not attempt to force the plug into
the outlet.
• When connecting to a power outlet, DO NOT remove the grounding
prong. Please ensure grounding prongs are NEVER REMOVED.
• Protect the power cord from being treaded upon or pinched,
particularly at the plug, and at the point where it emerges from
the equipment. Ensure that the power outlet is located near the
equipment so that it is easily accessible.
• Only use attachments/accessories specified by the manufacturer.
• When a cart is used, use with caution when moving the cart/equipment
combination to avoid injury from tipping over.
3
Page 4
• Disconnect the power plug from the AC outlet if the device is not being used for
a long period of time.
• Place the device in a well-ventilated area.
• Do not cover the surface of the display with any material.
• Do not block the air circulation around the display.
• Keep flammable materials away from the display.
• Refer all servicing to qualified service personnel. Service will be
required when the unit has been damaged in any way, such as:
if the power supply cord or plug is damaged;
if liquid is spilled onto or objects fall in the unit;
if the unit is exposed to moisture;
if the unit does not operate normally or has been dropped.
• Do not assemble the display by yourself.
• This panel is an advanced product that contains millions of pixels. You may
occasionally see pixel spots when viewing the screen. Since these deactivated
pixels are not a defect, the performance and reliability of the product is not
affected. For more information, please see page 87.
4
Page 5
Contents
Safety Precautions ....................................................... 3
Introduction ................................................................ 9
Package Contents ...................................................................................................9
Product Overview ................................................................................................. 11
Front View ............................................................................................................. 11
Rear View .............................................................................................................. 11
Control Panel and I/O ........................................................................................... 12
I/O Ports ...............................................................................................................13
Remote Control ....................................................................................................14
Bluetooth Remote Control Pairing ........................................................................ 14
Remote Control Receiver Range ........................................................................... 15
IR Extension ........................................................................................................... 15
Inserting Remote Control Batteries ...................................................................... 16
Making Connections .................................................. 17
Connecting to Video .............................................................................................17
HDMI ..................................................................................................................... 17
HDMI Out .............................................................................................................. 17
USB Connection .................................................................................................... 18
USB Type A ............................................................................................................ 18
USB Type C ............................................................................................................ 18
Network Connection.............................................................................................19
LAN ........................................................................................................................ 19
Control Connection ..............................................................................................20
RS-232 (DB 9-pin) .................................................................................................. 20
RJ45 (LAN) ............................................................................................................. 20
Audio Connection ................................................................................................. 21
Audio Out .............................................................................................................. 21
SPDIF ..................................................................................................................... 21
5
Page 6
Using Your Display ..................................................... 22
Turning the LED Display On/Off ............................................................................22
Home Screen ........................................................................................................23
Navigating the Home Screen ................................................................................24
Remote Control ..................................................................................................... 24
Keyboard and Mouse ............................................................................................ 24
App Center ............................................................................................................25
Input Source .........................................................................................................26
Settings ................................................................................................................. 27
Settings Menu Tree ............................................................................................... 28
Network ................................................................................................................. 31
Dehumidification Service ...................................................................................... 34
Device .................................................................................................................... 35
System ................................................................................................................... 39
On-Screen Display (OSD) Menu ............................................................................ 41
On-Screen Display (OSD) Menu Tree .................................................................... 42
Menu Options ....................................................................................................... 47
Picture ............................................................................................................... 47
Screen ................................................................................................................ 49
PBP (Picture-by-Picture) .................................................................................... 50
PIP (Picture-in-Picture) ...................................................................................... 51
Audio ................................................................................................................. 52
Time................................................................................................................... 53
Advanced ........................................................................................................... 54
About ................................................................................................................. 56
6
Page 7
Pre-installed Applications .......................................... 57
vCast .....................................................................................................................57
Display Group Settings .......................................................................................... 59
Synchronized Group Screen All the Time .............................................................. 61
Share a Screen to the Display Group (One to Many Casting) ................................ 61
Moderator Mode .................................................................................................. 62
Broadcast .............................................................................................................. 63
Multiple Screen Sharing ........................................................................................ 63
Preview Screen ...................................................................................................... 63
Touch ..................................................................................................................... 63
Casting from Windows, MacBook, and Chrome Devices ...................................... 64
Casting from Android Devices ............................................................................... 66
Casting from Apple iOS Devices ............................................................................ 70
Connecting to a ViewBoard from a Mobile Device ............................................... 73
Other Default Applications ................................................................................... 74
Browser ................................................................................................................. 74
OfficeSuite ............................................................................................................. 75
vSweeper ............................................................................................................... 76
Appendix ................................................................... 77
Specifications ........................................................................................................77
Timing Chart .........................................................................................................79
HDMI (PC) .............................................................................................................. 79
HDMI (Video) ......................................................................................................... 80
Supported Media Formats ....................................................................................81
LED Display Stuck Pixel Definition ........................................................................87
Maintenance Tools ...............................................................................................88
LED Module Removal Tool .................................................................................... 88
Troubleshooting ...................................................................................................89
General .................................................................................................................. 89
Video Not Working Properly ................................................................................. 90
Audio Not Working Properly ................................................................................. 90
Maintenance.........................................................................................................91
General Precautions .............................................................................................. 91
Initial Operation .................................................................................................... 91
Front Panel Cleaning Instructions ......................................................................... 91
Cabinet Cleaning Instructions ............................................................................... 92
Regular Use ........................................................................................................... 92
7
Page 8
RS-232 Protocol ......................................................... 93
Description ...........................................................................................................93
RS-232 Hardware Specification ............................................................................. 93
RS-232 Communication Setting ............................................................................. 93
Command Table....................................................................................................94
Get Operation Time Example .............................................................................. 100
Regulatory and Service Information ........................ 101
Compliance Information ..................................................................................... 101
FCC Compliance Statement ................................................................................. 101
FCC Radiation Exposure Statement ..................................................................... 102
IC Warning Statement ......................................................................................... 102
Country Code Statement ..................................................................................... 102
IC Radiation Exposure Statement ........................................................................ 103
CE Conformity for European Countries ............................................................... 103
Declaration of RoHS2 Compliance....................................................................... 104
European Union Regulatory Conformance ......................................................... 105
Indian Restriction of Hazardous Substances ....................................................... 105
Product Disposal at End of Product Life .............................................................. 105
Copyright Information ........................................................................................106
Customer Service ................................................................................................ 107
Limited Warranty ................................................................................................ 108
Mexico Limited Warranty .................................................................................... 111
8
Page 9
Introduc�on
Package Contents
Item Descrip�on Quan�ty Note
Installa俿on Guide 1
LED Display
Cabinet Sec俿on 5
LED Module 100
One Le㿿 (E),
three Middle (D,
C, B), and one
Right (A).
The quan俿ty
of spare LED
modules varies by
country.
Screen Bezel
System Control Box
Wall Installa俿on
Accessories
5 x Le㿿
5 x Right
System Control Box 2
System Control Box Cover 2
Connector Plate 1
System Control Box
Maintenance Tool
(LD-MK-004)
Wall Mount Brackets 4
Wall Mount Connector
Plate
20 × M8 × 80 mm
22 × M8 nuts
74 × M8 × 20 mm
Screws
12 × PM6 × 10 mm
16 × M3 × 10 mm
16 × M3 × 6 mm
5 × M2.5 × 4 mm
1
2 x 1799 mm
2 x 1199 mm
2
2 x Cross-head
Hand Tools
An俿-Sta俿c Gloves 2 pairs
screwdrivers
2 x Rachet
wrenches
9
Page 10
Item Descrip�on Quan�ty Note
Remote Control 1
Ethernet Cable (3.5 m) 1
IR Extension Cable (3 m) 1
Suc俿on Tool
(LD-MK-006)
USB Thumb Drive 1
NOTE:
• This product is packed in a wooden crate.
• Due to the size and weight, it is recommended that two or more people handle it.
• The base stand (trolley) is an op俿onal accessory and sold separately.
1
10
Page 11
Product Overview
Front View
USB 2.0
USB 3.0
OK
Rear View
Speaker Speaker
HDMI & Audio Out
I/O & Control Panel
11
Page 12
Control Panel and I/O
1
2
3 4 5 6 7 8 9
Item Descrip�on
1 Light Sensor
USB 3.0
USB 2.0
Ambient light sensor.
OK
HDMI 4
Audio Out
12 13
10 11
USB 2.0
USB 3.0
OK
2 IR Receiver
3 USB Type C
4 USB 3.0
5 USB 2.0
6 Menu
7 Brightness/OK
8 Brightness Decrease
9 Brightness Increase
10 Power
11 Indicator Light
12 HDMI 4
13 Audio Out
Receiver for remote control signal.
USB 2.0 support (5V/1.0A).
USB Reader (5V/0.9A).
USB Reader (5V/0.5A).
Open the display se濿ngs or On-Screen Display (OSD)
Menu.
• Brightness adjustment bu忿on.
• Conrm selec俿on when the OSD Menu is open.
Decrease the brightness level.
Increase the brightness level.
Power on, standby and wake bu忿on.
Power status indicator light.
High deni俿on input: PIP/PBP, connect to PC with HDMI
output, set-top box, or other video device.
Audio output to an external audio device.
12
Page 13
I/O Ports
NOTE: The below I/O ports are accessed by removing the right side of the
System Control Box Cover.
2
1
SPDIF Out
HDMI 1
HDMI 2
5
HDMI 3
HDMI Out
6
Audio Out
7
USB 2.0
3
LAN
HDMI 4
IR Extension
10
Audio Out
8
9
4
RJ45
RS-232
Control Board
11 12
Switch
Item Descrip�on
1 SPDIF Out
2 Audio Out
3 LAN
4 RJ45
5 HDMI 1/2/3
6 HDMI Out
7 USB 2.0
8 HDMI 4
Mul俿-channel op俿cal audio signal.
Audio output to an external audio device.
Standard RJ45 (10M/100M/1000M) Internet connec俿on
interface.
Standard RJ45 control connec俿on interface.
High deni俿on input: PIP/PBP, connect to PC with HDMI
output, set-top box, or other video device.
Extend the display's content out to another display device.
USB Type A port for power (5V/2A).
High deni俿on input: PIP/PBP, connect to PC with HDMI
output, set-top box, or other video device.
NOTE: This port can also be accessed without removing
the System Control Box Cover.
Audio output to an external audio device.
9 Audio Out
10 IR Extension
11 RS-232
Control Board
12
Switch
NOTE: This port can also be accessed without removing
the System Control Box Cover.
Connec俿on point for an extended IR receiver.
Serial control port.
Control switch for the control board.
NOTE: Make sure to switch to the le㿿 for RS-232 control.
13
Page 14
Remote Control
Buon Descrip�on
1 Power
2 Source
3 Brightness
4 Blank
5 Direc俿onal
6 OK
7 Menu
8 Return
9 Home
10 Volume Control
Turn the display on or o�.
Select the input source.
Adjust the screen's brightness level.
Change the current screen to a black
screen.
Navigate menus and make
adjustments.
Conrm the selec俿on.
Open the display se濿ngs or On-Screen
Display (OSD) Menu.
Return to the previous screen or exit a
menu.
Go to the Home screen.
Adjust the volume level.
1
3
6
7
10
13
OK
Blank
2
4
5
8
9
11
12
11 Mute
Forwards/
12
Turn o� the display's sound.
Move to next or previous content.
Backwards
13 Play/Pause
Play or pause content.
Bluetooth Remote Control Pairing
To pair the remote control:
1. Make sure Bluetooth is enabled, go to: Se⿿ngs > Network > Bluetooth > Enable.
2. Press and hold the Menu ( ) and Return ( ) bu忿ons for approximately three
seconds un俿l the indicator on the remote control ⿿ashes blue.
3. If the pairing is successful, a pop-up message will appear on the screen.
NOTE: If the pairing is unsuccessful a㿿er one minute, please try again by
repea俿ng Step 1 above.
14
Page 15
Remote Control Receiver Range
The opera俿ng range of the remote control is shown here. It has an e�ec俿ve range
of 6 meters (20 feet), 30° degrees le㿿 and right. Please make sure there is nothing
obstruc俿ng the remote control’s signal to the receiver.
USB 2.0
USB 3.0
OK
30° 30°
6 m
Blank
OK
IR Extension
If an addi俿onal IR Receiver is needed, an IR extension cable can be connected to the
IR Extension port of the display.
IR Extension
IR Receiver
NOTE: The IR Extension port is accessed by removing the System Control Box
Cover.
15
Page 16
Inser�ng Remote Control Baeries
The remote control is powered by two 1.5V "AAA" ba忿eries.
To insert ba忿eries into the remote control:
1. Remove the cover on the rear of the remote control.
2. Insert two “AAA” ba忿eries, ensuring the posi俿ve (+) symbol on the ba忿ery
matches the posi俿ve (+) symbol on the ba忿ery post.
3. Replace the cover by aligning it with the slot on the remote control and snapping
the latch shut.
WARNING: There is a risk of explosion if ba忿eries are installed with incorrect
polarity.
NOTE:
• It is recommended that you do not mix battery types.
• Avoid exposure to heat or steam.
• Do not allow water or other liquids to splash on the remote control. If the
remote control becomes wet, wipe it dry immediately.
• Always dispose of old batteries in an environmentally friendly way. Contact
your local government for more information on how to dispose of batteries
safely.
16
Page 17
Making Connec�ons
Connec�ng to Video
HDMI
HDMI
Computer
Connect an HDMI cable from your external device to the HDMI 1/HDMI 2/HDMI 3/
HDMI 4 port on the display.
NOTE: The HDMI 1/HDMI 2/HDMI 3 port is accessed by removing the System
Control Box Cover.
HDMI Out
HDMI OUT
To output video via an external display device, connect an HDMI cable to the HDMI
Projector
IN port of your external display device, and the other end to the HDMI OUT port of
the display.
NOTE: The HDMI OUT port is accessed by removing the System Control Box
Cover.
17
Page 18
USB Connec�on
USB Type A
USB
USB Device
Plug the USB device or storage drive into a USB Type A (USB 3.0 or USB 2.0) port on
the display’s control panel.
NOTE: An addi俿onal USB Type A port can be accessed by removing the System
Control Box Cover; however, it is for power transfer only (5V/0.5A).
USB Type C
Plug the USB device or storage drive into the USB Type C (
) port on the display’s
USB Device
control panel.
NOTE: The USB Type C port is for data transfer only.
18
Page 19
Network Connec�on
LAN
LAN
Internet
To connect to a network, connect an Ethernet cable to your network, then connect
the other end to the LAN port of the display.
NOTE: The LAN port is accessed by removing the System Control Box Cover.
19
Page 20
Control Connec�on
RS-232 (DB 9-pin)
RS-232
Computer
When you use a RS-232 serial cable to connect the display to an external computer
or control system, certain func俿ons can be controlled remotely such as: power on
and o�, volume adjustment, input select, brightness, and more.
NOTE: The RS-232 port is accessed by removing the System Control Box Cover.
RJ45 (LAN)
RJ45
When you use an Ethernet cable to connect the display to an external computer or
Computer
control system, certain func俿ons can be controlled remotely such as: power on and
o�, volume adjustment, input select, brightness, and more.
NOTE: The RJ45 port is accessed by removing the System Control Box Cover.
20
Page 21
Audio Connec�on
Audio Out
To play audio from the display through an external speaker, connect one end of an
audio cable to the external speaker, and the other end to the display’s Audio Out
port.
AUDIO OUT
Speaker
NOTE: The display is equipped with two Audio Out ports, one can be accessed
externally, while the other is accessed by removing the System Control
Box Cover.
SPDIF
To play audio from the display through an external speaker, connect one end of an
op俿cal cable to the external speaker, and the other end to the display’s SPDIF Out
port.
SPDIF OUT
Stereo Amplifier
NOTE: The SPDIF Out port is accessed by removing the System Control Box
Cover.
21
Page 22
Using Your Display
USB 2.0
USB 3.0
1. Make sure the power cord is connected and plugged into a power outlet.
2. Press the Power bu忿on to turn on the display.
3. To turn the display o�, press the Power bu忿on again.
OK
22
Page 23
Home Screen
1
2
3
4
Number Item
1
2
3
4
Main Menu
Quick Access
Date & Time
ViewSonic
Logo
Access the Home Screen, App Center, Se濿ngs, and Input
Source.
Quick access to WAN/LAN, Wi-Fi, Brightness, and Power.
NOTE: Only supported by keyboard and mouse.
Adjust and show or hide the Date & Time by going to:
Show or hide the logo by going to:
23
Page 24
Remote Control
The remote control can be used to easily navigate the Home Screen. When using
the remote control, ensure it is kept within the IR receiver range as shown below:
USB 2.0
USB 3.0
OK
30° 30°
6 m
Blank
OK
Keyboard and Mouse
When connected to the USB Type A port of the display, a keyboard and mouse can
also be used to navigate the Home Screen.
USB
An orange mouse pointer will appear on the display when used.
USB Device
• The le㿿 mouse bu忿on will conrm ac俿ons.
• The right mouse bu忿on will go back to the previous layer.
24
Page 25
App Center
Installed applica俿ons will be in the App Center.
Icon Name
Se濿ngs Adjust and view the display’s se濿ngs.
Chromium Web browser.
Folders File explorer.
vSweeper Resource management tool.
O⿿ceSuite
myViewBoard Display Wirelessly mirror your desktop.
myViewBoard Manager Remote device management.
vCast
Create documents, spreadsheets, and
presenta俿ons.
Receive casted content from other
devices.
Pre-installed applica俿ons are subject to change without no俿ce.
25
Page 26
Input Source
The display supports eight input sources: Home, HDMI 1, HDMI 2, HDMI 3, HDMI 4,
and Custom.
The Custom input source is used to quickly access custom applica俿ons.
To select the custom applica俿on, go to: > Device > Signage
Display > Custom App.
26
Page 27
Adjust and view the display’s se濿ngs.
Menu
Network
Service
Device
System
View and adjust Ethernet, Wi-Fi, Wireless Hotspot, and
Bluetooth se濿ngs.
View and adjust dehumidica俿on se濿ngs and start the
dehumidica俿on process.
View and adjust Signage Display, System Tools, Display, Apps,
Audio, Physical Keyboard, Input method, and Launcher
se濿ngs.
View and adjust Date & Time and About se濿ngs.
27
Page 28
Main Menu Sub-menu
Network
Service
Ethernet
Wi-Fi
Wireless Hotspot
Bluetooth
Dehumidica俿on
Se濿ngs
Begin
Dehumidica俿on
Now
Main Switch
Ethernet
Congura俿on
Disable
Enable
Add Wi-Fi
Main Switch
Hotspot Congura俿on
Bluetooth
Available Device
Dehumidica俿on
Level
Disable
Enable
Connec俿on Type
Mac Address
Disable
Enable
Network Name
Security Type
Disable
Enable
Shutdown
Low
Middle
High
28
Page 29
Main Menu Sub-menu
Device
Signage Display
System Tools
General Se濿ngs
Source Se濿ngs Custom App
Creden俿al Se濿ngs
Security
Clear Storage
Reset Factory Reset
Import & Export
Signage Display Name
Boot Logo
Trusted Creden俿als
User Creden俿als
Install from Storage
Clear Creden俿als
External Storage
Unknown Sources
Privacy and Copyright
Protec俿on
App Authority
All
Internal Storage
USB Storage
Export Signage
Display Se濿ngs
Import Signage
Display Se濿ngs
Display
Apps
Physical Keyboard
Launcher Se濿ngs
Input Method
Clone Clone Media Files
Font Size
Screen Saver
Running
All
Download
On
ViewSonic Logo
O�
On
Date & Time
O�
Theme
29
Page 30
Main Menu Sub-menu
System
Date & Time
About
Select Time Zone
NTP Server
Local System Updates
Online System
Updates
Asset Tagging
Legal Informa俿on
Android Version
Kernel Version
Build Number
Opera俿on Hours
30
Page 31
Network
Sub-menu
Enable or disable Ethernet and congure it.
Ethernet
31
Page 32
Sub-menu
Open the Wi-Fi selec俿on interface to enable or disable Wi-Fi and
connect to a Wi-Fi network.
Wi-Fi
You can also select Add Network in the Wi-Fi selec俿on screen to
manually add a Wi-Fi network.
Enable or disable Wireless Hotspot. Once enabled, the hotspot
name will be displayed and can be connected to.
Wireless
Hotspot
32
Page 33
Sub-menu
Enable or disable Bluetooth. Once enabled, available devices will
be displayed and can be connected to.
Bluetooth
NOTE: The volume of a connected Bluetooth speaker cannot
be adjusted with the remote control.
33
Page 34
Sub-menu
Set the dehumidica俿on level or shut it down.
Begin
Manually start the dehumidica俿on process.
34
Page 35
Device
Sub-menu
Signage Display
General Se濿ngs
Set the Signage Display Name and Boot Logo.
Source Se濿ngs
Set the applica俿on to open when the Custom input source is
selected.
Creden俿al Se濿ngs
View and clear creden俿als and install from storage.
Security
Review privacy and copyright protec俿ons, allow external USB
storage and installing applica俿ons from unknown sources.
35
Page 36
Sub-menu
System Tools
Clear Storage
Clear storage space from both internal and external storage.
Reset
Reset the display to its default factory values.
Import & Export
Import or export the display’s se濿ngs.
Display
Clone
Copy media les from the display.
Font Size
Set the font size for the display.
Screensaver
Enable or disable a screensaver.
36
Page 37
Sub-menu
View informa俿on about the display’s running, downloaded, or all
applica俿ons.
Apps
View and select a keyboard input method.
Physical Keyboard
37
Page 38
Sub-menu
ViewSonic Logo
Display or hide the ViewSonic logo on the Home Screen.
Date & Time
Display or hide the Date & Time on the Home Screen.
Theme
Set the theme for the Home Screen.
Input Method
View and select an input method.
38
Page 39
System
Sub-menu
Date & Time
Select Time Zone
Set the display’s 俿me zone.
NTP Server
View NTP service informa俿on.
39
Page 40
Sub-menu
View informa俿on about the display and update the system locally
or online.
About Device
40
Page 41
On-Screen Display (OSD) Menu
Use the On-Screen Display (OSD) Menu to adjust se濿ngs.
The OSD Menu is only available when there is an ac俿ve input source
(e.g., HDMI).
To open and operate the OSD Menu:
1. Press the MENU ( ) bu忿on on the remote control.
2. Press q/p/t/u on the remote control to select menu items or adjust values.
3. Press OK to conrm your selec俿on.
4. Press the RETURN ( ) bu忿on to go back to the previous menu level.
5. Press the MENU ( ) bu忿on to exit the OSD Menu.
41
Page 42
On-Screen Display (OSD) Menu Tree
Main Menu Sub-menu
Brightness (-/+, 0~100)
Contrast (-/+, 0~100)
Sharpness (-/+, 0~15)
Tint (-/+, 0~100)
Color (-/+, 0~100)
Warm
Color Temperature
Picture Mode
RGB Range
Blue Light Filter (-/+, 0~100)
Gamma Set
Picture Reset
Normal
Cool
User
Normal
Dynamic
So㿿
User
Full Range
Limited Range
Auto
Na俿ve
2.2
2.4
Cancel
Reset
Screen
Full
Real
Zoom Mode
Dynamic
21:9
Cancel
Screen Reset
Reset
42
Page 43
Main Menu Sub-menu
Full Screen
Dual Screen
PBP
PIP
PBP Mode
PBP Source
PBP Audio
PBP Reset
PIP Mode
PicMain
PicSub
PIP Audio
PIP Reset
Treble (-/+, 0~24)
Bass (-/+, 0~24)
Three-part Screen
Center Screen
Quad Screen
Top Le㿿
Top Right
Bo忿om Le㿿
Bo忿om Right
Audio
Volume (-/+, 0~100)
Maximum Volume (-/+, 0~100)
Minimum Volume (-/+, 0~99)
Mute
Volume Control
Audio Reset
O�
On
Speaker
SPDIF
Headset
Cancel
Reset
43
Page 44
Main Menu Sub-menu
Time
O� Time
(10 mins~240 mins)
Use Network-Provided Time
Set Date Format
Date and Time
Choose Time Zone
Use 24-hour Format
Schedule
Day of the Week
Slideshow Interval (1s/3s/5s/10s/15s/20s/25s/30s)
OSD Turn O�
(5~120 seconds)
O�
Schedule List
Enable
Start Time
End Time
Input
Every Week
O�
Informa俿on OSD
Time Reset
O�
(1~60 seconds)
Cancel
Reset
44
Page 45
Main Menu Sub-menu
Advanced
Saving
Boot
Signal
Panel Saving
Power Save
Light Sensing
Boot On Source
Boot On Logo
Auto Signal Detec俿on
No Signal Standby
O�
On
Sleep
Hibernate
O�
On
Last Source
Input
ViewSonic
Blue
Black
Custom
O�
On
(O�/0 min/5 min/15
min/30 min)
Port
HDMI with One Wire
HDMI Version
USB Cloning
USB Auto Play
O�
On
1.4
2.0
Auto
Import
Export
O�
On
45
Page 46
Main Menu Sub-menu
Power O�
Advanced
Other
Switch On State
Language
Factory Reset
Advanced Reset
Last Status
Forced On
English
French
Spanish
German
Russian
Dutch
Tradi俿onal Chinese
Simplied Chinese
Turkish
Arabic
Cancel
Reset
Cancel
Reset
About
Heat Status xx° C / xx° F
Model Name
Serial No.
Monitor Informa俿on
Opera俿on Hours
SW Version
46
Page 47
1. Press the MENU ( ) bu忿on on the remote control to display the OSD Menu.
2. Then press OK or use q/p/t/u on the remote control to select the Picture
menu.
3. Press q/p to select the menu op俿on. Then press OK to display its sub-menu, or
press t/u to adjust/select the se濿ng.
Some sub-menu op俿ons may have another sub-menu layer.
Sub-menu
Brightness
Contrast
Sharpness
Tint
Color
Adjust the background black levels of the screen image.
Adjust the degree of di�erence between the lightest and darkest
parts of the picture and changes the amount of black and white in
the image.
Adjust the on-screen image’s clarity.
Adjust the color balance of the screen image. The higher the
value, the more greenish the image becomes. The lower the
value, the more reddish the image becomes.
Adjust the amount of color in the on-screen image.
Color Temperature
Picture Mode
RGB Range
Blue Light Filter
Set how color appears on screen using the Kelvin scale.
Select the mode that best ts the display’s environment.
Select from Full Range (black and white levels are full [0~255]),
Limited Range (Black and white levels are limited [16~235]), or
Auto.
Block high-energy blue light for a more comfortable viewing
experience.
47
Page 48
Sub-menu
Gamma Set
Picture Reset
Manually adjust the brightness level of the monitor’s grayscale
levels.
Reset the Picture se濿ngs to their default values.
48
Page 49
Screen
1. Press the MENU ( ) bu忿on on the remote control to display the OSD Menu.
2. Then press OK or use q/p/t/u on the remote control to select the Screen
menu.
3. Press q/p to select the menu op俿on. Then press OK to display its sub-menu, or
press t/u to adjust/select the se濿ng.
Some sub-menu op俿ons may have another sub-menu layer.
Sub-menu
Zoom Mode
Screen Reset
Set the on-screen image’s width and height.
Reset the Screen se濿ngs to their default values.
49
Page 50
PBP (Picture-by-Picture)
1. Press the MENU ( ) bu忿on on the remote control to display the OSD Menu.
2. Then press OK or use q/p/t/u on the remote control to select the PBP menu.
3. Press q/p to select the menu op俿on. Then press OK to display its sub-menu, or
press t/u to adjust/select the se濿ng.
Some sub-menu op俿ons may have another sub-menu layer.
Sub-menu
PBP Mode
PBP Source
PBP Audio
PBP Reset
Select the type of PBP screen: Full, Dual, Three-part, Center, or
Quad.
Set the video source for the PBP.
Set the audio source for the PBP.
Reset the PBP se濿ngs to their default values.
50
Page 51
PIP (Picture-in-Picture)
1. Press the MENU ( ) bu忿on on the remote control to display the OSD Menu.
2. Then press OK or use q/p/t/u on the remote control to select the PIP menu.
3. Press q/p to select the menu op俿on. Then press OK to display its sub-menu, or
press t/u to adjust/select the se濿ng.
Some sub-menu op俿ons may have another sub-menu layer.
Sub-menu
PIP Mode
PicMain
PicSub
PIP Audio
PIP Reset
Select the loca俿on of the PIP screen: Top Le㿿, Top Right, Bo忿om
Le㿿, Bo忿om Right.
Set the video input source of the main screen.
Set the video input source of the sub-screen.
Set the audio source for the PIP.
Reset the PIP se濿ngs to their default values.
51
Page 52
Audio
1. Press the MENU ( ) bu忿on on the remote control to display the OSD Menu.
2. Then press OK or use q/p/t/u on the remote control to select the Audio
menu.
3. Press q/p to select the menu op俿on. Then press OK to display its sub-menu, or
press t/u to adjust/select the se濿ng.
Some sub-menu op俿ons may have another sub-menu layer.
Sub-menu
Treble
Bass
Volume
Maximum Volume
Minimum Volume
Mute
Volume Control
Audio Reset
Adjust the display’s treble level (higher-pitched sounds).
Adjust the display’s bass level (lower-pitched sounds).
Adjust the display’s sound level.
Set a maximum sound level.
Set a minimum sound level.
Turn o� the display’s sound.
Select the audio source: the display’s Speaker, SPDIF port, or
Audio Out port.
Reset the Audio se濿ngs to their default values.
52
Page 53
Time
1. Press the MENU ( ) bu忿on on the remote control to display the OSD Menu.
2. Then press OK or use q/p/t/u on the remote control to select the Time menu.
3. Press q/p to select the menu op俿on. Then press OK to display its sub-menu, or
press t/u to adjust/select the se濿ng.
Some sub-menu op俿ons may have another sub-menu layer.
Sub-menu
Date and Time
Schedule
Slideshow Interval
Time Reset
Set a 俿me for the display to turn o�.
Set the date and 俿me of the display.
Set a schedule to turn the display on and o�.
Set the 俿me interval to change between images for a photo slide
show.
Set the length of 俿me the OSD Menu remains on screen.
Set the length of 俿me the volume, brightness, and input source
menu remain on screen.
Reset the Time se濿ngs to their default values.
53
Page 54
Advanced
1. Press the MENU ( ) bu忿on on the remote control to display the OSD Menu.
2. Then press OK or use q/p/t/u on the remote control to select the Advanced
menu.
3. Press q/p to select the menu op俿on. Then press OK to display its sub-menu, or
press t/u to adjust/select the se濿ng.
Some sub-menu op俿ons may have another sub-menu layer.
Sub-menu
Panel Saving
Reduces the risk of image burn-in when enabled.
Saving
Power Save
Reduce power consump俿on.
Boot On Source
Select the input source to enter automa俿cally a㿿er the display is
Boot
turned on.
Boot On Logo
Show or hide a logo when the display is turned on.
54
Page 55
Sub-menu
Auto Signal Detec俿on
Allow the display to detect and display available input sources
automa俿cally.
Signal
No Signal Standby
Set the 俿me period for the display to enter standby mode when
there is no input signal.
HDMI with One Wire
Enable or disable CEC (Consumer Electronics Control).
CEC synchronizes power on/o� opera俿on via HDMI connec俿on.
That is, if a device that also supports CEC is connected to the
HDMI input of the display, when the display’s power is turned
o�, the power of the connected device will also be turned o�
automa俿cally. When the power of the connected device is
turned on, the display’s power will be turned on automa俿cally.
Port
Other
USB Cloning
Save the OSD Menu congura俿on to a USB storage device.
HDMI Version
Select the HDMI version.
USB Auto Play
If enabled, the display will copy media les from a connected
external USB storage device to the display’s internal storage then
play the media les automa俿cally.
NOTE: If power is lost during the le transfer, please remove
the les from the internal storage and try again.
Switch On State
Select the display status for the next 俿me the power cord is
connected to a power outlet: Power O�, the display will remain
o�, Last Status, the display will return to the previous power
status, or Forced On, the display will turn on.
Language
Set the language for the OSD Menu.
Factory Reset
Reset all OSD Menu se濿ngs to their default values.
Advanced Reset
Reset the Advanced se濿ngs to their default values.
55
Page 56
About
1. Press the MENU ( ) bu忿on on the remote control to display the OSD Menu.
2. Then press OK or use q/p/t/u on the remote control to select the About
menu.
3. Press q/p to select the menu op俿on. Then press OK to display its sub-menu, or
press t/u to adjust/select the se濿ng.
Some sub-menu op俿ons may have another sub-menu layer.
Sub-menu
Heat Status
Monitor
View the maximum temperature of the display.
View informa俿on about the display such as: Model Name, Serial
Number, Opera俿on Hours, and So㿿ware Version.
56
Page 57
vCast
Working with ViewBoard® Cast so㿿ware (vCast, vCast Pro, and vCastSender), the
vCast applica俿on will allow the display to receive laptop screens (Windows/Mac/
Chrome) and mobile (iOS/Android) users’ screens, photos, videos, annota俿ons, and
camera(s) that are using the vCastSender applica俿on.
57
Page 58
• ViewBoard® Cast so㿿ware, laptops, and mobile devices can connect to both the
same subnet and cross subnet by entering the on-screen PIN code.
• Connected devices will show up under Device List on the same subnet
connec俿on.
• If the device does not show up under Device List, users will need to key-in the
on-screen PIN code.
•
TCP 56789, 25123, 8121 & 8000 (Controlling message port & client device
audio transfer)
TCP 8600 (BYOM)
TCP 53000 (Request share screen)
TCP 52020 (Reverse control)
TCP 52025 (Reverse control for ViewBoard Cast Bu忿on)
TCP 52030 (Status sync)
TCP 52040 (Moderator mode)
UDP 48689, 25123 (Device searching and broadcast & client device audio
transfer)
UDP 5353 (Mul俿cast search device protocol)
• :
Port: 443
DNS: h忿ps://vcastac俿vate.viewsonic.com
•
Server Port: TCP 443
Server FQDN Name: h忿ps://vcastupdate.viewsonic.com
58
Page 59
To adjust the Display Group Se濿ngs, select the Display Group icon ( ) located in
the lower-right corner of the screen.
1. Toggle the “Turn On/O� Display Group” ON to enable the Display Group feature.
Other preinstalled ViewBoard Cast devices in the same network will be
listed.
2. Select the devices you want to join the display group and select OK to save the
se濿ngs.
• If the devices you want to group are not listed, you can enter their
respec俿ve IP address or connec俿ng PIN code.
• The Display Group maximum device limit is six devices.
59
Page 60
3. If you frequently connect to the same device, you can select the Star icon ( )
next to the device to add it to your frequently connected devices list, “My List of
Devices in Group”, for easier Display Group setup and management.
60
Page 61
When the “Synchronized group screen all the 俿me” func俿on is toggled ON, it will
display a synchronized group screen con俿nuously. If it is toggled OFF, it will work on
vCast mirroring only.
Select the devices to group rst, then toggle the “Synchronized group
screen all the 俿me” func俿on ON to avoid interrup俿on.
A㿿er conrming the above se濿ngs, you can share your screen to the main display,
then the grouped client devices will be synced up to your screen.
61
Page 62
Moderator Mode allows the moderator to take control of the devices connected to
the display. To enter Moderator Mode, select the Moderator Mode icon ( ) located
in the lower-right corner of the screen.
When enabled, the moderator can view a list of all connected screens in the le㿿
⿿oa俿ng window and can preview each par俿cipant’s screen and then select any
of par俿cipant’s screen and cast to the display’s main screen for presenta俿on. The
moderator can also control each par俿cipant’s screen, annotate on the display, and
remove unwanted par俿cipants by selec俿ng the close icon (X).
62
Page 63
When enabled, the display’s screen will be broadcasted to all of the par俿cipant’s
connected screens simultaneously. The par俿cipants can only view the presenta俿on
contents un俿l the moderator disables the Broadcast func俿on.
By default, vCast is set to allow mul俿ple screen sharing, but can also be set to single
screen sharing. To do this, the moderator can select the Mul俿ple Screen Sharing
icon to switch to single screen sharing.
By default, vCast is set to let the moderator preview the par俿cipant’s screen
contents prior to sharing to the display. Selec俿ng the Preview Screen icon, the
Moderator can switch to see the par俿cipant’s name only.
By default, par俿cipants can use touch for collabora俿on a㿿er connec俿ng. The
moderator can enable/disable the touch func俿on of a par俿cipant by selec俿ng the
Touch icon in their window.
• Moderator Mode is supported on all vCastSender and AirPlay devices, but
mobile devices are limited to a “preview” func俿on. Addi俿onally, mobile
Android devices cannot cast sound out.
• When you cast your Windows/Mac/Chrome screen to the display, the
selected full screen unit will not be broadcasted back to your device to
avoid repe俿俿ve screen cas俿ng.
• The ac俿ve presenter can touch each of the par俿cipant’s screens to
remotely control cas俿ng devices.
• The number of mul俿-screen presenters on-screen depends on your
Windows CPU processor performance and router specica俿ons.
63
Page 64
1. Ensure the client device (e.g., laptop) is connected to the same network as the
display.
The network name can be found under .
2. On the client device, visit the address that is shown on the display to download
and install the vCastSender applica俿on.
3. A㿿er installing, launch the vCastSender applica俿on.
64
Page 65
4. To connect to the display, input the PIN code and click OK.
The can be found as highlighted below:
5. Addi俿onally, you can connect to the display by clicking Device List then the
listed.
The can be found as highlighted below:
65
Page 66
1. Ensure the client device (e.g., Android phone or tablet) is connected to the same
network as the display.
The network name can be found under .
66
Page 67
2. On the Android client device, scan the QR code shown on the display to directly
download the vCastSender applica俿on, or download the applica俿on from the
Google Play Store.
3. A㿿er installing, launch the vCastSender applica俿on.
4. To connect to the display, input the PIN code and select OK.
The can be found as highlighted below:
67
Page 68
5. You can also connect to the display by selec俿ng Device List then the Device
listed.
The can be found as highlighted below:
68
Page 69
6. Addi俿onally, you can connect to the display by selec俿ng then placing the
on-screen QR code into the box to automa俿cally connect.
69
Page 70
Apple AirPlay® is compa俿ble with vCast for screen mirroring and content streaming
under the same subnet environment only. An “AirPlay Password” will be generated
on-screen for connec俿on when using AirPlay to cast to the display.
1. Ensure the client device (e.g., iPhone or iPad) is connected to the same network
as the display.
The network name can be found under .
70
Page 71
2. On the iOS client device, directly open AirPlay and select the of the
display to connect.
The can be found as highlighted below:
3. Input the generated on-screen on the client device to connect.
In a cross subnet environment, please download and connect with the
vCastSender iOS applica俿on from the Apple App Store.
71
Page 72
4. You can also connect to the display by selec俿ng then placing the on-screen
QR code into the box to automa俿cally connect.
72
Page 73
Once connected, select Receive. The display’s screen will appear on the mobile
device with an on-screen toolbar. Users can interact with the display with
annota俿ons, le sharing, etc.
Clear
Hide or display the toolbar.
Return to the Home interface.
Return to the previous opera俿on.
View or open the mobile device's les.
Cast the mobile device's screen to the connected display.
Remotely control the connected display.
Make annota俿ons, and adjust the pen color.
Clear everything on screen.
Send camera images to the connected display.
73
Page 74
Web browser for surng the Internet.
74
Page 75
Create, edit, and view documents, spreadsheets, presenta俿ons, and PDFs.
75
Page 76
Remove unnecessary data and unwanted les.
Advanced Se濿ngs can also be customized to the user’s needs.
76
Page 77
Appendix
Specica�ons
Item Category Specica�ons
Model LDM136-151
Type Direct View LED Display
Size 136”
LED Screen
Input Signal
Ac俿ve Size
(H x V)
Pitch Size 1.56 mm
Resolu俿on FHD, 1920 x 1080
Refresh Frequency 3840 Hz
Contrast Ra俿o 6500:1 (Typical)
Brightness 100-600 cd/m2 (100 levels of adjustment)
LED Lifespan 100,000 hours
3,000 mm x 1,687.5 mm
118.11” x 66.44”
4 x HDMI (v. 2.0; HDCP 2.2)
1 x USB Type A (2.0)
1 x USB Type A (3.0)
1 x LAN (RJ45)
1 x IR in
1 x USB Type C (data only)
1 x RS-232 (for control)
1 x RJ45 (for LAN control)
1 x Wi-Fi Input (2.4 G/5 G Hz)
1 x HDMI Out
Output Signal
Speaker Output 2 x 30W
RS-232 RS-232 Serial Control
100-120V/30A ~ 50/60Hz
Power Voltage
Al俿tude
Opera俿ng
Condi俿ons
Rela俿ve
Humidity
Temperature
220-240V/15A ~ 50Hz
(will vary by country)
≤ 5,000 m
≤ 16,404 㿿
10%~80% non-condensing
0° C to 40° C
32° F to 104° F
Audio Out (1 x 3.5 mm internal; 1 x 3.5
2 x
mm external)
1 x USB Type A (Shared) [5V/2A]
77
Page 78
Item Category Specica�ons
Storage
Condi俿ons
Physical
Dimensions
(W x H x D)
Weight
Al俿tude
Rela俿ve
Humidity
Temperature
Without Wall Mount
With Wall Mount
With Back Mount
With Trolley
Without Wall Mount
With Wall Mount
With Back Mount
≤ 5,000 m
≤ 16,404 㿿
10%~85% non-condensing
-10° C to 60° C
14° F to 140° F
3012 x 1833.5 x 31 mm
118.58” x 72.18” x 1.22”
3012 x 1833.5 x 53 mm
118.58” x 72.18” x 2.08”
3012 x 1833.5 x 91 mm
118.58” x 72.18” x 3.58”
3012 x 2507.8 x 872.2 mm
118.58” x 98.73” x 34.33”
162 kg
357.15 lbs
178 kg
392.42 lbs
196 kg
438.71 lbs
225 kg
432.11 lbs
609W (Normal)
1740W (Max)
Power
Consump俿on
With Trolley
On
O� < 0.5W
NOTE: Product specica俿ons are subject to change without no俿ce.
78
Page 79
Timing Chart
HDMI (PC)
Resolu�on Refresh Rate
640 x 480 60 Hz
800 x 600 60 Hz
1024 x 768 60 Hz
1280 x 768 60 Hz
1280 x 800 60 Hz
1280 x 960 60 Hz
1280 x 1024 60 Hz
1360 x 768 60 Hz
1366 x 768 60 Hz
1400 x 1050 60 Hz
1440 x 900 60 Hz
1600 x 1200 60 Hz
1680 x 1050 60 Hz
1920 x 1080 60 Hz
79
Page 80
HDMI (Video)
Video Resolu�on Refresh Rate
480p
576p
800 x 600
1024 x 768
720p
1080p
2560 x 1080
3440 x 1440
2160p
640 x 480 60 Hz
720 x 576 50 Hz
800 x 600 60 Hz
1024 x 768 60 Hz
1280 x 720 50, 60 Hz
1920 x 1080 24, 25, 30, 50, 60 Hz
2560 x 1080 60 Hz
3440 x 1440 60 Hz
3840 x 2160 24, 25, 30, 50, 60 Hz
NOTE:
• The computer text quality is op俿mal in HD 1080 mode (1920 x 1080, 60
Hz).
• Your computer display screen might appear di�erent depending on the
manufacturer and your opera俿ng system.
• Consult your computer’s instruc俿onal manual on how to connect to an
external display.
• If a ver俿cal and horizontal frequency-select mode exists, select 60 Hz
(ver俿cal) and 67.5 kHz (horizontal). In some cases, abnormal signals (such
as stripes) might appear on the screen when the computer power is turned
o� (or if the computer is disconnected). If this is the case, press the [INPUT
SOURCE] bu忿on to enter the video mode and supply an ac俿ve signal.
• The display 俿mings conform to VESA and CTA standards.
• For 4:3 content, the screen will display them in the center of the screen
and maintain a 4:3 aspect ra俿o.
• The op俿mal ver俿cal frequency for each mode is 60Hz.
• HDMI 3 does not support YUV420.
80
Page 81
Supported Media Formats
Type File Type Codec Ability
Audio
.jpeg JFIF le format 1.02
.jpg JFIF le format 1.02
.bmp BMP
.gif GIF
.png PNG
.mp1/2/3
.wma
.wav
MPEG 1/2 Layer
1/2/3
WMA version 4, 4.1,
7, 8, 9, wmapro
MS-ADPCM, IMA-
ADPCM, PCM
Max Resolu俿on: 8176 x 8176
Min Resolu俿on: 48 x 48
Max Resolu俿on: 8176 x 8176
Min Resolu俿on: 48 x 48
Max Resolu俿on: 8176 x 8176
Min Resolu俿on: 48 x 49
Max Resolu俿on: 8176 x 8176
Min Resolu俿on: 48 x 50
Max Resolu俿on: 8176 x 8176
Min Resolu俿on: 48 x 51
Bit rate: 8 kbps~320 kbps, CBR and VBR
Sampling rate: 8 kHz~48 kHz
Bit rate: 8 kbps~320 kbps
Sampling rate: 8 kHz~48 kHz
Non-support WMA Pro, lossless and MBR
Sampling rate: 8 kHz~48 kHz
Support 4 bit MS-ADPCM, IMA-ADPCM
Video
.⿿ac Compress Level 0~8 Sampling rate: 8 kHz~48 kHz
ADIF ,ATDS Header
.aac\.m4a
.oog\.oga Q1~ Q10 Sampling rate: 8 kHz~48 kHz
.3gp
AAC-LC and
AAC-HE, AAC-ELD
MPEG4
H.263
H.264
Sampling rate: 8 kHz~48 kHz
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 38.4 Mbps
Not supported: MS MPEG4 v1, v2, v3
Not supported: GMC
Supported Image Size: SQCIF (128 x 96), QCIF
(176 x 144), CIF (352 x 288), 4CIF (704 x 576)
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 38.4 Mbps
Not supported: H.263+
Supported Image Size: 48 x 48 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 30 fps,
1080p @ 60 fps
Maximum Bit Rate: 100 Mbps
Supported: Field Coding
Supported: MBAFF
81
Page 82
Type File Type Codec Ability
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 45 Mbps
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 38.4 Mbps
Not supported: MS MPEG4 v1, v2, v3
Not supported: GMC
Supported Image Size: 48 x 48 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 30 fps,
1080p @ 60 fps
Maximum Bit Rate: 100 Mbps
Supported: Field Coding
Supported: MBAFF
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 45 Mbps
Video
.asf VC-1
MPEG4
H.264
.avi
VC-1
MJPEG
.dat MPEG-1/2
.⿿v H.264
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 38.4 Mbps
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 80 Mbps
Supported: Field Coding
Supported Image Size: 48 x 48 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 30 fps,
1080p @ 60 fps
Maximum Bit Rate: 100 Mbps
Supported: Field Coding
Supported: MBAFF
82
Page 83
Type File Type Codec Ability
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 38.4 Mbps
Not supported: MS MPEG4 v1, v2, v3
Not supported: GMC
Supported Image Size: 48 x 48 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 30 fps,
1080p @ 60 fps
Maximum Bit Rate: 100 Mbps
Supported: Field Coding
Supported: MBAFF
Supported Image Size: 48 x 48 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 30 fps,
1080p @ 60 fps
Maximum Bit Rate: 50 Mbps
Supported: Stereo High Prole only
Supported Image Size: 64 x 64 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 60 fps
Maximum Bit Rate: 100 Mbps
Supported: Main Prole & Main10 Prole
Supported: Tile & SLIC
Video
MPEG4
H.264
H.264 MVC
.mkv
H.265/HEVC
VC-1
VP8
VP9
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate :30 fps
Maximum Bit Rate: 45 Mbps
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 38.4 Mbps
Supported Image Size: 48 x 48 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 60fps
Maximum Bit Rate: 100 Mbps
83
Page 84
Type File Type Codec Ability
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
MPEG4
H.264
.mov
H.265/HEVC
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 38.4 Mbps
Not supported: MS MPEG4 v1, v2, v3
Not supported: GMC
Supported Image Size: 48 x 48 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 30 fps,
1080p @ 60 fps
Maximum Bit Rate: 100 Mbps
Supported: Field Coding
Supported: MBAFF
Supported Image Size: 64 x 64 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 60 fps
Maximum Bit Rate: 100 Mbps
Supported: Main Prole & Main10 Prole
Supported: Tile & SLIC
Video
H.263
.mp4 MPEG4
.mp5 H.264
.mp6 H.265/HEVC
Supported Image Size: SQCIF (128 x 96), QCIF
(176 x 144), CIF (352 x 288), 4CIF (704 x 576)
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 38.4 Mbps
Not supported: H.263+
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 38.4 Mbps
Not supported: MS MPEG4 v1, v2, v3
Not supported: GMC
Supported Image Size: 48 x 48 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 30 fps,
1080p @ 60 fps
Maximum Bit Rate: 100 Mbps
Supported: Field Coding
Supported: MBAFF
Supported Image Size: 64 x 64 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 60 fps
Maximum Bit Rate: 100 Mbps
Supported: Main Prole & Main10 Prole
Supported: Tile & SLIC
84
Page 85
Type File Type Codec Ability
Supported Image Size: SQCIF (128 x 96),
QCIF(176 x 144), CIF (352 x 288), 4CIF (704 x
.mp7 H.263
.mpg MPEG-1/2
MPEG-1/2
H.264
Video
576)
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 38.4 Mbps
Not supported: H.263+
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 80 Mbps
Supported: Field Coding
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 80 Mbps
Supported: Field Coding
Supported Image Size: 48 x 48 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 30 fps,
1080p @ 60 fps
Maximum Bit Rate: 100 Mbps
Supported: Field Coding
Supported: MBAFF
.ts
H.264 MVC
H.265/HEVC
VC-1
.vob MPEG-1/2
Supported Image Size: 48 x 48 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 30 fps,
1080p @ 60 fps
Maximum Bit Rate: 50 Mbps
Supported: Stereo High Prole only
Supported Image Size: 64 x 64 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 60 fps
Maximum Bit Rate: 100 Mbps
Supported: Main Prole & Main10 Prole
Supported: Tile & SLIC
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 45 Mbps
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 80 Mbps
Supported: Field Coding
85
Page 86
Type File Type Codec Ability
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 38.4 Mbps
Supported Image Size: 48 x 48 pixels to 4096
x 2304 pixels
Maximum Frame Rate: 2304p @ 60 fps
Maximum Bit Rate: 100 Mbps
Supported Image Size: 48 x 48 pixels to 1920
x 1080 pixels
Maximum Frame Rate: 30 fps
Maximum Bit Rate: 45 Mbps
Video
VP8
.webm
VP9
.wmv VC-1
86
Page 87
LED Display Stuck Pixel Deni�on
Item Acceptance Criteria
Stuck Pixel
(whole display)
Stuck Pixel
(as marked in green)
Stuck Pixel
(Single Module)
≤ 60 stuck pixels
≤ 15 stuck pixels
≤ 6 stuck pixels
87
Page 88
Maintenance Tools
LED Module Removal Tool
Dimensions
Specica�ons
Product Dimension
78 mm
120 mm
30 mm
30 mm
85 mm
49 mm
Item Descrip�on
Model
Weight
LD-MK-006
120 x 87 x 80 mm
4.72” x 3.43”x 3.15”
0.2 kg
0.44 lb
88
Page 89
Troubleshoo�ng
General
Problem or Issue Possible Solu�ons
Remote Control is not
working
1. Check whether something is obstruc俿ng the
display’s remote control receiver.
2. Check whether the ba忿ery polari俿es in the remote
control are installed correctly.
3. Check whether the ba忿eries need to be replaced.
1. Check whether Sleep mode is enabled.
2. Check if there is a power outage in your area.
The unit turns o�
unexpectedly
The power indicator
is o�, and there is no
response
The display does not
recognize the USB
storage device
3. Turn on the display, provide an ac俿ve signal, and
see if the problem is with the signal or external
control system.
4. Check whether the Ethernet cables inside the
cabinets are connected properly.
1. Ensure the power cable is connected and not loose.
2. Check that the power outlet is func俿oning properly
and meets the required electrical requirement.
1. Ensure the drive is either forma忿ed for FAT32 or
NTFS.
2. If the USB storage device needs external power,
connect its power adapter to an electrical outlet.
89
Page 90
Video Not Working Properly
Problem or Issue Possible Solu�ons
1. Check the Power status.
No picture/No sound
Picture is unclear or
cuts in and out
Poor picture
2. Check the signal cable.
3. Use the remote control to ensure the input source
se濿ng is the same as the connected device.
1. Check the signal cable.
2. Check if other electronics or di�erent signal types
are interrup俿ng the signal.
3. An op俿onal ac俿ve video cable or op俿onal video
extender is required for a long distance source.
1. Adjust chroma and/or brightness se濿ngs in the
menu.
2. Check the signal cable.
3. Use the display’s na俿ve resolu俿on for the source.
Audio Not Working Properly
Problem or Issue Possible Solu�ons
1. Press the Mute/Unmute bu忿on.
2. Adjust the volume.
No sound
One speaker only
3. Check the audio cable connec俿on (if used).
4. If using a computer digital video with embedded
audio, ensure the computer speakers are set to
external speakers.
1. Adjust the sound balance in the menu.
2. Check the le㿿 and right sound control panel se濿ngs
of the computer or media player source.
3. Check the audio cable connec俿on (if used).
4. Ensure the content has two audio channels and not
mono.
90
Page 91
Maintenance
General Precau�ons
• The LED lights used in the modules are suscep俿ble to ESD (Electrosta俿c
discharge). To prevent damage to the LED lights, do not touch them with bare
hands or with conduc俿ve materials when handling.
• Wear an俿-sta俿c gloves and wrist strap when installing and servicing the display.
• It is recommended to regularly inspect all installed components.
• Do not bring objects close to the ven俿la俿on holes of the display. Burns or
personal injuries may occur if any body parts are brought too close.
• Be sure to power o� and disconnect all cables before moving the display. Moving
the display with its cables a忿ached may damage the cables and thus cause re
or electric shock.
• Power o� and disconnect the power plug from the wall outlet as a safety
precau俿on before performing any type of cleaning or maintenance.
Ini�al Opera�on
• If a new screen has been stowed for less than three months, it can be used at
normal brightness during its rst use.
• If a new screen has been stowed for more than three months, the brightness
should be set at 30% for its rst use and allowed to operate for two hours
con俿nuously. A㿿er two hours of use, power o� for 30 minutes. The new screen
is now ready for normal brightness usage.
Front Panel Cleaning Instruc�ons
• Use cool, compressed air to remove dust when the power is o�. If the dust
cannot be removed, the LED module should be replaced.
• Do not scratch and do not put pressure on the panel surface with ngers or any
abrasive object.
• Do not use vola俿le substances such as sprays, solvents, or thinners.
91
Page 92
Cabinet Cleaning Instruc�ons
• Do not allow water or detergent to come into contact with the surface of the
display. If water or moisture gets inside the unit, a system malfunc俿on or
electrical shock may occur.
• Do not scratch and do not put pressure on the cabinet with any abrasive objects
of any kind.
• Do not use vola俿le substances such as sprays, solvents, or thinners on the
cabinet.
• Do not place anything made from rubber or PVC near the cabinet for any
extended periods of 俿me.
Regular Use
• It is recommended to turn on the display at least once a month for more than
eight hours. During a wet and rainy season, it is recommended to turn on the
display at least once a week.
• Avoid using full white, full red, full blue, or full green content for an extended
period to avoid excessive power usage thus a�ec俿ng the LED lifespan.
92
Page 93
RS-232 Protocol
This document describes the hardware interface and so㿿ware protocols of RS-232
interface communica俿on between the ViewSonic LED Display and computers or
other control units with RS-232 protocol.
Descrip�on
RS-232 Hardware Specica�on
ViewSonic RS-232 serial port on the lower le㿿 side:
1. Connector type: DB 9-Pin Female.
2. Use of straight-through parallel cable for connec俿on
3. Pin Assignment:
Pin # Signal Remark
1 NC
2 RXD Input to Display
Female DB 9-Pin
3 TXD Output from Display
4 NC
5 GND GND
6 NC
7 NC
8 NC
9 NC
frame GND
RS-232 Communica�on Se⿿ng
• Baud Rate Select: 115200bps (xed)
• Data bits: 8 bits (xed)
• Parity: None (xed)
• Stop Bits: 1 (xed)
NOTE: Make sure the Control Board Switch is switched to the le㿿 for RS-232
control.
93
Page 94
Command Table
Set Func�on Command Descrip�on Command HEX Data Range
Power on
/o�(standby)
Input Select s"22
Brightness s$24
Power lock s434
Volume s535
Mute s636
Bu忿on lock s838
Menu lock s>3E
s!21
000: STBY 801s!000
001: ON 801s!001
00A:HOME 801s"00A
004: HDMI1 801s"004
014: HDMI2 801s"014
024: HDMI3 801s"024
034: HDMI4 801s"034
000 ~ 100
900: Bright
down (-1)
901: Bright up
(+1)
000: Unlock 801s4000
001: Lock 801s4001
000 ~ 100
900: Volume
down(-1)
901:Volume
up(+1)
000: OFF 801s6000
001: ON (mute) 801s6001
000: Unlock 801s8000
001: Lock 801s8001
000: Unlock 801s>000
001: Lock 801s>001
801s$XXX
(XXX:000-100)
801s$900
801s$901
801s5XXX
(XXX:000-100)
801s5900
801s5901
38 30 31 73 21
30 30 30 0D
38 30 31 73 21
30 30 31 0D
38 30 31 73 22
30 30 33 0D
38 30 31 73 22
30 30 34 0D
38 30 31 73 22
30 31 34 0D
38 30 31 73 22
30 32 34 0D
38 30 31 73 22
30 33 34 0D
38 30 31 73 24
3X 3X 3X 0D
38 30 31 73 24
39 30 30 0D
38 30 31 73 24
39 30 31 0D
38 30 31 73 34
30 30 30 0D
38 30 31 73 34
30 30 31 0D
38 30 31 73 35
3X 3X 3X 0D
38 30 31 73 35
39 30 30 0D
38 30 31 73 35
39 30 31 0D
38 30 31 73 36
30 30 30 0D
38 30 31 73 36
30 30 31 0D
38 30 31 73 38
30 30 30 0D
38 30 31 73 38
30 30 31 0D
38 30 31 73 3E
30 30 30 0D
38 30 31 73 3E
30 30 31 0D
000-100
000-100
94
Page 95
Set Func�on Command Descrip�on Command HEX Data Range
000: UP 801sA000
001: DOWN 801sA001
002: LEFT 801sA002
003: RIGHT 801sA003
004: ENTER 801sA004
005: INPUT 801sA005
006: MENU/
007: EXIT 801sA007
008:power on/
Key Pad sA41
Remote Control sB42
Restore
default
Input Select:
Cycle
Contrast s#23 000 ~ 100
s~7E 000 801s~000
s"22 00Z 801s"00Z
009:input list 801sA009
010:brightness 801sA010
011:blank 801sA011
012:home 801sA012
013:volume+ 801sA013
014:volume- 801sA014
015:next 801sA015
016:previous 801sA016
017:mute 801sA017
018:play 801sA018
000: Disable 801sB000
001: Enable 801sB001
(EXIT)
o�
801sA006
801sA008
801s#XXX
(XXX:000-100)
38 30 31 73 41
30 30 30 0D
38 30 31 73 41
30 30 31 0D
38 30 31 73 41
30 30 32 0D
38 30 31 73 41
30 30 33 0D
38 30 31 73 41
30 30 34 0D
38 30 31 73 41
30 30 35 0D
38 30 31 73 41
30 30 36 0D
38 30 31 73 41
30 30 37 0D
38 30 31 73 41
30 30 38 0D
38 30 31 73 41
30 30 39 0D
38 30 31 73 41
30 31 30 0D
38 30 31 73 41
30 31 31 0D
38 30 31 73 41
30 31 32 0D
38 30 31 73 41
30 31 33 0D
38 30 31 73 41
30 31 34 0D
38 30 31 73 41
30 31 35 0D
38 30 31 73 41
30 31 36 0D
38 30 31 73 41
30 31 37 0D
38 30 31 73 41
30 31 38 0D
38 30 31 73 42
30 30 30 0D
38 30 31 73 42
30 30 31 0D
38 30 31 73 7E
30 30 30 0D
38 30 31 73 22
30 30 5A 0D
38 30 31 73 23
3X 3X 3X 0D
000-100
95
Page 96
Set Func�on Command Descrip�on Command HEX Data Range
Sharpness s%25 000 ~ 100
Color s&26 000 ~ 100
Tint s‘27 000 ~ 100
000: Normal 801s)000
001: Warm 801s)001
Color mode s)29
002: Cold 801s)002
003: Personal 801s)003
Freeze
On_O�
Bass s.2E 000 ~ 024
Treble s/2F 000 ~ 024
Zoom mode s131
s*2A
000: O� 801s*000
001: On 801s*001
000: FULL
(full screen)
Dynamic (16:9) 801s1001
002: REAL (1:1) 801s1002
003:21:9 801s1003
801s%XXX
(XXX:000-100)
801s&XXX
(XXX:000-100)
801s'XXX
(XXX:000-100)
801s.XXX
(XXX:000-024)
801s/XXX
(XXX:000-024)
801s1000
38 30 31 73 25
3X 3X 3X 0D
38 30 31 73 26
3X 3X 3X 0D
38 30 31 73 27
3X 3X 3X 0D
38 30 31 73 29
30 30 30 0D
38 30 31 73 29
30 30 31 0D
38 30 31 73 29
30 30 32 0D
38 30 31 73 29
30 30 33 0D
38 30 31 73 2A
30 30 30 0D
38 30 31 73 2A
30 30 31 0D
38 30 31 73 2E
3X 3X 3X 0D
38 30 31 73 2F
3X 3X 3X 0D
38 30 31 73 31
30 30 30 0D
38 30 31 73 31
30 30 31 0D
38 30 31 73 31
30 30 32 0D
38 30 31 73 31
30 30 33 0D
000-100
000-100
000-100
000-024
000-024
96
Page 97
Set Func�on Command Descrip�on Command HEX Data Range
OSD language s232
PBP-Mode s939
000: English 801s2000
001: French 801s2001
002: Spanish 801s2002
003:German 801s2003
004: Russian 801s2004
005:Dutch 801s2005
006: T-Chinese 801s2006
007: S-Chinese 801s2007
008: Turkish 801s2008
009: Arabic 801s2009
000:OFF 801s9000
001:PIP 801s9001
002:PBP 801s9002
003: Full Screen 801s9003
004: Dual
Screen
005: Three-part
Screen
006:Quad
Screen
801s9004
801s9005
801s9006
38 30 31 73 32
30 30 30 0D
38 30 31 73 32
30 30 31 0D
38 30 31 73 32
30 30 32 0D
38 30 31 73 32
30 30 33 0D
38 30 31 73 32
30 30 34 0D
38 30 31 73 32
30 30 35 0D
38 30 31 73 32
30 30 36 0D
38 30 31 73 32
30 30 37 0D
38 30 31 73 32
30 30 38 0D
38 30 31 73 32
30 30 39 0D
38 30 31 73 39
30 30 30 0D
38 30 31 73 39
30 30 31 0D
38 30 31 73 39
30 30 32 0D
38 30 31 73 39
30 30 33 0D
38 30 31 73 39
30 30 34 0D
38 30 31 73 39
30 30 35 0D
38 30 31 73 39
30 30 36 0D
97
Page 98
Set Func�on Command Descrip�on Command HEX Data Range
000: Up 801s;000
001: Down 801s;001
002: Le㿿 801s;002
003: Right 801s;003
PIP-Mode s;3B
004: Top-Le㿿 801s;004
005: Top-Right 801s;005
006: Bo忿om-
Le㿿
007: Bo忿om-
Right
004: HDMI1 801s7004
014: HDMI2 801s7014
PIP Input s737
PBP/PIP-Sound
select
Date: Year sV56 Y17~Y99
Date: Month sV56 M01~M12
Date: Day sV56 D01~D31
Time: Hour sW57 H00~H23
Time: Min sW57 M00~M59
Time: Sec sW57 S00~S59
Get-Brightness gb62 801gb000
s:3A
024: HDMI3 801s7024
034: HDMI4 801s7034
00A:HOME 801s700A
000: Pic1 801s:000
001: Pic2 801s:001
002: Pic3 801s:002
003: Pic4 801s:003
801s;006
801s;007
801sVYXX
(XX:17-99)
801sVMXX
(XX:01-12)
801sVDXX
(XX:01-31)
801sWHXX
(XX:00-23)
801sWMXX
(XX:00-59)
801sWSXX
(XX:00-59)
38 30 31 73 3B
30 30 30 0D
38 30 31 73 3B
30 30 31 0D
38 30 31 73 3B
30 30 32 0D
38 30 31 73 3B
30 30 33 0D
38 30 31 73 3B
30 30 34 0D
38 30 31 73 3B
30 30 35 0D
38 30 31 73 3B
30 30 36 0D
38 30 31 73 3B
30 30 37 0D
38 30 31 73 37
30 30 34 0D
38 30 31 73 37
30 31 34 0D
38 30 31 73 37
30 32 34 0D
38 30 31 73 37
30 33 34 0D
38 30 31 73 37
30 30 41 0D
38 30 31 73 3A
30 30 30 0D
38 30 31 73 3A
30 30 31 0D
38 30 31 73 3A
30 30 32 0D
38 30 31 73 3A
30 30 33 0D
38 30 31 73
56 59 3X 3X
0D
38 30 31 73 56
4D 3X 3X 0D
38 30 31 73 56
44 3X 3X 0D
38 30 31 73 57
48 3X 3X 0D
38 30 31 73 57
4D 3X 3X 0D
38 30 31 73 57
53 3X 3X 0D
38 30 31 67 62
30 30 30 0D
17-99
98
Page 99
Set Func�on Command Descrip�on Command HEX Data Range
Get-Volume gf66 801gf000
Get-Mute gg67 801gg000
Get-Input select gj6A 801gj000
Get-Power
status: ON/
STBY
Get-Remote
control
Get-Power lock go6F 801go000
Get-Bu忿on lock gp70 801gp000
Get-Menu lock gq71 801gq000
Get-ACK gz7A 801gz000
Get-Thermal g030 801g0000
Get-Opera俿on
hour
Get-Device
name
Get-MAC
address
Get-IP address g636 801g6000
Get-Serial
number
Get-FW version g838 801g8000
Get-Contrast ga61 801ga000
Get-Sharpness gc63 801gc000
Get-Color gd64 801gd000
Get-Tint ge65 801ge000
Get Freeze gi69 801gi000
Get-PBP mode gt74 801gt000
Get-Date: Year g232 801g2Y00
Get-Date:
Month
gl6C 801gl000
gn6E 801gn000
g131 801g1000
g434 801g4000
g535 801g5000
g737 801g7000
g232 801g2M00
38 30 31 67 66
30 30 30 0D
38 30 31 67 67
30 30 30 0D
38 30 31 67 6A
30 30 30 0D
38 30 31 67 6C
30 30 30 0D
38 30 31 67 6E
30 30 30 0D
38 30 31 67 6F
30 30 30 0D
38 30 31 67 70
30 30 30 0D
38 30 31 67 71
30 30 30 0D
38 30 31 67 7A
30 30 30 0D
38 30 31 67 30
30 30 30 0D
38 30 31 67 31
30 30 30 0D
38 30 31 67 34
30 30 30 0D
38 30 31 67 35
30 30 30 0D
38 30 31 67 36
30 30 30 0D
38 30 31 67 37
30 30 30 0D
38 30 31 67 38
30 30 30 0D
38 30 31 67 61
30 30 30 0D
38 30 31 67 63
30 30 30 0D
38 30 31 67 64
30 30 30 0D
38 30 31 67 65
30 30 30 0D
38 30 31 67 69
30 30 30 0D
38 30 31 67 74
30 30 30 0D
38 30 31 67 32
59 30 30 0D
38 30 31 67 32
4D 30 30 0D
99
Page 100
Set Func�on Command Descrip�on Command HEX Data Range
Get-Date: Day g232 801g2D00
Get-Time: Hour g333 801g3H00
Get-Time: Min g333 801g3M00
Get-Time: Sec g333 801g3S00
38 30 31 67 32
44 30 30 0D
38 30 31 67 33
48 30 30 0D
38 30 31 67 33
4D 30 30 0D
38 30 31 67 33
53 30 30 0D
Get Opera�on Time Example
Assumed the accumulated opera俿on 俿me is 00,123,456 hrs.
Send: 38 30 31 67 31 30 30 30 0D (Get Opera俿on 俿me)
Reply: 32 30 31 72 31 31 32 33 34 35 36 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 0D
100
Loading...
