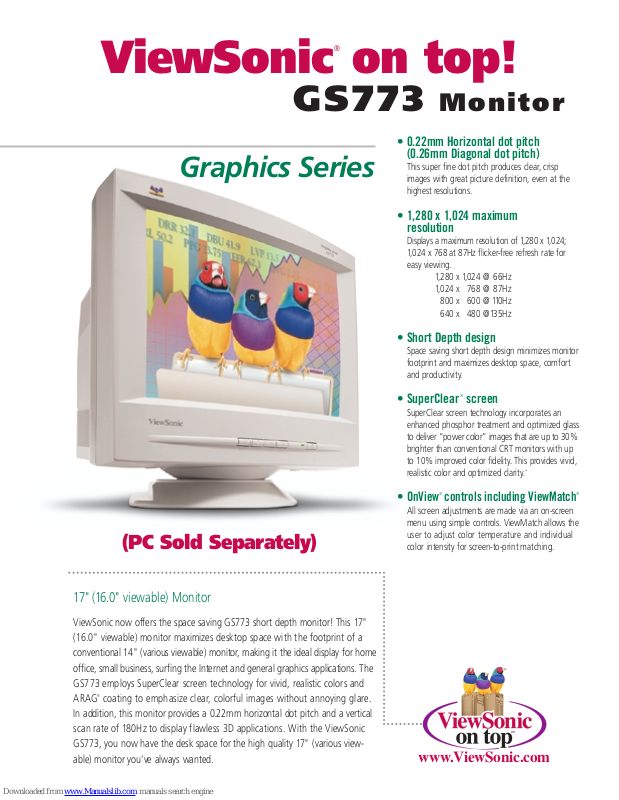

ViewSonic GS773 Specification Sheet

17" (16.0" viewable) Monitor

ViewSonic now offers the space saving GS773 short depth monitor! This 17"
(16.0" viewable) monitor maximizes desktop space with the footprint of a
conventional 14" (various viewable) monitor, making it the ideal display for home
office, small business, surfing the Internet and general graphics applications. The
GS773 employs SuperClear screen technology for vivid, realistic colors and
ARAG

®

coating to emphasize clear, colorful images without annoying glare.
In addition, this monitor provides a 0.22mm horizontal dot pitch and a vertical
scan rate of 180Hz to display flawless 3D applications. With the ViewSonic
GS773, you now have the desk space for the high quality 17" (various view­able) monitor you’ve always wanted.

• 0.22mm Horizontal dot pitch
(0.26mm Diagonal dot pitch)

This super fine dot pitch produces clear, crisp
images with great picture definition, even at the
highest resolutions.

• 1,280 x 1,024 maximum
resolution

Displays a maximum resolution of 1,280 x 1,024;
1,024 x 768 at 87Hz flicker-free refresh rate for
easy viewing.

1,280 x 1,024 @ 66Hz
1,024 x 768 @ 87Hz

800 x 600 @ 110Hz
640 x 480 @ 135Hz

• Short Depth design

Space saving short depth design minimizes monitor
footprint and maximizes desktop space, comfort
and productivity.

• SuperClear®screen

SuperClear screen technology incorporates an
enhanced phosphor treatment and optimized glass
to deliver “power color” images that are up to 30%
brighter than conventional CRT monitors with up
to 10% improved color fidelity. This provides vivid,
realistic color and optimized clarity.

*

•

OnView®controls including ViewMatch

®

All screen adjustments are made via an on-screen
menu using simple controls. ViewMatch allows the
user to adjust color temperature and individual
color intensity for screen-to-print matching.

GS773 Monitor

ViewSonic®on top!

www.ViewSonic.com

(PC Sold Separately)

Graphics Series

17" (16.0" VIEWABLE) GRAPHICS COLOR MONITOR WITH SUPERCLEAR

®

CRT Type 17" (16.0"diagonal viewable area)100˚ deflection

Dot Pitch 0.22mm Horizontal,0.13mm Vertical, 0.26mm Diagonal
Phosphor RGB medium persistence
Glass Surface Tint (TM=46%) ARAG®screen treatment

INPUT SIGNAL Video RGB analog (0.70Vp-p,75 ohms)

Sync H/V separate (TTL) composite sync,sync on green
Frequency Fh:30-70kHz, Fv:50-180Hz

COMPATIBILITY PC IBM®XT, AT, 386, 486, Pentium®, PS/2 and

compatibles (from VGA up to 1,280 x 1,024
non-interlaced)

Mac

®

**

Power Mac™(up to 1024 x 768)

CONNECTOR Signal 15-pin mini D-sub (attached cable)

Power 3-pin plug (IEC320)

POWER Voltage AC 90–132/198–264VAC 50-60Hz (auto switch)

Consumption 90W (typ)

USER CONTROLS Basic Power on/off, key-1,up, down, key-2

OnView

®

Contrast,brightness, H/V-position, H/V-size,
pincushion, trapezoid, pin-balance,parallelogram,
tilt, degauss, moiré reduction, ViewMatch

®

color,

color temperature,ViewMeter®, language, recall

VIDEO INPUT Bandwidth 110MHz (typ)
MISCONVERGENCE 0.3mm (max) at center

0.4mm (max) at corner

DISPLAY AREA Factory Setting 300mm(H) x 225mm(V) (Dependent upon

Maximum Scan 326mm(H) x 243mm(V) signal timing used)

OPERATING Temperature 32˚F to 104˚F (0˚C to 40˚C)
CONDITION

Humidity 5% to 95% (no-condensation)

DIMENSIONS Physical 420mm (W) x 436mm (H) x 385mm (D)

(16.5" x 17.2" x 15.2")

WEIGHT Net 16Kg (35.3 lbs.)
OTHER DDC1 & DDC2B; GTF
REGULATIONS UL, CSA, FCC,DHHS, DOC-B, Energy Star®,TCO ’92,

MPR-II, Energy 2000, TUV-GS,TUV-Ergo,Nordic,
CE, S-Mark, C-TICK

POWER MANAGEMENT Meets Energy Star®,VESA®DPMS™,TCO and

Energy 2000 standards

WARRANTY Three year limited warranty on CRT, parts and labor

48 hour Express Exchange

®

service option available

• ARAG screen treatment

This specially formulated anti-reflection, anti-glare
screen treatment uses a multi layer process to
refract unwanted light away from the user while
maintaining the highest quality of the displayed
image.

• TCO ’92 and Energy 2000 certified

This monitor complies with the world’s strictest
standards for low radiation, safety ergonomics,
recycling and power management while saving
costs through automatic power saving modes.

•

• PC and Mac compatible

• Three year limited warranty

*Compared to conventional CRT monitors, results may vary. **Requires Mac cable adapter.
