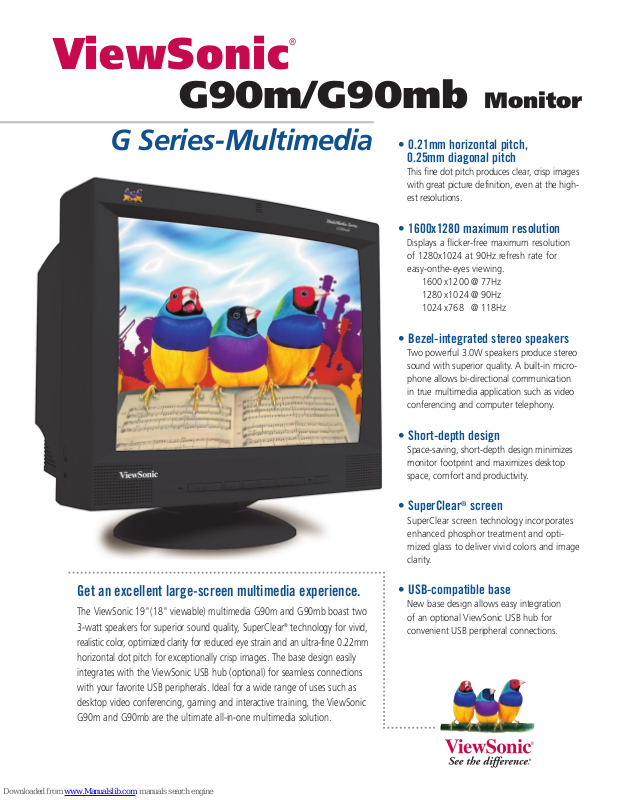

ViewSonic G90M, G90mb Specification Sheet

G Series-Multimedia

Get an excellent large-screen multimedia experience.

The ViewSonic 19"(18" viewable) multimedia G90m and G90mb boast two
3-watt speakers for superior sound quality, SuperClear

®

technology for vivid,
realistic color, optimized clarity for reduced eye strain and an ultra-fine 0.22mm
horizontal dot pitch for exceptionally crisp images. The base design easily
integrates with the ViewSonic USB hub (optional) for seamless connections
with your favorite USB peripherals. Ideal for a wide range of uses such as
desktop video conferencing, gaming and interactive training, the ViewSonic
G90m and G90mb are the ultimate all-in-one multimedia solution.

ViewSonic

®

G90m/G90mb Monitor

• 0.21mm horizontal pitch,

0.25mm diagonal pitch

This fine dot pitch produces clear, crisp images
with great picture definition, even at the high­est resolutions.

• 1600x1280 maximum resolution

Di

splays a flicker-free maximum resolution
of 1280x1024 at 90Hz refresh rate for
easy-onthe-eyes viewing.

1600 x 1200 @ 77Hz
1280 x 1024 @ 90Hz
1024 x 768 @ 118Hz

• Bezel-integrated stereo speakers

Two powerful 3.0W speakers produce stereo
sound with superior quality. A built-in micro­phone allows bi-directional communication
in true multimedia application such as video
conferencing and computer telephony.

• Short-depth design

Space-saving, short-depth design minimizes
monitor footprint and maximizes desktop
space, comfort and productivity.

• SuperClear®screen

SuperClear screen technology incorporates
enhanced phosphor treatment and opti­mized glass to deliver vivid colors and image
clarity.

• USB-compatible base

New base design allows easy integration
of an optional ViewSonic USB hub for
convenient USB peripheral connections.

Graphics Series

*Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names,
trademarks stated herein are the property of their respective companies. Copyright © 2002 ViewSonic Corporation. All rights reserved. [10549-00B-03/02_0M] G90m-1 VS-297

ViewSonic Corporation’s QMS & EMS have been registered

to ISO 9001 & ISO 14001, respectively, by the British Standards Institution.

ViewSonic

®

G90m/G90mb Monitor

G90m beige case version.

19" (18" VIEWABLE) MULTIMEDIA COLOR MONITOR WITH

CRT Type 19" (18" diagonal viewable area)100° deflection

Pitch 0.22 Horizontal,0.14mm Vertical, 0.26mm Diagonal
Phosphor RGB P22 medium persistence
Glass Surface Tint (TM=44%) ARAG®Screen Coating

INPUT SIGNAL

Video RGB analog (Impedance 75Ω,0.714 Vp-p)
Sync H/V separate (TTL),S0G, Composite Sync.
Frequency Fh:30-97kHz, Fv:50-160Hz

COMPATIBILITY

PC IBM PC and PC compatible (from VGA up to

1600x1200 non-interlaced)

Mac

®

*

Power Mac™compatible (up to 1600x1200)

CONNECTOR

Video In 15-pin mini D-sub, (attached cable)
Audio In 3.5mm pin mini jack (stereo)
Mic In/Out 3.5mm pin mini jack (mono/auxiliary)
Headphone Out 3.5 pin mini jack (stereo)
Power 3-pin plug (IEC320)

POWER

Voltage AC 100-240V 50/60 Hz (auto switch)
Consumption 120W (typ.)

USER CONTROLS

Basic Power, 1, down, up, 2, mute, volume

decrease and volume increase

OnView

®

Contrast, brightness, Zoom, Horizontal Size & Position,
Vertical Size & Position, Pincushion, Trapezoid, Parallel,
Tilt, H/V moiré, corner, ViewMatch

®

color, Degauss,

Memory Recall, ViewMeter®, language.
VIDEO INPUT Bandwidth 202 MHz (typ.)
AUDIO

Power 3W (x2) @ 1KHz, THD:1%
Response 100Hz-20KHz

MISCONVERGENCE 0.25mm (max) at Default center

0.35mm (max) at Default corners

DISPLAY AREA

Factory Setting 360mm (H) x 270mm (V) (typ.)
Full Scan 370mm (H) x 280mm (V)

OPERATING

Temperature 32°F to 104°F (0°C to 40°C)

CONDITION Humidity 5% to 95% (no condensation)
DIMENSIONS

Physical 448mm (W) x 452mm (H) x 420mm (D)

17.6" (W) x 17.8" (H) x 16.5" (D)

WEIGHT

Net 20.0Kg (44 lbs.)
Gross 23.0Kg (50.6 lbs.)

OTHER DDC1, DDC2B, GTF
REGULATIONS UL, cUL, DHHS,TUV, PTB,VCCI-II, FCC-B,

DOC class B, EN60950:1992, NEMKO, DEMKO, FIMKO,

SEMKO, CE, MPRII,TCO 99 (G90mb is TCO 95), PC,

BSMI, B mark, CE, CB, CCIB/CCEE S mark, C-tick,

ENERGY STAR®, ISO9241-3, E2K
POWER MANAGEMENT Meets E

NERGY STAR

®

,VESA®DPMSand

Energy 2000 standards
WARRANTY Three-year limited warranty on CRT, parts and labor.

48-hour Express Exchange

®

service option available.

381 Brea Canyon Road, Walnut, CA 91789 • Phone [phone] or [phone] • Fax [phone] • E-mail: [e-mail] • ViewSonic.com

• ARAG®screen treatment

This specially formulated anti-reflection,
anti-glare screen treatment uses a multi-layer
process to refract unwanted light away from the
user while maintaining the highest quality of the
displayed area.

• Headphone jack and external
mircophone port

Easily accessible headphone and microphone
jacks give users the flexibility of adding external
multimedia devices

• TCO ’99 and Energy 2000 certified

®

•

• PC and Mac

®

compatible

• Three-year limited warranty
