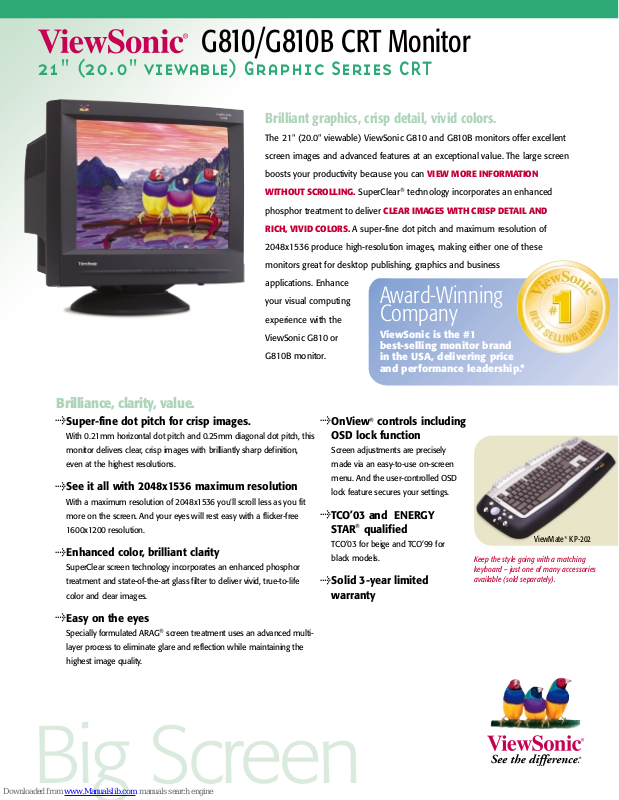

ViewSonic G810, G810B Specifications

Big Screen

Brilliant graphics, crisp detail, vivid colors.

The 21" (20.0" viewable) ViewSonic G810 and G810B monitors offer excellent

screen images and advanced features at an exceptional value. The large screen

boosts your productivity because you can VIEW MORE INFORMATION

WITHOUT SCROLLING. SuperClear®technology incorporates an enhanced

phosphor treatment to deliver CLEAR IMAGES WITH CRISP DETAIL AND

RICH, VIVID COLORS. A super-fine dot pitch and maximum resolution of

2048x1536 produce high-resolution images, making either one of these

monitors great for desktop publishing, graphics and business

applications. Enhance

your visual computing

experience with the

ViewSonic G810 or

G810B monitor.

>

Super-fine dot pitch for crisp images.

With 0.21mm horizontal dot pitch and 0.25mm diagonal dot pitch, this

monitor delivers clear, crisp images with brilliantly sharp definition,

even at the highest resolutions.

>

See it all with 2048x1536 maximum resolution

With a maximum resolution of 2048x1536 you'll scroll less as you fit

more on the screen. And your eyes will rest easy with a flicker-free

1600x1200 resolution.

>

Enhanced color, brilliant clarity

SuperClear screen technology incorporates an enhanced phosphor

treatment and state-of-the-art glass filter to deliver vivid, true-to-life

color and clear images.

>

Easy on the eyes

Specially formulated ARAG®screen treatment uses an advanced multi-

layer process to eliminate glare and reflection while maintaining the

highest image quality.

>

OnView®controls including
OSD lock function

Screen adjustments are precisely

made via an easy-to-use on-screen

menu. And the user-controlled OSD

lock feature secures your settings.

>

TCO’03 and ENERGY
STAR

®

qualified

TCO’03 for beige and TCO’99 for

black models.

>

Solid 3-year limited
warranty

Award-Winning
Company

ViewSonic is the #1
best-selling monitor brand
in the USA, delivering price
and performance leadership.*

G810/G810B CRT Monitor

21" (20.0" viewable) Graphic Series CRT

Brilliance, clarity, value.

ViewMate®KP-202

Keep the style going with a matching
keyboard – just one of many accessories
available (sold separately).

specifications

G810/G810B CRT Monitor

21" (20.0" viewable) Graphic Series CRT

For more product information, visit us on the web at ViewSonic.com

*Leading stand-alone, branded monitor by sales (CRT and LCDs combined; iSuppli/Stanford Resources Monitrak®and Flat Panel Monitrak,®1Q04 Report) **Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may
vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2004 ViewSonic Corporation. All rights reserved. [11875-00B-04/04] G810/G810B-6

ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Phone [phone] or [phone] • In Canada [phone] • Fax [phone] • [e-mail] • ViewSonic.com

1. One-touch buttons control all major functions

2. Attractive black case

3. SuperClear

®

delivers vivid color and clear images

1

21" (20.0" VIEWABLE) CRT MONITOR WITH SUPERCLEAR®SCREEN

CRT Type 21" (20.0 viewable), 90° deflection

Dot Pitch 0.21mm horizontal, 0.13mm vertical, 0.25mm diagonal
Glass Surface TM~50%, anti-reflection, anti-static

INPUT SIGNAL Video RGB analog (75 ohms, 0.7/1.0 Vp-p)

Frequency Fh: 30~97kHz, Fv: 50~180Hz
Sync H/V separated (TTL), composite

COMPATIBILITY PC VGA up to 2048x1536 non-interlaced

Mac®** Power Mac™ G3/G4 up to 1600x1200

CONNECTOR Analog 15-pin mini D-sub

Power 3-pin plug

POWER Voltage AC 90–264V, 50–60Hz

Consumption 115W (typ)

CONTROLS Basic Power, 1, down, up, 2

OnView

®

Contrast, brightness, H/V size, H/V position, zoom, pincushion, pincushion
balance, trapezoid, parallelogram, rotation, top hooking, bottom hooking,
H/V moiré, ViewMatch®color (9300k, 6500k, 5400k, 5000k, User),
ViewMeter®, degauss, memory recall, language, input level select, OSD
position

VIDEO INPUT Bandwidth 260 MHz (typ)

OPERATING Temperature 32–10 4º F (0–40º C)
CONDITIONS Humidity 5–95% (non-condensing)

DIMENSIONS Physical 500mm x 507mm x 488mm
(W x H x D) 19.7" x 20.0" x 19.2"

WEIGHT Net 50.6 lb. (23.0 kg)

Gross 55.0 lb. (25.0 kg)

REGULATIONS UL, cUL, DHHS, FCC-B, CB report, ICES-003, ENERGY STAR®, NOM, CCC,

TUV/GS, (covers ISO13406-2 and MPR II), TCO’99 (G810B), TCO’03 (G810).
NEMKO, SEMKO, DEMKO, FEMKO, PCBC, VCCI, BSMI, PSB, PCT, C-TICK,
TUV/Ergo, DOC, SASO, IRAM (TV/S)

POWER MANAGEMENT Meets TCO and ENERGY STAR®standards

WARRANTY Three-year limited warranty on CRT, parts and labor.

Also available:

Black (G810B), Beige (G810)

2

3

ViewSonic Corporation’s QMS & EMS have been registered to

ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
