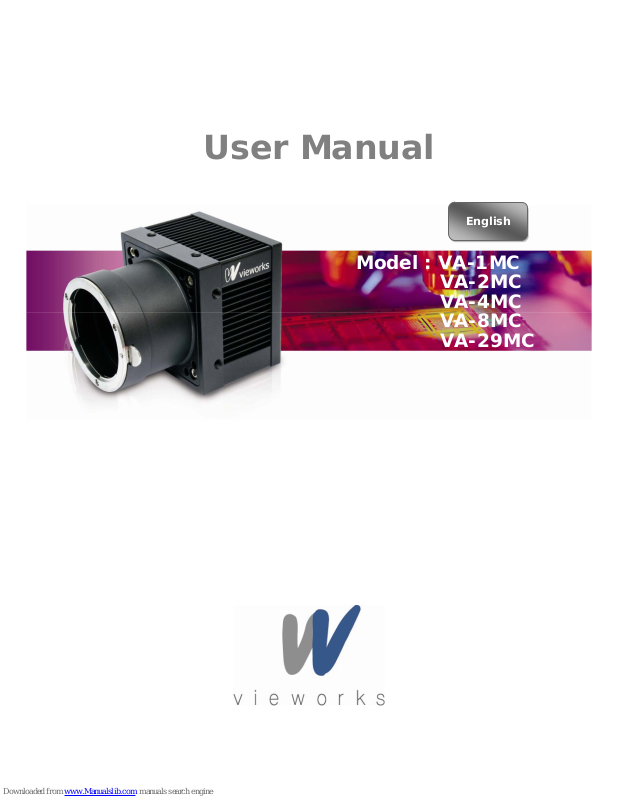

User Manual
Model : VA-1MC
VA-2MC
VA-4MC
VA-8MC
VA-29MC
English
VA Series
2 of 74 RA14-11A-012
Revision History
Revision Date Description
1.0 2010/01/01 Initial release
1.1 2010/05/10 Revised “ssp”,”stp” command, added “gmn” command
1.2 2010/06/28 Added Serial command response example
1.3 2010/07/23 Revised FPS formula
1.4 2010/11/22 Revised Binning content
1.5 2010/11/28 Revised Model naming conventions
1.6 2011/04/6 Added VA-29M model, Revised Word Style
1.7 2011/07/020
Revised VA series frame rate depending on the minimum AOI,
revised AOI Frame Rate formula and timing value for VA series
1.8 2011/08/01
Added 4 Tap-I (Sensor Readout: 4 Tap, Data Output: 2 Tap Interleaved)
Added Figure 7.24
Revised Figure 7.6, 7.7, 7.8, 7.9, 7.10, 7.11, 7.12, 7.13, 7.16
Added 4 Tap-I to “scm” command of Table 8.1
1.9 2011/10/26
VA-29M does NOT support 4 Tap-I.
Changed VA-29M Timing values – Table 7.1
Added VA-29M Frame Rate by VAOI changes graph – Figure 7.3
VA Series
3 of 74 RA14-11A-012
Contents
1 Precautions ....................................................................................................................... 6
2 Warranty ............................................................................................................................ 6
3 Compliance & Certifications ............................................................................................ 7
3.1 FCC Declaration .................................................................................................................. 7
3.2 CE : DoC .............................................................................................................................. 7
4 Components and Connections ....................................... ... .. .. ................................. .. .. ..... 8
4.1 Package Components ......................................................................................................... 8
4.2 Connecting the Camera ....................................................................................................... 9
4.3 Mount Plate .......................................................................................................................... 9
4.4 Precaution to center the image sensor ............................................................................. 10
4.5 Precaution about blurring compared to center .................................................................. 10
4.6 Controlling the Camera ...................................................................................................... 10
5 Product Specifications ................................................................................................... 11
5.1 Overview ............................................................................................................................. 11
5.2 Specifications ..................................................................................................................... 12
5.3 Camera Block Diagram ..................................................................................................... 14
5.4 Sensor Information ............................................................................................................ 15
5.5 Mechanical Specification ................................................................................................... 16
6 Camera Interface ............................................................................................................. 17
6.1 General Description ........................................................................................................... 17
6.2 Camera Link Connector ..................................................................................................... 17
6.3 Power Input Connector ...................................................................................................... 19
6.4 Control Connector .............................................................................................................. 20
6.5 Trigger Input Circuit ........................................................................................................... 21
6.6 Strobe Output Circuit ......................................................................................................... 21
7 Camera Features ............................................................................................................. 22
7.1 Area of Interest (AOI)......................................................................................................... 22
7.2 Binning ............................................................................................................................... 26
7.3 Trigger ................................................................................................................................ 27
7.3.1 Trigger Input ....................................................................................................................................27
7.4 Channel Mode ................................................................................................................... 33
7.5 Gain and Offset .................................................................................................................. 35
7.6 LUT .................................................................................................................................... 36
VA Series
4 of 74 RA14-11A-012
7.7 Defective Pixel Correction ................................................................................................. 37
7.7.1 Correction Method ...........................................................................................................................37
7.8 Flat Field Correction .......................................................................................................... 38
7.9 Temperature Monitor .......................................................................................................... 40
7.10 Status LED ......................................................................................................................... 40
7.11 Data Format ....................................................................................................................... 41
7.12 Test Image ......................................................................................................................... 42
7.13 Horizontal Flip .................................................................................................................... 44
7.14 Image Invert ....................................................................................................................... 45
7.15 Strobe ................................................................................................................................. 46
7.15.1 Strobe Offset .................................................................................................................................46
7.15.2 Strobe Polarity ...............................................................................................................................47
7.15.3 Field Upgrade ................................................................................................................................47
8 Camera Configuration .................................................................................................... 48
8.1 Setup command ................................................................................................................. 48
8.2 Parameter Storage Space ................................................................................................. 50
8.3 Command List .................................................................................................................... 51
9 Configurator GUI ............................................................................................................. 54
9.1 Camera Scan ..................................................................................................................... 54
9.2 Menu .................................................................................................................................. 55
9.2.1 File ...................................................................................................................................................55
9.2.2 Start-Up ............................................................................................................................................56
9.2.3 Tool ..................................................................................................................................................57
9.2.4 About ...............................................................................................................................................58
9.3 Tab ..................................................................................................................................... 59
9.3.1 VIEW Tab .........................................................................................................................................59
9.3.2 MODE/EXP Tab ...............................................................................................................................60
9.3.3 ANALOG Tab ...................................................................................................................................61
9.3.4 LUT Tab ...........................................................................................................................................62
9.3.5 FFC Tab ...........................................................................................................................................63
VA Series
5 of 74 RA14-11A-012
Appendix A Defective Pixel Map Download .................................................................... 64
Appendix B LUT Download ............................................................................................... 67
B.1 Gamma Graph Download .................................................................................................. 67
B.2 CSV File Download ............................................................................................................ 68
Appendix C Field Upgrade ................................................................................................ 70
C.1 MCU ................................................................................................................................... 70
C.2 FPGA ................................................................................................................................. 73
VA Series
6 of 74 RA14-11A-012
1 Precautions
General
Do not drop, damage, disassemble, repair or alter the device.
Do not let children touch the device without supervision.
Do not use the device for any other purpose then specified.
Contact your nearest distributor in case of trouble or problem.
Installation and Maintenance
Do not install the device in a place subject to direct sun light, humidity, dust or soot.
Do not place magnets near the product.
Do not place the device next to heating equipments.
Be careful not to let liquid like water, drinks or chemicals leak inside the device.
Clean the device often to remove dust on it.
In clearing, do not splash water on the device but wipe it out with smooth cloth or towel.
Power Supply
It is recommended the use of 12V DC with ±10% of voltage, over 1A of output current
with KC, CE or other local certification. If voltage over 16V is supplied, it will cause
damages to the device.
※ Vieworks Co., Ltd. does NOT provide power supplies with the devices.
2 Warranty
For information about the warranty, please contact your local dealer or factory representative.
VA Series
7 of 74 RA14-11A-012
3 Compliance & Certifications
3.1 FCC Declaration
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at own expenses.
3.2 CE : DoC
EMC Directive 2004/108/EC.
Testing Standard EN 55022:2006+A1:2007, EN 55024:1998+A1:2001+A2:2003
Class A
KCC Statement
Type Description
Class A
(Broadcasting
Communication Device for
Office Use)
This device obtained EMC registration for office use (Class A), and
may be used in places other than home. Sellers and/or users
need to take note of this.
VA Series
8 of 74 RA14-11A-012
4 Components and Connections
4.1 Package Components
Package Components
VA Camera <C-mount> VA Camera <F-Mount>
Mount Plate (Optional)
VA Series
9 of 74 RA14-11A-012
4.2 Connecting the Camera
The following instructions assume that you have installed a Camera Link frame grabber in your PC including
related software. For more information, refer to your Camera Link frame grabber User Manual.
To connect the camera to your PC, follow the steps below:
1 Make sure that the power supply is not connected to the camera and your PC is turned off.
2 Plug one end of a Camera Link cable into the Camera Link connector on the camera and the
other end of the Camera Link cable into the connector on your Camera Link frame grabber.
3 Connect the plug of the power adaptor to the power input connector on the camera.
4 Plug the power adaptor into a working electrical outlet.
5 Verify all the cable connections are secure.
4.3 Mount Plate
The Mount Plate is provided as an optional item.
The camera can be fixed without using this Mount Plate.
VA Series
10 of 74 RA14-11A-012
4.4 Precaution to center the image sensor
User does not need to center the image sensor as it is adjusted as factory default settings.
When you need to adjust the center of image sensor, please contact your local dealer or the manufacturer
for technical assistance.
4.5 Precaution about blurring compared to center
User does not need to adjust the tilt as it is adjusted as factory default settings.
If the tilt settings need to be adjusted inevitably, please contact your local dealer or factory representative for
technical support.
4.6 Controlling the Camera
Execute Configurator.exe included in the CD (refer to page 54).
Configurator program is NOT necessary to install.
For more information, refer to your Camera Link frame grabber user manual.
VA Series
11 of 74 RA14-11A-012
5 Product Specifications
5.1 Overview
The VA Series is a progressive scan, high-resolution industrial area scan cameras. All functions of VA cameras
can be programmed and updated in the field. The image processing and controls of VA Series are based on
embedded FPGA with a 32-bit microprocessor.
Main Features
Area Of Interest (AOI)
Trigger Mode
Binning Mode – 2 × 2 / 4 × 4
Output Pixel Format – 8 / 10 / 12 bit
Output Channel – 1 Tap / 2 Tap / 4 Tap
Auto Taps Adjustment
Electronic Shutter – Global Shutter
2D Flat Field Correction
Strobe Output
Analog Gain adjustment function
Analog Offset adjustment function
Look Up Table
Defective Pixel Correction
Flat Field Correction
Test Image
Horizontal Flip
Image Invert
RS-644 Serial Communication
Temperature Monitor
Field Upgrade
Base Camera Link
VA Series
12 of 74 RA14-11A-012
5.2 Specifications
VA Series VA-1M VA-2M VA-2M (HD) VA-4M VA-8M
Active Image
(H x V)
1024 × 1024 1600 × 1200 1920 × 1080 2336 × 1752 3296 × 2472
Sensor Type
Kodak
KAI-01050
Kodak
KAI-02050
Kodak
KAI-02150
Kodak
KAI-04050
Kodak
KAI-08050
Pixel size
5.5 ㎛ × 5.5 ㎛
Sensor Output 1 , 2 or 4 Tap Output
Video Output 8/10/12 bits, 1 or 2 Tap (Interleaved or Top & Bottom)
Camera Interface Camera Link (Base)
Electronic Shutter Global Shutter
Max. Frame Rate
at Full Resolution
125 fps 70 fps 67 fps 33 fps 16 fps
Pixel Clock
40 / 80 ㎒
Exposure Time
1/100000 ~ 7 sec (10 ㎲ step)
Partial Scan
(Max. Speed)
337 fps
at 120 Lines
183 fps
at 150 Lines
180 fps
at 120 Lines
142 fps
at 200 Lines
84 fps
at 300 Lines
Gamma
Correction
User defined LUT (Look Up Table)
Black Offset Adjustable (0 ~ 127 LSB at 12 bits , 256 step)
Video Gain
Analog Gain : 0 ~ 32 ㏈, 900 step
Trigger Mode
Mode(Free-Run, Overlap, Fast, Double),
Programmable exposure time and trigger polarity
External Trigger
External, 3.3 V - 5.0 V, 10 ㎃, optically isolated
Software Trigger Camera Link CC1, Programmable Exposure
Dynamic Range
64 ㏈
Lens Mount C-mount or F-mount
Power 10 ~ 14 V DC, Max. 6W
Environmental
Operating: -5℃ ~ 40℃, Storage : -30℃ ~ 65℃
Mechanical
68 ㎜ x 68 ㎜ x 54 ㎜, 420 g (with C-mount adaptor)
68 ㎜ x 68 ㎜ x 83 ㎜, 460 g (with F-mount adaptor)
Table 5.1 Specifications of VA Series (VA-1/2/4/8M)
VA Series
13 of 74 RA14-11A-012
VA Series VA-29M
Active Image
(H x V)
6576 × 4384
Sensor Type Kodak KAI-29050
Pixel size
5.5 ㎛ × 5.5 ㎛
Sensor Output 1 , 2 or 4 Tap Output
Video Output 8/10/12 bits, 1 or 2 Tap (Interleaved or Top & Bottom)
Camera Interface Camera Link (Base)
Electronic Shutter Global Shutter
Max. Frame Rate
at Full Resolution
5 fps (High Speed)
Pixel Clock
30 / 60 ㎒ or 40 / 80 ㎒ (High Speed)
Exposure Time
1/100000 sec ~ 7 sec (10 ㎲ step)
Partial Scan 16 fps at 1000 Lines (max. speed)
Gamma
Correction
User defined LUT (Look Up Table)
Black Offset Adjustable (0 ~ 127 LSB at 12 bit, 256 step)
Video Gain
Analog Gain : 0 ~ 32 ㏈, 900 step
Trigger Mode
Mode (Free-Run, Overlap, Fast, Double),
Programmable exposure time and trigger polarity
External Trigger
External, 3.3 V - 5.0 V, 10 ㎃, optically isolated
Software Trigger Camera Link CC1, Programmable Exposure
Dynamic Range
64 ㏈
Lens Mount C-mount or F-mount
Power 10 ~ 14 V DC, Max. 6W
Environmental
Operating: -5℃ ~ 40℃, Storage :-30℃ ~ 65℃
Mechanical
68 ㎜ X 68 ㎜ X 83 ㎜, 460 g (with F-mount adaptor)
Table 5.2 Specifications of VA Series (VA-29M)
VA Series
14 of 74 RA14-11A-012
5.3 Camera Block Diagram
KAI-0XX50
CCD
Sensor
14 bit
ADC
Timing
Generator
Processing /
Control Logic
Micro
Controller
CCD Driver
FLASH SRAM
Trigger
Strobe
FPGA
14 Bit
Analog Front End
Camera -
Link
Interface
Figure 5.1 Camera Block Diagram
All controls and data processing of VA cameras are carried out in one FPGA chip. The FPGA generally consists
of a 32 bit RICS Micro-Controller and Processing & Control Logic. The Micro-Controller receives commands from
the user through the Camera Link interface and then processes them. The FPGA controls the Timing Generators
(TGs) and the Analog Front End (AFE) chips where the TGs generate CCD control signals and AFE chips
convert analog CCD output to digital values to be accepted by the Processing & Control Logic. The Processing &
Control Logic processes the image data received from AFE and then transmits data through the Camera Link
interface. And also, the Processing & Control Logic controls the trigger inputs and strobe outputs which are
sensitive to time. Furthermore, SDRAM and FLASH is installed outside FPGA. SDRAM is used for the frame
buffer to process images and FLASH contains the firmware that operates the Micro-Controller.
VA Series
15 of 74 RA14-11A-012
5.4 Sensor Information
The following graphs show the spectral response for VA monochrome and color cameras.
Figure 5.2 CCD Quantum Efficiency (Top: Monochrome, Bottom: Color)
VA Series
16 of 74 RA14-11A-012
5.5 Mechanical Specification
The camera dimensions in millimeters are as shown in the following figure.
Figure 5.3 VA Camera Mechanical Dimension
VA Series
17 of 74 RA14-11A-012
6 Camera Interface
6.1 General Description
As shown in the following figure, 3 types of connectors and status indicator LED are located on the back of the
camera and have the functions as follows:
① 26 pin Camera Link Connector: controls video data transmission and the camera.
② Status LED: displays power status and operation mode.
③ 6 pin Power Input Connector: supplies power to the camera.
④ 4 pin Control Connector: inputs external trigger signal and outputs strobe.
Figure 6.1 VA Series Back Panel
6.2 Camera Link Connector
CAMERA LINK 1
1
13
26
14
Figure 6.2 Camera Link Connector
①
②
③
④
VA Series
18 of 74 RA14-11A-012
Camera output complies with Camera Link Standard and the following list shows the pin configuration of the
connector.
PAIR List Pin Signal Name Type Description
PAIR 0
1 Ground Ground Cable Shield
14 Ground Ground Cable Shield
PAIR 1
2 -X0 LVDS - Out Camera Link Transmitter
15 +X0 LVDS - Out Camera Link Transmitter
PAIR 2
3 -X1 LVDS - Out Camera Link Transmitter
16 +X1 LVDS - Out Camera Link Transmitter
PAIR 3
4 -X2 LVDS - Out Camera Link Transmitter
17 +X2 LVDS - Out Camera Link Transmitter
PAIR 4
5 -X3 LVDS - Out Camera Link Transmitter
18 +X3 LVDS - Out Camera Link Transmitter
PAIR 5
6 -XCLK LVDS - Out Camera Link Transmitter
19 -XCLK LVDS - Out Camera Link Transmitter
PAIR 6
7 - SerTC LV DS - I n Serial Data Receiver
20 + SerTC LVDS - In Serial Data Receiver
PAIR 7
8 - SerTFG LVDS - Out Serial Data Transmitter
21 + SerTFG LVDS - Out Serial Data Transmitter
PAIR 8
9 - CC 1 LVDS - In Software External Trigger
22 + CC 1 LVDS - In Software External Trigger
PAIR 9
10 N/C N/C N/C
23 N/C N/C N/C
PAIR 1 0
11 N/C N/C N/C
24 N/C N/C N/C
PAIR 11
12 N/C N/C N/C
25 N/C N/C N/C
PAIR 1 2
13 Ground Ground Cable Shield
26 Ground Ground Cable Shield
T able 6.1 Pin Assignments for Camera Link Base Configuration
VA Series
19 of 74 RA14-11A-012
1
2
34
5
6
6.3 Power Input Connector
The power input connector is a Hirose 6 pin connector (part # HR10A-7R-6PB). Pin arrangement and
configuration are as follows:
Figure 6.3 Pin Arrangement of Power Input Connector
Pin Number Signal Type Description
1, 2 , 3 + 12V DC Input DC Power Input
4 , 5 , 6 DC Ground Input DC Ground
T able 6.2 Pin Configuration of Power Input Connector
Connecting the power cable to the camera can be made by using the Hirose 6 pin plug (part # HR10A-7P-6S) or
the equivalent. The power adaptor is recommended to have at least 1A current output at 12 V DC ±10% voltage
output (Users need to purchase the power adaptor separately).
Precaution for Power Input
Make sure the power is turned off before connecting the power cord to the camera.
Otherwise, damage to the camera may result.
If the camera input voltage is greater than 16 V, damage to the camera may result.
VA Series
20 of 74 RA14-11A-012
6.4 Control Connector
The control connector is a Hirose 4 pin connector (part # HR10A-7R-4S) and consists of an external trigger
signal input and strobe output port. Pin arrangement and configuration are as follows:
Figure 6.4 Pin Arrangement of Control Connector
Pin Number Signal Type Description
1 Trigger Input + Input -
2 Trigger Input - Input -
3 DC Ground - DC Ground
4 Strobe Out Output
3.3 V TTL Output
Output resistance : 47 Ω
Table 6.3 Pin Arrangement of Control Connector
The mating connector is a Hirose 4 pin plug (part # HR10A-7P-4P) or the equivalent connectors.
1
2
4
3
VA Series
21 of 74 RA14-11A-012
6.5 Trigger Input Circuit
Following figure shows trigger signal input circuit of the 4-pin connector. Transmitted trigger signal is applied to
the internal circuit through a photo coupler. Minimum trigger width that can be recognized by the camera is 1 ㎲.
If transmitted trigger signal is less than 1 ㎲, the camera will ignore the trigger signal. External trigger circuit
example is shown below.
TRIGGER_IN +
1
2
3
4
HR10A-7R -4SB
330 Ω
PHOTO COUPLER
TRI GGE R+
+5V
1 kΩ
USER
TRI GGE R-
Camera
3.3 ~ 5 V
0 V
TTL D riv er
Figure 6.5 Trigger Input Schematic
6.6 Strobe Output Circuit
The strobe output signal is 3.3 V output level of a TTL Driver IC. The pulse width of signal is synchronized with
the exposure signal (shutter) of the camera.
0 V
3.3 V
Strobe_Out +
Strobe_Out -
47 Ω
Strobe Out
TTL Driv er
1
2
3
4
HR10A-7R-4SB
Camera
USER
Figure 6.6 Strobe Output Schematic
VA Series
22 of 74 RA14-11A-012
7 Camera Features
7.1 Area of Interest (AOI)
AOI is the area containing the data required by the user within the entire image. The user can obtain the image
faster than obtaining overall areas by designating the area as AOI while keeping the same high quality. AOI is
determined as the overlapping area of 2 areas when designating start point and end point in horizontal and
vertical direction as shown in figure below. Start point and End point mean the starting and end of the AOI.
According to characteristics of the sensor structure, readout of the image will be proceeded at the top and
bottom simultaneously. If the Channel mode is set to 4 Tap and Vertical AOI is applied, V End will be ignored
because V End is defined by V Start. The actual V End will be applied according to the following formula:
V End = (VSIZE – V Start) - 1
The narrower Vertical AOI is designated, the faster the frame speed will be. However Horizontal AOI does not
affect frame speed. For more information about AOI parameter settings, see “sha” and “sva” command on
Command List
.
Figure 7.1 AOI
The AOI values (H × V) may vary depending on the type of Camera Link frame grabber.
For technical assistance, contact to your local dealer or the manufacturer.
Vertic al
AOI
Area Of Interest
(0, VSIZE - 1)
H Start
H End
V Start
V End
(HSIZE - 1, VSIZE - 1)
(HSIZE - 1, 0)
(0, 0)
VA Series
23 of 74 RA14-11A-012
The maximum frame speed depending on the change of Vertical AOI can be obtained as shown in the following
expression.
1 or 2 Channel Mode :
Frame Rate (fps) = 1000000 / [T
VCCD
+ TFD × {V
SIZE
– (V
AOI
+ 12)} + (V
AOI
+ 12) × TL]
4 Channel Mode :
Frame Rate (fps) = 1000000 / [T
VCCD
+ TFD × {V
SIZE
– (V
AOI
+ 12)}/2 + {(V
AOI
+ 12) × TL}/2]
T
VCCD
: time required to move electric charges accumulated on pixel to Vertical
Register
TFD : time required for Fast Dump
V
SIZE
: number of Vertical Line of CCD
TL : time required for transmission of one line
V
AOI
: size of Vertical AOI
The available minimum value of T
VCCD
, TFD, V
SIZE
, TL and V
AOI
may vary depending on the camera model. The
value of T
L
may vary depending on the channel mode. The values of each item depending on the camera model
are shown below.
VA Series VA-1M VA-2M VA-2M (HD) VA-4M VA-8M VA-29M
T
VCCD
11.4 ㎲ 12.0 ㎲ 11. 6 ㎲ 15.0 ㎲ 17.0 ㎲ 56.3 ㎲
TL (1 channel)
28.6 ㎲ 44.5 ㎲ 52.1 ㎲ 63.9 ㎲ 90.5 ㎲ 172.3 ㎲
TL (2 channel)
15.2 ㎲ 23.4 ㎲ 26.9 ㎲ 34.4 ㎲ 46.6 ㎲ 90.125 ㎲
TL (4 channel)
15.2 ㎲ 23.4 ㎲ 26.9 ㎲ 34.4 ㎲ 46.6 ㎲ 90.125 ㎲
TFD (TL * 1.1) /4 (TL * 1.1) /4 (TL * 1.1) /4
4.2 ㎲ 4.1 ㎲ 6.8 ㎲
V
SIZE
1064 Lines 1264 Lines 1144 Lines 1800 Lines 2520 Lines 4384 Lines
Minimum
Vertical AOI
Size
120 Lines 150 Lines 120 Lines 200 Lines 300 Lines 500 Lines
T able 7.1 Timing Value for VA Series
VA Series
24 of 74 RA14-11A-012
The following figure shows frame rate depending on VAOI changes.
Figure 7.2 Frame Rate by VAOI changes (continuous)
VA Series
25 of 74 RA14-11A-012
Figure 7.3 Frame Rate by VAOI changes
VA Series
26 of 74 RA14-11A-012
7.2 Binning
Binning has the effects of increasing the level value and decreasing resolution by adding the values of the
adjacent pixels and sending them as one pixel. VA Series provides four binning factors ( x1, x2, x4, x8) that the
user can apply either vertically, horizontally or in both directions. The below figure shows application of 2 × 2
Binning and 4 × 4 Binning respectively. Since Binning in vertical direction is processed at internal register of
CCD, the frame speed increases as many as Binning Factor if Binning is applied, but Binning in horizontal
direction does not affect frame speed. Binning Factor is set using “sbf” command.
Figure 7.4 2x2 Binning
Figure 7.5 4x4 Binning
Even if the binning is performed on the color camera, the resulting image will be
monochrome.
VA Series
27 of 74 RA14-11A-012
7.3 Trigger
7.3.1 Trigger Input
Trigger mode of the camera is divided into Trigger synchronous mode and Trigger asynchronous mode
(hereinafter “Free-Run mode”) depending on its synchronization with trigger input. Trigger synchronous mode is
divided into Standard mode, Double Exposure mode, Fast mode, Overlap mode, depending on concrete
operation type.
It is required to set the trigger first to operate the camera in Trigger synchronous mode. In concrete, it is required
to select which one of CC1 port and TRIGGER_IN port should be used as trigger input and to set whether
polarity of trigger should be Positive or Negative.
7.3.1.1 Free-Run Mode
Free-Run Mode repeats Readout depending on parameter value set in the camera currently, regardless of
trigger input.
Figure 7.6 Free-Run Mode
As shown in the above figure, Readout section overlaps with exposure section of next image in Free-Run Mode.
At this time, the camera operation slightly differs depending on length of Exposure Time and Readout time. If
Exposure Time is shorter than Readout, Shutter signal occurs during readout, and when Readout finishes,
Readout of next image starts (Figure 7.7
). In this case, frame speed is constant regardless of change in
Exposure Time. But if Exposure Time is set longer than Readout time, Shutter signal occurs together with start of
Readout and Readout of next image does not start until Exposure Time set elapses even if Readout finishes
(Figure 7.8
). In this case, frame speed gets lower as the setting value of Exposure Time increases.
VA Series
28 of 74 RA14-11A-012
Standard Frame Time
Exposure Time
VCCD
SHUTTER
READOUT
( 1, 2, 4 Tap)
Readout Time
DATA
Figure 7.7 Exposure Time is shorter than Readout Time
Figure 7.8 Exposure Time is longer than Readout Time
VA Series
29 of 74 RA14-11A-012
7.3.1.2 Standard Mode
In Standard Mode, the camera keeps standby status until trigger signal is entered, and when trigger input occurs,
Readout start after Exposure process set earlier. After Readout is completed, and returns to trigger standby
status again. In Standard Trigger mode, if a new trigger input occurs during readout, the new trigger input is
ignored.
Figure 7.9 Standard Trigger Mode
Figure 7.10 Retriggering
VA Series
30 of 74 RA14-11A-012
7.3.1.3 Double Exposure
In Double Exposure mode, 2 images are obtained with 1 trigger input. When trigger input is entered in this mode,
the camera starts Readout after passing through exposure process according to exposure setting as in Standard
mode. At this time, exposure of second image starts with Readout. When Readout is completed, the camera
performs the second Readout. Since it does not generate shutter signal during Readout of the 1st image, the
interval between completion of 1st exposure and starting of 2nd exposure is as short as several ㎲ ~ several
decades ㎲.
TRIGGER
SHUTTER
VCCD
READOUT
( 1, 2, 4 Tap)
STROBE
EXPOSURE
Exposur for
Image 1
Exposure for
Image 2
Image 1 Image 2
READOUT
( 4 Tap-I )
Image 1 Image 2
Figure 7.11 Double Exposure Trigger Mode
VA Series
31 of 74 RA14-11A-012
7.3.1.4 Fast Mode
Fast Mode is used when interval of trigger input is faster and more continuous than in Standard Mode. Its
difference from Standard Mode is that while Readout starts in exposure time as set earlier when trigger input
occurs in Standard Mode, while Readout immediately starts after trigger input in Fast Mode. And Interval
between triggers becomes the exposure time of image since it does not generate shutter signal during Readout.
Figure 7.12 Fast Trigger Mode
VA Series
32 of 74 RA14-11A-012
7.3.1.5 Overlap Mode
The camera keeps standby status until trigger signal is entered like in Standard Mode, and Readout starts after
exposure process set earlier if trigger input occurs. When new trigger input occurs during Readout of First image,
it keeps Readout and pass exposure process of new trigger input. Provided, however, that when trigger input
occurs during Exposure since Exposure Time is longer than trigger interval, that trigger signal is ignored. To
obtain the image as maximum frame for trigger input, Exposure Time should not be longer than Readout time,
trigger time should not be shorter than Readout time.
Channel Mode VA-1M VA-2M VA-2M (HD) VA-4M VA-8M VA-29M
1 channel 29.3 ms 53.5 ms 56.5 ms 112.8 ms 226.5 ms 763.1 ms
2 channel 15.5 ms 28.0 ms 29.0 ms 59.7 ms 121.9 ms 397.7 ms
4 channel 7.9 ms 14.2 ms 14.7 ms 30.1 ms 61.3 ms 199.6 ms
T able 7.2 Readout Time for each model
When an acquired image is being readout of the sensor with 4 Tap-I (Sensor Readout: 4 Tap, Data Output: 2 Tap
Interleaved), the entire image will be stored in the buffer before transmitting the image to the frame grabber. This
leads latency (Trd: a half of Readout time).
Figure 7.13 Overlap Trigger Mode
VA Series
33 of 74 RA14-11A-012
7.4 Channel Mode
Accumulated charges are read out of the sensor when exposure ends. Te sensor can be read out in one tap
(single channel), two tap (dual channel) or four tap (quadrant channel). In case of one tap output, all pixel values
of Horizontal Register are shifted towards the left bottom Video Amplifier (Video A). In case of two tap output,
pixel values from left to the center of Horizontal Register are shifted towards the Video A, and pixel values from
the right are shifted towards the Video B. In case of four tap output, pixel values of the lower left area are shifted
towards the Video A, pixels values of the lower right area are shifted towards the Video B, pixel values of the
upper left area are shifted towards the Video C, and pixel values of the upper right area are shifted towards the
Video D. The advantage of four tap output is that it makes readout about 4 times faster than one tap output.
Figure 7.14 Channel Mode
VA Series
34 of 74 RA14-11A-012
The camera processes and rearranges the image data in order to be compliant with the base Camera Link
Standard. In single channel, image data is read out line-by-line from the upper left corner until the last pixel in the
lower right corner is read out. In dual channel, image data is read out of Channel A and B simultaneously in
interleaved order. In quadrant channel, image data which is transmitted from Video A, B, C and D simultaneously,
is read out with 2 Tap top and bottom or 2 Tap interleaved (Figure 7.16
).
VA-29M supports only 2 Tap top and bottom readout when using the quadrant channel.
Figure 7.15 Image Data Flow
Figure 7.16 Data Output
VA Series
35 of 74 RA14-11A-012
7.5 Gain and Offset
The camera has one Analog Signal Processor (or Analog Front End, abbreviated to AFE) for each channel. This
AFE consists of Correlated double Sampler (CDS), Variable Gain Amplifier (VGA), Black Level Clamp and 12 bit
A/D converter. AFE has register for Gain and Offset application inside, and can change Gain and Offset value by
entering proper value in the register. Gain can be set between 0 ~ 899. The relationship between setting value
and actual Gain (㏈) is as follows:
Gain(㏈) = (Setting value × 0.035 ㏈)
0
6
12
18
24
30
36
0 100 200 300 400 500 600 700 800
Gain(dB)
GainCurve
RegisterValue
Figure 7.17 Register Setting for Gain Value
Offset can be set between 0 ~ 255 (LSB).
VA Series
36 of 74 RA14-11A-012
7.6 LUT
LUT (Lookup Table) converts original image value to certain level value. Since it is mapped one to one for each
level value, 12-bit output can be connected to 12-bit input. LUT is in the form of table that has 4096 entries
between 0~4095 and provides 2 non-volatile spaces for LUT data storage. User can select whether to apply LUT
or not and where to apply the LUT using “sls” command. See Appendix B
for how to download LUT data in the
camera.
Figure 7.18 LUT Block
LUT
0
500
1000
1500
2000
2500
3000
3500
4000
0 500 1000 1500 2000 2500 3000 3500 4000
Input L ev el
Output Level
Figure 7.19 LUT at Gamma 0.5
VA Series
37 of 74 RA14-11A-012
7.7 Defective Pixel Correction
The CCD may have Defective Pixels which cannot properly react to the light. Correction is required since it may
deteriorate the quality of output image. Defective Pixel information of CCD used for each camera is entered into
the camera at the factory. If the user wants to add Defective Pixel information, it is required to enter coordinate of
new Defective Pixel into the camera. See Appendix A
for details. “sdc” command is used to set whether to use
Defective Pixel Correction function.
7.7.1 Correction Method
Correction value Defective Pixel is calculated based on valid pixel value adjacent in the same line.
Figure 7.20 Location of Defective Pixel to be Corrected
If Current Pixel is a Defective Pixel as shown in the above figure, correction value of this pixel is obtained as
shown in the following table depending on whether surrounding pixel is Defective Pixel or not.
Adjacent Defective Pixel(s) Correction value of Current Pixel
None (L1 + R1) / 2
L1 R1
R1 L1
L1, R1 (L2 + R2 ) / 2
L1, R1, R2 L2
L2, L1, R1 R2
L2, L1, R1, R2 (L3 + R3) / 2
L2, L1, R1, R2, R3 L3
L3, L2, L1, R1, R2 R3
Table 7.3 Calculation of Defective Pixel Correction Value
VA Series
38 of 74 RA14-11A-012
7.8 Flat Field Correction
Flat Field Correction is a function which corrects a non-uniform pixel response across a CCD and makes the
response as uniform as possible (flat), assuming the offsets are non-varying (fixed) patterns. The Flat Field
Correction function can be summarized by the following equation:
IC = {(IR – IB) × M } / (IF – IB)
Where,
IC : Level value of corrected image;
IR : Level value of original image;
IB : Black offset value;
M : Offset value of image after correction;
IF : Level value of Flat Field data.
In order to use the Flat Field Correction function, one must first generate IF, the Flat Field data. This can be done
by adjusting the camera to the environment and activating the Flat Field Generator. The Flat Field Generator will
standardize a series of images, curtailing the image to a ratio of 1/64, generate the curtailed Flat Field data, and
store it in the external frame buffer. When curtailed images are used for corrections, it is expanded and applied
with a Bilinear Interpolation as shown in Figure 7.22
. When the Flat Field data is generated, use the “sfo”
command to set the M value, and use the “sfc” command to apply the Flat Field Correction. Here, the Flat Field
data is stored on the RAM, a volatile memory. In order to reuse the stored data, the “sdf” command must be
used to store them on the FLASH, a non-volatile memory.
1. The activation of the Flat Field Generator will ignore the current camera configuration and
will temporarily change the camera configuration to operate under the following default
conditions. When the generation of the Flat Field data is complete, the original setting of
the camera will be restored.
Readout Mode: Normal
Trigger Mode: Free-Run
Channel Mode: Single
Defective Pixel Correction: ON
2. The offset value M is based on the Normal Readout mode. According to the AOI mode,
Binning mode, or Dual Channel mode, the offset value of an actual image is expressed
differently.
VA Series
39 of 74 RA14-11A-012
Figure 7.21 Generation and Application of Flat Field Data
Figure 7.22 Bilinear Interpolated Magnification
p
ixel
pixel
VA Series
40 of 74 RA14-11A-012
7.9 Temperature Monitor
Sensor chip is embedded in the camera to monitor the internal temperature. “gct” command is used to check the
temperature of camera.
7.10 Status LED
There is green LED to inform the operation status of camera on the back of camera. LED status and
corresponding camera status are as follows:
Continuous ON operates in Free-Run Mode.
Repeat ON for 0.5 seconds, OFF for 0.5 seconds: operates in Trigger Mode.
Repeat ON for 1 second, OFF for 1 second: outputs Test Image.
Repeat ON for 0.25 second, OFF for 0.25 second: operates in Trigger Mode and outputs Test
Image.
VA Series
41 of 74 RA14-11A-012
7.11 Data Format
Data can be processed in the unit of 12 bit internally, but can be selectively output in the unit of 8, 10 or 12bit at
output. When it is output in 8bit or 10bit unit, the 4 or 2 least significant bits will be dropped from overall 12bits.
Figure 7.23 Data Format (1/2/4 Tap)
In 4 Tap-I (Sensor Readout: 4 Tap, Data Output: 2 Tap Interleaved) mode, image data will be transmitted in the
unit of 8 bit. So, if data format is set to 10 or 12 bit, the 2 or 4 least significant bits will be set to zero.
Figure 7.24 Data Format (4 Tap-I)
VA Series
42 of 74 RA14-11A-012
7.12 Test Image
To check normal operation of camera, it can be set to output test image created inside, instead of image data
from CCD. There are 3 types of test image; image with different value in horizontal direction (Test Image 1),
image with different value in diagonal direction (Test Image 2), and moving image with different value in diagonal
direction (Test Image 3). Test image can be applied in all operation modes of camera and is set using “sti”
command.
Figure 7.25 Test Image 1
VA Series
43 of 74 RA14-11A-012
Figure 7.26 Test Image 2
Figure 7.27 Test Image 3
VA Series
44 of 74 RA14-11A-012
7.13 Horizontal Flip
Function to flip the image right and left based on the central axis of image. This function can be applied to all
operation modes and “shf” command is used to set whether to use this function or not.
Figure 7.28 Original Image
Figure 7.29 Horizontally Flipped Image
VA Series
45 of 74 RA14-11A-012
7.14 Image Invert
Function to invert the level value of output image. Level value inverted differs depending on output data format
even if input value is same. This function can be applied in all operation modes of camera and “sii” command is
used to set whether to use this function or not.
Data Format Original Value Inverted Level Value
8 0 255
10 0 1023
12 0 4095
Table 7.4 Inverted level value by Data Format
Figure 7.30 Original image (Positive)
Figure 7.31 Inverted image (Negative)
VA Series
46 of 74 RA14-11A-012
7.15 Strobe
Strobe signal is used to synchronize the external light source with camera or to measure the exposure time
applied to current camera. Pulse width of Strobe signal is from the generating point of Shutter signal to the
starting point of Readout, which coincides with exposure time of camera.
7.15.1 Strobe Offset
Strobe Offset value indicates when Strobe signal is to be sent after Shutter signal. Value can be set in the unit of
1 ㎲ using “sso” command. Only pulse location moves without change in pulse width of Strobe signal.
Figure 7.32 Strobe signal in Free-Run
Figure 7.33 Strobe signal in Trigger mode
VA Series
47 of 74 RA14-11A-012
7.15.2 Strobe Polarity
Polarity can be set for the Strobe signal output. The “ssp” command is used to set the polarity of Strobe signal.
7.15.3 Field Upgrade
The camera provides the function to upgrade Firmware and FGPA logic through Camera Link interface rather
than disassemble the camera in the field. See Appendix C
for details on how to upgrade.
VA Series
48 of 74 RA14-11A-012
8 Camera Configuration
8.1 Setup command
All setup in camera is carried out RS-644 serial interface of camera link. With the following communication
setting, it can be controlled using terminal or direct control at user application.
Baud Rate: 19200 bps
Data Bit: 8 bit
Parity Bit: No Parity
Stop bit: 1 stop bit
Flow control: None
All types of camera setting commands except Firmware Download, requiring massive data transmission are
delivered in ASCII command type. All camera setup commands start from user application and the camera
returns the response (“OK”, “Error” or information) for the command. The camera informs the completion of
command execution through response with write command, while the camera returns the error response or
information with read command.
Command format:
<command> <parameter1> <parameter2> <cr>
0~2 parameters follow the command.
Response:
- If execution of write command is successfully completed
OK <cr> <lf>
ex) Write command
In response to a “set 100” command the camera will return (in hex value)
Command : 73 65 74 20 31 30 30 0D
set 100<cr>
Response : 73 65 74 20 31 30 30 0D 0A 4F 4B 0D 0A 3E
set 100<cr><lf> OK<cr><lf> >
Echo result prompt
VA Series
49 of 74 RA14-11A-012
If execution of read command is successfully completed
<parameter1> <cr> <lf>
ex) Read command
In response to a “get” command the camera will return (in hex value)
Command : 67 65 74 0D
get <cr>
Response : 67 65 74 0D 0A 31 30 30 0D 0A 3E
get<cr><lf> 100<cr><lf> >
echo response prompt
If execution of command is not completed
Error : <Error Code> <cr> <lf>
Prompt:
After sending response, Camera sends prompt always. ‘>’is used as prompt.
Types of Error Code
0x80000481 : values of parameter not valid
0x80000482 : number of parameter is not matched
0x80000484 : command that does not exist
0x80000486 : no execution right
VA Series
50 of 74 RA14-11A-012
8.2 Parameter Storage Space
The camera has 3 non-volatile storage space used for parameter storage and 1 volatile work space that is
applied to actual camera operation. 3 storage space is divided into Factory Space that contain basic value at the
factory, and 2 user space(User Space 1, User Space 2) that can save parameter value temporarily set by the
user. User space can be read and written, but Factory space can be read only.
At camera booting, setting value in one of 3 storage spaces is copied to work space according to Config
Initialization value and value of the space is used for camera setting. Since values in work space is valid only
while the power is on, it should be copied to user space 1 or user space 2 using “sct” command.
Figure 8.1 Parameter Area
VA Series
51 of 74 RA14-11A-012
8.3 Command List
Command Syntax
Value
Returned
Description
Help h String Displays a list of all commands
Set Read-Out Mode
Get Read-Out Mode
srm 0|1|2
grm
OK
0|1|2
0 : Normal Mode
1 : AOI(Area Of Interest) Mode
(AOI area is set using “sha” and “sva”
commands)
2 : Binning( 2 or 4 ) Mode
(Binning Factor is set using “sbf” command)
Set Horizontal Area
Get Horizontal Area
sha n1 n2
gha
OK
n1 n2
n1: Starting point of horizontal direction
n2 : End point of horizontal direction
Set Vertical Area
Get Vertical Area
sva n1 n2
gva
OK
n1 n2
n1 : Starting point of vertical direction
n2 : End point of vertical direction
Set Binning Factor
Get Binning Factor
sbf 2|4
gti
OK
2|4
2 : 2 by 2 binning
4 : 4 by 4 binning
Set Test Image
Get Test Image
sti 0|1|2|3
gti
OK
0|1|2|3
0 : Off
1/2 : Fixed Pattern Image
3 : Moving Pattern Image
Set Data Bit
Get Data Bit
sdb 8|10|12
gdb
OK
8|10|12
8 : 8 Bit Output
10 : 10 Bit Output
12 : 12 Bit Output
Set Channel Mode
Get Channel Mode
scm 1|2|3|4
gcm
OK
1|2|3|4
1 : 1 Tap Output
2 : 2 Tap Output
3 : 4 Tap-I Output
4 : 4 Tap Output
Set LUT Select
Get LUT Select
sls 0|1|2
gls
OK
0|1|2
0 : Off
1 : LUT1, 2 : LUT2
Set Flat-Field Correction
Get Flat-Field
Correction
sfc 0|1
gfc
OK
0|1
0 : Off
1 : Active of Flat-Field Correction
Set Defect Correction
Get Defect Correction
sdc 0|1
gdc
OK
0|1
0 : Off
1 : Active of Defect Correction
Table 8.1 Command List #1
VA Series
52 of 74 RA14-11A-012
Command Syntax
Value
Returned
Description
Set Image Invert
Get Image Invert
sii 0|1
gii
OK
0|1
0 : Off
1 : Active of Image Invert
Set Horizontal Flip
Get Horizontal Flip
shf 0|1
ghf
OK
0|1
0 : Off
1 : Active of Defect Correction
Set Trigger Mode
Get Trigger Mode
stm 0|1|2|3|4
gtm
OK
0|1|2|3|4
0 : Free-Run Mode
1 : Standard Mode
2 : Fast Mode
3 : Double Mode
4 : Overlap Mode
Set Exposure Source
Get Exposure Source
ses 0|1
ges
OK
1|2
0 : Program Exposure(by camera)
1 : Pulse Width (by trigger input signal)
Set Trigger Source
Get Trigger Source
sts 1|2
gts
OK
1|2
1 : CC1 Port Input (Camera Link)
2 : External Input (External control port)
Set Trigger Polarity
Get Trigger Polarity
stp 0|1
gtp
OK
0|1
0 : Active Low
1 : Active High
Set Exposure Time
Get Exposure Time
set n
get
OK
n
n : Exposure Time in ㎲
(Setting range : 10 ~ 7,000,000 ㎲)
Set Strobe Offset
Get Strobe Offset
sso n
gso
OK
n
n : Strobe Offset Time in ㎲
(Setting range : 0 ~ 10,000 ㎲)
Set Strobe Polarity
Get Strobe Polarity
ssp 0|1
gsp
OK
0|1
0 : Active Low
1 : Active High
Set Analog Gain
Get Analog Gain
sag n
gag
OK
n
n :Analog Gain Parameter
(Setting Range : 0 ~ 899)
Set Analog Offset
Get Analog Offset
sao n
gao
OK
N
n :Analog Gain Parameter
(Setting Range : 0 ~ 255)
Set Gain Offset
Get Gain Offset
sgo 2|3|4 n
ggo 2|3|4
OK
n
2 : AFE Channel of Right Top Image
3 : AFE Channel of Left Bottom Image
4 : AFE Channel of Right bottom Image
n : Analog Gain offset Parameter
(Setting Range : -20 ~ +20)
Auto Gain Offset ago OK Auto-Generation Gain Offset
Table 8.2 Command List #2
VA Series
53 of 74 RA14-11A-012
Command Syntax
Value
Returned
Description
Generate Flat Field Data gfd OK Operate Flat Field Generator
Save Flat Field Data sfd OK Save Flat Field Data
Load Flat Field Data lfd OK Load Flat Field Data
Set Flat Field Iteration
Get Flat Field Iteration
sfi n
gfi
OK
n
n : (2 ^ n) image acquisitions
(Setting Range : 0 ~ 4)
Set Flat Field Offset
Get Flat Field Offset
sfo n
gfo
OK
n
n : Flat Field Target Level
(Setting Range : 0 ~ 4095)
Table 8.3 Command List #3
Command Syntax
Value
Returned
Description
Load Config From lcf 0|1|2 OK
0 : Load from Factory Setting
1 : Load from User 1 Setting
2 : Load from User 2 Setting
Save Config To sct 1|2 OK
0 : Save to User 0 Setting(inactive)
1 : Save to User 1 Setting
2 : Save to User 2 Setting
Set Config Initialization
Get Config Initialization
sci 0|1|2
gci
OK
0|1|2
0 : Load from Factory Setting when
initializing
1 : Load from User 1 Setting when initializing
2 : Load from User 2 Setting when initializing
Get MCU Version gmv String Displays MCU Version
Get Model Number gmn String Displays Model Number
Get FPGA Version gfv String Displays FPGA Version
Get Serial Number gsn piece String Display Serial Number
Get Current Temperature gct String Display Temperature Value
Table 8.4 Command List #4
VA Series
54 of 74 RA14-11A-012
9 Configurator GUI
Configurator, a sample application, is provided to control VA Series camera. Configurator provides easy-to-use
Graphic User Interface (GUI) for the user while using the commands mentioned previous chapters.
9.1 Camera Scan
When you execute the program while the camera is turned on, Camera Scan window appears as shown in the
figure below. At this time, the program checks serial port of computer and DLL provided by camera link to scan
whether the camera is connected. If there is a camera connected, it displays model name on the screen. If the
camera is not properly displayed on the screen, check the connection of cable with power of camera and press
refresh button. When you double-click model name displayed on the screen, Configurator is executed and
displays current setting value of camera connected.
Figure 9.1 Configurator Loading Window
VA Series
55 of 74 RA14-11A-012
9.2 Menu
9.2.1 File
Figure 9.2 File menu
Load Setting: Loads the camera setting values from the camera memory (Factory,
User1 or User2) or user computer (From File).
Save Setting: Saves the camera setting values to the camera memory (User1 or
User2) or user computer (To File).
Defect Pixel: Downloads defect information to the camera (Download to Camera) or
uploads defect information saved in the camera to user computer
(Upload to PC).
System Upgrade: Upgrades MCU program or FPGA logic.
Exit: Exits Configurator.
VA Series
56 of 74 RA14-11A-012
9.2.2 Start-Up
The user can select the camera setting values to load when the camera is turned on.
Figure 9.3 Start-Up Menu
Factory Setting: Loads the camera setting values from Factory Space.
User1 Setting: Loads the camera setting values from User1 Space.
User2 Setting: Loads the camera setting values from User2 Space.
VA Series
57 of 74 RA14-11A-012
9.2.3 Tool
Figure 9.4 Tool Menu
Refresh: Loads and displays the current camera setting values on Configurator.
Terminal: Displays user commands in Terminal window under GUI.
To hide Terminal window, uncheck Terminal by clicking again.
Color Calibration: Performs Bayer sensor color calibration.
Factory Setting: Not supported in the user side.
High Speed: Not supported on VA Series.
VA Series
58 of 74 RA14-11A-012
9.2.4 About
Figure 9.5 About Menu
Camera Info: Displays camera information (product name, serial number, version, etc).
VA Series
59 of 74 RA14-11A-012
9.3 Tab
9.3.1 VIEW Tab
VIEW tab allows the user to set the camera readout mode, test image mode, data bit, channel, LUT, image
processing, etc.
Figure 9.6 VIEW Tab
Mode: Selects readout mode. If AOI is selected, AOI setting area is activated and
AOI can be set by entering desired values. If Binning is selected, ×2, ×4
option buttons are activated.
Test Image: Selects whether to apply test image and type of test image.
Data Bit: Selects width of data output.
Channel: Selects channel mode.
LUT: Selects whether to apply LUT and type of LUT.
Imaging Processing: Sets Flat Field Correction, Defect Correction, Image Invert or Horizontal
Flip functions On or Off.
VA Series
60 of 74 RA14-11A-012
9.3.2 MODE/EXP Tab
MODE/EXP tab allows the user to select trigger mode, exposure time and strobe. All scroll bars are controllable
with the mouse wheel scroll.
Figure 9.7 MODE/EXP Tab
Trigger Mode: Selects trigger mode. Once a mode has been selected, related selections will
be activated.
Exposure: Selects exposure source.
Source: Selects trigger source.
Polarity: Selects polarity of trigger input.
Exposure Time: Sets exposure time when trigger mode is set with Free-Run mode or when
Exposure is set with Program.
Strobe Offset: Sets strobe offset.
Strobe Polarity: Sets the polarity of strobe output signal.
VA Series
61 of 74 RA14-11A-012
9.3.3 ANALOG Tab
ANALOG tab allows the user to set gain and offset settings of the image. All scroll bars are controllable with the
mouse wheel scroll.
Figure 9.8 ANALOG Tab
Analog Gain: Sets gain value of each channel. Auto Adjustment will be activated after checking
Adjustment and compensates Tap differences automatically. Fine Adjustment of
Right-Top, Left-Bottom and Right-Bottom will be affected based on Left-Top.
After clicking the Auto Adjustment button, at least one or more images must be captured by
the camera.
Analog Offset: Sets offset values of both channels.
VA Series
62 of 74 RA14-11A-012
9.3.4 LUT Tab
LUT tab allows the user to download LUT data. See Appendix B for more details on LUT Download.
Figure 9.9 LUT Tab
Graph: Loads LUT data from the user computer or sets Gamma
value to be applied while using Gamma curve.
Camera LUT Download / Upload: Downloads LUT data to camera from the user computer
(Download) or uploads LUT data saved in the camera to the
user computer (Upload to PC).
VA Series
63 of 74 RA14-11A-012
9.3.5 FFC Tab
FFC tab allows the user to set Flat Field Correction settings. All scroll bars are controllable with the mouse wheel
scroll.
Figure 9.10 FFC Tab
FFC Data: Generates the FF data to be used for correction and sets how
many images will be used for the generation.
Flash Memory: Saves the generated FF data to Flash in order to reuse in the
future or retrieves the saved FF data.
FFC Data Download / Upload: Downloads FFC Data from the user computer (Download to
camera) or uploads FFC Data to the user computer
(Upload to PC).
FFC Offset Level: Sets the offset value of the image after Flat Field Correction is
applied.
VA Series
64 of 74 RA14-11A-012
Appendix A Defective Pixel Map Download
1. Create the Defective Pixel Map data in Microsoft Excel format as shown in the left picture below and save as a
CSV file (*.csv). The picture in the right shows the created Excel file opened in Notepad. The following rules
need to be applied when creating the file.
Lines beginning with ‘:’ or ‘—‘ are treated as notes.
Each row is produced in the order of the horizontal and vertical coordinate values.
The input sequence of pixel is irrelevant.
2. Select File > Defect Pixel > Download to Camera on Configurator.
VA Series
65 of 74 RA14-11A-012
3. Search and select the created file and click Open.
4. Configurator starts downloading defective pixel map data to the camera and downloading status is displayed
at the bottom of the window.
VA Series
66 of 74 RA14-11A-012
5. Once the download has been completed, the saving process will begin. During the saving process, make sure
not to disconnect the power cord.
6. Once all the processes have been completed, Download completed message will appear at the bottom of
the window.
VA Series
67 of 74 RA14-11A-012
Appendix B LUT Download
LUT data can be created in two ways; by adjusting the gamma values on the gamma graph provided in the
program and then downloading the data or by opening a CSV file (*.csv) and then downloading the data.
B.1 Gamma Graph Download
1. Set a desired gamma value on LUT tab and click Apply.
2. Select LUT1 or LUT2 as a location to store the data and click Download.
VA Series
68 of 74 RA14-11A-012
3. Once the download has been completed, Download completed message will appear at the bottom of the
window.
B.2 CSV File Download
1. Create the LUT table in Microsoft Excel format as shown in the left picture below and save as a CSV file
(*.csv). The picture in the right shows the created file opened in Notepad. Once the file has been created
completely, change the .csv file extension to .lut. The following rules need to be applied when creating the file.
Lines beginning with ‘:’ or ‘—‘ are treated as notes.
Based on the input values, make sure to record from 0 to 4095.
VA Series
69 of 74 RA14-11A-012
2. Click Load File on LUT tab.
3. Search and select the created LUT file and click Open.
4. Select LUT1 or LUT2 as location to store the data and click Download. The subsequent processes are
identical to those of Gamma Graph Download.
VA Series
70 of 74 RA14-11A-012
Appendix C Field Upgrade
C.1 MCU
1. Select File > System Upgrade > MCU Upgrade on Configurator.
2. Search and select the provided MCU upgrade file (*.srec) then click Open.
VA Series
71 of 74 RA14-11A-012
3. Configurator starts downloading MCU upgrade file to the camera and downloading status is displayed at the
bottom of the window. If you want to cancel the upgrade process, click Cancel. This process requires several
minutes to complete.
4. Once the download has been completed, the saving process will begin. During the saving process, the
camera cannot be restored if a power failure occurs. Make sure that the power connection is secure.
VA Series
72 of 74 RA14-11A-012
5. Once all the processes have been completed, turn the power off and turn it back on again. Select Tool >
Terminal and enter the “gmv” command to confirm the version. Or, select About > Camera Info to confirm the
MCU version.
VA Series
73 of 74 RA14-11A-012
C.2 FPGA
1. Select File > System Upgrade > FPGA Upgrade on Configurator.
2. Search and select the provided FPGA upgrade file (*.bin) and click Open.
3. The subsequent processes are identical to those of MCU upgrade.
Vieworks Co., Ltd.
#601-610 SuntechcityⅡ, 307-2 Sangda e won-dong,
Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-806 South Korea
Tel: +82-70-7011-6161 Fax: +82-31-737-4954
machinevision.vieworks.com
vieworks@vieworks.com
Loading...
