Vieworks FXRD-1717NAW User Manual
VIVIX-S 1717N User Manual
Information
Power LED
Status LED
Data LED
In process of booting after the power
permission
Blink
OFF
OFF
Booting completed (Abnormal)
ON
- - Booting completed (Normal)
ON
ON
OFF
Ready for communication
ON
ON
ON
Sleep Mode
ON
Blink
OFF
In process of wireless initialization
ON
Blink
OFF
Data Communication (Send or Store)
ON
ON
Blink
Power OFF
OFF
OFF
OFF
4.2.4 Checking Status LED of Detector
Power LED
The power LED indicates the power status information which is permitted to the detector in green.
The power LED lights up when the power is permitted normally.
If the detector is connected with a tether interface, the power LED lights up when power is permitted
to SCU because the detector is supplied power from SCU.
Active LED
The active LED indicates status information about the possibility that the detector can be used
normally or not in orange.
The active LED is blinking when the detector is completed to boot up normally.
The Power LED is blinking when the detector turns to sleep mode.
The active LED is blinking when the wireless communication is being initialized.
Data LED
The data LED indicates status information of data processing in blue.
The data LED lights up when the detector is available to make data communication.
The data LED is blinking while the detector transmits or saves data.
Detector AP LED
The AP LED lights up in blue when the detector AP is on.
The AP LED is blinking in blue when the detector switches the AP status.
The AP LED is blinking in orange while the detector is synchronizing the wireless settings.
The communication status of detector is indicated when the detector AP is off.
Wirelss communication: Green LED at the 3rd level or higher / Orange LED under 2nd level.
Wired communication: Green LED in case of 1Gbps / Orange LED in case of 100Mbps connection.
Summary List of Detector Status LED
Rev.1.0
Page 71 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Information
Detector AP LED
Detector AP OFF (Communication status: Good)
Wireelss communication: 3
rd
level or higher
Wired communication: 1000Mbps
ON
Detector AP OFF (Communication status: Normal)
Wireelss communication: Under 2
nd
level
Wired communication: 100Mbps
ON
Detector AP ON
ON
Switching the status of detector AP
Blink
The wireless setting is being synchronized
Blink
Power OFF
OFF
If the LED blinks abnormally, refer to <8 Troubleshooting> to check if communication or
system error is occurred.
Summary list of the Detector AP LED
Rev.1.0
Page 72 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Check suitability of acquiring, processing and adjusting of images by referring to the
recommended workstation specifications before the software installation.
Software
Description
VXvue
A program for acquiring and adjusting images developed by Vieworks.
Used for VIVIX-S detectors only.
Unnecessary to develop a separate viewer program.
VIVIX Setup
A program for setting and managing the detector and SCU.
VXvue (Viewer)
Software for acquiring, adjusting and managing the image.
XIPL
Image processing program
Document
VXvue Operation Manual
XIPL User Manual
VIVIX SDK
Software development kit for VIVIX-S detector only, provided by Vieworks.
You can develop your own software dedicated to VIVIX-S by using this kit.
SDK Package
Development package
VIVIX Setup
A program for acquiring, adjusting and managing the image.
Document
VIVIX SDK Developer Manual
Be sure to install the software first with reading this manual before configuring Windows
environment.
Apart from the detector and SCU, the software can be installed separately.
4.3 Software Installation
This section gives information about how to install the software on the workstation (PC) and how to
configure the environment for software operation and communication.
4.3.1 Software Classification
Vieworks provides clients who purchase our detector system with software as below. You can choose and
use one of our softwares below.
4.3.2 Software Installation
For a client who uses VXvue, install the VXvue program after reading VXvue Operation Manual
carefully.
For a client who uses VIVIX SDK, install the VIVIX Setup program after reading VIVIX SDK Developer
Manual.
Rev.1.0
Page 73 of 151 VW40-153-006
VIVIX-S 1717N User Manual
The contents in this chapter are made on the basis of Windows 7.
Configuration environment can be different depending on network adaptor manufacturer
or models.
Communication disruption between the detector (or SCU) and workstation occurs unless
the network adaptor is proper is set properly, it may cause serious repercussion to the
product and image quality.
It is recommended to change the name of network adaptor to distinguish it from other
connection names.
Even though the name is changed, it will not affect to the operation and communication
performance of the equipment.
4.4 Windows Environment Setting
This section gives information about configuring Windows to communicate with the detector and SCU after
installing the VIVIX Setup program or Viewer.
4.4.1 Network Configuration
Selecting Network Adaptor
1 Click Start Control Panel Network and Internet Network and Sharing Center Change
Adapter Setting.
2 Choose the networks adaptor for communicating with the detector and SCU, and then rename it.
3 Click the chosen network adaptor with the right mouse button and click Properties to display the
Properties window.
Rev.1.0
Page 74 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Setting Network Adaptor
1 Click Configure button to open the following dialog box, and then go to the Advanced tab.
2 Set Jumbo Packet to the maximum value. (Recommended value: 9014 Bytes)
3 Choose Performance Options in the list of Settings and click Properties button on the right.
4 Choose Flow Control in the list of Settings and select Rx & Tx Enabled on the Value list as shown
below.
Rev.1.0
Page 75 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Viewer may not work normally if the power save mode is activated.
Deactivate the power save mode of all the installed network adaptors.
5 Choose Interrupt Moderation Rate in the list of Settings and select Extreme on the Value list as
shown below.
6 Choose Receive Buffers and set it to the maximum value.
7 Click OK button.
Deactivate Power-Saving Mode on Network Adaptor
1 Click the Power Management tab and uncheck Allow the computer to turn off this device to save
power.
2 Click OK button.
Rev.1.0
Page 76 of 151 VW40-153-006
VIVIX-S 1717N User Manual
ViVIX Device Driver is the image filter driver for acquiring images from a detector.
It is recommended to uncheck the other items on the list except for ViVIX Device Driver
and Internet Protocol Version 4(TCP/IPv4), since they are not related with the detector
communication.
Item
Value
Jumbo Packet
Maximum or 9014 Bytes
Flow Control
Rx & Tx Enabled
Interrupt Moderation Rate
Extreme
Receive Buffers
Maximum
Allow the computer to turn off this device to save power
Unchecked
IP Address
169.254.0.(50 ~ 254)
Subnet Mask
255.255.0.0
It is recommended to set the IP address and subnet mask within the range presented in
this document.
If you use IP address and subnet mask out of the suggested range, it could be difficult to
identify and resolve the cause of communication disorder.
Protocol Selection and IP Address Setting
1 Choose Internet Protocol Version 4 (TCP/IPv4).and click Properties button.
2 Input the IP address and subnet mask as shown below, and then click OK button.
Summary of Network Configuration
Rev.1.0
Page 77 of 151 VW40-153-006
VIVIX-S 1717N User Manual
If you use the sleep mode, viewer may not work normally.
4.4.2 Disabling Sleep Mode of Monitor
1 Click Start Control Panel Power Options and then move to the Choose when to turn off the
display tab.
2 Set Put the computer to sleep to Never to disable the sleep mode.
3 Click Save changes button.
Rev.1.0
Page 78 of 151 VW40-153-006
VIVIX-S 1717N User Manual
5. Setting
This section gives information about the product setting with using the Setup program.
Start Setting
SCU Setting
Detector Setting
Changing the Wireless Setting
Rev.1.0
Page 79 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Click Refresh Device List button to make the VIVIX Setup program search all detectors
and SCU connected with the same network again. If devices are not displayed, check the
power connection of the detector and click Refresh Device List button again.
List
Description
SCU
Displays discovered list of SCU devices.
Use
Double-click the option to decide wether to use SCU or not.
‘V’ is displayed when it is able to be used.
Discovery
Displays whether SCU is found out or not.
Detectors
Displays discovered list of detectors. (Max. 4)
ID
ID of detector(sequence to distinguish registered detector)
Line Trigger
Selects a pin group when using Line Trigger.
Discovery
Displays whether the detector is discovered or not.
Common
Model No.
Model name of SCU or detector
Serial No.
Serial number of SCU or detector
IP Address
IP Address of SCU or detector
MAC Address
MAC Address of SCU or detector
5.1 Start Setting
5.1.1 Setup Program
The VIVIX Setup program provides functions for setting and managing the internal data to make VIVIX-S
1717N wireless detector and SCU work normally. In addition, The VIVIX Setup program has diagnostic
function for checking performance and abnormality of the devices as well as the image calibration function
for improving the image quality.
5.1.2 Checking Devices
Check information of the detector and SCU displayed on the Discovery list.
[TBD] – Screen Shot
List Information
Rev.1.0
Page 80 of 151 VW40-153-006
VIVIX-S 1717N User Manual
The default IP address of SCU is 169.254.2.100.
The default IP address of detector is 169.254.1.10.
You can change the IP Address of detector or SCU. Refer to Change Configuration on
the next page.
MAC address is a unique indentifier of the network device. Do not change it randomly.
To change order of registered detectors’ ID, select an item and click ↑/↓buttons.
If detectors which have same IP address are connected at the same time, the address is
changed automatically to prevent address collision.
Information
Description
Green background
Registered status. Available to get into the device.
White background
Non-registred status. Unavailable to get into the device.
Bold font
Connected status. The device is connected.
Gray background / font
Disconnected status. The device has been connected, but is disconnected now.
The device is changed to the registered or non-registered status by double-clicking the
device name or clicking Select or Release button.
Menu
Description
SCU - Configuration
Changes the setting information of SCU.
Change IP
Changes IP address of SCU.
Detector
-
Release
Releases the detector to non-registered status.
Change IP
Changes IP address of the detector.
Color and Font
Change Configuration
Select the SCU or detector name and click the right mouse button to change its setting.
Rev.1.0
Page 81 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Button
Description
SCU
Configuration
Checks and sets information of SCU setting.
Diagnosis
Checks information of wireless AP on SCU and performs the self-diagnosis.
Detector Configuration
Checks and changes the information of detector settings.
Calibration
Checks and calibrates the detector calibration data.
Checks and diagnoses the detector and acquired image.
Diagnosis
Checks the information of detector and tests the wireless transmission
function as well as performs the self-diagnosis.
5.1.3 Getting into the Devices
Click Next button to enter the registered SCU and detector. You can use SCU and the detector normally
when the status of SCU is Connected and the Status of detector is Initialization OK.
Button
[TBD] – Screen Shot
Rev.1.0
Page 82 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Item
Description
Model No
SCU model name
Serial No
SCU serial numbers
Package
Version information of SCU firmware package
Item
Description
IP Address
IP address of SCU.
Net Mask
Subnet Mask of SCU.
Gateway
Gateway of SCU.
5.2 SCU Setting
5.2.1 SCU Configuration
System
Checks and sets system information of SCU.
Network
Checks and sets network information of SCU.
Rev.1.0
Page 83 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Item
Description
AP On / Off
Selects whether to use SCU AP (Access Point) mode or not.
On
Turns on SCU AP
Off
Turns off SCU AP
Frequency
Frequency channel of wireless network.
2.4 ㎓
Uses 2.4 ㎓ Frequency. (Max. 13 channels)
5 ㎓
Uses 5 ㎓ Frequency. (Max. 8 channels)
Country
Country code of using wireless network. (KR, US, EU, JP, CN)
Band
Wireless network bandwidth.
20 ㎒
Default frequency band.
40 ㎒
Expands bandwidth through channel bonding.
Channel
Wireless communication channel
SSID
Unique ID for wireless communication
Key
Unique key for wireless communication (Applied to the password only.)
13 channels can be used in 2.4 ㎓ Frequency.
8 channels can be used in 5 ㎓ Frequency
The number of serviceable channels is different according to the configured country.
Channel bonding is used for enhancing transmission speed. However, the speed may be
slowed down due to the interference of surrounding channels, even if the channels have
been bonded.
Channel items (+/-) will be activated in case of using 40㎒ frequency bandwidth. You can
set whether to bond channels with the above or below one.
SSID and Key values of the detector communicated with SCU should be set as the same.
Set SSID and Key values not to be duplicated with those of the peripheral system.
The maximum value of SSID is 20 letters and the Key is 63 letters. (Minimum Key value:
8 letters). The input letters are limited to capital / small alphabets, “-“, “_” among special
letters and numeric characters.
Wireless network setting should be done by an engineer who understands the wireless
communication and its related technique. Unless the network is set properly, a
communication error would occur or the image quality would be affected.
AP
Checks and sets AP (Access Point) information of SCU.
Rev.1.0
Page 84 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Item
Description
Method
Trigger mode
Packet
Software Trigger mode
Line
Hardware Trigger mode
Polarity
Polarity of trigger signal
AUTO (Default)
Recognizes polarity automatically and handles it. (Default value)
HIGH
Handles polarity of Active High
LOW
Handles polarity of Active Low
Configuration value of trigger is applied only when Exposure mode is set DR Trigger.
Configuration value of trigger is not applied when using AED mode.
The setting of Trigger should be done by an engineer who understands about the x-ray
generator device well. Unless the device and detector are set correctly, an integration
error of x-ray generator would occur or the system operation would be affected.
Item
Description
Set Config
Updates by transmitting current setting values to SCU.
Factory Reset
Resets SCU to factory default settings.
Log
Checks the logs of SCU.
Close
Closes the window of SCU Configuration. If Set Config is not performed, the
changed setting value is not transmitted to SCU.
Trigger
Configures trigger information for integration between SCU and X-ray generator.
Command Buttons
Rev.1.0
Page 85 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Refer to <7.2 Product Inspection> for the detailed information on how to perform the
self-diagnosis and about the follow-up measures.

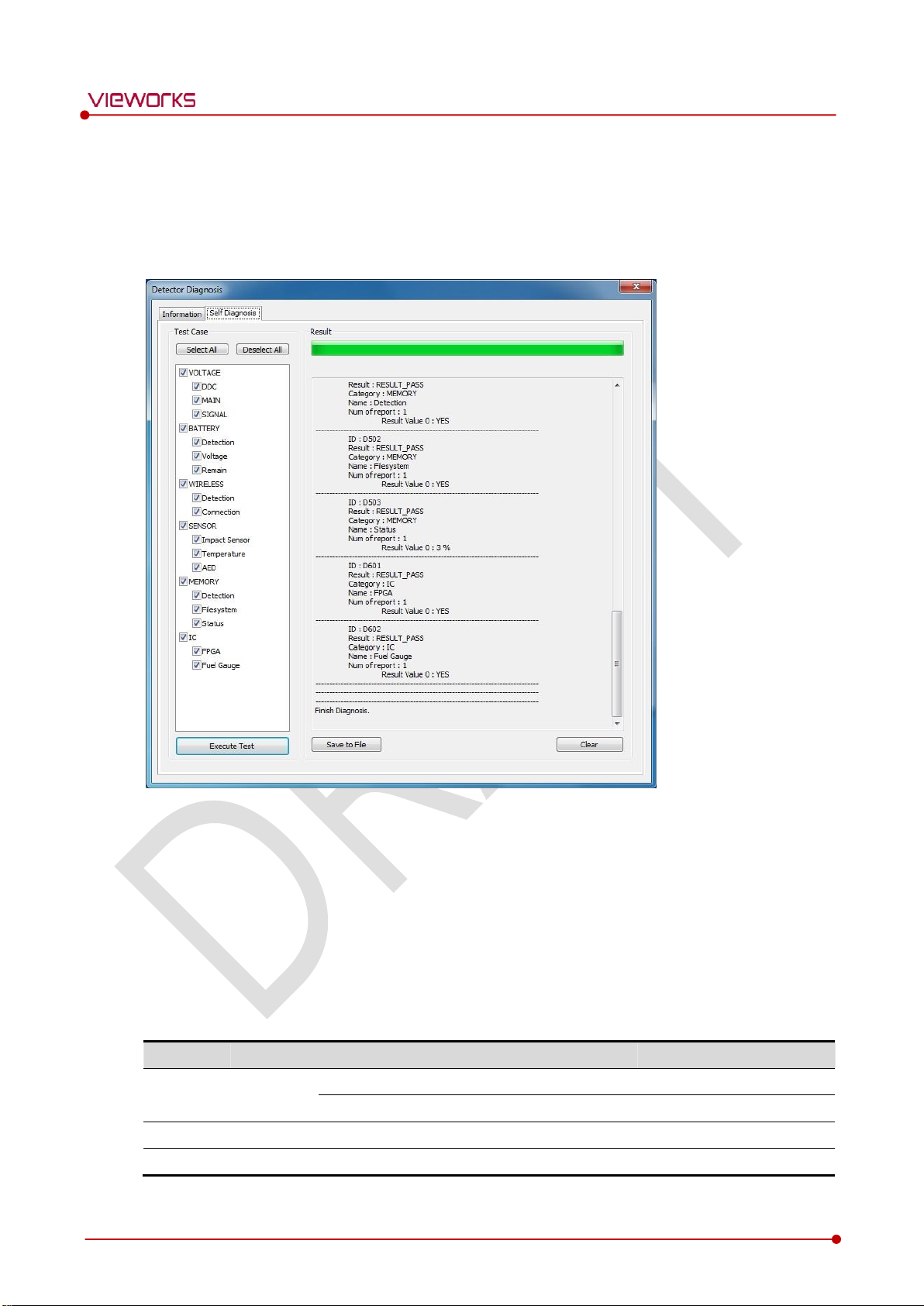

5.2.2 SCU Diagnosis
Self Diagnosis
You can perform self-diagnosis to check operational status of the parts in SCU.
Rev.1.0
Page 86 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Item
Description
Model No
Detector model name
Serial No
Detector serial numbers
Package
Version information of the detector firmware package
Item
Description
IP Address
IP address of the detector
Net Mask
Subnet Mask of the detector
Gateway
Gateway of the detector
Item
Description
SSID
Configures wireless network ID AP from the detector.
Key
Configures wireless network key value of AP from the detector.
Wireless Only
Configures the wireless communication method of the detector.
On
The detector is operated in a wired way when a tether interface cable is
connected.
Off
The detector is operated in a wireless way when a tether interface cable is not
connected.
5.3 Detector Setting
5.3.1 Detector Configuration
System
Checks and sets system information of the detector.
[TBD] – Screen Shot
Network
Checks and sets network information of the detector.
WNetwork
Sets AP (Access Point) information of wireless communication from the detector.
Rev.1.0
Page 87 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Item
Description
AP On / Off
Executes or disables the detector AP (Access Point) function.
Frequency
Frequency channel of wireless network
2.4 ㎓
Uses 2.4 ㎓ Frequency. (Up to 13 channels)
5 ㎓
Uses 5 ㎓ Frequency. (Up to 8 channels)
Country
Country code of wireless network (KR, US, EU, JP, CN)
Band
Wireless network bandwidth
20 ㎒
Basic Frequency Band
40 ㎒
Expands bandwidth through channel bonding.
Channel
Wireless network channel
SSID
Wireless network ID
Key
Wireless network key value (Applied to the password only.)
13 channels can be used in 2.4 ㎓ Frequency.
8 channels can be used in 5 ㎓ Frequency
The number of serviceable channels is different according to the configured country.
Channel bonding is used for enhancing transmission speed. However, the speed may be
slowed down due to the interference of surrounding channels, even if the channels have
been bonded.
Channel items (+/-) will be activated in case of using 40㎒ frequency bandwidth. You can
set whether to bond channels with the above or below one.
SSID and Key values of the detector for communicating with SCU wirelessly (WNetwork)
should be set as the same.
Set SSID and Key values not to be duplicated with those of the peripheral system.
The maximum value of SSID is 20 letters and the Key is 63 letters. (Minimum Key value:
8 letters). The input letters are limited to capital / small alphabets, “-“, “_” among special
letters and numeric characters.
Wireless network setting should be done by an engineer who understands the wireless
communication and its related technique. Unless the network is set properly, a
communication error would occur or the image quality would be affected.
AP
Checks and sets AP (Access Point) of detector information.
Rev.1.0
Page 88 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Item
Description
Time (sec.)
The limited time of completing image transmission.
Preview (Enable / Disable)
Sets whether to use the wireless communication way for sending preview
images.
After starting image transmission, the detector ignores the information of image re-
transmission request if the following conditions are fulfilled.
If the time limit of image transmission does not exceed.
If the image is not transmitted completely.
Item
Description
Sleep
Decides whether to use the sleep mode function of the detector. (On / Off)
Sleep after (min.)
If the detector is not used for the specific setting time, it is turned to the sleep
mode. This mode activates only when the sleep mode is set. (10 / 15 / 20 / 25 /
30 min.)
Shut Down
Sets whether to use the shut down function in the detector. (On / Off)
Shut Down after (min.)
The power of detector is off if it is not used within the setting time. This menu
is activated while the Shut Down function is used. (30 / 60 / 90 / 120 min.)
Power Control
Sets standards of power supply to the detector.
by Detector
The detector is operated by power from SCU and battery.
If the power from SCU and battery is blocked, the detector is turned off.
by SCU
The detector is operated by power from SCU with connecting a tether cable. If
the power from SCU is blocked, the detector is turned off.
You can prevent unnecessary battery consumption by using the Sleep function.
When SCU supplies power to the detector with connecting a tether interface cable, the
Shutdown function cannot be operated.
If Power Off is set to by Detector and the tether interface cable is disconnected, you can
keep using the detector by the power of battery. In this case, you can turn off the
detector by pressing the power button for 3 seconds.
If a tether interface cable is disconnected while Power Off is set to by SCU, the detector
is turned off since the battery cannot supply power to the detector.
Wireless network setting should be done by an engineer who understands the wireless
communication and its related technique. Unless the network is set properly, a
communication error would occur or the image quality would be affected.
Checks and sets the time limit of image transmission as well as decides whether to use the Preview item.
Power Mode
Checks and sets the management information about the power of detector.
Rev.1.0
Page 89 of 151 VW40-153-006
VIVIX-S 1717N User Manual
The power save function is operated only when the battery supplies power to the
detector. In other words, the power save function cannot be operated if a tether interface
cable supplies power to the detector.
Mode
Meaning
Normal
The detector can be operated and take an image at any time.
Sleep
The detector cannot be operated. User can take an image by disabling the Sleep mode.
Shut Down
The detector has been turned off. User can take an image after the detector is rebooted.
Mode
Meaning
Normal
-
Sleep
Selects the function On (use) or Off (not use).
Sleep after (min.)
Sleep mode is activated if the detector is used during the setting time. (10 / 15 /
20 / 25 / 30 min.)
Shut Down
Selects the function On (use) or Off (not use).
Shutdown after (min.)
The detector is turned off if it is not used during the setting time. This menu is
activated while the Shut Down function is used. (30 / 60 / 90 / 120 min.)
Mode
Meaning
Normal
-
Sleep
The detector turns to sleep mode if not used for the setting time (Sleep after).
Shut Down
The detector is turned off if not used for the setting time (Shutdown after) under the
sleep mode. However, if the detector is not used for the setting time (Shutdown after)
under the sleep off state, the detector is turned off.
Mode
Meaning
Normal
All LED lamps are turned on.
Sleep
Power LED (Green) is blinking.
VXvue (Vieworks Viewer) indicates the state of sleep mode.
VIVIX SDK indicates the state of sleep mode.
Shut Down
All LED lamps are turned off.
5.3.2 Detector Power Save Function
The consumption of a battery pack can be reduced by using the power save function.
Mode
Setting Items of Power Save Function
Entry Condition of Power Save Mode
Checks Power Save Mode
Rev.1.0
Page 90 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Mode
Meaning
Normal
-
Sleep
1 Turns off sleep mode from VXvue (Vieworks Viewer).
2 Calls the function from VIVIX SDK to turn off sleep mode.
Shut Down
Reboots the detector by pressing a power button on the detector.
Mode
Default value
Turnaround time
Power consumption
Normal
-
-
24V, 300mA (Standby)
24 V, 600mA (While taking
images)
Sleep
OFF / 10min.
Approx. 10 sec.
24V, Max. 150mA
Shut Down
OFF / 30min.
Approx. 15 sec.
-
Disabling Power Save Function
Other Information
Rev.1.0
Page 91 of 151 VW40-153-006
VIVIX-S 1717N User Manual
This method can be used only when the detector is under the wireless communication
status without connecting a tether interface cable.
5.4 Changing the Wireless Setting
5.4.1 Switching to the Detector AP Mode
You can change the detector mode as AP by the two ways as follows.
Convert to the Detector AP mode by using the Detector AP button
Press the AP button on the detector for 5 seconds to set the Detector AP mode.
The LED of detector AP blinks in a blue color while the mode is being switched, and turns on blue
after the mode is compeleted to be converted.
Convert to the Detector AP mode from VIVIX Setup
Choose the AP option as On or Off from the Detector Configuration dialog in VIVIX Setup program.
5.4.2 Synchronizing the Wireless Setting
Synchronize the wireless setting with a tether interface cable as follows.
1 Connect the detector and SCU with a tether interface cable.
2 Press the detector AP button for 5 seconds after the detector is turned on.
3 The LED of detector AP blinks while processing synchronization.
4 The sync information is saved automatically after it is transmitted to the detector where SSID and KEY
of SCU are connected.
5 The detector is switched to the wireless communication mode.
Rev.1.0
Page 92 of 151 VW40-153-006
VIVIX-S 1717N User Manual
6. Calibration
This chapter gives information about the calibration methods after installing a detector.
Calibration Dialogue
Detector Configuration
Calibration Guide
Calibrating by Loading the Calibration Data
Direct Calibration
Rev.1.0
Page 93 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Menu
Description
System Configuration
Configures the exposure mode, exposure-related time and Gain type.
Offset Calibration
Processes Offset calibration.

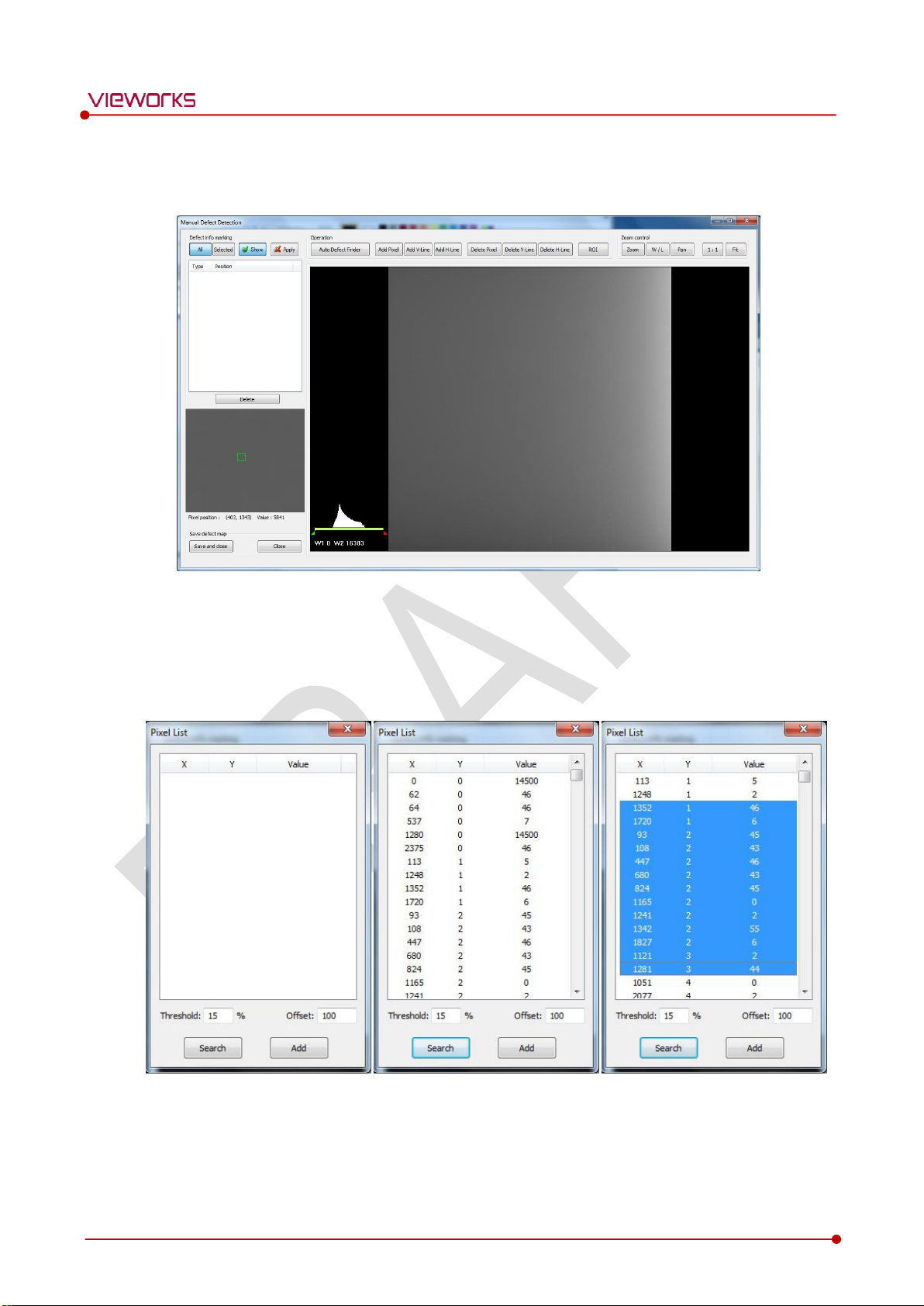

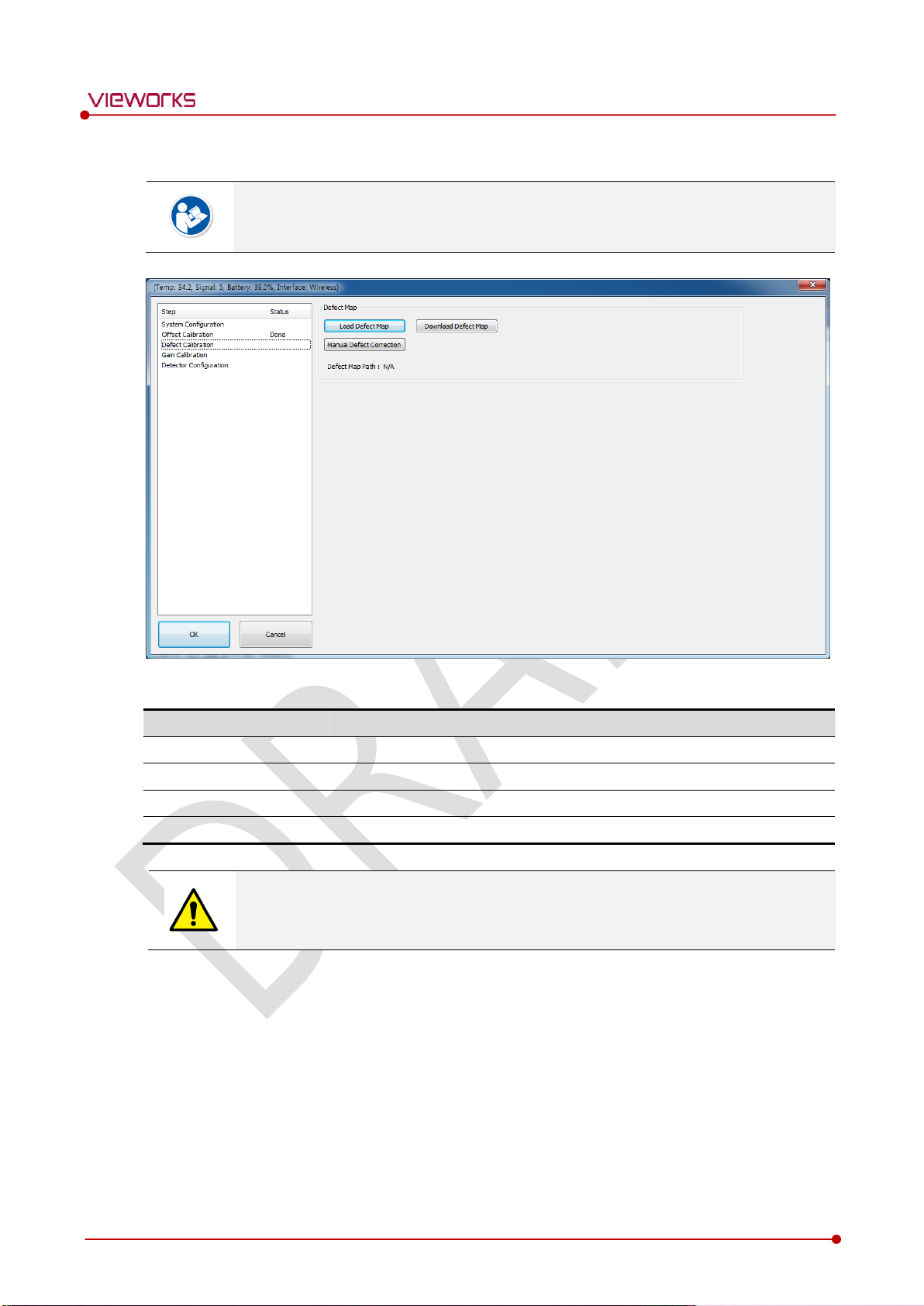

Defect Calibration
Processes calibration for defect data of the detector.
Gain Calibration
Processes calibration for image sensitivity.
Detector Configuration
Configures the detector information related to calibration and image.
The menu status is displayed as Done when each calibration is finished. You cannot
operate the detector if the status is not displayed as Done.
Mode
Description
AED
Detects X-ray automatically without connecting the detector to X-ray generator.
The detector acquires images after the automatic detection.
DR Trigger
Detects the X-ray exposure signal of X-ray generator in advance by connecting the
detector to X-ray generator with a generator interface cable.
The detector acquires images after preparing exposure with the exposure signal.
6.1 Calibration Dialogue
Use the following menus to configure the system and process calibrations.
6.1.1 System Configuration Dialogue
Configure the generator interface information from System Configuration in Step.
Exposure Mode
The VIVIX-S 1717N detector provides two types of mode for taking images as follows.
Rev.1.0
Page 94 of 151 VW40-153-006
VIVIX-S 1717N User Manual
Item
Default
Description
Exposure section
500㎳
Time to acquire X-ray by the detector.
Pre Exposure section
0㎳
Standby time after the detector sent EXP_OK signal to the generator.
EXP OK Delay section
1㎳
The delayed time to receive EXP_OK signal from the detector after the
generator sent EXP_REQ signal to the detector.
Debounce_DR
3㎳
The required time to check signals from the generator for preventing
image acquisition from external noise. It can be used when DR Trigger
mode is selected only.
Debounce_AED
3㎳
The required time to check sensor signal from X-ray to prevent image
acquisition from external noise. It can be used when AED mode is
selected only.
Exposure section should be set longer than the maximum exposure time to prevent X-ray
loss.
Exposure Timing
To take images exactly, set the timing information for exposure.
The information can be different depening on the characteristics of the X-ray generator.
Exposure Timing Diagram
Exposure Timing Items
Rev.1.0
Page 95 of 151 VW40-153-006
Loading...
