Gas condensing
technology
Vitodens 100-W P25/P29
6.1 to 29 kW
The gas fired condensing boilers Vitodens
100-W P25 / P29 of fer high heating and DHW
comfort at a good price /performance ratio.
The gas fired condensing boiler is suitable
for installation in any home where there is
limited space. The Vitodens 100-W is ideal
for a flat or small family home. It can easily be
sited in an alcove in the bathroom, kitchen or
utility room.
When it comes to the economy and durability
of a heating system nothing is better than
stainless steel. For this reason the Vitodens
100-W is equipped with the Inox-Radial
stainless steel heat exchanger, which provides
the required reliability and the guarantee of a
long life for the condensing boiler.
Up to 97 percent efficiency
The Vitodens 100-W consumes less energy
because it uses the additional heat from the
exhaust gases. The result is an efficiency of
up to 97 percent. This will reduce your heating
costs and be good for the environment.
Robust burner with long term efficiency
The MatriX cylinder burner developed
and produced by Viessmann ensures high
efficiency because of its stainless steel
MatriX mesh that results in hundreds of tiny
flames rather than one large one, which
ensures Nitrogen Oxide production is kept
to a minimum.
Comfort control with integrated
diagnostic system
The Vitodens 100-W is supplied with
a Vitotronic control unit, featuring a
built-in diagnostics system and frost
protection. When connected to an outdoor
temperature sensor the boiler switches
automatically to the weather compensation
mode, for additional gas savings of up to
12%. The dials are easy to operate and
enable fast adjustment of the heating and
DHW temperature.
Extremely easy to maintain and service
Maintenance and service time of this gas
fired condensing boiler is minimal due to all
components being easily accessible from
the front. All components such as hot water
expansion vessel, pumps and safety valves
are already installed ex works.
1

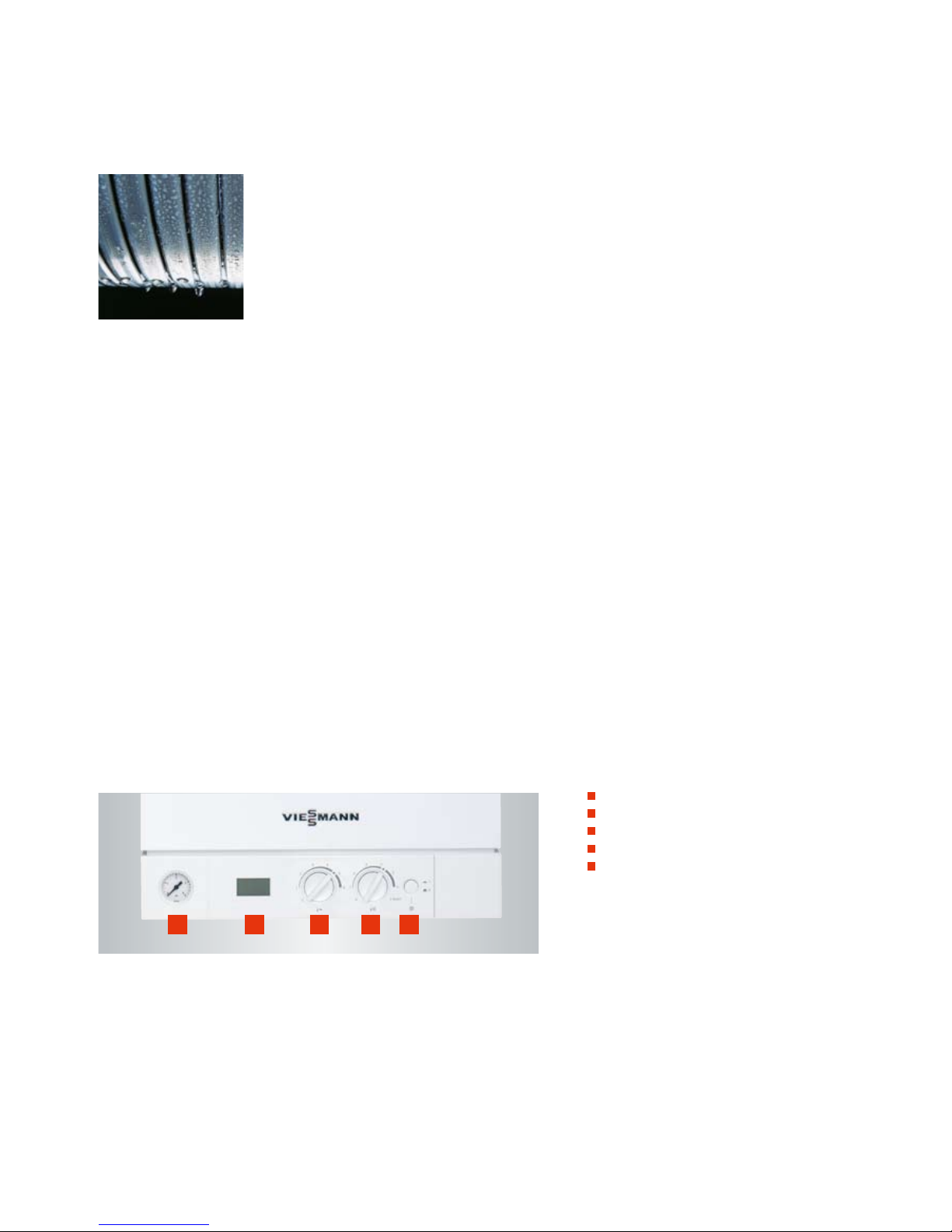

Pressure gauge
2
LCD display
3
Dial for hot water temperature
4
Dial for central heating water temperature
5
On/ off button with reset function
Inox- Radial he at exchang er -
durabl e and effic ient
Control w ith integr ated diag nostic sy stem
1 2 3 4 5
Page 3
Due to comp act dime nsions an d quiet ope ration it is i deal
for any livi ng space
Take advantage of these benefits:
Compact gas fired condensing boiler, 6.1 to 29 kW
Standard efficiency up to 97% (Hs)
Highly durable and efficient through Inox- Radial stainless steel
heat exchanger
Modulating MatriX cylinder burner with high efficiency through stainless
steel MatriX mesh
Easy to operate Vitotronic control with manual power limitation and
provision for connecting modulating thermostats
Outstanding DHW convenience through its integral booster function
Manual exhaust gas adaption enables large, maximum flue pipe length
without any decrease in heat output
1
2
3
4
400
700
350
1

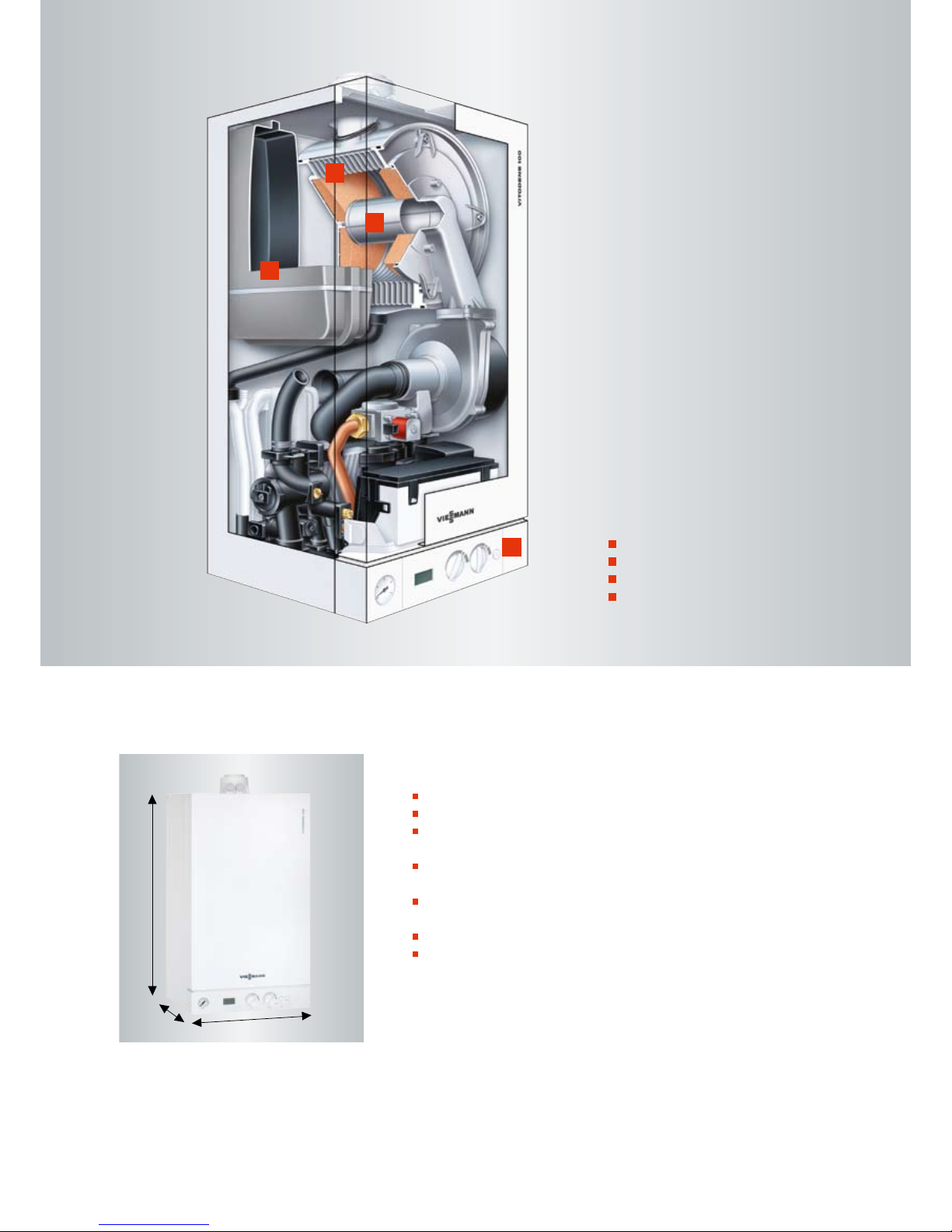

Inox-Radial stainless steel heat exchanger
2
MatriX cylinder burner
3
Expansion vessel
4
Vitotronic controller with integrated
diagnostic system
Page 4

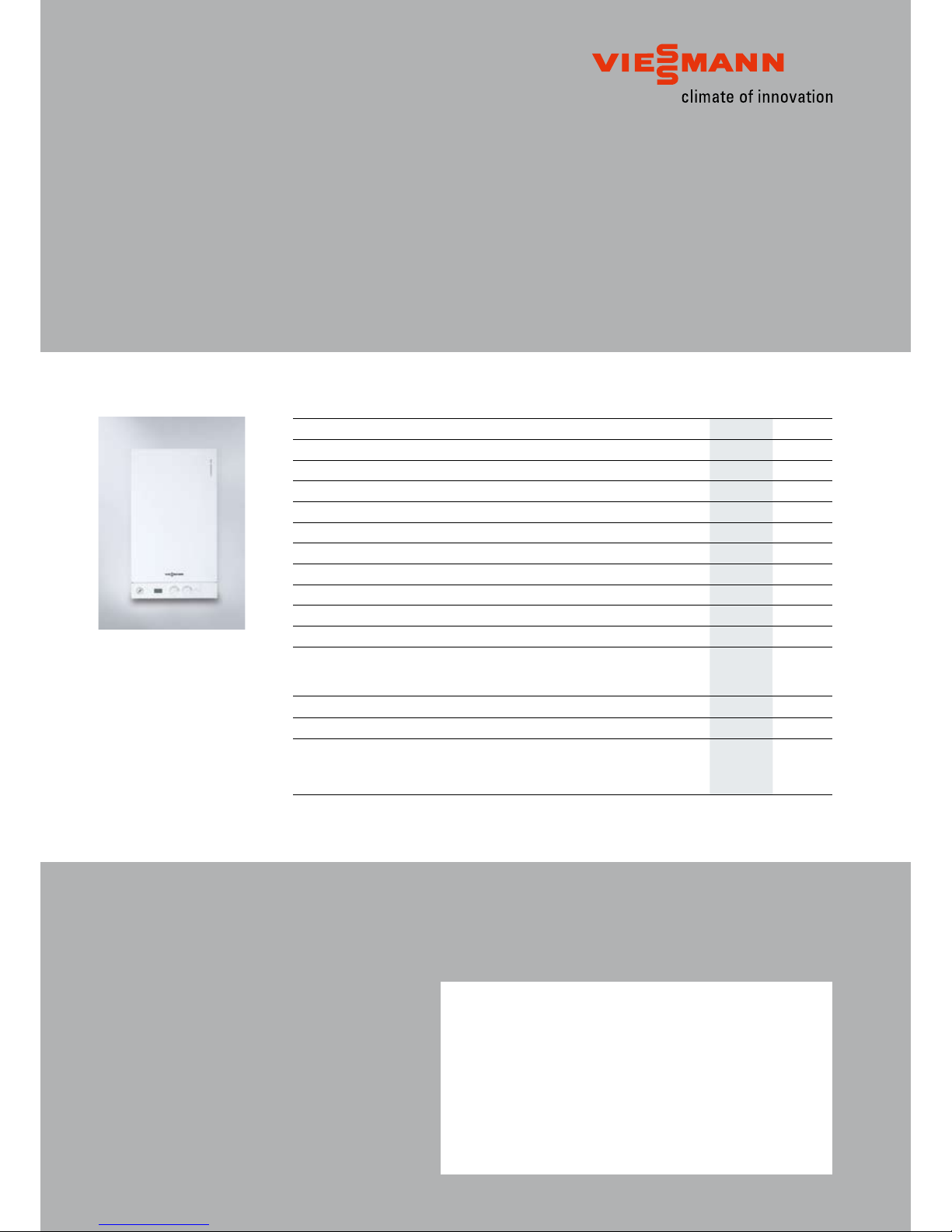

Technical Data
Vitodens 100-W P25/P29 type BPJA
944 0173 GB 04/2012
Copyright Viessmann
Duplication and alternative use only with prior written consent.
Subject to technical modifications.
Viessmann Limited
Hortonwood 30, Telford
Shropshire, TF1 7YP
Tel: 01952 675000
Fax: 01952 675040
www.viessmann.co.uk
Your trade partner:
Rated output for DHW heating
kW 6.1 – 25.0 6.1 – 29.0
Rated output
kW 6.5 – 21.0 6.5 – 25.0
Rated output
kW 5.9 – 19.1 5.9 – 22.8
Efficiency at full load (100%)
% 87.9 87.9
Efficiency at par t load (30%)
% 9 7.7 9 7.7
Noise level (at part load)
dB(A) < 37 < 37
NO
X
class
5 5
Maximum power consumption
W 97 97
Water content
Litre 2.9 2.9
Weight
kg 36 36
Maximum CH pump flow (of ∆T = 20 K)
Litre /h 1 020 1 020
Expansion vessel
- Capacity
- Air pressure
Litre
Bar
8
0.75
8
0.75
DHW flow rate at 35°C rise
Litre /min 10.2 12.0
High DHW convenience according to EN 13203
*** ***
Dimensions
Depth mm
Width mm
Height mm
350
400
700
350
400
700
