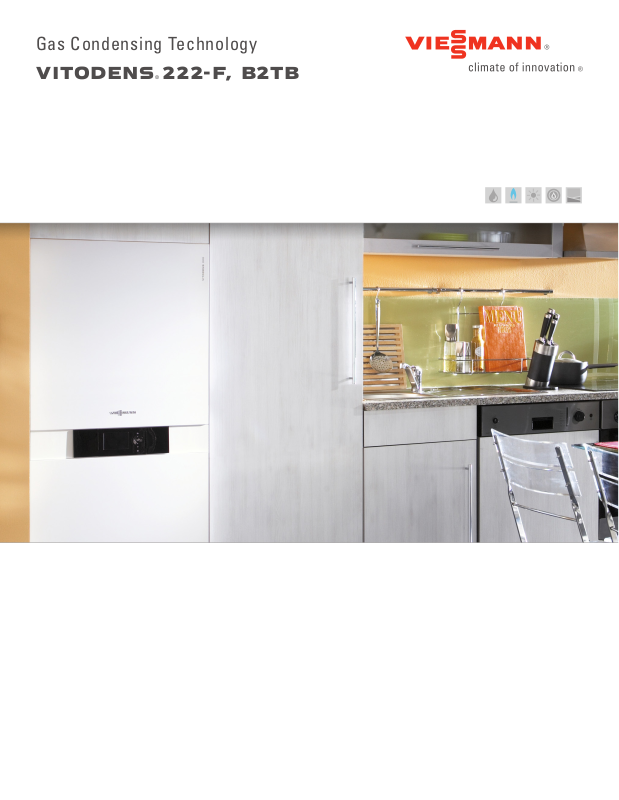

Page 1
Gas Condensing Technology
VITODENS® 222-F, B2TB
Page 2
Gas Condensing
Technology
Vitodens 222-F, B2TB – 12 to 125 MBH
Gas-fired floor standing condensing technology and compact solution for DHW
The Vitodens 222-F is ENERGY
®
STA R
qualified. By choosing the
Vitodens 222-F, you are helping to
promote cleaner air and a healthier
environment.
50°F 120°F
Capacity
0 2 4 6 810
Heat-up time (min.)
Advanced Storage Tank Loading System
(STLS) ensures an extremely fast heat-up
Smart, compact space heating and DHW
The Vitodens 222-F, B2TB gas-fired
condensing boiler is an ideal space saving
option for new installations and a smart
upgrade for outdated boiler and domestic
hot water (DHW) storage systems. The floor
standing Vitodens 222-F is available in two
input sizes, offering compact, economical
space heating and DHW solutions for homes
with moderate heating loads.
Innovative Storage Tank Loading
System (STLS)
Advanced Storage Tank Loading System
technology in the Vitodens 222-F ensures a
reliable and efficient DHW supply equivalent
to that of a larger tank. The STLS utilizes
an external plate heat exchanger and DHW
loading pump for extremely fast heat-up
capable of delivering a 10-minute peak
flow of 60 gallons (model B2TB-35 only) or
continuous DHW draw of 3.3 GPM*.
Award winning control unit
The intuitive Viessmann made Vitotronic
200, HO1B control manages the entire
heating system and maintains economical
performance and maximum comfort at all
times. The user-friendly, menu-driven control
is capable of displaying multi-line text and
graphics on a backlit display 70% larger
than those of comparable units. The high
contrast, monochrome display offers excellent
readability, even under poor lighting conditions.
An outdoor reset function automatically
adapts the boiler operating temperature to the
changing outdoor temperature. This reduces
fuel consumption up to 15%, giving you
excellent returns year after year on a modest
initial investment. Plus, with system control
for multiple zone space and DHW heating,
the Vitotronic 200, HO1B offers even greater
heating flexibility without additional
external controls.
Intuitive Vitotronic 200 control with
graphic user interface
Product not exactly as illustrated.
Page 3

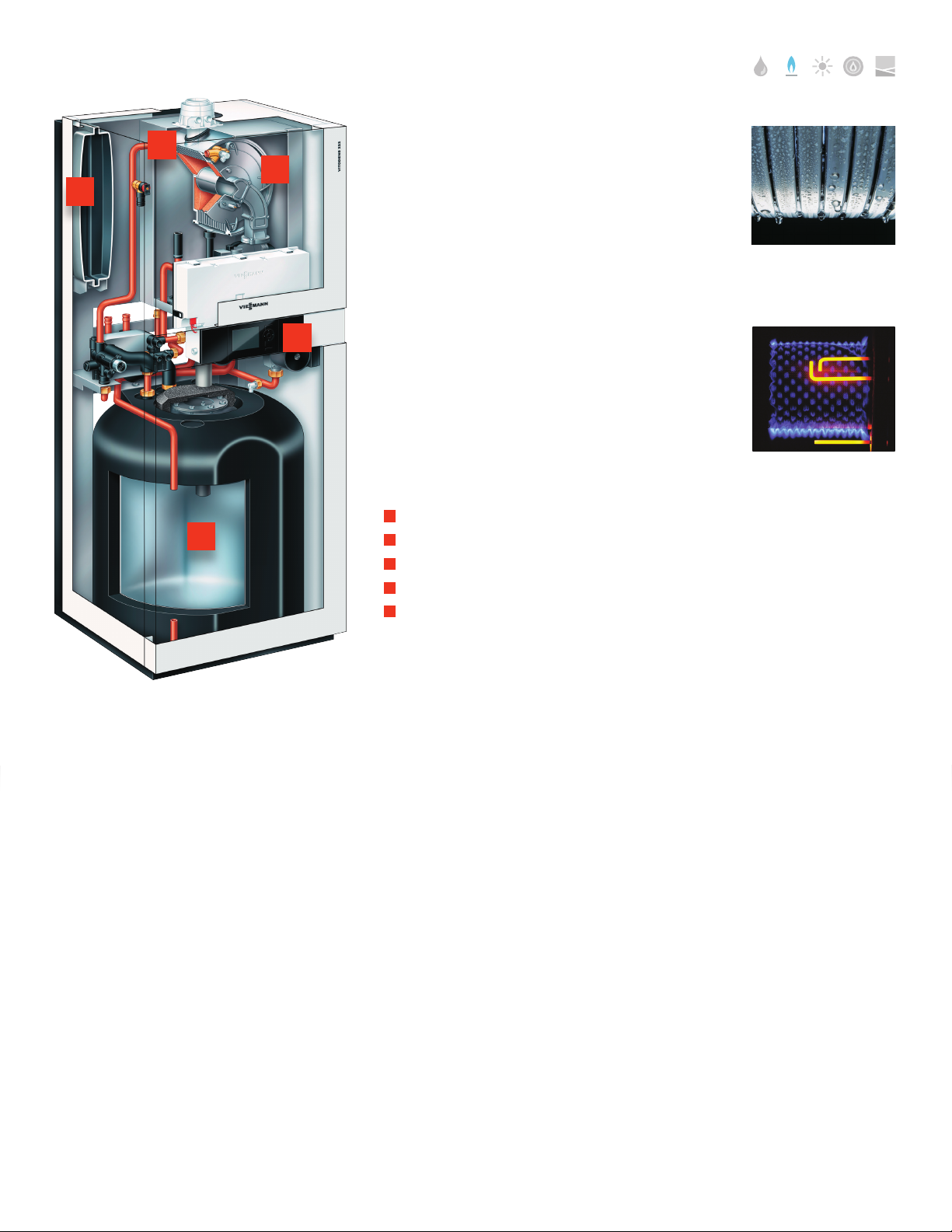

1
2
5
Stainless steel Inox-Radial
heat exchanger
3
Low-emission, Viessmann-made
MatriX cylinder burner
1
Inox-Radial heat exchanger
4
2
Modulating MatriX cylinder burner
3
Vitotronic 200 control with graphic user interface
4
Stainless steel storage tank
5
Heating expansion tank
Proven Viessmann technology
At the heart of the Vitodens 222-F are the
Viessmann made SA240 316Ti stainless steel
Inox-Radial heat exchanger and low emission
MatriX cylinder burner.
The MatriX burner’s Lambda Pro combustion
management system automatically adapts
to changing gas type and quality for optimal
efficiency, while the durable stainless steel
heat exchanger offers exceptional reliability
and long service life. Together, they allow for
optimal heat extraction with minimal heat loss
to maximize energy utilization and reduce fuel
consumption.
Low Lead Certification
Certified to CSA Low Lead Certification
Program; including US Safe Water Drinking
Act, NSF/ANSI 372 as well as other applicable
US State requirements.
Specifications
Viessmann made SA240 316Ti stainless steel Inox-Radial heat
exchanger constructed to CSA B51 and ASME Section IV
Viessmann made stainless steel MatriX cylinder burner with
Lambda Pro combustion management system for continuous
efficiency and low emissions
2 models with input ranges from 12 to 125 MBH
Efficiency up to 98% at full modulation and 95% AFUE
Viessmann made SA240 316Ti stainless steel DHW
storage tank (26 USG)
Innovative DHW Storage Tank Loading System comprised of plate
heat exchanger, DHW loading pump and storage tank
Zero side clearance requirement
Pre-installed pressure / temperature relief valves
Fully enclosed heating expansion tank and circulation pump
Built-in 3-speed DHW / space heating pump with diverter valve
Suitable for altitude levels up to 10,000 ft. / 3,000 m
Fast heat-up with Storage Tank Loading System
10-minute peak flow of 60 gallons (model B2TB-35 only)
Continuous DHW draw of 3.3 GPM
Wide modulation ratio up to 6.5:1
Multiple venting options with vent length up to 180 ft.
* Based on a temperature rise of 70 °F (50 °F to 120 °F).
*
*
Page 4

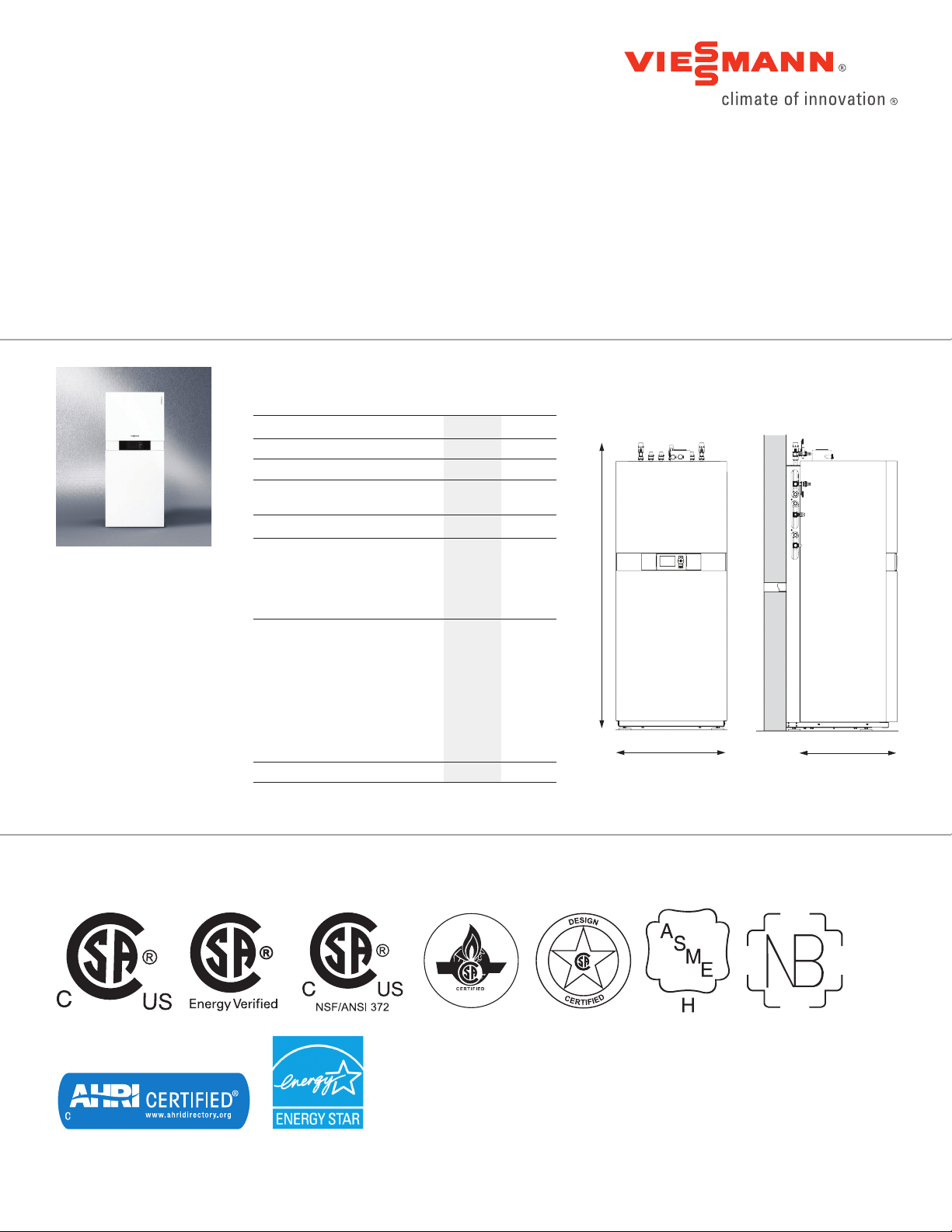

Technical Data
Viessmann Manufacturing
Company Inc.
Waterloo, ON Canada
1-800-387-7373
www.viessmann.ca
Viessmann Manufacturing
Company (U.S.) Inc.
Warwick, RI U.S.A.
1-800-288-0667
www.viessmann.us
Vitodens 222-F, B2TB gas-fired floor standing condensing
boiler and DHW heating
Model
Min. Input MBH 12 19
Max. Input MBH 68 125
Max. Allowable
Working Pressure
Efficiency % AFUE 95% 95%
Dimension
Width
Height
Depth
DHW Storage Tank
Capacity USG 26.5 26.5
Max. Allowable
Working Pressure
Continuous Draw Rate
Max. Draw Rate
(over 10 min. period)
Weight lbs 275 275
* Based on a temperature rise of 70 °F (50 °F to 120 °F).
Information subject to change without notice.
*
B2TB 19 35
psig 45 45
in. 23.6
in. 64.2
in. 23.4
psig 150 150
*
gpm 1. 8 3.3
gal 44 60
23.6
64.2
23.4
65.5”
23.6”
Front Side
23.4”
Technical information subject to change without notice.
5547 754 - 01 10/2014 Printed in Canada
