Overview

Features

■ 1280 x 720 Widescreen Native 16:9 Resolution HD-2 DMD

■ Integrated Video Processing With 3:2 Pulldown

■ 950 ANSI Lumens/ 1600:1 Contrast Ratio

■ Multiple Aspect Ratios with Intelliwide Mode

■ HDTV Ready

480P, 1080i and 720P (576P PAL Version) formats are all compatible with this unit (via an external DTV decoder, not provided).

■ DVI-I Input with HDCP

■ 9-Point White Balance System for Excellent Gray Scale Tracking

■ Direct IR and RS-232 Control

■ ‘Cat’s Eye’ Optical System for Enchanced Contrast and Black Levels

■ Two Lens Options with Variable Throw Distances for Versatile Installation Convenience

■ De-interlacing with 3:2 Pull-down

Using Vidikron’s proprietary de-interlacing technology, this projector provides exceptional scaling and film to video (3:2 pulldown) conversion for the most artifact-free images possible.

Display Device

Page 10

■ PIP/ PBP function

Picture in picture/ Picture by picture functions allow you to display two inputs on the screen at the same time.

■ Video Memory

This projector allows the user to store up to three different settings per input.

Overview

English

Page 11

English

Vidikron Owner’s Manual

Projector Exterior View

Front / Upper Side

1. Front Lamp Cover

Remove this cover when replacing the lamp. (See page 43.)

2. Projection Lens

3. Front IR Sensor

4. Ventilation Holes (intake)

5. Ventilation Holes (exhaust)

6. Focus Ring and Zoom Ring Access

Adjusts the focus and zoom of image.

7. Control Panel

Shows lamp status and whether the projector is on or off. For more details, see "Control Panel" on page 12.

8. Kensington Lock

This lock can withstand 150 N of force.

Page 12

Rear / Bottom Side

Overview

English

1. Connector Panel

For more details, see "Connector Panel" on page 14.

2. Back IR Sensor

3. AC Power IN Socket

4. AC Power Switch

AC main power switch.

5. Ventilation Holes (exhaust)

6. Ventilation Holes (intake)

7. Rear Adjusters

Adjusts the height or projection angle.

8. Front Adjusters

Adjusts the height or projection angle.

9. Ceiling Mount Holes

The connecting holes for ceiling mount device.

Page 13

English

Vidikron Owner’s Manual

Controls and Functions

Control Panel

Page 14

Overview

1. STANDBY/ON

Press this key for ONE second to turn on the unit when it is in the standby mode. Or press this key to turn off this unit when it is on.

2. INPUT

Switches input sources sequentially.

3. MEMORY

Sequentially recalls settings 1 ~ 3 saved to memory. (Please see "Selecting Video Memory" on page 30.)

4. MENU

Turns the on-screen display control menu on or off.

5. ENTER

Enters settings for items shown in the menu.

6. EXIT

Exits and saves the setting(s) of items in the menu.

7. ARROW (c/e/d/f)

Use to select the menu or to make various adjustments.

8. POWER LED

Indicates power status

■ Lit orange when the AC power cord is plugged into the wall outlet

(standby mode). Once in the standby mode, you can press the STANDBY/ON key on the projector or the ON key on the remote control for ONE second to turn on the projector.

■ Lit green when the power is turned on (operational mode).

■ Flashes orange for the first 30 seconds after powering up, indicating

that the lamp is warming up.

■ Flashes green for one minute after the projector is turned off to

indicate that the lamp is cooling down.

9. LAMP LED

Indicates the status of lamp.

■ Lit red when the lamp has developed a problem. Please contact your

Vidikron dealer for assistance.

10. Zoom Ring

Adjusts the size of image

■ Rotate clockwise to enlarge the image or rotate counterwise to make

the image smaller.

11. Focus Ring

Adjust the focus of the projected images.

English

Page 15

Vidikron Owner’s Manual

English

Connector Panel

1. Video (RCA Jack)

Composite video signal input.

2. S-Video (mini DIN 4-pin)

Y/C (S-video) signal input

3. Component (RCA Jacks)

480i Component (Y/CB/CR) video signal input

4. RGB/ HDTV (BNC) or Progressive Scan DVD players

DTV Y/PB/PR or DTV RGB video signal input.

5. DVI-I

Digital/ Analog signal input.

6. RS-232C (RJ-11 Jack)

RS-232C control signal input.

7. 12v Trigger (mini jack with the diameter of 5.5 mm outside and 2.5 mm inside)

+12V output, active when the projector is turned on.

Page 16

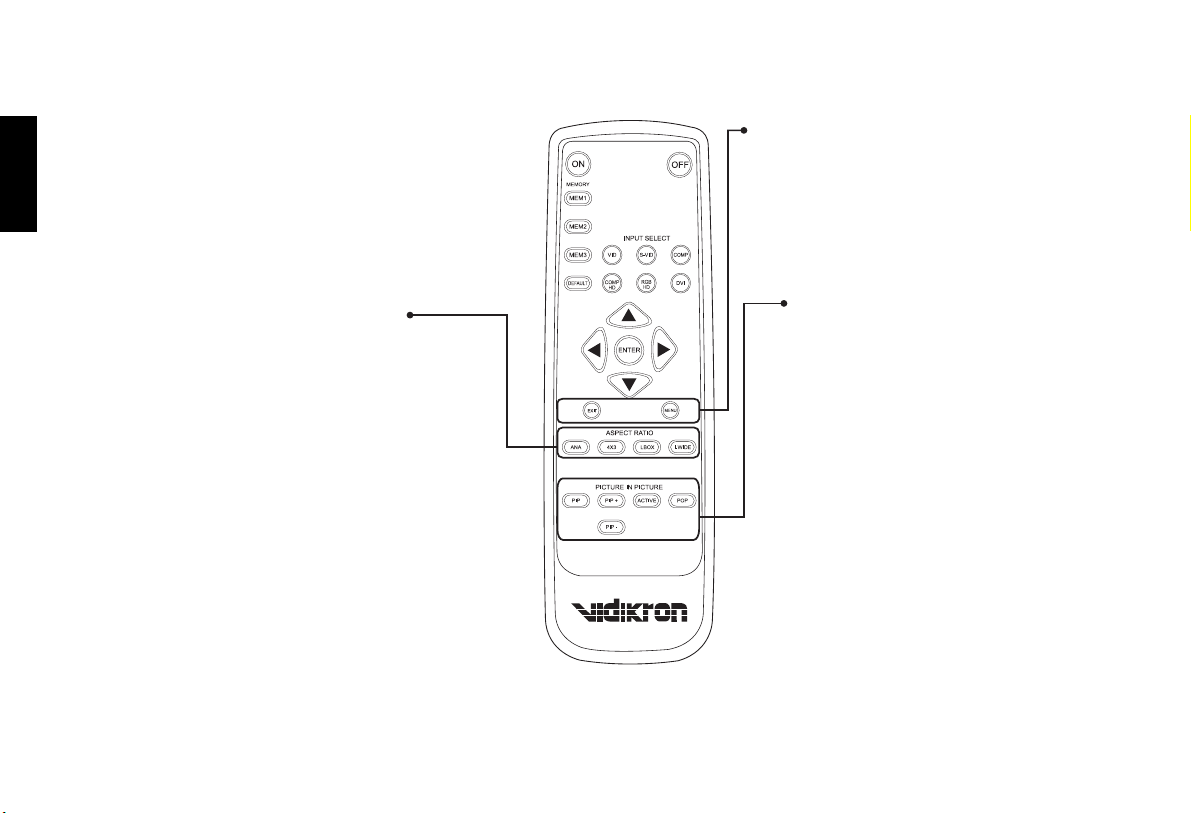

Remote Control

MEMORY

M1, M2, M3, DEFAULT

Recall video memory sequentially (see "Selecting Video Memory" on page 30)

ARROW (c,e,d,f)

Use to select the menu or to make various adjustments.

ENTER

Enter the setting of items in the menu.

Hold down this button for ONE second to turn on the unit.

OFF

Press this button to turn off the unit.

INPUT SELECT

VIDEO

Composite video signal input

S-VIDEO

S-Video signal input

COMP

Component Y/CB/CR input

COMP HD

DTV Y/PB/PR signal input

RGB HD

DTV RGBHV signal input

DVI

Digital/ Analog signal input

Overview

English

Page 17

English

Vidikron Owner’s Manual

EXIT

Exit and save the setting(s) of items in the menu.

Turns on/off the on-screen display menu.

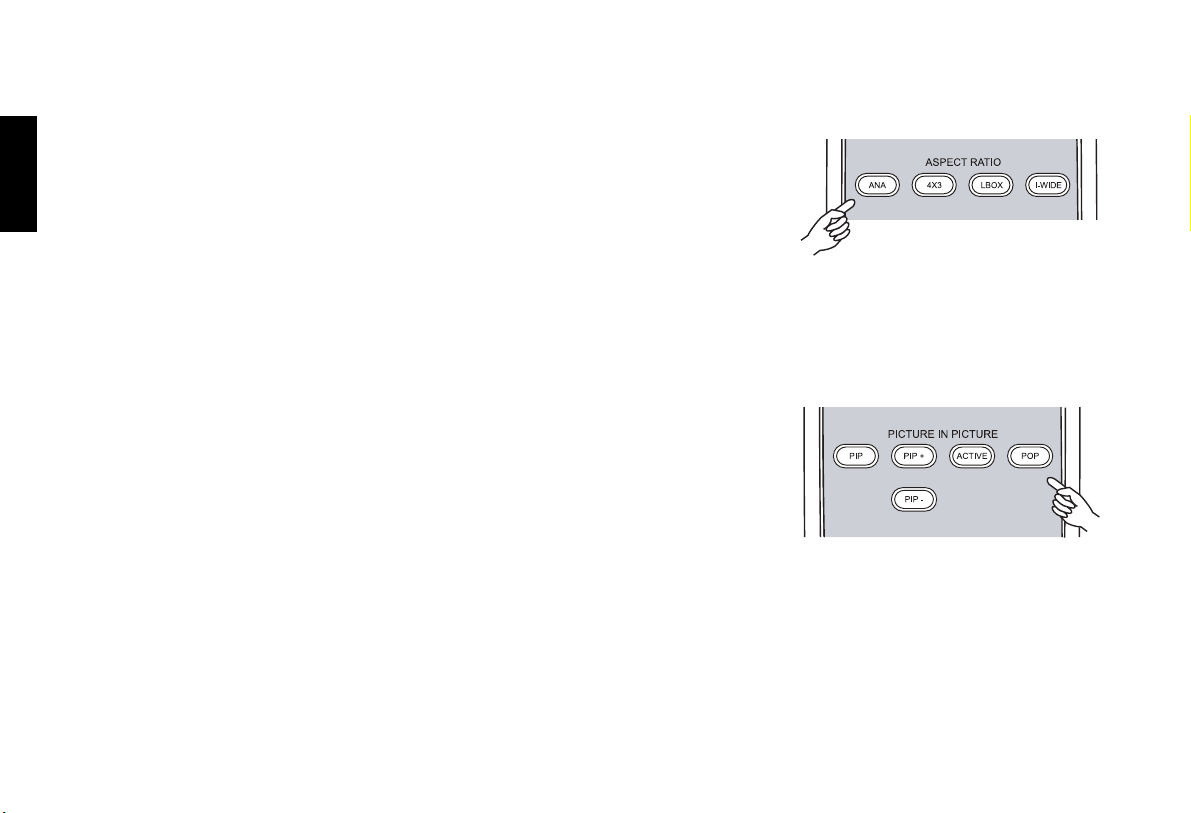

ASPECT RATIO

ANAMORPHIC

For 16: 9 DVDs.

4 X 3

The input signal will be scaled to fit 4: 3 display mode in the center of screen.

LETTERBOX

Letterbox mode. Image in letter- box format is enlarged to fit 16:9 full screen display and the upper/lower portion are “blanked off”.

I-WIDE (IntelliWide)

4:3 image is enlarged nonlinearly in horizontal direction to fit 16: 9 full screen display.

PICTURE IN PICTURE

PIP (Picture in Picture)

Enable the PIP function. Use ARROW keys to adjust the position of the PIP window (see "PIP/ POP function" on page 32)

PIP+

Enlarge the size of PIP window.

PIP-

Shrink the size of PIP window.

ACTIVE

Switch to the active window in PIP display mode.

POP (Picture On Picture)

Enable the POP function.

Page 18

Installation

Remote Control

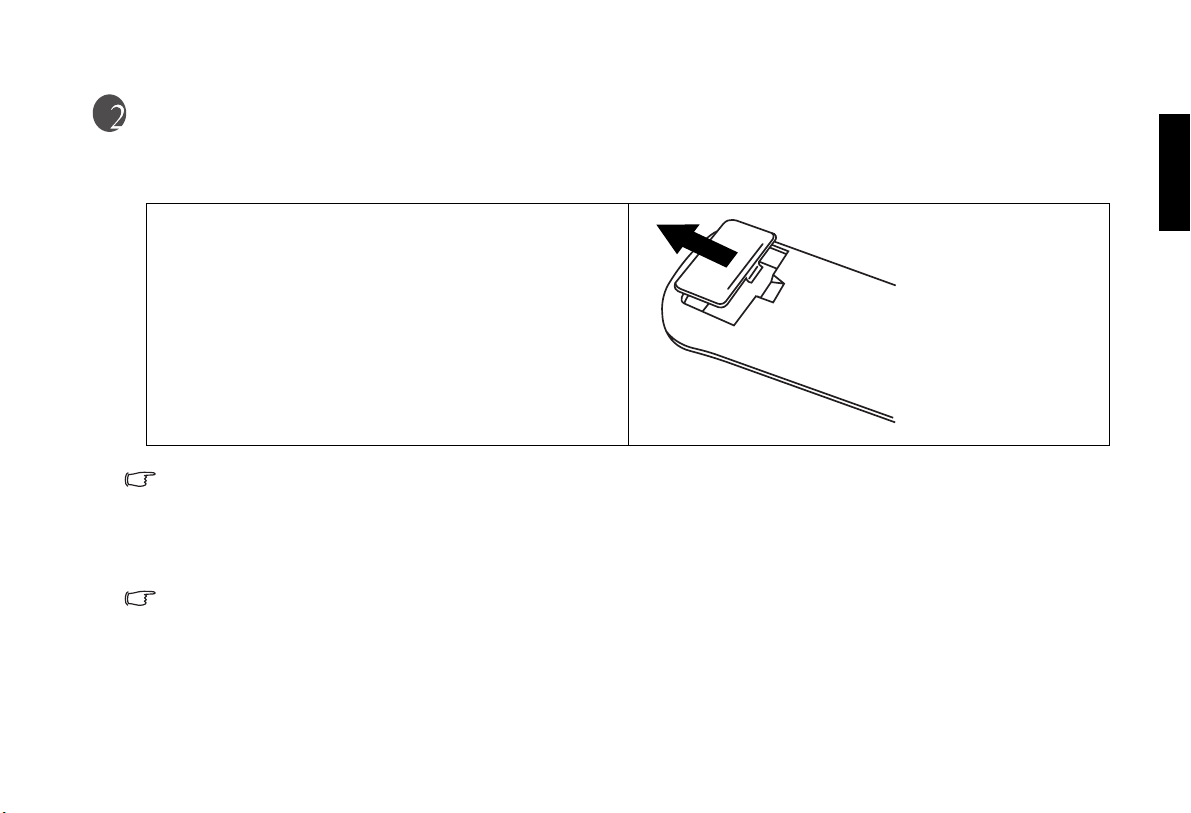

Push down on the tab and lift to open the cover. Install the two AAA batteries with the correct polarity, then close the cover.

Notes on Batteries

■ Make sure that the battery polarities are correct when installing the batteries.

■ Do not mix an old battery with a new one or different types of batteries.

■ If you will not use the remote control for a long time, remove the batteries to avoid damage from battery leakage.

Notes on Remote Control Operation

■ Make sure that there is nothing obstructing the infrared beam between the remote control and the IR receiver on the projector.

■ The useable range is between 3m/ 9.8 feet (from the front of the projector) and 4m/ 13.1 feet (from the top of the projector) within a

30 degree horizontal angle and 15 degree vertical angle.

English

Page 19

English

Vidikron Owner’s Manual

Projector

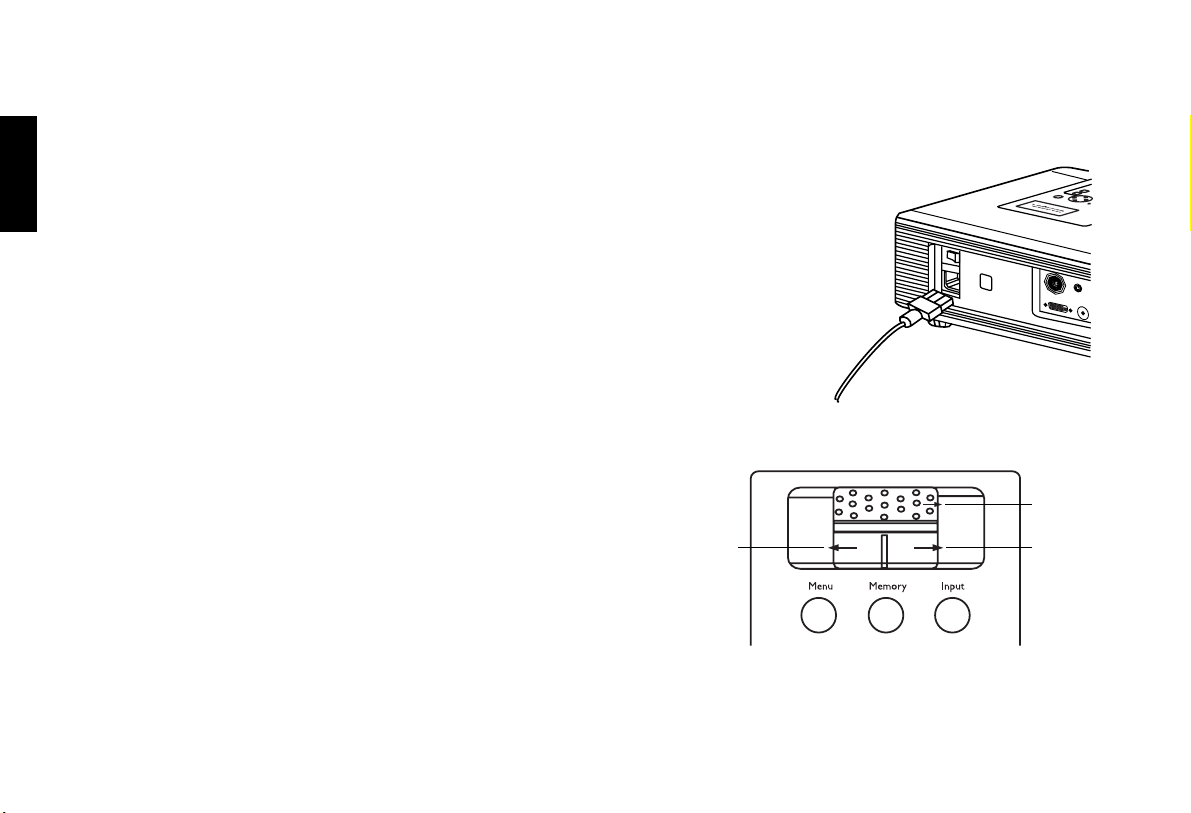

Connect the Power Cord

Plug the supplied power cord into the AC inlet in the rear of this unit. (AC 100V ~ 240V)

Turn on the main power switch on the rear of this unit (next to the AC inlet). The POWER LED will light up in orange. Press ON key on the remote control for ONE second to turn on the unit.

Adjust the Lens Zoom/Focus ring

Adjust the projected image size you need with the zoom ring on the lens. To focus the image, rotate the focus ring on the lens.

Focus

Zoom out

Zoom in

Page 20

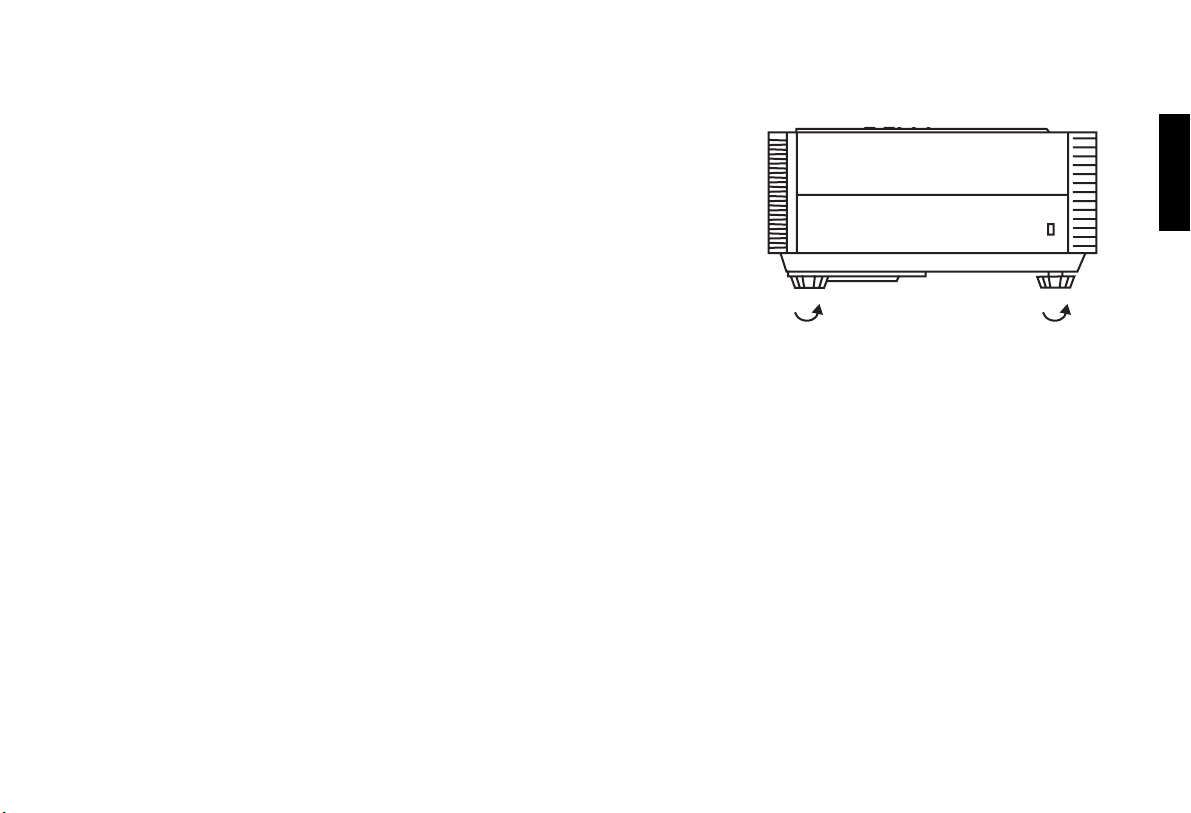

Adjust the height

There are 4 screw adjusters on the bottom of this unit. You can adjust the height or projection angle of this unit by using these adjusters.

Installation

English

Page 21

English

Vidikron Owner’s Manual

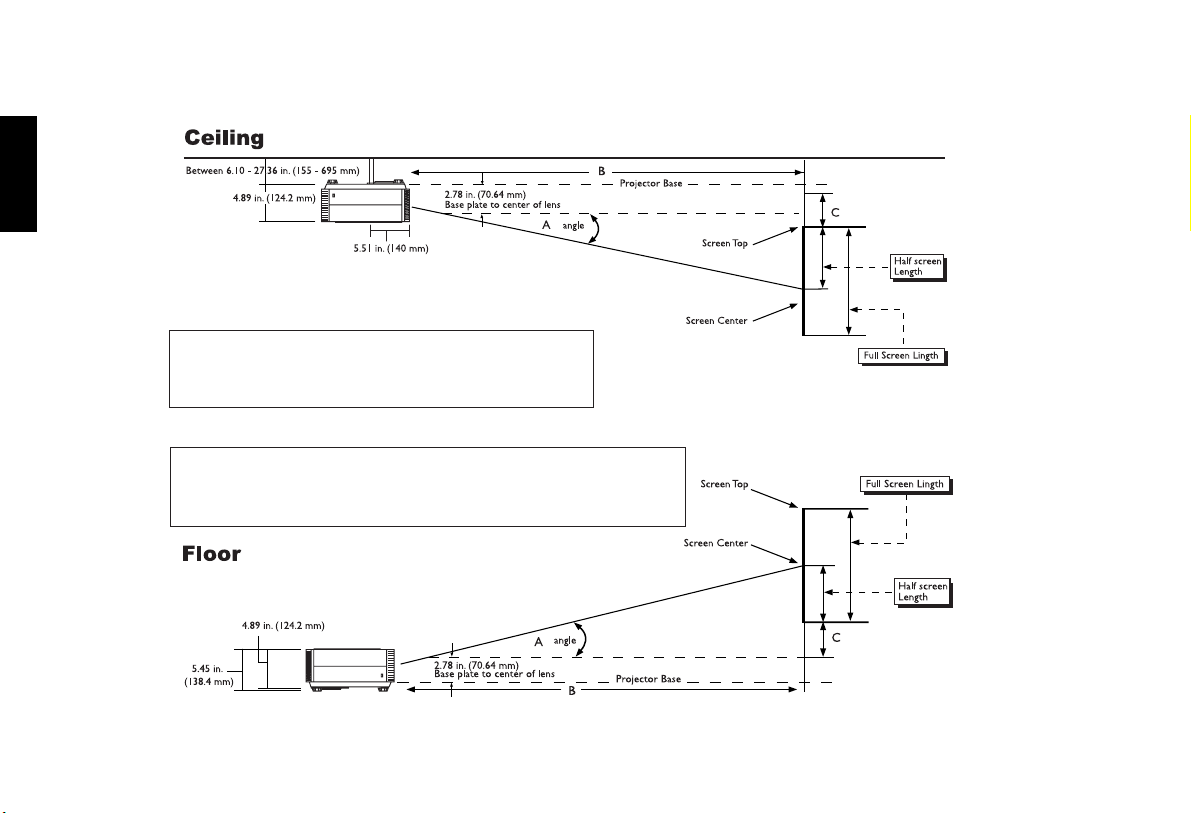

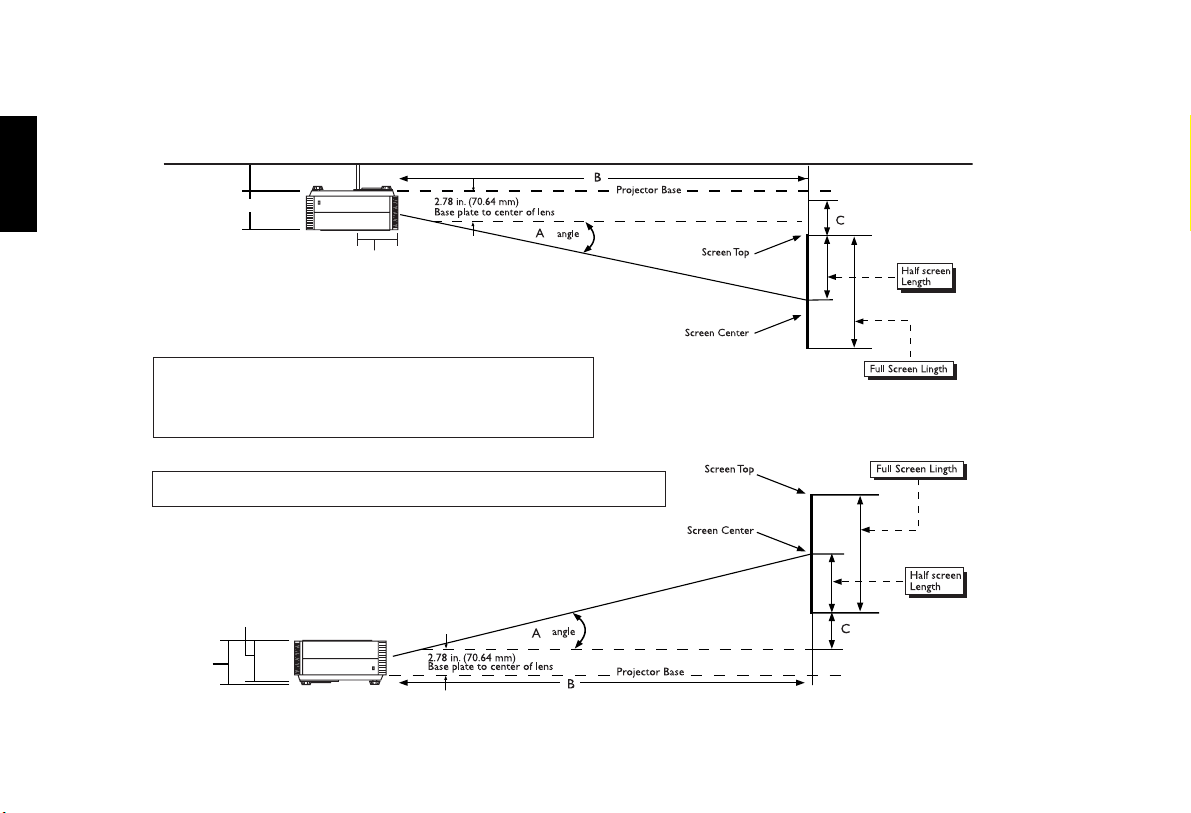

Installation For Vision Model 40 (With 1.38 - 1.63 Lens)

Ceiling

Between 6.10 - 27.36 in. (155 - 695 mm)

4.89 in. (124.2 mm)

5.51 in. (140 mm)

Screen __________ (H) x __________ (W)

B) THROW DISTANCE:

V40 16 x 9 Screens:

Minimum: (screen width x 1.38) = __________ inches

Maximum: (screen width x 1.63) = __________ inches

C) VERTICAL OFFSET:

Screen width x 0.052 = _________ inches from the center of the lens.

Floor

4.89 in. (124.2 mm)

5.45 in.

(138.4 mm)

Page 22

Throw Distance Chart For Vision Model 40 (With 1.38 - 1.63 Lens)

Vision Model 40 @ 1280 x 720

Installation

English

Screen Height Screen Width Min Throw Distance

40.5 72 99.36 117.36 3.74 43 77 106.26 125.51 4.00 45 80 110.40 130.40 4.16 47 84 115.45 136.37 4.35 49 87 120.06 141.81 4.52 50 89 122.82 145.07 4.63

51.5 92 126.96 149.96 4.78 52 93 128.34 151.59 4.84 54 96 132.48 156.48 4.99 56 100 138.00 163.00 5.20 58 103 142.14 167.89 5.36

58.5 104 143.52 169.52 5.41 60 107 147.66 174.41 5.56 61 109 150.42 177.67 5.67 63 112 154.56 182.56 5.82 65 116 160.08 189.08 6.03

67.5 120 165.60 195.60 6.24 72 128 176.64 208.64 6.66 80 142 195.96 231.46 7.38 82 146 201.48 237.98 7.59 90 160 220.80 260.80 8.32

Max Throw

Distance

Vertical Offset

Position

Screen Hight Screen Width Min TD Max TD Vertical Offset

(SWx1.38) (SWx1.63) Screen Width x 0.052

Page 23

English

Vidikron Owner’s Manual

Installation For Vision Model 40ET (With 1.83 - 2.40 Lens)

Screen __________ (H) x __________ (W)

B) THROW DISTANCE:

V40ET 16 x 9 Screens:

Minimum: (screen width x 1.83) = __________ inches

Maximum: (screen width x 2.40) = __________ inches

C) VERTICAL OFFSET:

Two inches offset means that the center of the projection lens is 2" above

the top of the screen (inverted ceiling) or 2" below the bottom of

the screen (upright floor mount).

Page 24

Throw Distance Chart For Vision Model 40ET (With 1.83 - 2.40 Lens)

Vision Model 40ET @ 1280 x 720

Installation

English

Screen Height Screen Width Min Throw Distance

40.5 72 131.76 172.80 2.0" 43 77 140.91 184.80 2.0" 45 80 146.40 192.00 2.0" 47 84 153.10 200.78 2.0" 49 87 159.21 208.80 2.0" 50 89 162.87 213.60 2.0"

51.5 92 168.36 220.80 2.0" 52 93 170.19 223.20 2.0" 54 96 175.68 230.40 2.0" 56 100 183.00 240.00 2.0" 58 103 188.49 247.20 2.0"

58.5 104 190.32 249.60 2.0" 60 107 195.81 256.80 2.0" 61 109 199.47 261.60 2.0" 63 112 204.96 268.80 2.0" 65 116 212.28 278.40 2.0"

67.5 120 219.60 288.00 2.0" 72 128 234.24 307.20 2.0" 80 142 259.86 340.80 2.0" 82 146 267.18 350.40 2.0" 90 160 292.80 384.00 2.0"

Max Throw

Distance

Vertical Offset

Position

Screen Hight Screen Width Min TD Max TD Vertical Offset

(SWx1.83) (SWx2.40) 2.00”

Two inches offset means that the center of the projection lens is 2” above the top of the screen (inverted ceiling) or 2” below the bottom of the screen (upright floor mount).

Page 25

Vidikron Owner’s Manual

English

Connecting

When connecting, make sure to:

1. Turn off all equipment before making any connections.

2. Use the correct signal cables for each source.

3. Ensure the cables are firmly connected.

Page 26

Connecting Video Inputs

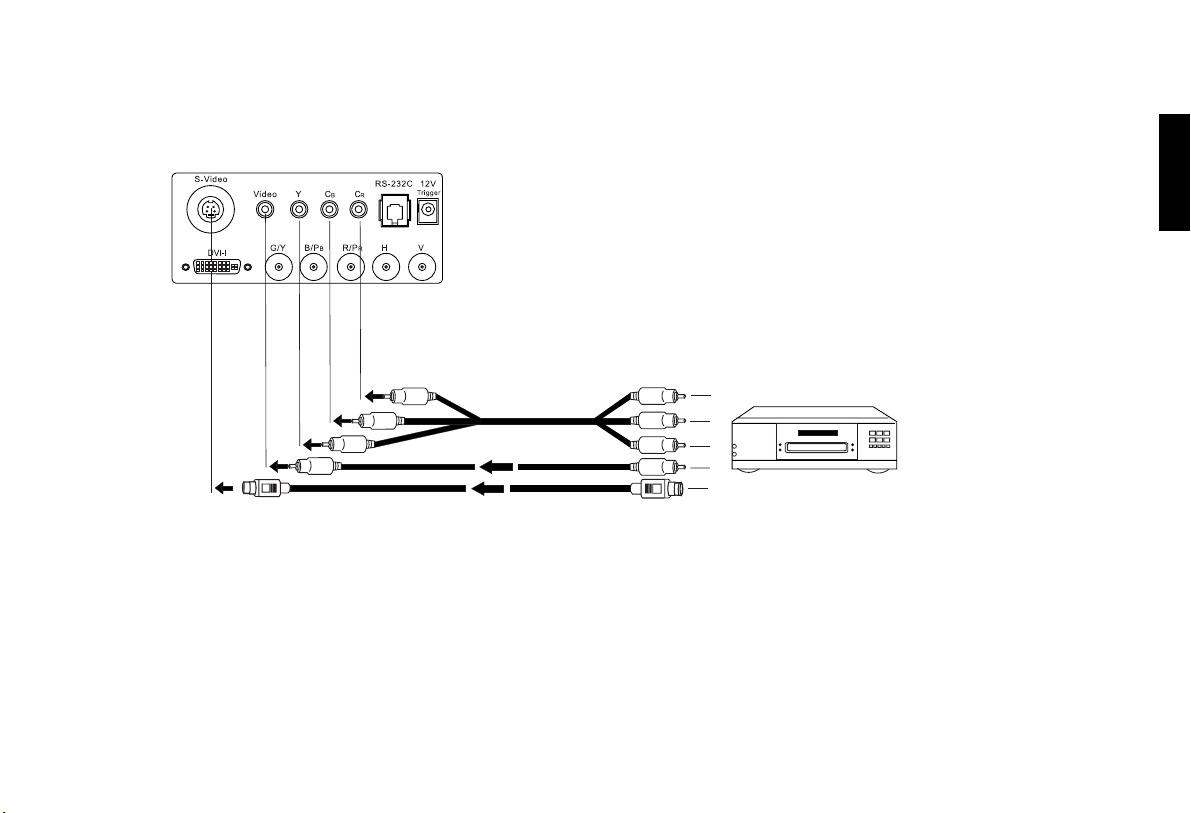

Video / S-Video / Component (Interlaced Video)

Connecting

English

DVD Player

Page 27

Vidikron Owner’s Manual

English

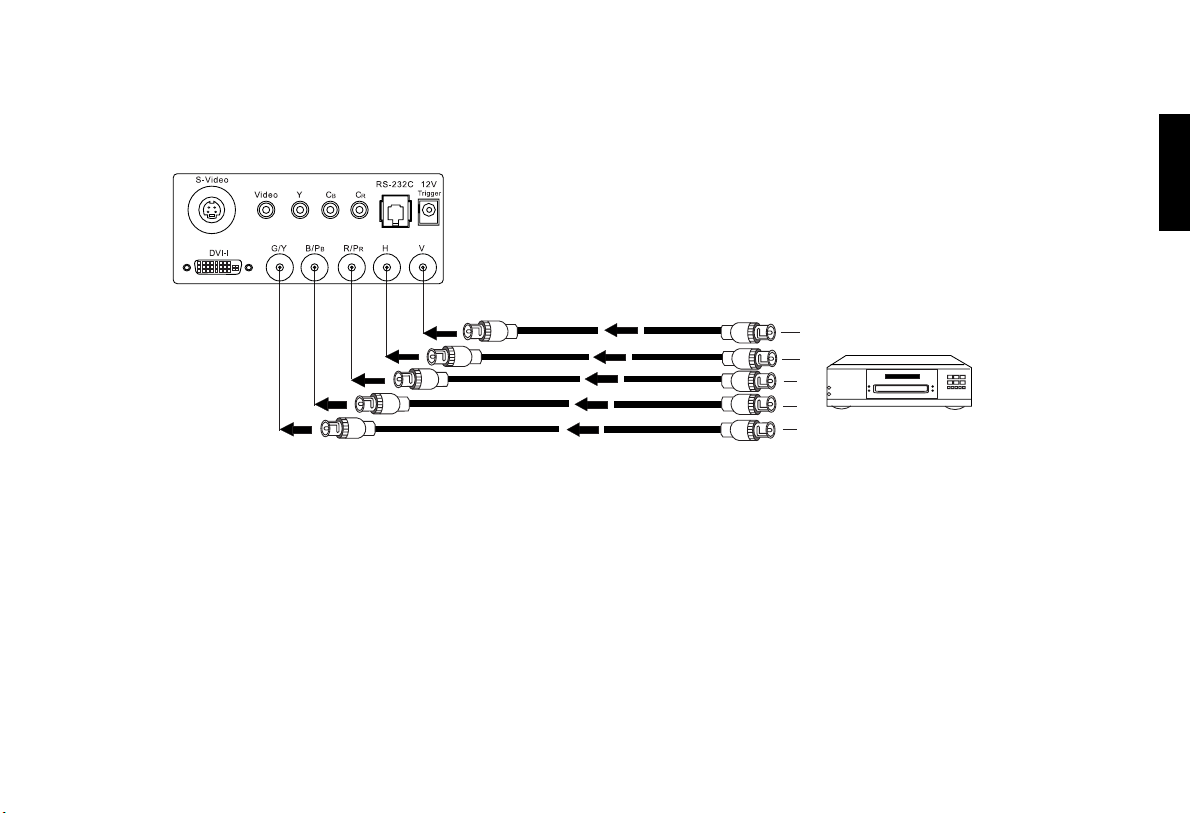

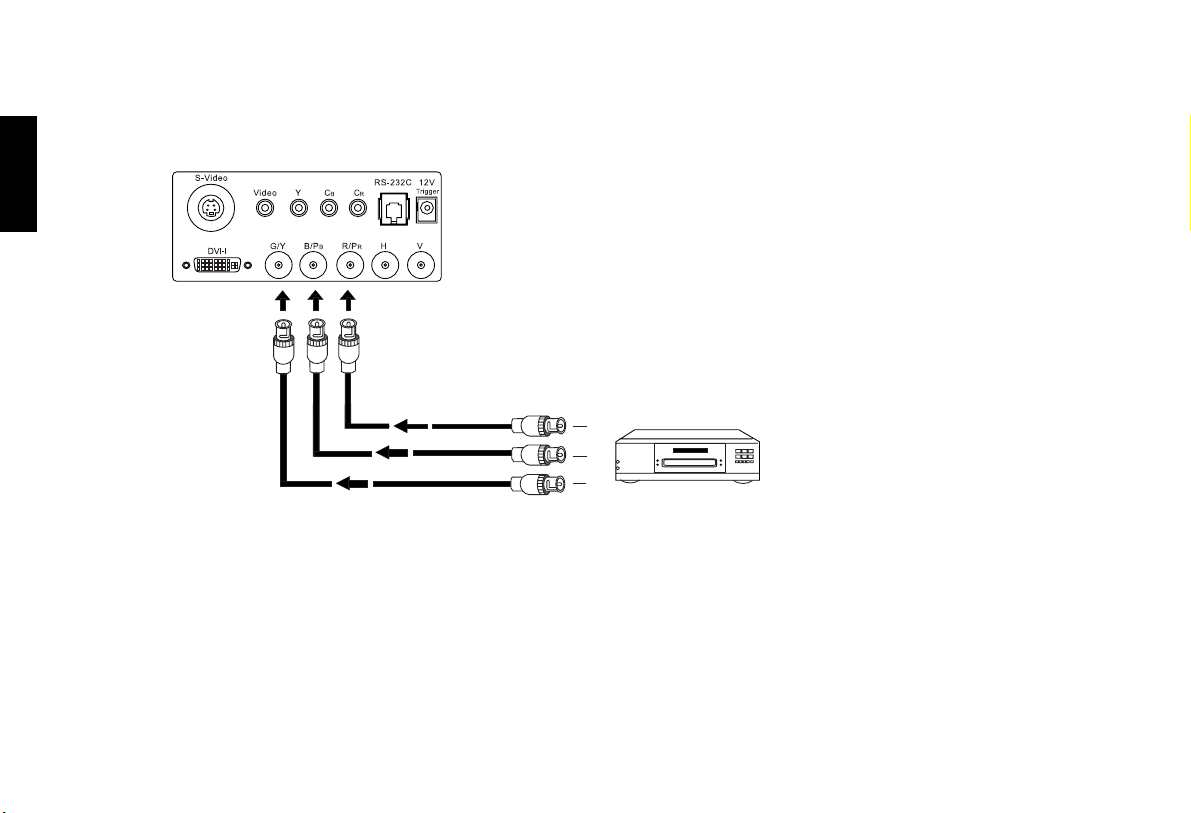

Progressive Component (DTV Y/PB/PR)

DTV Source

Page 28

Connecting

RGBHV (DTV RGB)

DTV Source

The RGB BNC input supports two kinds of HDTV formats: Progressive component (DTV Y/PB/PR) and DTV RGB. The unit will detect the resolution automatically.

English

Page 29

English

Vidikron Owner’s Manual

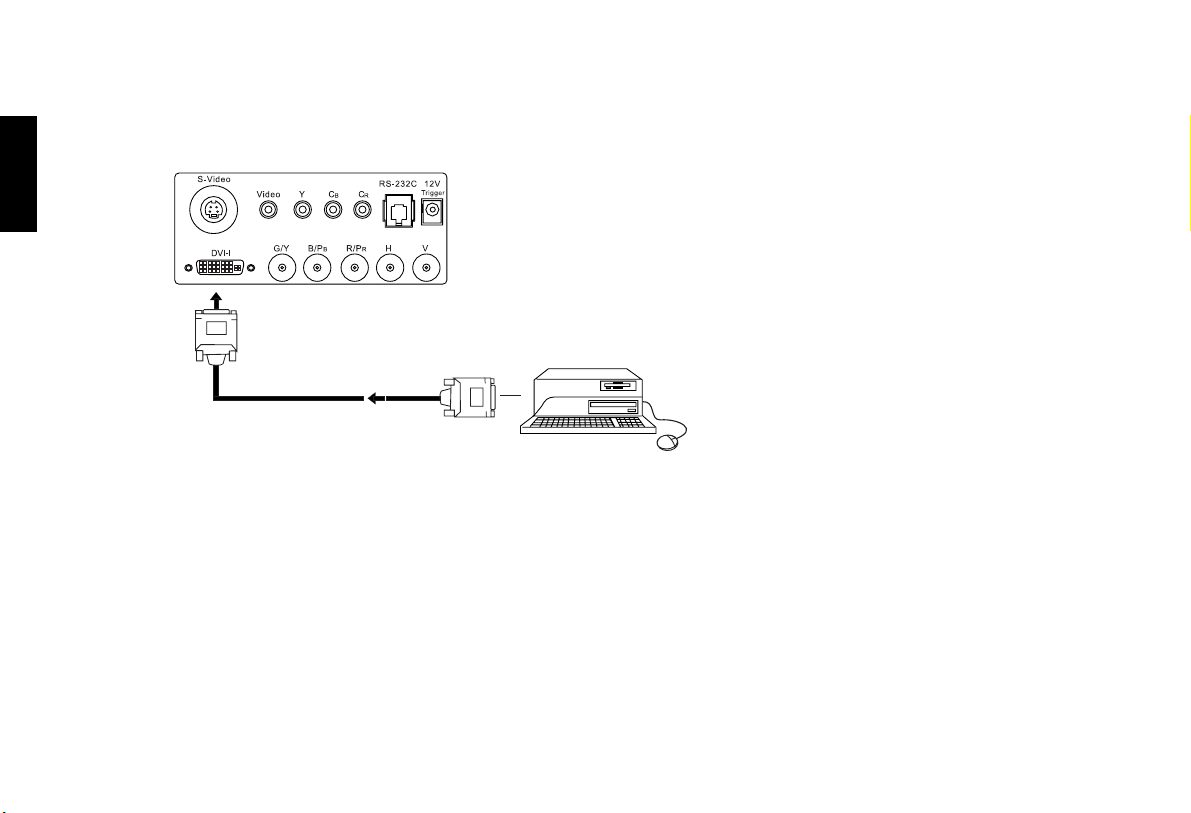

Connecting a Computer or HDCP Compatible Video Device With DVI-I Output

PC, Notebook, set top box or other video device with DVI output

This unit is compatible with the following computer resoultions: 1280x720, 1024x768, 800x600, 640x480.

Page 30

Basic Operation

Turning on the Power

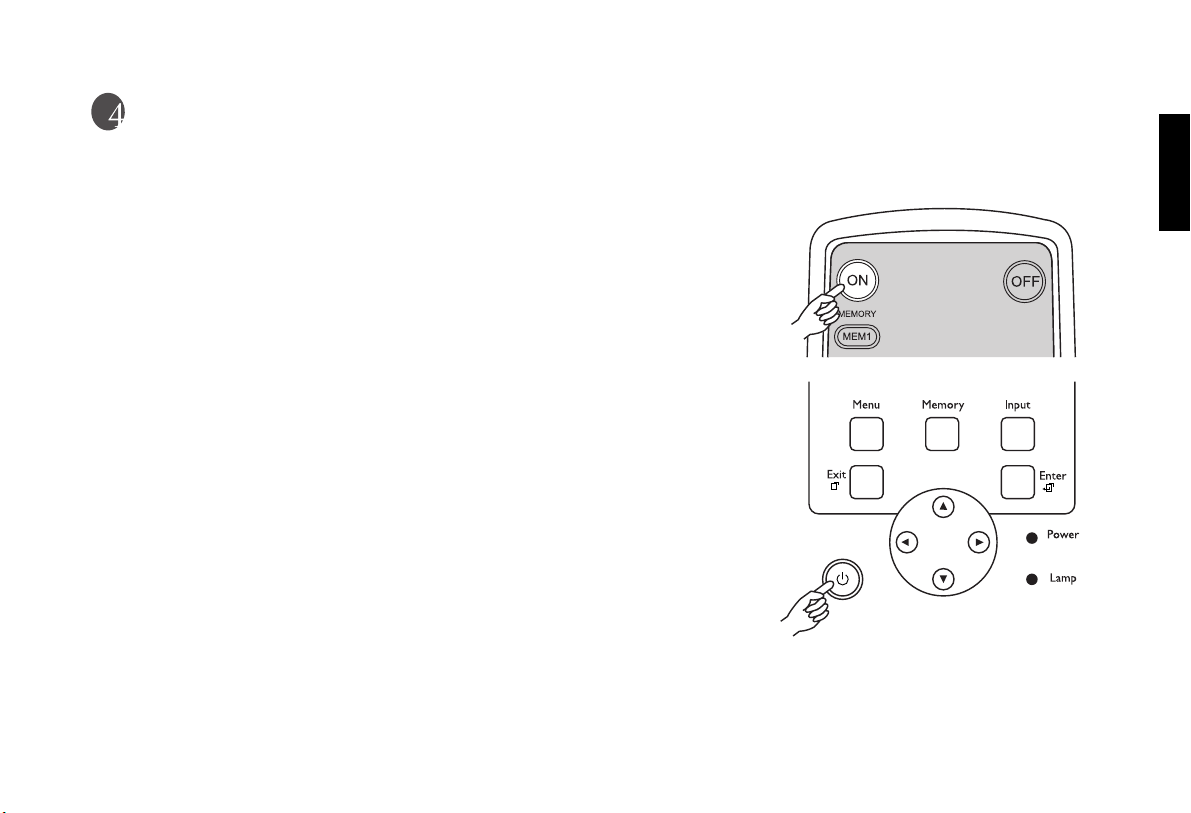

■ The Power LED lights orange when power is applied and the power switch is turned

on.

■ Press and hold the ON key on the remote control or the Power key on the projector

for ONE second to turn on the unit. The POWER LED will blink orange during warm up period, then light solid green.

■ " Searching…." will be displayed on the screen before the projector identifies the

input signal. This message will remain on the screen until a valid signal is detected.

■ If an incompatible input signal exceeds the range of the projector a "Not supportive

timing" message will be displayed on the screen. This message will remain on the screen until you change the input signal.

English

Page 31

English

Vidikron Owner’s Manual

Zoom/ Focusing

■ Adjust the projection image size you need with the zoom ring on the

lens. To focus the image, rotate the focus ring on the lens.

Focus

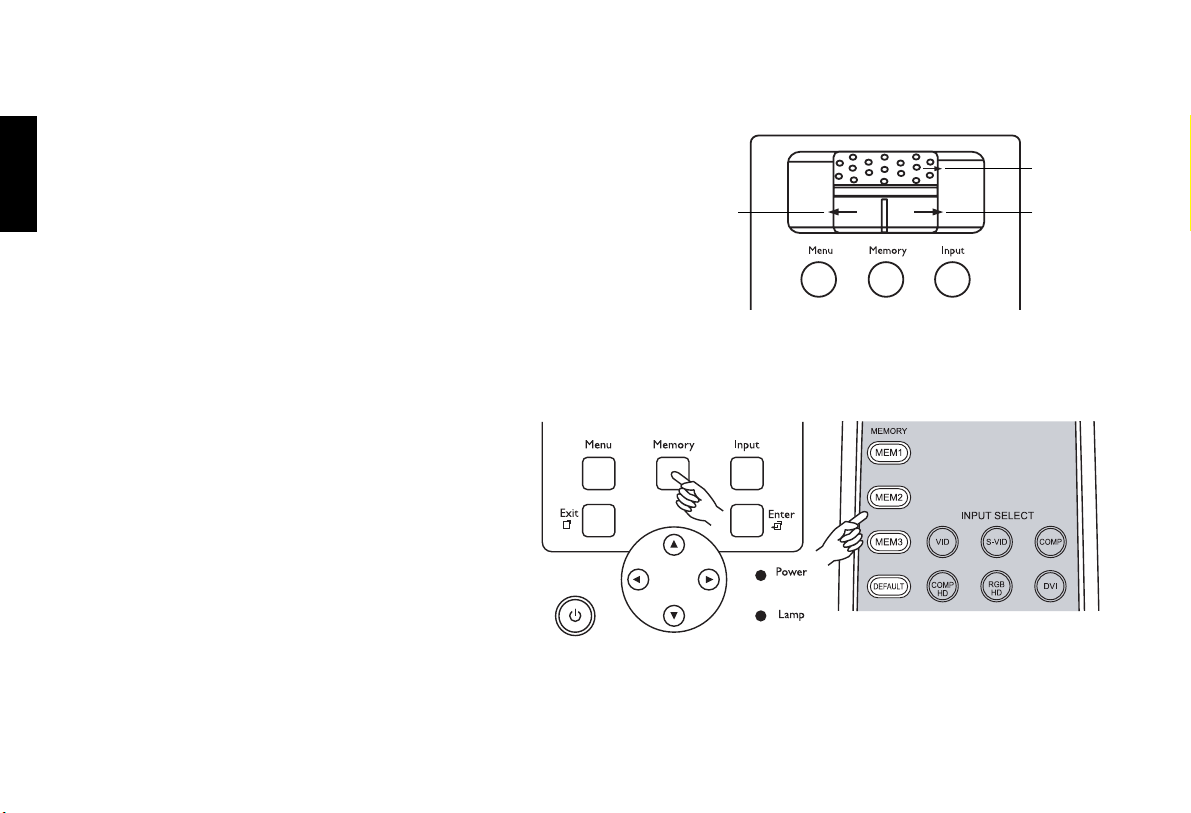

Selecting Video Memory

■ Press MEM1, MEM2, MEM3 buttons to recall

settings in the memory.

■ Press DEFAULT to select the default setting.

Zoom out

Zoom in

Page 32

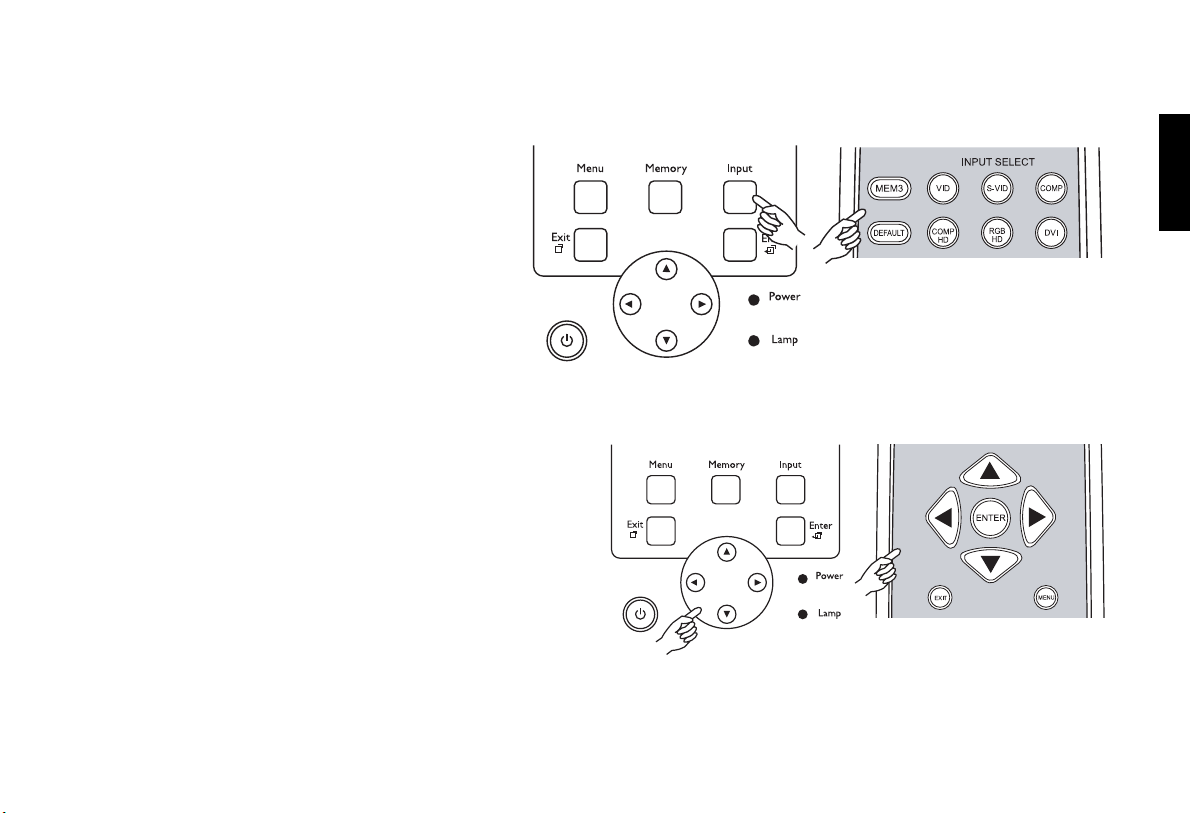

Selecting Input Source

■ When this unit is turned on, it will search for

the input source you last selected.

■ You may select the input source directly on

the remote control.

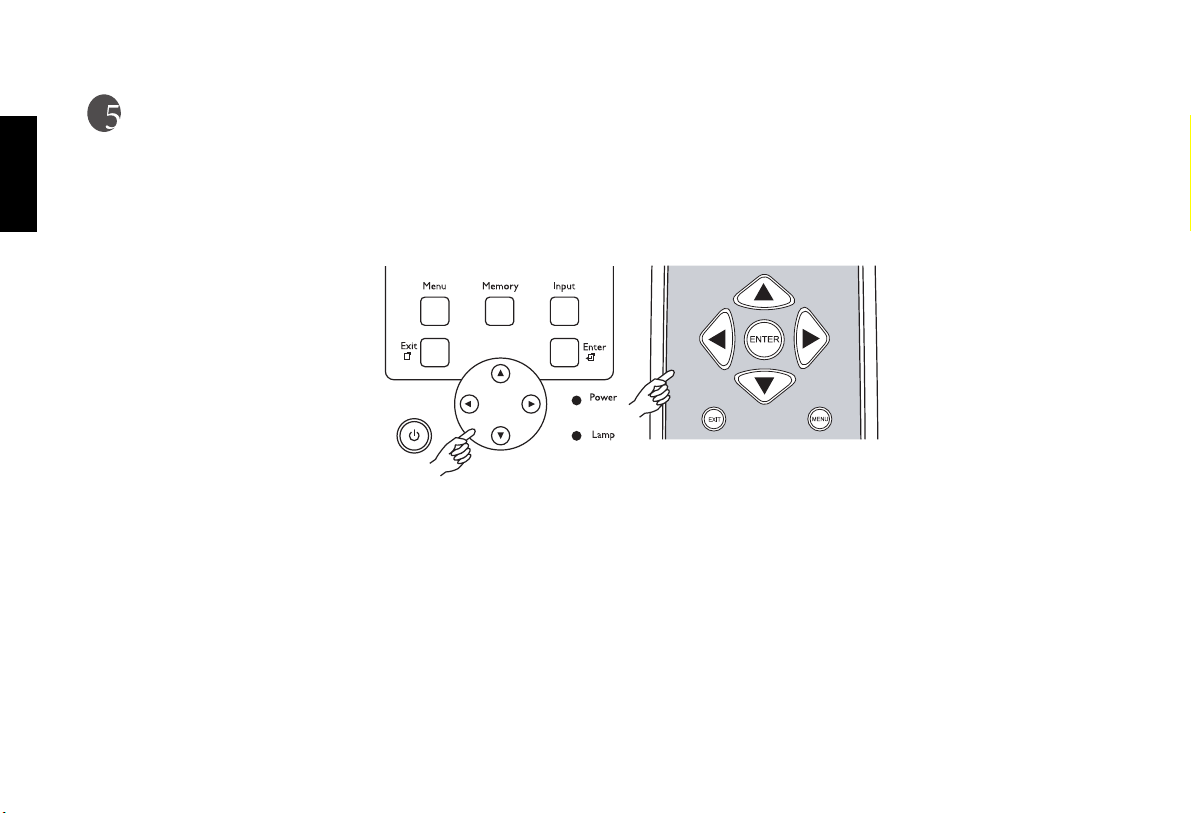

Setting Menu

■ Press the Menu button to turn on /off the on-screen menu.

■ Use the ARROW buttons (c,e,d,f) to select the menu or

to make various adjustments.

■ Press the Enter or f button to enter the setting of items in

the menu, or press the Exit button to leave and save the setting of items in the menu.

■ For more detailed settings, see Chapter 5 Menu on page 34.

■ Press Picture to access the picture setting menu.

Basic Operation

English

Page 33

English

Vidikron Owner’s Manual

Selecting "ASPECT RATIO"

■ Select the proper aspect ratio according to the content being used. There are four aspect

ratios for choice.

■ ANAMORPHIC: The image is compressed vertically, but anamorphic

software will appear properly proportioned. This is best suited for use with 16:9 DVD's.

■ 4 X 3: The input signal will be scaled to fit 4 : 3 display mode in the center

screen.

■ LETTERBOX: Image in letterbox format is enlarged to fit 16:9 full screen

display and the upper/lower portion are cropped.

■ I-WIDE: This transforms a 4x3 image to a 16x9 image.

PIP/ POP function

■ Press the PIP button to enable the PIP function.

■ For PIP purposes, there are two groups of inputs separated by their display modes:

Video Group: Video, S-Video and Component Y/C Graphic Group: HDTV input and Computer input.

■ The PIP can show one input from the Graphic Group within one input from the Video

Group, or show one input from Video Group within one input from the Graphic Group.

■ Press the PIP button to switch to the main window or turn off PIP function.

■ Select the input source of the main window by pressing the INPUT button.

■ Press the ACTIVE button to switch to the active window. You can change the input signal setting in the active window.

■ Press PIP+ or PIP- to adjust the size of PIP window.

■ Adjust the position of the PIP window with the ARROW keys (c,e,d,f).

■ Press POP to enable the POP function.

B/CR inputs

Page 34

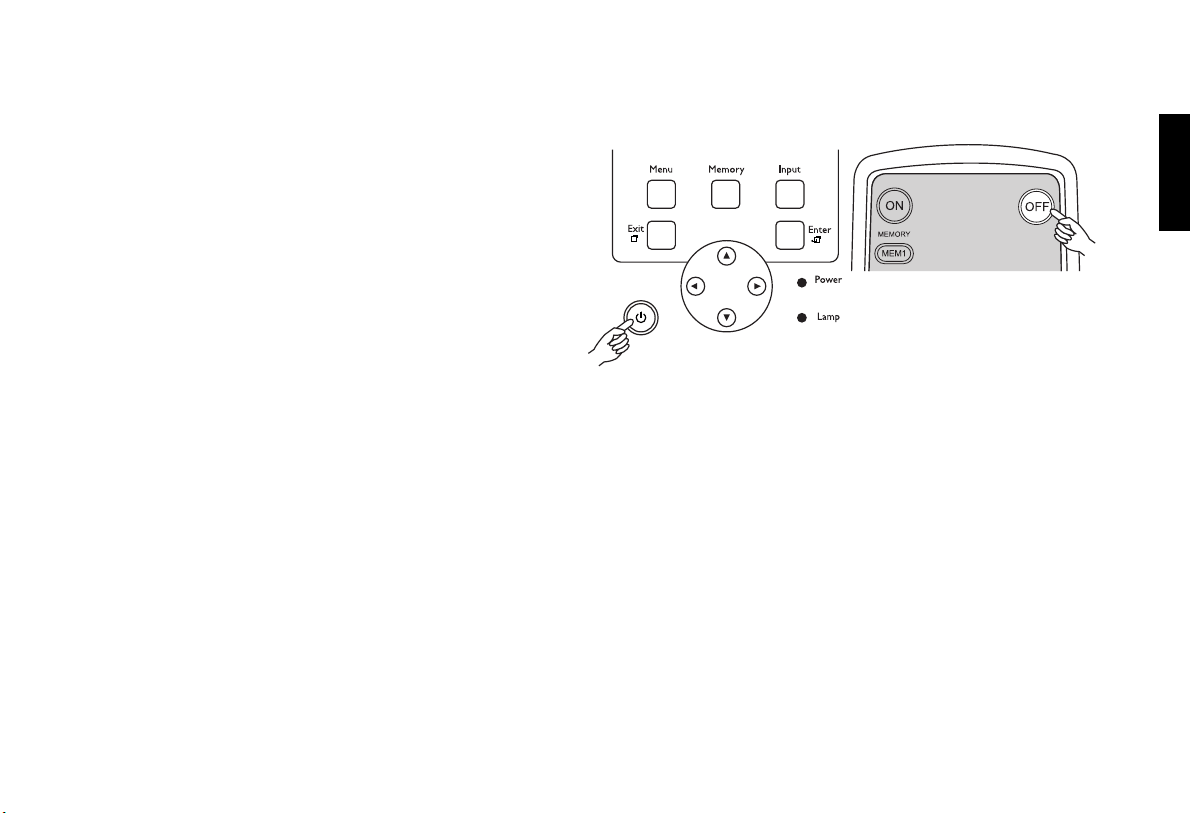

Turning off the Power

■ Press the OFF key on the remote control to turn off the

unit.

■ The POWER LED will blink green and the fans will

speed up for a quick cool down. The projector will not respond to any command for 90 seconds.

■ The POWER LED will light solid orange once the

cooling down cycle has completed.

■ Fans will run for three minutes to cool.

■ You may turn the projector back on after the first 90

seconds.

Basic Operation

English

Page 35

Vidikron Owner’s Manual

English

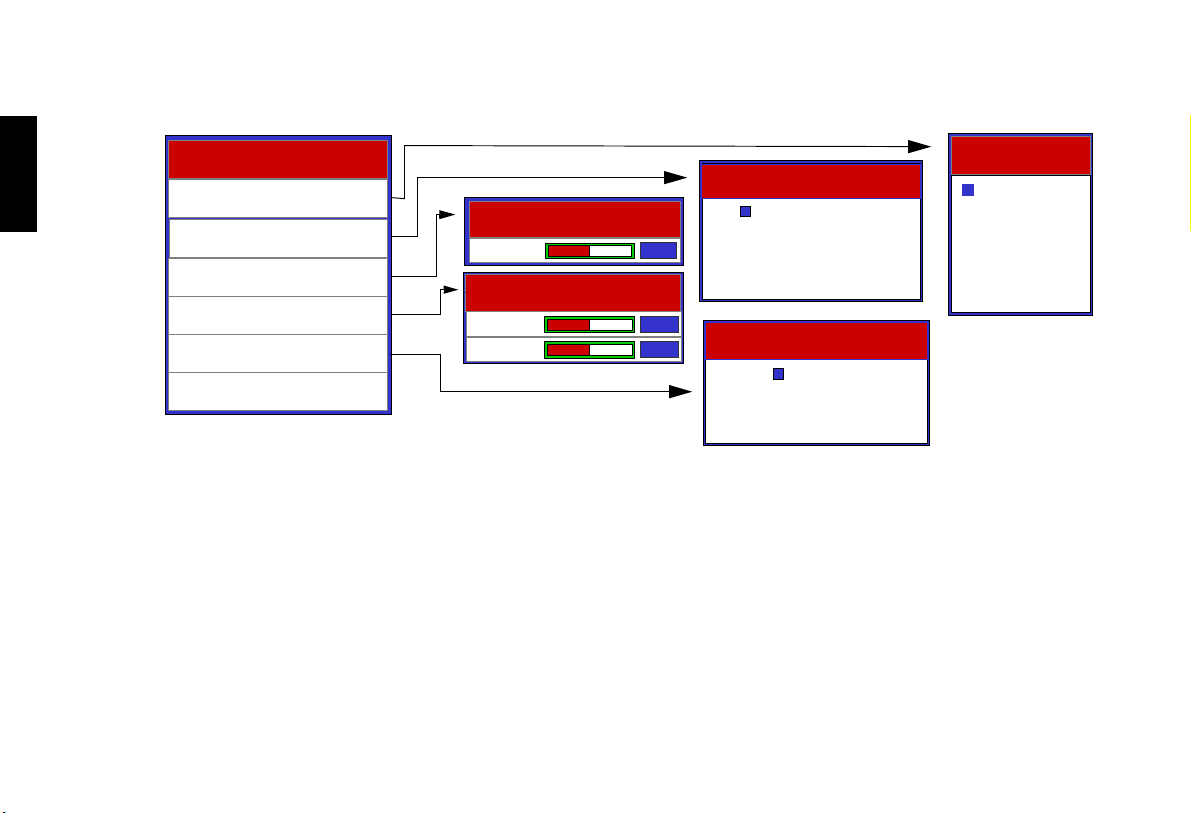

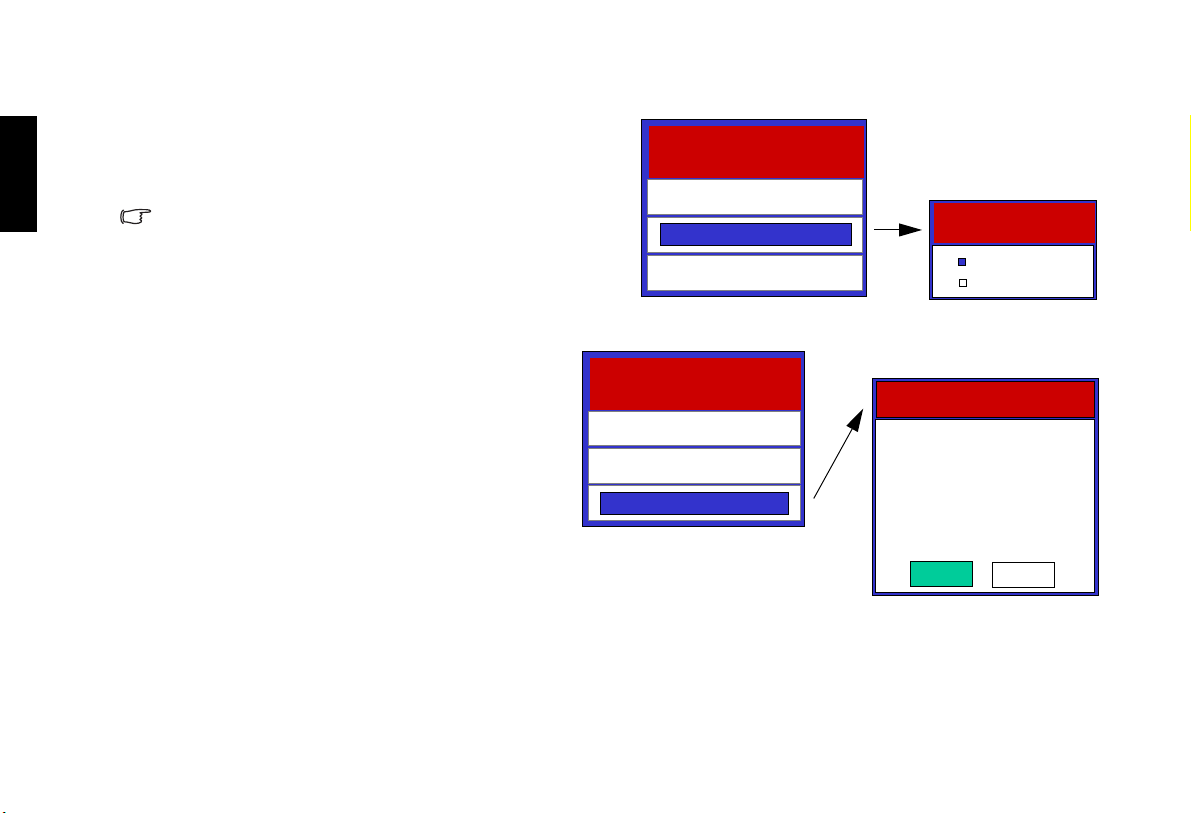

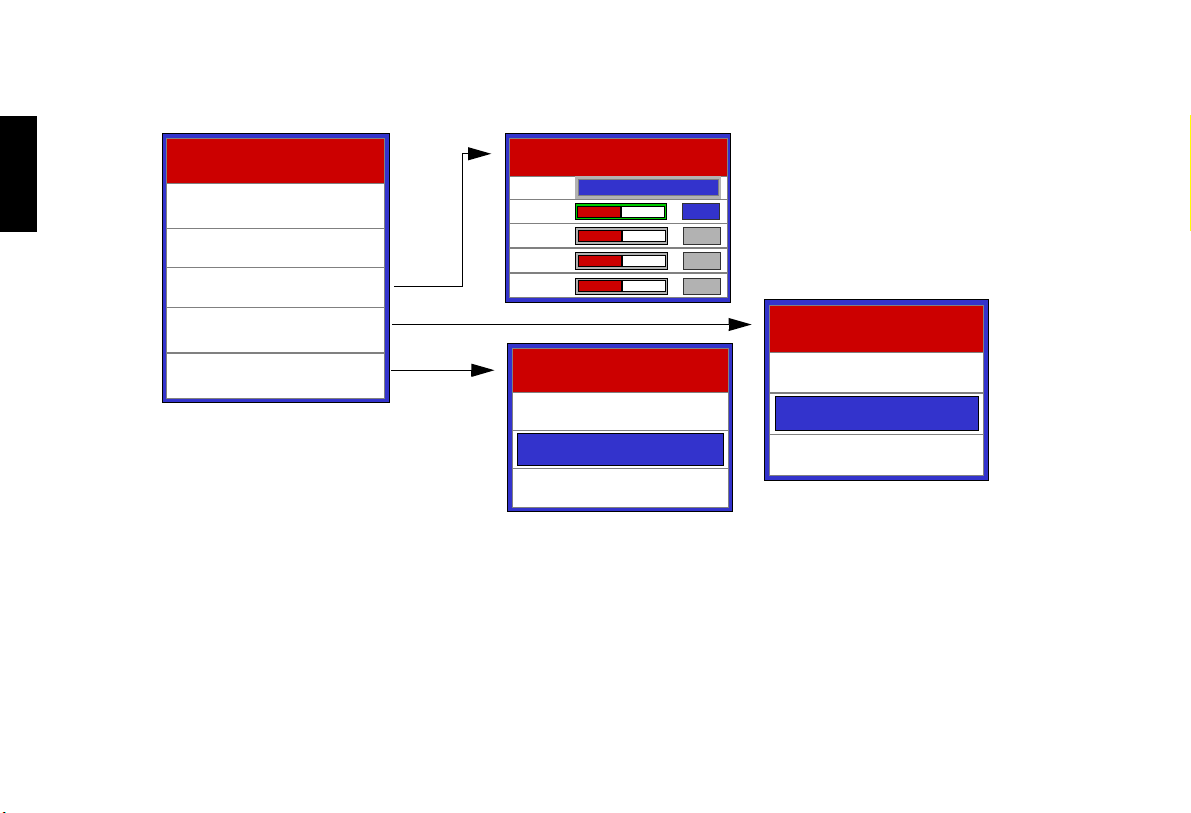

To make an adjustment to a particular function, highlight the function with the c or d arrow button and press Enter or fto activate a scroll bar for that adjustment. When all the settings are done, press Exit to leave the current submenu and then go to Image options --> Memory Store for saving the values as Memory 1, Memory 2 or Memory 3.

Vision Model 40

Picture Adjust

Image Options

Status

Install

Service

Vision Model 40

Picture Adjust

Image Option

Projector Status

Install

Service

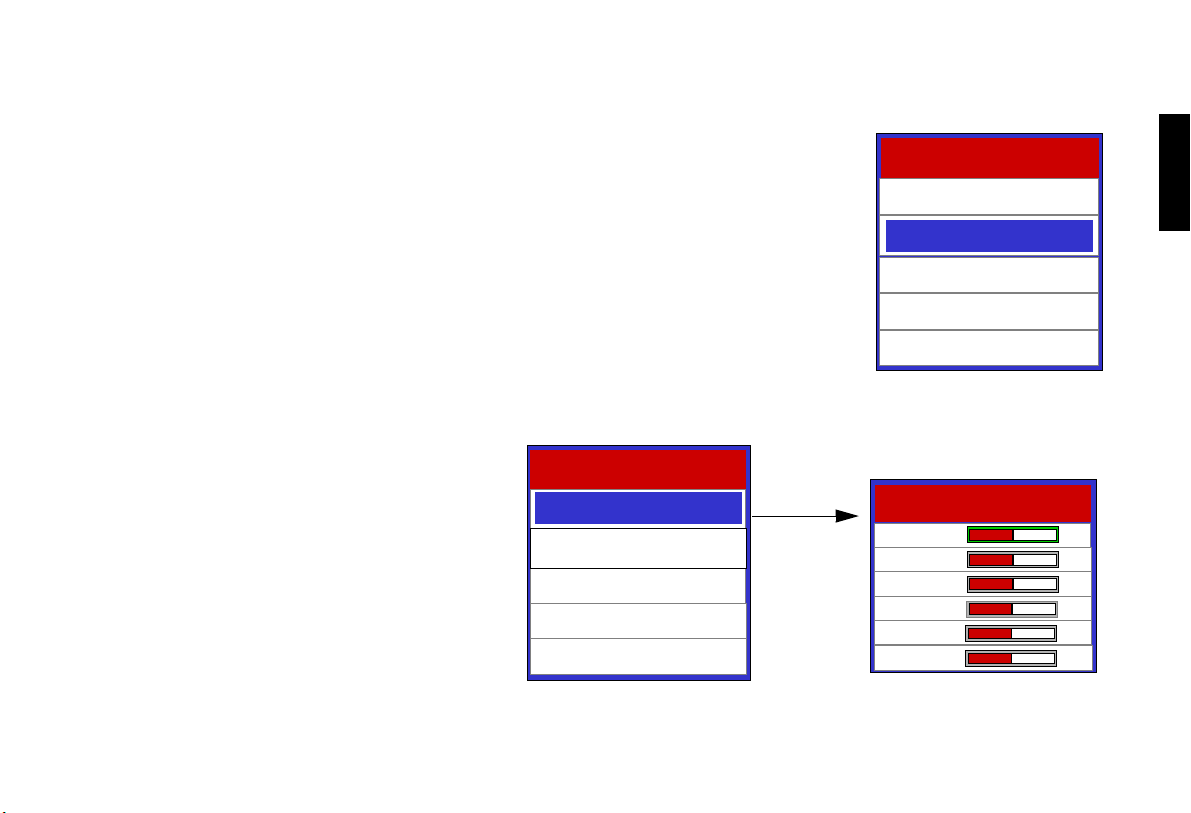

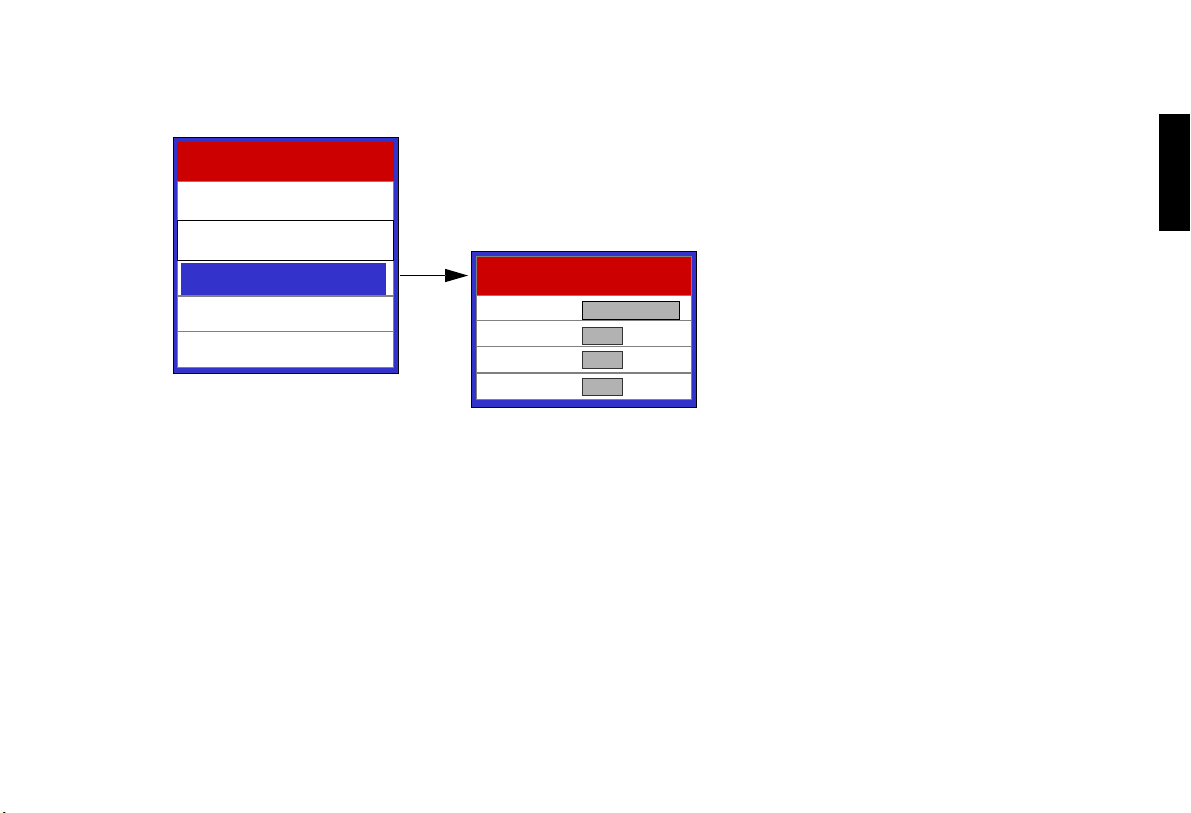

Picture Adjust

Brightness +30

Contrast +15

Color +30

Tint +15

Sharpness 0

Color Temp. 4

English

Page 37

English

Vidikron Owner’s Manual

Image Options 1

Image Options

Input Select

Aspect Ratio

HD/RGB Adjust

Memory Store

Memory Recall

Aspect Ratio

Anamorphic

Standard (4/3)

Letterbox

IntelliWide

Input Select

Video

S-Video

Component

Component HD

RGB HD

DVI-I

From Input Select submenu, you are free to choose one of the 6 input sources as long as you are sure the projector is connected with the correct signal cables. In the example above, S-Video is the current source.

Page 38

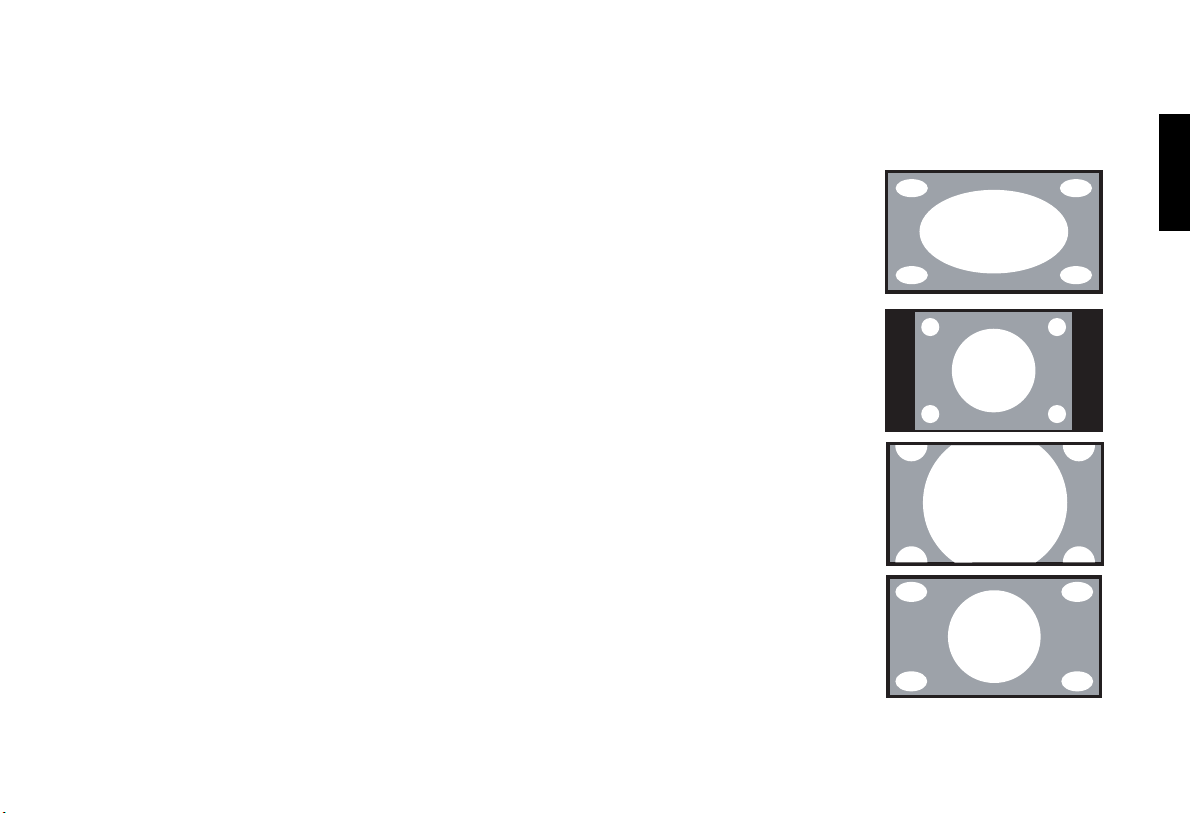

Aspect Ratio

There are four aspect ratios available that can be selected for video signal inputs.

16:9 Screens:

■ Anamorphic: The image is compressed vertically, but anamorphic software will appear properly

proportioned. This is best suited for use with 16:9 DVD's.

■ Standard (4/3): The input signal will be scaled to fit in the center of the 16:9 screen.

■ Letterbox: The image in the Letterbox mode will be zoomed in, and the top and bottom portion

'blanked off'. This ratio is best suited for LaserDisc movies or non-anamorphic DVD's.

■ I-WIDE: A 4:3 image is transformed into a 16:9 image.

Active Image Area

English

Page 39

English

Vidikron Owner’s Manual

Image Option 2

Image Options

Input Select

Aspect Ratio

HD/RGB Adjust

Auto.

Freq.

Phase

H. Pos.

V. Pos.

YES ?

Memory Store

Memory Recall

Memory 1

Memory 2

Memory Store

Memory 1

Memory 2

Memory 3

HD/RGB Adjust.: The following settings are only available with a PC or DTV RGB signal. There is no position adjustment when using

DVI-D signal.

■ AUTO: Adjusts the phase, frequency and position automatically.

■ Freq.: Adjusts the frequency of the signal.

■ Phase: Adjusts the phase of the input signal.

■ H. Pos.: Adjusts the horizontal position of the image.

■ V. Pos.: Adjusts the vertical position of the image.

To enter into the memory selection menus, use Memory Store and Memory Recall menus to save and load up to three different memories. There are three memories: Memory 1, Memory 2 and Memory 3.

Page 40

Projector Status

Vision Model 40

Picture Adjust

Image Options

English

Status

Install

Service

Default: Use this function to reset all values of the current source back to factory default.

Sleep Timer: To setup auto off timer. The setting timer is from 10 minutes to 3 hours.

Lamp Hours: To check for total time of lamp usage.

Projector Status

Default

Sleep Timer Minutes

Lamp Hours Hours

Load

+63

+59

Minutes

Page 41

English

Vidikron Owner’s Manual

Install

Language

Picture Configuration

Keystone

OSD Position

Background Color

Test Patterns

Press Enter on selected feature to open the Install menu.

Language: There are 5 different menu languages available: English, French, Spanish, German and Italian.

Picture Orientation: The projector can be installed on a ceiling or in a rear screen configuration with one or more mirrors. There are four

settings: FLOOR FRONT, CEILING FRONT, FLOOR REAR, and CEILING REAR.

Keystone: Corrects the trapezoidal distortion as a result of the angle of projection (-12° ~ +12°). This can correct for up to +/- 12 degrees of offset.

OSD Position: To adjust horizontal and vertical positions of the OSD.

Background Color: To select the background color while there is no input signal detected.

Test P a tte r ns: Highlight and press Enter or the right arrow key to display the cross-coarse pattern.

Keystone

OSD Position

H. POS.

V. POS.

Picture Configuration

Floor Front

Ceiling Front Floor Rear Ceiling Rear

Background Color

Grey Blue White

Language

English Francais Espanol Deutsch Italiano

Page 42

Service

The Service menu is passcode protected and for use by Vidikron personnel only. Many of the adjustments available in this section are intended for use by trained service personnel only. If you are having difficulty with one of these items, please contact your Vidikron Dealer for service.

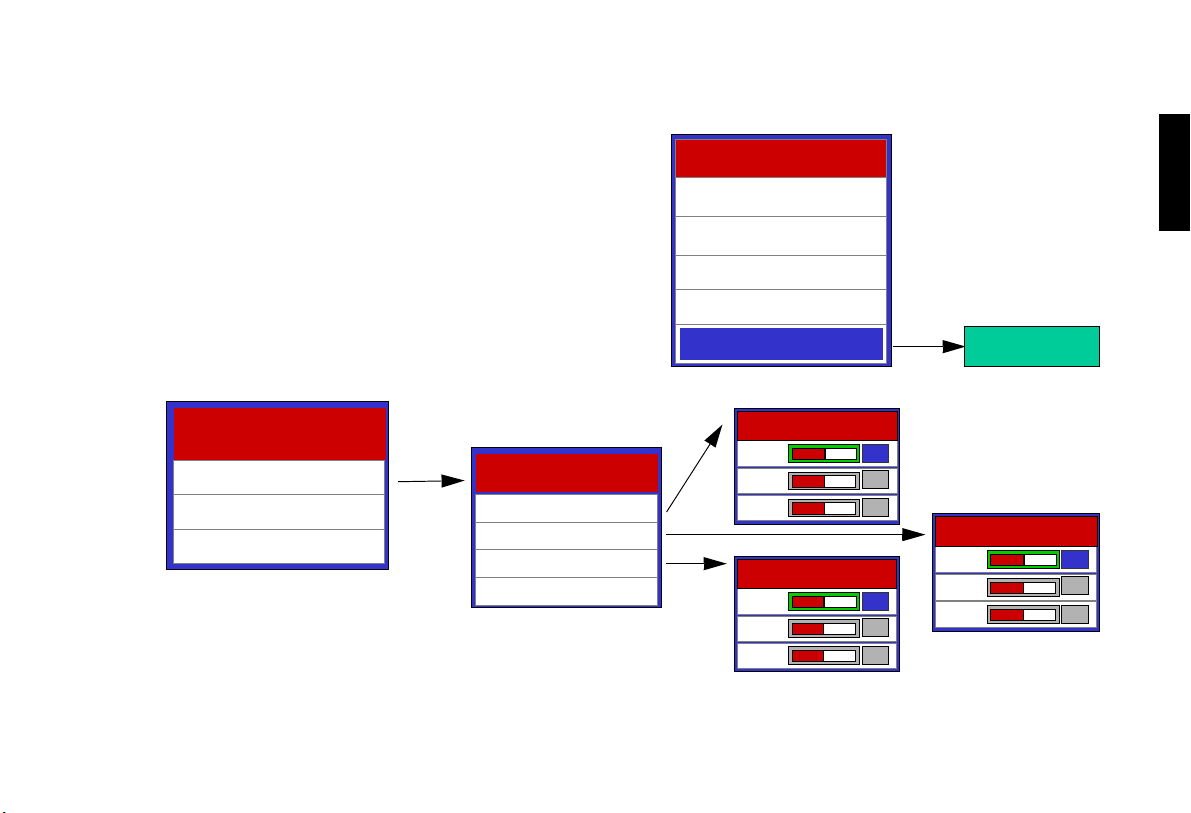

White Balance

Service

White Balance

Blue Enable

Lamp Reset Timer

To adjust grey scale.

■ Gamma: Adjust the gamma curve.

■ Gain: Adjust high end.

■ Offset: Adjust low end.

■ Store Settings: When this function is selected and entered, all White Balance

settings will automatically be stored in Color Temp. 4 (Custom Temperature).

White Balance

Gamma

Gain

Offset

Store Settings

Vision Model 40

Picture Adjust

Image Options

Status

Install

Service

Gamma

Red

Green

Blue

Offset

Red

Green

Blue

English

Please enter pass-code to access Service screen

Gain

Red

Green

Blue

134

512

Page 43

Vidikron Owner’s Manual

English

Blue Enable

This mutes the red and green image.

Use this function in combination with the external color bar pattern to adjust for proper color and tint settings without using a blue filter.

To quickly exit this function, select any other color temperature in the same adjustment window and return to the original temperature setting or simply select another input source from the remote control and then return to the original selected source.

Reset Lamp Timer

Use this function to reset lamp usage counter. Reset only if you replace the lamp.

Service

White Balance

Blue Enable

Lamp Reset Timer

Service

White Balance

Blue Enable

Lamp Reset Timer

Blue Enable

Off

OffOnOff On

Lamp Reset Timer

Reset only if you

replace new lamp

ARE YOU SURE?

Yes

Page 44

Additional Information

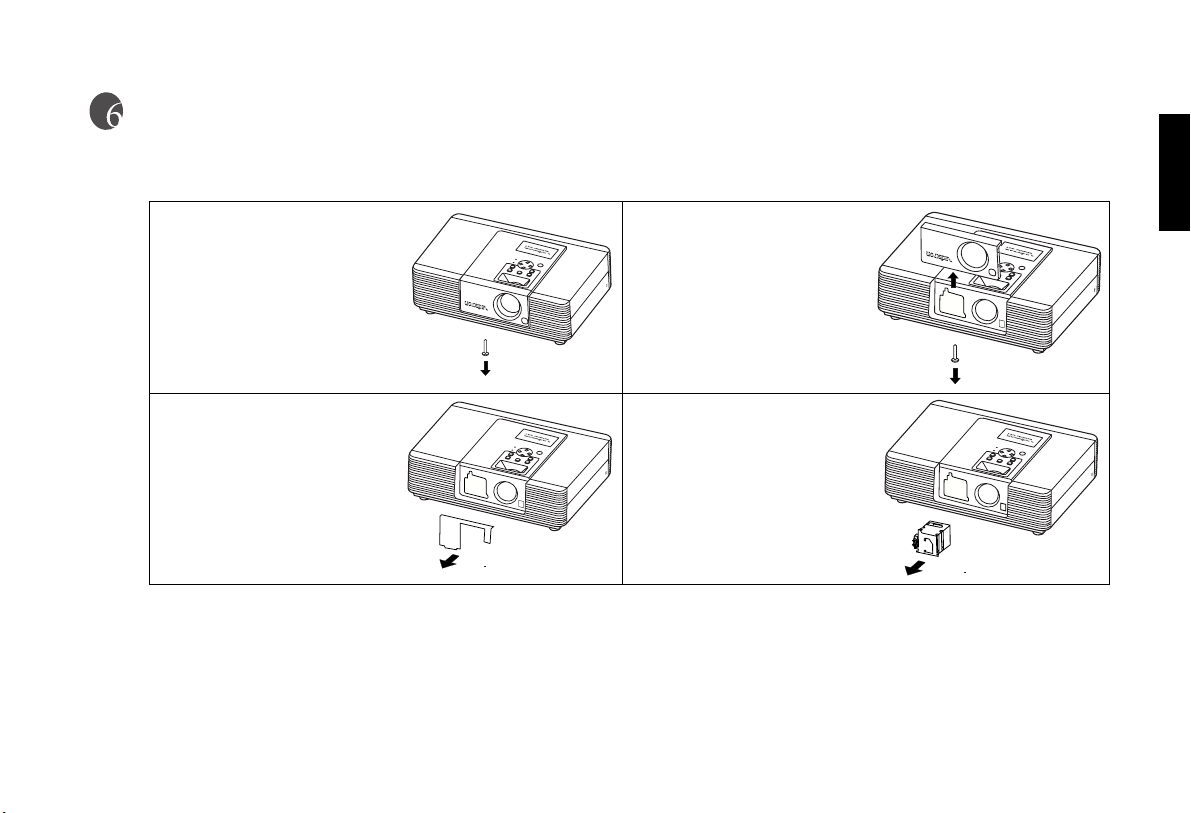

Replace the Lamp (Contact your Vidikron Dealer)

1. Loosen the screw of front lamp cover.

3. Loosen the three screws on the lamp shield.

4. Take off the lamp shield.

2. Take off the front lamp cover.

5. Loosen the two screws on the lamp module.

6. Pull out the lamp module horizontally.

English

Page 45

Vidikron Owner’s Manual

English

7. Insert the new lamp module into the projector horizontally until it is securely in place.

8. Tighen the two screws on the lamp module.

11. Put on the front lamp cover.

12. Tighten the screw of front lamp cover.

9. Put on the lamp shield.

10. Tighten the three screws on

13. Turn on the power and go into the

Troubleshooting

Problem Possible Cause Remedy

There is no power from power cable. Plug the power cord into the AC inlet on the rear of this

This unit does not turn

on.

The power switch is not turned on. Turn on the power switch.

Turned on this unit again while still in the cooling down procedure.

The front lamp cover is not correctly attached. Correctly attach the front lamp cover.

the lamp shield.

Service menu, select Lamp

Reset Timer

item to reset lamp usage counter.

unit, and plug the power cord into to the power outlet.

Wait until this unit completes the cooling down procedure.

Page 46

Additional Information

No picture

Image is unstable

Picture is blurred

Remote control does

not work correctly

LAMP LED blinks in

red

POWER LED blinks in

orange and green

sequentially

This unit is not correctly connected to the input source device.

The input signal has not been correctly selected. Select the correct input signal with the input keys: Video,

POWER LED or LAMP LED blinking. Please contact your Vidikron dealer for assistance.

The connection cables are not connected to this unit.

The projection lens is not correctly focused. Adjust the focus of projection lens with the focus ring.

This unit and the screen are not aligned squarely.

The batteries are exhausted. Replace both batteries with new ones.

The front lamp cover is not correctly attached. Correctly attach the front lamp cover.

The cooling fan does not work properly. Please contact your Vidikron dealer for assistance.

The temperature inside this unit is extremely high.

The lamp has exceeded its estimated life. Replace the lamp with a new one.

The lamp has burned out. Replace the lamp with a new one.

Check the connection.

S-Video, Component, Component HD, RGB HD and DVI-I on the remote control.

Correctly connect the cables to the appropriate terminals.

Adjust the projection angle and direction, and the height of this unit.

Check that the ventilation holes are not blocked.

English

Page 47

English

Vidikron Owner’s Manual

Specifications

Projector Type

Digital Light Processing™ (DLP™), Single HD-2 DMD™ Chip

Native Resolution

1280 x 720, (16:9)

Aspect Ratios

4:3, Letterbox, 16:9, Anamorphic, IntelliWide

Video Standards

NTSC, PAL

Throw Distance

V40: 1.38 to 1.63 / V40ET: 1.83 to 2.40 (Factor x Screen Width)

Light Output

CSMS** Specifications: Home Theater Calibration: 480 ANSI Lumens, 17.9 Foot-Lamberts (fL) 850 ANSI Lumens*

Contrast Ratio

CSMS** Contrast Ratio: 148:1 1600:1 ANSI

Lamp

210W

Estimated Lamp Life

2000 hours @ 6500o Kelvin

DTV Compatibility

480p, 720p, 1080i

Memories

21 memories

Vision Model 40/ Vision Model 40ET Specifications

: Please refer to page 20 to page 23.

Inputs

(1) Composite Video, (1) S-Video, (1) RGB/Component (via BNC), (1) RCA Component Video, (1) DVI-I w/ HDCP, (1) RS-232

Scan Frequency:

Horizontal 15-80 kHz, Vertical: 50-100 Hz

Picture Size (16:9 Screen)

Recommended Width: 72-96 in., Maximum Width: 200 in.

12V Output

Max. 250 Amp, active when the projector is on

Power Requirements

100-240V AC, 50/60 Hz, 320 watts

Operating Environment

40°- 95° F, (5°- 35° C), 20%-80% Humidity (non-condensing)

Dimensions (w/out feet)

Width: 15.8 in. (400 mm), Depth: 11 in. (280 mm), Height: Without feet 4.9 in. (125.41 mm) with feet 5.18 in. (131.5 mm) Weight: 17.5 lbs. (7.8 kg) (includes lens)

Regulatory Approvals

UL, FCC, CE, C-Tick

Limited Warranty: Projector:

(2) Two year parts and labor from the date of deliv-

ery to the end user

Lamp Warranty: (6) six months or 1000 hours

Page 48

Additional Information

*ANSI Lumen specification:

This is the typical projector luminosity (brightness) specification found in most sales literature. This measurement is included in Vidikron literature to allow for direct comparison with other manufacturer's projectors. These measurements can be taken at 9,000 to 13,000 degree Kelvin to get expected performance data when the projector is used in professional, commercial, and industrial displays.

**CSMS Home Theater Calibration ANSI Lumen Specification:

These measurements are taken from the projector as setup in a home theater environment. The projector is calibrated to ISF specifications including setting the color temperature to 6500 degree Kelvin, the standard for reproducing video.

**CSMS Home Theater Calibration foot-Lambert (fL) Specification:

This is the unit of measurement used in commercial movie theaters to express image brightness. The Society of Motion Picture and Television Engineers (SMPTE) specifies 16 fL as the target image brightness for film-based projectors using an open gate (without film in the projector). More importantly, today SMPTE specifies 12 fL as the target image brightness in Digital Cinema theaters using DLP™ technology. The foot-Lambert is dependant on screen size, screen gain, and projector light output.

All measurements are made at Vidikron to ANSI/NAPM IT7.228-1997 specifications using the Photo Research PR-650 SpectraColorimeter and Minolta LS-100 Light Meter, Video Essentials test DVD, and a Stewart Filmscreen StudioTech 130, 1.3 gain, 72-inch wide screen. The projector is calibrated to a color temperature of 6500º Kelvin and has a minimum of 150 hours of usage.

English

Page 49

English

Vidikron Owner’s Manual

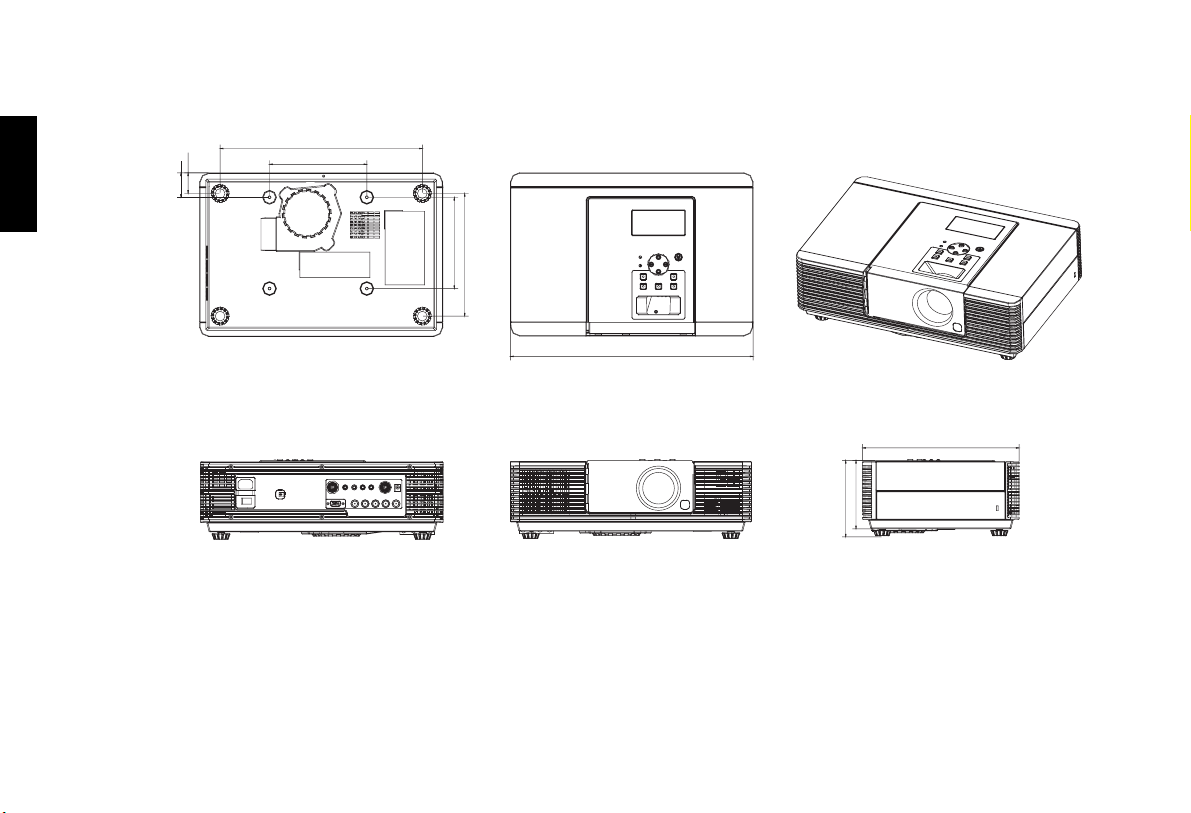

Dimensions

33.76

332.49

160

149.99-150.01

201.48-201.50

400

280

125.41

131.5

Unit: mm

Page 50

RS-232 Setup

Baud Rate: 115200 or 9600

Parity: None

Data Bits: 8 Bits

Stop Bits: 1 Bit

Flow Control: None

RS-232C Control Codes

Code Function X23 Switch to DVI_PC input X56 Picture in picture display

X01 Power On X24 Switch to YPBPR input X57 Picture by picture display X02 Power Off X25 Switch to BNC_PC input X60 Switch language - English X03 Message On X35 Anamorphic X61 Switch language - French X04 Message Off X36 Standard X62 Switch language - Spanish X10 Menu (arrow key) X37 Letter box X63 Switch language - German X11 Enter (arrow key) X38 I-WIDE X64 Switch language - Italian X12 Exit (arrow key) X40 Load memory 1 settings X85 Graphic Input - auto X13 Up (arrow key) X41 Load memory 2 settings X90 Image orientation - floor front X14 Down (arrow key) X42 Load memory 3 settings X91 Image orientation - ceiling front X15 Left (arrow key) X46 Load default of current source X92 Image orientation - floor rear X16 Right (arrow key) X47 Save memory 1 settings X93 Image orientation - ceiling rear X20 Switch to Composite input X48 Save memory 2 settings X94 Back light on X21 Switch to S-Video input X49 Save memory 3 settings X95 Back light off X22 Switch to Component input X55 Switch active source

Additional Information

English

Page 51

Vidikron Owner’s Manual

English

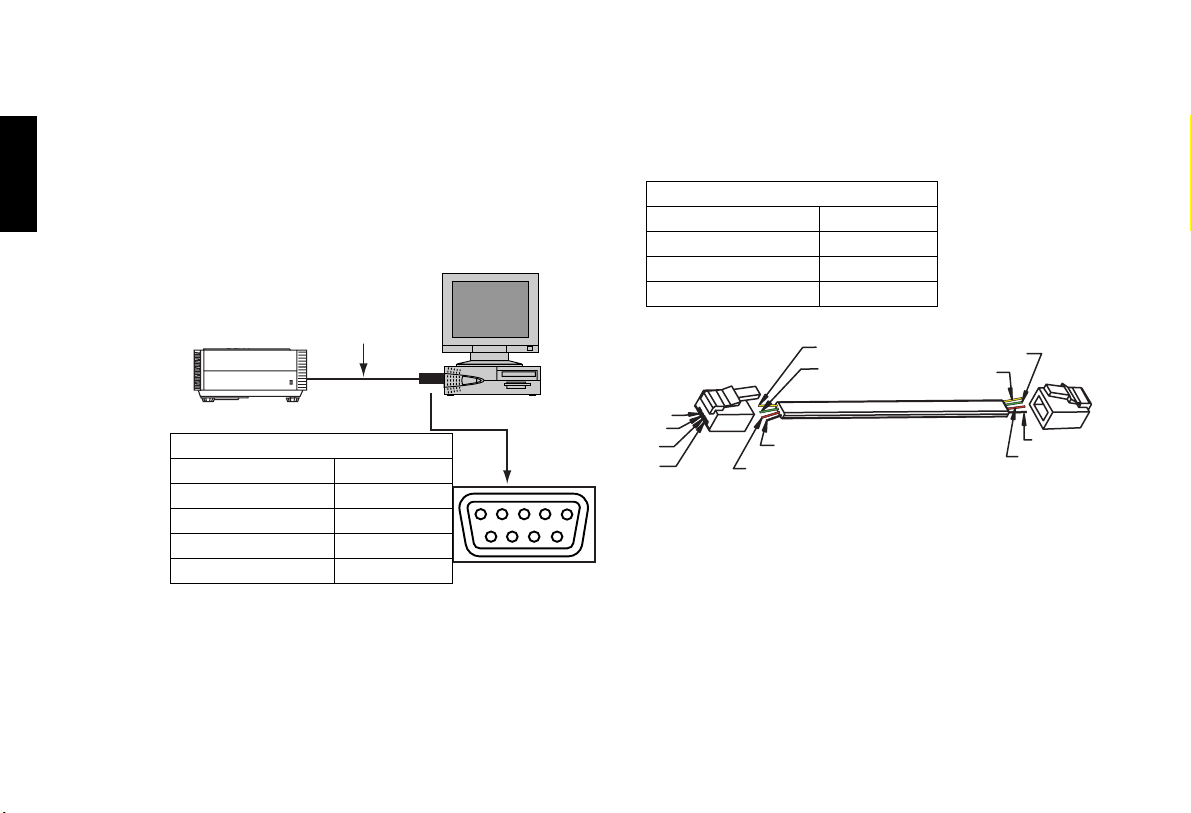

PC Out Adapter

1. 1. Connect D-Sub 9-pin female to RJ-11 adapter (not included) to Com port on PC.

2. 2. Connect RJ-11 to Projector.

RJ-11 to D-Sub 9-pin (not included)

RS-232 For D-Sub 9-pin (not included)

D-Sub 9-pin female Details

2TxT

3RxD

5 Ground

1, 4, 6, 7, 8, 9 NC

War ning: During initial turn on and turn off of the projector, this

unit will not accept RS-232 codes for 20 seconds.

D-Sub 9-pin female

RS-232 For RJ-11 (not included)

4-pin RJ-11 Details

2TxT

3RxD

1, 4 Ground

Yellow

Green

345

NOTE:

1. All codes are in the ASCII format.

Black

Red

Yellow

Green

Black

Red

2. A carriage return is required after each command.

Page 52
