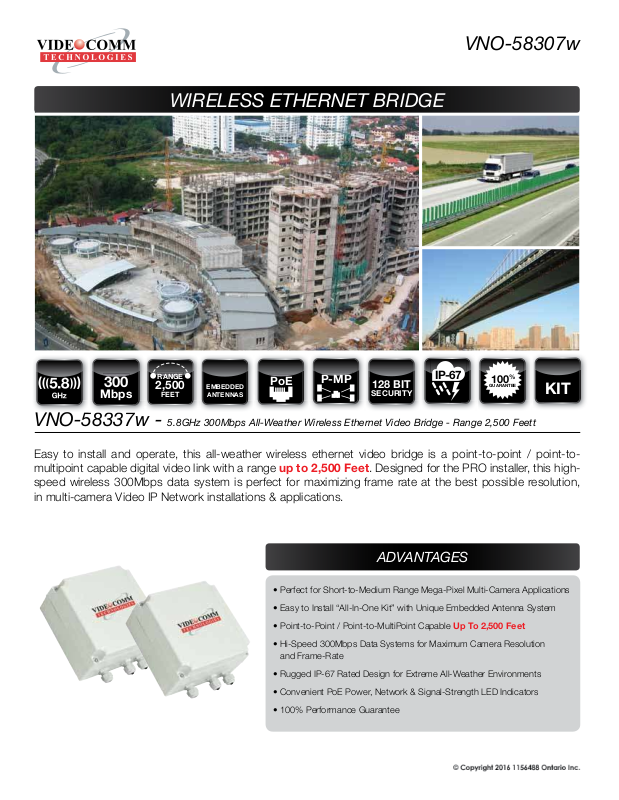

VideoComm VNO-58307w Specsheet

WIRELESS ETHERNET BRIDGE

MIMO

802.

8+1

802

RA

NGE

VIDEO

PLUG

ps

4+1

802 11 b/g/n

PLUG

Mbps

ps

POINT

ACCESS

PLUG

8+1

4+1

P

802 11 b/g/n

RANGE

RANGE

RANGE

WITC

RANGE

RANGE

WITC

PLUG

ps

POINT

125

WITC

8+1

4+1

802 11 b/g/n

PLUG

RANGE

Mbps

ps

POINT

ACCESS

200

MOUNT

PLUG

ETWOR

8+1

4+1

PLUG

802 11 b/g/n

RANGE

2,500

RANGE

POINT

125

WITC

VIDEO

VNO-58307w

300

VNO-58337w -

Easy to install and operate, this all-weather wireless ethernet video bridge is a point-to-point / point-to-

Mbps

RANGE

2,500

FEET

EMBEDDED

ANTENNAS

5.8GHz 300Mbps All-Weather Wireless Ethernet Video Bridge - Range 2,500 Feett

multipoint capable digital video link with a range
speed wireless 300Mbps data system is perfect for maximizing frame rate at the best possible resolution,
in multi-camera Video IP Network installations & applications.

PoE

P-MP

128 BIT

SECURITY

up to 2,500 Feet. Designed for the PRO installer, this high-

ADVANTAGES

• Perfect for Short-to-Medium Range Mega-Pixel Multi-Camera Applications

• Easy to Install “All-In-One Kit” with Unique Embedded Antenna System

• Point-to-Point / Point-to-MultiPoint Capable Up To 2,500 Feet

• Hi-Speed 300Mbps Data Systems for Maximum Camera Resolution

and Frame-Rate

IP-67

100%

GUARANTEE

KIT

• Rugged IP-67 Rated Design for Extreme All-Weather Environments

• Convenient PoE Power, Network & Signal-Strength LED Indicators

• 100% Performance Guarantee

APPLICATIONS INCLUDE

BUILDING TO BUILDING GATED COMMUNITIES AIRPORTS FREEWAYS

VNO-58307w

SPECIFICATIONS

OPERATING FREQUENCY 5.185GHz - 5.825GHz / Adjustable Bandwidth: 5MHz, 10MHz, 40MHz
MODULATION OFDM, MIMO, DBPSK, DQPSK, CCK, QFDM, 16-QAM, 64-QAM
PROTOCOL 802.11a/n CSMA / CA, TCP / IP, IPX / SPX, NetBEUI, DHCP, NDIS 3 / 4 / 5
SECURITY FORMAT 64 / 128 Bit Encrypted Data System - WEP, WPA, WPA-2, WPA-2PKIP, WPA-2AES,

WPA-TKIP, WPA-AES, 802.1x

SECURITY AUTHENTICATION SYSTEM Supports 48 Bit MAC Address
DATA RATE 802.11a: 300 / 108 / 54 / 48 / 36 / 24 / 18 / 12 / 9 / 6 802.11n: 6.5-300Mbps
DATA THROUGHPUT Maximum 300Mbps @ -68dBm
HARDWARE Atheros AR9344 with 64Mb DDR Ram and 8Mb Flash
ON-BOARD LED INDICATORS RSSI ( Receive Signal Strength Indicator) Power, Lan 1 / 2, WLAN
RADIATED POWER 23dBm
RANGE & ELEVATION (LINE-OF-SIGHT) Up to 2,500 Feet @ Minimum 15 Feet Elevation
SENSITIVITY 300Mbps: -68dBm @ 10% / 54Mbps: -68dBm @ 10% / 6Mbps: -88dBm @ 10%

/11Mbps: -85dBm @ 8% / 1Mbps: -90dBm @ 8%

ETHERNET PORT 2x 10/100Mbps RJ45 - PoE Capable
ANTENNA TYPE Embedded Dual Directional 16dB + 7dB
CONFIGURATION PROGRAMMING Embedded Software - Web Based SNMP, MIB, Telnet (Internet Explorer, Chrome, Firefox)
POWER SUPPLIES INCLUDED 2 x 24VDC UL-Listed PoE Injectors – Model # PS-2412PoE
POWER CONNECTOR 2 x PoE RJ45 / 1 x 2.1mm 12VDC Power Jack
CURRENT CONSUMPTION 3 Watts @ 24VDC PoE / 250mA @ 12VDC
CONSTRUCTION IP-67 Rated All-Weather Design
WEIGHT 31oz (880g) Each
Tx & Rx DIMENSIONS 7.0” x 7.0” x 4.0” (180mm x 180mm x 100mm) Each Enclosure
TX & RX MOUNTING BRACKETS Universal Stainless Steel Wall / Pole Mount - Model # BRK-250
OPERATING TEMPERATURE RANGE -40F to +170F (-40ºC to 77ºC)
FCC / IC APPROVED Ye s
NOTE Compatible with All IP Network Products

KIT INCLUDES

• 1 X TRANSMITTER ACCESS POINT

• 1 X RECEIVER ACCESS POINT

• 1 X 6’ RJ45 NETWORK CABLE

• 2 X 24VDC PoE POWER INJECTORS

• 2 X UNIVERSAL STAINLESS STEEL MOUNTING BRACKETS

• OWNER’S MANUAL & QUICK START GUIDE

• SUPPORT CD-ROM

• ONE YEAR LIMITED WARRANTY

• 100% PERFORMANCE GUARANTEE
