TXO-5808T3
PLUG
& PLAY

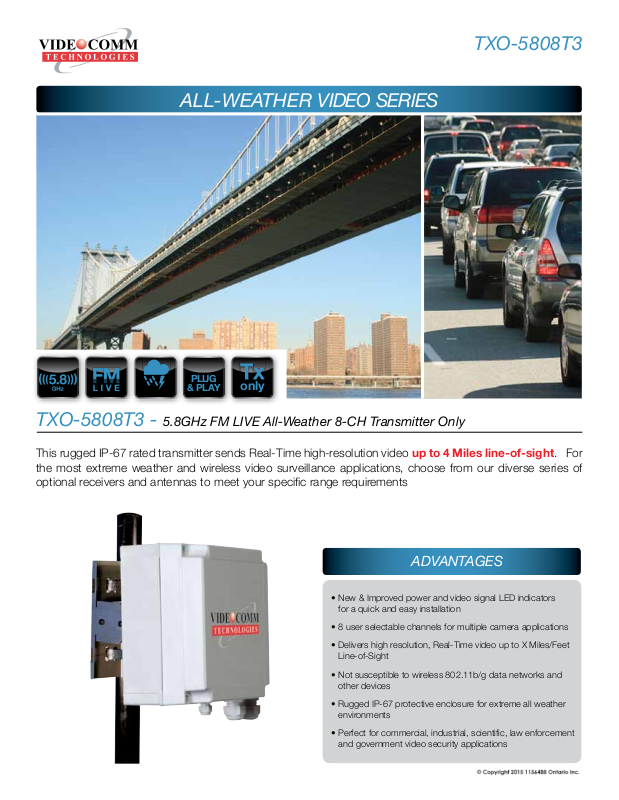

TXO-5808T3 -
This rugged IP-67 rated transmitter sends Real-Time high-resolution video up to 4 Miles line-of-sight. For
the most extreme weather and wireless video surveillance applications, choose from our diverse series of
optional receivers and antennas to meet your specifi c range requirements
5.8GHz FM LIVE All-Weather 8-CH Transmitter Only
Tx
only
ADVANTAGES
• New & Improved power and video signal LED indicators
for a quick and easy installation
• 8 user selectable channels for multiple camera applications
• Delivers high resolution, Real-Time video up to X Miles/Feet
Line-of-Sight
• Not susceptible to wireless 802.11b/g data networks and
other devices
• Rugged IP-67 protective enclosure for extreme all weather
environments
• Perfect for commercial, industrial, scientific, law enforcement
and government video security applications
APPLICATIONS INCLUDE
TXO-5808T3
FREEWAYS
PARKING LOTS
BRIDGES
MARINAS
CONSTRUCTION SITES
AIRPORTS
SPECIFICATIONS
OPERATING FREQUENCY 5.725GHz – 5.875GHz; 8 User Selectable Channels
PROTOCOL FM-Analog
VIDEO FORMAT NTSC (30fps) or PAL (25fps)
RADIATED POWER 50mV/m @ 3m
RANGE (LINE OF SIGHT) Depends on Optional Receiver and Antenna (Sold Separately)
ANTENNA TYPE Requires Transmitter Antenna (Sold Separately)
ANTENNA INPUT CONNECTOR SMA-Female
VIDEO CONNECTOR BNC-Female @ 75 OHMS 1 Volt P–P
AUDIO CONNECTOR BNC-Female @ 600 OHMS 1 Volt P–P
POWER SUPPLY INCLUDED 12VDC Power Supplies – Model # PS-1250CLX Class V CEC
OPERATING VOLTAGE 9–15VDC – Polarity & Surge Protected
CURRENT CONSUMPTION 280mA @ 12VDC
CONSTRUCTION IP-67 Rated All-Weather Design
DIMENSIONS 7.0” x 7.0” x 4.0” (178mm x 178mm x 102mm)
WEIGHT 29oz (820g)
MOUNTING BRACKET Universal Stainless Steel Wall / Pole Mount - Model # BRK-250
OPERATING TEMPERATURE RANGE -40ºF to +170ºF (-40ºC to +77ºC)
FCC / IC / CE APPROVED Yes
Specifi cations are Subject to Change Without Notice
KIT INCLUDES
HARBOR
INDUSTRIAL
• ALL WEATHER TRANSMITTER
• ONE 12 VDC POWER SUPPLY
• ONE UNIVERSAL MOUNTING BRACKET
• OWNER’S MANUAL
• ONE YEAR LIMITED WARRANTY
• REQUIRES RECEIVER (SOLD SEPARATELY)
