TXO-2409XT
2.4
FHSS
Digital
D1
RESOLUTION

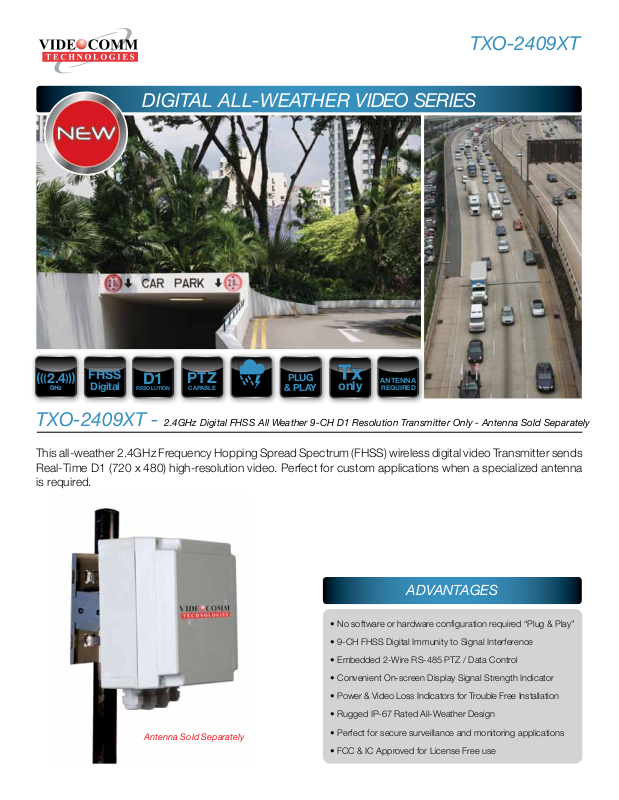

TXO-2409XT -
PTZ
CAPABLE
2.4GHz Digital FHSS All Weather 9-CH D1 Resolution Transmitter Only - Antenna Sold Separately
PLUG
& PLAY
Tx
only
ANTENNA
REQUIRED
This all-weather 2.4GHz Frequency Hopping Spread Spectrum (FHSS) wireless digital video Transmitter sends
Real-Time D1 (720 x 480) high-resolution video. Perfect for custom applications when a specialized antenna
is required.
ADVANTAGES
• No software or hardware configuration required “Plug & Play”
• 9-CH FHSS Digital Immunity to Signal Interference
• Embedded 2-Wire RS-485 PTZ / Data Control
Antenna Sold Separately
• Convenient On-screen Display Signal Strength Indicator
• Power & Video Loss Indicators for Trouble Free Installation
• Rugged IP-67 Rated All-Weather Design
• Perfect for secure surveillance and monitoring applications
• FCC & IC Approved for License Free use
APPLICATIONS INCLUDE
TXO-2409XT
BUILDING TO BUILDING AIRPORT
SPORTS
FREEWAY
SPECIFICATIONS
OPERATING FREQUENCY 2.4GHz - 2.48GHz Digital Frequency Hopping Spread Spectrum (FHSS)
FREQUENCY CONTROL Automatic 9-Channel Selection
MODULATION FORMAT FHSS (16 QAM, QPSK, BPSK)
SECURITY AUTHENTICATION Automatic Rolling Encrypted Authentication System
DATA RATE Up to 12Mbps
LATENCY 200-500ms (Signal Dependant)
VIDEO COMPRESSION FORMAT MPEG-4
VIDEO RESOLUTION D1 720 x 480 (NTSC) / 704 X 576 (PAL)
FRAME RATE 30fps (NTSC) / 25fps (PAL)
RADIATED POWER 125mW
RANGE (LINE-OF-SIGHT) Depends on Optional Antenna (Sold Separately)
ANTENNA TYPE Antenna Sold Separately
VIDEO CONNECTOR BNC-Female @ 75 Ohms 1 Volt P-P
AUDIO CONNECTOR BNC-Female @ 600 Ohms 1 Volt P-P
PTZ DATA RS-485 2-Wire Pelco-D / Pelco-P
PTZ BAUD RATES Rotary-Switch 1200 / 2400 / 4800 / 9600
TEMPERATURE RANGE -40ºF to +170ºF (-40ºC to 77ºC)
OPERATING VOLTAGE 9-15VDC - Polarity & Surge Protected
POWER SUPPLY INCLUDED 12VDC - Model # PS-121CLX Class V CEC
CURRENT CONSUMPTION 500mA @ 12VDC
WEIGHT & DIMENSIONS 28oz (839g) / 7.0” x 7.0” x 4.0” (178mm x 178mm x 102mm)
MOUNTING BRACKETS Universal Wall / Pole Mount - Model # BRK-250
FCC / IC APPROVED License Free - Professional Installation (CE Version Available)
KIT INCLUDES
• ALL WEATHER TRANSMITTER
• ONE UNIVERSAL MOUNTING BRACKET
• ONE 12 VDC POWER SUPPLY
• ANTENNA SOLD SEPARATELY
• OWNER’S MANUAL
• ONE YEAR LIMITED WARRANTY
US Office: 1711 Cudaback Avenue, Niagara Falls, NY USA 14303
Canadian Office: 1016C Sutton Drive, Unit 6, Burlington, ON Canada L7L 6B8
www.VideoTransmitters.com
Toll Free: 1.888.379.2666 Tel: 905.336.9665 Fax: 905.336.9662
© Copyright 2013 Printed in Canada
