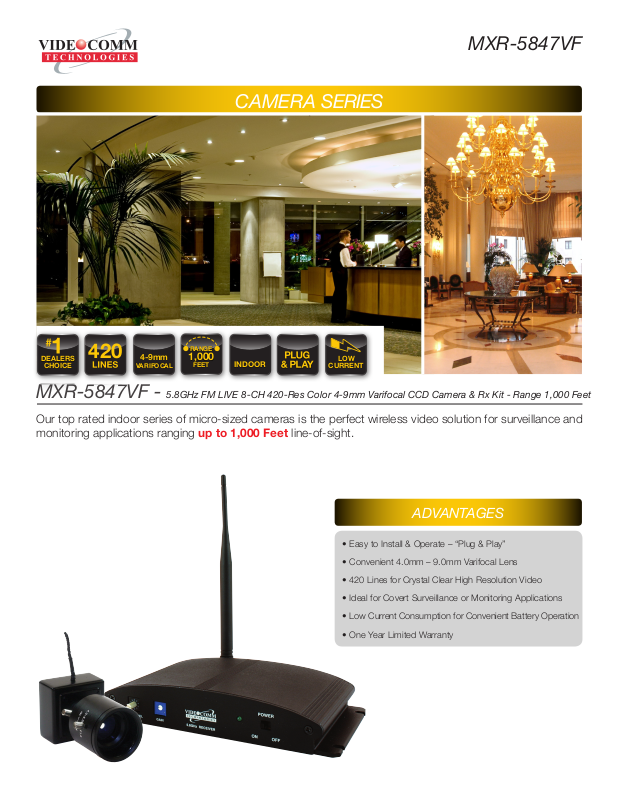

MXR-5847VF - 5.8GHz FM LIVE 8-CH 420-Res Color 4-9mm Varifocal CCD Camera & Rx Kit - Range 1,000 Feet
Our top rated indoor series of micro-sized cameras is the perfect wireless video solution for surveillance and
monitoring applications ranging up to 1,000 Feet line-of-sight.
ADVANTAGES
• Easy to Install & Operate – “Plug & Play”
• Convenient 4.0mm – 9.0mm Varifocal Lens
• 420 Lines for Crystal Clear High Resolution Video
• Ideal for Covert Surveillance or Monitoring Applications
• Low Current Consumption for Convenient Battery Operation
• One Year Limited Warranty
APPLICATIONS INCLUDE
MXR-5847VF
WAREHOUSE OFFICE
PROPERTY MANAGEMENT TRANSPORTATION
SPECIFICATIONS
OPERATING FREQUENCY 5.725GHz – 5.875GHz; 8 User Selectable Channels
RESOLUTION 420 TV Lines
VIDEO FORMAT NTSC or PAL
RADIATED POWER 50mV/m @ 3m
RANGE (LINE-OF-SIGHT) Up to 1,000 Feet
RANGE (INDOORS) Up to 300 Feet
RECEIVER SENSITIVITY -84dBm
CAMERA TYPE Color 1/3” Sony CCD
LENS TYPE 4.0mm - 9.0mm Varifocal @ F2.0
S/N RATIO >46dBm
SYNC / WHITE BALANCE Automatic
MINIMUM ILLUMINATION Minimum 0.05 Lux
RX ANTENNA TYPE 3dB Omni-Directional Rubber Duck Antenna / H-Plane 360º V-Plane 50º Model # RUB-5803S
ANTENNA INPUT CONNECTOR SMA-Female
VIDEO CONNECTOR FORMAT BNC-Female @ 75 Ohms 1 Volt P-P
POWER SUPPLY INCLUDED Camera: 9VDC Model # PS-9300TMB Receiver: 12VDC Model # PS-1250C Class V CEC
POWER CONNECTOR FORMAT 1.3mm Barrel Jack
OPERATING VOLTAGE 9-14 VDC Polarity Protected
CURRENT CONSUMPTION Camera: <150mA @ 12VDC Receiver: <175mA @ 12VDC - 90% + Efcient
CAMERA CONSTRUCTION Black Anodized Metal Case Design
RECEIVER CONSTRUCTION Black Anodized Metal Case Design
CAMERA DIMENSIONS 1.4” x 2.9” x 3.9” (36mm x 74mm x 99mm) with Lens
RECEIVER DIMENSIONS 7.4” x 4.2” x 1.2” (188mm x 107mm x 30mm)
CAMERA WEIGHT 3.1oz (88g)
RECEIVER WEIGHT 15.5oz (441g)
OPERATING TEMPERATURE RANGE -22ºF to +150ºF (-30ºC to +66ºC)
FCC / IC APPROVED Yes
KIT INCLUDES
• WIRELESS COLOR CCD CAMERA
• DESKTOP RECEIVER
• TWO 12VDC POWER SUPPLIES
• ONE MOUNTING BRACKET
• ONE BNC / RCA ADAPTOR
• ONE 3” RCA CABLE
• ONE RUBBER DUCK ANTENNA
• ONE AA BATTERY PACK HOLDER
• ONE POWER INPUT JUMPER CABLE
• OWNERS MANUAL
• ONE YEAR LIMITED WARRANTY
