VideoComm MX-5842C Specsheet
CAMERA SERIES
MX-5842C
DEALERS
CHOICE
420
3.7mm
PINHOLE
CONE
RANGE
1,000
FEET
INDOOR
LOW
CURRENT

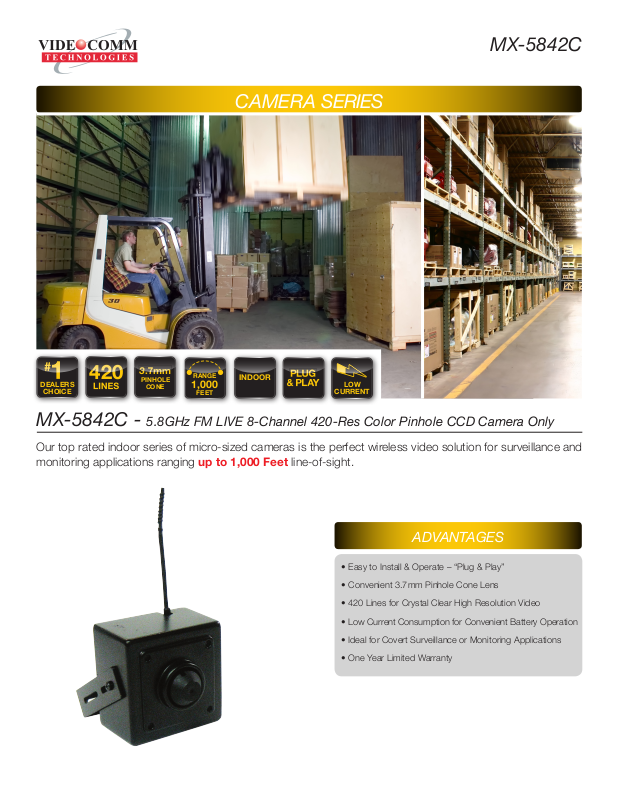

MX-5842C - 5.8GHz FM LIVE 8-Channel 420-Res Color Pinhole CCD Camera Only
Our top rated indoor series of micro-sized cameras is the perfect wireless video solution for surveillance and
monitoring applications ranging up to 1,000 Feet line-of-sight.
ADVANTAGES
• Easy to Install & Operate – “Plug & Play”
• Convenient 3.7mm Pinhole Cone Lens
• 420 Lines for Crystal Clear High Resolution Video
• Low Current Consumption for Convenient Battery Operation
• Ideal for Covert Surveillance or Monitoring Applications
• One Year Limited Warranty
APPLICATIONS INCLUDE
MX-5842C
MANUFACTURING RETAIL TRANSPORTATION WAREHOUSE
SPECIFICATIONS
OPERATING FREQUENCY 5.725GHz – 5.875GHz
CHANNELS 8 User Selectable Channels
RADIATED POWER 50mV/m @ 3m
RANGE (LINE OF SIGHT) Up to 1,000 Feet with Optional Receiver - Model # RX-5808
RANGE (INDOORS) Up to 300 Feet
CAMERA TYPE Color 1/3” Sony CCD
LENS TYPE 3.7mm Pinhole Cone @ F2.0
S/N RATIO >46dBm
SYNC / WHITE BALANCE Automatic
MINIMUM ILLUMINATION Minimum 1.0 Lux
CAMERA CONSTRUCTION Anodized Black Metal Case
CAMERA DIMENSIONS 1.1” x 1.3” x 1.3”
CAMERA WEIGHT 56g or 1.9oz
VIDEO FORMAT NTSC or PAL
RESOLUTION 420 TV Lines
VIDEO CONNECTOR FORMAT BNC - Female
VIDEO IMPEDANCE & LEVEL 75 Ohms @ 1 Volt Peak to Peak
POWER SUPPLY INCLUDED 9VDC Model # PS-9300TMB
POWER CONNECTOR FORMAT 1.3mm Barrel Jack
CURRENT CONSUMPTION <150mA @ 12VDC
OPERATING VOLTAGE 9-14VDC Polarity Protected
TEMPERATURE RANGE -14ºF to 122ºF
FCC / IC APPROVED: Yes
KIT INCLUDES
• WIRELESS COLOR CCD CAMERA
• ONE MOUNTING BRACKET
• ONE 12VDC POWER SUPPLY INCLUDED
• ONE AA BATTERY PACK HOLDER
• ONE POWER INPUT JUMPER CABLE
• OWNERS MANUAL
• ONE YEAR LIMITED WARRANTY
• RECEIVER NOT INCLUDED
US Office: 1711 Cudaback Avenue, Niagara Falls, NY USA 14303
Canadian Office: 1016C Sutton Drive, Unit 6, Burlington, ON Canada L7L 6B8
www.VideoTransmitters.com
Toll Free: 1.888.379.2666 Tel: 905.336.9665 Fax: 905.336.9662
© Copyright 2012 Printed in Canada
