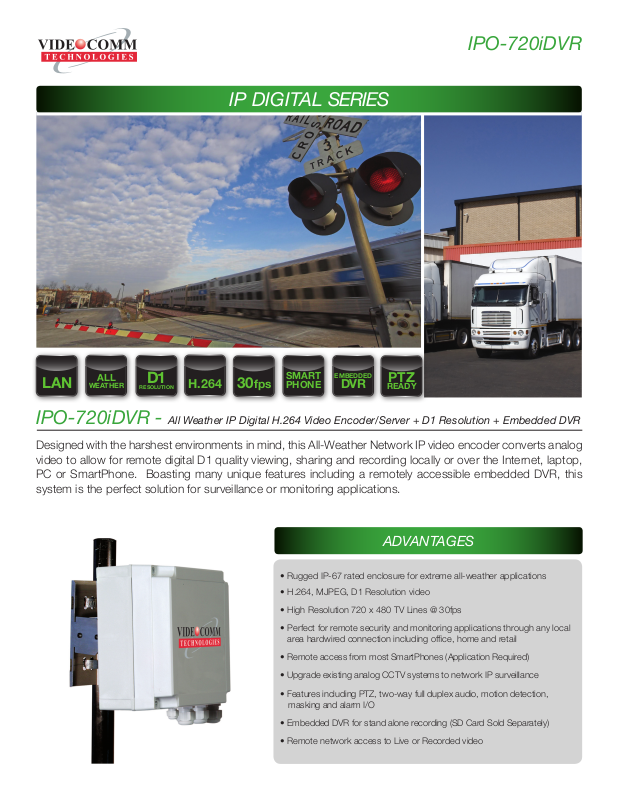

VideoComm IPO-720iDVR Specsheet
IP DIGITAL SERIES
DVR
EMBEDDED
D1
RESOLUTION
3G
OEM
720p
LAN
DESKTOP
READY
PTZ
H.264
30fps
SMART
PHONE
DESKTOP
3G
OEM
720p
LAN
DESKTOP
LAN
DESKTOP
H.264
OEM
720p
LAN
DESKTOP
READY
PTZ
H.264
30fps
DVR
EMBEDDED
3G
OEM
720p
LAN
DESKTOP
READY
PTZ
H.264
LAN
DESKTOP
OEM
720p
LAN
DESKTOP
H.264
IPO-720iDVR
LAN
ALL
WEATHER
D1
RESOLUTION
H.264
30fps
SMART
PHONE
EMBEDDED
DVR
PTZ
READY
IPO-720iDVR - All Weather IP Digital H.264 Video Encoder/Server + D1 Resolution + Embedded DVR
Designed with the harshest environments in mind, this All-Weather Network IP video encoder converts analog
video to allow for remote digital D1 quality viewing, sharing and recording locally or over the Internet, laptop,
PC or SmartPhone. Boasting many unique features including a remotely accessible embedded DVR, this
system is the perfect solution for surveillance or monitoring applications.
ADVANTAGES
• Rugged IP-67 rated enclosure for extreme all-weather applications
• H.264, MJPEG, D1 Resolution video
• High Resolution 720 x 480 TV Lines @ 30fps
• Perfect for remote security and monitoring applications through any local
area hardwired connection including ofce, home and retail
• Remote access from most SmartPhones (Application Required)
• Upgrade existing analog CCTV systems to network IP surveillance
• Features including PTZ, two-way full duplex audio, motion detection,
masking and alarm I/O
• Embedded DVR for stand alone recording (SD Card Sold Separately)
• Remote network access to Live or Recorded video
APPLICATIONS INCLUDE
IPO-720iDVR
MARINA PARKING LOTS CONSTRUCTION SITES FREEWAY
SPECIFICATIONS
VIDEO COMPRESSION H.264 and MJPEG
AUDIO COMPRESSION G.711
RESOLUTION D1 NTSC 720 × 480 @ 30fps - PAL 704 x 576 @ 25fps
VIDEO CONNECTORS BNC Input 75 Ohms @ 1 Volt P-P (Loop Through)
AUDIO CONNECTORS 2.5mm Jack Mic or Line Level Input / 2.5mm Jack Line Level Output
PICTURE ADJUSTMENT Brightness, Contrast, Hue, Saturation, Masking
BIT RATE 32Kbps~4Mbps Variable
SECURITY Multi-Level User Access with Password Protection
SUPPORTED PROTOCOLS PPPoE, DHCP, TCP/IP, HTTP, UDP, RTP/RTCP, RTSP, SMTP, FTP, UPnP, DDNS, DNS, P2P
ETHERNET PORT 10/100Mbps RJ-45
BUILT-IN WEB SERVER Internet Explorer 6.0+ Only, Remote Cong/Update, Replay, Record, and Smart Phones
MAXIMUM USERS 5 Real-Time Users/Channels (Simultaneously)
I/O PORT RS-485 2-Wire - Baud 300-115200 ( Pelco D ) - Alarm I/O 4-Pin Terminal Strip
MOTION DETECTION Support JPEG/BMP Image Snapshot, Video Recording
OPERATING SYSTEM Embedded Linux - Hi3512 Processor. 8Mb Flash - 128Mb DRAM
OPERATING VOLTAGE 9–14VDC – Polarity Protected
POWER SUPPLY INCLUDED 12VDC – Model # PS-121CLX
CURRENT CONSUMPTION 170mA @ 12VDC
DVR STORAGE Embedded SDHC Memory Card - Maximum 32GB - Not Included
CONSTRUCTION IP-67 Rated All Weather Design
TEMPERATURE RANGE -40ºF to 170ºF (-40ºC to 77ºC)
WEIGHT & DIMENSIONS 30.8oz (874g) / 7.0”x 7.0”x 4.0” (178mm x 178mm x 102mm)
FCC / CE APPROVED Yes
KIT INCLUDES
• ALL WEATHER IP VIDEO ENCODER / SERVER
• RJ-45 3’ NETWORK SETUP CABLE
• RS-485 & ALARM INPUT CONNECTOR
• UNIVERSAL MOUNTING BRACKET MODEL # BRK-250
• EMBEDDED VIDEO VIEWING & RECORDING SOFTWARE
• PROFESSIONAL 64 CAMERA NVR SOFTWARE (CD-ROM)
• POWER SUPPLY # PS-121CLX
• DC POWER JACK ADAPTER
• OWNER’S MANUAL & QUICK START GUIDE
• ONE YEAR LIMITED WARRANTY
