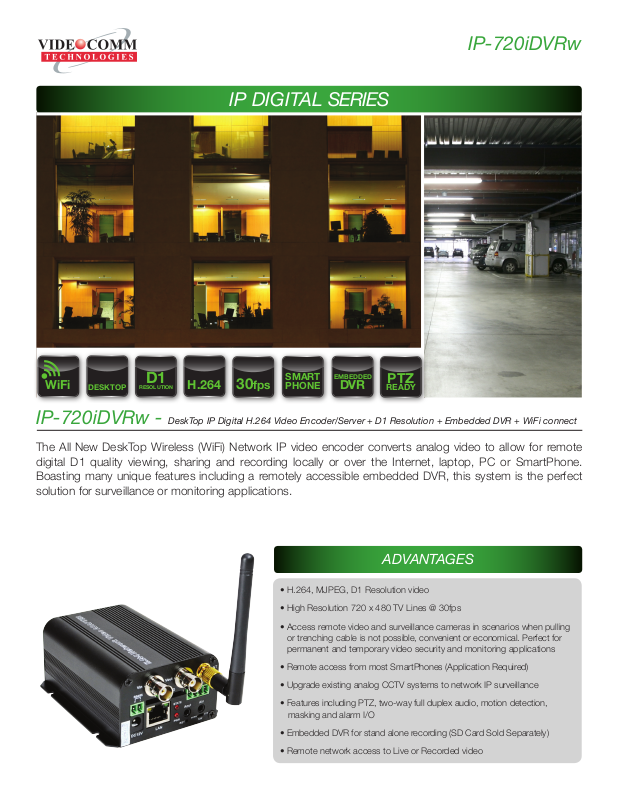

IP-720iDVRw - DeskTop IP Digital H.264 Video Encoder/Server + D1 Resolution + Embedded DVR + WiFi connect
The All New DeskTop Wireless (WiFi) Network IP video encoder converts analog video to allow for remote
digital D1 quality viewing, sharing and recording locally or over the Internet, laptop, PC or SmartPhone.
Boasting many unique features including a remotely accessible embedded DVR, this system is the perfect
solution for surveillance or monitoring applications.
ADVANTAGES
• H.264, MJPEG, D1 Resolution video
• High Resolution 720 x 480 TV Lines @ 30fps
• Access remote video and surveillance cameras in scenarios when pulling
or trenching cable is not possible, convenient or economical. Perfect for
permanent and temporary video security and monitoring applications
• Remote access from most SmartPhones (Application Required)
• Upgrade existing analog CCTV systems to network IP surveillance
• Features including PTZ, two-way full duplex audio, motion detection,
masking and alarm I/O
• Embedded DVR for stand alone recording (SD Card Sold Separately)
• Remote network access to Live or Recorded video
APPLICATIONS INCLUDE
IP-720iDVRw
MANUFACTURING RETAIL TRANSPORTATION WAREHOUSE
SPECIFICATIONS
MODULATION / NETWORK OFDM WiFi 802.11b/g/n
RADIATED POWER 100mW
ANTENNA TYPE 3dB Omni-Directional Rubber Duck
RANGE (LINE-OF-SIGHT) 330’ (100m) Indoors - Line of Sight
VIDEO COMPRESSION H.264 and MJPEG
AUDIO COMPRESSION G.711
RESOLUTION D1 NTSC 720 × 480 @ 30fps - PAL 704 x 576 @ 25fps
VIDEO CONNECTORS BNC Input 75 Ohms @ 1 Volt P-P (Loop Through)
AUDIO CONNECTORS 2.5mm Jack Mic or Line Level Input / 2.5mm Jack Line Level Output
PICTURE ADJUSTMENT Brightness, Contrast, Hue, Saturation, Masking
BIT RATE 32Kbps~4Mbps Variable
SECURITY 64/128-bit WEP & WPA Encryption
SUPPORTED PROTOCOLS PPPoE, DHCP, TCP/IP, HTTP, UDP, RTP/RTCP, RTSP, SMTP, FTP, UPnP, DDNS, DNS, P2P
BUILT-IN WEB SERVER Internet Explorer 6.0+ Only, Remote Cong/Update, Replay, Record, and Smart Phones
MAXIMUM USERS 5 Real-Time Users/Channels (Simultaneously)
I/O PORT RS-485 2-Wire - Baud 300-115200 ( Pelco D ) - Alarm I/O 4-Pin Terminal Strip
MOTION DETECTION Support JPEG/BMP Image Snapshot, Video Recording
OPERATING SYSTEM Embedded Linux - Hi3512 Processor. 8Mb Flash - 128Mb DRAM
OPERATING VOLTAGE 9–14VDC – Polarity Protected
POWER SUPPLY INCLUDED 12VDC – Model # PS-121A
CURRENT CONSUMPTION 250mA @ 12VDC
DVR STORAGE Embedded SDHC Memory Card - Maximum 32GB - Not Included
CONSTRUCTION Anodized Black Metal Case
TEMPERATURE RANGE -40ºF to 170ºF (-40ºC to 77ºC)
WEIGHT & DIMENSIONS 7.2oz (206g) / 3.9”x 2.9”x 1.7” (99mm x 74mm x 43mm)
FCC / CE APPROVED Yes
KIT INCLUDES
• DESKTOP IP VIDEO ENCODER / SERVER
• RJ-45 3’ NETWORK SETUP CABLE
• RS-485 & ALARM INPUT CONNECTOR
• RS-485 TERMINATION RESISTOR
• EMBEDDED VIDEO VIEWING & RECORDING SOFTWARE
• PROFESSIONAL 64 CAMERA NVR SOFTWARE (CD-ROM)
• 3dB OMNI-DIRECTIONAL RUBBER DUCK
• POWER SUPPLY # PS-121A
• OWNER’S MANUAL & QUICK START GUIDE
• ONE YEAR LIMITED WARRANTY
