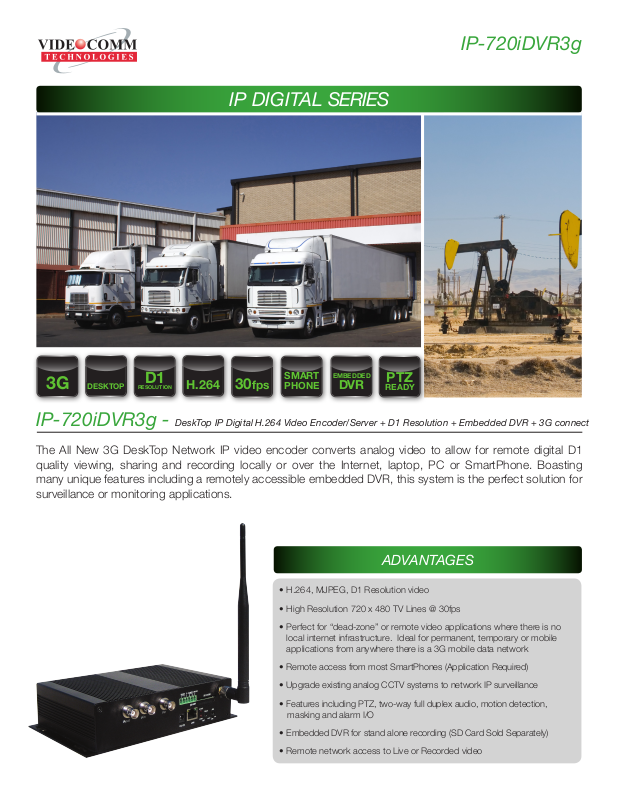

VideoComm IP-720iDVR3g Specsheet
IP DIGITAL SERIES
OEM
DESKTOP
3G
OEM
720p
LAN
DESKTOP
LAN
DESKTOP
H.264
OEM
720p
LAN
DESKTOP
READY
PTZ
H.264
30fps
DVR
EMBEDDED
3G
OEM
720p
LAN
DESKTOP
READY
PTZ
H.264
LAN
DESKTOP
OEM
720p
LAN
DESKTOP
H.264
IP-720iDVR3g
EMBEDDED
DVR
PTZ
READY
3G
DESKTOP
D1
RESOLUTION
H.264
30fps
SMART
PHONE
IP-720iDVR3g - DeskTop IP Digital H.264 Video Encoder/Server + D1 Resolution + Embedded DVR + 3G connect
The All New 3G DeskTop Network IP video encoder converts analog video to allow for remote digital D1
quality viewing, sharing and recording locally or over the Internet, laptop, PC or SmartPhone. Boasting
many unique features including a remotely accessible embedded DVR, this system is the perfect solution for
surveillance or monitoring applications.
ADVANTAGES
• H.264, MJPEG, D1 Resolution video
• High Resolution 720 x 480 TV Lines @ 30fps
• Perfect for “dead-zone” or remote video applications where there is no
local internet infrastructure. Ideal for permanent, temporary or mobile
applications from anywhere there is a 3G mobile data network
• Remote access from most SmartPhones (Application Required)
• Upgrade existing analog CCTV systems to network IP surveillance
• Features including PTZ, two-way full duplex audio, motion detection,
masking and alarm I/O
• Embedded DVR for stand alone recording (SD Card Sold Separately)
• Remote network access to Live or Recorded video
APPLICATIONS INCLUDE
IP-720iDVR3g
ROBOTICS FLEET MANAGMENT
PARKING LOTS
CONSTRUCTION SITES
SPECIFICATIONS
MODULATION / NETWORK WCDMA, HSPA / 3G (Mini 3G Data Sim Card Not Included)
RADIATED POWER 500mW
ANTENNA TYPE 3dB Omni-Directional Rubber Duck
RANGE (LINE-OF-SIGHT) 330’ (100m) Indoors - Line of Sight
VIDEO COMPRESSION H.264 and MJPEG
AUDIO COMPRESSION G.711
RESOLUTION D1 NTSC 720 × 480 @ 30fps - PAL 704 x 576 @ 25fps
VIDEO CONNECTORS BNC Input 75 Ohms @ 1 Volt P–P
AUDIO CONNECTORS BNC Mic or Line Level Input / BNC Line Level Output / 2.5mm Jack I/O
PICTURE ADJUSTMENT Brightness, Contrast, Hue, Saturation, Masking
BIT RATE 32Kbps~4Mbps Variable
SECURITY Multi-Level User Access with Password Protection
SUPPORTED PROTOCOLS PPPoE, DHCP, TCP/IP, HTTP, UDP, RTP/RTCP, RTSP, SMTP, FTP, UPnP, DDNS, DNS, P2P
BUILT-IN WEB SERVER Internet Explorer 6.0+ Only, Remote Cong/Update, Replay, Record, and Smart Phones
MAXIMUM USERS 5 Real-Time Users/Channels (Simultaneously)
I/O PORT RS-485 2-Wire - Baud 300-115200 ( Pelco D ) - Alarm I/O 4-Pin Terminal Strip
MOTION DETECTION Support JPEG/BMP Image Snapshot, Video Recording
OPERATING SYSTEM Embedded Linux - Hi3512 Processor. 8Mb Flash - 128Mb DRAM
OPERATING VOLTAGE 9–14VDC – Polarity Protected
POWER SUPPLY INCLUDED 12VDC – Model # PS-121A
CURRENT CONSUMPTION 250mA @ 12VDC
DVR STORAGE Embedded SDHC Memory Card - Maximum 32GB - Not Included
CONSTRUCTION Anodized Black Metal Case
TEMPERATURE RANGE -40ºF to 170ºF (-40ºC to 77ºC)
WEIGHT & DIMENSIONS 25.2oz (706g) / 8”x 4.5”x 2.1” (203mm x 114mm x 53mm)
FCC / CE APPROVED Yes
KIT INCLUDES
• DESKTOP IP VIDEO ENCODER / SERVER
• RJ-45 3’ NETWORK SETUP CABLE
• RS-485 & ALARM INPUT CONNECTOR
• RS-485 TERMINATION RESISTOR
• EMBEDDED VIDEO VIEWING & RECORDING SOFTWARE
• PROFESSIONAL 64 CAMERA NVR SOFTWARE (CD-ROM)
• 3dB OMNI-DIRECTIONAL RUBBER DUCK
• POWER SUPPLY # PS-121A
• OWNER’S MANUAL & QUICK START GUIDE
• ONE YEAR LIMITED WARRANTY
US Office: 1711 Cudaback Avenue, Niagara Falls, NY USA 14303
Canadian Office: 1016C Sutton Drive, Unit 6, Burlington, ON Canada L7L 6B8
www.VideoTransmitters.com
Toll Free: 1.888.379.2666 Tel: 905.336.9665 Fax: 905.336.9662
© Copyright 2012 Printed in Canada
