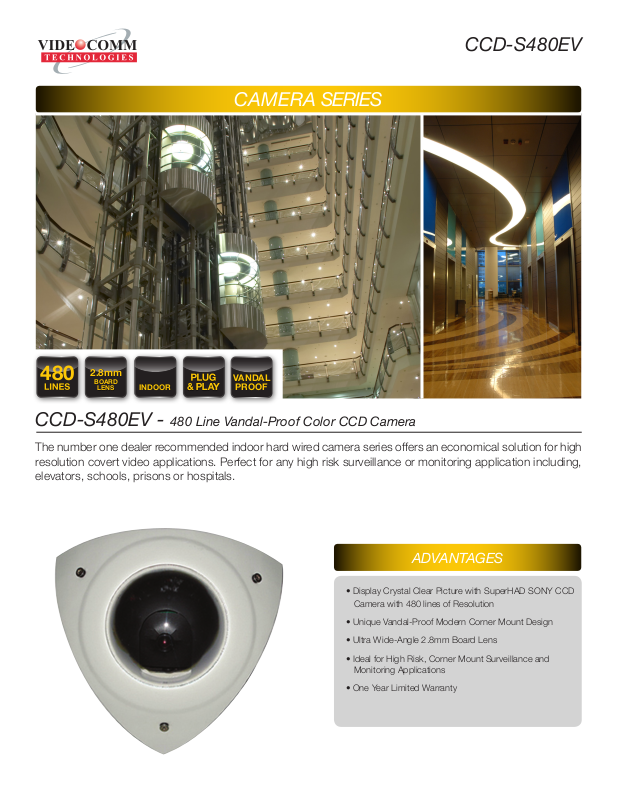

CCD-S480EV - 480 Line Vandal-Proof Color CCD Camera
The number one dealer recommended indoor hard wired camera series offers an economical solution for high
resolution covert video applications. Perfect for any high risk surveillance or monitoring application including,
elevators, schools, prisons or hospitals.
ADVANTAGES
• Display Crystal Clear Picture with SuperHAD SONY CCD
Camera with 480 lines of Resolution
• Unique Vandal-Proof Modern Corner Mount Design
• Ultra Wide-Angle 2.8mm Board Lens
• Ideal for High Risk, Corner Mount Surveillance and
Monitoring Applications
• One Year Limited Warranty
APPLICATIONS INCLUDE
CCD-S480EV
MANUFACTURING
ELEVATOR
RETAIL
PARKING GARAGE
TRANSPORTATION
GAMING
SPECIFICATIONS
RESOLUTION 480 Lines
CAMERA TYPE Corner Mount 1/3” color SONY CCD
LENS TYPE Board Lens 2.8mm @ F2.0
S/N RATIO >48dB (Auto Gain Control OFF)
WHITE BALANCE AUTO
ELECTRIC SHUTTER 1/50 ~ 1/10,000 Sec.
MINIMUM ILLUMINATION 0.4 Lux @ F1.2
AUTO GAIN CONTROL AUTO
POWER SUPPLY INCLUDED 12VDC @ 500mA - Model# PS-1250C Class V CEC
CURRENT CONSUMPTION <130mA @ 12VDC
CAMERA CONSTRUCTION Vandal-Proof IP-66 Aluminum Design
DIMENSIONS 8” x 8” x 3” (203mm x 203mm x 76mm)
CAMERA WEIGHT 3.6lbs (1,650g)
WAREHOUSE
OFFICE
KIT INCLUDES
• CORNER MOUNT SONY CCD CAMERA
• ONE 12VDC POWER SUPPLY
• OWNERS MANUAL
• ONE YEAR LIMITED WARRANTY
US Office: 1711 Cudaback Avenue, Niagara Falls, NY USA 14303
Canadian Office: 1016C Sutton Drive, Unit 6, Burlington, ON Canada L7L 6B8
www.VideoTransmitters.com
Toll Free: 1.888.379.2666 Tel: 905.336.9665 Fax: 905.336.9662
Specications are Subject to Change Without Notice
© Copyright 2012 Printed in Canada
