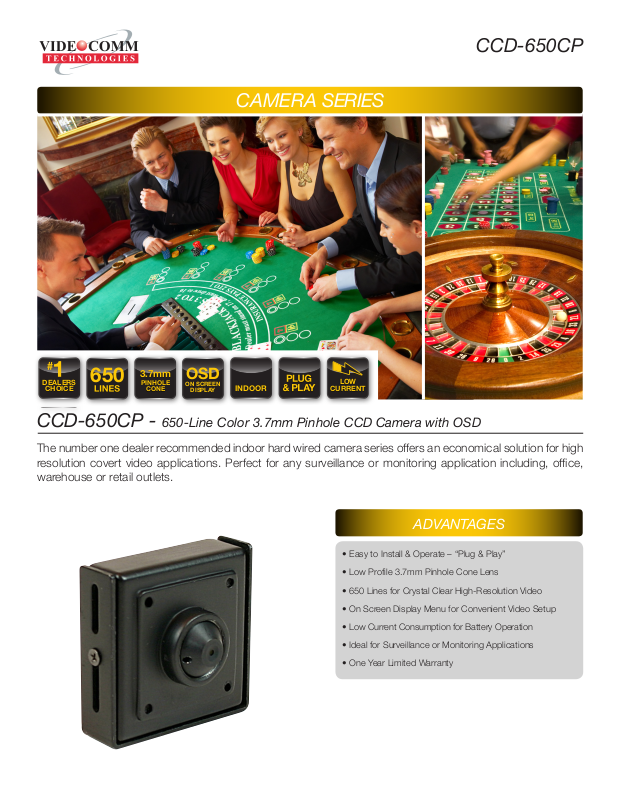

CCD-650CP - 650-Line Color 3.7mm Pinhole CCD Camera with OSD
The number one dealer recommended indoor hard wired camera series offers an economical solution for high
resolution covert video applications. Perfect for any surveillance or monitoring application including, ofce,
warehouse or retail outlets.
ADVANTAGES
• Easy to Install & Operate – “Plug & Play”
• Low Profile 3.7mm Pinhole Cone Lens
• 650 Lines for Crystal Clear High-Resolution Video
• On Screen Display Menu for Convenient Video Setup
• Low Current Consumption for Battery Operation
• Ideal for Surveillance or Monitoring Applications
• One Year Limited Warranty
APPLICATIONS INCLUDE
MANUFACTURING RETAIL TRANSPORTATION WAREHOUSE
CCD-650CP
CD ROM INCLUDES:
• 2013 Interactive Product Catalog
• Owner’s Manual: Video Setup & Adjustments
• One Year Limited Warranty
SPECIFICATIONS
RESOLUTION 650 TV Lines
VIDEO FORMAT NTSC
CAMERA TYPE Color 1/3” Sony CCD
LENS TYPE 3.7mm Pinhole Cone Lens
S/N RATIO >52dB
SYNC / WHITE BALANCE Automatic
MINIMUM ILLUMINATION Minimum 0.01 Lux @ F1.2
ON SCREEN DISPLAY Adjust Exposure, White Balance, Color, Sharpness, Motion Detection,
Privacy Masking Monitor Mode & Dead Pixel Compensation
VIDEO CONNECTOR BNC - Female
POWER SUPPLY INCLUDED 12VDC Model # PS-1250C
POWER CONNECTOR 2.1mm Barrel Jack
OPERATING VOLTAGE 9–14VDC Polarity Protected
CURRENT CONSUMPTION 80mA @ 12VDC
CAMERA CONSTRUCTION Black Anodized Metal Case Design
CAMERA DIMENSIONS 1.4” x 1.4” x 0.9” (36mm x 36mm x 23mm) Lens Included
CAMERA WEIGHT 1.4oz (42g)
OPERATING TEMPERATURE RANGE -22ºF to +150ºF (-30ºC to +66ºC)
KIT INCLUDES
• COLOR CCD CAMERA
• ONE 12VDC POWER SUPPLY INCLUDED
• ONE MOUNTING BRACKET
• ONE AA BATTERY PACK HOLDER
• ONE POWER INPUT JUMPER CABLE
• OWNERS MANUAL
• PRODUCT CATALOG
• ONE YEAR LIMITED WARRANTY
