CCD-600CMD28
600
2.8mm
FISHEYE
VANDAL
PROOF

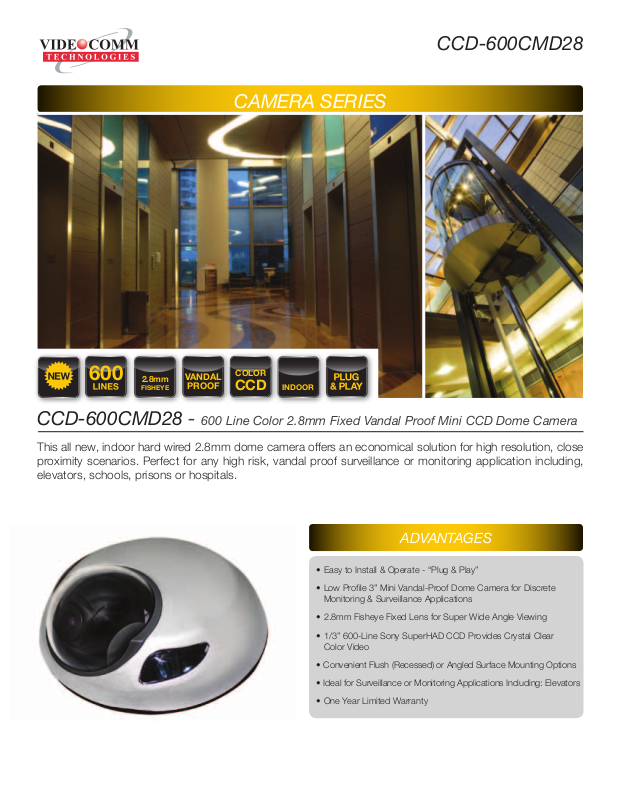

CCD-600CMD28 -
600 Line Color 2.8mm Fixed Vandal Proof Mini CCD Dome Camera
COLOR
CCD
INDOOR
This all new, indoor hard wired 2.8mm dome camera offers an economical solution for high resolution, close
proximity scenarios. Perfect for any high risk, vandal proof surveillance or monitoring application including,
elevators, schools, prisons or hospitals.
• Easy to Install & Operate - “Plug & Play”
• Low Profile 3” Mini Vandal-Proof Dome Camera for Discrete
Monitoring & Surveillance Applications
• 2.8mm Fisheye Fixed Lens for Super Wide Angle Viewing
• 1/3” 600-Line Sony SuperHAD CCD Provides Crystal Clear
Color Video
• Convenient Flush (Recessed) or Angled Surface Mounting Options
• Ideal for Surveillance or Monitoring Applications Including: Elevators
• One Year Limited Warranty
ADVANTAGES
APPLICATIONS INCLUDE
CCD-600CMD28
MANUFACTURING RETAIL TRANSPORTATION WAREHOUSE
PROPERTY MANAGEMENT MEDICAL GAMING OFFICE
SPECIFICATIONS
RESOLUTION 600 TV Lines
VIDEO FORMAT NTSC
CAMERA TYPE Color 1/3” Sony CCD
LENS TYPE 2.8mm Pinhole Cone Lens
S/N RATIO >48dB
SYNC / WHITE BALANCE Automatic
MINIMUM ILLUMINATION Minimum 0.01 Lux @ F1.2
INFRARED Up to 6 Feet Night Vision Range with 4 IR LEDS
VIDEO CONNECTOR BNC-Female
POWER SUPPLY INCLUDED 12VDC Model# PS-1250C
POWER CONNECTOR 2.1mm Barrel Jack
CURRENT CONSUMPTION xxx @ 12VDC
CAMERA CONSTRUCTION xxx
CAMERA DIMENSIONS xxx
CAMERA WEIGHT xxx
OPERATING TEMERATURE RANGE -22ºF to +150ºF (-30ºC to +66ºC)
KIT INCLUDES
• VANDAL-PROOF SONY IR DOME CAMERA
• ONE 12VDC POWER SUPPLY
• OWNERS MANUAL
• ONE YEAR LIMITED WARRANTY
US Office: 1711 Cudaback Avenue, Niagara Falls, NY USA 14303
Canadian Office: 1016C Sutton Drive, Unit 6, Burlington, ON Canada L7L 6B8
www.VideoTransmitters.com
Toll Free: 1.888.379.2666 Tel: 905.336.9665 Fax: 905.336.9662
Specifi cations are Subject to Change Without Notice
© Copyright 2012 Printed in Canada
