CCD-420CMD28
420
2.8mm
FISHEYE
VANDAL
PROOF

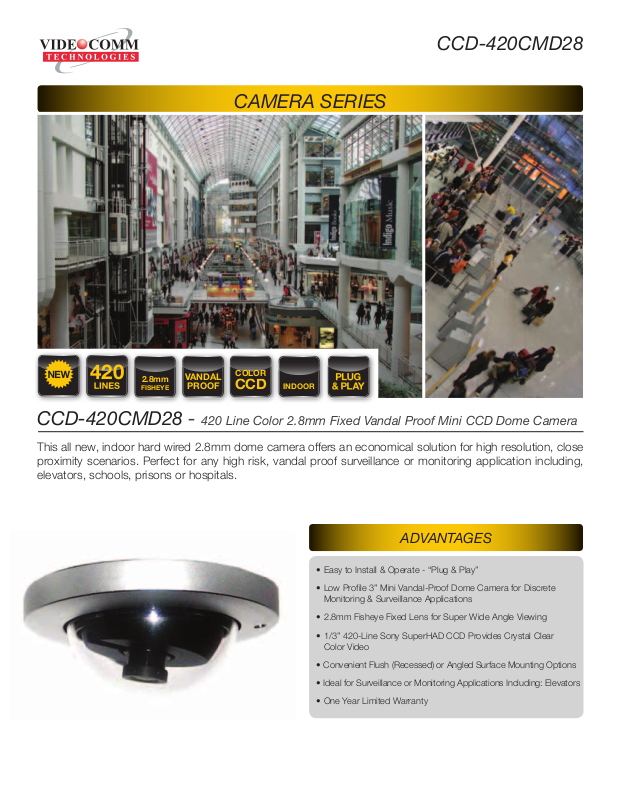

CCD-420CMD28 -
420 Line Color 2.8mm Fixed Vandal Proof Mini CCD Dome Camera
COLOR
CCD
INDOOR
This all new, indoor hard wired 2.8mm dome camera offers an economical solution for high resolution, close
proximity scenarios. Perfect for any high risk, vandal proof surveillance or monitoring application including,
elevators, schools, prisons or hospitals.
• Easy to Install & Operate - “Plug & Play”
• Low Profile 3” Mini Vandal-Proof Dome Camera for Discrete
Monitoring & Surveillance Applications
• 2.8mm Fisheye Fixed Lens for Super Wide Angle Viewing
• 1/3” 420-Line Sony SuperHAD CCD Provides Crystal Clear
Color Video
• Convenient Flush (Recessed) or Angled Surface Mounting Options
• Ideal for Surveillance or Monitoring Applications Including: Elevators
• One Year Limited Warranty
ADVANTAGES
APPLICATIONS INCLUDE
CCD-420CMD28
MANUFACTURING RETAIL TRANSPORTATION WAREHOUSE
PROPERTY MANAGEMENT ELEVATORS GAMING OFFICE
SPECIFICATIONS
RESOLUTION 420 Lines
VIDEO FORMAT NTSC (30fps)
CAMERA TYPE 1/3” Color Vandal Proof SONY SuperHAD CCD
CAMERA LENS TYPE Board Lens 2.8mm @ F2.0
CAMERA S/N RATIO >48dB (Auto Gain Control OFF)
AUTO GAIN CONTROL Automatic
VIDEO CONNECTOR BNC-Female
VIDEO IMPEDANCE & LEVEL 75 Ohms @ 1 Volt P-P
POWER SUPPLY INCLUDED 12VDC @ 500mA - Model# PS-1250CLX Class V CEC
POWER CONNECTOR 2.1mm Barrel Jack
CAMERA CURRENT CONSUMPTION <130mA @ 12VDC
CAMERA CONSTRUCTION Vandal-Proof IP-66 Aluminum Design
CAMERA DIMENSIONS 3.4” x 2.8” (86mm x 70mm)
CAMERA WEIGHT 0.7lbs (440g)
CAMERA MOUNTING BRACKET Unique Angled Mounting Base Plate
OPERATING TEMPERATURE -22°F to +150°F (-30°C to +66°C)
KIT INCLUDES
• COLOR CCD CORNER MOUNT CAMERA
• ONE MOUNTING BRACKET
• ONE 12VDC POWER SUPPLY INCLUDED
• OWNERS MANUAL
• ONE YEAR LIMITED WARRANTY
US Office: 1711 Cudaback Avenue, Niagara Falls, NY USA 14303
Canadian Office: 1016C Sutton Drive, Unit 6, Burlington, ON Canada L7L 6B8
www.VideoTransmitters.com
Toll Free: 1.888.379.2666 Tel: 905.336.9665 Fax: 905.336.9662
Specifi cations are Subject to Change Without Notice
© Copyright 2012 Printed in Canada
