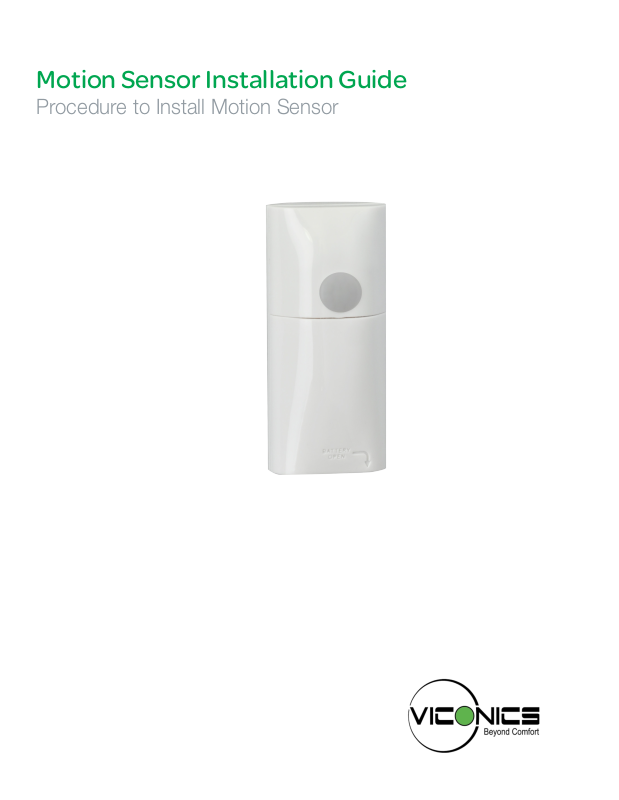

Viconics SED-WMS-P Installation Guide

Motion Sensor Installation Guide

Procedure to Install Motion Sensor

Installation Guide

Motion Sensor

INSTALLATION

This procedure shows you how to install a Motion Sensor.

Complete the following steps (in order) to correctly install the Motion Sensor:

1. Install battery.
NOTE: When batteries are first installed, the sensor automatically goes into pairing mode. Refer to the
Room Controller pairing procedure for commissioning.

2. Remove plastic pull tab.

3. Verify device. Refer to "Verify Sensing Motion" on page 3.

4. Install Motion Sensor.

Location

Always consider the following location constraints before installing Motion Sensor:

1. Do not install on outside wall.

2. Do not install in areas with direct heat source.

3. Do not install near any air discharge grill.

4. Do not install in areas exposed to direct sunlight.

5. Ensure surface is flat and clean.

Sensor Placement

2

Orient Motion Sensor for best use of its detection zones according to below illustration.

Motion Sensor

Motion Sensor

* All Measurements are approximate.

Viconics Technologies Inc. | 9245 Langelier Blvd. | St.-Leonard | Quebec | Canada | H1P 3K9 | Tel: [phone] | Fax: [phone]
028-6078-00 www.viconics.com | [e-mail] October 2014

© 2014 Viconics. All rights reserved.

Installation Guide

Motion Sensor

INSTALL BATTERY

1. Using flathead screwdriver, gently pry cover away from Motion Sensor
(Figure 1).

2. Remove any packing tape from inside Motion Sensor.

3. Install one CR2 in Motion Sensor (Figure 2).
NOTE: ensure battery polarity is correct.

4. Verify sensing motion. Refer to "Verify Sensing Motion" on page 3.

3

Figure - 1

VERIFY SENSING MOTION

1. Allow three minutes to pass for Motion Sensor to warm-up.
NOTE: Sensor requires a three minute warm-up time before it reports any
motion detection.

2. Wave hand or object over top area of Motion Sensor.

3. Verify LED flashes red on Motion Sensor (Figure 3).
NOTE: LED flashing red indicates motion detected.

4. Snap battery cover back in place.

5. Install Motion Sensor. Refer to "Install Motion Sensor" on page 4.

Figure - 2

LED

Figure 3

Viconics Technologies Inc. | 9245 Langelier Blvd. | St.-Leonard | Quebec | Canada | H1P 3K9 | Tel: [phone] | Fax: [phone]
028-6078-00 www.viconics.com | [e-mail] October 2014

© 2014 Viconics. All rights reserved.

Installation Guide

Motion Sensor

4

INSTALL MOTION SENSOR

This procedure shows you how to install the Motion Sensor to the desired
location. The Motion Sensor can be installed vertically, horizontally, or upside
down on a flat surface or in a corner.

1. Affix 2-sided tape to desired location (Figure 1).

2. NOTE: ensure tape is flush with surface and securely affixed to surface.

3. Set Motion Sensor on 2-sided tape and press firmly to secure Motion Sensor
in place.

4. Test Motion Sensor. Refer to "Device Function" on page 4.

• Always test Device before leaving job site.

• Avoid installing Device directly on metal surfaces. Installation on metal can reduce transmission range.

• Ensure Device is installed in dry location away from water, moisture, and rain.

DEVICE FUNCTION

2-sided tape

Figure 1

Function and LED Indicators

BUTTON LED ACTION LED DESCRIPTION

Joined

2 times GG Network Status

4 Times GGGG Network Join

8 Times

10 Times

GGGGGGGG

GGGGGGGGGG

G = Green
Y = Yellow
R = Red

Forced Re-Join YYY Re-Join, Searching for Parent

Network leave and join a

new Network

No Action

Power Up RRYYGG

GGG

RRR Not Joined

YYY Re-Join in Process

YRY

YGY Device Being Configured

GGG Device Joined

RRR Device Failed to Join

RRR Leave if Joined

GGGGG Defaults Restored

Y Wrong Button Press

YGR Device Busy

Searching for Network
