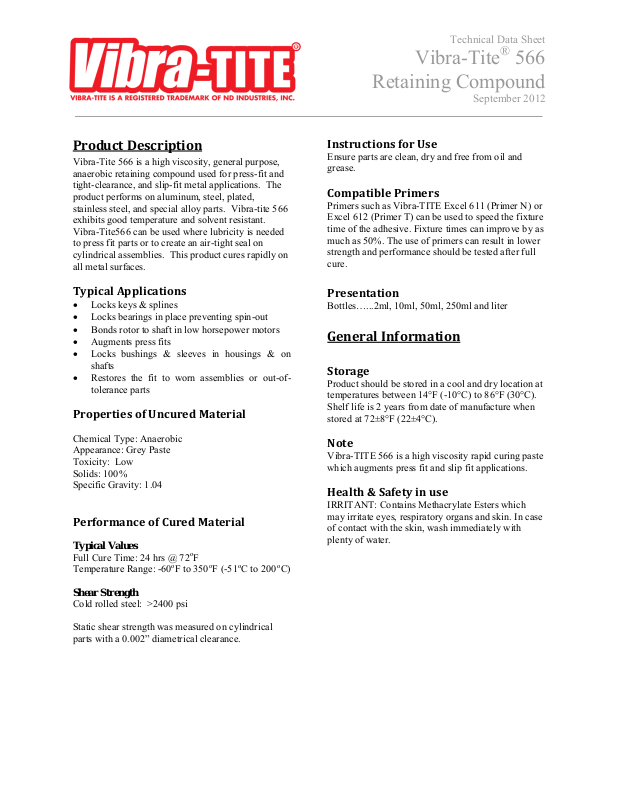

Vibra-Tite 566 Technical Data
Technical Data Sheet
Vibra-Tite® 566
Retaining Compound
September 2012
Product Description
Vibra-Tite 566 is a high viscosity, general purpose,
anaerobic retaining compound used for press-fit and
tight-clearance, and slip-fit metal applications. The
product performs on aluminum, steel, plated,
stainless steel, and special alloy parts. Vibra-tite 566
exhibits good temperature and solvent resistant.
Vibra-Tite566 can be used where lubricity is needed
to press fit parts or to create an air-tight seal on
cylindrical assemblies. This product cures rapidly on
all metal surfaces.
Typical Applications
Locks keys & splines
Locks bearings in place preventing spin-out
Bonds rotor to shaft in low horsepower motors
Augments press fits
Locks bushings & sleeves in housings & on
shafts
Restores the fit to worn assemblies or out-of-
tolerance parts
Properties of Uncured Material
Chemical Type: Anaerobic
Appearance: Grey Paste
Toxicity: Low
Solids: 100%
Specific Gravity: 1.04
Performance of Cured Material
Typical Values
Full Cure Time: 24 hrs @ 72oF
Temperature Range: -60oF to 350oF (-51oC to 200 oC)
Shear Strength
Cold rolled steel: >2400 psi
Static shear strength was measured on cylindrical
parts with a 0.002” diametrical clearance.
Instructions for Use
Ensure parts are clean, dry and free from oil and
grease.
Compatible Primers
Primers such as Vibra-TITE Excel 611 (Primer N) or
Excel 612 (Primer T) can be used to speed the fixture
time of the adhesive. Fixture times can improve by as
much as 50%. The use of primers can result in lower
strength and performance should be tested after full
cure.
Presentation
Bottles…...2ml, 10ml, 50ml, 250ml and liter
General Information
Storage
Product should be stored in a cool and dry location at
temperatures between 14°F (-10°C) to 86°F (30°C).
Shelf life is 2 years from date of manufacture when
stored at 72±8°F (22±4°C).
Note
Vibra-TITE 566 is a high viscosity rapid curing paste
which augments press fit and slip fit applications.
Health & Safety in use
IRRITANT: Contains Methacrylate Esters which
may irritate eyes, respiratory organs and skin. In case
of contact with the skin, wash immediately with
plenty of water.
