T-BERD 2000
User Manual
222 pgs20.01 Mb0

Viavi MTS 2000, T-BERD 2000 User Manual

Download
Page 1

2000 Platform

Handheld, modular Platform designed for the construction, turn-up and maintenance of fiber networks
User Manual
Page 2
Page 3
2000 Platform
Handheld, modular Platform designed for the construction, turn-up and maintenance of FTTx networks
User Manual
Viavi Solutions 1-844-GO-VIAVI
Page 4
Page 5

Notice

Every effort was made to ensure that the information in this document was accurate at the time of printing. However, information is subject to change without notice, and Viavi reserves the right to provide an addendum to this document with information not available at the time that this document was created.

Copyright

© Copyright 2016 Viavi, LLC. All rights reserved. Viavi, Enabling Broad­band and Optical Innovation, and its logo are trademarks of Viavi, LLC. All other trademarks and registered trademarks are the property of their respective owners. No part of this guide may be reproduced or transmitted electronically or otherwise without written permission of the publisher.

Trademarks

Viavi and MTS/T-BERD 2000 are trademarks or registered trademarks of Viavi in the United States and/or other countries.
Microsoft, Windows, Windows CE, Windows NT, and Microsoft Internet Explorer are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
Netscape Navigator is a trademark or registered trademark of Netscape Communications Corporation in the United States and other countries.
Specifications, terms, and conditions are subject to change without notice. All trademarks and registered trademarks are the property of their respec­tive companies.
User Manual 79000000203 Rev. 005 v
Page 6

Ordering information

This guide is a product of Viavi's Technical Information Development Department, issued as part of the User Manual. The ordering number for a published guide is E2000M02.

WEEE Directive Compliance

Viavi has established processes in compliance with the Waste Electrical and Electronic Equipment (WEEE) Directive, 2002/96/EC, and the Battery Directive, 2006/66/EC.
This product, and the batteries used to power the product, should not be disposed of as unsorted municipal waste and should be collected sepa­rately and disposed of according to your national regulations. In the Euro­pean Union, all equipment and batteries purchased from Viavi after 2005­08-13 can be returned for disposal at the end of its useful life. Viavi will ensure that all waste equipment and batteries returned are reused, recy­cled, or disposed of in an environmentally friendly manner, and in compli­ance with all applicable national and international waste legislation.
It is the responsibility of the equipment owner to return equipment and batteries to Viavi for appropriate disposal. If the equipment or battery was imported by a reseller whose name or logo is marked on the equipment or battery, then the owner should return the equipment or battery directly to the reseller.
Instructions for returning waste equipment and batteries to Viavi can be found in the Environmental section of Viavi’s web site at www.viavisolu-
tions.com. If you have questions concerning disposal of your equipment or
batteries, contact Viavi’s WEEE Program Management team.
vi User Manual 79000000203 Rev. 005
Page 7

Contents

About This Guide
Purpose and scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii
Assumptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii
Technical assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii
Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xviii
Chapter 1 2000 Platform Overview
Unpacking the instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

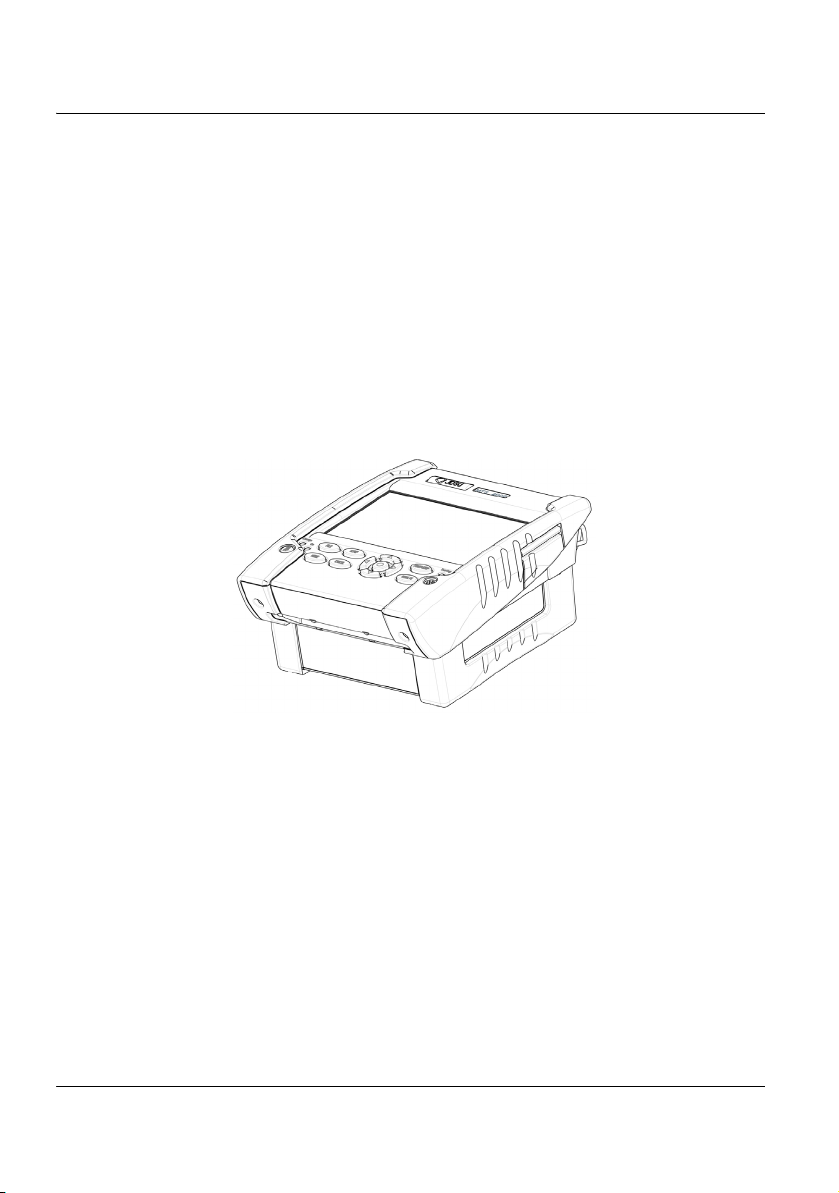

About the 2000 Platform. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Main features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

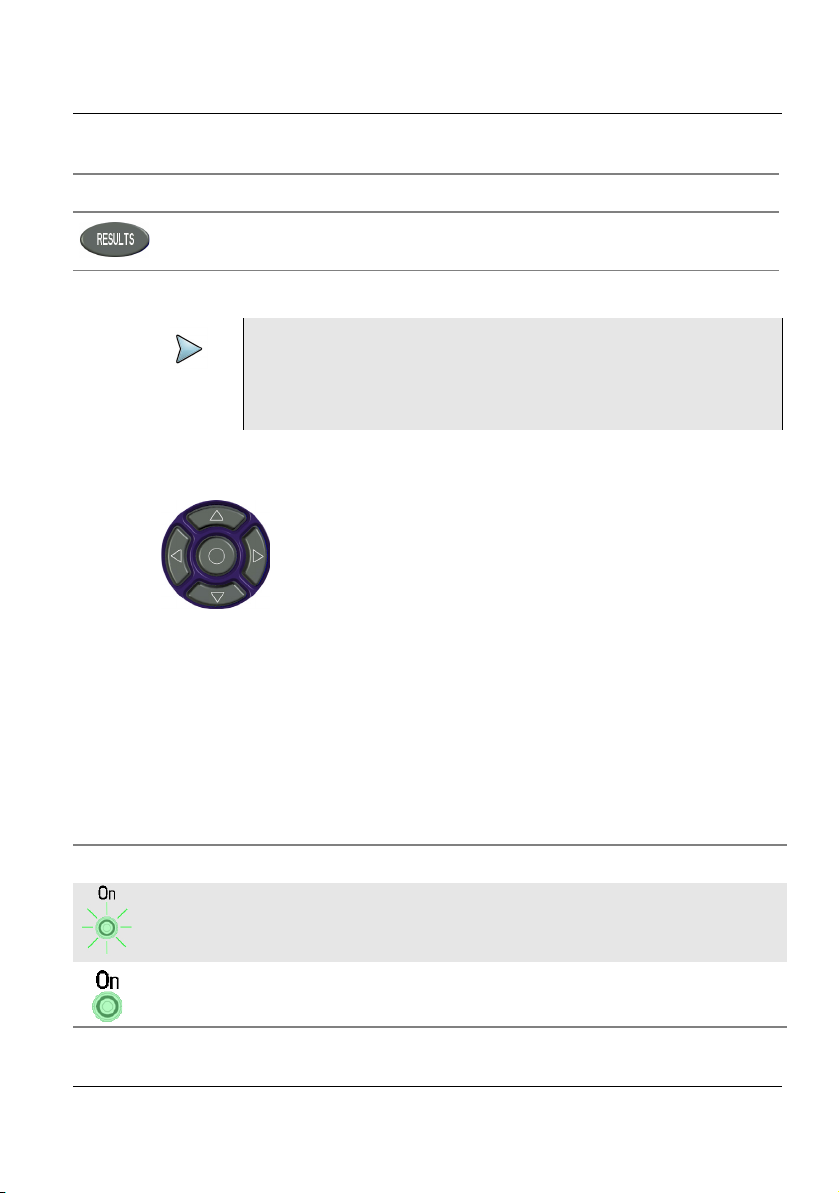

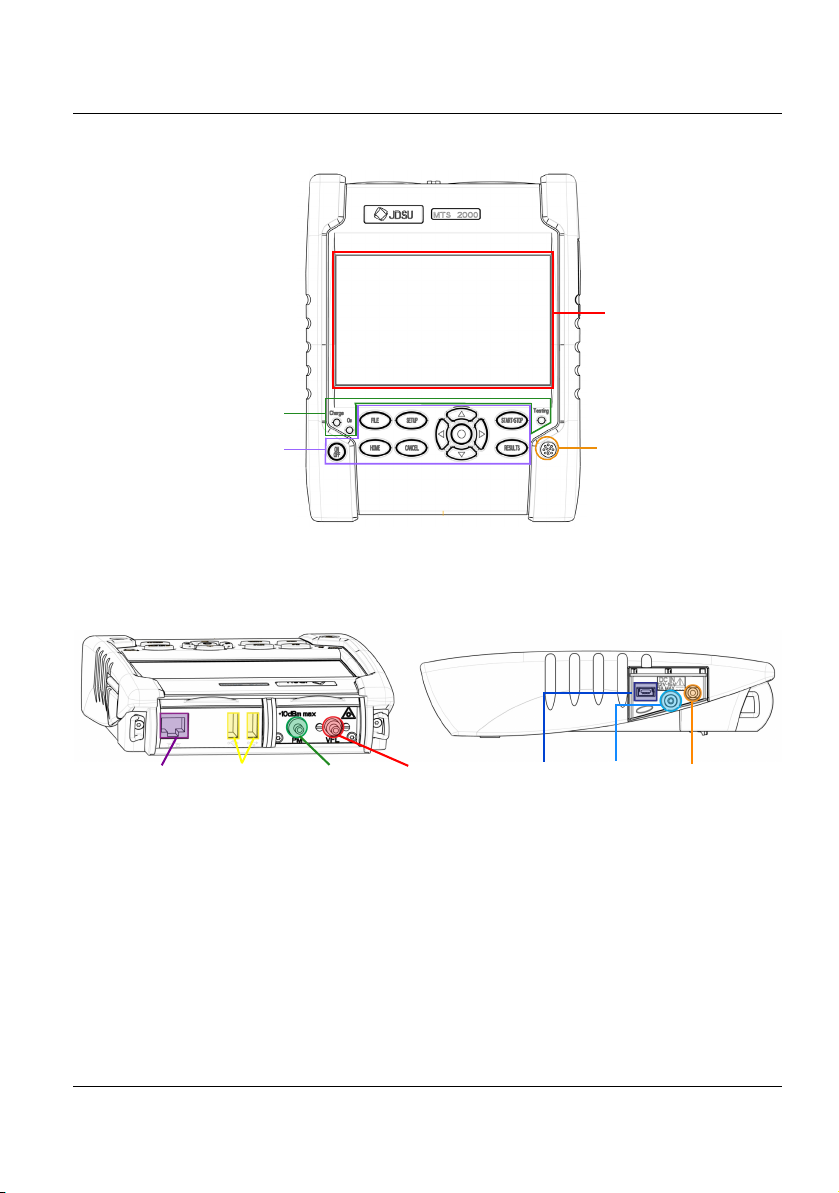

Hard keys and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

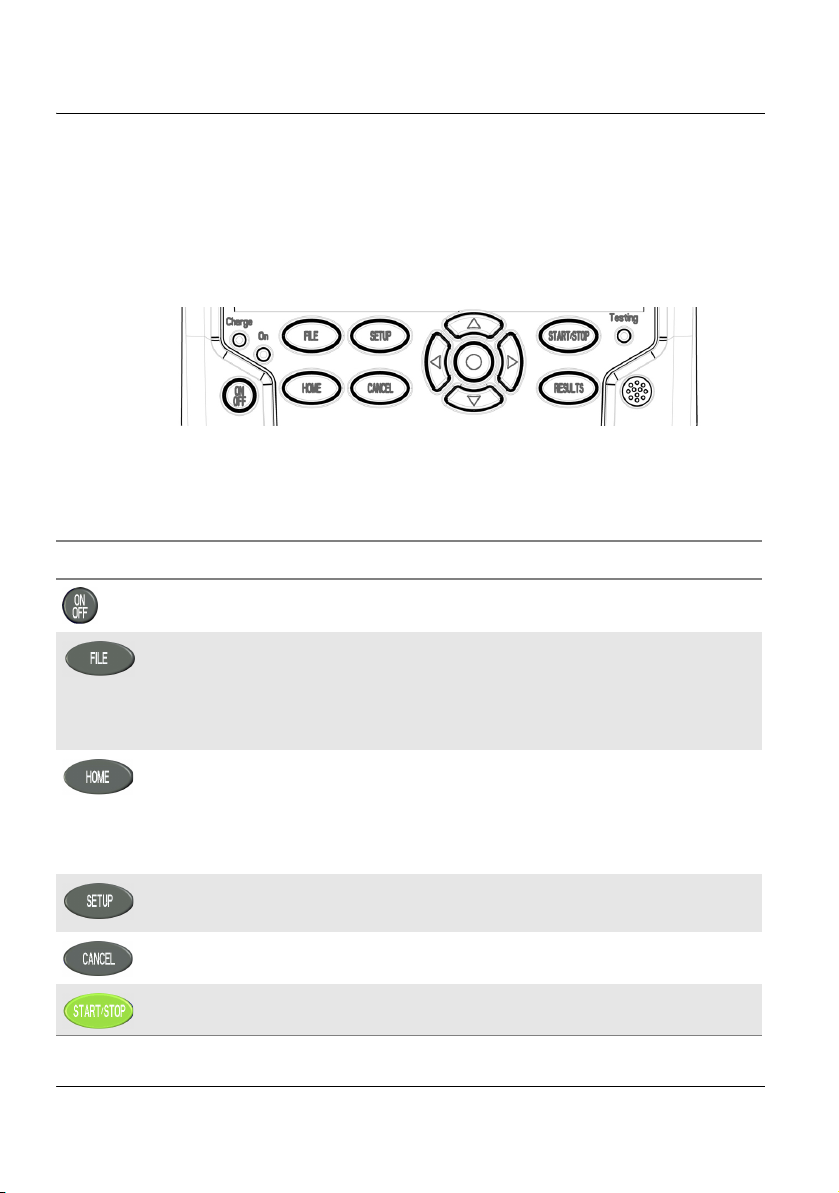

Front panel hard keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Front panel indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Chapter 2 Safety information
Battery and AC/DC safety information . . . . . . . . . . . . . . . . . . . . . 10
Precautions relating to optical connections . . . . . . . . . . . . . . . . .11
Laser Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Laser classes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Warning labels for the laser classes . . . . . . . . . . . . . . . . . . . . . 12
xvii
1
9
User Manual 79000000203 Rev. 005 vii
Page 8
Contents
Chapter 3 Starting up
Fitting and removing a module. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

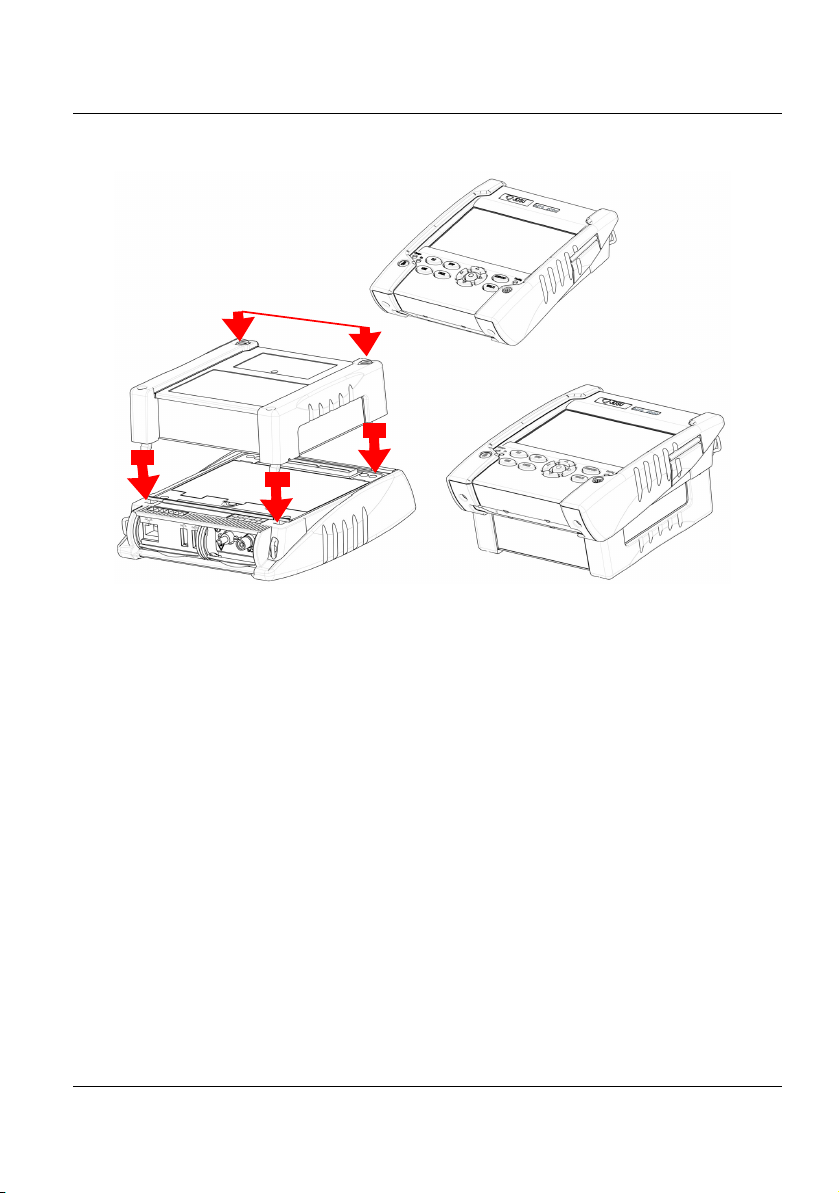

Fitting a module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Removing a module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

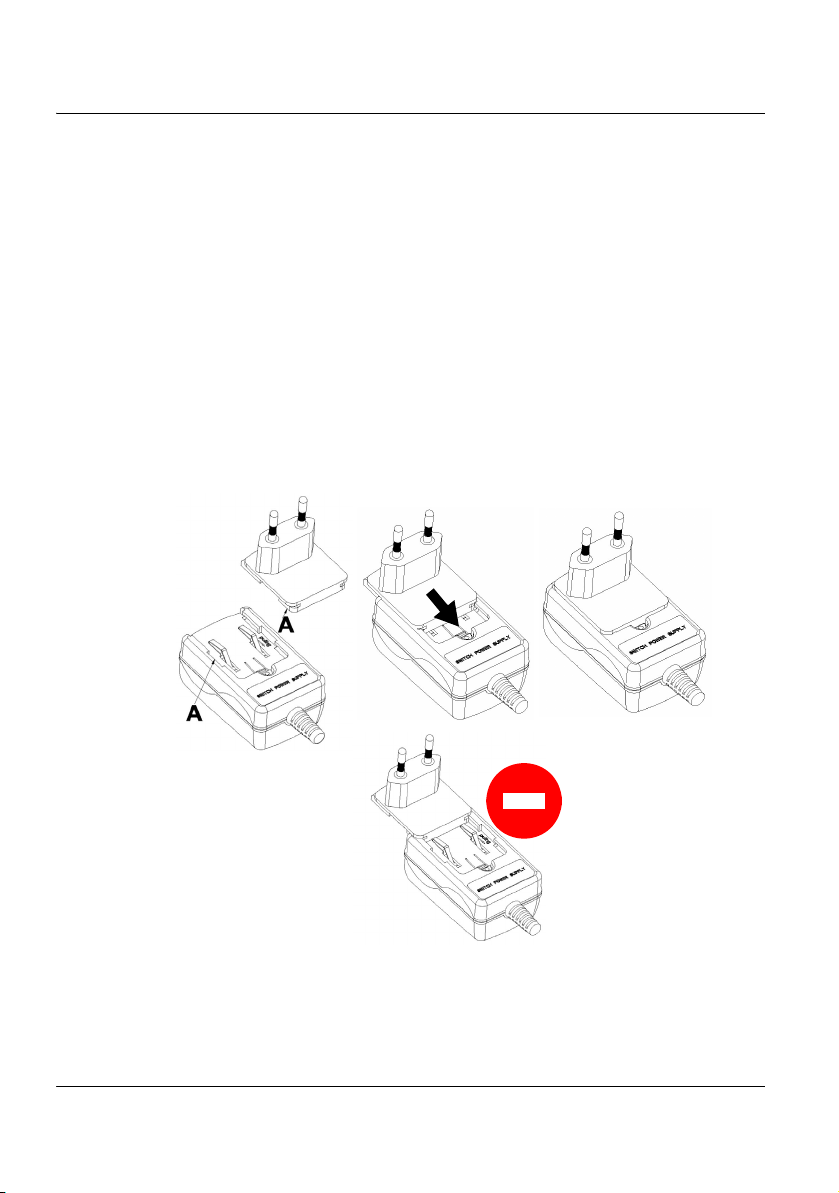

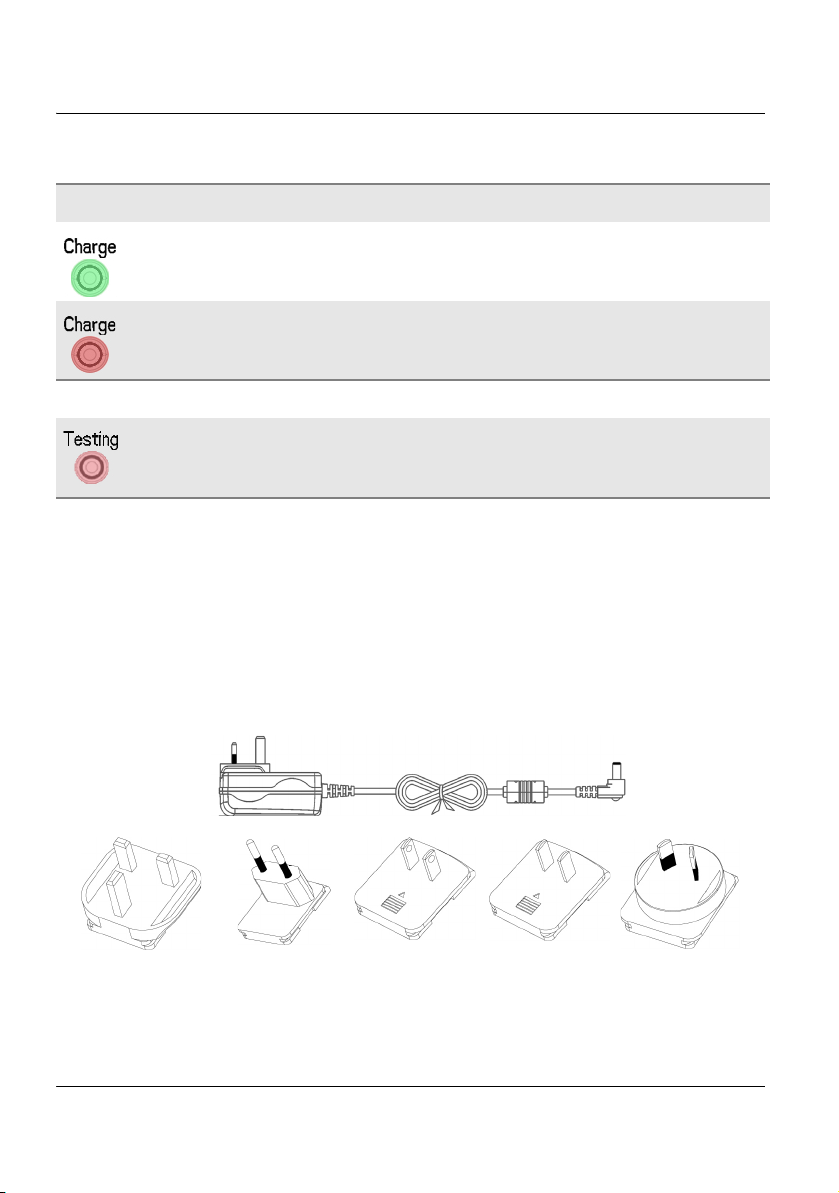

Setting the adaptable plug to the mains adapter. . . . . . . . . . . 16
Charging the battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connecting the mains adapter . . . . . . . . . . . . . . . . . . . . . . . . . 17
First use of the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Battery charging time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

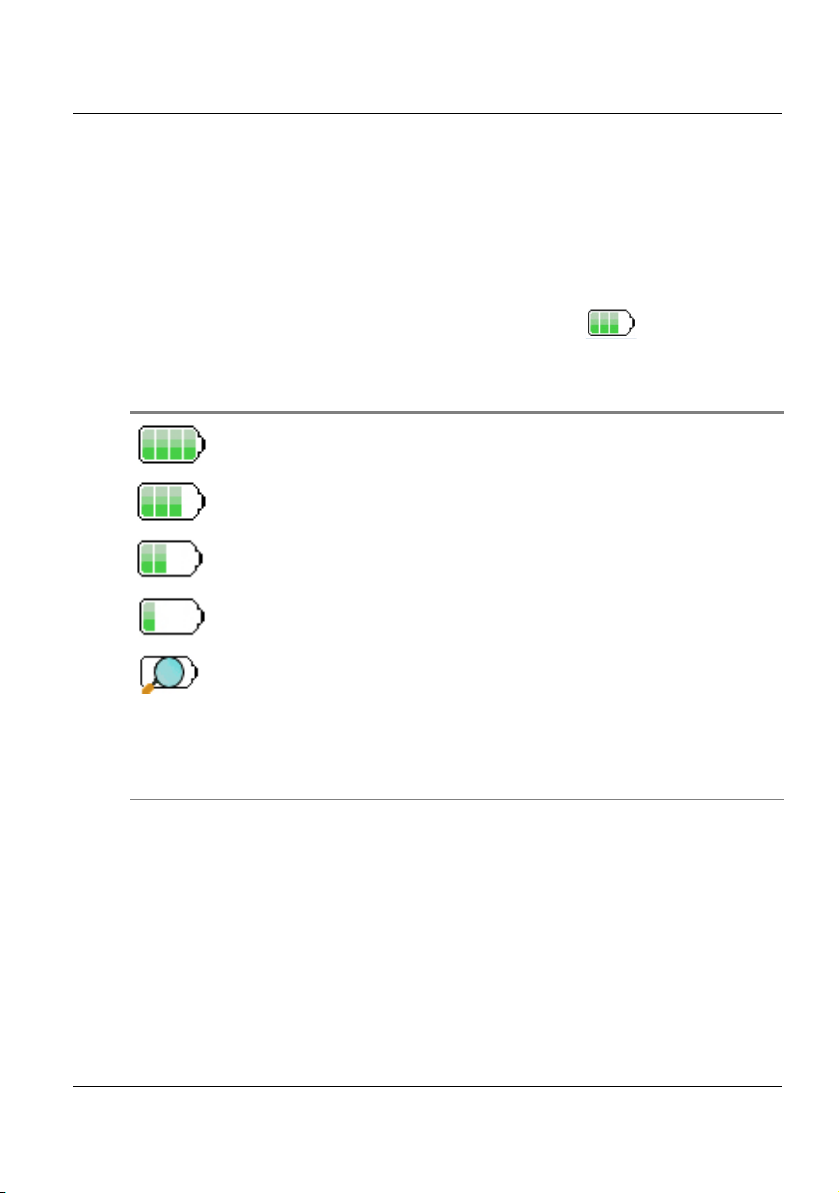

Battery charge level display. . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Switching the 2000 Platform on and off . . . . . . . . . . . . . . . . . . . 20
Switching on the 2000 Platform . . . . . . . . . . . . . . . . . . . . . . . 20
Switching off the 2000 Platform . . . . . . . . . . . . . . . . . . . . . . . 20
Resetting the 2000 Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

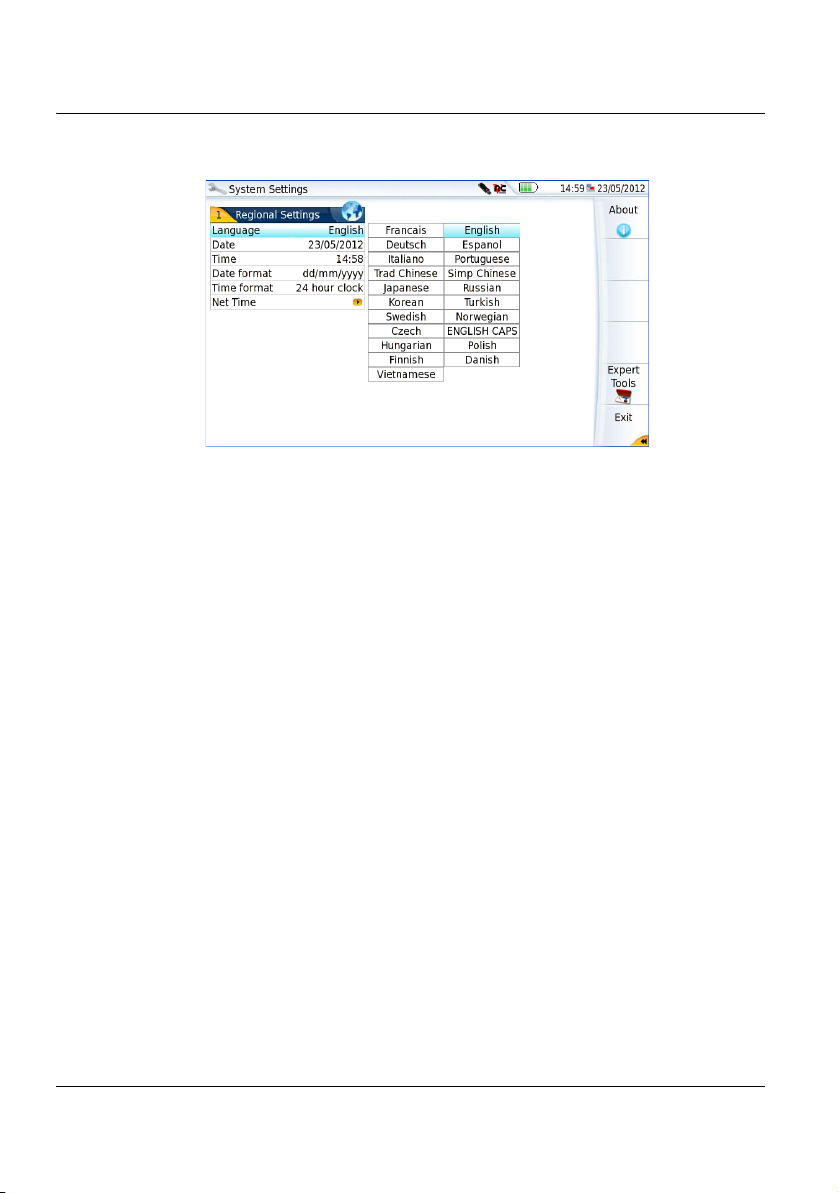

First start: configuring your regional settings . . . . . . . . . . . . . . 21
Chapter 4 Configuring the 2000 Platform

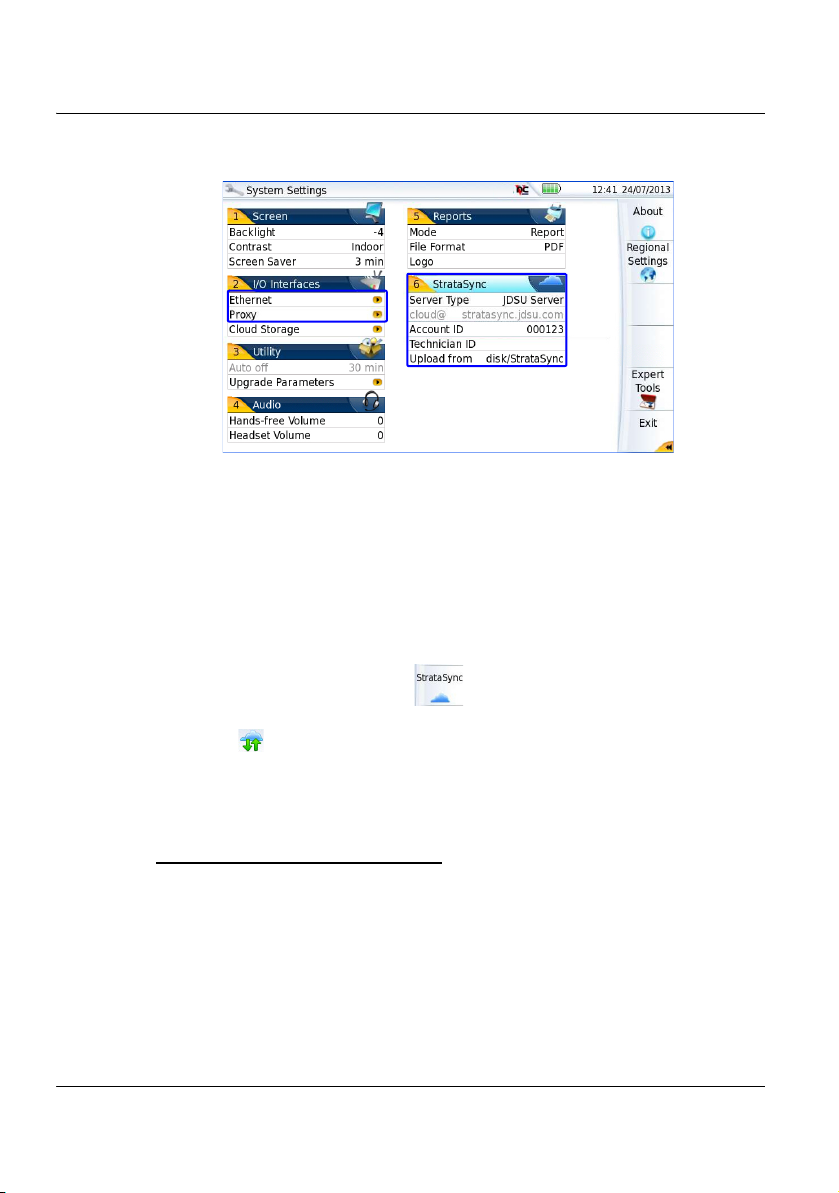

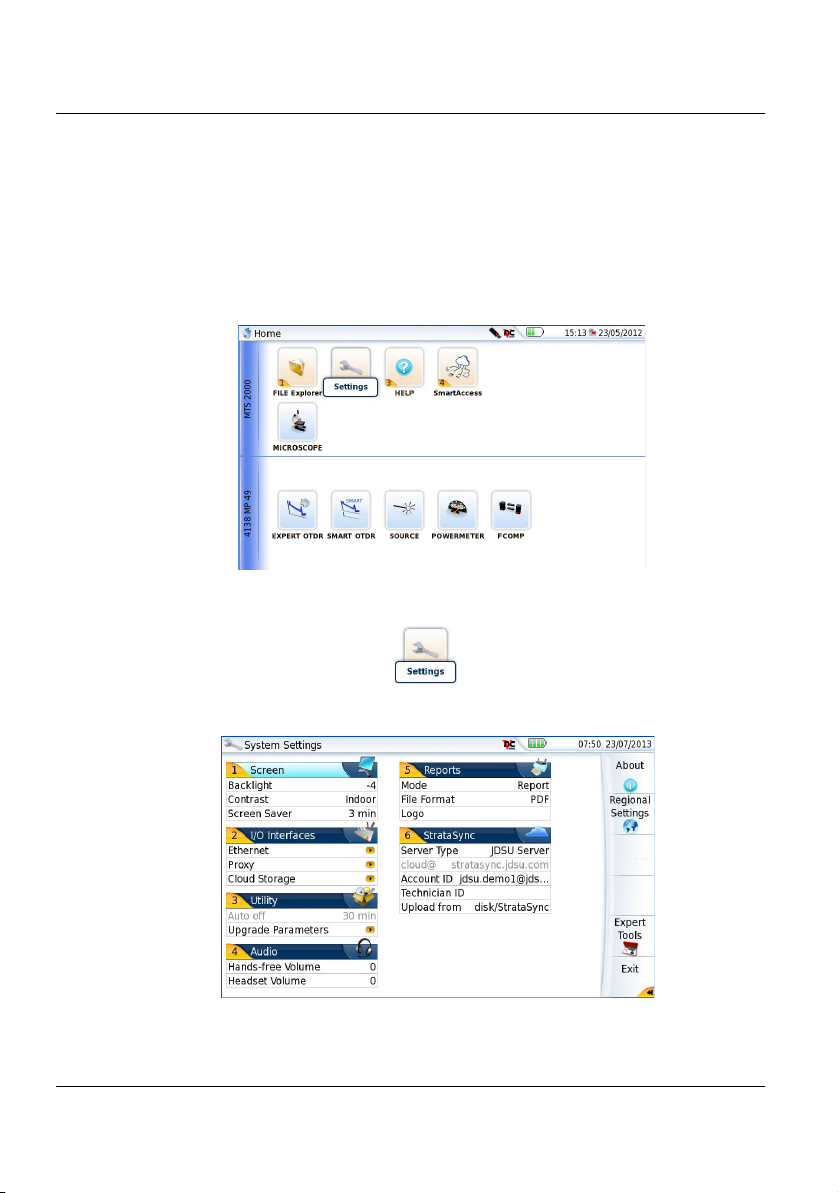

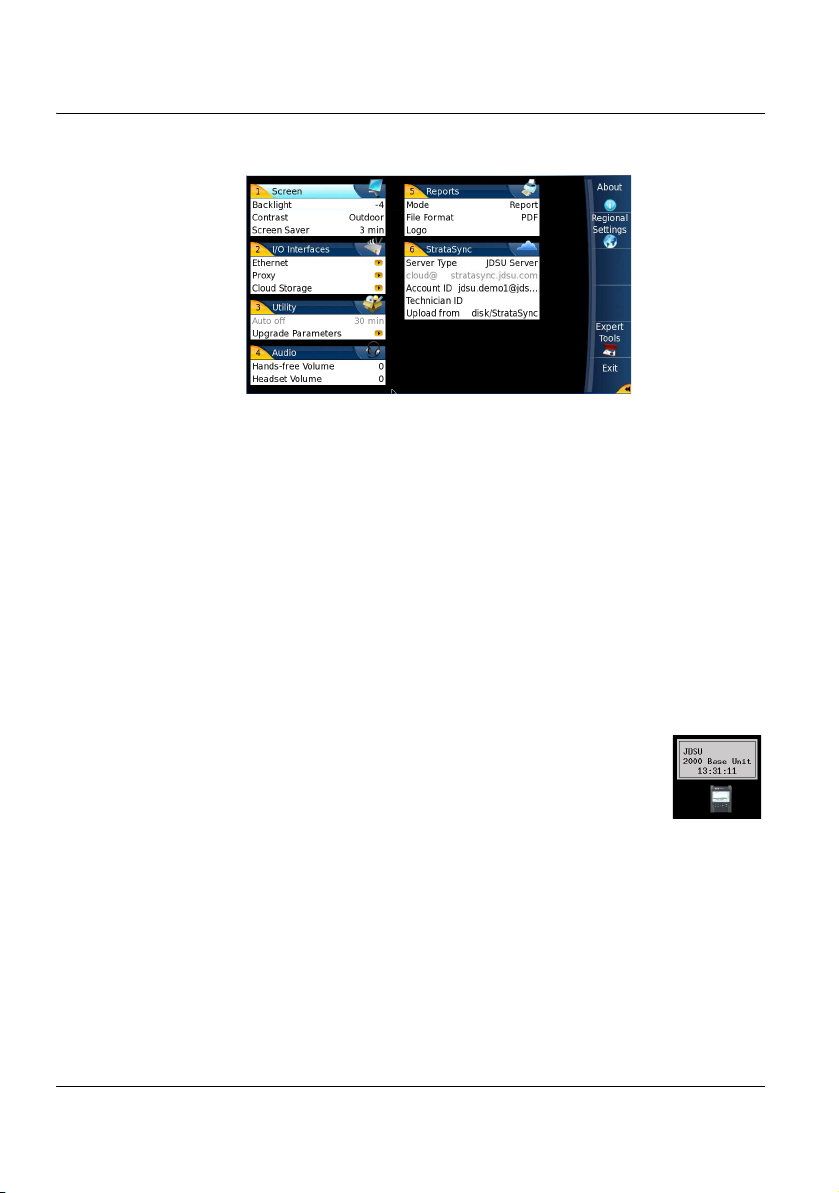

Displaying the System Settings screen. . . . . . . . . . . . . . . . . . . . . 26
Defining the screen parameters of the 2000 Platform . . . . . . 27
Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Contrast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Screen Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Defining the Audio parameters of the 2000 Platform. . . . . . . 28
Defining the Automatic shutdown of the 2000 Platform . . . 29
13
25
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset

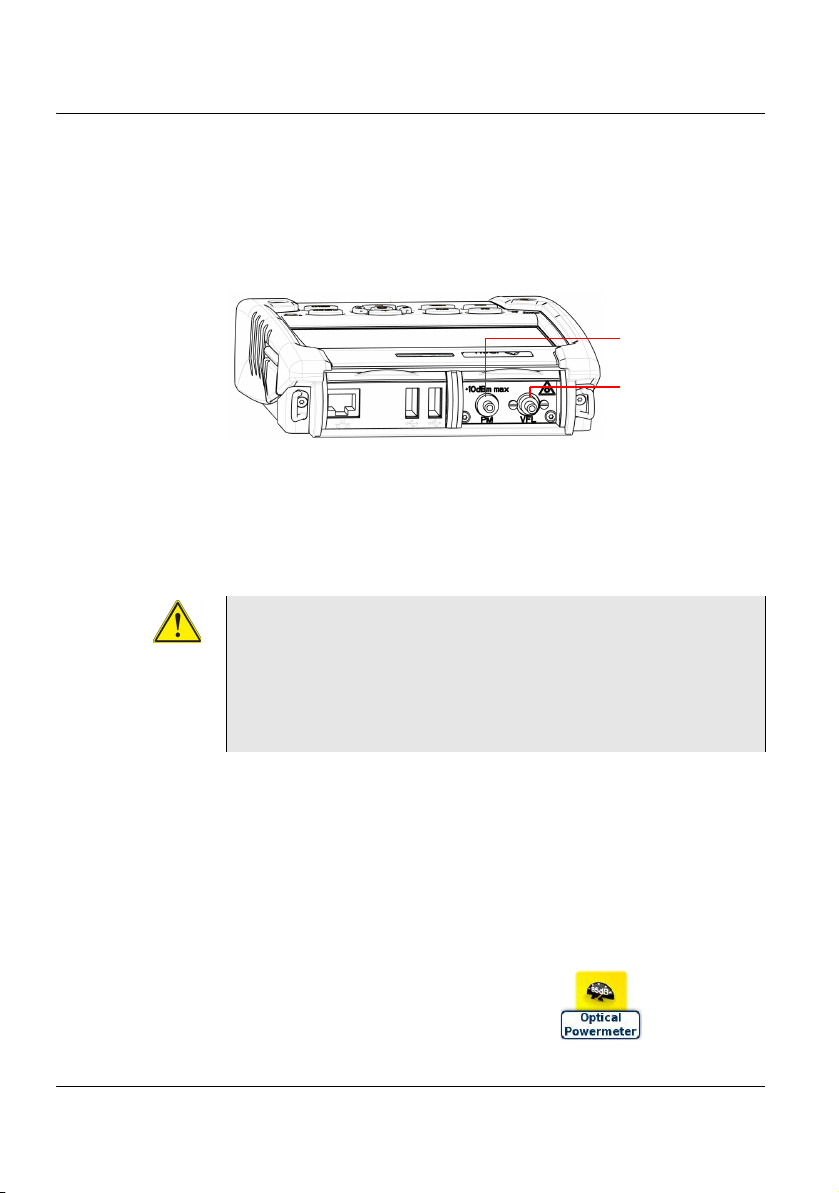

Connection to the power meter, VFL and Talkset . . . . . . . . . . . 32
Using the Power meter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

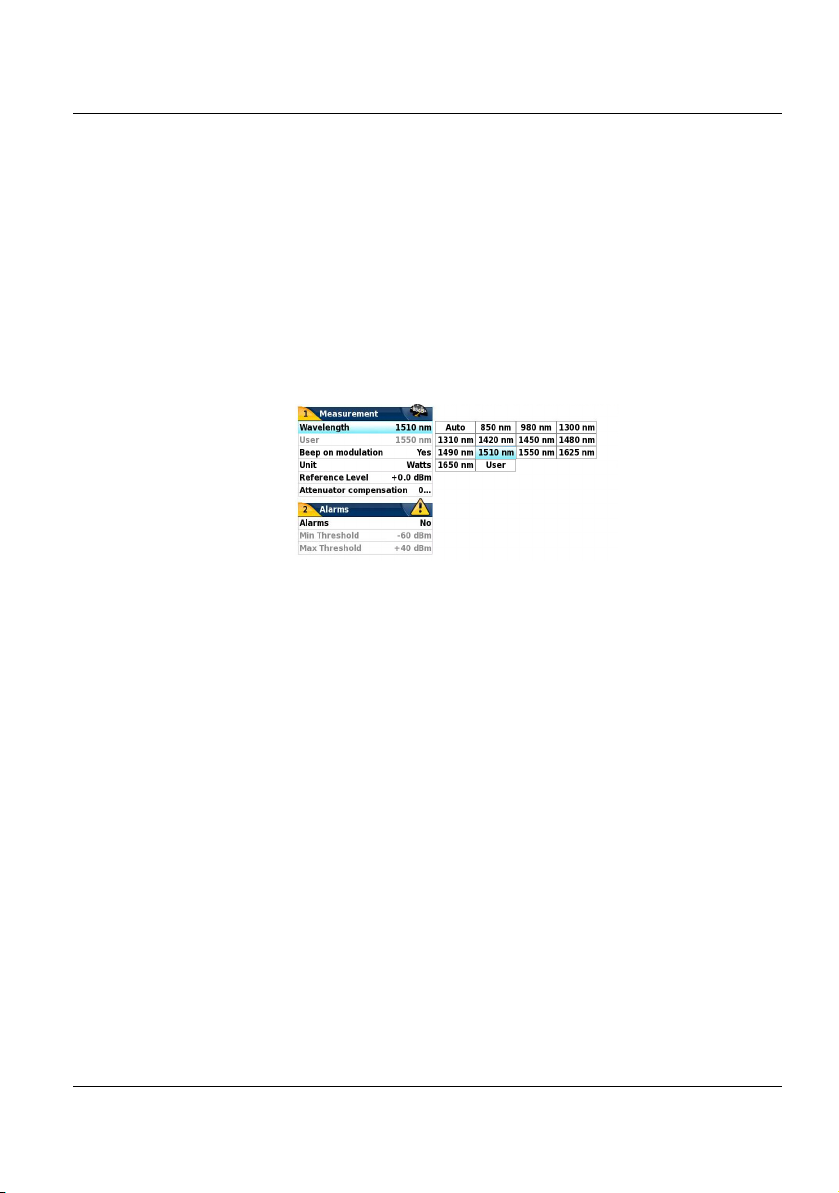

Configuring the power meter . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Configuring the alarm parameters of the power meter . . . 34
User Manual 79000000203 Rev. 005 viii
31
Page 9
Contents
Display of results and commands . . . . . . . . . . . . . . . . . . . . . . 35

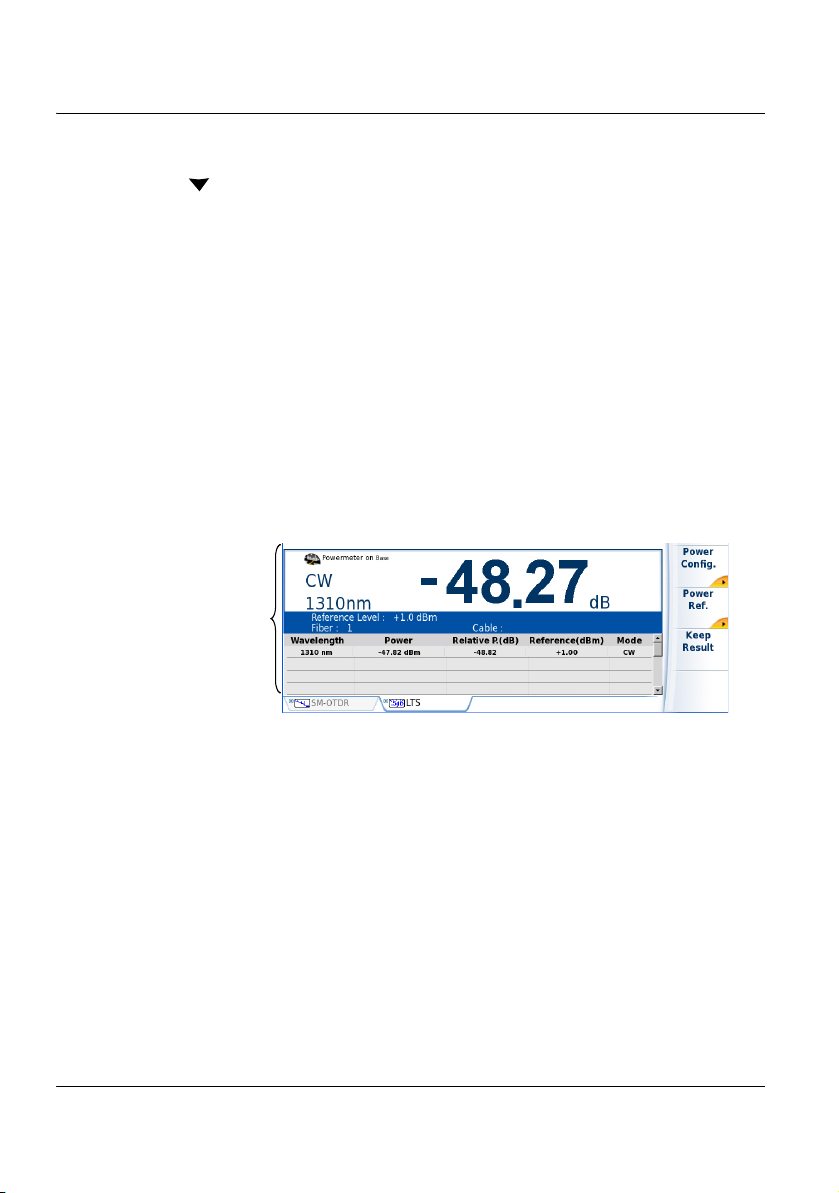

Result of the measurement in progress . . . . . . . . . . . . . . . . . 35
Table of results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Commands of the power meter parameters . . . . . . . . . . . . . 36
Performing a measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Power measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Optical link loss. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
VFL Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
VFL connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Visual Fault Locator function (VFL) . . . . . . . . . . . . . . . . . . . . . 40
Storing and reloading results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
File Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Storing results. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Loading results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

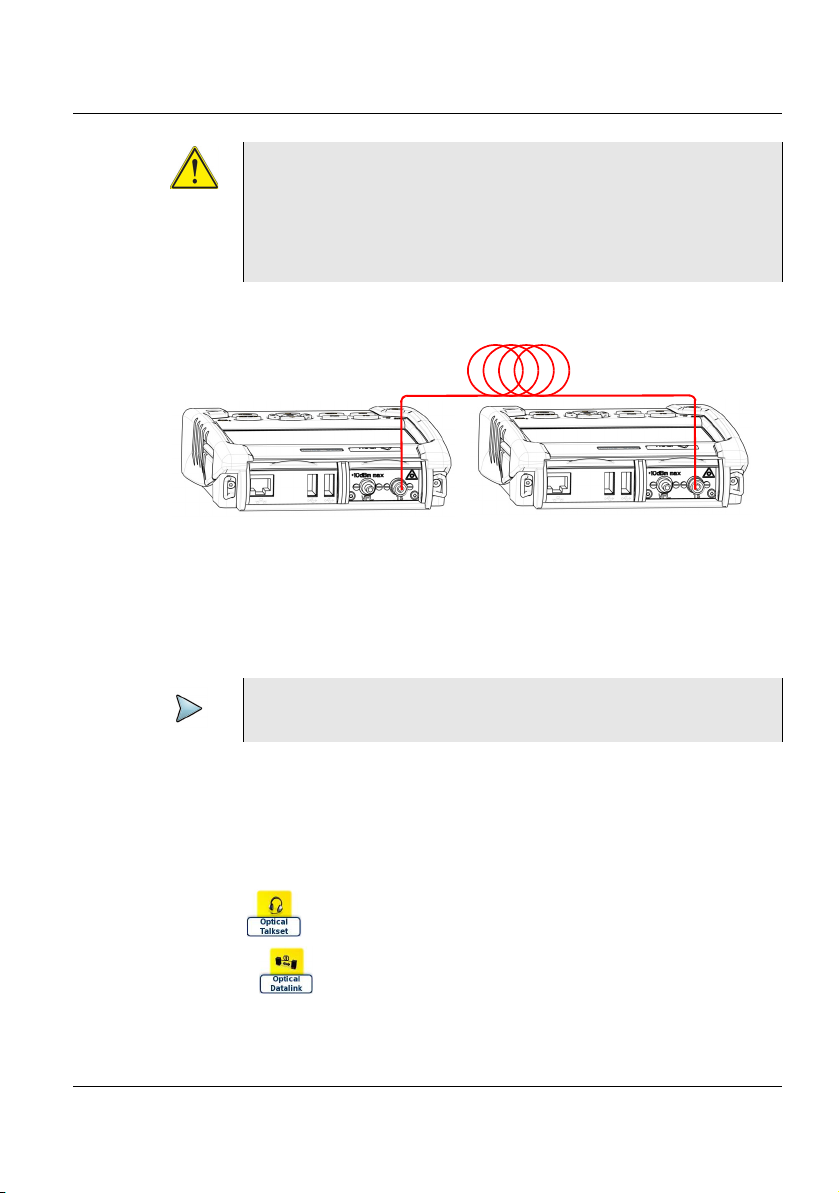

Talkset and Datalink Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Talkset configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Establishing communication . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Adjusting volume level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Disconnection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Chapter 6 Scope
Scope feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Installation of tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

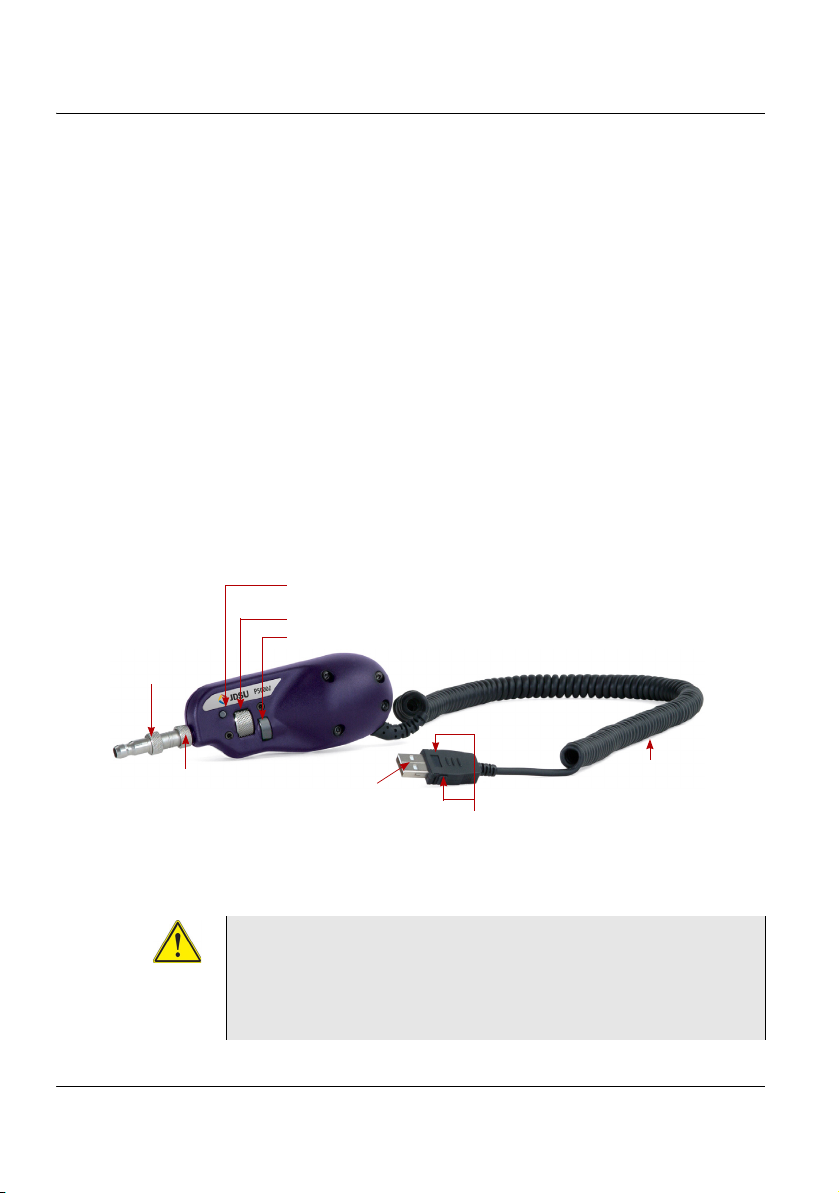

Configuring the P5000i Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Scope connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

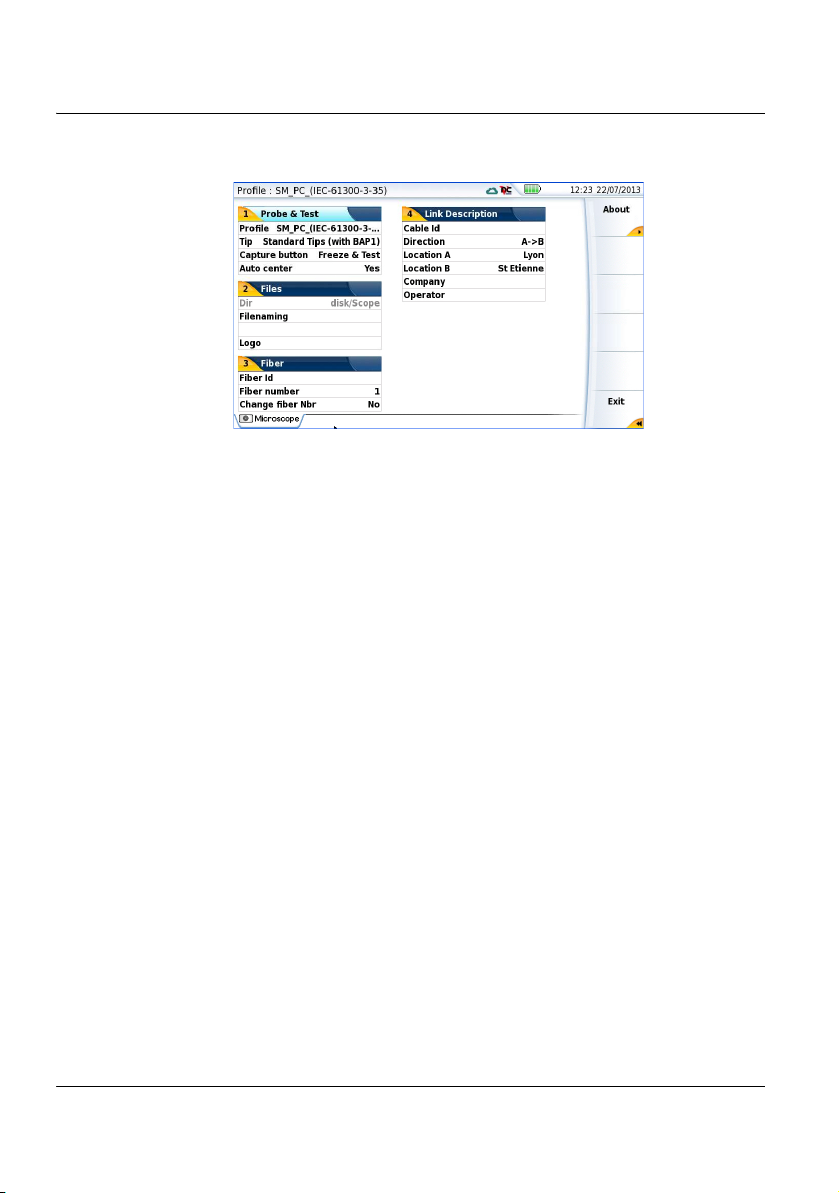

Configuring the Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Fiber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Link Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Adding a new profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
User Manual 79000000203 Rev. 005 ix
47
Page 10
Contents
About page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

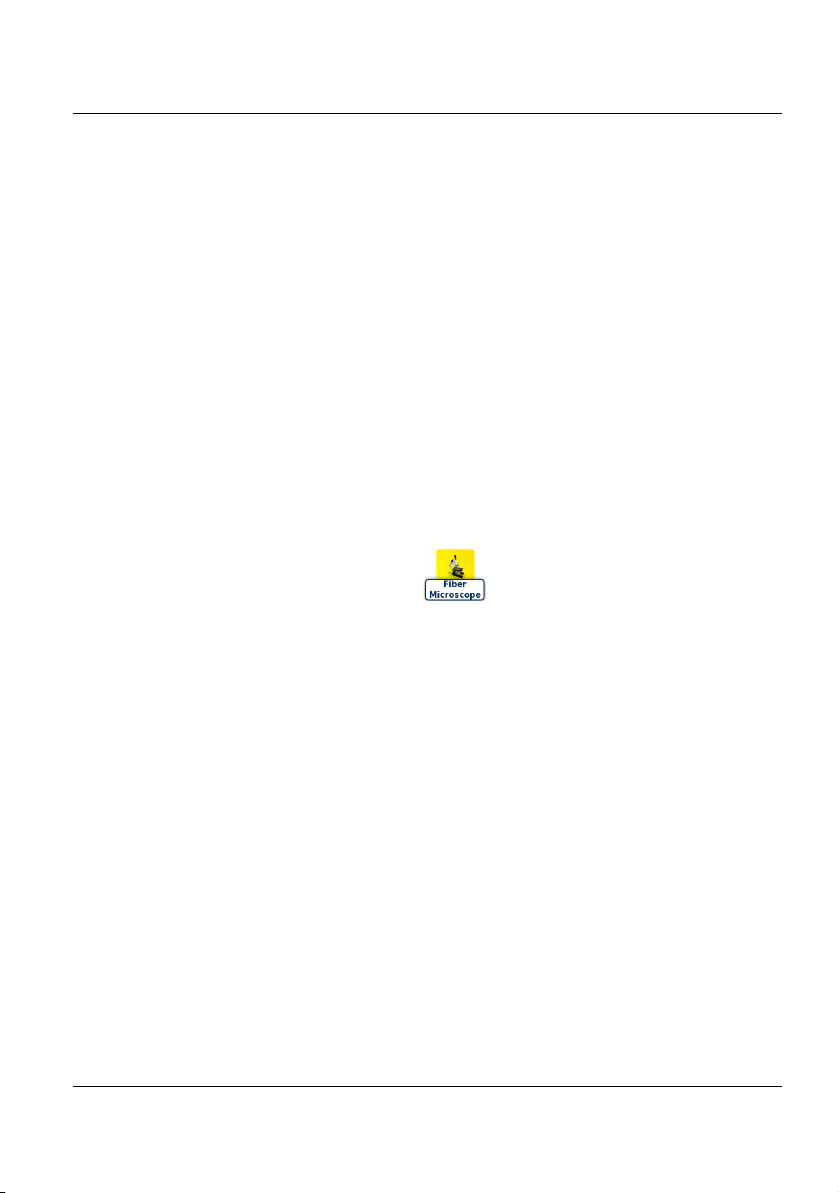

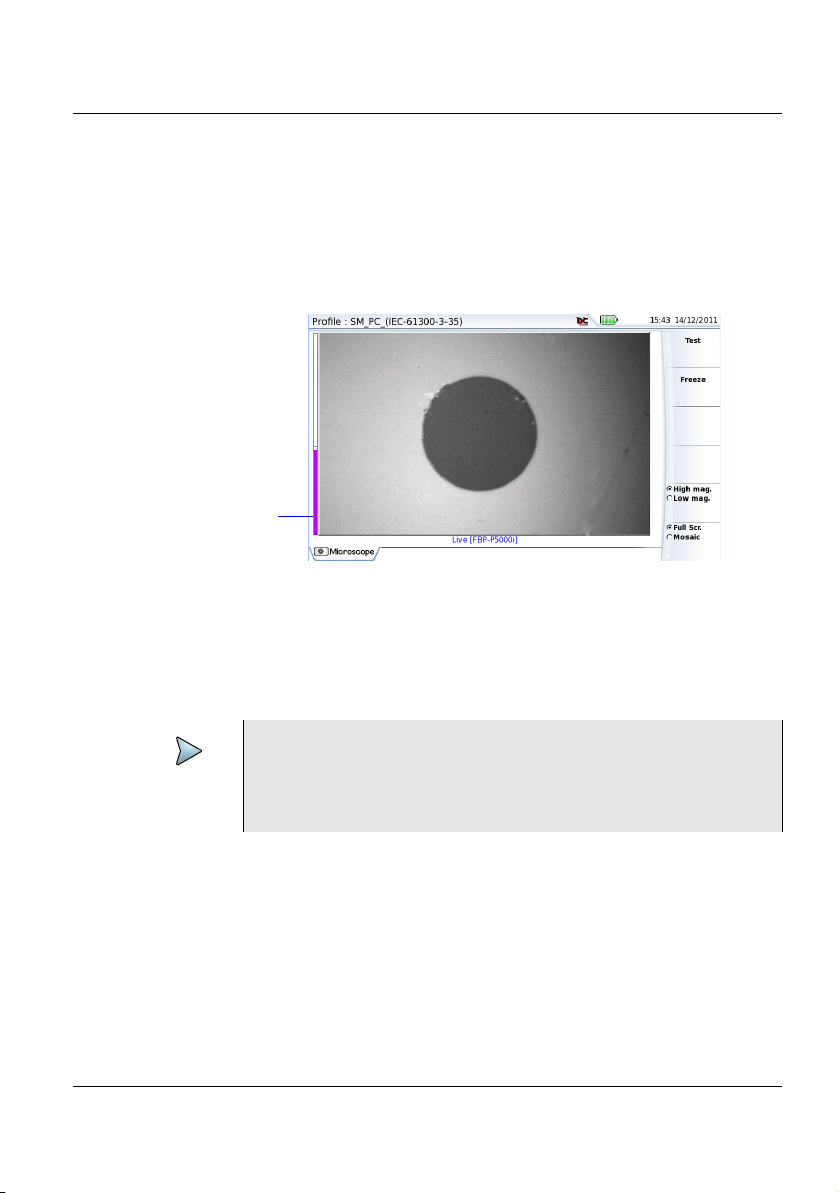

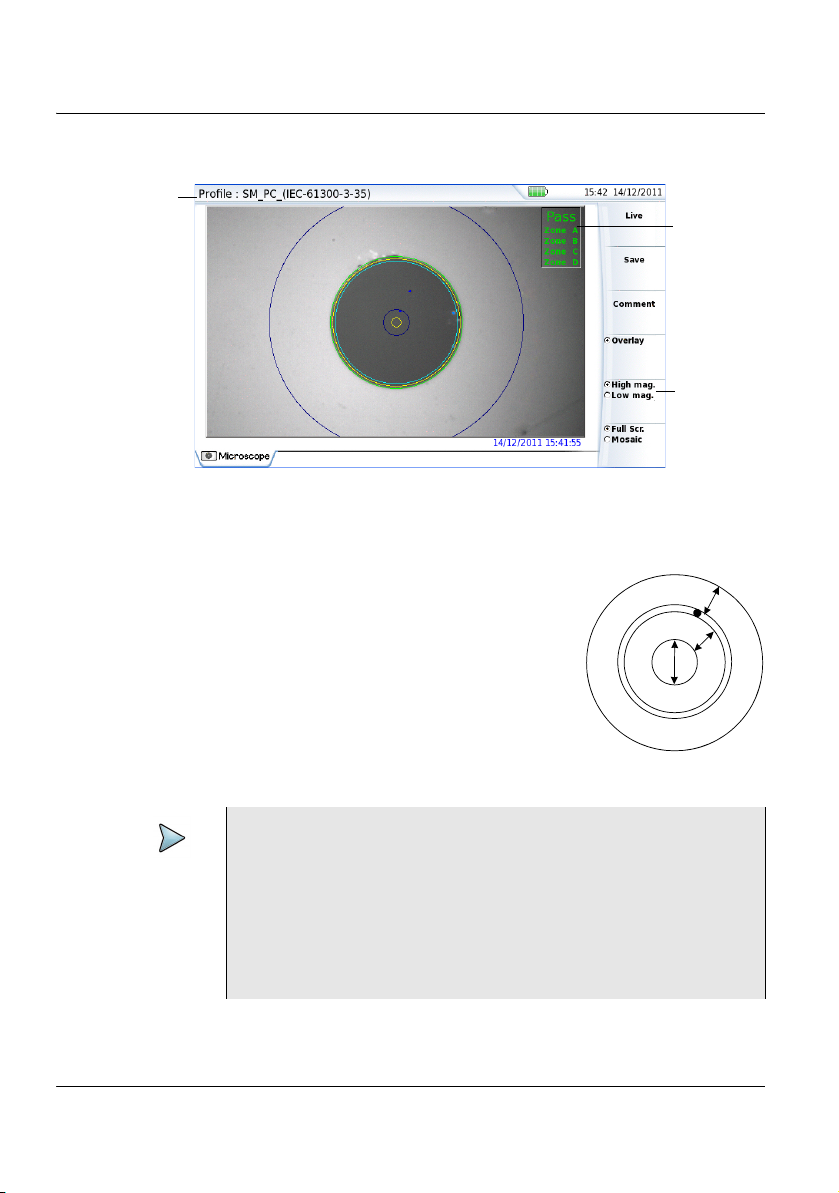

Starting up with the scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Freeze mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
High Mag. / Low Mag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Camera mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Launching a test of the connector and fiber end-face . . . . . . 57
Launching a test of the connector and fiber end-face . . . 57
Overlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

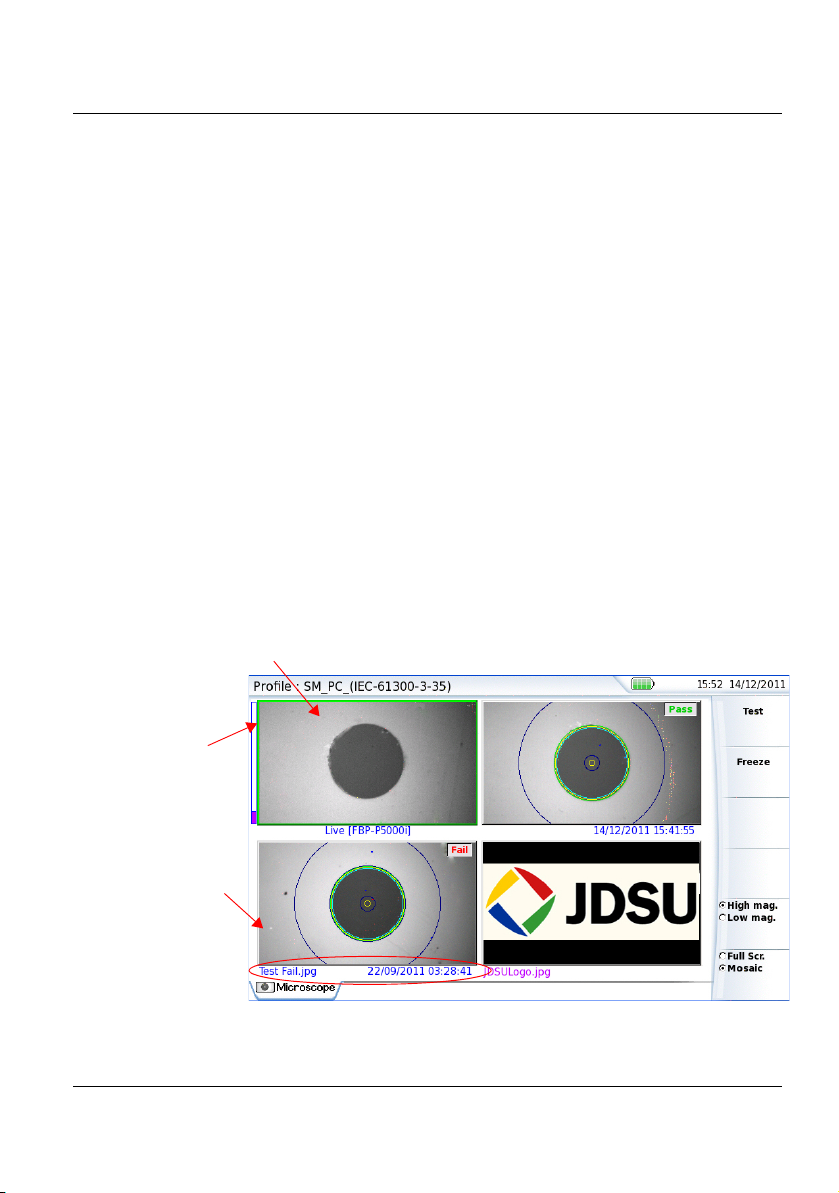

Mosaic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Loading a picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
File menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Saving the test result in a jpg file . . . . . . . . . . . . . . . . . . . . . . 62

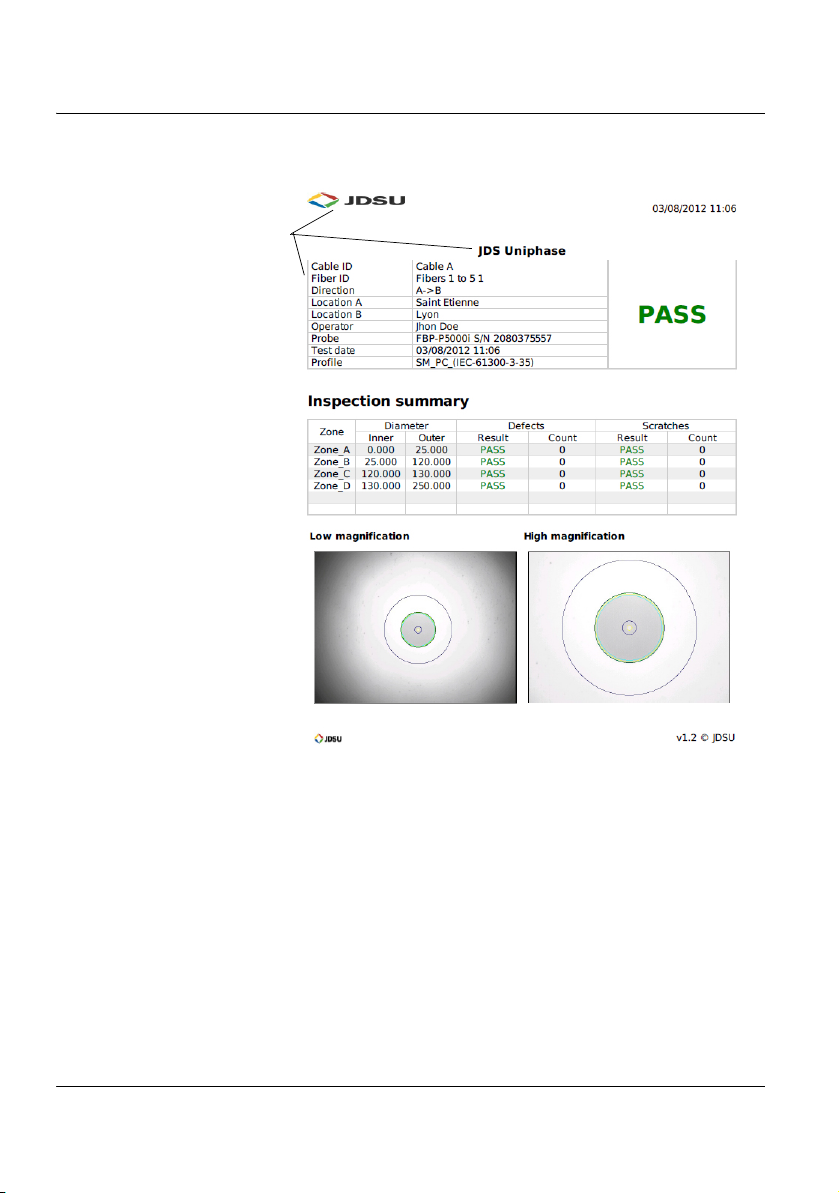

Generating a report. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Chapter 7 Transferring the 2000 Platform Interface
Establishing connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

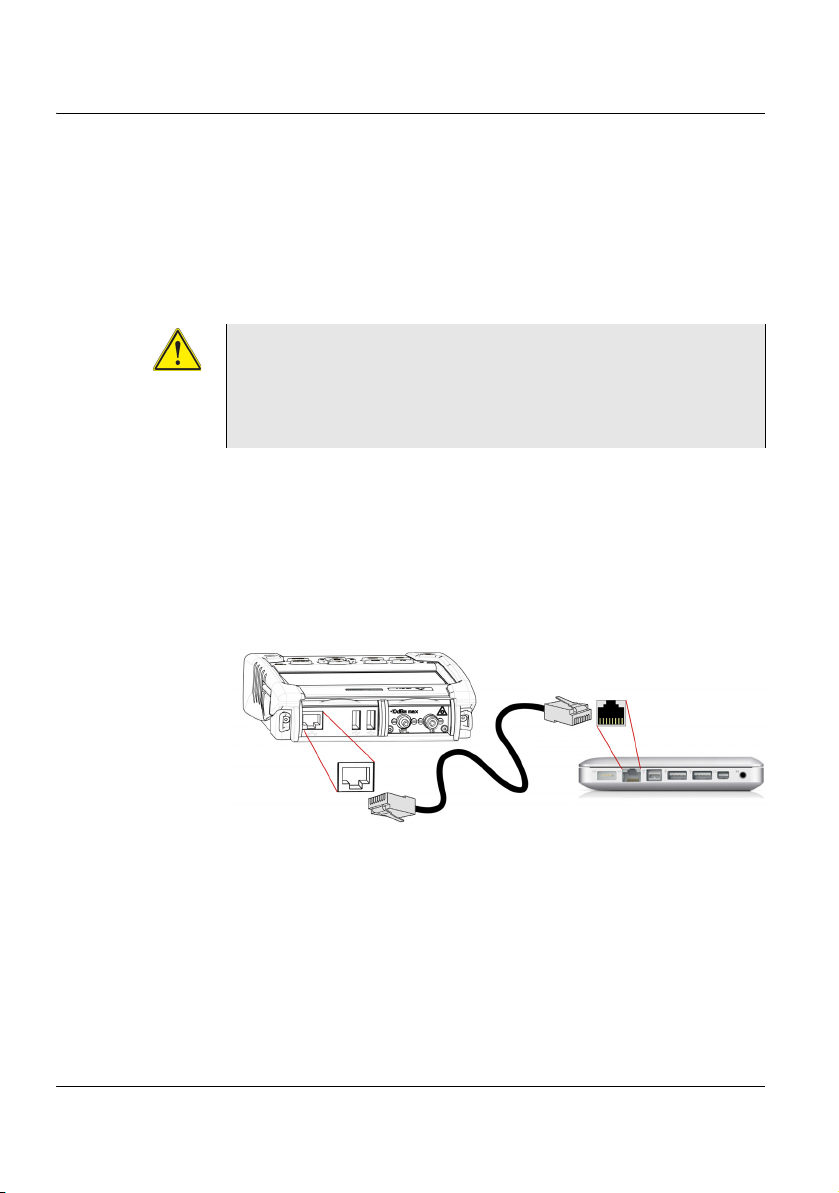

Connecting the 2000 Platform and the PC. . . . . . . . . . . . . . 66

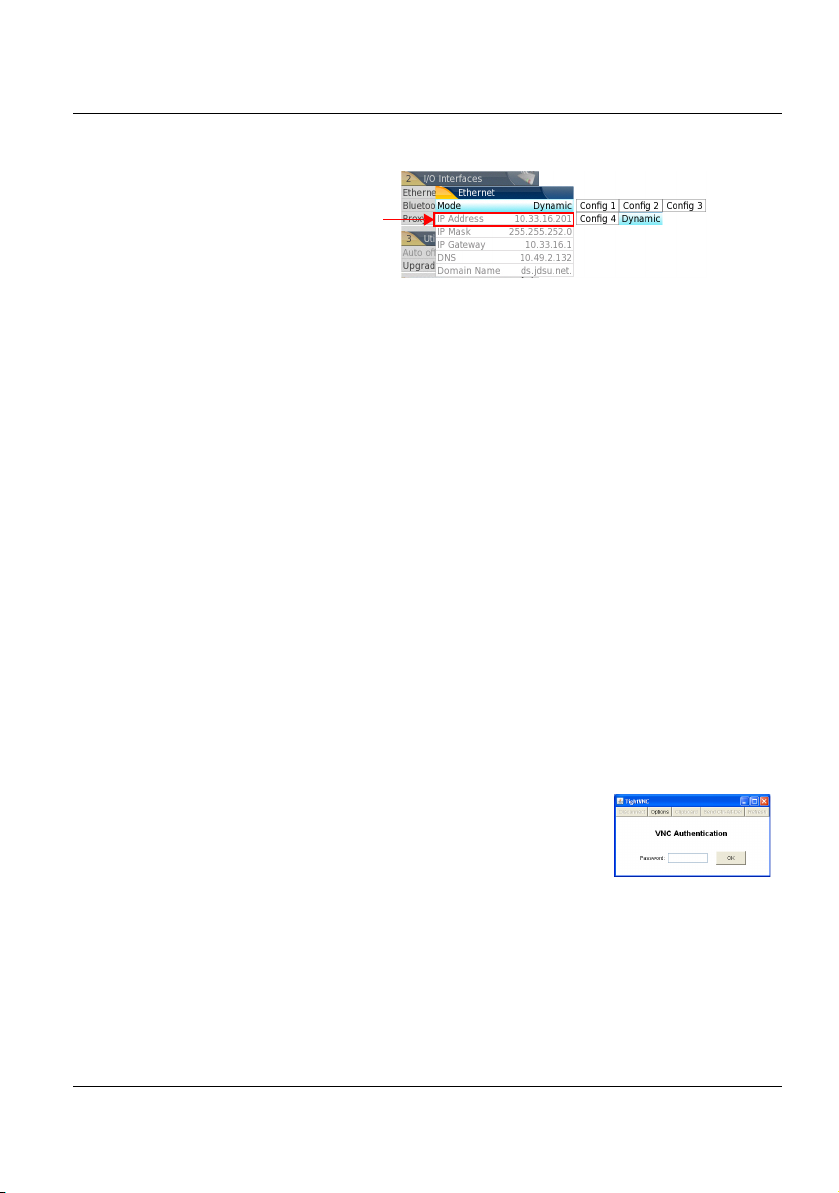

Configuring the 2000 Platform. . . . . . . . . . . . . . . . . . . . . . . . . 66
Transferring the Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

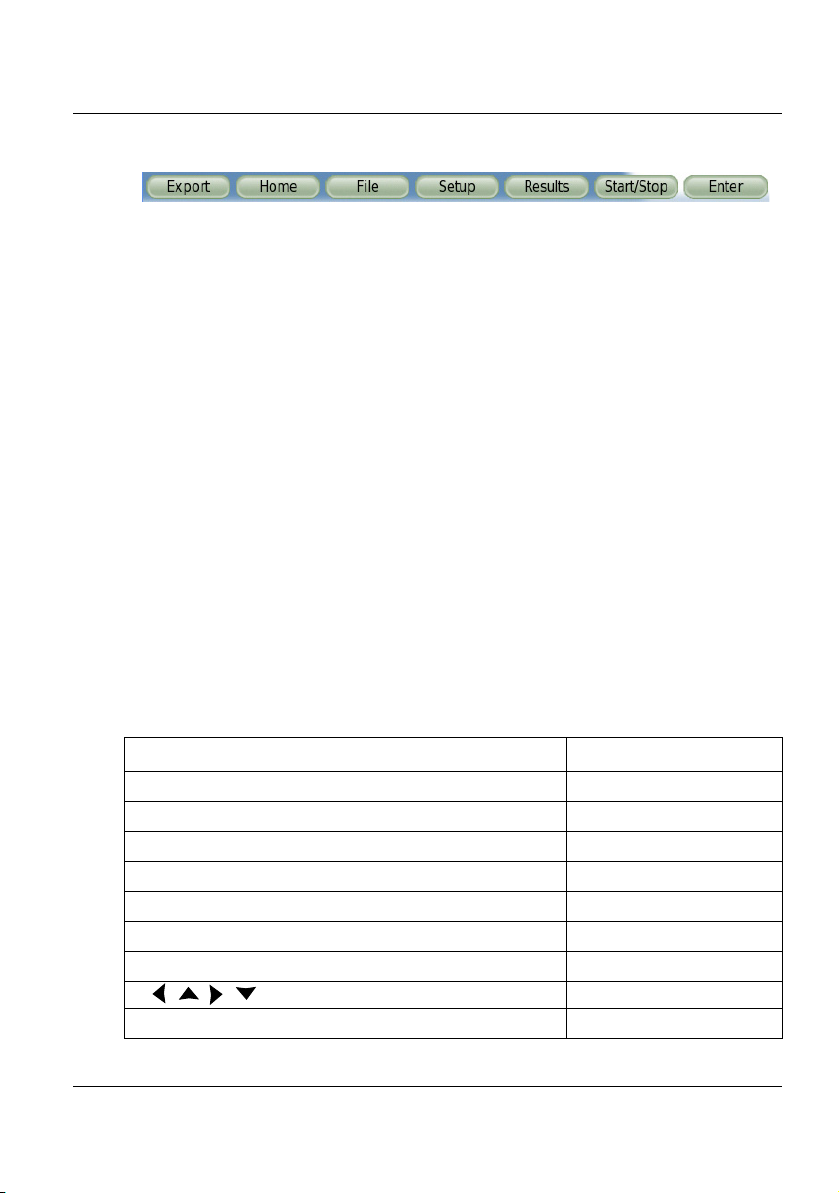

Virtual control buttons bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Equivalence between the keyboard and 2000 Platform. . . . . 71
Chapter 8 Stratasync

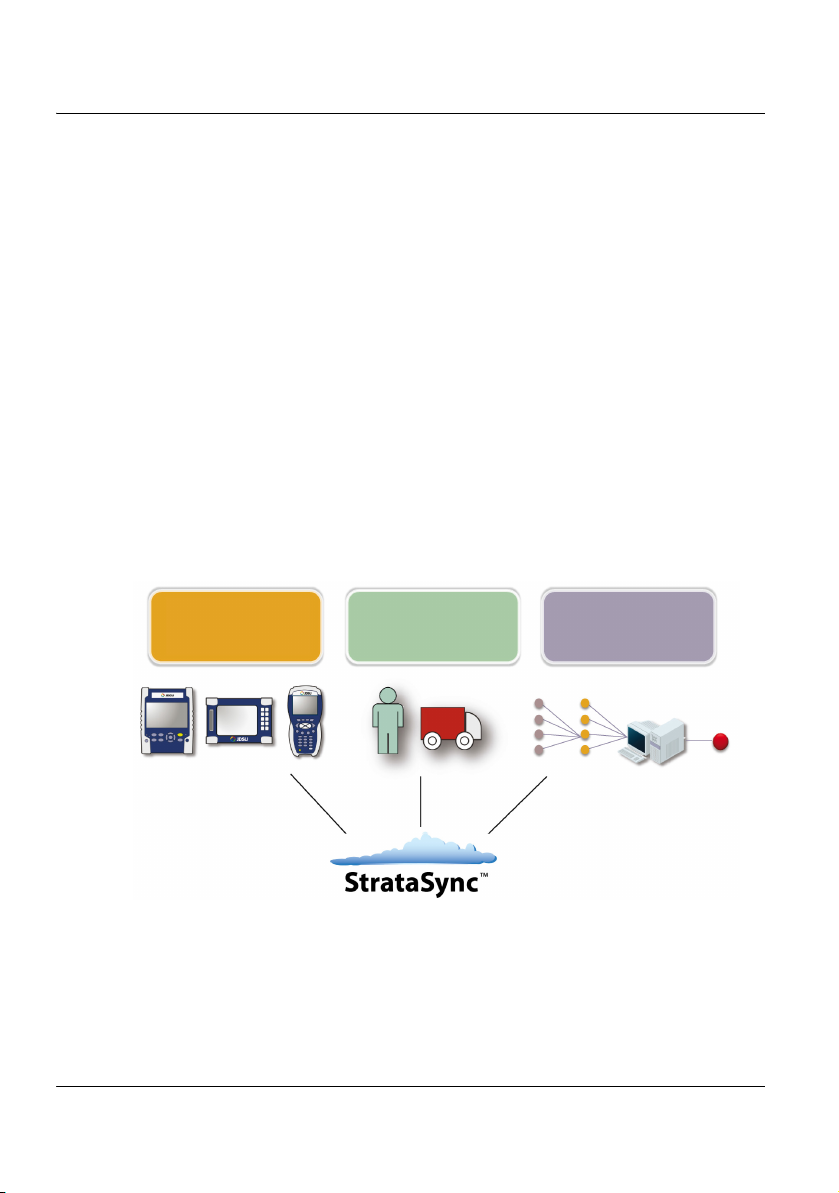

Principle and prerequisites of the Stratasync. . . . . . . . . . . . . . . 74
Configuring and synchronizing the 2000 Platform . . . . . . . . . 75

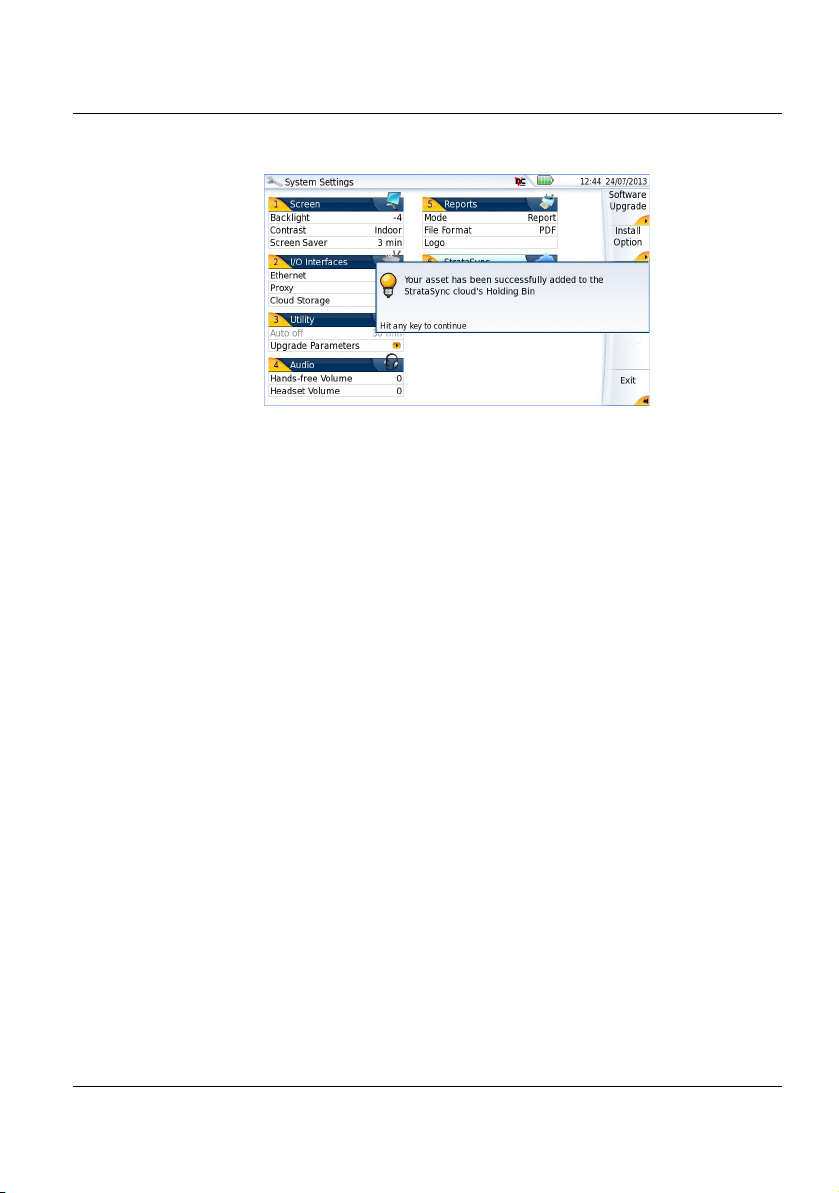

Connecting the 2000 Platform to Stratasync . . . . . . . . . . . 76
Chapter 9 Web browser
Configuring the Web access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Starting the web browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
User Manual 79000000203 Rev. 005 x
65
73
79
Page 11
Contents
Opening an internet page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Navigation into the Web Browser . . . . . . . . . . . . . . . . . . . . . . 82
Creating bookmarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Opening a PDF document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Leaving the web browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Chapter 10 File management
File Explorer Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Directories and Files selections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Directory selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Files selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Directories & Files editing functions . . . . . . . . . . . . . . . . . . . . . . . 88
Copy/Cut & Paste files/directories . . . . . . . . . . . . . . . . . . . . . . 88
Renaming a directory / file. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Deleting a directory / file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Working with directories and files from the explorer . . . . . . . 90
Creating a directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Opening files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
File Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Sorting files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Transferring files between two Platforms . . . . . . . . . . . . . . 92
Establishing connection between two 2000 Platforms . . . 93
Transferring files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Cancelling the connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Transferring files to a PC with the USB cable. . . . . . . . . . . . 95
Establishing connection 2000 Platform <-> PC . . . . . . . . . . 95
Transferring files onto the PC . . . . . . . . . . . . . . . . . . . . . . . . . 97
Cancelling the connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Transferring files to/from a PC with a FTP server. . . . . . . . 98
Direct connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Connection via a local network . . . . . . . . . . . . . . . . . . . . . . . . 99
Accessing the internal memory of the 2000 Platform. . . . 100
Creating a screenshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
85
User Manual 79000000203 Rev. 005 xi
Page 12
Contents
Configuring the parameters of screenshots . . . . . . . . . . . . 102
Taking a screenshot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Name of the screenshots files. . . . . . . . . . . . . . . . . . . . . . . . . 103
Creating a report. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Creating the report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Name of the report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Merging pdf or txt files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Storage media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Storage media built into the 2000 Platform . . . . . . . . . . . 107
External USB storage media. . . . . . . . . . . . . . . . . . . . . . . . . . . 107
USB memory stick connection . . . . . . . . . . . . . . . . . . . . . . . . 108
USB memory stick disconnection . . . . . . . . . . . . . . . . . . . . . 108
Cloud Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Principle and prerequisites of the Cloud Storage . . . . . . . . 109
Configuring and connecting to Cloud Storage on the 2000
Platform. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Transferring files using Cloud Storage . . . . . . . . . . . . . . . . . . 111
Abbreviations for storage media . . . . . . . . . . . . . . . . . . . . . . .113
Chapter 11 Smart Access Anywhere
Connection modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Ethernet or WIFI connection . . . . . . . . . . . . . . . . . . . . . . . . . . 116
USB/WIFI connection through 3G Smartphone. . . . . . . . . . 117
Pre-requisite for using the Smart Access Anywhere Application
Downloading the Viavi application on PC . . . . . . . . . . . . . . . . . 119
Launching the SmartAccess Anywhere application. . . . . . . . . .121
On T-BERD/MTS-2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121
On the distant PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Using Remote screen and File Transfer applications . . . . . . . 123
Transferring the interface onto the PC . . . . . . . . . . . . . . . . . 123
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
User Manual 79000000203 Rev. 005 xii
115
Page 13
Contents
Transferring files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Transferring files from PC to T-BERD/MTS . . . . . . . . . . . . . 127
Transferring files from T-BERD/MTS-2000 to PC . . . . . . . . 127
Working with files and directories on T-BERD/MTS-2000. .
128
Connection information and settings . . . . . . . . . . . . . . . . . . . . . 129
Displaying session information. . . . . . . . . . . . . . . . . . . . . . . . 129
Modifying connection settings. . . . . . . . . . . . . . . . . . . . . . . . 130
Tes ti ng co nne ct io n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131
Chapter 12 WIFI Option
Installation of the WIFI option in the Platform . . . . . . . . . . . . 134
Configuring the WIFI access . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Connection to SSID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Configuring the WIFI mode to which the Platform is connected
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Transferring the 2000 Platform interface via WIFI on a PC . 139
Transferring files to/from a PC via WIFI . . . . . . . . . . . . . . . . . . . 140
Chapter 13 Bluetooth option
Setting up a Bluetooth connection . . . . . . . . . . . . . . . . . . . . . . . 144
Installing the Bluetooth option onto the 2000 Platform144
Pairing the Platform with a device . . . . . . . . . . . . . . . . . . . . 145
Transferring files via Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Transferring the Platform interface on a laptop PC via Bluetooth
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Removing the Pairing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Chapter 14 Technical specifications
Display specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
133
143
155
User Manual 79000000203 Rev. 005 xiii
Page 14
Contents
Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156
Input/Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156
Power supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156
Mains adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Dimensions - Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158
Tem pe rat ur e . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158
Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
EMI/ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Drop test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159
Shocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159
Bumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159
Flammability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Characteristics of the options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Power meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
High power Power meter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Tal ks et . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
VFL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Bluetooth and WIFI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Chapter 15 Options and accessories
References of options for the 2000 Platform . . . . . . . . . . . . . 164
References of accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .165
References of manuals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
References of result processing software . . . . . . . . . . . . . . . . . 166
Chapter 16 Maintenance and Troubleshooting
Maintenance procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
xiv User Manual 79000000203 Rev. 005
163
167
Page 15
Contents
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Cleaning plates and housings. . . . . . . . . . . . . . . . . . . . . . . . . 168
Cleaning the screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Cleaning the optical cable connector . . . . . . . . . . . . . . . . . . 169
Cleaning the optical connections of the 2000 Platform . . 169
Accessing to the 2000 Platform information. . . . . . . . . . . 169
General page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Software options page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Services Data page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171
Accessing to the 2000 Platform documentation . . . . . . . 172
Installing a new version of the software. . . . . . . . . . . . . . . 172
Downloading from Internet . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Installation from Viavi Server. . . . . . . . . . . . . . . . . . . . . . . . . 174
Installation from another server . . . . . . . . . . . . . . . . . . . . . . 175
Installation from a USB memory stick . . . . . . . . . . . . . . . . . 176
Launching the upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Checking new upgrade on Viavi Server . . . . . . . . . . . . . . . . 179
Upgrading from the boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Install Option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Enter Manually the Licence . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Import the license from the USB memory stick . . . . . . . . . 182
Locking the 2000 Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Returning an instrument. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Guarantee conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Recycling Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Troublesho otin g . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Interpreting alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Formatting the USB memory stick onto the 2000 Platform
188
Erase disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Touchscreen calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Changing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Accessing to the damaged battery . . . . . . . . . . . . . . . . . . . . 190
Installing a new battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
User Manual 79000000203 Rev. 005 xv
Page 16
Contents
Launching the «Autotune» process (for capacitive touch­screen)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .192
General information on warranty . . . . . . . . . . . . . . . . . . . . . . . . .193
Hardware Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .193
Warranty disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Index
195
xvi User Manual 79000000203 Rev. 005
Page 17

About This Guide

The MTS/T-BERD 2000 of Viavi provides a handheld modular platform designed for the construction, turn-up and maintenance of fiber networks.
The topics discussed in this chapter are as follows:
• “Purpose and scope” on page xviii
• “Assumptions” on page xviii
• “Technical assistance” on page xviii
• “Conventions” on page xviii
User Manual 79000000203 Rev. 005 xvii
Page 18
About This Guide

Purpose and scope

Purpose and scope
The purpose of this guide is to help you successfully use the MTS/T-BERD 2000 features and capabilities. This guide includes task-based instructions that describe how to install, configure, use, and troubleshoot the MTS/T­BERD 2000.
Additionally, this guide provides a complete description of Viavi’s warranty, services, and repair information, including terms and conditions of the licensing agreement.

Assumptions

This guide is intended for novice, intermediate, and experienced users who want to use the MTS/T-BERD 2000 effectively and efficiently. We are assuming that you have basic computer and mouse/track ball experience and are familiar with basic telecommunication concepts and terminology.

Technical assistance

If you require technical assistance, call 1-844-GO-VIAVI. For the latest TAC information, go to http://www.viavisolutions.com/en/services-and-
support/support/technical-assistance.

Conventions

This guide uses naming conventions and symbols, as described in the following tables.
xviii User Manual 79000000203 Rev. 005
Page 19
Tab le 1 Typographical conventions
Description Example
User interface actions appear in
On the Status bar, click Start.
this typeface.
Buttons or switches that you
Press the ON switch.
press on a unit appear in this
T
YPEFACE.
Code and output messages appear in this
typeface.
Text you must type exactly as shown appears in this type-
All results okay
Type: a:\set.exe in the dialog box
face.
Variables appear in this type-
Type the new hostname
face.
Book references appear in this typeface.
A vertical bar | means “or”: only
Refer to Newton’s Telecom Dic-
tionary
platform [a|b|e]
one option can appear in a single command.
Square brackets [ ] indicate an
login [platform name]
optional argument.
Slanted brackets < > group
<
password>
required arguments.
About This Guide
Conventions
Table 2 Keyboard and menu conventions
Description Example
A plus sign + indicates simultaneous key-
Press Ctrl+s
strokes.
A comma indicates consecutive key strokes. Press Alt+f,s
User Manual 79000000203 Rev. 005 xix
Page 20
About This Guide
Conventions
Tab le 2 Keyboard and menu conventions (Continued)
Description Example
A slanted bracket indicates choosing a sub­menu from menu.
Table 3 Symbol conventions
This symbol represents a general hazard.
This symbol represents a risk of electrical shock.
NOTE
This symbol represents a Note indicating related informa­tion or tip.
This symbol, located on the equipment or its packag­ing indicates that the equipment must not be disposed of in a land-fill site or as municipal waste, and should be disposed of according to your national regulations.
On the menu bar, click
Start > Program Files.
Table 4 Safety definitions
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
xx User Manual 79000000203 Rev. 005
Page 21
About This Guide
Conventions
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
User Manual 79000000203 Rev. 005 xxi
Page 22
About This Guide
Conventions
xxii User Manual 79000000203 Rev. 005
Page 23

Chapter1 2000 Platform Overview

This chapter provides a general description of the 2000 Platform.
Topics discussed in this chapter include the following:
• “Unpacking the instrument” on page 2
• “About the 2000 Platform” on page 2
• “Main features” on page 3
• “Hard keys and Indicators” on page 6
• “Power Supply” on page 8
1
User Manual 79000000203 Rev. 005 1
Page 24
Chapter 1 2000 Platform Overview

Unpacking the instrument

Unpacking the instrument
1 Remove the 2000 Platform and its accessories from the packing
case.
2 Check that the module and accessories ordered are all there.
If any part is missing or damaged please contact your local Viavi agent.
The 2000 Platform is delivered as standard with:
Table 1 Elements delivered on standard with the 2000 Platform
A Getting Started Manual
A Li-Polymer battery, set into the equipment and which must be charged before use
A mains adapter used for mains operation of the instrument and bat­tery charging
5 country adaptable plugs (Europe / UK / US / Australia / Japan)
A hands-free soft case for the 2000 Platform
A USB cable, to directly connect the 2000 Platform to a PC
A shoulder strap

About the 2000 Platform

The architecture of the 2000 Platform is made of one Platform, to which a module can be added to perform tests on fiber networks.
The modules that can be fitted to the 2000 Platform are interchangeable in the field and different kinds of module are usable:
• OTDR Modules
2 User Manual 79000000203 Rev. 005
Page 25
Chapter 1 2000 Platform Overview
• PON Selective Power Meter (OLP)
• CWDM Analyzer Modules (C-OSA)
The 2000 Platform employs multi-tasking for the simultaneous perfor­mance of several operations:
• acquisitions
• modifications of parameters
• trace analysis
• report management
It also allows to use simultaneously several functions:
• Power Meter
• Scope
• OTDR measurements...

Main features

The 2000 Platform is equipped with the following elements:
Main features
• A 5 inch TFT color touchscreen, high visibility
• RJ45 plug for Ethernet interface
• Two USB 2.0 host connectors for Microscope, USB memory stick,
mouse, keyboard...
• One mini USB 2.0 device connector to connect the 2000 Platform
a PC
• An audio jack to connect a headset
• A connection socket for the mains adapter providing the 12 V power
supply and used to charge the battery.
• LED indicators for Charge, On status and Test
• A Li-Polymer battery
• A module interchangeable in the field: OTDR, OLP, or C-OSA.
• Built-in Power Meter, VFL and/or Talkset (options)
User Manual 79000000203 Rev. 005 3
to
Page 26
Chapter 1 2000 Platform Overview
Main features
With the 2000 Platform, the user can:
• Open and/or transfer files to a PC via a USB memory stick, USB cable or Bluetooth (option)
• Generate pdf reports
• Open all user documentations included into the 2000 Platform
• Update the 2000 Platform
firmware
• Remote the screen of the 2000 Platform onto a PC and issue commands from the keyboard of the PC
• ...
Figure 1 2000 Platform with module
4 User Manual 79000000203 Rev. 005
Page 27
Figure 2 2000 Platform: Front view
Hard keys
Indicators
Loudspeaker
TFT 5’’ Color Touchscreen
RJ45 USB host Power Meter VFL Mini USB
device
AC/DC Input
Headset jack
Chapter 1 2000 Platform Overview
Main features
Figure 3 2000 Platform: Connectors View
User Manual 79000000203 Rev. 005 5
Page 28
Chapter 1 2000 Platform Overview

Hard keys and Indicators

Hard keys and Indicators

Front panel hard keys

Figure 4 Hard keys and Indicators
Tab le 2 Hard keys description
Hard key Function
Main on/off switch
This button calls up the file explorer. It allows to:
• choose the storage medium: internal memory, USB key.
• manage files; with facilities for classifying them in directories
and sub-directories.
Gives access to:
• selection of the different measurement or functions
• the settings of the instrument
• the help page
This button calls up the measurement configuration menu. This menu depends on the function in use.
This button allows to deselect a function or escape a menu
Starts and stops the measurement.
6 User Manual 79000000203 Rev. 005
Page 29
Table 2 Hard keys description
• on the Results page, they are used to move the
cursors or modify the zoom factor.
• on the set-up pages, they are used to scroll through the menus, the central button serving to select or confirm the parameter chosen.
Hard key Function
This button calls up the results page (e.g. with OTDR module: reflectometry trace and table of results).
NOTE
All these functions, except HOME, depend on the modules used and the measurements made: refer to the user manu­als of the corresponding modules of the
The direction keys have two principal functions:
Chapter 1 2000 Platform Overview
Hard keys and Indicators
2000 Platform.

Front panel indicators

The 2000 Platform is equipped with three indicators, lit into a different color according to the status of the unit.
Table 3 Indicators Status
On indicator
Blinking
green
Solid green The instrument is operating, either by battery or on an
The instrument, though connected to an external power source, is switched off.
external power supply.
User Manual 79000000203 Rev. 005 7
Page 30
Chapter 1 2000 Platform Overview
Interchangeable plugs
UK adaptable plug (installed by default)
EUROPE adaptable plug
US adaptable plug
JAPAN adaptable plug
AUSTRALIA adaptable plug
Power supply plug

Power Supply

Tab le 3 Indicators Status
Charge indicator
Solid green The instrument is connected to an external power source
and the battery is fully charged.
Solid red The instrument is connected to an external power
source, and the battery is on charge.
Tes ting indicator
Solid red At least one function is in measurement phase (for exam-
ple, the laser emission pilot for an OTDR measurement)
Power Supply
The 2000 Platform may operate with
• the Li-Polymer battery, already set into the equipment on delivery.
• an AC adapter/charger, via a power cable on which has been set the
correct country adaptable plug.
Figure 5 Delivered elements for 2000 Platform supplying
8 User Manual 79000000203 Rev. 005
Page 31

Chapter2 Safety information

This chapter gives the main information on the safety conditions when using the 2000 Platform:
• “Battery and AC/DC safety information” on page 10
• “Precautions relating to optical connections” on page 11
• “Laser Safety instructions” on page 11
2
User Manual 79000000203 Rev. 005 9
Page 32
Chapter 2 Safety information

Battery and AC/DC safety information

Battery and AC/DC safety information
• The Li-Polymer battery is designed for maximum safety.
In particular, each cell is provided with a safety valve to prevent excessive internal pressure in the event of overcharging or exposure to very high temperatures.
• Battery supplied by Viavi incorporate protection means.
Do not use any mains adaptor or battery other than those supplied with the instrument, or supplied by Viavi as an option for this instrument.
If another adapter or battery is used, it may damage the 2000 Platform itself. Using the 2000 Platform with a battery other than the one supplied by the manufacturer of the 2000 Platform may entail risks of fire or explosion.
The battery may explode, leak or catch fire:
– if it is exposed to high temperature or fire – if it is opened or dismantled.
Other basic safety precautions are as follows:
• Do not use AC/Adapter/Charger outdoors or in wet or damp locations
• Connect the AC/Adapter/Charger to the correct mains voltage, as
indicated on the ratings label.
• Do not allow anything to rest on the power cord, and do not locate the product where people can walk on the power cord.
• Avoid using this product during an electrical storm. There may be a remote risk of electric chock from lightning.
• Do not use this product in the vicinity of a gas leak or in any explosive environment.
10 User Manual 79000000203 Rev. 005
Page 33
Chapter 2 Safety information

Precautions relating to optical connections

• Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous, high voltage points and other hazards. Contact qualified service personnel for all service.
Precautions relating to optical connections
• The normal operating life of an optical connector is usually of the order of a few hundred manipulations. It is then advisable to manipu­late the optical connections of the Platform as rarely as possible.
• The proper operation of the instrument and its accuracy of measure­ment are dependent on the cleanliness of the environment and the optical connectors as well as the care taken in its manipulation.
• The optical connectors must therefore be clean and dust-free. If the optical connection is not being used, protect the connections of 2000 Platform using the protective caps.

Laser Safety instructions

The provisions contained in two standards define the safety procedures to be observed both by users and by manufacturers when utilizing laser prod­ucts:
• EN 60825-1: 2001 - Safety of laser products – Part 1: Classification of products, requirements and user guidelines.
• FDA 21 CFR § 1040.10 - Performance standards for light-emitting products - Laser products.
Due to the range of possible wavelengths, power values and injection char­acteristics of a laser beam, the risks inherent in its usage vary. The laser classes form groups representing different safety thresholds.

Laser classes

Standards EN 60825-1, Edition 1.2, 2001-08 and FDA21CFR§1040.10:
User Manual 79000000203 Rev. 005 11
Page 34
Chapter 2 Safety information
CLASS 1
LASER PRODUCT
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
LASER RADIATION - DO NOT STARE INTO BEAM
CLASS II LASER PRODUCT
CAUTION
Laser Safety instructions
• VFL option: Class 2.

Warning labels for the laser classes

Due to the reduced dimensions of the optical modules, it is not possible to attach the required warning labels to them. In line with the provisions of Article 5.1 of the EN 60825-1 standard, the laser class identification labels are shown below:
Reference standard
EN 60825-1, Edition 1.2, 2001-08 FDA21CFR§1040.10
Class 1
Class 2
The user must take the necessary precautions concerning the optical output of the instrument and follow the manufacturer’s instructions.
Measurements on optical fibers are difficult to execute and the precision of the results obtained depends largely on the precautions taken by the user.
12 User Manual 79000000203 Rev. 005
Page 35
3

Chapter3 Starting up

This chapter describes the first steps to perform when using the 2000 Plat­form.
The topics discussed in this chapter are as follows:
• “Fitting and removing a module” on page 14
• “Setting the adaptable plug to the mains adapter” on page 16
• “Charging the battery” on page 17
• “Switching the 2000 Platform on and off” on page 20
• “First start: configuring your regional settings” on page 21
User Manual 79000000203 Rev. 005 13
Page 36
Chapter 3 Starting up

Fitting and removing a module

Fitting and removing a module
The 2000 Platform must be switched off, and if it is operating on the mains, its supply cable must be unplugged.

Fitting a module

1 Turn the instrument face down on the work surface.
2 Set the two notches on the module part (1a) into the two holes
provided for that purpose on the Base (1b).
3 Make flush the 2 connections (2a & 2b), on module and base.
4 Once positioned, fix the module to the base screwing the 2 screws
(3a) fixing the receptacle.
14 User Manual 79000000203 Rev. 005
Page 37
Figure 6 Fixing the module to the base
C
a
p
t
i
v
e
s
c
r
e
w
s
f
i
x
i
n
g
t
h
e
m
o
d
u
l
e
1b
1
2a
2b
2
0
0
0
P
l
a
t
f
o
r
m
w
i
t
h
m
o
d
u
l
e
in
s
t
a
l
le
d
2
0
0
0
P
l
a
t
f
o
r
m
w
i
t
h
o
u
t
m
o
d
u
l
e
1
1a
3a
3a
Chapter 3 Starting up
Fitting and removing a module

Removing a module

1 Unscrew the two captive fixing screws of the module completely (up
to the stop).
2 Remove the two slots of the module from their housing onto the
3 Carefully remove the module out of its slot.
base.
User Manual 79000000203 Rev. 005 15
Page 38
Chapter 3 Starting up
1
23

Setting the adaptable plug to the mains adapter

Setting the adaptable plug to the mains adapter
The 2000 Platform is supplied as standard with a mains adapter and 5 country adaptable plugs (Europe / UK / US / Australia/Japan).
To set the correct plug to the mains adapter:
1 Make flush the connector onto the mains adapter with the adaptable
plug slots.
2 Push the adaptable plug until it stops.
Figure 7 Setting the adaptable plug onto the mains adapter
16 User Manual 79000000203 Rev. 005
Page 39
Chapter 3 Starting up

Charging the battery

If the adapter plug is not correctly set onto the mains adapter, the connector may be damaged.
NOTE
The AC/DC adapter/chargers from the 4000 platform (refer­enced E40PWxx) can also be used to connect the 2000 Platform to mains
Charging the battery

Connecting the mains adapter

1 Set the appropriate adaptable plug to the power supply cable,
according to your country (see page 16).
2 At the right side of the 2000 Platform, lift up the power supply socket
protector and plug in the mains adapter.
3 Connect the adapter to the mains.
The On indicator lamp starts to blink in green.
Use only the mains adapter supplied with the 2000 Platform. The adapter for some other electronic device may appear to be identical, but entails a risk of damage to the 2000 Platform.

First use of the battery

At the delivery, the battery is already set into the Platform, but its charge level is not «recognized» by the equipment.
User Manual 79000000203 Rev. 005 17
Page 40
Chapter 3 Starting up

Charging the battery

The icon is displayed on the upper banner of the screen.
To get a valid indication of the battery, and be able to use correctly the Plat­form:
1 Charge fully the battery
2 Once fully charged, discharge the battery by keeping the Platform
switched on, but not plugged to mains.
3 The battery can then be charged, and the Platform used simultane-
ously.
Charging the battery
On connection to the mains:
• if the user does not press case, the Charge indicator will be lit in red.
• when the user presses the battery will charge during use (Charge indicator in solid red).
Once the battery is fully charged, the Charge indicator is lit in solid green.
When the Charge indicator is blinking red, this mean the power supply is not compatible with the battery used. Charge is disabled.
It is essential to wait until charging is complete to ensure maximum independent operating time, which may otherwise be considerably reduced.
ON, the battery will start the charge. In this
ON key, the instrument starts up and the

Battery charging time

If the battery is completely discharged, the time taken to recharge is:
• approximately 3.5 hours, if the apparatus is not in use (Charge indi­cator solid red)
18 User Manual 79000000203 Rev. 005
Page 41
Chapter 3 Starting up
Charging the battery
• about 9.5 hours if the instrument is used during charging (On indi­cator lit in fix green, Charge indicator lit in solid red).

Battery charge level display

When the battery is installed in the instrument, a battery icon is displayed in the top right-hand corner of the screen. Example: .
Tab le 4 Battery icons
The battery capacity is superior to 75%
The battery capacity is set between 50% and 75%
The battery capacity is set between 25% and 50%
The battery capacity is inferior to 25%
The battery capacity is unknown. Perform a full charge/dis­charge of the battery to get back to a valid indication.
This icon may appear if battery is changed or if the battery auto discharges at a very low level (example: if a Platform switches off as battery is empty, and the charge is not done during several months (= auto discharge)).
• When the level becomes too low, the instrument emits a beep ton inform the user until it switches off automatically after saving the current configuration and measurement.
User Manual 79000000203 Rev. 005 19
Page 42
Chapter 3 Starting up

Switching the 2000 Platform on and off

Switching the 2000 Platform on and off

Switching on the 2000 Platform

1 Press the ON/OFF key.
If the Platform is powered to mains, the battery will charge.
The On indicator pass from blinking to solid green.
The Viavi logo appears on the screen briefly, then an auto test is carried out.
The equipment is ready to be used once all the applications are installed.
NOTE
It is possible to switch over from battery to mains operation, or vice versa, without loss of data.
The module cannot be swapped when the unit is ON or AC powered
In the event of an unexpected mains power cut, if there is no battery, the current results and configuration will not be saved. Next time the instrument is switched on, it will return to its initial configuration.

Switching off the 2000 Platform

While the 2000 Platform is operating, press the ON/OFF button to switch it off.
20 User Manual 79000000203 Rev. 005
Page 43
Chapter 3 Starting up

First start: configuring your regional settings

NOTE
When the instrument is switched off using the ton, current results and configuration are saved. Next time the
ON/OFF key is pressed, they are recalled.
ON/OFF but-

Resetting the 2000 Platform

If the 2000 Platform freezes, prolonged pressure (about 4 s.) on the ON/OFF key will reset the instrument.
First start: configuring your regional settings
Once the 2000 Platform is switched on, the first screen displayed allows to configure the regional settings.
Those settings will be kept in memory and automatically applied on the instrument each time it is restarted.
User Manual 79000000203 Rev. 005 21
Page 44
Chapter 3 Starting up
First start: configuring your regional settings
Figure 8 Regional Settings
1 Click on Language and select the language to be used for the equip-
ment.
2 Click on Date and enter the current date, using the numeric keypad
displayed using the menu key Edit Number.
3 Click on Time and enter the current time, using the numeric keypad
displayed using the menu key Edit Number.
The date and time are displayed on the upper right side of the screen.
4 Click on Date Time Format and configure the following parameters:
– Date format: select one of the option dd/mm/yy or mm/dd/yy.
– Time format: select one of the option 24 hour clock or 12 hour clock.
5 Click on Net Time parameter to configure the date and time
according to a network.
Dynamic Mode: the time is synchronized according to the local network.
The two lines Server Name are displayed but cannot be modified.
Static Mode: in this case, the time is synchronized to the network server which is defined in the two following parameters.
22 User Manual 79000000203 Rev. 005
Page 45
Chapter 3 Starting up
First start: configuring your regional settings
On the parameter Address Type, select if the address of the server which will be used for synchronization is entered via its IP Address or via the Server Name..
If IP Address is selected, enter one or two server addresses in the following parameters. During synchronization, the first address will always be used, but if a fail occurs, the second one will be used.
If Server Name is selected, enter the name of the server, and if necessary a name for second server. During synchronization, the first server name will always be used, but if a fail occurs, the second one will be used.
During synchronization the icon displays on the upper banner between the date and time.
1 Once all parameters have been defined, press Exit menu key to
return to System Settings page.
User Manual 79000000203 Rev. 005 23
Page 46
Chapter 3 Starting up
First start: configuring your regional settings
24 User Manual 79000000203 Rev. 005
Page 47
Chapter4 Configuring the 2000
Platform
This chapter describes the operations for configuring the instrument.
The topics discussed in this chapter are as follows:
• “Displaying the System Settings screen” on page 26
• “Defining the screen parameters of the 2000 Platform” on page 27
• “Defining the Audio parameters of the 2000 Platform” on page 28
• “Defining the Automatic shutdown of the 2000 Platform” on page 29
4
User Manual 79000000203 Rev. 005 25
Page 48
Chapter 4 Configuring the 2000 Platform

Displaying the System Settings screen

Displaying the System Settings screen
To display the System Settings screen, you must:
1 Press the H
Figure 9 Home page
2 Activate the Settings icon to open the System Settings
screen.
OME hard key to reach the Home page.
Figure 10 System Settings page
26 User Manual 79000000203 Rev. 005
Page 49
Chapter 4 Configuring the 2000 Platform

Defining the screen parameters of the 2000 Platform

NOTE
If you are in the Regional Settings page, and you press Exit, then the System Settings page automatically dis­plays.
Defining the screen parameters of the 2000 Platform
In the System Settings page, the following parameters can be defined:

Backlight

1 Click on Backlight
2 Define the backlight level of the screen, using the left and right direc-
tion keys, or clicking on Edit Number softkey and using the keypad displayed.
– Min backlight level: -5
– Max backlight level: +5
If the 2000 Platform is operating on battery, it is advis­able to choose a minimum lighting level, acceptable for the user, to keep endurance as long as possible.

Contrast

1 Click on Contrast
2 Select the type of environment into which the instrument is used:
– Indoor: to be selected when the instrument is used inside (see
Figure 10 on page 26)
– Outdoor: to be selected in order to optimize the readability of
the screen for an outside use.
User Manual 79000000203 Rev. 005 27
Page 50
Chapter 4 Configuring the 2000 Platform

Defining the Audio parameters of the 2000 Platform

Figure 11 Example of outdoor contrast

Screen Saver

Click on Screen Save if you wish to activate a screen saver to the equip­ment, to extend the life of the battery, in case the for some time.
2000 Platform is not used
Instead of the normal screen, a small animated picture of the is displayed on the blackened screen.
To configure the screen saver:
1 Click on Delay and select the time of inactivity before the
screen saver starts:
The parameter No deactivates the screen saver function.
60s, 3 min, 5 min.
2000 Platform
Defining the Audio parameters of the 2000 Platform
In the Audio box of the System Settings screen, you can configure the audio parameters according you are using a headset with the 2000 Plat­form
.
28 User Manual 79000000203 Rev. 005
Page 51
Chapter 4 Configuring the 2000 Platform

Defining the Automatic shutdown of the 2000 Platform

1 Adjust the volume on the line Hands-free Volume using the left and
right direction keys, or the Numeric keypad (displayed with the softkey Edit Number)
– Min volume for Hands-free function: 0 – Max volume for Hands-free function: 100
2 If a headset is used, adjust the volume on the line Headset Volume,
using the left and right direction keys, or the Numeric keypad (displayed with the softkey Edit Number):
– Min volume for Headset function: 0 – Max volume for Headset function: 100
Defining the Automatic shutdown of the 2000 Platform
The automatic shutdown function switches off the 2000 Platform automat­ically if no operation has been performed and no key actuated for a period selected from this menu. Work in progress is automatically saved.
The function for automatically switching off the 2000 Plat­form is available only on battery operation, to save the bat­tery.
1 In the Utility box, click on Auto off parameter.
2 Choose a time after which the 2000 Platform
automatically, minutes.
Select No if the 2000 Platform inactivity on the equipment.
if no action has been done for that period: 5, 10 or 30
must not be switched off, even if there is
User Manual 79000000203 Rev. 005 29
will be switched off
Page 52
Chapter 4 Configuring the 2000 Platform
Defining the Automatic shutdown of the 2000 Platform
30 User Manual 79000000203 Rev. 005
Page 53
5
Chapter5 Power meter, VFL (Visual Fault
Locator) & Talkset
A variety of built-in optical options are available when ordering. See refer­ences in Chapter 15 “Options and accessories”, for details.
The topics discussed in this chapter are as follows:
• “Connection to the power meter, VFL and Talkset” on page 32
• “Using the Power meter” on page 32
• “VFL Function” on page 39
• “Storing and reloading results” on page 40
• “Talkset and Datalink Functions” on page 41
User Manual 79000000203 Rev. 005 31
Page 54
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset
Power meter optical connection
VFL

Connection to the power meter, VFL and Talkset

Connection to the power meter, VFL and Talkset
Figure 12 Optical connectors
The type of optical connector used for the power meter is UPP (Universal Push Pull), which is compatible with all diameter 2.5 mm connectors (FC, SC, ST, DIN, E2000, etc.)
Accuracy of measurements
A high degree of accuracy is often required. It is then nec­essary to perform a preliminary calibration without the fiber under test to eliminate the losses due to connections as far as this is possible. To do this, use the «Reference Value» function.

Using the Power meter

The power meter function is an option chosen at the time of order and incorporated into the 2000 Platform in the factory.
To activate the function:
1 Press the
2 Activate the power meter icon of the Platform .
32 User Manual 79000000203 Rev. 005
HOME button
Page 55
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset
Using the Power meter
The effect of this action will to be to bring the power meter into use and to display the Results page for Power Meter.

Configuring the power meter

Configuring measurement parameters
The measurement parameters can be accessed with the SETUP key.
Figure 13 Configuration of power measurement
Wavelength Selecting wavelength:
- Auto: the wavelength of the input signal will be automatically detected and selected to perform the measurement: 850, 980, 1300, 1310, 1420, 1450, 1480, 1490, 1510, 1550 or 1625 nm: measurement performed at specified wavelength.
- User: choice of wavelength on the next line
User choice (if the User option was selected in the Lambda line)
enter the wavelength between 800 and 1650 nm, using the numeric keypad, displayed via the Edit
Value key.
Beep on Modulation
Select if a sound must be heard when a modulation occurs (Yes / No)
Unit Unit of power displayed:
User Manual 79000000203 Rev. 005 33
Page 56
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset
Using the Power meter
- Watt, dBm for displaying absolute power
- dB for displaying a result relative to a reference (link loss)
Reference level If dB units were chosen in the previous line, selection
of the reference value for the wavelength selected. First select the wavelength, then press the > key to access choice of the value (+XXX.XX).
This reference is also automatically available, in the
Results page, using the Set as Reference
Attenuator compensation
Choice of level to be applied to the wavelength chosen for measurement to compensate for the loss due to the external attenuator (+XX.XX dB). First use the direction keys to choose the wavelength, then press > to access choice of value.
NOTE
To copy a Reference Level or a Attenuator Compensator on all wavelengths, select the reference wavelength and click on
Update for All Wavel.
key.
Configuring the alarm parameters of the power meter
Alarm Activation of the Alarm function: any result below the
lower threshold or above the upper threshold will be displayed in red on the Results page.
Min and max thresholds:
Choice of lower and upper thresholds for each available wavelength, from -60 to +40 dBm (selected with the direction keys).
34 User Manual 79000000203 Rev. 005
Page 57
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset
Using the Power meter
NOTENOTE
To copy one value of the Lower or/and Upper threshold for all wavelengths, select the reference value and click on
Update for All Wavel..
NOTENOTE
A continuous push on direction keys increments the value by 10 dBm.

Display of results and commands

The results page called up by the RESULTS button, gives the information relating to the measurement in progress, results previously saved and the commands available for measurement and saving.
Result of the measurement in progress
The power measured by the power meter is displayed in large characters, in the units selected in the
• the mode of transmission of the signal measured: continuous (CW) or modulated to a frequency of 270Hz, 330Hz, 1KHz, or 2KHz.
• the wavelength of the signal measured.
• the reference level expressed in dB.
• the level of Attenuation Compensation.
SETUP menu, together with:
Table of results
For one and the same fiber, the power meter displays a table of 9 results corresponding to the different possible wavelengths. The first 4 results are
User Manual 79000000203 Rev. 005 35
Page 58
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset
Results of the powermeter
Using the Power meter
displayed on the screen; to scroll through the other results, use the direc­tion key
. The table shows the power measured in dBm, the relative power (in dB) and the reference level in dBm (if units = dB), together with the mode.
• A measurement result is displayed in the table when the Keep
Result softkey is pressed.
• The Clear Table softkey orders deletion of all the results displayed in
the table.
• If the Alarm function has been activated, any result that exceeds the
selected thresholds appears in red in the table. Otherwise, results are shown in the table in green.
• When the instrument is switched off, results present in the table are
saved.
Figure 14 Results and commands of the power meter
Commands of the power meter parameters
When the Powermeter function is selected, the following softkeys are avail­able on the results page:
The different configuration buttons are displayed:
Wavelength selection of the wavelength
Unit choice of the unit
36 User Manual 79000000203 Rev. 005
Page 59
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset
Using the Power meter
Zero Adjustment of the Zero value when the power meter’s
optical input is closed with a plug (a validation is required).
On the results page, the following actions are available:
Standard Reference
Selects the current result as reference value to measure the attenuation of a link. This reference is displayed under the measurement result until a new reference value is chosen.
Keep Result Saves the result on the corresponding line of the table.
Clear Table Deletes all the results recorded in the table.
If the Source function is selected (either on this Platform, on the base Unit or on an OTDR module, or on another Platform), the Power meter results page is different:
• The Wavelength, Unit and Zero menu keys are accessible via the menu key Power Config.
• The Power Ref. menu key allows to reach the Standard Ref menu key. It also allows to reach the Jumper Ref menu key if Power meter function is associated with Source function onto another unit (see 2100/4100 Module User Manual).

Performing a measurement

The power meter is started up as soon as the function is activated in the
HOME menu.
Power measurement is automatically updated in conse­quence. The value «<-60 dB» is displayed when the laser is switched off and if the source output is looped on to the power meter input.
User Manual 79000000203 Rev. 005 37
Page 60
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset
Using the Power meter
Power measurement
1 Connect the light source to be tested to the rear connector (see
"Connection to the power meter, VFL and Talkset" page 32).
2 In the
3 Press the
SETUP menu, choose the units dBm, dB or Watts.
STAR T/STOP key to start the measurement.
The result will appear in the results page and can be memorized in the table (see "Table of results" page 35).
4 Press the
STAR T/STOP key to stop the measurement.
Optical link loss
Setting the zero value of the power meter
It is important to set the zero of the power meter before making any measurements where accuracy is required, as the noise from the germanium photodiode fluctuates over time and with variations in temperature.
1 Fix the plug over the optical input of the power meter so that no light
can reach the photodiode of the power meter. If the zero adjustment is made without this plug, an error message may be displayed, as the photodiode will detect too much light.
2 In the Results page, press the Powermeter Config. > Zero soft key
and validate.
Carrying out the reference measurement
1 Fix the adapter corresponding to the jumper to the optical connector
of the power meter.
2 Connect the jumper between the input of the power meter and the
output of the source.
38 User Manual 79000000203 Rev. 005
Page 61
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset

VFL Function

3 Configure the same wavelength on the source and the power meter.
The power measured is displayed in the results page of the power meter.
4 Press the Standard Ref soft key to save the result displayed as
reference value.
Measurements on the fiber under test
After defining the reference value, proceed as follows to make the measurement:
1 Fix the jumpers and connectors needed to connect the fiber to be
tested between the source output and the power meter input.
2 In the set-up menu, select dB units.
3 The power displayed in the Power Meter window corresponds to the
optical loss of the link tested. It can be displayed in the table (see
"Table of results" page 35).
VFL Function

VFL connector

The type of optical connector used for the VFL source is UPP (Universal Push Pull), which is compatible with all diameter 2.5 mm connectors (FC, SC, ST, DIN, E2000, etc.)
See Figure 12 on page 32 to visualize the VFL connector.
User Manual 79000000203 Rev. 005 39
Page 62
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset

Storing and reloading results

Visual Fault Locator function (VFL)

This function is used to emit a red light signal of frequency 1 Hz or in contin­uous mode into a fiber to detect any defects in the dead zone of the reflec­tometer, or to identify it.
This function is suitable for short fibers (length < 5 km) or the first few metres of a long fiber.
NOTE
Identification is facilitated by the blinking of light in the fiber.
To emit a light signal into a fiber:
1 Connect the fiber to the VFL port on the connectors panel.
2 Press the
The icons display on the upper banner of the screen.
The signal mode of the VFL can be modified in the System Settings page, in Utility > VFL Mode parameter.
HOME key and activate the VFL
Storing and reloading results

File Setup

Click on the button FILE to access the File setup. See the chapter «File management» in the user manual «2100 modules series» for a complete description of all parameters, options and description of the explorer.
40 User Manual 79000000203 Rev. 005
Page 63
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset

Talkset and Datalink Functions

Storing results

In order to save the results of a measurement, click on FILE and select
Store trace. Two files are being saved:
• The first file is used with the 2000 Platform and allows to retrieve all
measurement results. It is saved with the extension «.Lts».
• The second file is a ASCII file using tabulations to separate values. It is saved with the extension «.txt» and can be opened by the 2000 Platform. It has been designed to be used with a spreadsheet program on a PC where it allows to retrieve all measurement results and format them in a nice customized table.

Loading results

In order to load the results of a measurement, select a file with the extension «.Lts» in the file explorer (see the chapter «File management» in the user manual for «2100 modules series»), click on Load. The LTS tab is displayed with the loaded results in the table
Talkset and Datalink Functions
The Talkset option enables two operators at opposite ends of an optical link:
• To communicate along the fiber.
• To transfer data along the fiber.
Each end of the optical link must be provided with a 2000 Platform equipped with the Talkset option.
User Manual 79000000203 Rev. 005 41
Page 64
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset
Talkset and Datalink Functions
NOTE
n
It is possible to use the talkset of the 2000 Platform and to carry out measurements at the same time, on a different fiber.
NOTE
It is possible to use the Data transfer feature while using the optical telephone of the 2000 Platform. Nevertheless, the data transfer speed will be slightly decreased.

Talkset configuration

The talkset configuration is set in the System Settings screen, in the Channel box (see "Defining the Audio parameters of the 2000 Platform"
page 28)

Connections

At each end of the fiber:
1 Connect the fiber to the Talkset port of the 2000 Platform, either
directly or through jumpers.
NOTE
The Talkset option is delivered with a FC adapter mounted on standard on the talkset connector.
In addition to the FC adapter, a SC adapter is also deliv­ered with the Talkset option.
42 User Manual 79000000203 Rev. 005
Page 65
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset
Talkset and Datalink Functions
Viavi recommends you to use the following connec­tions:
- PC Fiber Connection (APC is not recommended)
- SC or FC connection (UPP is supplied but not recom­mended).
Figure 15 Installation for Talkset use
2 A headset (with earphones and a microphone) supplied with the
option may also be plugged into the 2000 Audio jack.
NOTE
Data transfer uses the same fiber as the optical telephone

Establishing communication

On the caller 2000 Platform, press the HOME button, then validate the
desired function:
• Talkset (Optical Telephone): used to communicate via the
fiber.
• Datalink : used to transfer data along the fiber.
If the remote instrument is ready to receive (on standby), the Talkset/Data­link icon turns yellow, beeps are emitted, and
User Manual 79000000203 Rev. 005 43
Page 66
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset
Talkset and Datalink Functions
• the icon appears at the top of the screen: telephone communica- tion can now take place.
• the icon appears at the top of the screen: data transfer can now take place.
If the remote instrument is not ready to receive, the icon does not change color and a message is emitted.
NOTE
The talkset icon is displayed on the top banner as long as communication remains established, letting the user know that the connection is working. When communication is established, the headset is auto­matically enabled if plugged in. However, the loud speaker must be correctly configured in the setup menu to work accordingly
NOTE
Data transfer varies according to the type of application you use. For Fiber Optics for example, you can use the explorer. The distant 2000 Platform will be shown just like a disk and all file and directory features can be used from and to that disk.

Adjusting volume level

The sound is transmitted to the earphones of the headset and, if this func­tion has been activated, to the speaker in the 2000 Platform. To activate the base loudspeaker and adjust the volume:
1 Press the
2 Validate Settings icon to reach the System Settings page.
44 User Manual 79000000203 Rev. 005
HOME key.
Page 67
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset
Talkset and Datalink Functions
3 Under the Audio box, adjust Hands-free Vol u me and/or Headset
Volume (from 0 to 100).

Disconnection

When communication is over:
1 Deactivate the Talkset/Datalink function on one of the 2000 Plat-
form.
This deactivation can be done by either 2000 Platform.
2 Then, the fiber used, can be disconnected safely.
User Manual 79000000203 Rev. 005 45
Page 68
Chapter 5 Power meter, VFL (Visual Fault Locator) & Talkset
Talkset and Datalink Functions
46 User Manual 79000000203 Rev. 005
Page 69
6

Chapter6 Scope

The scope function is a hot-plug feature enabled directly when inserting a Viavi scope supplied as an accessory (see:
The topics discussed in this chapter are as follows:
• “Scope feature” on page 48
• “Installation of tips” on page 49
• “Configuring the P5000i Scope” on page 49
• “Starting up with the scope” on page 55
• “Launching a test of the connector and fiber end-face” on page 57
• “File menu” on page 62
User Manual 79000000203 Rev. 005 47
Page 70
Chapter 6 Scope
QuickcaptureTM button Instantly captures (and analyzes) fiber image Focus Control
Latch lock Squeeze both ends to release
Barrel assembly
USB 2.0 connecto
6 FT COIL Cable
Inspection tip
Magnification Control

Scope feature

Scope feature

Overview

This feature enables you to verify that your optical connectors are in perfect shape and very clean condition.
The P5000i Digital Probe Microscope is a portable handheld microscope used to view and inspect both the bulkhead (female) and patch cord (male) sides of fiber connectors as well as other optical devices, such as trans­ceivers.
The P5000i requires an FBPT inspection tip and is connected to the 2000 Platform with a USB 2.0 connector.
Figure 16 P5000i Probe components
Before using the P5000/P5000i scope, make sure the Bluetooth option has not been activated, even once, after the start of the MTS/ T-BERD 2000. If it has been activated, stop and restart the equipment before using
48 User Manual 79000000203 Rev. 005
the P5000/P5000i Scope.
Page 71
Chapter 6 Scope

Installation of tips

Installation of tips
The Pass/Fail analysis function on the 2000 Platform can only be used with certain inspection tips mounted on the P5000i.
Seven tips, patchcords and bulkheads types, are delivered with the Video­scope Kit (EDFSCOPE5KI) but many others can be used.

Configuring the P5000i Scope

Scope connection

1 Plug in your Viavi scope into a USB port from the 2000 Platform.
2 Push the button Home
3 Validate the Scope function .
4 Connect probe with the fiber being inspected.
You may select this option while other options are already selected (e.g. OTDR).

Configuring the Scope

1 Press SETUP key to configure the test.
The following screen displays:
User Manual 79000000203 Rev. 005 49
Page 72
Chapter 6 Scope
Configuring the P5000i Scope
Figure 17 P5000i Scope Setup
Tes t
On the line Profile, select the Profile which will be used for the test of fiber connector:
• SM_UPC: Pass/Fail criteria for single-mode UPC connectors from IEC 61300-3-35 standard.
• SM_APC: Pass/Fail criteria for single-mode APC connectors from IEC 61300-3-35 standard.
• SM_PC: Pass/Fail criteria for single-mode PC connectors from IEC 61300-3-35 standard.
• MM_: Pass/Fail criteria for multimode connectors from IEC 61300-3­35 standard.
Profiles contain the analysis parameters by which PASS/FAIL criteria are determined.
Once the line is selected, you can also add a new profile, clicking on the Add Button (see “Adding a new profile” on page 53).
50 User Manual 79000000203 Rev. 005
Page 73
Chapter 6 Scope
Configuring the P5000i Scope
Tip (only with P5000i Scope)
On the line Tip, select the tip set onto the scope to connect fiber for inspec­tion.
Capture button (only with P5000i Scope)
This parameter allows to select the action of the Quick Capture button onto the Scope (see Figure 16 on page 48):
Freeze & Test pressing the button will automatically perform a test of
fiber and freeze the result
Freeze image pressing the button onto the Scope will automatically
freeze the live image.
Auto Center (only with P5000i Scope)
This parameter allows to select if the scope image must be centered on screen (select Yes) or not (select No).
File
The File box allows to configure the saving of scope results.
The Dir parameter is displayed in grey, and indicates the directory into which the results will be saved. To change the directory, press F and select another directory from the file Explorer page; then press S hard key to return to Scope Setup page.
On the line Filenaming, use the edition keypad, which will display by clicking on the right arrow key, to enter a specific name for the file. You can enter manually a name and/or use pre-defined parameters (Fiber Id, Cable Id, Locations...).
User Manual 79000000203 Rev. 005 51
ILE hardkey
ETUP
Page 74
Chapter 6 Scope
Pre-defined parameters for filenaming
Configuring the P5000i Scope

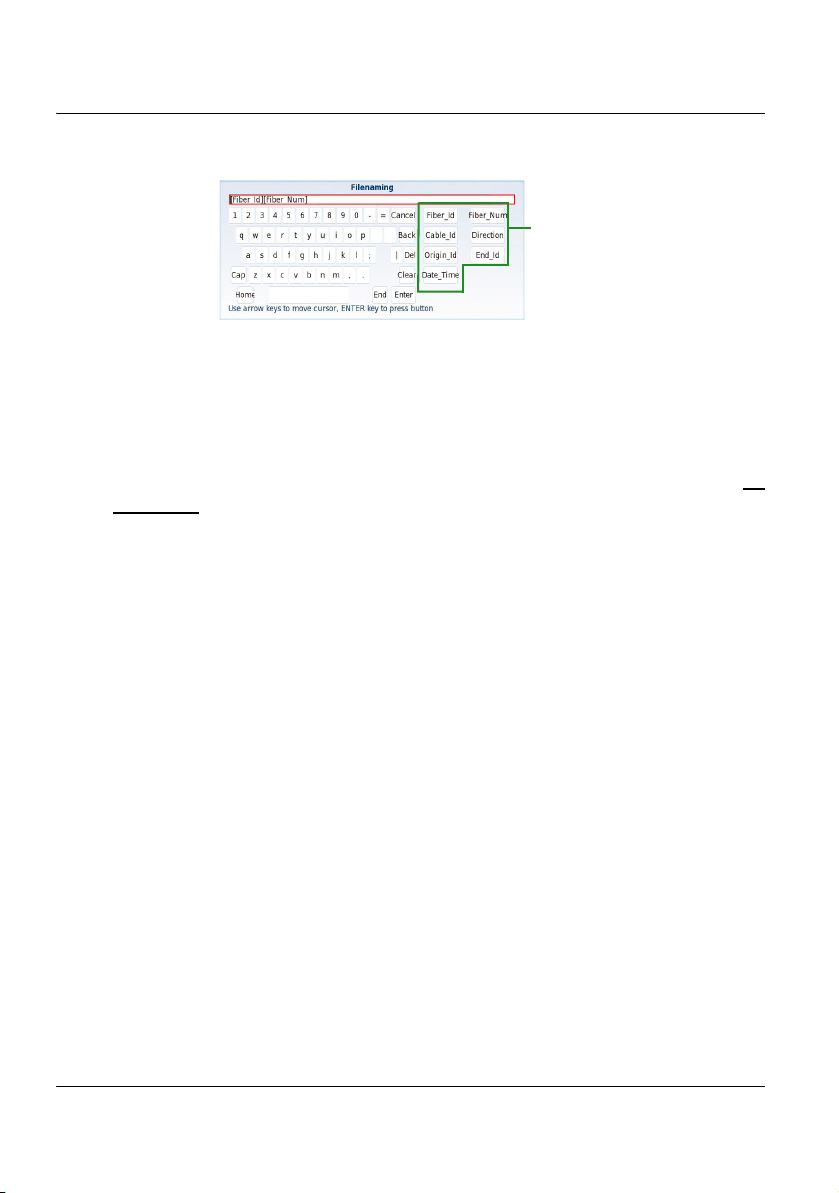

Figure 18 Edition keypad for filenaming
The line below Filenaming shows the name of the file according to the parameters entered.
In the Logo parameter, click on right arrow key and select in the Explorer a JPG file which will represent the Logo displayed on the upper left part of the report
Fiber
The Fiber box allows to configure the fiber plugged to the scope. On the line Fiber Id, use the edition keypad, which will display by clicking on the right arrow key, to enter a specific name for the fiber.
On the line Fiber Number, use the numeric keypad, which will display by clicking on the right arrow key, to enter the fiber number.
On the line Change fiber Nbr, select if the fiber number must be modified after each results saving:
No: the fiber number is not modified at each saving
Increment; the fiber number is automatically incremented at each
results saving
Decrement: the fiber number is automatically decremented at each results saving.
52 User Manual 79000000203 Rev. 005
Page 75
Chapter 6 Scope
Configuring the P5000i Scope
Link Description
The information entered in the Link Description window concerns the editing and/or the modifications of the cable and fiber parameters.
Cable Id This parameter allows to enter an identification of the
cable, using the Edition menu.
Direction The direction shows if the acquisition has been made
from the origin to the extremity (A->B) or from the extremity to the origin (B->A). Changing direction makes it possible, when different extremities are handled, to see the parameters of the fiber for the other extremity.
Location A The name of the Location A of the link may be entered.
Location B The name of the Location B of the link may be entered.
Company Enter the name of the company carrying out the test.
Operator Enter the name of the operator carrying out the test.
NOTE
All parameters of the Link Description box will appear in the pdf report or jpg file generated from a test results page.
Press Exit to return to the Results screen of the scope.

Adding a new profile

Once the Setup screen of the scope is displayed, you can add a specific profile which will be used for the test.
The profile must be created via FiberChek2TM, and stored on one storage media of the MTS/T-BERD 2000 (disk, or USB memory stick).
1 On the Setup screen, select Profile and press Add key.
User Manual 79000000203 Rev. 005 53
Page 76
Chapter 6 Scope
Information on scope used
Information on active snapshot
Configuring the P5000i Scope
2 On the explorer, select the file which will be used as profile (icon ;
extension: .PRO)
3 Press Load.
Once loaded, the display goes back automatically to Setup screen.
4 Select the profile just loaded.
Removing a profile
1 In the Profile list, select the profile to be deleted.
2 Press Remove key, then Exit.

About page

On the Setup screen, the softkey About, on the right of the screen, allows to display information on scope and current test result displayed (in Full Screen mode or mosaic mode - see “Mosaic Mode” on page 59).
1 Press About softkey to display a page as the following one:
54 User Manual 79000000203 Rev. 005

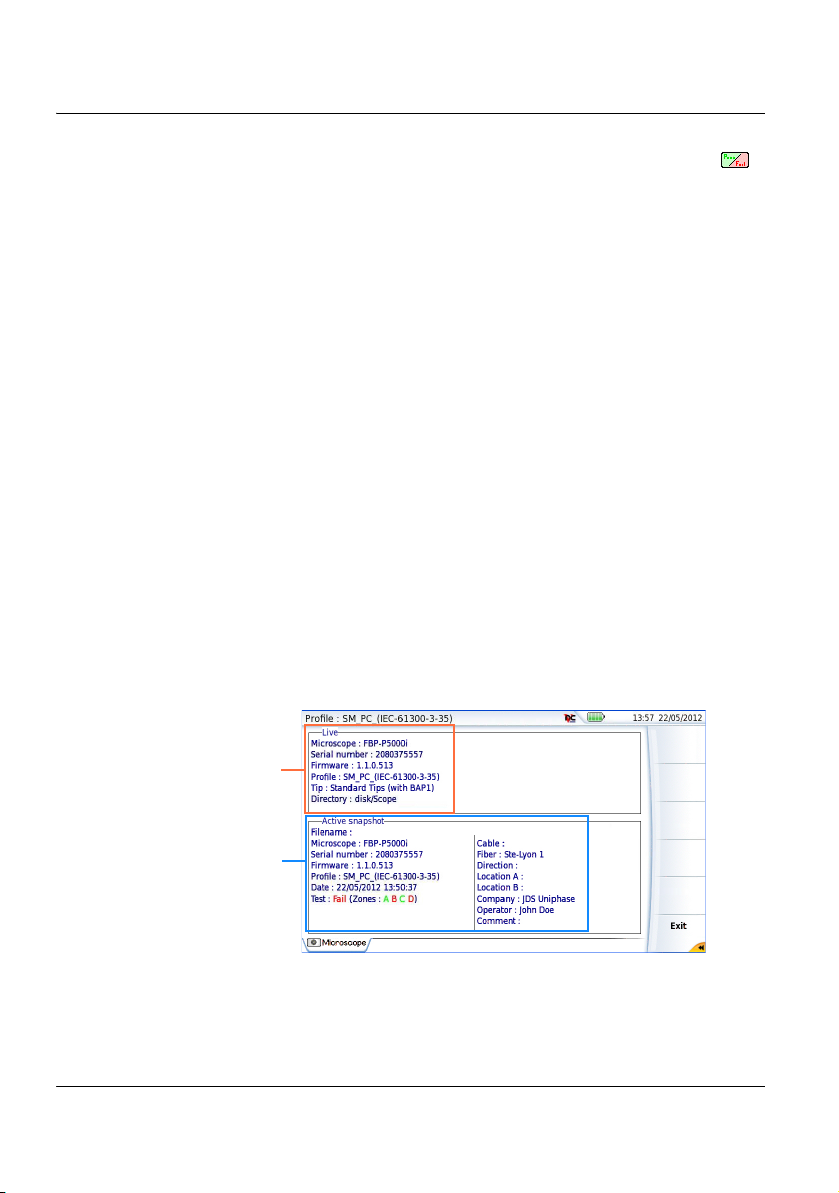

Figure 19 P5000i Scope: About page
Page 77

Starting up with the scope

Sharpness level
Once the FiberScope icon is validated:
Chapter 6 Scope
Starting up with the scope
1 Press R
Figure 20 Example of the result using the P5000i scope
Use the Focus Control button onto the P5000i scope (see Figure 16 on
page 48) to adjust the image quality and sharpness.
ESULTS hard key
NOTE
To switch from Scope page to FO results page and vice­versa, press the beep is emitted).
RESULTS hard key for about 2 seconds (a

Freeze mode

Once the image is acceptable, you may freeze the picture. This feature allows to store in memory the resulting picture.
User Manual 79000000203 Rev. 005 55
Page 78
Chapter 6 Scope
Starting up with the scope
Freezing a scope result does not store the picture in a file (see if the instrument is shut off, or if more than 3 pictures are frozen (see
NOTE
The button set on the lead, or the QuickCapture™ on the P5000i allows to freeze the picture or to take a snapshot.
“File menu” on page 62). The result will be lost
“Mosaic Mode” on page 59)

High Mag. / Low Mag.

The High Mag./Low Mag. menu key allows to switch the display from High to Low magnification and vice-versa.
This function is also available pressing the button directly on the P5000i (see Figure 16 on page 48).

Camera mode

If you are in Freeze mode, or in Mosaic mode, with a picture selected (see “Mosaic Mode” on page 59), press Camera menu key to return to live camera picture.
Use the focus control to adjust the focus of the image
56 User Manual 79000000203 Rev. 005
Page 79
Chapter 6 Scope

Launching a test of the connector and fiber end-face

Launching a test of the connector and fiber end-face

Launching a test of the connector and fiber end-face
Once the display is correctly adjusted (magnification, sharpness...), a test of fiber connector can be launched. To launch the test:
1 Press Test key to launch the test of plugged fiber connector.
The test is completed:
– once the Led Testing is no more lit in red – once the icon is no more displayed on the upper banner – once a screen as the following one displays:
NOTE
To configure Pass/Fail criteria, see
page 49
.
"Configuring the Scope"
User Manual 79000000203 Rev. 005 57
Page 80
Chapter 6 Scope
Test result in High mag.
Profile selected in the Setup page
Summary of Test results
Zone
Zone
Zone
Zone
Launching a test of the connector and fiber end-face
Figure 21 Test results
A summary of test results is displayed on the right, upper part of the screen.
• Zone A: Core zone: it is the area surrounding the core
• Zone B: Cladding zone. It surrounds the majority of the fiber cladding.
• Zone C: Epoxy ring.
• Zone D: Ferrule/Contact zone: it identifies a
portion of the ferrule near and around the fiber
NOTE
To return to a Live Camera image, press the Camera key; or press the Full Screen/Mosaic key view both the live image and a test result simultaneously.
In Mosaic mode (see
"Mosaic Mode" page 59), the result
of the test only displays Pass or Fail information; the status of each zone is displayed only in full screen mode.
58 User Manual 79000000203 Rev. 005
Page 81
Chapter 6 Scope
Position 1 :
L
IVE CAMERA
Position 2:
Selected
Launching a test of the connector and fiber end-face

Overlay

The Overlay key allows, when selected, to display the limits of each zone and to display with colors the defaults on the image.
When the key is deselected, the zones and defaults are not graphically identified.
This function is also available in Mosaic Mode (see “Mosaic Mode” on
page 59).

Mosaic Mode

It is possible to display only one picture in full screen (640 * 390 pixels) or up to four pictures (320*180 pixels each, including the live camera picture) in mosaic mode. Use the key Full scr./Mosaic to switch from one mode to another.
Figure 22 Mosaic mode
User Manual 79000000203 Rev. 005 59
Page 82
Chapter 6 Scope
Launching a test of the connector and fiber end-face
• You may select one of the pictures by clicking on it.
The selected picture is framed in green.
The tool bar on the right varies according to which picture is selected (camera, or static picture):
Picture selected: Camera
Test Allows to launch a (new) test of the connector (see
“Launching a test of the connector and fiber end-face” on page 57
Freeze The live picture from the camera is frozen but does not
replace the live picture at position 1. The new snapshot is placed at the second position, and all existing pictures are pushed to the next position.
If all positions were taken, the picture that was once at the fourth position is unloaded from memory. Frozen pictures and snapshots are lost, unless they were saved on the internal memory.
)
High mag./Low mag.allows to modify the live display from high to low
magnification and vice-versa
Picture selected: Image
Comment allows to add a comment to the selected picture (see
“Adding a comment” on page 61)
Save allows to save the selected picture in the directory
Scope, in the disk of the Platfom. Press Save key, enter a name for the jpg file and validate. This key is not available with jpg files other than those resulting from scope application.
Overlay allows to display or hide the limits of each zone and
the defaults on image from a test result (see
on page 59
60 User Manual 79000000203 Rev. 005
).
“Overlay”
Page 83
Chapter 6 Scope
Launching a test of the connector and fiber end-face
High mag./Low mag.allows to switch all the images from scope test
results from high to low magnification and vice-versa.
Adding a comment
The key Comment allows you to enter/modify a comment to your picture if necessary. This comment appears at the bottom left of the picture.
The right bottom of the frozen picture also contains the date of the acquisi­tion (where the picture was frozen).
NOTE
Both the comment and the date will be saved with the pic­ture.

Loading a picture

It is possible to retrieve and load a picture stored in the Scope directory and display it in the Scope page.
1 Press the
2 Press Explorer.
3 Select the JPEG file to be loaded via the Explorer
4 Click on Load
Recognized pictures are images resulting from the Scope option and saved on disk via the 2000 Platform.
FILE button.
Some pictures resulting from the Scope option may appear nevertheless unrecognized, if they have been stored with a different Scope application, or if the JPG file has been opened and modified under another JPG editor.
User Manual 79000000203 Rev. 005 61
Page 84
Chapter 6 Scope

File menu

Even though the JPG editor of the Scope function has been designed to display Scope pictures in black & white, it is also possible to open any JPG valid file and display in color the corresponding picture. That picture is enlarged or shrunk to the size of the display (full screen or mosaic, see."Mosaic Mode" page 59).
File menu

Saving the test result in a jpg file

Once the test has been performed, and the result is displayed on the 2000 Platform screen:
1 Press F
2 Click on Save key to save a jpg file of the test result on the disk of the
2000 Platform.
3 On the edition keypad, enter the name of the jpg file
4 Press Enter to validate.
The file is automatically saved on the disk, in the directory Scope (icon ).
ILE key

Generating a report

1 Check the correct test result is selected (framed in green in mosaic
mode).
2 Press the
3 On the edition keypad, enter the name of the pdf file and press
The report generation is completed once the icon is no more displayed on the upper banner.
62 User Manual 79000000203 Rev. 005
FILE button, then the Report key
ENTER.
Page 85
NOTE
The pdf report will be saved on the disk, in the directory Scope.
Display of the report
Once the report has been generated:
Chapter 6 Scope
File menu
1 Press F
ILE hard key.
2 On the right menu keys, press Explorer soft key.
3 In the File Explorer, select the pdf report just created.
4 Press Load.
User Manual 79000000203 Rev. 005 63
Page 86
Chapter 6 Scope
Logo, company & param­eters selected in the Setup page (see “Config-
uring the Scope” on page 49)
File menu
Figure 23 PDF report of Scope test result
64 User Manual 79000000203 Rev. 005
Page 87
7
Chapter7 Transferring the 2000
Platform Interface
The 2000 Platform can be used in combination with a PC in order to transfer the Platform Interface onto a PC, or to access the internal memory or USB memory stick contents on the PC.
Topics described in this chapter are as follows:
• “Establishing connection” on page 66
• “Transferring the Interface” on page 69
• “Virtual control buttons bar” on page 70
• “Equivalence between the keyboard and 2000 Platform” on page 71
User Manual 79000000203 Rev. 005 65
Page 88
Chapter 7 Transferring the 2000 Platform Interface

Establishing connection

Establishing connection
The connection between 2000 Platform and the PC can be done directly, or via a local network.
The transfer of the interface can be done using a VNC window on PC.
For an intensive use of the deport screen or when it is used via a WAN network, it is strongly recommended to use a dedicated VNC client. The VNC clients recom­mended are Tight VNC (V 1.2.9 or later) and Real VNC (V 4.1.1 or later).

Connecting the 2000 Platform and the PC

1 Connect the 2000 Platform to the PC via an Ethernet cable, using the
RJ45 connectors set on both equipments.
Figure 24 Connection 2000 Platform and PC
2 Check the network connection on the PC is set in Dynamic mode.

Configuring the 2000 Platform

1 In the Home page of the 2000 Platform, validate the Settings icon.
66 User Manual 79000000203 Rev. 005
Page 89
Chapter 7 Transferring the 2000 Platform Interface
Establishing connection
2 In the System Settings page, in the I/O Interfaces box, configure
the following parameters:
Remote Screen
Remote screen = Session or Permanent must be confirmed in both
cases, in the Interface E/S window.
No the screen cannot be remote on to a PC or on to
another 2000 Platform.
Session Mode the Remote screen function is inactive once the 2000
Platform is switched off.
Permanent Mode the Remote screen function is still active when the
2000 Platform is switched off and restarted.
Permanent with password
same function as the Permanent mode, with an access to the equipment via VNC protected by a password: 42000
The password to access VNC can be modified:
1 Click on the menu key Change password.
2 Enter the current password in the Edition keypad and press Enter to
validate.
3 Enter the new password and press Enter to validate.
Ethernet > Mode
Parameters of the local Ethernet network to which the 2000 Platform is connected:
Config 1 to 4 static mode enabling input of the configuration of 4
sites. If this parameter is selected, the following parameters must be entered:
– Site Name the user can enter the name of the site in the Edit menu.
User Manual 79000000203 Rev. 005 67
Page 90
Chapter 7 Transferring the 2000 Platform Interface
Establishing connection
– IP Address IP address of the 2000 Platform – IP Mask address of the mask of the sub-network – IP Gateway IP address of the machine enabling access outside the
sub-network.
1
– DNS
IP address of the machine providing the IP address on the basis of the name
– Domain namename of the local network to which the 2000 Platform
is connected.
Dynamic in this mode, which requires a DHCP server, the
Platform requests an IP address from this server which will be allocated dynamically if dynamic host configuration is activated on the local network. After selecting this mode or after power-on, the 2000 Platform tries to establish a connection to obtain an address from a DHCP server. If for any reason, this process fails, the 2000 Platform reverses to static IP address mode with User1 IP address.
NOTE
Once the 2000 Platform is connected to the network, the icon indicates the connection is working.
2000
Proxy > Use proxy
1 Select No if no proxy is used.
2 If Manual has been selected, enter the Proxy Address.
3 If Auto has been selected, enter the Pac Address.
1.Domain Name Server
68 User Manual 79000000203 Rev. 005
Page 91
Chapter 7 Transferring the 2000 Platform Interface
Note the 2000 Plat­form IP Address

Transferring the Interface

Figure 25 Example of configuration for I/O Interfaces box
1 Note the IP Address displayed in the System Settings page.
2 Wait about 10 seconds the connection is established.
The 2000 Platform Interface can now be transferred onto the PC, or the internal memory or USB key contents can be transferred on PC.
Transferring the Interface
Once the connection is established between the 2000 Platform and the PC, proceed as follow:
1 Open Internet Explorer on the PC.
2 Considering
3 Press Enter to validate.
4 Press OK without typing any password.
10.33.18.93
shown Figure 25 on page 69), enter the following address in the Internet Explorer window:
http://10.33.18.93:5800
A VNC window opens, demanding a password
The screen of the 2000 Platform appears offset on your PC.
User Manual 79000000203 Rev. 005 69
is the IP Address of the 2000 Platform (as
Page 92
Chapter 7 Transferring the 2000 Platform Interface
Click to install TightVNC soft­ware on your PC (not manda­tory)

Virtual control buttons bar

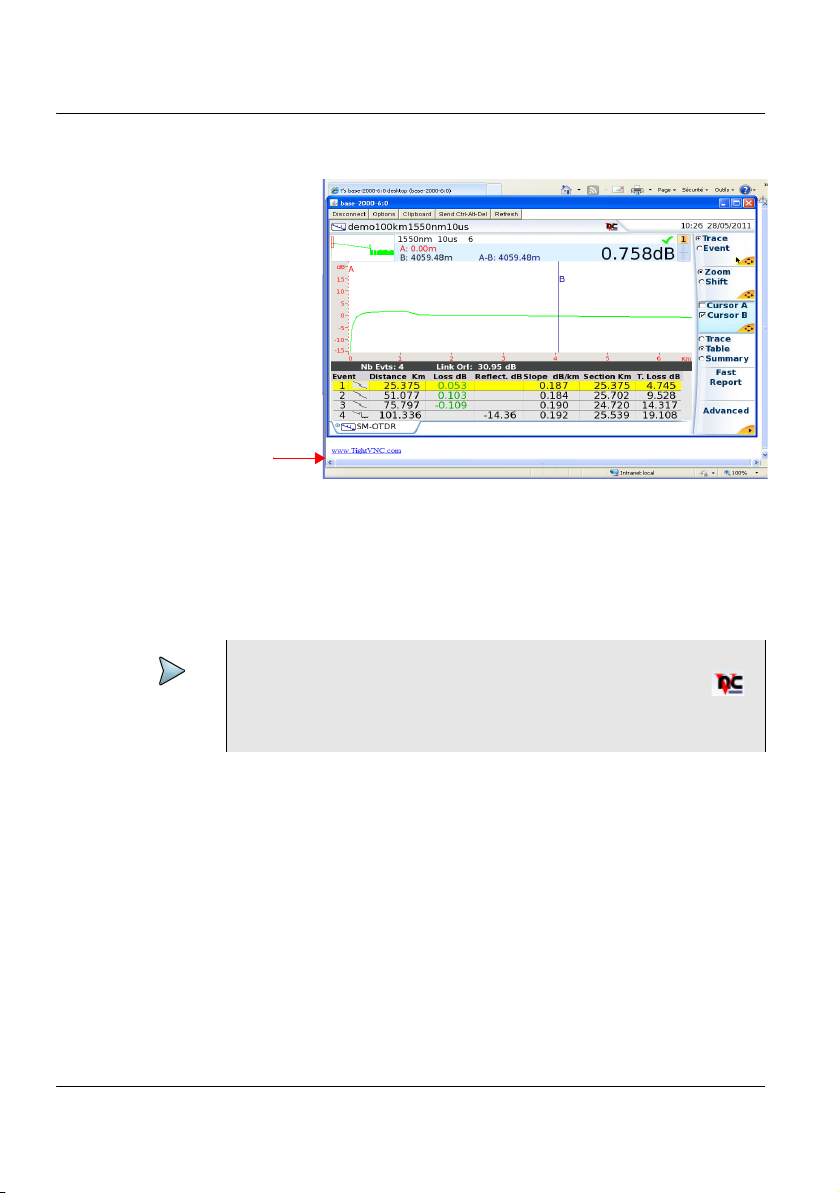

Figure 26 VNC window
You can use keyboard mouse of the PC to control the 2000 Platform (see
“Equivalence between the keyboard and 2000 Platform” on page 71).
NOTE
Once Remote screen is accessible via VNC, the icon displays on the upper banner of the screen until the con­nection is cut or the 2000 Platform is switched off.
Virtual control buttons bar
It is possible to emulate hard keys with Virtual Control buttons. This virtual control buttons bar is especially useful when the 2000 Platform screen is exported on a remote PC.
To display those buttons, click once on the top of the screen in the status bar, at the same height than the date and time.
70 User Manual 79000000203 Rev. 005
Page 93
Chapter 7 Transferring the 2000 Platform Interface

Equivalence between the keyboard and 2000 Platform

Figure 27 Virtual control buttons bar
The virtual control buttons bar is displayed during a few seconds. You may click on any of these buttons to obtain exactly the same results than using the hard keys on the front panel of the 2000 Platform.
Equivalence between the keyboard and 2000 Platform
The PC keyboard can replaced all the buttons and keys of the 2000 Plat­form except the
• The menu keys to the right of the screen are replaced by the function keys
• The buttons below the screen are equivalent to Ctrl + a letter (see table below).
• The direction keys have the same function on the external keyboard and on the 2000 Platform.
ON/OFF button:
F1 to F6.
Function on the 2000 Platform External keyboard
HOME Ctrl + H
SYSTEM SETTINGS F12
SET-UP Ctrl + U
FILE Ctrl + F
RESULTS Ctrl + R
START/STOP Ctrl + S
EXPORT Ctrl + P
← ↑ → ↓
Menu keys 1 to 6 (from top to bottom) F1 → F6
User Manual 79000000203 Rev. 005 71
a
Page 94
Chapter 7 Transferring the 2000 Platform Interface
Equivalence between the keyboard and 2000 Platform
Function on the 2000 Platform External keyboard
ABOUT F11
Save and quit (Exit) Entrée/Enter
Quit without saving (Abort) Escape/Echap.
a. The Export function is available directly on the 2000 Platform pushing simultaneously
the left and right arrow keys.
NOTE
Those equivalences are also valid with a keyboard directly connected to the 2000 Platform via one USB port.
72 User Manual 79000000203 Rev. 005
Page 95

Chapter8 Stratasync

This chapter describes how to synchronize your 2000 Platform to the Stratasync application.
The topics discussed in this chapter are as follows:
• "Principle and prerequisites of the Stratasync" page 74
• "Configuring and synchronizing the 2000 Platform" page 75
8
User Manual 79000000203 Rev. 005 73
Page 96
Chapter 8 Stratasync
Instruments are dialed in: the latest configurations and software
Techs are empowered: “right the first time” with the latest test instruction
Visibility throughout the entire network: all results are immediately useful
Lots of data in
Simple data out

Principle and prerequisites of the Stratasync

Principle and prerequisites of the Stratasync
Stratasync is a new solution that provides network operators with an agile and centralized way to manage and analyze data from thousands of deployed Viavi test instruments directly from the cloud.
StrataSync is a hosted, cloud-based software application that provides Viavi instrument asset, configuration, and test-date management.
StrataSync improves technician and instrument efficiency.
StrataSync allows to:
• Manages and tracks test instruments
• Collects and analyzes results from the entire network
• Informs and trains the workforce
74 User Manual 79000000203 Rev. 005
Figure 28 Principle of the Stratasync application
Page 97
Chapter 8 Stratasync

Configuring and synchronizing the 2000 Platform

Pre-requisites for using the Stratasync with the 2000 Platform
The user must have subscribed to Stratasync, and by consequence, he must have acquired an account Identifier and a password.
The Ethernet and Proxy parameters must have been correctly configured in the System Settings page of the 2000 Platform (see “Ethernet > Mode”
on page 67 and “Proxy > Use proxy” on page 68).
Configuring and synchronizing the 2000 Platform
The 2000 Platform can be configured to be synchronized with the Strata­sync.
1 Press Settings in the Home page
2 Check the configuration of the Ethernet and Proxy parameters.
3 Configure the Stratasync parameters:
a In the Server Type parameter, the Viavi Server is selected by
default and it is recommended to keep this parameter. However, the user can select if necessary the Server Name parameter and enter the name in the following parameter.
b In the Account ID parameter, enter the same identifier as the
one used to access to Stratasync.
c The Technician ID parameter is automatically fulfilled after
synchronization (if it has been defined by the administrator of the Stratasync)
d To upload the files from a directory onto the 2000 Platform
toward Stratasync, select the parameter Upload from and press right arrow key to enter the directory path (example: disk/ Stratasync). The directory Stratasync is defined by default.
User Manual 79000000203 Rev. 005 75
Page 98
Chapter 8 Stratasync
2
3
Configuring and synchronizing the 2000 Platform
Figure 29 System Settings - Stratasync

Connecting the 2000 Platform to Stratasync

Once 2000 Platform is configured in the System Settings page:
1 Press Expert Tools > Upgrades menu keys.
2 Press Stratasync menu key .
The synchronization with Stratasync starts
The icon displays on the upper banner of the 2000 Platform during synchronization.
Once the icon is no more displayed, this mean that the synchroniza­tion is completed.
3 For the first synchronization only
, a message displays on the 2000
Platform to indicate the addition of the equipment in Stratasync.
76 User Manual 79000000203 Rev. 005
Page 99
Chapter 8 Stratasync
Configuring and synchronizing the 2000 Platform
Figure 30 First synchronization - Message on 2000 Platform
The 2000 platform is now available in Stratasync.
User Manual 79000000203 Rev. 005 77
Page 100
Chapter 8 Stratasync
Configuring and synchronizing the 2000 Platform
78 User Manual 79000000203 Rev. 005
