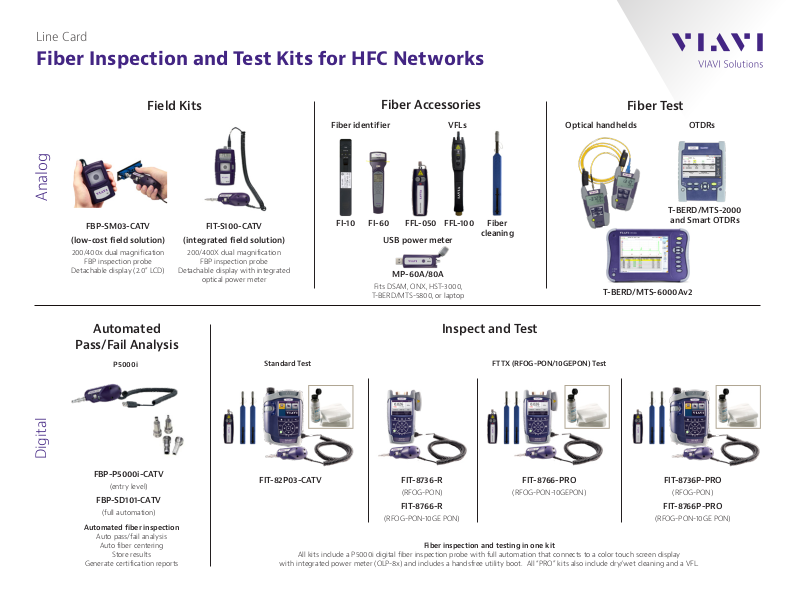

Line Card
Fiber Inspection and Test Kits for HFC Networks
Analog
FBP-SM03-CATV
(low-cost field solution)
200/400x dual magnification
FBP inspection probe
Detachable display (2.0” LCD)
Automated
Pass/Fail Analysis
P5000i
Field Kits
(integrated field solution)
200/400X dual magnification
Detachable display with integrated
FIT-S100-CATV
FBP inspection probe
optical power meter
Standard Test
Fiber Accessories
Fiber identifier
FI-10 FI-60
Fits DSAM, ONX, HST-3000,
T-BERD/MTS-5800, or laptop
VFLs Optical handhelds
FFL-050 FFL-100 Fiber
USB power meter
MP-60A/80A
Inspect and Test
Fiber Test
OTDRs
T-BERD/MTS-2000
and Smart OTDRs
cleaning
T-BERD/MTS-6000Av2
FTTX (RFOG-PON/10GEPON) Test
Digital
FBP-P5000i-CATV
(entry level)
FBP-SD101-CATV
(full automation)
Automated fiber inspection
Auto pass/fail analysis
Auto fiber centering
Store results
Generate certification reports
FIT-82P03-CATV FIT-8736-R
(RFOG-PON)
FIT-8766-R
(RFOG-PON-10GE PON)
Fiber inspection and testing in one kit
All kits include a P5000i digital fiber inspection probe with full automation that connects to a color touch screen display
with integrated power meter (OLP-8x) and includes a handsfree utility boot. All “PRO” kits also include dry/wet cleaning and a VFL.
FIT-8766-PRO
(RFOG-PON-10GEPON)
FIT-8736P-PRO
(RFOG-PON)
FIT-8766P-PRO
(RFOG-PON-10GE PON)
Page 2
Fiber Inspection and Test Kits for HFC Networks
Contents of Kits
Displays
Analog HP3/HD3 display (2.0 inch LCD)
Digital color display 3.5 inch
Display with integrated patch cord microscope (PCM)
Display with integrated broadband or PON power meter
Rechargeable battery
Connects to DSAM (XT), ONX, HST, OLP-8x, T-BERD/MTS, or laptop
Fiber inspection probes
FBP dual-magnification (200/400x) analog probe microscope
P5000i dual magnification (200/400x)
digital probe microscope with automation
Auto-centering of fiber
Auto pass/fail analysis
Results storage and report generation
Fiber inspection tips/adapters
SC-UPC patch cord and bulkhead inspection
SC-APC patch cord and bulkhead inspection
LC-UPC patch cord and bulkhead inspection
Additional inspection tips available (additional cost)
Testing
Integrated broadband power meter (dBm)
EPON/GPON (1310/1490/1550) power meter
10 GE PON (1270/1577) power meter
Visual fault locator (FFL-050) w/ 2.5 mm and 1.25 mm adapters
Handsfree utility boot
Cleaning
Universal 2.5 mm dry cleaning tool
Universal 1.25 mm dry cleaning tool
Cleaning solvent and wipes (wet cleaning)
FBP-SM03-CATV
FIT-S100-CATV
FBP-P5000i-CATV
FBP-SD101-CATV
FIT-82P03-CATV
FIT-8736-R
FIT-8736P-PRO
FIT-8766-R
FIT-8766-PRO
300 300 300 300 300 300 300 300 300 300
+10 +23 +15 +1 5 +1 5 +15 +15
FBPT Inspection Tips
Not all inspection tips are shown; 300+ available
FIT-8766P-PRO
Connector
Type
SC/UPC
SC/APC
LC/UPC
Part No. /
Inspection Tip Application Description
FBPT-SC
FBPT-U25M
FBPT-SCFC-A6
FBPT-SC-APC
FBPT-U25MA
FBPT-LC
FBPT-LC-L
FBPT-U12M
The advantage
Market leader with the largest
portfolio in the industry
• Offering kits for every need and price point
• Recognized for providing excellent value
and quality products
Inspect both patch cord and
bulkhead connectors
• Prevents cross-contamination
• Eliminates going behind patch panels
to disconnect fibers for inspection
• Eliminates safety hazard because
technicians do not look into the fiber
Inspect SC-PC connectors
through a bulkhead.
Inspect universal 2.5 mm UPC
patch cord connectors (SC, ST, FC).
Inspect SC-PC connectors, angled
60 degrees, through a bulkhead.
Inspect SC-APC connectors
through a bulkhead.
Inspect universal 2.5 mm APC
patch cord connectors (SC, ST, FC).
Inspect LC-UPC connectors
through a bulkhead.
Inspect LC-UPC connectors
through a bulkhead.
Inspect universal 1.25 mm UPC
patch cord connectors.
More than 300 inspection
tips available
• Provides times more tips than
our competitors
• Enables inspection of all connectors in
your network (current and future)
Integrated inspection and test kits
• Combines fiber inspection, cleaning, and
testing (power meter and VFL) in one kit
• Cuts total inspection and test time
in half
• Promotes best practices for technicians
