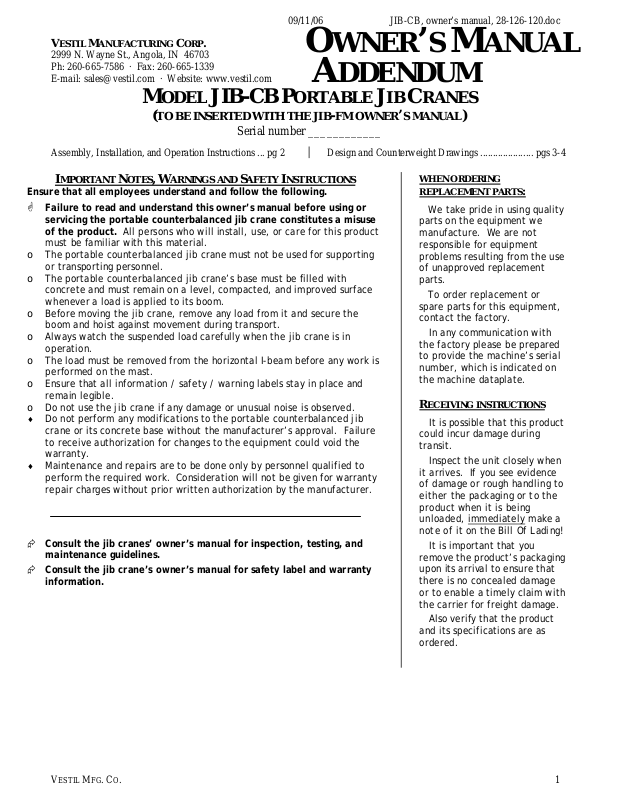

OWNER’S MANUAL

ADDENDUM

MODEL JIB-CB PORTABLE JIB CRANES

(TO BE INSERTED WITH THE JIB-FM OWNER’S MANUAL)

Serial number ____________

Assembly, Installation, and Operation Instructions ... pg 2 Design and Counterweight Drawings ..................... pgs 3-4

IMPORTANT NOTES, WARNINGS AND SAFETY INSTRUCTIONS

Ensure that all employees understand and follow the following.

* Failure to read and understand this owner’s manual before using or

servicing the portable counterbalanced jib crane constitutes a misuse
of the product. All persons who will install, use, or care for this product
must be familiar with this material.

o The portable counterbalanced jib crane must not be used for supporting

or transporting personnel.

o The portable counterbalanced jib crane’s base must be filled with

concrete and must remain on a level, compacted, and improved surface
whenever a load is applied to its boom.

o Before moving the jib crane, remove any load from it and secure the

boom and hoist against movement during transport.

o Always watch the suspended load carefully when the jib crane is in

operation.

o The load must be removed from the horizontal I-beam before any work is

performed on the mast.

o Ensure that all information / safety / warning labels stay in place and

remain legible.

o Do not use the jib crane if any damage or unusual noise is observed.

♦ Do not perform any modifications to the portable counterbalanced jib

crane or its concrete base without the manufacturer’s approval. Failure
to receive authorization for changes to the equipment could void the
warranty.

♦ Maintenance and repairs are to be done only by personnel qualified to

perform the required work. Consideration will not be given for warranty
repair charges without prior written authorization by the manufacturer.

¬ Consult the jib cranes’ owner’s manual for inspection, testing, and

maintenance guidelines.

¬ Consult the jib crane’s owner’s manual for safety label and warranty

information.

WHEN ORDERING
REPLACEMENT PARTS:

We take pride in using quality
parts on the equipment we
manufacture. We are not
responsible for equipment
problems resulting from the use
of unapproved replacement
parts.

To order replacement or
spare parts for this equipment,
contact the factory.

In any communication with
the factory please be prepared
to provide the machine’s serial
number, which is indicated on
the machine dataplate.

RECEIVING INSTRUCTIONS

It is possible that this product
could incur damage during
transit.

Inspect the unit closely when
it arrives. If you see evidence

of damage or rough handling to
either the packaging or to the
product when it is being
unloaded, immediately
note of it on the Bill Of Lading!

It is important that you
remove the product’s packaging
upon its arrival to ensure that
there is no concealed damage
or to enable a timely claim with
the carrier for freight damage.

Also verify that the product
and its specifications are as
ordered.

make a

ESTIL MFG. CO. 1

V

09/11/06 JIB-CB, owner’s manual, 28-126 -1 20.doc

INSTALLATION AND ASSEMBLY INSTRUCTIONS – JIB-CB

Review this entire page before installing the portable counterbalanced jib crane.
Consult the factory in the event there are any questions or problems at the time of installation, or for

information regarding optional features not covered by the owner’s manual.

• Modifications or additions to this jib crane without prior manufacturer’s authorization may void the product’s
warranty. The addition of ancillary equipment to the structure or base of the jib crane may necessitate that its
load capacity be reduced.

• The installation must be made so that it complies with all the regulations applicable to the crane and its location.
The end-user must verify that the supplied equipment is installed so it will be suited to the environment in which it
will be used.

• Assembly must be performed by suitably trained personnel with access to the appropriate equipment. The
electrical aspects of the installation should be performed by an electrician.

For the assembly of a standard portable counterbalanced jib crane, you will need the following:

1. A fork truck or hoisting means to unload the jib crane parts from the freight truck and set them into place.

2. A smooth, level surface on which to assemble the jib crane.

3. 60-pound bags of concrete mix (about 40 bags for the 18” base, or about 80 bags for the 36” base).

OPERATION INSTRUCTIONS – JIB-CB

o Consult OSHA regulation 1910.179 for the owner’s / user’s respon sibilities regarding the operation, care, and

maintenance of overhead and gantry cranes.

o Ensure that all employees involved in the operation of this jib crane understand and follow these instructions!

The standard model portable counterbalanced jib crane is suitable for use indoors and outdoors in mo st non-

classified industrial and commercial locations. Along with an appropriate hoist and trolley, it is intended to be used to
lift and position stable, evenly-distributed loads having a horizontal center of gravity near the hook point of the hoist.

Caution: This product is not designed to be used while it is resting on the forks of a fork truck, or for transporting a

load that is hanging from its boom.

Loading:

The load rating, in pounds, is shown on the machine dataplate located on the jib crane’s mast. It indicates the

maximum net capacity of the jib crane with a static load that is centered under the hoist’s lifting point.
Note: The addition of any ancillary equipment to the jib crane, or any accessories hanging from the hoist, must be

taken into account when determining the maximum working load to be placed on the hoist and jib boom.

Warning: Do not exceed the jib crane’s load rating. Injury to personnel or permanent damage to the jib crane,

hoist, or trolley could result from exceeding the listed capacity.

Caution: Do not attempt to laterally pull or drag loads that are connected to the jib crane’s boom.

To transport and put in place a standard portable counterbalanced jib crane:
Caution: Always watch the jib crane’s boom closely when the jib crane is being transported.

1. Any load must be removed and the boom secured against rotation before the jib crane is moved. The boom should
be secured so that it is parallel to the direction that the jib crane will transported.

2. Insert the forks of an appropriately-rated fork truck into the fork pockets located in the counterweight base.

3. Lift the jib crane just high enough to prevent it from making contact with the ground, and tilt the fork truck mast
slightly backward.

4. Move the jib crane to the location it is to be used.

Caution: Do not exceed a travel rate of more than 3 feet per second.

Operation:

Inspect the jib crane and its associated equipment for damage on a daily basis.

Warning: Ensure that equipment and personnel are clear of the boom’s swing radius before rotating the boom.
Warning: Be certain no part of any person or object is under any part of the hanging load before it is lowered.
Caution: Always carefully watch any hanging load when the boom is being swung.
Caution: Never use the jib crane if any damage or unusual noise is observed, if it is in need of repairs, or if it seems to

be malfunctioning. Notify your supervisor or maintenance personnel if you notice anything out of the ordinary.

ESTIL MFG. CO. 2
