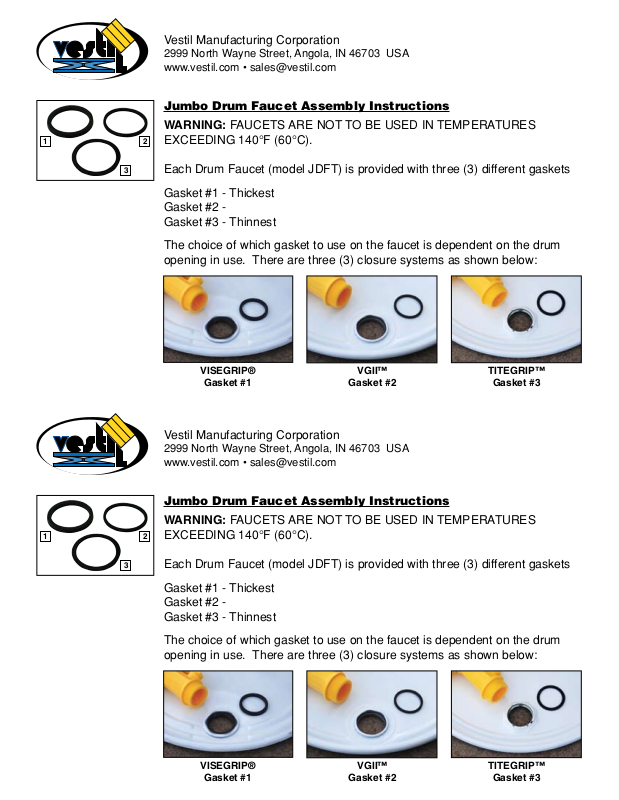

Jumbo Drum Faucet Assembly Instructions
WARNING: FAUCETS ARE NOT TO BE USED IN TEMPERATURES EXCEEDING 140°F (60°C).
3
Each Drum Faucet (model JDFT) is provided with three (3) different gaskets
Gasket #1 - Thickest Gasket #2 ­Gasket #3 - Thinnest
The choice of which gasket to use on the faucet is dependent on the drum opening in use. There are three (3) closure systems as shown below:
VISEGRIP®
Gasket #1
VGII™
Gasket #2
TITEGRIP™
Gasket #3
Vestil Manufacturing Corporation
2999 North Wayne Street, Angola, IN 46703 USA www.vestil.com • sales@vestil.com
1 2
3
Jumbo Drum Faucet Assembly Instructions
WARNING: FAUCETS ARE NOT TO BE USED IN TEMPERATURES EXCEEDING 140°F (60°C).
Each Drum Faucet (model JDFT) is provided with three (3) different gaskets
Gasket #1 - Thickest Gasket #2 ­Gasket #3 - Thinnest
The choice of which gasket to use on the faucet is dependent on the drum opening in use. There are three (3) closure systems as shown below:
VISEGRIP®
Gasket #1
VGII™
Gasket #2
TITEGRIP™
Gasket #3
