Page 1
Professional Mixing Controller
VESTAX CORPORATION
VESTAX America
VESTAX(Europe)Ltd.
OWNER'S MANUAL
Page 2
1
CONGRATULATIONS
！
The lightning flash with arrowhead symbol，within an equilateral triangle，is intended to
alert the user to the presence of uninsulateddangerous voltagewithin the product's
enclosure that may be of sufficient magnitude to consitute a risk of electric shock to persons．
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance（servicing）instructions in the literature accompanying
the appliance．
T0 REDUCE THE RISK 0F FIRE 0R ELECTRlC SHOCK，DO NOT
EXPOSE THIS APPLIANCE T0 RAIN 0R M0ISTURE．
CAUTl0N： TO REDUCE THE RlSK OF ELECTRlC SHOCK
DO NOT REMOVE COVER（ OR BACK）
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVlCING T0 QUALIFIED SERVlCE PERSONNEL
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION
1
INPORTANT SAFEGUARDS
2
FEATURES
3
FUNCTIONS
4
PROGRAM INPUT SECTION
4
MASTER SECTION
5
MICROPHONE SECTION
6
MONITORSECTION
6
REAR PANEL SECTION
7
CONNECTION（EXAMPLE）
8
HOW TO CHANGE THE JACK P ANEL POSITION
9

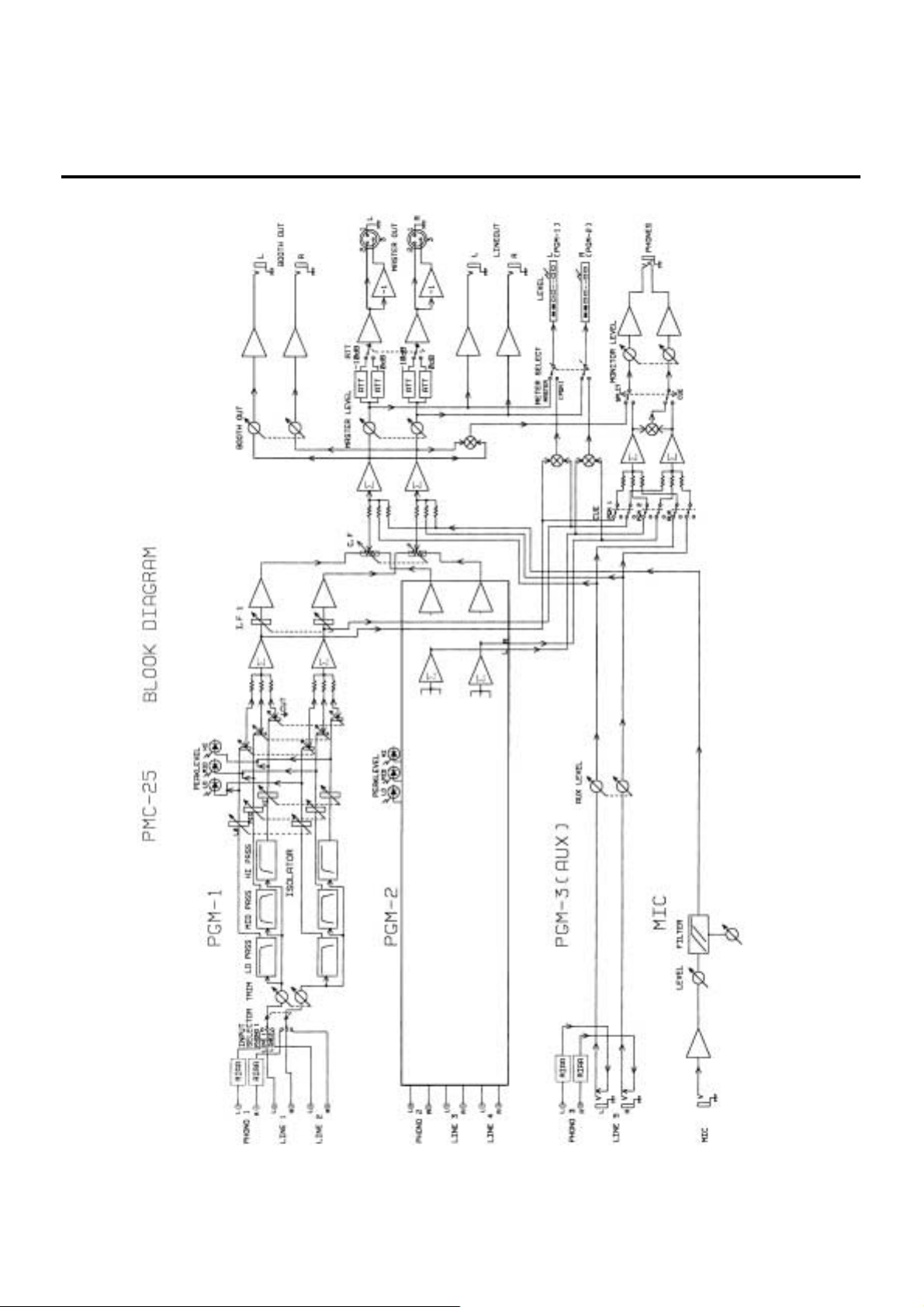

BLOCK DIAGRAM 10
SPECIFICATIONS
Thank you for purchasing the VESTAX PMC-25, Professional Mixing Controller. Please read
this owner's manual carefully before you start to use your mixer, so that you will fully understand
all of the special features and enjoy the full use of the product.
Page 3
2
1. Read instructions-All the safety and operating
instructions should be read before the appliance
is operated.
2. Retain instructions-The safety and operating
instructions should be retained for future
reference.
3. Heed Warnings-All warnings on the appliance
and in the operating instructions should be
adhered to.
4. Follow Instructions-All operating and use
instructions should be followed.
5. Cleaning-Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6. Attachments-Do not use attachments not
recommended by the product manufacturer as
they may cause hazards.
7. Water and Moisture-Do not use this product near
water-for example, near a dath tub, wash bowl,
kitchen sink, or laundry tub, in a wet basement,
or near a swimming pool, and the like.
8. Accessories-Do not place this product on an
unstable cart, stand, tripod, or table. The product
may fall, causing serious injury to a child or
adult, and serious damage to the appliance. Use
only with a cart,. stand, tripod, bracket, or table
recommended by the manufacturer, or sold with
product. Any mounting of the appliance should
follow the manufacturer's instructions, and
sholud use a mounting accessory recommended
by the manufacturer.
9. This product should never be placed near or over
a radiator or heat register. This product should
not be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is
provided or the manufacturer's instructions have
been adhered to.
10. Power sources-This product should be operated
only from the type of power source indicated on
the marking label. If you are not sure of the type
of power supply to your home, consult your
appliance dealer or local power company.
11. Lightning-For added protection for this product
during lightning storm, or when it is left
unattended and unused for long periods of time,
unplug it from the wall outlet. This will prevent
damage to the product due to lightning and
power-line surges.
12. Overloading-Do not overload wall outlets and
extension cords as this can result in a risk of fire
or electric shock.
13. Object and Liquid Entry-Never push objects of
any kind into this product through openings as
they may touch dangerous voltage points or
short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on
the product.
14. Servicing-Do not attempt to service product
yourself as opening or removing covers may
expose you to dangerrous voltage or other
hazards. Refer all servicing to qualified
sersonnel.
IMPORTANT SAFEGUARDS
READ BEFORE OPERATING EQUIPMENT
This product was designed and manufactured to meet
strict quality and safety standards. There are, however,
some installation and operation precautions which you
should be particularly aware of.
Page 4
3
15. Damage Requiring Service-Unplug this product
from the wall outlet and refer servicing to
qualified service personnel under the following
conditions:
a. When the power-supply cord or plug is
damaged.
b. If liquid has been spilled or objects have fallen
into the product.
c. If the product has been exposed to rain or
water.
d. If the product dose not operate normally by
following the operating instructions. Adjust
only those controls that are coverd by the
operating instructions as an improper
adjustment of other, controls may result in
damage and will often require extensive work
by a qualified technician to restore the product
to its normal operation.
e. If the product has been dropped or cabinet has
been damaged.
f. When the product exhibits a distinct change in
perfromance-this indicates need for service.
16. Replacement Parts-When replacement parts are
required, be sure the service technician has used
replacement parts specified by the manufacturer
or have the same characterristics as the original
parts. Unauthorized substitutions may result in
fire, electric shock or other hazards.
17. Safety Check-Upon completion of any service or
repairs to product, ask the service technician to
perfrom sefety checks to determine that the
product is in proper operating condition.
18. Carts and Stands-The appliance should be used
only with a cart stand that is recommended by
manufacturer.
19. An appliance and cart combination should be
moved with care. Quick stops, excessive force,
and uneven surfaces may cause the appliance
and cart combination to overturn.
FEATURES
1. Three-band frequency isolators are provided
on PGM1 and PGM2. This allows DJs to
boost / cut and eliminate individual frequency
ranges for active mixing.
2. The worlds first fader-type kill switch enables
smooth and dynamic frequency cut-off without
clicking noise.
3. The I/O panel can be placed on either the rear or
top side. This feature enables the PMC-25 to be
used on the table or in a rack without any extra
space for the leads.
4. Both the input faders（60 mm）and cross fader
（45 mm）are user replaceable. The input fader can
be replaced with a rotary control for House
applications.
5. One Phono and two Line inputs are provided on
each program channel（PGM1, PGM2）. Each
input channel has a trim control for adjusting
input level. A Phono / Line selectable AUX input
and a Mic input are also provided.
Page 5
4

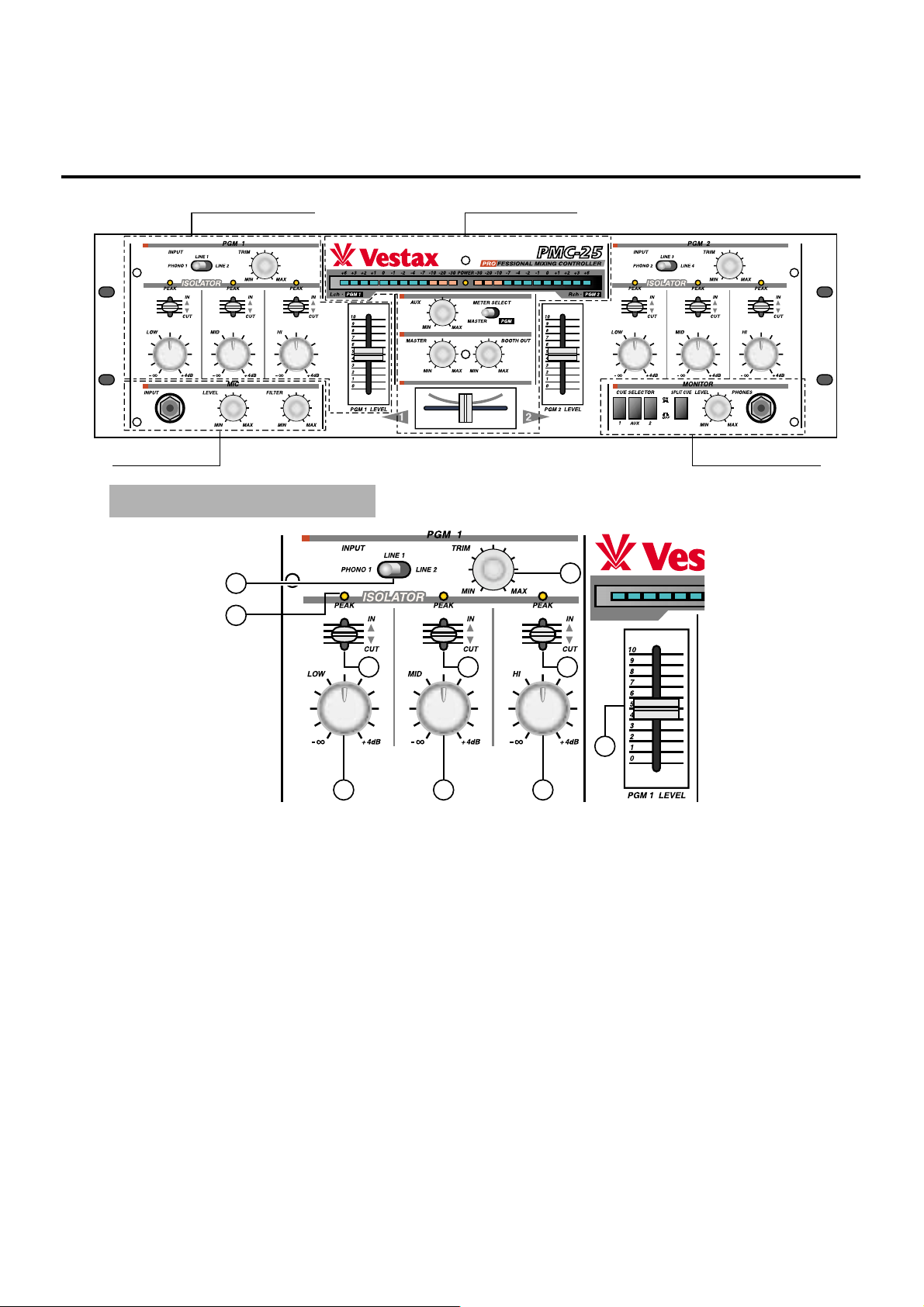

FUNCTIONS
PROGRAM SECTION
MONITOR SECTIONMIC SECTION
PROGRAM SECTION MASTER SECTION
○
1
INPUT SELECT (Input Select Switch)
Used to select input to be sent to each PGM channel.
○
2
TRIM (Trim Control Volume)
Adjusts the Input level of each channel. For proper
adjustment, please set the INPUT FADER to
Maximum position then adjust TRIM so that the
INPUT LEVEL METER shows around 0 dB at
nominal level.
○
3
PEAK
Turns on when the signal of HI, MID, LOW range
hits the peak.
○
4
HI (Isolator HI)
Cuts and boosts the high frequency range. The level
is flat when this knob is set at 12 o'clock. High
frequency range is boosted up to +4dB when this
knob is rotated clockwise. When the knob is rotated
counter-clockwise, high frequency range is cut off
up to infinity level. For example, it can be used to
emphasise or cut off the cymbals or high hats.
○
5
MID (Isolator MID)
Cuts and boosts the mid frequency range. The level
is flat when this knob is set at 12 o'clock. Mid
frequency range is boosted up to +4dB when this
knob is rotated clockwise. When the knob is rotated
counter-clockwise, mid frequency range is cut off up
to infinity level. For example, it can be used to
emphasise or cut off the vocals or guitars.
○
6
LOW (Isolator LOW)
Cuts and boosts the low frequency range. The level
is flat when this knob is set at 12 o'clock. Low
frequency range is boosted up to +4dB when this
knob is rotated clockwise. When the knob is rotated
counter-clockwise, low frequency range is cut off up
to infinity level. For example, it can be used to
emphasise or cut off the bass.
6 5 4
9
3
1
2
10
8 7
Page 6
○
7
HI CUT (Fader type cut switch HI)
When this volume is set to bottom position, high
frequency range is cut of completely regardless of
the position of the HI level control. The HI level
control knob becomes active when this volume is set
to maximum（top）position.
○
8
MID CUT (Fader type cut switch MID)
When this volume is set to bottom position, mid
frequency range is cut of completely regardless of
the position of the MID level control. The MID level
control knob becomes active when this volume is set
to maximum（top）position.
○
9
LOW CUT (Fader type cut switch LOW)
When this volume is set to bottom position, low
frequency range is cut of completely regardless of
the position of the LOW level control. The LOW
level control knob becomes active when this volume
is set to maximum（top）position.
○
10
INPUT FADER
Used to adjust the input level of each program. Please
replace with IF-25 when it is worn out, or with the
optional rotary fader unit, RF-25, for house applications.
5

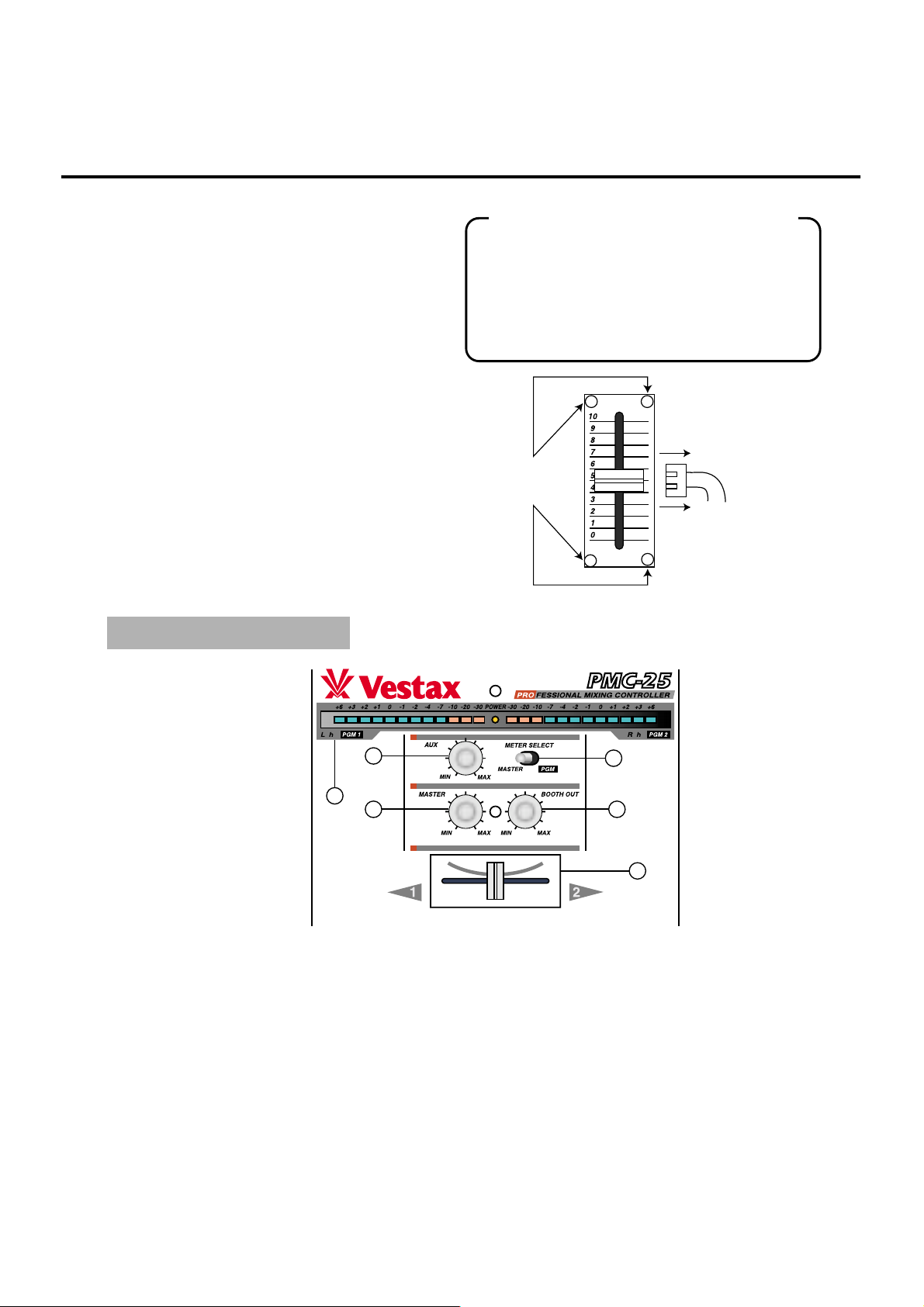

MASTER SECTION
○
11
LED LEVEL METER
The bar graph level meters indicate the master
output level（L channel and R channel）or input
level of each program（program 1 and 2）.
○
12
METER SELECT
When this switch is set to MASTER, the bar-graph
meter indicates the master output level（L channel
and R channel）. When it is set to PGM, the left
meter shows the input level of PGM1 and the right
meter shows the input level of PGM2.
○
13
AUX (AUX level volume)
Used to adjust the Input level of AUX IN.
15
16
12
13
14
11
HOW TO REPLACE THE INPUT FADER
●
Remove four screws, which hold the fader unit panel.
●
Remove the input fader unit, IF-25.
●
Carefully remove the multi-cable connector from
the fader unit.
●
Insert the connector to the new fader unit.
●
Place the fader unit to proper position and fix it
with four screws.
+
+
+
+
Remove
four screws.
Remove the multi-cable
connector from fader unit.
○
14
MASTER (MASTER level volume)
Adjusts the output level of LINE OUT and PA
OUT.
○
15
BOOTH OUT
Adjusts the output level of BOOTH OUT.
○
16
CROSS FADER
The signal from PGM1 is output when the cross
fader is set to the left side. The signal from PGM2 is
heard when the cross fader is set to the right side.
When the cross fader is set at centre position, both
programs will be mixed and output at the same time.
Please replace it with the CF-R when it is worn out.
Page 7
6

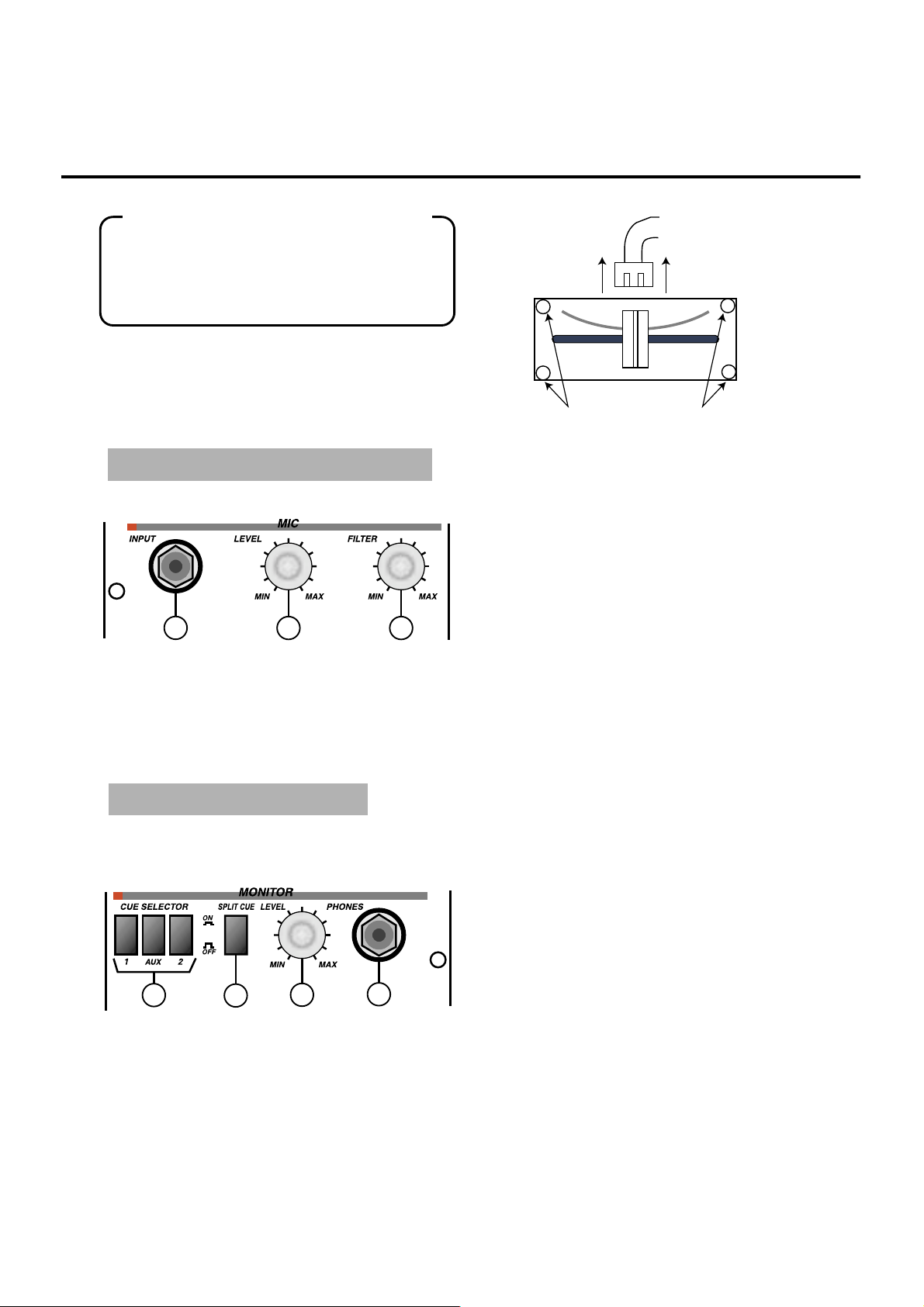

HOW TO REPLACE THE CROSS FADER
●
Remove four screws, which hold the fader unit panel.
●
Remove the cross fader unit, CF-R.
●
Carefully remove the multi-cable connector from
the fader unit.
●
Insert the connector to the new fader unit.
+
+
+
+
Remove four screws.
Remove the multi-cable
connector from fader unit.
17
18
19
MICROPHONE SECTION
MONITOR SECTION
○
17
INPUT (Mic Input Jack)
Input jack for the microphone.
○
18
LEVEL (Mic Level Volume)
Adjusts the input level of the microphone.
○
19
FILTER (Mic Filter Volume)
Adjusts the cut off frequency of the microphone
input. It is used to prevent low frequency noise such
as breathing, vibration, etc.
20
21
22
23
○
20
CUE SELECTOR
Used to select the cue signal to be monitored by
headphones from PGM1, PGM2 or AUX.
○
21
STEREO CUE (Stereo Cue ON/OFF Switch)
When this switch is set to ON, the input signal
selected by CUE SELECTOR can be monitored in
stereo through headphones. When this switch is set
to OFF, the master signal can be monitored through
the right side of the headphone all the time, the
CUE signal selected by CUE SELECTOR will be
heard from the left side. This feature allows DJs to
monitor current and next source simultaneously.
○
22
LEVEL (Headphone Level)
Adjust the monitor level of the headphones.
○
23
PHONES (Headphone Jack)
Used to connect the headphones. Headphones with
impedance from 8~600 can be used.
Page 8
7
REAR PANEL SECTION
252824 27 32 33 31 30 29 26 25 24 27
○
24
PHONO 1,2 [RCA PIN JACK]
Connect turntables equipped with MM (Moving
Magnet type) cartridge. The signal from the
turntable is fed to the PGM channels when Phono
input is selected.
○
25
LINE 1,2,3,4 [RCA PIN JACK]
Connect the equipment with line level output (-10dB
or 0dB), such as CD players, tape decks, DATs,
MDs etc. The signal from line level equipment is
fed to the PGM channels when Line input is
selected.
○
26
AUX IN (LINE 5, PHONO 3) [RCA PIN JACK]
Input jack for turntable and line level equipment.
The signal from these jacks are fed to AUX input
channel.
○
27
GND (Ground Terminal)
Connect the ground lead from the turntable. Failure
to connect a ground lead produces noise on Phono
input signal.
○
28
PA OUT (Balanced Output) [XLR MALE, 2 PIN HOT]
Main output jacks. Connect to the input of the
power amplifier or the master console with XLR 3
pin cable.
○
29
P A OUT LEVEL (Balanced Output Level Select Switch) [-10dB/0dB]
Used to select the output level of the PA OUT from
-10dB or 0dB. Please select the level according to
the input sensitivity of the power amplifier or the
master console.
○
30
LINE OUT (Unbalanced Output) [1/4" INCH PHONE JACK]
Unbalanced LINE output. Connect to the input of
the power amplifier or the master console with 1/4"
phone cable. PA OUT LEVEL (#29) does not effect
this output.
○
31
BOOTH OUT (Output for Monitor System) [1/4" INCH PHONE JA CK]
Connect to the input of the power amplifier of the
DJ booth monitor system.
○
32
POWER (Power Switch)
Lights up when the power is on.
○
33
AC IN
Connect the AC-12A AC Adapter. (12V AC, 1000mA)
CAUTION
When the line level equipment is connected to
LINE 5 input jack, the input signal from PHONO
3 is disconnected and only the signal from line
level equipment is fed to AUX input. Please
disconnect LINE 5 when turntable is used.
Page 9
8
CONNECTION EXAMPLE
PLAY/PAUSE
CUE
PLAY/PAUSE
CUE
KEYPITCH
REVERSE
OPEN/
CLOSE
STOP
DISPLAY
REPEAT
AB
SEARCH
TRACK
MIN SEC FRM
ENTER 123
LOOP
START
END
RELOOP/EXIT
POINT FOCUS
MONITOR
CHANNELACHANNEL
B
MAX MINI MAX MINI
PROTECT B.T.L POWER
POWER
INPUT
PEAK
INPUT ON / OFF
PEAK
CHANNELACHANNEL
B
MAX MINI MAX MINI
PROTECT B.T.L POWER
POWER
INPUT
PEAK
INPUT ON / OFF
PEAK
MONITOR
SPEAKER
MONITOR
SPEAKER
MAIN
SPEAKER
MAIN
SPEAKER
CD，MD PLAYER，DAT，SAMPLER，HDR etc.
ANALOG DISK TURNTABLE［Vestax PDX-a1S］
ANALOG DISK TURNTABLE
［Vestax PDX-a1S］
ANALOG DISK TURNTABLE
［Vestax PDX-a1S］
CDPLAYER［Vestax CDX-35］
CDPLAYER［Vestax CDX-35］
UNBALANCED INPUT
LINE5
LINE1
or
LINE2
LINE3
or
LINE4
PHONO3
PHONO1
PHONO2
BALANCED INPUT
POWER AMPLIFIRE
［Vestax PT-X1000A］
POWER AMPLIFIRE
［Vestax PT-X1000A］
OUT PUT
OUT PUT
OUT PUT
OUT PUT
GND TERMINAL
GND TERMINAL
GND TERMINAL
MONITOR SYSTEM
MAIN PA
BOOTH
OUT
PA
OUT
LINE
OUT
GND
GND
GND
Instruments connected to the OUT PUT Instuments connected to the AUX IN.
Instruments connected to the PGM 2 Instruments connected to the PGM 1
Page 10
9
HOW TO CHANGE THE JACK PANEL POSITION
The I/O jack panel of the PMC-25 can be placed either on the top or back side of the unit. Please refer to
following Fig.
Initially, the I/O panel is placed on the top-side. In case of changing the jack panel position to TYPE
B,
please use following instructions.
●
Remove 5 pieces of silver screw, which secure the
PANEL ①.
●
Remove 5 pieces of silver screw, which secure the
PANEL ②.
●
Install the PANEL ① to the back side and secure it
with 5 silver screws.
●
Install the PANEL② to the top side and secure it with
5 silver screws.
CAUTION
Please ensure use of the proper screwdriver
(3mm Phillips type). Please hold the
screwdriver upright and turn slowly. Do not use
excessive force, or it may damage the screw
head.
Page 11
10
BLOCK DIAGRAM
Page 12
Vestax Corporation
SPECIFICATION
INPUT
SECTION
MIC（1/4 INCH PHONE JACK） -50dBv -20dBv 3.3kΩ
PHONO 1〜3L/R （RCA PIN JACK） -42dBv -22dB v 56kΩ
LINE 1〜5L/R （RCA PIN JACK） -10dBv +14dBv 12kΩ
RATED OUTPUT
MAXMUM OUTPUT
INPEDANCE
PA OUT L/R
（XLR MALE 2PIN HOT,BALANCE ）
0dBv,-10dBv +19dBv 600Ω OVER
LINE L/R
（1/4 INCH PHONE JACK,UNBALANCE ）
-10dBv +10dBv 2kΩ OVER
BOOTH OUT L/R
（1/4 INCH PHONE OUT )
-10dBv +14dBv 600Ω OVER
HEAD PHONE（1/4' PHONE JACK ） 130mW 8Ω OVER/47Ω
MIC 30Hz 〜 20kHz ±3dB CROSSFADER CROSSTALK > 100dB
LINE 20Hz 〜 20kHz ±1dB） CHANNEL CROSSTALK > 65dB
MIC >60dB POWER SUPPLY
AC12V ADAPTOR
LINE >75dB DIMENSION（W×H×D） 482×138×112
>70dB WEIGHT 4kg
OUTPUT
SECTION
FREQUENCY
RESPONSE
S/N RATIO
FADER
ATTENUATION
NOMINAL INPUT
LEVEL
MAXMUM INPUT
LEVEL
INPEDANCE
Page 13
Loading...
