CONGRATULATIONS

Thank you for purchasing the Vestax PMC-007 Professional Mixing Controller. We suggest that you read through this owner's manual thoroughly so that you may enjoy the full use of this product safely and in the knowledge of all its special features and suitable applications.



CONTENTS

C A U T I O N

2

IMPORTANT SAFEGUARDS

3

F E A T U R E S

4

F U N C T I O N

5

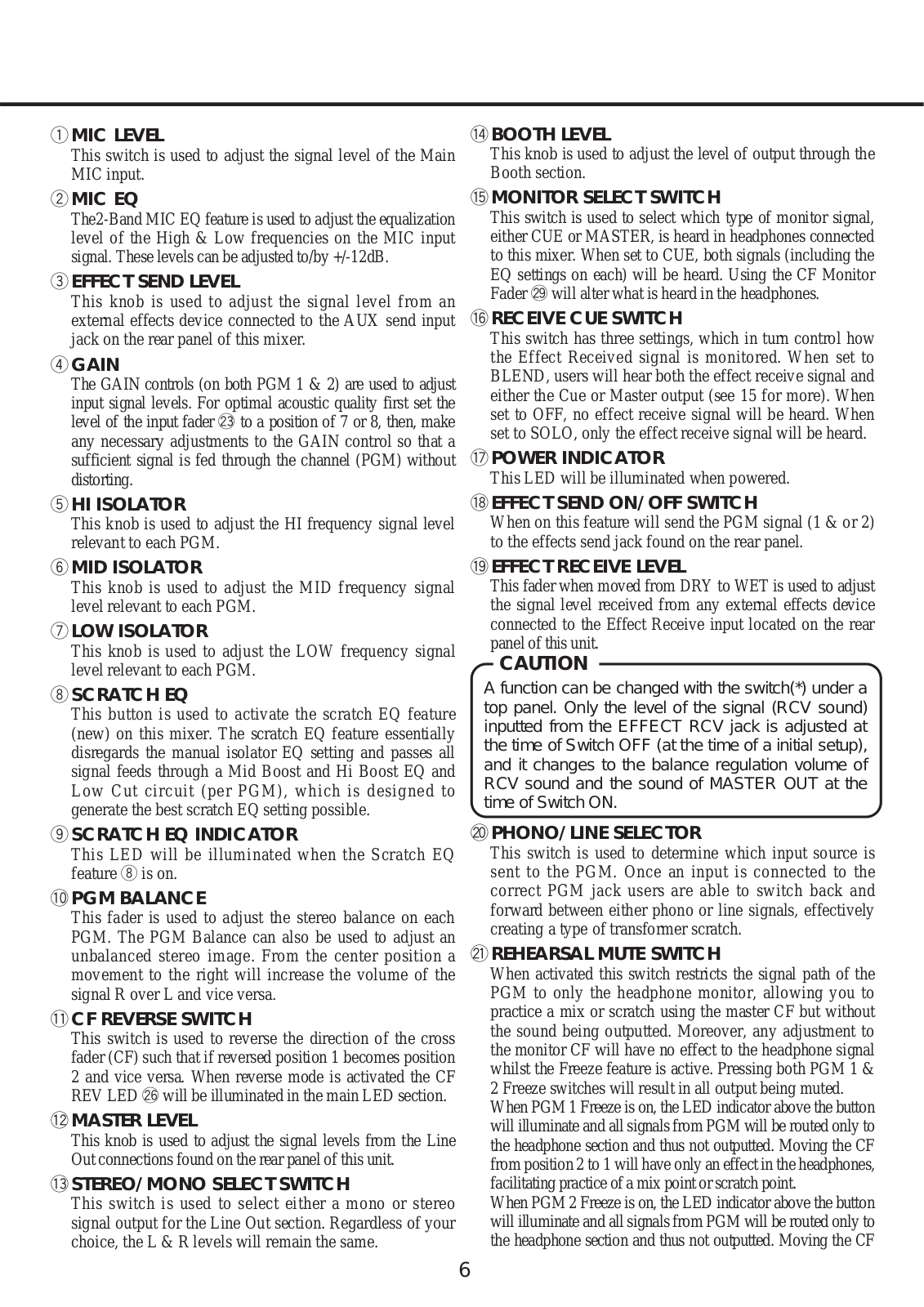

T O P P A N E L

5

F R O N T PA N E L

7

R E A R PA N E L

8

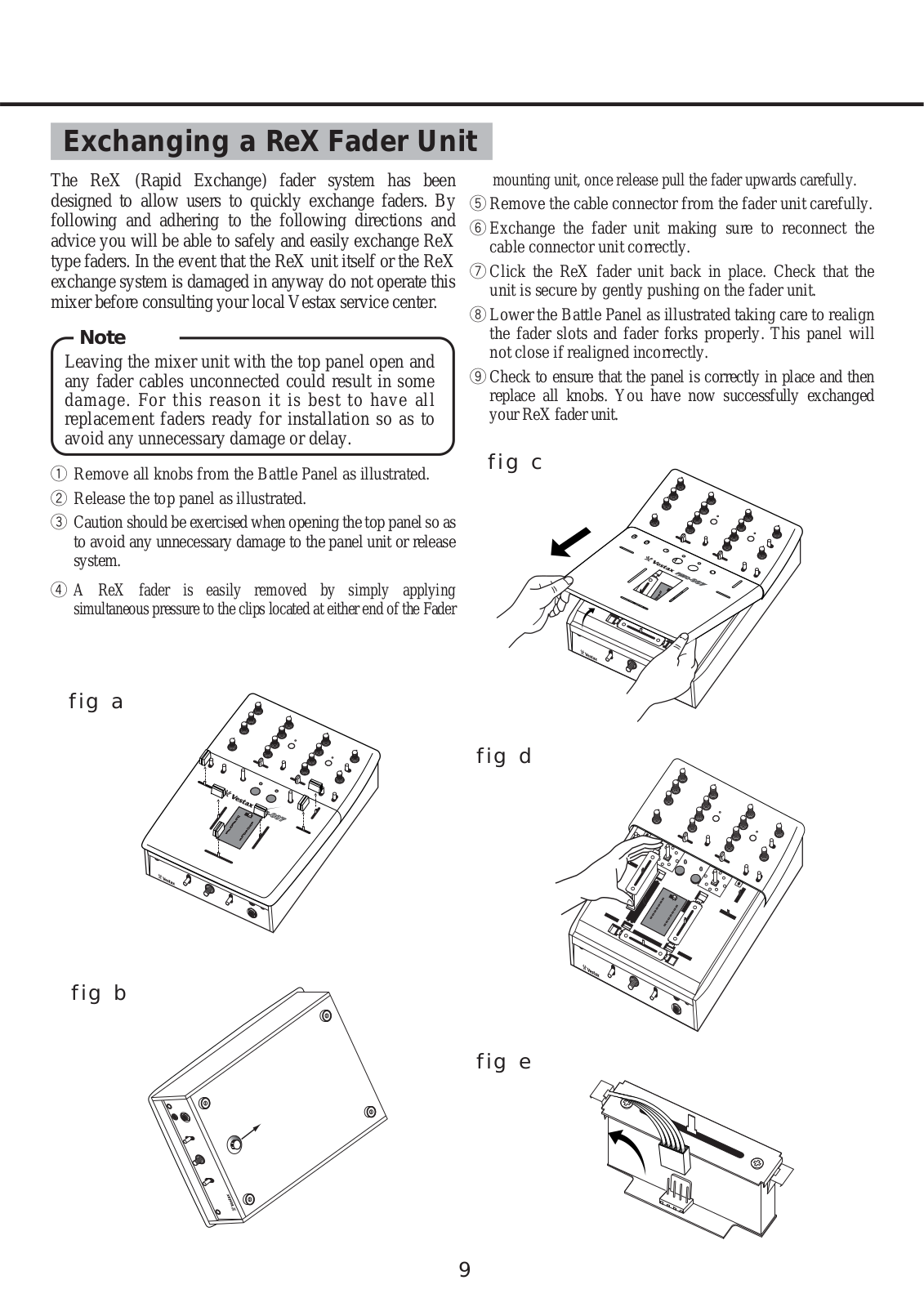

HOW TO CHANGE THE FADER UNIT

9

C O N N E C T I O N

11

SPECIFICATIONS

12

C A U T I O N

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTl0N TO REDUCE THE RlSK OF ELECTRlC SHOCK

DO NOT REMOVE COVER OR BACK

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVlCING T0 QUALIFIED SERVlCE PERSONNEL

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated“dangerous voltage”within the product's enclosure that may be of sufficient magnitude to consitute a risk of electric shock to persons

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance servicing instructions in the literature accompanying the appliance

T0 REDUCE THE RISK 0F FIRE 0R ELECTRlC SHOCK DO NOT EXPOSE THIS APPLIANCE T0 RAIN 0R M0ISTURE

2

IMPORTANT SAFEGUARDS

R E A D B E F O R E O P E R AT I N G E QU I P M E N T

T h i s p r o d u c t w a s d e s i g n e d a n d m a n u f a c t u r e d t o m e e t

s t r i c t q u a l i t y a n d s a f e t y s t a n d a r d s . T h e r e a r e , h o w e v e r , s o m e i n s t a l l a t i o n a n d o p e r a t i o n p r e c a u t i o n s w h i c h y o u s h o u l d b e p a r t i c u l a r l y a w a r e o f .

1.Read instructions-All the safety and operating instructions should be read before the appliance is operated.

2.Retain instructions-The safety and operating instructions should be retained for future reference.

3.Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions-All operating and use instructions should be followed.

5.Cleaning-Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6.Attachments-Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7.Water and Moisture-Do not use this product near water-for example, near a dath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories-Do not place this product on an unstable cart, stand, tripod, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart,. stand, tripod, bracket, or table recommended by the manufacturer, or sold with product. Any mounting of the appliance should follow the manufacturer's instructions, and sholud use a mounting accessory recommended by the manufacturer.

9.This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10.Power sources-This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company.

11.Lightning-For added protection for this product during lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges.

12.Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

13.Object and Liquid Entry-Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

14.Servicing-Do not attempt to service product yourself as opening or removing covers may expose you to dangerrous voltage or other hazards. Refer all servicing to qualified sersonnel.

3

15.Damage Requiring Service-Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power-supply cord or plug is damaged.

b.If liquid has been spilled or objects have fallen into the product.

c.If the product has been exposed to rain or water.

d.If the product dose not operate normally by following the operating instructions. Adjust only those controls that are coverd by the operating instructions as an improper adjustment of other, controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e.If the product has been dropped or cabinet has been damaged.

f.When the product exhibits a distinct change in perfromance-this indicates need for service.

16.Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characterristics as the original parts. Unauthorized substitutions may result in fire, electric shock or other hazards.

17.Safety Check-Upon completion of any service or repairs to product, ask the service technician to perfrom sefety checks to determine that the product is in proper operating condition.

18.Carts and Stands-The appliance should be used only with a cart stand that is recommended by manufacturer.

19.An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

F E A T U R E S

The PMC-007, like its predecessors the PMC-05Pro & PMC-07Pro, is a professional 2-channel (PGM) battle worthy mixer perfect for serious scratch DJs who are looking for improved sound quality, control and flexible options to increase their creative potential.

2 Channel scratch mixer with an open battle zone around the Cross Fader and Input Faders making it perfect for fast scratching and battle moves.

3 Band Isolator on each PGM with proprietary Vestax infinity cut and +4dB boost.

Scratch EQ. Simply press the scratch EQ button to instantly set the isolator EQ on that channel to an optimal scratch setting of HI = MID = and LOW = . Sure to open up some new moves in how it is used this a great feature for creating some new variant acoustic scratches.

Effects routing on both channels with advanced monitoring features for all environments. This effects loop can be used for group session turntablism.

Cross Fader Freeze (Mute). Means that you can practice a scratch or mix on the master fader without the sound being broadcast through the Master section. Pressing this button freezes the master output level of that channel so that what happens on the cross fader can only be heard in the headphone monitor section.

ReX (Rapid Exchange Fader System). In addition to high-grade third generation PCV faders (CF & IF) the PMC-007 also incorporates Vestax's latest fader exchange system. These faders can be replaced in under 30 seconds, freeing up time on the fly and making service a breeze. Think of the future applications for a fader system that can be replaced at whim in under 30 seconds!

Balanced XLR outputs, unbalanced 1/4 inch out and Booth out.

MIC with 2 Band EQ and effect loop input option.

1/4 headphone and mini jack options.

4
