Vestax PMC-07ProISP User Manual

VESTAX CORPORATION
VESTAX America
VESTAX(Europe)Ltd.
OWNER'S MANUAL
1
CONGRATULATIONS
The lightning flash with arrowhead symbolwithin an equilateral triangleis intended to alert the user to the presence of uninsulateddangerous voltagewithin the product's enclosure that may be of sufficient magnitude to consitute a risk of electric shock to persons
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenanceservicinginstructions in the literature accompanying the appliance
T0 REDUCE THE RISK 0F FIRE 0R ELECTRlC SHOCKDO NOT EXPOSE THIS APPLIANCE T0 RAIN 0R M0ISTURE
CAUTl0NTO REDUCE THE RlSK OF ELECTRlC SHOCK
DO NOT REMOVE COVEROR BACK
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVlCING T0 QUALIFIED SERVlCE PERSONNEL
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION
1
IMPORTANT SAFEGUARDS
2
FEATURES
3 FUNCTIONS 4 HOW TO CHANGE THE FADER UNIT
8 CONNECTION DIAGRAM

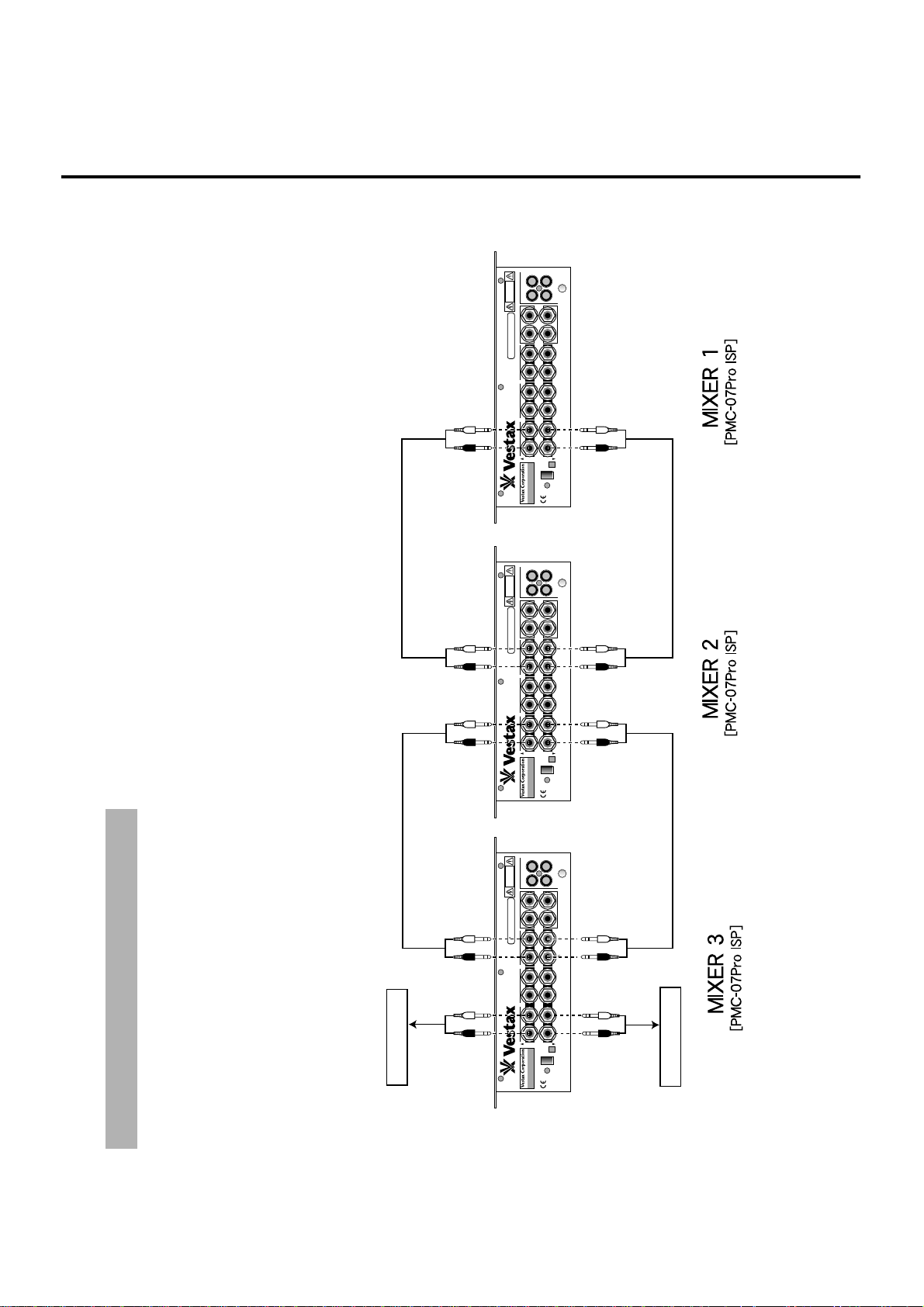

9 CHAIN CONNECTION
10 BLOCK DIAGRAM 12 I.S.P MODEL 13 SPECIFICATIONS 14
Thank you for purchasing the VESTAX PMC-07ProISP, Professional Quadraphonic DJ Mixer. Please read this owner's manual carefully before you start to use your mixer in order to fully understand all of the special features.
2
1. Read instructions-All the safety and operating instructions should be read before the appliance is operated.
2. Retain instructions-The safety and operating instructions should be retained for future reference.
3. Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions-All operating and use instructions should be followed.
5. Cleaning-Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Attachments-Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7. Water and Moisture-Do not use this product near water-for example, near a dath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
8. Accessories-Do not place this product on an unstable cart, stand, tripod, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart,. stand, tripod, bracket, or table recommended by the manufacturer, or sold with product. Any mounting of the appliance should follow the manufacturer's instructions, and sholud use a mounting accessory recommended by the manufacturer.
9. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer's instructions have been adhered to.
10. Power sources-This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company.
11. Lightning-For added protection for this product during lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to lightning and power-line surges.
12. Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
13. Object and Liquid Entry-Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
14. Servicing-Do not attempt to service product yourself as opening or removing covers may expose you to dangerrous voltage or other hazards. Refer all servicing to qualified sersonnel.
IMPORTANT SAFEGUARDS
READ BEFORE OPERATING EQUIPMENT
This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.
3
15. Damage Requiring Service-Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a. When the power-supply cord or plug is
damaged.
b. If liquid has been spilled or objects have
fallen into the product.
c. If the product has been exposed to rain or
water.
d. If the product dose not operate normally
by following the operating instructions. Adjust only those controls that are coverd by the operating instructions as an improper adjustment of other, controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e. If the product has been dropped or cabinet
has been damaged.
f. When the product exhibits a distinct
change in perfromance-this indicates need for service.
16. Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characterristics as the original parts. Unauthorized substitutions may result in fire, electric shock or other hazards.
17. Safety Check-Upon completion of any service or repairs to product, ask the service technician to perfrom sefety checks to determine that the product is in proper operating condition.
18. Carts and Stands-The appliance should be used only with a cart stand that is recommended by manufacturer.
19. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
FEATURES
The world's first quadraphonic (4channel) output allows DJs to expand their performance to 3D level.
Q-stick controls the dimension of each input source amongst four speakers. The beats and scratches fly around the room front, back, left and right.
Effect send volume controls are provided to each program. Effect return can be assigned to each program or the master enabling various flying effects. Effect return is also equipped with a dedicated two band equalizer.
Master trim volume lets DJs "Crab Scratch"
on master fader.
Crossfader and Inputfader status (reverse or normal) is indicated in meter section.
Input jacks are provided specially only for "SESSION IN" and "PHONO IN" which is required by I.S.P.
A 3-band EQ is provided on each program. The adjustment range(+6dB to -24dB) enables equalization and frequency elimination.
Vestax invented the crossfader reverse switch and curve contorol and provided this feature for input faders as well. All faders are "photo coupler" to provide quicker response and longevity.
Master / Cue select switch is provided to enable monitoring of cue source or master output signal.
Master output is equipped with balanced 1/4 inch connectors for accurate sound integrity and durability.
4
21
PGM 1 MASTERPGM 2EFFECT
-24
dB
+6+6
-24
dB
LO MID HI
EQ.
EFFECT SEND
MAXMIN
MAX
MIN
REVERSE
POWER
C.F. I.F.-2I.F.-1
PGM 2PGM 1
MAXMIN
MAXMIN
MAXMIN
MASTER CUE
GAIN
MASTER LEVEL
LEVEL LEVEL
MASTER TRIM
SESSION MIX
PGM REV
MAX
LO MID HI
+12
0
-12
dB
LO HI
MIN
MAXMIN MAXMIN
GAIN
EQ.RTN EQ.
EFFECT SENDEFFECT RTN
SEND MASTER RETURN
PGM 1 MASTER
PGM 2
MAXMIN
MONITOR SELECT
PROFESSIONAL QUADRAPHONIC DJ MIXER
PMC-07ProISP
PMC-07ProISP
Q4 - STICK Q4 - STICK
MONITOR LEVEL
MONITOR
ON OFF ON
PGM MASTER
METER
OFF
+6 +3
0
-3
-6
-10
-20
dB
NORMAL
REVERSE
FRONT
REAR
LEFT RIGHT
FRONT
REAR
LEFT RIGHT
1 2 5
5 68 9
10
11 12
7
21
22
14
15
19
20
19
18
17
14
16
13
3
4
FUNCTIONS
TOP PANEL SECTION
5
!5 METER SELECT SWITCH
Selection for LED to represent each program or the level of the master output.
!6 POWER LED
Illuminates when power is on.
!7 FADER REVERSE LED
Illuminates when respective faders are in reverse mode.
!8 LED LEVEL METER
Displays level of signal for each program or master out (determined by METER SELECT SWITCH (!5).
!9 IF (INPUT FADER)
This faders controls level of input signal for each program. This fader is easily replaced by user. Use IF-07PCV or IF-07PRO as replacements. See "HOW TO CHANGE THE FADER UNIT".
@0 CF (CROSS FADER)
Used to mix sound between PGM1 and 2, also detachable and easily replaced with CF-05PCV or CF-05PRO.
@1 MONITOR LEVEL FADER
Controls level in headphones.
@2 CF MONITOR
Crossfades signal to be monitored from each program.
q EFFECT SEND MASTER VOLUME
Adjusts the output level of the EFFECT SEND.
w EFFECT RETURN VOLUME
Adjusts the input level from the EFFECT RETURN.
e EFFECT RETURN EQUALIZER
HI and LO frequency adjustment of effects signal.
r EFFECT RETURN ASSIGN SWITCH
The switch selects return point of effects.
PGM1・・・・・・・Assigns effects to the Q-stick
on PGM1.
PGM2・・・・・・・Assigns effects to the Q-stick
on PGM2.
MASTER・・・・ Assigns effects to pre-master
fader.
t PROGRAM GAIN VOLUME
Adjusts the input level of each program. The INPUT LEVEL METER (!8) should be at 0dB when the INPUT FADER (!9) is at 7 or 8 position.
y 3 BAND EQUALIZER
Adjusts HI, MID and LO frequencies on each program.
u PROGRAM EFFECT SEND VOLUME
Adjusts the send level for each program individually. When this volume is minimum, the same effect is off.
i PROGRAM REVERSE SWITCH
Switches PGM1 and 2 simultaneously.
o MASTER TRIM VOLUME
Trim adjustment for master level fader.
!0 MASTER FADER
Adjusts overall master output level.
!1 SESSION MIX VOLUME
Adjusts the input level of SESSION IN JACKS (#5, #6).
!2 MONITOR SELECT SWITCH
This allows monitoring of the MASTER OUT (#1,#2) or the CF MONITOR (@2).
!3 Q-STICK ON/OFF SWITCH
When this switch is on, the Q-stick functions. When this switch is off, the Q-stick does not function.
!4 Q-STICK(Quadraphonic Stick)
Controls the volume sent to the four speakers or zones.
6
FRONT PANEL SECTION
NORMAL NORMAL NORMAL
REVERSE
CURVE CURVE CURVE
I.F. REV. I.F. REV.C.F. REV.
PHONES 1
PHONES 2
REVERSE REVERSE
PROFESSIONAL QUADRAPHONIC DJ MIXER
PMC-07ProISP
PGM 1 CROSS FADER PGM 2
27
28
25 26 25
23 24 23
@3 IF REVERSE SWITCH
Reverses the action of the inputfader by making the zero point top instead of bottom. Reverse mode is indicated in LED section.
@4 CF REVERSE SWITCH
Reverses the action of the crossfader by switching PGM1 and 2. Reverse mode is indicated in LED section.
@5 IF CURVE SELECT VOLUME
Adjusts the input fader curve for steep or gentle slope.
@6 CF CURVE SELECT VOLUME
Determines the slope characteristics of the crossfader's curve from steep to gradual.
@7 MINI HEADPHONE JACK [φ3.5 ]
Connect headphones with 1/8" mini headphone plug.
@8 HEADPHONE JACK [φ6.3 ]
Connect headphones with a standard 1/4" stereo plug.
1
2
3
L
L
E E
V
POSITION

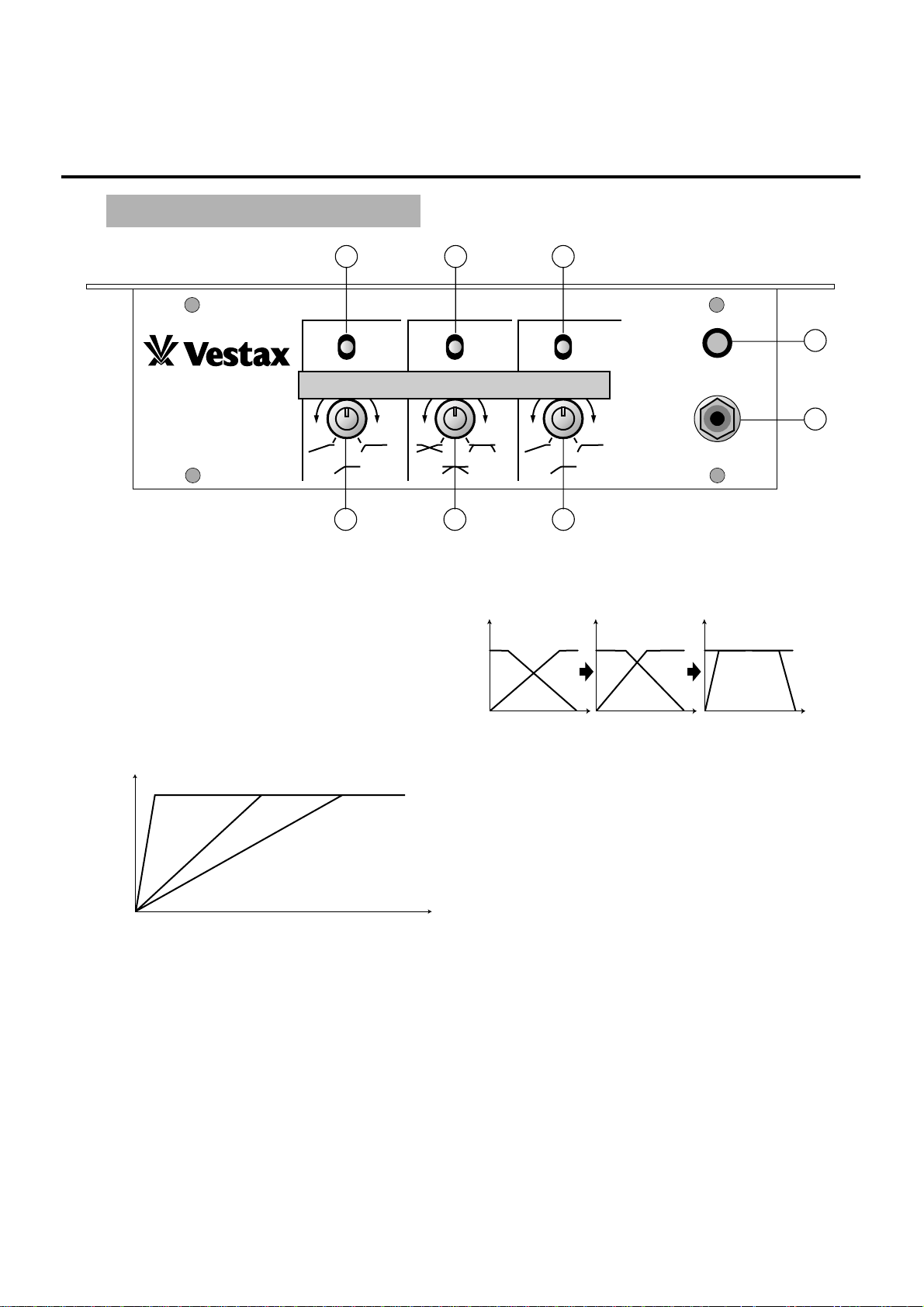

fig.A INPUT FADER CURVE
○1○
2
3
Rotate clockwise this volume, I.F curve changes like a chart ( ) 
1
2
3
○1○
2
3
L
L
E E
V
POSITION POSITIONPOSITION
fig.B CROSS FADER CURVE
Rotate clockwise this volume,  C.F curve changes like a chart (   →   →   )
7
REAR PANEL SECTION
@9 POWER SWITCH
Power for mixer, on status indicated by POWER LED(!6) on top panel; should be turned on after all connections are made.
#0 AC POWER JACK
Connect AC ADAPTOR (AC-12A) in here before switching on power.
#1
MASTER OUT JACK-FRONT
[1/4 inch TRS balanced]
Main output jacks for front left and front right speaker zones. Connect to power amp or crossover.
#2
MASTER OUT JACK-REAR
[1/4 inch TRS balanced]
Main output jacks for rear left and rear right speaker zones. Connect to power amp or crossover.
#3
SUB MASTER OUT JACK-FRONT
[1/4 inch PHONE JACK unbalance]
Sub output jack for front left and front right speaker zone. Unbalanced connectors at
-4dBm for monitoring etc.
#4
SUB MASTER OUT JACK-REAR
[1/4 inch PHONE JACK unbalance]
Sub output jack for rear left and rear right speaker zone. Unbalanced connectors at
-4dBm for monitoring etc.
#5
SESSION IN JACK-FRONT [1/4 inch PHONE JACK]
Allows front 1/4 inch chain connection with multiple PMC-07ProISP mixers.
#6
SESSION IN JACK-REAR [ 1/4 inch PHONE JACK ]
Allows rear 1/4 inch chain connection with multiple PMC-07ProISP mixers.
#7 AUX SEND J ACK
[1/4 inch PHONE JA CK ]
Connect to the input of external effects. (delay, reverb etc.)
#8 AUX RETURN JACK
[1/4 inch PHONE JACK]
Connect to the output of external effects . (delay, reverb etc.)
#9 PHONO INPUT JACK [ RCA JACK ]
This input for turntables with MM cartridges only.
$0 GROUND(GND) TERMINAL
The grounding lugs for turntables. Ground for phono circuit necessary to avoid hum.
1
2
L
R
LRLRLR
LR
GND
SESSION IN AUX SEND
AUX RTN
PHONO INMASTER SUB MASTER
AC 12V
FRONTREAR
POWER
SERIAL NO.
MADE IN JAPAN
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT OPEN
WARNING;SHOCK HAZARD-DO NOT OPEN.
AVIS;RISQUE DE CHOC ELELCTRIQUE -NE PAS OUVRIR.
PROFESSIONAL QUADRAPHONIC DJ MIXER
PMC-07ProISP
31
33
35
37
39
40
383634323029
Note
These connectors are Tip=hot, Ring=cold, Sleeve=ground.
Note
As a general rule for protection, the amp should be turned on last and turned off first.
Note
UNAUTHORIZED POWER ADAPTORS MAY CAUSE HARM TO UNIT.
Note
See "CHAIN CONNECTION DIAGRAM" of page 10.
HOT COLD GND
fig.C T.R.S JACK
8
HOW TO REMOVE THE TOP PANEL
Note
Use a plus driver fitting screw. Caution: When you change any parts, do not loose the screws with marking.
HOW TO CHANGE THE FADER UNIT
Top panel
Driver
Knob
Main panel
Driver
Insert the
multi-cable connector
QS-07
ISP
Insert the
multi-cable connector
q Remove each fader knobs and 4 screws which
fix the top panel.
w Remove the top panel.
q Remove the two screws on the fader panel. w Remove the fader unit from position in mixer. e Carefully remove the multi-cable connector
from fader unit.
r Attach multi-cable connector to new fader unit. t Position the fader unit carefully and secure with
screws.
HOW TO CHANGE THE Q-STICK UNIT
q Remove the three screws on the Q-stick panel. w Remove the Q-stick unit from position in mixer. e Carefully remove the multi-cable connector from
Q-stick unit.
r Attach multi-cable connector to new Q-stick unit. t Position the Q-stick carefully and secure with
screws.
HOW TO CHANGE THE FADER UNIT
9
CONNECTION (EXAMPLE)
1
2
L
R
LRLRLR
LR
GND
SESSION IN AUX SEND
AUX RTN
PHONO INMASTER SUB MASTER
AC 12V
FRONTREAR
POWER
SERIAL NO.
MADE IN JAPAN
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT OPEN
WARNING;SHOCK HAZARD-DO NOT OPEN.
AVIS;RISQUE DE CHOC ELELCTRIQUE -NE PAS OUVRIR.
PROFESSIONAL QUADRAPHONIC DJ MIXER
PMC-07ProISP
AMPLIFIER
FRONT
SPEAKER
FRONT
SPEAKER
AMPLIFIER
REAR
SPEAKER
REAR
SPEAKER
TURN TABLE
EFFECTOR
TURN TABLE
to MASTER OUT-FRONT
to MASTER OUT-REAR
to AUX RTN
to AUX SEND
LINE IN
LINE IN
to PHONO2
to PHONO1
PMC-07Pro REAR PANEL〕
R
RED
R
RED
R
RED
R
RED
to GND
L
WHITE
L
WHITE
L
WHITE
L
WHITE
to GND
GND
OUTPUT
OUTPUT
OUTPUT
INPUT
CONNECTION DIAGRAM
10
1
2
L
R
LRLRLR
LR
GND
SESSION IN AUX SEND
AUX RTN
PHONO INMASTER SUB MASTER
AC 12V
FRONTREAR
POWER
SERIAL NO.
MADE IN JAPAN
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT OPEN
WARNING;SHOCK HAZARD-DO NOT OPEN.
AVIS;RISQUE DE CHOC ELELCTRIQUE -NE PAS OUVRIR.
PROFESSIONAL QUADRAPHONIC DJ MIXER
PMC-07ProISP
1
2
L
R
LRLRLR
LR
GND
SESSION IN AUX SEND
AUX RTN
PHONO INMASTER SUB MASTER
AC 12V
FRONTREAR
POWER
SERIAL NO.
MADE IN JAPAN
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT OPEN
WARNING;SHOCK HAZARD-DO NOT OPEN.
AVIS;RISQUE DE CHOC ELELCTRIQUE -NE PAS OUVRIR.
PROFESSIONAL QUADRAPHONIC DJ MIXER
PMC-07ProISP
1
2
L
R
LRLRLR
LR
GND
SESSION IN AUX SEND
AUX RTN
PHONO INMASTER SUB MASTER
AC 12V
FRONTREAR
POWER
SERIAL NO.
MADE IN JAPAN
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT OPEN
WARNING;SHOCK HAZARD-DO NOT OPEN.
AVIS;RISQUE DE CHOC ELELCTRIQUE -NE PAS OUVRIR.
PROFESSIONAL QUADRAPHONIC DJ MIXER
PMC-07ProISP
L
WHITE
R
RED
L
WHITE
R
RED
L
WHITE
R
RED
L
WHITE
R
RED
L
WHITE
R
RED
L
WHITE
R
RED
L
WHITE
R
RED
L
WHITE
R
RED
R
RED
L
WHITE
R
RED
L
WHITE
TO AMPLIFIER
TO AMPLIFIER
SESSION
IN REAR
MASTER
OUT REAR
SESSION
IN FRONT
MASTER
OUT FRONT
SESSION
IN REAR
MASTER
OUT REAR
SESSION
IN FRONT
MASTER
OUT FRONT
When multiple mixers are used, the MASTER OUT of one mixer is connected to the SESSION IN of another.The volume is adjusted by
the SESSION MIX VOLUME (
!1).
EXAMPLE1】〜 Chain connection of more than one PMC-07ProISP 〜
CHAIN CONNECTION DIAGRAM
CHAIN CONNECTION
11
EXAMPLE2】〜 Chain connection of PMC-07ProISP and other mixers 〜
SUB
LRLRLR
LR
GND 1GND 2
MAIN
PROFESSIONAL MIXING CONTROLLER
LINE 2 LINE 1
PHONO 2MASTER OUT 2 PHONO 1
SESSION IN
MASTER OUT 1
AC 12V
POWER
SERIAL NO.
MADE IN JAPAN
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT OPEN
WARNING;SHOCK HAZARD-DO NOT OPEN.
AVIS;RISQUE DE CHOC ELELCTRIQUE -NE PAS OUVRIR.
1
2
L
R
LRLRLR
LR
GND
SESSION IN AUX SEND
AUX RTN
PHONO INMASTER SUB MASTER
AC 12V
FRONTREAR
POWER
SERIAL NO.
MADE IN JAPAN
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT OPEN
WARNING;SHOCK HAZARD-DO NOT OPEN.
AVIS;RISQUE DE CHOC ELELCTRIQUE -NE PAS OUVRIR.
PROFESSIONAL QUADRAPHONIC DJ MIXER
PMC-07ProISP
1
2
L
R
LRLRLR
LR
GND
SESSION IN AUX SEND
AUX RTN
PHONO INMASTER SUB MASTER
AC 12V
FRONTREAR
POWER
SERIAL NO.
MADE IN JAPAN
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT OPEN
WARNING;SHOCK HAZARD-DO NOT OPEN.
AVIS;RISQUE DE CHOC ELELCTRIQUE -NE PAS OUVRIR.
PROFESSIONAL QUADRAPHONIC DJ MIXER
PMC-07ProISP
R
RED
L
WHITE
R
RED
L
WHITE
R
RED
L
WHITE
R
RED
L
WHITE
R
RED
L
WHITE
R
RED
L
WHITE
R
RED
L
WHITE
R
RED
L
WHITE
TO AMPLIFIER
TO AMPLIFIER
SESSION
IN REAR
MASTER
OUT REAR
SESSION
IN FRONT
MASTER
OUT FRONT
SESSION
IN FRONT
OUT PUT
ex
Note
Chain connection with other mixers is restricted to FRONT SESSION IN (Do not use REAR SESSION IN).
12
BLOCK DIAGRAM
PMC-07 Pro ISP BLOCK DIAGRAM
PGM 2
PHONO IN
A X B
A X B
PGM 1
PHONO IN
L
L
L
R
R
R
RIAA
RIAA
RIAA
GAIN
A
C
D
A
B
B
GAIN
EQ
EQ
C
D
E
G
H
F
I.F
CURVE
I.F
REVERSE
C.F
REVERSE
EFFECT R T N
SELECTO R
EFFECT RT N
EQ
SESSION IN
FRONT Rch (0 dB)
SESSION IN
FRONT L ch (0 dB)
SESSION
LEVEL
SESSION IN
REAR Rch (0 dB)
SESSION IN
REAR Lch (0 d B)
I.F
REVERSE
I.F 1
I.F 2
C.F
C.F
CURVE
I.F
CURVE
E
G
H
F
MONI TOR
SELEC TOR
MONI TOR C.F
PHONES LEVE L
SUB MASTER OUT
FRONT L ch (0 dB)
MASTER OUT
FRONT L ch (+4 dB)
MASTER OUT
FRONT Rch (+4 dB)
SUB MASTER OUT
FRONT Rch (0 dB)
SUB MASTER OUT
REAR Rc h (0 d B )
SUB MASTER OUT
REAR Lch (0 dB)
MASTER OUT
REAR Lch (+4 dB)
MASTER OUT
REAR Rc h (+4 dB)
PHONES OUT
PHONES OUT
(MINI)
MASTER
LEVEL
M
M
M
M
-1
-1
-1
-1
MASTER
TRIM
PGM 2
PGM 2
MASTER
MASTER
MASTER
L ch
MASTER
R ch
PGM 2
PGM 1
MASTER
CUE
CUE
MASTER
PGM 1
PGM 1
A
A
B
B
LOW
MID HI
LOW
MID HI
LOW
EFFECT
RTN
EFFECT RT N
LEVEL
EFFECT S EN D
MASTER LEVEL
EFFECT SEND
LEVEL
EFFECT SEND
LEVEL
EFFECT
SEND
HI
REVERSE S W
JOYSTIC K ON/ OFF SWJOYSTICK ON/OF F SW
PGM 1/L ch
PGM 2/R ch
RIAA
VCA
VCA
13
I.S.P model
I.S.PInvisibl Skratch Piklz.
World Champion performance DJ group I.S.P composed of Yogafrog, Q-Bert, Mixmaster Mike, D-Styles and Shortkut.
I.S.P reign as world champion of Turntablists and go on breaking new ground for DJ culture. The PMC-07ProISP continues in that tradition of top performance mixer and innovative ideas at ISP's request.
14
SPECIFICATIONS
RATED INPUT MAXlMUM INPUT IMPEDANCE INPUT PHONO 12 L/R(RCA PIN JACK) -46dBv -22.4dBv 56kΩ SECTION SESSION IN L/R(1/4"PHONE JACK -6dBv 11.4dBv 48kΩ
RETURN IN L/R(1/4"PHONE JACK -10dBv 14dBv 18kΩ
RATED OUTPUT MAXlMUM OUTPUT LOAD IMPEDANCE OUTPUT MASTER L/R(1/4" TRS BALANCED) 0dBv 17.5dBv ≧3kΩ SECTION
SUB MASTER L/R
1/4" JACK UNBALANCED
-6dBv 11.4dBv 3kΩ SEND OUT L/R(1/4"JACK 0dBv 14dBv 3KΩ HEADPHONE(1/4"PHONE JACK
47Ω load 100mW 8600Ω
FREQUENCY RESPONSE 20Hz 20Hz POWER SUPPLY AC12V 1000mA
S/N RATIO -65dB DIMENSIONS(W×H×D)mm 262×105×375
WEIGHT 3.5kg
Vestax Corporation
JUNE.2000 PMC-07Pro ISPE
Loading...
