CONGRATULATIONS!

Thank you for purchasing the VESTAX PMC-06ProD. Please read this owner's manual carefully before you start to
use in order to understand fully how it to operate your new mixer.

FEATURES

The new Vestax Digital Fader System consists of coils and a permanent magnet. There is no contact between
these parts. Therefore, neither the element or magnet gets degraded or damaged even after hard usage.
Unlike an optical type fader, the digital fader system does not get effected even by liquid spills or dusts.

Control of the fader curve by a complete digital signal system, enabling creation of sharp edges in the curve
pattern.

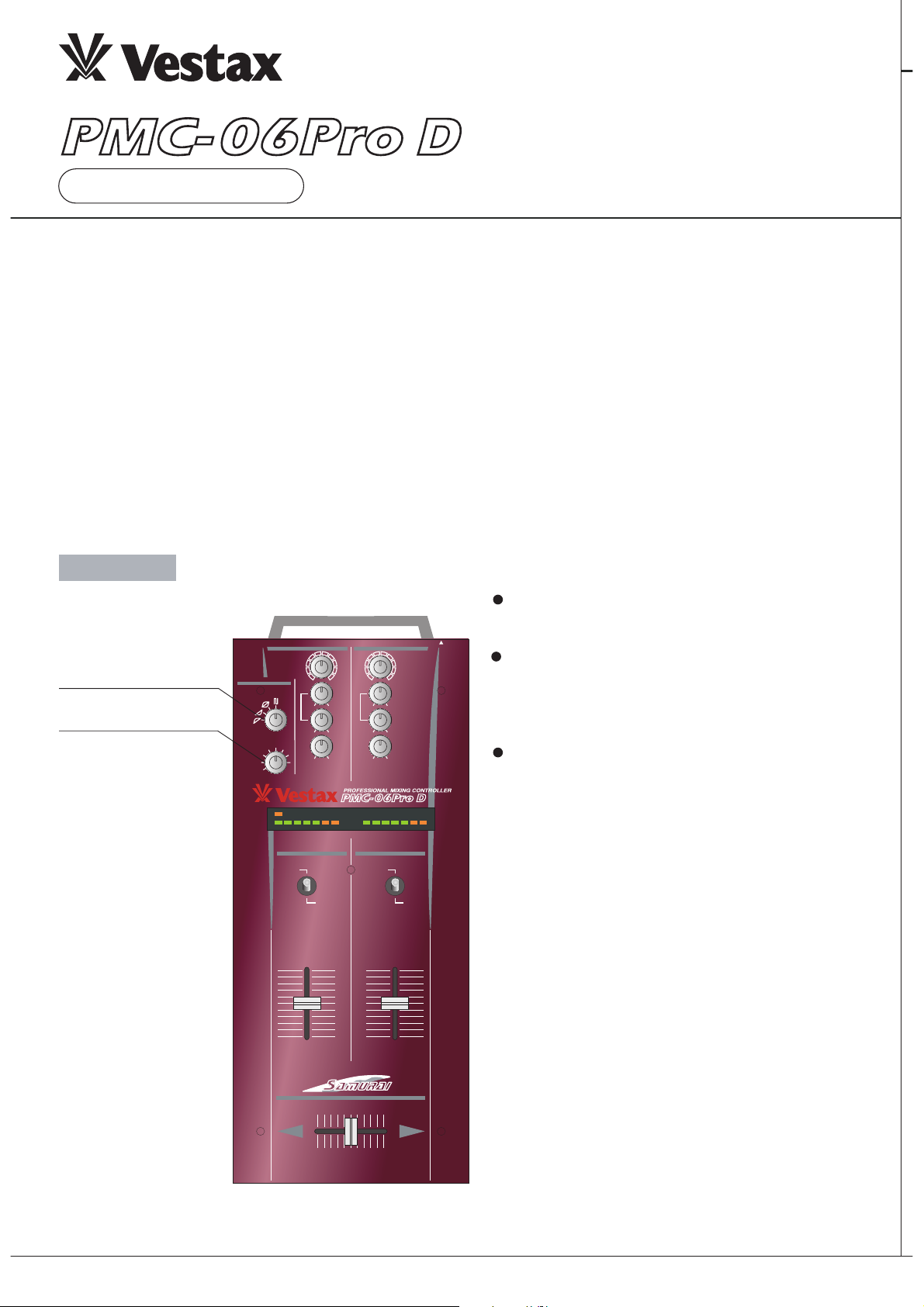

FUNCTIONS

TOP PANEL

(a) CURVE PATTERN SWITCH

(b) C.F. FINE CONTROL

PGM 1 PGM 2

TRIM

DIGITAL FADER CONTROL

CURVE
PATTERN

C.F. FINE

POWER

4

3

2

1

-20 -10 -6 -3 0 +3 +6

MAXMIN

PHONO 1

10
9
8
7
6
5
4
3
2
1
0

EQ

BAL

PGM 1

TRIM

MIN MAX MIN MAX

HI

-12 +12 -12

LO

-12

LEFT RIGHT LEFT RIGHT

LEVEL LEVEL

EQ

HI

LO

+12 -12 +12

BAL

(dB) -20 -10 -6 -3 0 +3 +6

LINE 1

PHONO 2

10

9
8
7
6
5
4
3
2
1
0

+12

PGM 2

LINE 2

POWER

CURVE PATTERN SWITCH(a) selects the cross­ fader curve pattern.

Setting the C.F. FINE CONTROL to minimum, the
crossfader curve is most sharp, moving the control
clockwise, towards max, gradually reduces the
sharpness of the curve (b).

The replacement crossfader unit for PMC-06ProD
is "CF-X".
"CF-05PRO", "CF-PCV" cannot be substituted in
this mixer.

21

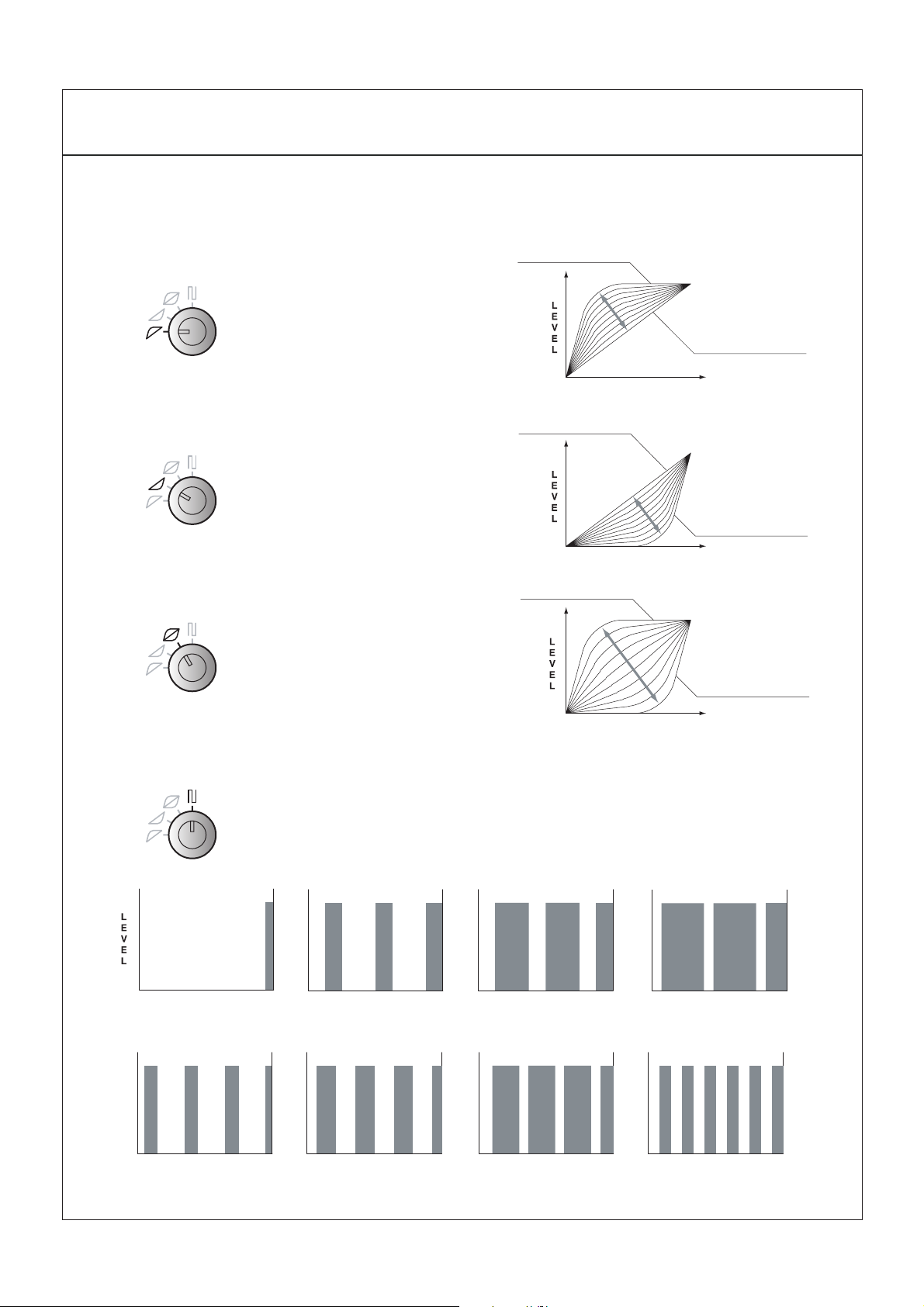

PRE-SET CURVE

Using curve pattern switch,select the crossfader curve pattern from SHAPE1- 4,to set the cross­fader pattern.

SHAPE 1:

3

2

1

SHAPE 2:

3

2

1

SHAPE 3:

3

2

1

C.F. FINE CONTROL : MIN

4

As this curve shape is very sharp, it is
used for hard scratch play.
Setting C.F. FINE CONTROL to
minimum, the curve sharp is most
sharp. As the switch moves closer to
max, the curve sharpness reduces.

C.F.POSITION

4

4

This curve shape is "A" type curve.

In this position, switching C.F. FINE
CONTROL from MIN to MAX, the

C.F. FINE CONTROL : MIN

C.F.POSITION

C.F. FINE CONTROL : MIN

C.F. FINE CONTROL : MAX

C.F. FINE CONTROL : MAX

crossfader curve shape changes
from slow slope curve to sharp slope
by 8 steps.

C.F. FINE CONTROL : MAX

SHAPE 4:

3

2

1

C.F.POSITION

C.F. FINE CONTROL : MIN

C.F.POSITION

4

This curve shape is rectangle wave type. Moving the crossfader from right to left or from
left to right, it performs like a "transformer scratch". Switching C.F. FINE CONTROL, the 8
patterns crossfader curve shape can be selected. It enables selection of the 8 patterns of
curve shape as fig 1- fig 8 below.

fig-2

fig-3 fig-4fig-1

fig-7fig-6fig-5

fig-8

C.F. FINE CONTROL : MAX
