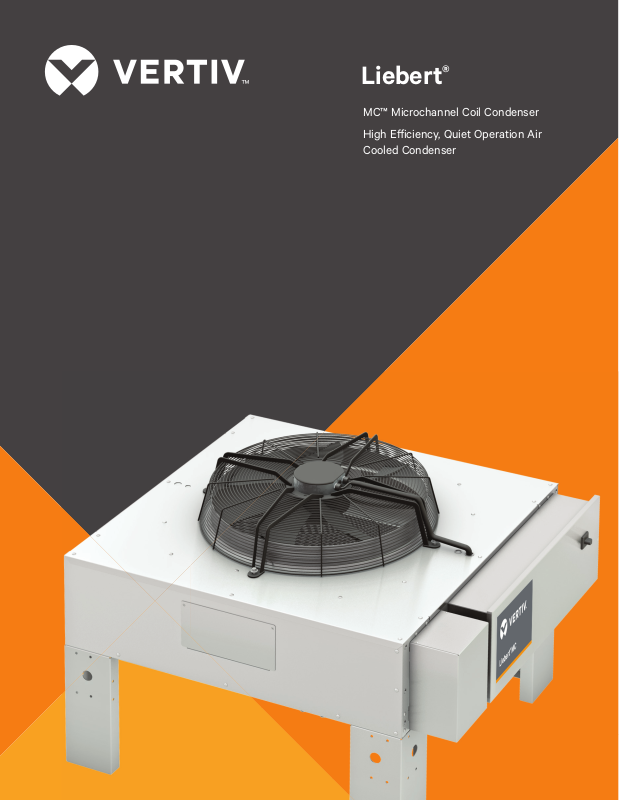

Liebert
MC™ Microchannel Coil Condenser
High E iciency, Quiet Operation Air
Cooled Condenser
®
Condenser Input Power, kW
Condenser Input Power, kW
LIEBERT® MC™ MICROCHANNEL COIL CONDENSER
As IT budgets constrict, data center
managers require new, higher levels of
energy e iciency to provide the
innovations and technologies that today’s
critical business needs demand.
The Liebert® MC Condenser from Vertiv™
is an air-cooled condenser designed to
deliver energy e iciency. With an
exclusive microchannel coil design, this
condenser o ers a highly e icient, system
matched heat rejection solution that
reduces energy costs and operational
expenses.
EFFICIENT, QUIET AIR COOLED CONDENSER
Liebert MC Condenser Energy Savings – Reduced
Operating Expenses
Liebert MC condenser operates with higher e iciency than fin and tube
condensers, with an annual savings of up to 85%. The savings are even greater
when the flooded receiver system winter operation option is applied.
Standard Ambient Systems
30 Ton Liebert DS @ 100% Load
The Liebert MC Condenser:
Improves unit and system e iciency at
full and partial loads
Increases condenser full load energy
e iciency by 30-50%
Reduces refrigerant volumes and
decreases refrigerant charge levels in
matched condensers – by more than
50% on condensers without flooded
receiver systems and more than 20%
on condensers equipped with flooded
receiver systems
Is compatible with Copeland® Digital
Scroll™ Technology compressors
Lowest Total Cost of Ownership:
Electrically Commutated (EC) Fans
reduce annual condenser energy
requirements 50-95% over traditional
condensers
Liebert MC condenser reduces annual
energy requirements of Computer
Room Air Conditioning (CRAC)
systems by 5-10% (15-25% for flooded
receiver systems)
Reduced refrigerant requirements
- lower installation cost
Microchannel coil provides enhanced
energy e iciency and 20-50% lighter
installed weight
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
-15 15 25 35 45 55 65 75 85 95-5 5
4-Fan VFD F/T
Liebert MC 2-Fan
Outdoor Ambient Temp (°F)
Low Ambient Systems (Flooded Receiver)
30 Ton Liebert DS @ 100% Load
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
-15
4-Fan F/T with Receivers
Liebert MC 2-Fan with Receivers
Power Savings Potential
15 25 35 45
Outdoor Ambient Temp (°F)
Power
Savings
Potential
55 65 75 85 95-5 5
2
Flexibility:
Multiple voltage configurations
available to match electrical needs
2.5 - 5.5 dBA lower sound level than
alternative condensers, allowing
installation in regulated environments
Condenser is compatible with R-410A
and R-407C refrigerants
Quietline mode of operation -
automatically controlled by the
Liebert® iCOM™ indoor unit to operate
fans at reduced speeds resulting in
reduced sound levels
Higher Availability:
Liebert® iCOM from indoor cooling
system to condenser communications
improve condenser control, and o er
enhanced monitoring capability both
at the Liebert iCOM local display and
at a BMS interface
Highly reliable and e icient fan motor
and controls
Helps systems meet government
energy e iciency standards, seismic
and wind load regulations to IBC2007,
and OSHPD compliance
Industry’s largest factory-trained
service organization provides
scheduled maintenance, 24 x 7
support, local parts, and an average 4
hour response time for service
Ideally Suited For Use With:
Liebert CRV™
Liebert Challenger™ 3000
Liebert DS™
Liebert DSE™
Microchannel Aluminum Coils
Liebert MC is compatible with indoor
cooling units equipped with Copeland®
The Liebert MC Condenser leverages
cutting-edge technologies such as a
microchannel coil and EC fans, to deliver
unmatched levels of operational e iciency.
One-Fan Microchannel
Coil Condenser
Two-Fan Microchannel
Digital Scroll™ Technology compressors
and Liebert iCOM controls, allowing
variable speed operation for cooling
e iciency and reduced operating costs.
Coil Condenser
Four-Fan Microchannel
Coil Condenser
Liebert® MC™ Condenser – Technical Specifications
LIEBERT
MC MODEL
MCS028
MCS056 2 5 63 288
MCM040 1 3.5 65 231
MCM080 2 8.5 68 441
MCM160 4 17 71 860
MCL055 1 5 68 344
MCL110 2 10 71 602
MCL165 3 Liebert DSE Only 73 891
MCL220 4 25 74 1186
Note: Standard (Non flooded receiver systems), Sound @ 10’
REFRIGERANT
TYPE
R-407C or R-410A
# OF
FANS
REFRIGERANT
CHARGE, LB
1 2.5 60 154
LIEBERT MC SOUND
PRESSURE, DBA
WEIGHT, LB
3
