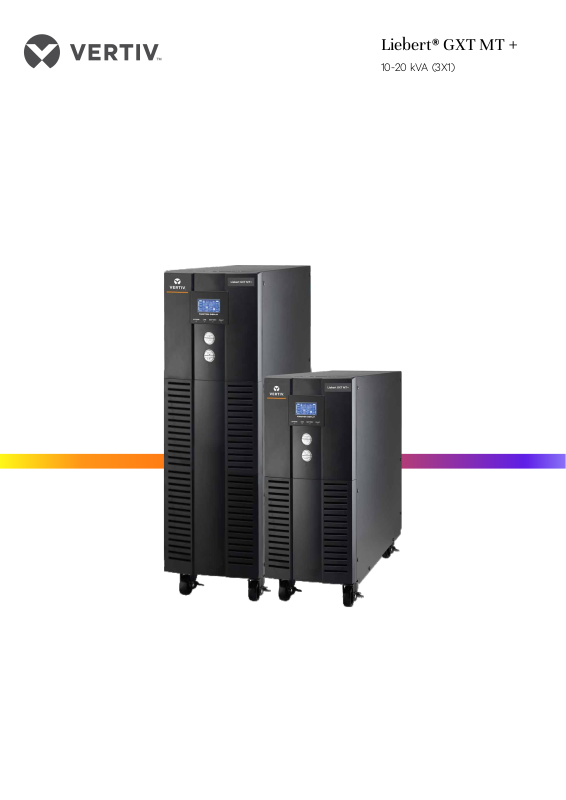

Liebert® GXT MT +
10-20 kVA (3X1)
Liebert® GXT MT + 10-20 kVA (3X1)
Features
IGBT Based Rectifier
True Online Double Conversion
with DSP Control Technology
for High Performance and
Reliability.
New Graphical LCD Display
Provides UPS Data, Alarms and
Helps in faults diagnostics and
trouble shooting.
Double Conversion Eiciency
upto 90%.
Active Input Power Factor
Correction 0.99.
0.9 Output Power Factor.
Wide Input Voltage window
(110 - 280 Vac) for Indian
Environmental Condition and
for Optimized Battery
Performance.
True Online Double Conversion UPS with
extended runtime capabilities
Liebert® GXT MT+ Series systems is true double conversion online UPS systems
designed to provide with a capacity of 10-20kVA. Liebert® GXT MT+ units feature
total isolation of the load from the mains - isolating input and output sections, and
making the systems ideal for Data Networks / Small Data Centers/VOIP application.
The units support hot standby configuration, making them suited for critical
applications like banks.
Configurable Output Voltage
(200/208/220/230/240 Vac.)
Generator Compatible with
Wide Input Frequency Range
(40 Hz-70 Hz).
4 Stage Extendable Charging
Design for optimized Battery
Performance.
Adjustable Battery Charging
Current up to 12A according to
Battery Capacity and Rating.
50/60 Hz Automatic
Frequency Converter Mode.
Intelligent Monitoring with
Standard RS232/USB Port Plus
Slot Available for RS485/Dry
Contact/SNMP Card.
Inbuilt OVCD.
Liebert® GXT-MT+ 10-20 kVA (3X1)
2
Technical Specifications
Model GXT MT+ 10KVA (3X1) GXT MT+ 20KVA (3X1)
Phase 3 phase in / 1 phase out
Capacity 10000 VA / 9000 W 20000 VA / 18000 W
Input Characteristics
Nominal Voltage 3 x 400 VAC (3Ph+N)
Voltage Range 305-478 VAC (3-phase) @ 100% load
Frequency Range 46~54 Hz or 56~64Hz
Power Factor ≥ 0.99 @ 100% load
Thdi < 6% @ 100% load
Output Characteristics
Output Voltage 208**/220/230/240VAC
Voltage Regulation ± 1%
Frequency Range (Synchronized Range) 46~54Hz or 56~64Hz
Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio 3:1 (max.)
Harmonic Distortion ≤ 2 % THD (Linear Load) ; ≤ 5 % THD (Non-linear Load)
Transfer Time
Waveform Pure Sinewave
Ac Mode Effiiciency >92%
Eco Mode Efficiency 97%
Battery Characteristics
Battery Type Lead acid/Tubular/Li-ion
Numbers 18-20***(adjustable)
Charging Current (Max.) 12A settable to 2/4/6/8/10/12 Amps
Charging Voltage 273 VDC ± 1% (Based on 20pcs bateries)
Indicators
Lcd Panel UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
Alarm
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Countinuously sounding
Physical
Dimension, D X W X H (mm) 592 X 250 X 576 592 x 250 x 826
Net Weight (Kgs) 28 45
Environment
Operation Humidity & temperature 0-95 % RH @ 0- 50°C**** (non-condensing)
Noise Level < 58dB @ 1 Meter < 60dB @ 1 Meter
Management
Smart Rs-232/Usb Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP Power management from SNMP manager and web browser
zero
zero
* Product specifications are subject to change without further notice
**Derate capacity to 90% of capacity when the output voltage is adjusted to 208VAC
***When using batteries from 18-19, the unit will be de-rate according to formula ; P= Prating X N/20
**** Derate to 80% capacity when ambient temperature is 45º-50º
