7224D Digital Phone Procedures

Getting Started

The 7224D is an advanced, user-friendly, digital keyset, offering the convenience of 3 soft buttons and a navigation key.

Features

• Multi Level 3 Line LCD (3 x 24)

• 24 Flexible buttons with dual-color LEDs

• Call Log Feature

• Wall Mountable (Bracket Optional)

Note: For use of the 7208D 8-button digital keyset, refer to Chapter 2.

1-1

SBX IP 320 User Guide

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

7224D Input/Output Devices and Buttons

4 5

6 7

11 12 13

1-2

15 16

SBX IP 320 User Guide

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

SBX IP 320 24-Button Keyset - Basic Features (4024-00)

1 Handset Used for handset call. 2 Headphone Jack This allows connection of a 2.5mm headset. 3 Speaker Device used to listen to a caller in a handsfree mode when in

speaker mode.

4 Speed Used to access speed dialing, save number redial, and last

number redial. Button is also used to access flexible button programming.

5 DND The Do Not Disturb feature lets you activate a “do not ring this

phone” mode. When DND is active, this button is red.

6 Speaker Button Speaker toggles speakerphone state between speaker mode and

handset mode. The button is red when speakerphone is active.

7 Hold/Save This button puts a call on hold or saves the PGM. 8 3 Soft Buttons Used to work in conjunction with fixed and flexible features. 9 LCD Display Displays phone status information, dialing directories, and test

message information.

10 Ring LED Illuminates when the phone is ringing. 11 Trans/PGM This button is used to set up a conference call or transfer a call. 12 Flexible 24 Flexible buttons are available for CO line, DSS/BLF, or feature

code assignment.

13 Call back A station can initiate a call back request to another busy station.

Once that station becomes idle, the station that left the call back request is signaled.

14 Volume The volume button adjusts the audio level. 15 MIC Microphone used to speak to a caller in a handsfree mode when in

speaker mode.

16 Menu (Ç key) Use the menu button to move to the desired option (Dial, MSG,

Program) and use for arrows key.

17 Phone Book (È

key)

Use this button to save a phone number and to make calls with saved information.

1-3

SBX IP 320 User Guide

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

Cable Connections

A - Connect the telephone cord (curly cord) to the handset and the other end to the handset jack at the bottom of the telephone. B - Connect the line cable to the port at the bottom of telephone and the other end to the wall socket. C - Connect the Headphone to the headphone jack on the left side of the telephone. (As viewed from the front.)

1-4

Placing or Answering Calls

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

Placing a Call

Intercom

1. Lift the handset or press [SPEAKER].

2. Enter the station number.

3. Talk.

-or-

1. Dial the station number or press a preprogrammed DSS button.

2. Talk.

CO Line

1. Lift the handset or press [SPEAKER].

2. Dial [9] or press CO line flexible button.

SBX IP 320 User Guide

3. Enter desired phone number.

Answering a Call

Intercom

1. Lift the handset or press [SPEAKER].

2. Talk.

CO Line

1. Lift the handset or press [SPEAKER].

2. Press the flashing CO line flexible button or Loop key.*

3. Talk. * = If PLA is enabled (default), you only need to lift the handset or press the Speaker button.

1-5

SBX IP 320 User Guide

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

Station User Programming

A Station User Program Menu Display is provided on the keyset LCD to assist you in programming the User Program Code features and functions.

• After pressing the [Trans/Pgm] button, items are available by dialing the Program Code directly or by either using the [VOL scroll through the keyset menu items.

• Dial pad keys are used to enter selected options.

Press the [Trans/Pgm] to enter the Station User Program Menu. The various levels of the display menu are indicated by indentation.

[1] Ring

[1] Station Ring Type - dial (1-4) [2] Answer Mode - dial (1-3); HTP [3] SMS Msg Display [4] Enblock Mode - dial 1, ON; dial 0, OFF [5] SMS / Notice Display - (Invalid) [6] Scroll Speed - (Invalid) [7] Ear-Mic Headset - dial 1, ON; dial 0, OFF

ST] buttons or the up/down navigation buttons to

[8] ICM Bell - dial (01-15) [9] CO Bell - dial (01-15) [#] PTT Group - (Invalid)

[2] COS

[1] COS Down [2] COS Restore [3] Walking COS - enter COS override code [4] COS Change - (Invalid) [5] SMS Inbox (000/000) - (Invalid) [6] Del All SMS Msgs - (Invalid)

1-6

[3] Auth / Mobile-Ext

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

[1] Auth Register - (Invalid) [2] Auth Change - enter current password [3] Reg Mobile-Ext - (Access Denied) [4] Active Mobile-Ext - (Access Denied) [5] Reg Mobile-Ext CLI - (Access Denied) [6] Active Mobile Hunt - (Access Denied) [7] MW to Mobile-Ext - dial 1, ON; dial 0, OFF

[4] Time / Conf-Room

[1] Set Wake Up Time - dial HH:MM [2] Wake Up Disable - dial HH:MM [3] Active Conf-Room - dial 1-9 and password [4] Deactive Conf-Room - dial 1-9 and password [5] Call Cover Attr

[1] Call Coverage Mode - dial 1, ON; dial 0, OFF

SBX IP 320 User Guide

[2] Delay Ring Cycle - dial 0-9

[5] Message

[1] Set Preselected Msg - enter Msg number [2] Set Custom Msg - enter Msg 00 (refer to “Entering Characters” on page 1-59)

[6] Announcement

[1] Rec User Greeting [2] Listen Time / Date [3] Listen Station Number [4] Listen Station Status [5] Record Page Msg [6] Erase User Greeting [7] Erase Page Msg [8] Outbound Notify - dial 1, ON; dial 0, OFF [9] Outbound Number - dial outbound telephone number

1-7

SBX IP 320 User Guide

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

[7] Supplementary

[*] System

[1] LCD Display Language [2] MPB Version Display [3] BGM - dial 00-08 [4] Register Sta Name - enter name (refer to “Entering Characters” on page 1-59) [5] Spk / Headset - dial 1, SPK; dial 0, Headset [6] Headset Ring Mode - dial 1, S; dial 2, H; dial 3, both [8] Serial Number [9] PC - Phone Lock Key

[#] Enter Admin [1] Relocation Out [0] Hotdesk Login [*] Hotdesk Logout

1-8

Soft Buttons and Navigation Button

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

Soft Buttons

The 3 Soft Buttons are located on the bottom of the LCD display . The function of each button changes, subject to call status and progress. The current functions are displayed on the LCD screen, directly above each button. For example, if the user calls a busy extension, busy tone will be heard and the busy status displayed. The LCD screen will display the busy message along with the different options available - “Message Wait”, “Camp-On” and “Flash”. By pressing the relevant button the desired feature is activated.

[CALLBK] CAMP(*) OHVO(#) MSG CAMP-ON FLASH

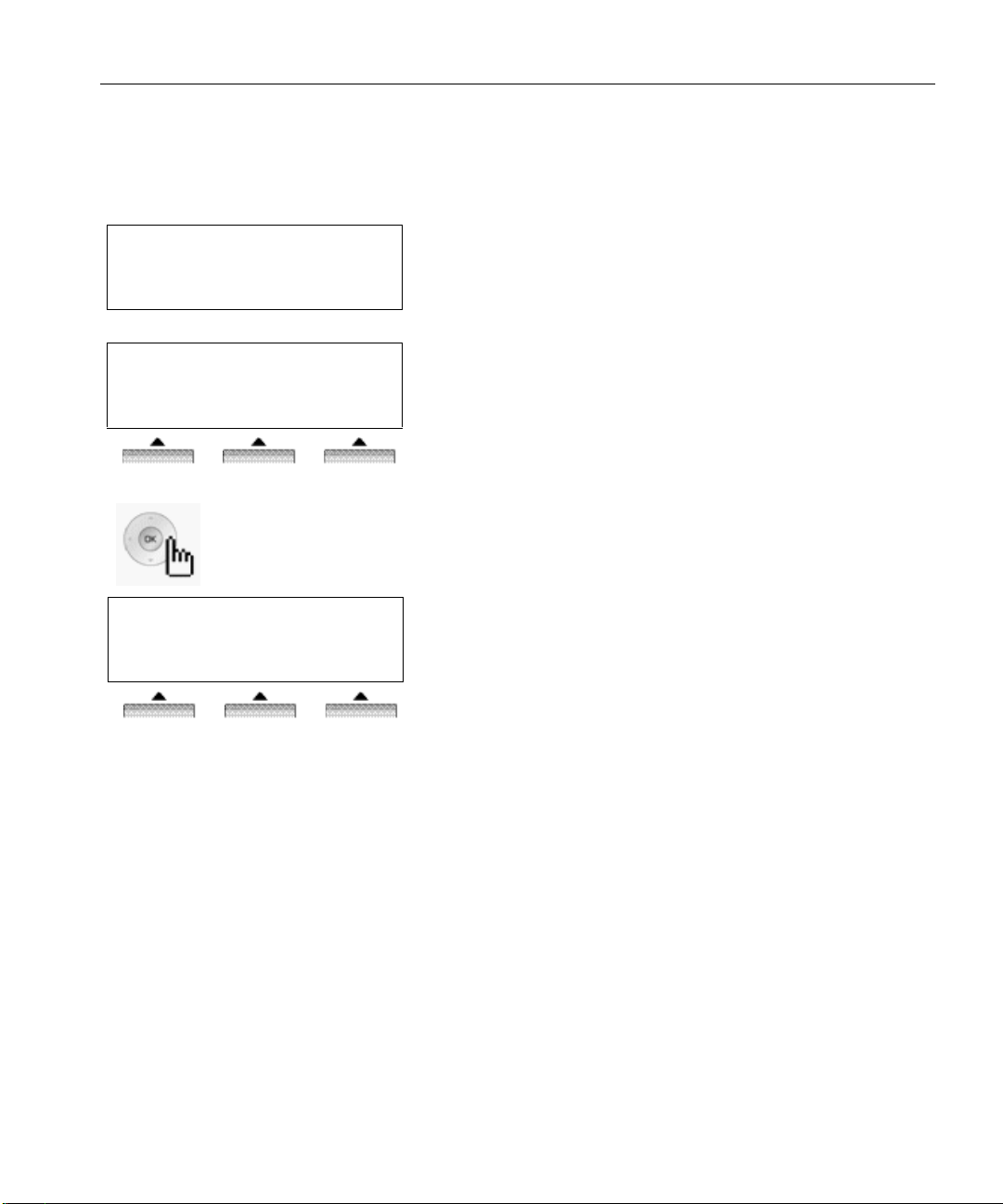

Navigation Button

In some instances, more than 3 current functions are available to the user, and this is indicated by the appearance of a left ( the navigation key (located below the volume button), in the direction corresponding to the arrow, any additional functions will be displayed.

←) or right (→) arrow in the LCD screen, (see below). By pressing

SBX IP 320 User Guide

BUSY : STA 100

STATION 100 (T)

APR 01 XX 05:34 pm FWD CONF REDIAL--> Forward to more options

STATION 100 (T)

APR 01 XX 05:34 pm

Back to previous options

<--ICM FLASH

1-9

SBX IP 320 User Guide

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

Basic Functions

Barge-In Monitor

Barge-in permits an authorized extension to intrude into other existing outside/internal calls. Between intruding extension and parties on initial calls, a conference call is established. (refer to the Programming Guide for detail).

BUSY : STA 101 [CALLBK] CAMP (*) STEP MSG CAMP-ON FLASH-->

BUSY : STA 101 [CALLBK] CAMP (* STEP <--MONITOR

MONITOR STA 101

JOIN DROP

MSG : Press to leave your station number or message. CAMP-ON : Press to send a call waiting tone to a busy station (indicating that they have a call waiting). FLASH : Press to disconnect the line and re-seize.

MONITOR : Press to listen to existing conversation (Barge-In Feature)

JOIN : Press to join the conversation during monitor DROP : Press to drop the conversation

1-10

Call Back

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

When a called station is busy , call back can be requested.

SBX IP 320 User Guide

BUSY : STA 105 [CALLBK] CAMP (*) STEP MSG CAMP-ON FLASH-->

Call Forward

ENTER FORWARD TYPE

( 0 - 9 , # )

Follow-me Forward

FOLLOW-ME FORWARD ENTER STATION NO.

Unconditional, Busy, No Answer, Busy/No Answer Forward

UNCONDITIONAL FORWARD ENTER STA/HUNT/#(VMIB)

MSG : Press to request call back. CAMP-ON : Press to send a call waiting tone to a busy station. FLASH : Press to disconnect the call and re-seize.

Press [ SPEAKER ] button. Press [ DND/FWD ] button.

Dial 0. Enter follow-me station number.

Enter forward type. 1: Unconditional 2: Busy 3: No answer 4: Busy/No answer Enter forward destination (STA/HUNT/VMIB). STA: station number, 100-132. HUNT: Hunt group, 620-629. VMIB: # ( Forward to VMIU)

1-11

SBX IP 320 User Guide

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

Unconditional, No Answer Off-net Forward with speed bin

FORWARD TO OFF-_NET ENTER CO BTN/SPD-BIN

Unconditional, No Answer Off-net Forward telephone number

FORWARD TO OFF-_NET ENTER CO BTN/SPD-BIN

Camp on

BUSY : STA 105 [CALLBK] CAMP(*) STEP

MSG CAMP-ON FLASH ->

Enter off-net forward type. 5: Unconditional 6: No answer Press desired CO button for off-net( This can be skipped.) Enter speed bin number. (station speed bin :000-099, system speed bin:2000-2499)

Enter off-net forward type. 8: Unconditional 9: No answer Press desired CO button for off-net( This can be skipped.) Enter telephone number.

When a called station is in a busy state, a camp-on can be requested.

1-12

Checking voice mail messages

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

SBX IP 320 User Guide

VMIB MSG FROM EXTERNAL

NEXT REPEAT DELETE-->

VMIB MSG FROM EXTERNAL

<--ADD REWIND CALLBK

CO Dialing

CO access codes "9" or "88XX" can be changed by PGM 107 depending on the user’s needs.

NEXT : Press to move to the next message. REPEAT : Press to repeat the current message. DELETE : Press to erase the current message.

Note: Voice mail message can be transferred to desired station by dialing station number while the message is playing.

ADD : Press to tag the current message with your comment before forwarding. REWIND : Press to repeat part of current message. CALLBK : Press to request a call back to the caller who leaved message.

Manual Dialing

STATION 100 (T) LINE 08 00:00:03 TRANS CONF MUTE-->

Press programmed flexible button for CO. (CO can be accessed by dialing CO access code 9 or individual CO access code 88XX. XX : CO line number, 01-12) Dial telephone number.

1-13

SBX IP 320 User Guide

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

Speed Dialing

SPD_NO LAST(*) SAVE(#) DIAL_BY_NAME([SPEED]) SPEED

1. DIAL BY ICM NAME

2. DIAL BY STA SPD NAME OK

CO Line Busy

CO LINE 001 BUSY QUEUEING ([CALLBK]) CALLBK

Press [SPEED] button. Dial speed bin number. (Station speed bin:000-099, System speed bin :2000-2499)

Press SPEED to search speed dial by name.

Press OK to enter DIAL BY STA / SYS SPD NAME.

Refer to “Phone Book” on page 1-52.

CALLBK: If, after dialing ‘9’ for a CO line, busy tone indicates no lines are available, press [CALLBK] to reserve a CO line. .

1-14

CO Talk

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

SBX IP 320 User Guide

12345678 LINE 08 00:00:03 TRANS CONF MUTE-->

12345678 LINE 08 00:00:03 RECORD FLASH ACNR-->

TRANS : Press to transfer a call to another station. CONF : Press to initiate a conference call. MUTE : Press to mute the handset, speakerphone, or headset microphone. Press the [SPEAKER] button to re- activate the microphone.

RECORD : Press to record the current conversation. (if outfitted) FLASH : Press to disconnect the line and re-seize. ACNR : Press to set automatic called number redial.

1-15

SBX IP 320 User Guide

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

Flexible Button Programming

1. Press the [TRANS/PGM] button.

2. Press the flexible button to be programmed.

3. Enter the desired feature code from the following table.

4. Press the [HOLD/SAVE] button to save. The following Numbering Plan code can be changed in PGM 104-107, 109 depending on the

user’s needs.

Numbering plan is applicable to both 8- and 24-button models, except as noted

Account Code TRANS/PGM + 80 Record Page MSG TRANS/PGM + 65

Alarm Reset 565 Record User Greeting TRANS/PGM + 61

Auth. Code Change TRANS/PGM + 32 Register Station Name TRANS/PGM + 74

Auth. Code Register TRANS/PGM + 31 Ring Answer Mode TRANS/PGM + 12

Background Music TRANS/PGM + 73 Ring Type TRANS/PGM + 11

Call Log TRANS/PGM + 57 Set Customer MSG TRANS/PGM + 52

Call Park 601-608 Set Pre-selected MSG TRANS/PGM + 51

Camp-on TRANS/PGM + 85 Set Wake-up Time TRANS/PGM + 41

COS Down TRANS/PGM + 21 Speakerphone/Headset TRANS/PGM + 75

COS Restore TRANS/PGM + 22 Speed Dial

Direct Station Select 100-132 Station speed dial SPEED + 000-099

Erase Page MSG TRANS/PGM + 67 System speed dial SPEED + 2000-2449

Erase User Greeting TRANS/PGM + 66 Two way recording TRANS/PGM + 54

Group Call Pick-up TRANS/PGM + 71 Universal Night Answer 569

Headset Ring Mode TRANS/PGM + 76 Wake-up Disable TRANS/PGM + 42

Hunt Group 620-629 Walking COS TRANS/PGM + 23

ICM Hold TRANS/PGM + 83 Button Assignment unique to 7208D

LCD Display Language TRANS/PGM + 71 CALLBK button TRANS + 92

Listen Station Number TRANS/PGM + 63 CONF button TRANS + 91

Listen Station Status TRANS/PGM + 64 DND button TRANS + 93

Listen Time & Date TRANS/PGM + 62 FLASH button TRANS + 94

LOOP button TRANS/PGM + 84 MUTE button TRANS + 95

MPB Version Display TRANS/PGM + 72 SPEAKER button TRANS + 96

Outside Line Access REDIAL button TRANS + 97

Group 801-808 H-T-P TRANS/PGM + 12

Group access 9

Individual Line Access 8801-8812

1-16

Idle

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

SBX IP 320 User Guide

Three Soft Buttons are located below the LCD display. By pressing one of the 3 soft buttons you are able to select the indicated function. For instance,

if you want to select call pickup (as shown below), press the first button on the left. If there are more than three functions available at any point, an arrow will be displayed on the LCD display. Use the navigation key to move to the next or previous screen to display additional functions.

STATION 100 (T) FEB 01 08 05:34 am PICKUP CONF REDIAL-->

Conference

You can establish a Conference with up to 15 parties. The other parties in the Conference may be internal or external.

CALL TO STA 100 FEB 01 08 05:34 am MSG FLASH

CALL TO STA 100 FEB 01 08 05:34 am TRANS CONF MUTE

PICKUP : press to pickup a call ringing within the same pickup group. CONF : press to initiate & activate a conference (displayed, but not

used at Idle)

REDIAL : press to redial last number called.

Dial the desired station number. (e.g.100) Station 100 answers the call.

Press the [CONF] button.

CONFERENCE FEB 01 08 05:34 am FWD CONF REDIAL-->

Dial the phone number of the next desired station (e.g.104).

1-17

SBX IP 320 User Guide

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

CALL TO STA 104 FEB 01 08 05:34 am MSG FLASH

CALL TO STA 104 FEB 01 08 05:34 am TRANS CONF MUTE

CONFERENCE FEB 01 08 05:34 am CONF MUTE

Pickup

A station can pickup a call ringing to an unattended station within the same pickup group by using the pickup procedure.

Note: Refer to the SBX IP 320 Programming Guide.

Station 104 answers the call.

Press the [CONF] button twice.

A 3-party conference is now established.

STATION 100 (T) FEB 01 08 05:34 am PICKUP CONF REDIAL

CALL TO STA 104 FROM 100 05:34 am TRANS CONF MUTE-->

1-18

Press the [PICKUP] button.

Talk.

SBX IP 320 User Guide

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

Redial

The last number dialed on an external call is automatically saved in the LAST Number& Redial (LNR) buffer or Call Log buffer.

STATION 100 (T) FEB 01 08 05:34 am PICKUP CONF REDIAL

> 1234567 FEB 01 08 05:34 am BACK DELETE OK

> 1234567 LINE 008 00:00:10 TRANS CONF MUTE-->

Intercom Busy

BUSY : STA 105

[CALLBK] CAMP(*) STEP

MSG CAMP-ON FLASH ->

Press the [REDIAL] button.

Press the [OK] button to call the number listed or press the Èdown navigation key to view scroll through additional numbers dialed recently.

Talk.

Intercom Dialing

STATION 100 (T) FEB 01 08 05:34 am PICKUP CONF REDIAL

Dial a Station number or press a programmed flexible button for a station number.

1-19

SBX IP 320 User Guide

For Review Only - Draft Document 11/26/07 COMPANY CONFIDENTIAL - DO NOT Distribute

Intercom Dialing Error

INVALID

FEB 01 08 05:34 am FLASH

Intercom Do Not Disturb

DO NOT DISTURB STA 100

CALLBK FLASH

Intercom Ring Back

CALL TO STA 100 FEB 01 08 05:34 am MSG FLASH

FLASH: Press to disconnect the line and re-seize.

CALLBK : Press leave a call back request or message. FLASH : Press to disconnect the line and re-seize.

MSG : Press to leave your station number or message. FLASH : Press to disconnect the line and re-seize.

Intercom Receiving

CALL FROM STA 104 FEB 01 08 05:34 am DND

1-20

DND : Press to block all incoming calls. (Do Not Disturb)

+ 64 hidden pages

Vertical SBX IP 320, 7224D, 7208D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

7224D Digital Phone Procedures

Getting Started

7224D Input/Output Devices and Buttons

Cable Connections

Placing or Answering Calls

Placing a Call

Answering a Call

Station User Programming

Soft Buttons and Navigation Button

Soft Buttons

Navigation Button

Basic Functions

Barge-In Monitor

Call Back

Call Forward

Camp on

Checking voice mail messages

CO Dialing

CO Line Busy

CO Talk

Flexible Button Programming

Idle

Intercom Busy

Intercom Dialing

Intercom Dialing Error

Intercom Do Not Disturb

Intercom Ring Back

Intercom Receiving
