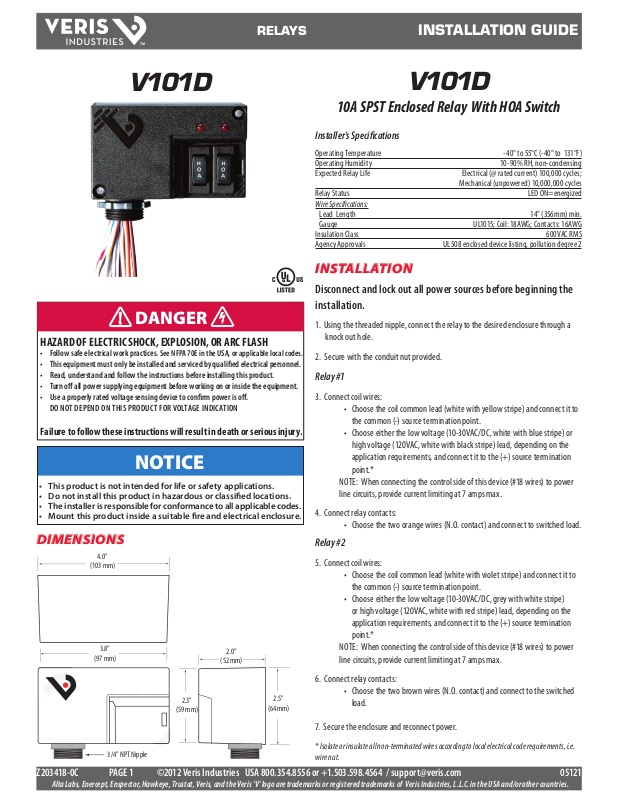

Veris V101D Installation Instructions
REL AYS
4.0"
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Follow safe electrical work practices.
See NFPA 70E in the USA, or applicable local codes.
• This equipment must only be installed and serviced by qualied electrical personnel.
• Read, understand and follow the instructions before installing this product.
• Turn o all power supplying equipment before working on or inside the equipment.
• Use a properly rated voltage sensing device to conrm power is o.
DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION
Failure to follow these instructions will result in death or serious injury.
DANGER
TM
INSTALLATION GUIDE
V10 1D
V10 1D
10A SPST Enclosed Relay With HOA Switch
Installer’s Specifications
Operating Temperature -40° to 55°C (-40 ° to 131°F)
Operating Humidity 10-90% RH, non-condensing
Expected Relay Life Electrical (@ rated current) 100,000 cyc les;
Mechanical (unpowered) 10,000,000 cycles
Relay Status LED ON=energized
Wire Specications:
Lead Length 14” (356mm) min.
Gauge UL1015; Coil: 18AWG; Contacts: 16AWG
Insulation Class 600VAC RMS
Agency Approvals UL508 enclosed device listing, pollution degree 2
INSTALLATION
Disconnect and lock out all power sources before beginning the
installation.
1. Using the threaded nipple, connect the relay to the desired enclosure through a
knock out hole.
2. Secure with the conduit nut provided.
Relay #1
3. Connect coil wires:
• Choose the coil common lead (white with yellow stripe) and connect it to
the common (-) source termination point.
• Choose either the low voltage (10-30VAC/DC, white with blue stripe) or
high voltage (120VAC, white with black stripe) lead, depending on the
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• The installer is responsible for conformance to all applicable codes.
• Mount this product inside a suitable fire and electrical enclosure.
DIMENSIONS
(103 mm)
3.8"
(97 mm)
2.0"
(52 mm)
Z203418-0C PAGE 1 ©2012 Veris Industries USA 800.354.8556 or +1.503.598.4564 / support@veris.com 05121
Alta Labs, Enercep t, Enspector, Hawkeye, Trustat, Veris, and the Veris ‘ V’ logo are trademark s or registered tradema rks of Veris Industries, L.L .C. in the USA and /or other count ries.
3/4" NPT Nipple
2.3"
(59 mm)
2.5"
(64 mm)
4. Connect relay contacts:
Relay #2
5. Connect coil wires:
6. Connect relay contacts:
7. Secure the enclosure and reconnect power.
* Isolate or insulate all non-terminated wires according to local electrical code requirements, i.e.
wire nut.
application requirements, and connect it to the (+) source termination
point.*
NOTE: When connecting the control side of this device (#18 wires) to power
line circuits, provide current limiting at 7 amps max.
• Choose the two orange wires (N.O. contact) and connect to switched load.
• Choose the coil common lead (white with violet stripe) and connect it to
the common (-) source termination point.
• Choose either the low voltage (10-30VAC/DC, grey with white stripe)
or high voltage (120VAC, white with red stripe) lead, depending on the
application requirements, and connect it to the (+) source termination
point.*
NOTE: When connecting the control side of this device (#18 wires) to power
line circuits, provide current limiting at 7 amps max.
• Choose the two brown wires (N.O. contact) and connect to the switched
load.
V10 1D
To Load
To Controls
COIL
CONTACTS
To Load
To Controls
Wire
Nut
C
O
I
L
CONTACTS
Pull in Voltage AC DC
10-30V..................................... 8 9
120V........................................ 78
Drop Out Voltage AC DC
10-30V..................................... 2 3
120V........................................ 18
Voltage Coil Current
AC DC
10V.......................................... 25mA 14mA
24V.......................................... 31mA 16mA
30V.......................................... 39mA 18mA
120V........................................ 22mA -
TYPICAL COIL PERFORMANCE
CONTACT RATINGS
Resistive.............. 10A@250VAC
Motor.................... 1/3HP@120VAC
Gold Flash............. Yes
HAND
OFF
AUTO
Up position: contacts are closed.
Middle position: contacts are open.
Down position: control system actuates the contacts.
Relay 2 Relay 1
TM
INSTALLATION GUIDE
WIRING COLOR CODES
Relay 1
HI
wht/black
LOW
wht/blue
COMM
wht/yellow
HI
wht/red
LOW
grey/wht
120VAC
10-30VAC/DC
Common
r
e
d
White
120VAC
w
h
i
t
GREY
e
10-30VAC/DC
Relay 2
r
e
d
w
h
i
t
e
HOA
Switch
Hand
Off
WIRING EXAMPLE
Nipple mount directly to a panel
CONTACT OUTPUTCONTROL SYSTEM INPUT
Nipple mount to a 2x or 4x electrical box
CONTACT OUTPUT N.O.CONTROL SYSTEM INPUT
BROWN
BROWN
Auto
COMM
wht/violet
v
i
o
Common
v
i
o
l
e
l
e
White
t
t
CONTACT AND COIL SPECIFICATIONS
HOA POSITIONS
Z203418-0C PAGE 2 ©2012 Veris Industries USA 800.354.8556 or +1.503.598.4564 / support@veris.com 05121
