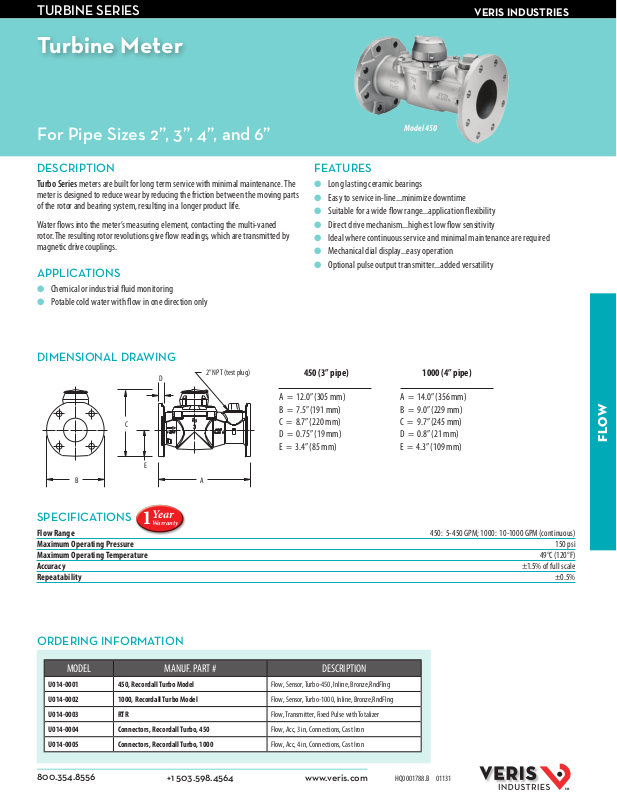

Veris TURBINE Datasheet
TURBINE SERIES
Turbine Meter
VERIS INDUSTRIES
For Pipe Sizes 2”, 3”, 4”, and 6”
DESCRIPTION
Turbo Series meters are built for long term service with minimal maintenance. The
meter is designed to reduce wear by reducing the friction between the moving parts
of the rotor and bearing system, resulting in a longer product life.
Water ows into the meter’s measuring element, contacting the multi-vaned
rotor. The resulting rotor revolutions give ow readings, which are transmitted by
magnetic drive couplings.
APPLICATIONS
● Chemical or industrial uid monitoring
● Potable cold water with ow in one direction only
DIMENSIONAL DRAWING
D
C
2" NPT (test plug)
A = 12.0” (305 mm)
B = 7.5” (191 mm)
C = 8.7” (220 mm)
D = 0.75” (19 mm)
E = 3.4” (85 mm)
Model 450
FEATURES
● Long lasting ceramic bearings
● Easy to service in-line...minimize downtime
● Suitable for a wide ow range...application exibility
● Direct drive mechanism...highest low ow sensitivity
● Ideal where continuous ser vice and minimal maintenance are required
● Mechanical dial display...easy operation
● Optional pulse output transmitter...added versatility
450 (3” pipe)
1000 (4” pipe)
A = 14.0” (356 mm)
B = 9.0” (229 mm)
C = 9.7” (245 mm)
D = 0.8” (21 mm)
E = 4.3” (109 mm)
flow
E
B
SPECIFICATIONS
Flow Range 450: 5-450 GPM; 1000: 10-1000 GPM (continuous)
Maximum Operating Pressure 150 p si
Maximum Operating Temperature 49°C (120°F)
Accurac y ±1.5% of full scale
Repeatability ±0.5%
Yea r
1
Warranty
A
ORDERING INFORMATION
MODEL MANUF. PART # DESCRIPTION
U014-0001 450, Recordall Turbo Model Flow, Sensor, Turbo-450, Inline, Bronze,RndFlng
U014-0002 1000, Recordall Turbo Model Flow, Sensor, Turbo-1000, Inline, Bronze,RndFlng
U014-0003 RTR Flow, Transmitter, Fixed Pulse with Totalizer
U014-0004 Connectors, Recordall Turbo, 450 Flow, Acc, 3 in, Connections, Cast Iron
U014-0005 Connectors, Recordall Turbo, 1000 Flow, Acc, 4 in, Connections, Cast Iron
800.354.8556
+1 503.598.4564
www.veris.com
HQ00 01788.B 01131
