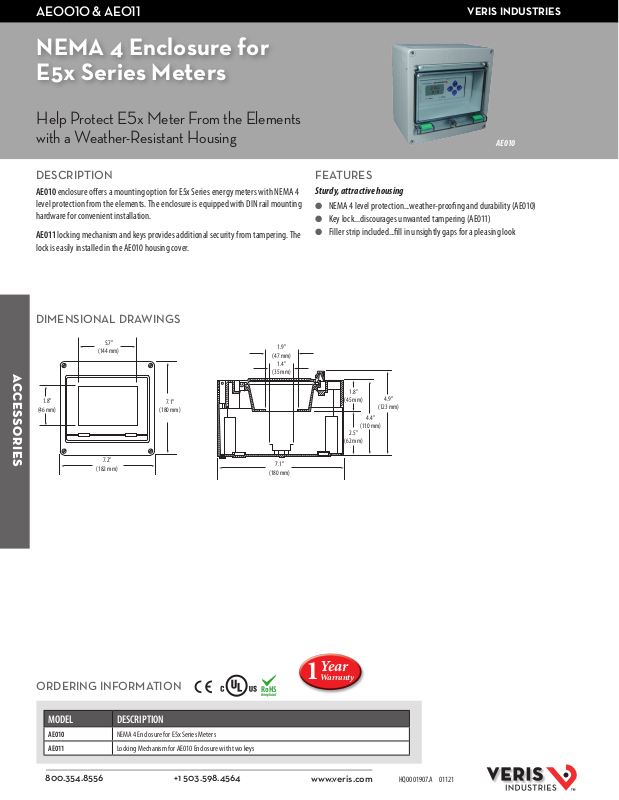

AE0010 & AE011

NEMA 4 Enclosure for
E5x Series Meters

Help Protect E5x Meter From the Elements

VERIS INDUSTRIES

with a Weather-Resistant Housing

DESCRIPTION

AE010 enclosure oers a mounting option for E5x Series energy meters with NEMA 4
level protection from the elements. The enclosure is equipped with DIN rail mounting
hardware for convenient installation.

AE 011 locking mechanism and keys provides additional security from tampering. The
lock is easily installed in the AE010 housing cover.

DIMENSIONAL DRAWINGS

5.7”

(144 mm)

Accessories

1.8”

(46 mm)

7.1”

(180 mm)

1.9”

(47 mm)

1.4”

(35 mm)

AE010

FEATURES

Sturdy, attractive housing

● NEMA 4 level protection...weather-proong and durability (AE010)

● Key lock...discourages unwanted tampering (AE011)

● Filler strip included...ll in unsightly gaps for a pleasing look

1.8”

(45 mm)

2.5”

(62 mm)

4.9”

(123 mm)

4.4”

(110 mm)

7.2”

(182 mm)

ORDERING INFORMATION

MODEL DESCRIPTION

AE010 NEMA 4 Enclo sure for E5x Serie s Meters

AE 011 Lock ing Mechanism for A E010 Enclosure with t wo keys

(180 mm)

RoHS

Compliant

7.1”

Year

1

Warranty

800.354.8556

+1 503.598.4564

www.veris.com

HQ00 01907.A 01121
