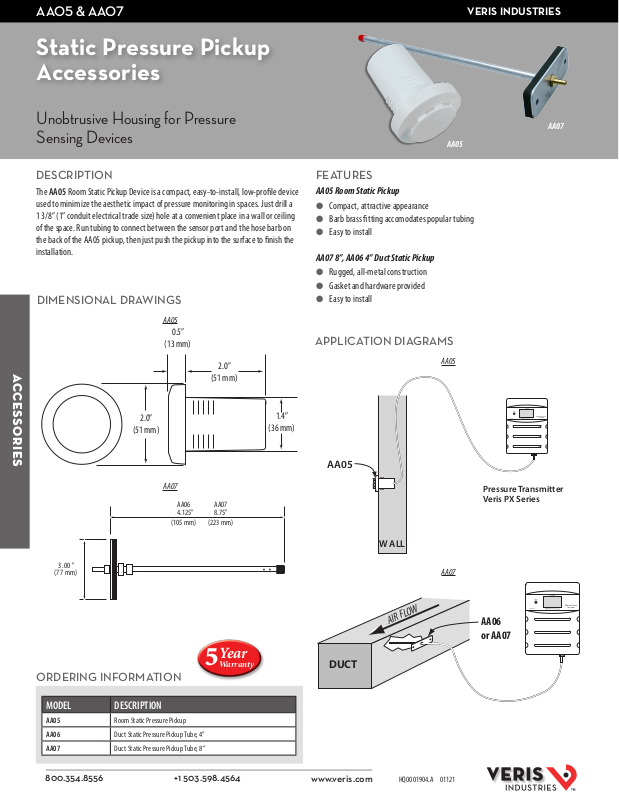

AA05 & A A07
Static Pressure Pickup
Accessories
VERIS INDUSTRIES
Unobtrusive Housing for Pressure
Sensing Devices
DESCRIPTION
The AA05 Room Static Pickup Device is a compact, easy-to-install, low-prole device
used to minimize the aesthetic impact of pressure monitoring in spaces. Just drill a
1 3/8” (1” conduit electrical trade size) hole at a convenient place in a wall or ceiling
of the space. Run tubing to connect between the sensor port and the hose barb on
the back of the AA05 pickup, then just push the pickup into the surface to nish the
installation.
DIMENSIONAL DRAWINGS
AA05
0.5”
(13 mm)
Accessories
2.0”
(51 mm)
2.0”
(51 mm)
1.4”
(36 mm)
AA05
FEATURES
AA05 Room Static Pickup
● Compact, attractive appearance
● Barb brass tting accomodates popular tubing
● Easy to install
AA07 8”, AA06 4” Duct Static Pickup
● Rugged, all-metal construction
● Gasket and hardware provided
● Easy to install
APPLICATION DIAGRAMS
AA05
AA07
Inch H2O
Differential Pressure
Transmitter
Z103591-0A
AA07
AA06
4.125"
(105 mm)
3 .00 "
(7 7 mm)
ORDERING INFORMATION
MODEL DESCRIPTION
AA05 Room Static Pressure Pickup
AA06 Duct Sta tic Pressure Pick up Tube, 4”
AA07 Duct Sta tic Pressure Pick up Tube, 8”
AA07
8.75"
(223 mm)
Year
5
Warranty
AA05
DUCT
WALL
AIR FLOW
AA07
Pressure Transmitter
Veris PX Series
Inch H2O
Z103591-0A
AA06
or AA07
Differential Pressure
Transmitter
800.354.8556
+1 503.598.4564
www.veris.com
HQ00 01904.A 01121
