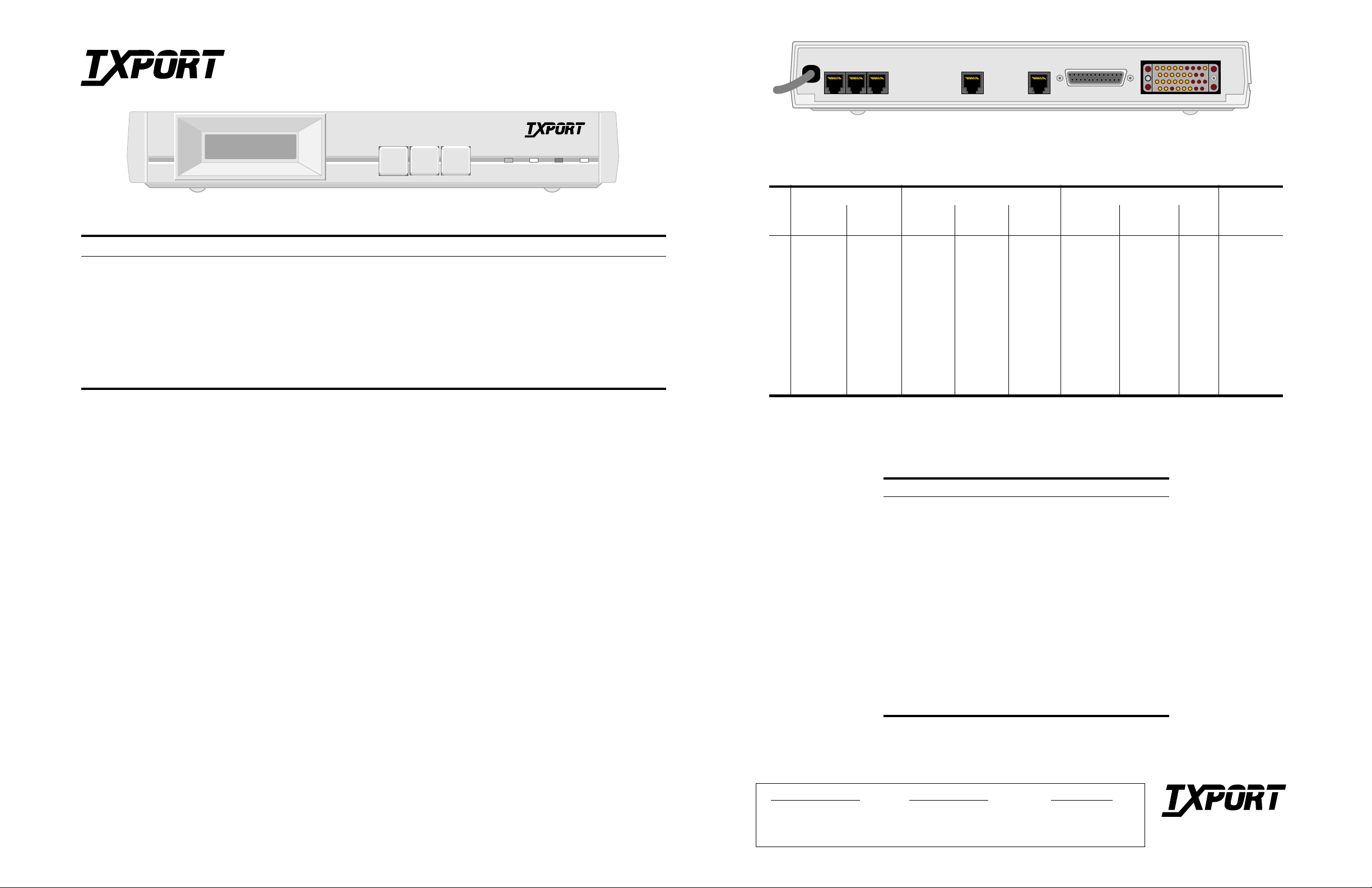

Verilink PRISM 4101 Installation Guide

TRANSPORT

LAN SLIP SUPV DBU DDS

115 VAC

60 HZ

RS232

V.35

®

PRISM 4101

Configuration Guide

SCROLLEXIT SELECT

®

TRANSPORT

BACKUP TEST ALARM POWER

45-00137

1.0

PRISM 4101 Rear Panel

Button Function

EXIT

Returns you to the pr evious menu. Once you are at the main menu , the Exit button closes your interface sess io n. Modifications to some

menus do not take effect until you exit from that menu.
SCROLL
SELECT

Allows you to toggle through a list of options for each menu item selected.

Allows you to choose a specific or item (similar in functionality to the Return key). When you press the Select button on a user selectable

item, the selected para meter becomes the new setting an d you are returned to the previou s men u.

LED Function

BACKUP
TEST
ALARM
POWER

Illuminates amber when the DBU is actively transferring data. Blinks amber when a DBU connection is being established or terminated.

Illuminates amber when th e uni t is tra nsmit ting l oop code , unlo op code o r the 511 BERT pattern in a lo op mode su ch as line , dat a , V.54, etc.

Illuminates red when the unit is in an active alarm condition.

Illuminates green when po wer is ap plied to the unit.

Network Interface

Service Type: DDS-I conformi ng t o TR

62310

Operating Mod es : Full duplex, point-to-point,

multi-point

Line Rate: 2.4, 4.8, 9.6, 19.2, 38.4, 56,

and 72 kbps
Loop Range: Up to 45 dB of loss
Line Connection: RJ-48S jack, 8-pin modular
Timing Source: Network, DTE, or Internal

Equipment Interface

Sync Data Rates: 2.4, 4.8, 9.6, 19.2, 38.4, 54, 56,

62, and 64 kbps
Async Data Rates: 2.4, 4.8, 9.6, 19.2, 38.4, and

57.6 kbps

Rate Adaptation: Adapts subrate data port

speeds to 56 or 64 kb ps line

rate
Antistream Timer: Off, 10, 30, or 60 seconds
DTE Connection: 34-pin V.35 (ITU) and 25-pin

RS-232D (E IA)

Supervisory Port

Connection: 8-pin modular (RS-232)
Data Rates: 1.2, 2.4, 9.6, and 19.2 kbps

SLIP Port

Connection: 8-pin modular (RS-232)
Data Rates: 1.2, 2.4, 9.6, and 19.2 kbps

Ethernet (option)

Connection: 8-pin modular

PRISM 4101 Front Panel

Specifications

Network Protocol: TCP/IP based networks
Data Rate: 10 Mbps
Compatibility: 10BASE-T, ISO/IEC 8802-3

Token Ring (option)

Connection: 8-pin modular (RJ-45)
Network Protocol: TCP/IP based networks
Data Rate: 4 or 16 Mbps
Compatibility: Type 3 UTP, ISO/IEC 8802-5

Dial Backup

Connection: RS-232, 10-pin modular
Backup Service: PSTN or ISDN, sync or async
Configura tion: Information for back up unit is

stored in the PRISM 4101 and
transmitted to backup unit by
inband AT commands

Dialing: Numbers programmed and

stored in the PRISM 4101 and
transmitted to backup unit by
inband AT commands

Restoral: Manual or automatic restoral

to leased line service

Diagnostics

Loopbacks: CSU, V.54 (send and rece ive)
BERT: 511 pattern

Power

115 VAC: 150 mA, 14 W max, 47 BTU

max

PRISM 4101

Mechanical

Housing: Plastic standalone case
Mounting: Desktop or horizontal rack
Dimensions: 12 inches (30.40 cm) wide

2 inches (5.08 cm) high
9 inches (22.86 cm) deep

W eight: 4 pounds (1.814 kg)

Environmental

Storage Temp: -4° to 185°F (-20° to 85°C)
Operating Temp: 32° to 122°F (0° to 50°C)
Humidity: 95% maximum (non-

condensing)

Compatibility

TR 62310: November 1987
TR 41450: November 1981
Internet Standards : RFC 1157 ( SN MP)

RFC 1155 (SMI)
RFC 1213 (MIB-II)
RFC 1055 (SLIP)
Enterprise TxPORT MIB
Enterprise DDS MIB

Industry Listings

FCC Compliance: Part 15 Class A, Subpart B,

Part 68
U.S. Safety : UL 1950, 3
Canadian Safety: CSA C22.2 No. 950-95
Industry Canada: CS03, Issue 8 (CSU/DSU only)

rd

Edition

Rear Panel Pinouts

LAN SLIP/SUPV DBU

Pin

Ethernet Token Ring

1 Data Out (+) DTR Out DCD In Frame Gnd Tx Clock In Data Out (Tip)
2 Data Out (-) RTS Out RXD In TXD In DTR In Data Out (Ring)
3 Data In (+) Data Out (-) Frame Gnd TXD Out RXD Out RTS In
4 Data In (+) Data Out DTR Out RTS In Frame Gnd Gnd
5 Data In (-) Data In Frame Gnd CTS Out Data In U-Interface Tip
6 Data In (- ) Data Out (+) Signal Gnd Data Ou t U-Interface Ring
7 CTS In RTS Out Signal Gnd Signal Gnd Gnd Data In (Tip)
8 DCD In CTS In DCD Out CTS Out Data In (Ring)

9 DCD Out
10 Rx Clock In
20 DTR In

Connector

PinoutPCConnector

Modem

Connector

Connector

Pinout

Internal ISDN

Connection

Internal

Modem

DDS

RS-232 and V.35 Data Port Pinouts

ITU Circuit Name RS-232 V.35 DCE

101/AA Frame Ground 1 A Gnd
102/AB Signal Ground 7 B Gnd
103 / BA Transmit Da ta 2 P, S In
104/BB Receive Data 3 R, T Out
105/ CA Request to Send 4 C In
106/CB Clear to Send 5 D Out
107/ CC Data Set Ready 6 E Out
108 / CD Data Term Ready 20 H In

109 / CF Data Carrier De tect 8 F Out
114 / DB Transmit Clock 15 Y, AA Out
115 / DD Receive Clock 17 V, X Out

141/LLB Local Loopback 18 In
140 / RLB Remote Loop back 21 In

142 / TM Test Mode 25 O ut

Sales and Marketing

888-4TxPORT
256-772-3770

[e-mail]

Technical Support

800-285-2755
256-772-3770

[e-mail]

Returns/RMA

888-4TxPORT, ext. 2282

TRANSPORT

127 Jetplex Circle

Madison, Alabama 35758

®

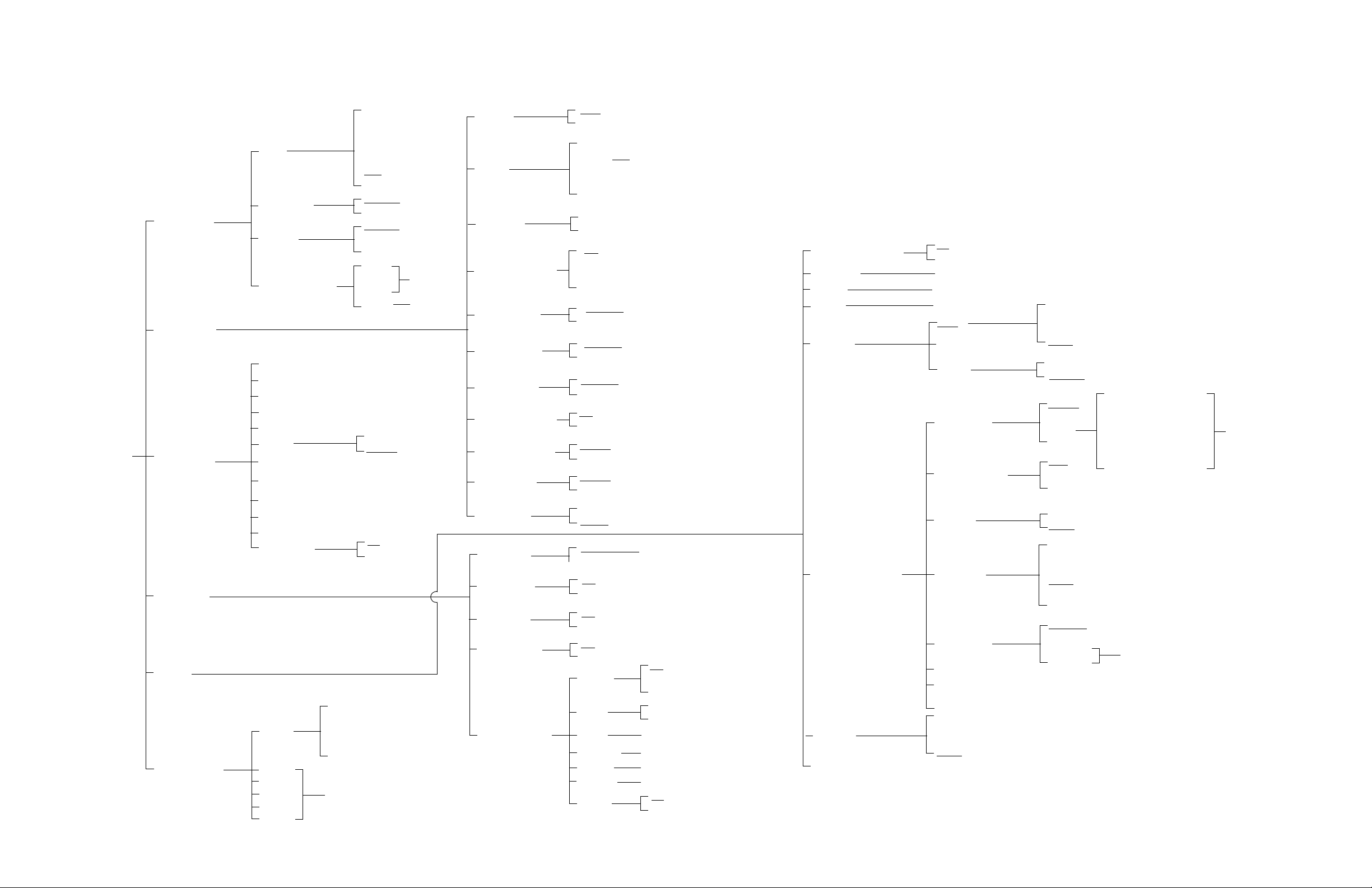

Front Panel Interface Menu Tree

Main Menu

Network
Configuration

DTE
Configuration

SNMP
Configuration

Diagnostics

Utilities

Status Displays

Rate

Data Mode

Timing

Alarm Thresholds

Unit IP Addr

*

Router IP Addr
Subnet Mask

*

Fltr 1 - 8 IP Addr
Trap 1 - 6 IP Addr

Sets
Read Community
Write Community

System Contact
System Name

*

System Location
Reset LAN

Status

RTS
CTS
CD
TR
SR

2.4K

4.8K

9.6K

19.2K

38.4K
56K
64K

Standard
TxPORT

Network
Internal
DTE

OOS
LOS
OOF
ART

*

*

*

10 to 900 sec

Enable
Disable

*

*

*

*

No
Yes

LOS
OOS
DBF
DBA
Test

Asterisk (*) indicates
active signal

1 to 30 sec

Mode

Rate

Interface

Antistream Timer

DSR Control

DCD Control

RTS Control

Circuit Assurance

RTS/CTS Delay

DTR Alarm

V.54 Loop

Loop Mode

Local Loop

V.54 Loop

Remote Loop

BERT Fu nc tio n

Sync
Async

2.4K

54 K

4.8K

56K

57.6K

9.6K
62K

19.2K
64K

38.4K

RS-232
V.35

Off
10 seconds
30 seconds
60 Seconds

Force On
Test>Off

Force On
Idle>Off

Force On
Normal

Off
On

Normal
Long

Disable
Enable

Disable
Enable

Unidirectional
Bidirectional

Off
On

Off
On

Off
On

BERT

Sync

Time

Bit Error

ErrSec
SynLos

Reset

*

An underscore appears under the character or digit to be entered or modified. Scroll increments the characters and digits
(a-z, A-Z, 0-9, special characters). Select accepts the current value and moves the cursor right. Exit on the last character or
digit enters the value and returns to the previous screen.

Off
NET
DTE

No Test (Display Only)
In Sync (Display Only)

HH:MM:SS (Display Only)

Display Only
Display Only
Display Only
No

Yes

Save Configuration

Contrast
Time
Date

IP Port

Dial Backup

SUPV

Set Password

*

No
Yes

0 - 15
HH:MM:SS
MM/DD/YY
SLIP

Enet

Token

Command

DBU Activator

Format

DBU Rate

Mode

DBU Phone #
DBU Init String

*

*

DBU Hang-up String

1.2K

2.4K

9.6K

19.2K

*

1.2K

2.4K

9.6K

19.2K
4 Mbps

16 Mbps

Disable
Enable
Daily
Activate

LOS
OOS
OOF
ANY

Sync
Async

2.4K

4.8K

9.6K

19.2K

38.4K

57.6K

Originate
Answer
CORIG
CANSW

Sun Start
Sun Stop
Mon Start
Mon Stop
Tue Start
Tue Stop
Wed Start

DBU Password

Wed Stop
Thu Start
Thu Stop
Fri Start
Fri Stop
Sat Start
Sat Stop

*

0 - 24
