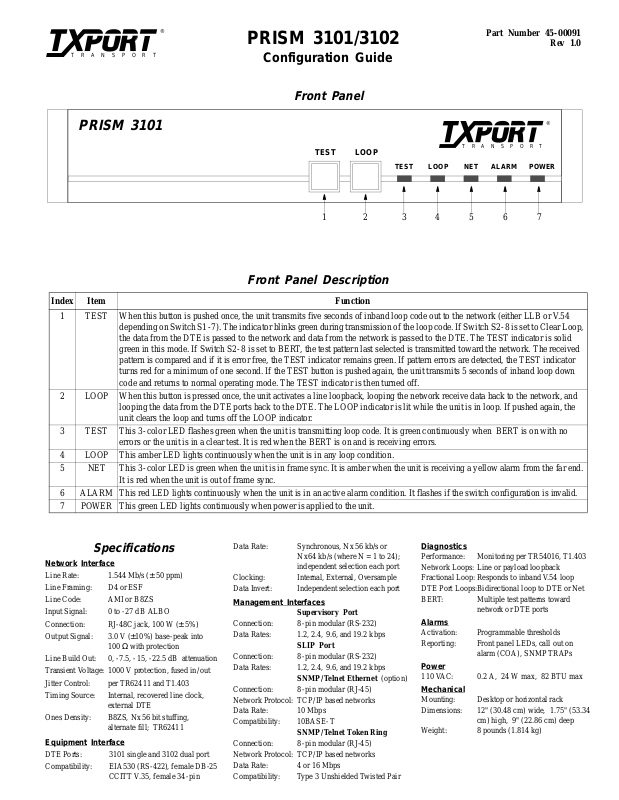

TRANSPORT
®
PRISM 3101/3102
Configuration Guide
Front Panel
Part Number 45-00091
Rev 1.0
PRISM 3101
TEST LOOP
TRANSPORT
ALARMNETLOOPTEST
®
POWER
21 43 5 6 7
Front Panel Description
Index Item Function
1 TEST When this button is pushed once, the unit transmits five seconds of inband loop code out to the network (either LLB or V.54
depending on Switch S1-7). The indicator blinks gree n during tra nsmission of the lo op code. If S witch S2-8 is set to Clear Loop,
the data from the DTE is passed to the network and data from the network is passed to the DTE. The TEST indicator is solid
green in this mode. If Switch S2-8 is set to BERT, the test pattern last selected is transmitted toward the network. The received
pattern is compared and if it is error free, the TEST indicator remains green. If pattern errors are detected, the TEST indicator
turns red for a minimum of one second. If the TEST button is pushed again, the unit transmits 5 seconds of inband loop down
code and returns to normal operating mode. The TEST indicator is then turned off.
2 LOOP When this button is pressed once, the unit activates a line loopback, looping the network receive data back to the network, and
looping the data from the DTE ports back to the DTE. The LOOP indicator is lit while the unit is in loop. If pushed again, the
unit clears the loop and turns off the LOOP indicator.
3 TEST This 3-color LED flashes green when the unit is transmitting loop code. It is green continuously when BERT is on with no
errors or the unit is in a clear test. It is red when the BERT is on and is receiving errors.
4 LOOP This amber LED lights continuously when the unit is in any loop condition.
5 NET This 3-color LED is green when the unit is in frame sync. It is amber when the unit is receiving a yellow alarm from the far en d.
It is red when the unit is out of frame sync.
6 ALARM This red LED lights continuously when the unit is in an active alarm condition. It flashes if the switch configuration is invalid.
7 POWER This green LED lights continuously when power is applied to the unit.
Specifications
Network Interface
Line Rate: 1.544 Mb/s (± 50 ppm)
Line Framing: D4 or ESF
Line Code: AMI or B8ZS
Input Signal: 0 to -27 dB ALBO
Connection: RJ-48C jack, 100 W (± 5%)
Output Signal: 3.0 V (±10%) ba se-peak into
Line Build Out: 0, -7.5, -15, -22.5 dB attenuation
Transient Voltage: 1000 V protection, fused in/out
Jitter Control: per TR62411 and T1.403
Timing Source: Internal, recovered line clock,
Ones Density: B8ZS, Nx 56 bit stuffing,
Equipment
DTE Ports: 3101 single and 3102 dual po rt
Compatibility: EIA530 (RS-422), female DB-25
100 Ω with protection
external DTE
alternate fill; TR62411
Interface
CCITT V.35, female 34-pin
Data Rate: Synchronous, Nx56 kb/s or
Clocking: Internal, External, Oversample
Data Invert: Independent selecti on e ac h port
Management Interfaces
Connection: 8-pin modular (RS-232)
Data Rates: 1.2, 2.4, 9.6, and 19.2 kbps
Connection: 8-pin modular (RS-232)
Data Rates: 1.2, 2.4, 9.6, and 19.2 kbps
Connection: 8-pin modular (RJ-45)
Network Protocol: TCP/IP based networks
Data Rate: 10 Mbps
Compatibility: 10BASE-T
Connection: 8-pin modular (RJ-45)
Network Protocol: TCP/IP based networks
Data Rate: 4 or 16 Mbps
Compatibility: Type 3 Unshielded Twisted Pair
Nx64 kb/s (where N = 1 to 24);
independent sel ec ti on each port
Supervisory Port
SLIP Port
SNMP/Telnet Ethernet
SNMP/Telnet Token Ring
(option)
Diagnostics
Performance: Monitoring per TR54016 , T1. 403
Network Loops: Line or payload loopback
Fractional Loop: Responds to inband V.54 loop
DTE Port Loops:Bidirec ti onal loop to DTE or Net
BERT: Multiple test patterns toward
network or DTE ports
Alarms
Activation: Programmable thresholds
Reporting: Front pane l L EDs, ca ll out on
alarm (COA), SNMP TRAPs
Power
110 VAC: 0.2 A, 24 W max, 82 BTU max
Mechanical
Mounting: Desktop or horizont al rack
Dimensions: 12" (30.48 cm) wide, 1.75" (53.34
cm) high, 9" (22.86 cm) deep
Weight: 8 pounds (1.814 kg)
115 VAC
TRANSPORT
®
60 HZ
Rear Panel
SUPVSLIPLAN
8
1
1
8
1
(dual port 3112 model shown)
DATA PORT 2
NET
10
DATA PORT 1
S1 S2 S3
Switch S1
S1-1:
Determines the power up mode.
Dn: Switches
S1-2 S1-3 SUPV Port Rate
Up: RAM
S2-1:
S2-2:
Switch S2
Set the network line framing.
Dn - ESF
Sets the network line coding.
Dn - B8ZS
Up - D4
Up - AMI
Up Up 1.2 kbps
Dn Up 2.4 kbps
Dn Dn 9.6 kbps
Up
Dn 19.2 kbps
S1-4 S1-5 SLIP Port Rate
Up Up 1.2 kbps
Dn Up 2.4 kbps
Dn Dn 9.6 kbps
Up
Dn 19.2 kbps
S1-6:
Sets the cha nne l assignment mo de .
Dn: Con ti guo us
S1-7:
Sets the Port 1 rate multiplier.
Dn: N x 64 k
S1-8:
Sets the Port 2 rate multiplier.
Dn: N x 64 k
Up: Alternate
Up: N x 56 k
Up: N x 56 k
S2 -3 S2-4 Network LBO
Dn 0 dB
Dn
Up Dn -7.5 dB
Dn Up -15.0 dB
Up Up -22.5 dB
S2 -5 S2-6 Timing Source
Dn Network
Dn
Up Dn Inte rnal
Dn Up Port 1 EXC
Up Up T1-DTE
S2-7:
Test button loop code.
Dn: LLB code
S2-8:
Test button operational mode.
Dn: BERT
Up: Clear loop
Factory defaults for all switch settings are shown underlined.
Any DS0 not allocated to a data port is aut omatically routed to the T1 DTE port.
Up: V.54 code
Switch S3
S1-7 up S1-7 dn S3-1 S3-2 S3-3 S3-4 S3-5
# of
DSOs
S1-8 up S1-8 dn S3-6 S3-7 S3-8 S3-9 S3-10
Disable
1 56 kb/s 64 kb/s Up Dn Dn Dn Dn
2 112 128 Dn Up Dn Dn Dn
3 168 192 Up Up Dn Dn Dn
4 224 256 Dn Dn Up Dn Dn
5 280 320 Up Dn Up Dn Dn
6 336 384 Dn Up Up Dn Dn
7 392 448 Up Up Up Dn Dn
8 448 512 Dn Dn Dn Up Dn
9 504 576 Up Dn Dn Up Dn
10 560 640 Dn Up Dn Up Dn
11 616 704 Up Up Dn Up Dn
12 672 768 Dn Dn Up Up Dn
13 728 832 Up Dn Up Up Dn
14 784 896 Dn Up Up Up Dn
15 840 960 Up Up Up Up Dn
16 896 1024 Dn Dn Dn Dn Up
17 952 1088 Up Dn Dn Dn Up
18 1008 1152 Dn Up Dn Dn Up
19 1064 1216 Up Up Dn Dn Up
20 1120 1280 Dn Dn Up Dn Up
21 1176 1344 Up Dn Up Dn Up
22 1232 1408 Dn Up Up Dn Up
23 1288 1472 Up Up Up Dn Up
24 1344 1536 Dn Dn Dn Up Up
Disable Dn Dn Dn Dn Dn
Rear Panel Pinouts
LAN
Pin
Ethernet
1 Data Out DCD Out DTR Out Data In
2 Data Out CTS Out RTS Out Data In
3 Data In Data Out Frame Gnd Frame Gnd
4 Data In Data Out Data Out Data Out
5 Data In Data In Data In Data Out
6 Data In Data Out Signal Gnd Signal Gnd
7 RTS In CT S In C ha ssis Gnd
8 DTR In DCD In Chassis Gnd
LAN Toke n
Ring
SUPV/SLIP
Terminal
SUPV/SLIP
Modem
Network
Data Port Pinouts
Common Name
Frame Ground 1 A
Signal Ground 7 B
Transmit Data 2, 14 P, S
Receive Data 3, 16 R, T
Request to Send 4, 19 C
Clear to Send 5, 13 D
Data Set Ready 6, 22 E
Data Term Ready 20, 23 H
Data Carrier Detect 8, 10 F
Transmit Clock 15, 12 Y, AA
Receive Clock 17, 9 V, X
Terminal Timing 24, 11 U, W
DB25
25- pin
V.35
34- pin
TxPORT
127 Jetplex Circle
Madison, Alabama 35758
Customer Service
888-4TxPORT, ext. 227
800-926-0085, ext. 227
Technical Suppo rt
(8 a.m. to 5 p.m. Central Time)
888-4TxPORT
800-285-2755
205-772-3770
support@txport.com
(after hours em e rgencies)
800-285-2755
TRANSPORT
®
34-00212-A3.01
45-00091-A1.01
Addendum
Document:
Date:
Pow er
PRISM 3101/3102 Reference Manual & Configuration Guide
June 12, 1998
The power ratings, as listed on page 1-2 of the manual and in the Specifications section of
the configuration guide, have been revised as follows.
AC: 115 VAC, 160 mA, 15 W maximum, 51 BTU maximum
PRISM 3101/3102 Page 1 of 1
