Verilink 7205 User Manual
WANsuite® 7205
Reference Manual
May 2002
34-00317.B
i
Copyright Notice Copyright © 2002 Verilink Corporation. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language
in any form by any means without the written permission of Verilink.
Manual Reorder # 34 -00317.B
May 2002
Trademarks Verilink
®
and WANsuite® are registered trademarks of the Verilink Corporation. FrameStart™
and ServiceAware™ are trademarks of the Verilink Corporation.
All other brand and product names used herein are trademarks or registered trademarks of their
respective manufacturers.
Documentation Disclaimer
This document does not create any express or implied warranty about Verilink or about its products or services. Verilink’s sole warranty is contained in its product warranty. The end-user documentation is shipped with Verilink’s products and constitutes the sole specifications referred to
in the pro duc t war ran ty. Ve rili nk ha s ma de re aso nab le effor ts to ver ify th at th e info rmat io n contained herein is accurate, but Verilink assumes no responsibility for its use or for any infringement of patents or other rights of third parties that may result. The customer is solely
responsible for verifying the suitability of Verilink’s products for its use. Specifications are subject to change without no tice.
Warranty Verilink's produ ct warranty is included at the back of this document. Emissions This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to applicable requirements. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications. O per atio n of t his e qui pme nt in a r es ide ntia l are a is li kely to ca use ha rm ful in ter fere nce in
which case the user is required to correct the interference at his own expense. This device must
also a ccept any interference received, includi ng interference t hat may ca use undesired operation.
WARNING: For use only with a certified Class 2 power supply. See Power Source in
Appendix A, Specifications.
WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Canadian Emissions Requirements
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques (de la class A) prescrites dans le Règlement sur le brouillage
radioélectrique edicté par le ministère des Communications du Canada.
Safety P recauti ons When handling this equipment, follow these basic safety precautions to reduce the risk of elec-
tric shock and injury:
• Follow all warnings and instructions marked on the product and in the manual.
• Do not place this product on an unstable cart, stand, or table. It may fall, causing seri ous damage to
the product.
• Slots in the unit are provided for ventilation to protect it from overheating. These openings must not
be blocked or covered. Never place this product near a radiator or heat register.
• This product should be operated only from the type of power source indicated on the marking label
and manual. If you are unsure of the type of power supply you are using, consult your dealer or local
power company.
ii WANsuite 7205
• Do not allow anything to rest on the power cord. Do not locate this product where the cord interferes
with the free movement of people.
• Do not overload wall outlets and extension cords, as this can result in fire or electric shock.
• Never push objects of any kind into the unit. They may touch dangerous voltage points or short out
parts that could result in fire or electric shock. Never spill liquid of any kind on this equipment.
• Unplug the equipment from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
• When the power supply cord or plug is damaged or frayed.
• If liquid has been spilled into the product.
• If the product has been exposed to rain or water.
• If the product has been dropped or if the housing has been damaged.
iii
iv WANsuite 7205
Table of Contents
Preface
Scope ..................................................................................................................................................... xi
Manual Organization ...................................................................................................................... xi
Typographic Conventions .............................................................................................................xii
Related Verilink Documents ................................................................................................................ xii
Customer Service and Technical Support ........... .......... ........... ...................... ......................................xii
Support from Your Network Supplier ........................................................................................... xii
Support from Verilink ........ ........... ........... ...................... .............................. ........... ...................... xii
Telephone .............................................................................................................................. xiii
E-mail .................................................................................................................................... xiii
Intern et ..... ......... ....... ......... ......... ......... ....... ......... ......... ......... ....... ......... ......... ......... ............... xiii
Returning a Unit to Verilink ............................................................................................................... xiii
Chapter 1 About the WANsuite 7205
Introduction ......................................................................................................................................... 1-1
Features of the WANsuite 7205 ................ .............................. ........... ...................... .......................... 1-3
Performance ................................................................................................................................. 1-3
Mini-D ac s . .... .. ..... .... ..... .. ..... .... ..... .. .... ..... .... ... .... ..... .... .. ..... .... ..... .. ..... .... ..... .. .... ..... .... .................. 1-3
Percent Utilization Reports ..........................................................................................................1-4
Test Access Jacks ......................................................................................................................... 1-4
SNMP Management ....... .. ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... ...... 1-4
Embedded Web Server ................................................................................................................. 1-4
Optional Advanced Network Management .................................................................................. 1-5
About FrameStart Technology ..................................................................................................... 1-5
WANsuite 7205 Overview and Advantages ............ ...................... ................... ...................... ........... .1-6
Features Summary .............................................................................................................................. 1-6
Front Panel .......................................................................................................................................... 1-8
Local Supervisory Port ................................................................................................................. 1-9
Data Interface Module (Rear Panel) .................................................................................................1-10
10/100 Ethernet .................................... ...................... ........... .............................. ........... ............ 1-10
Ethernet LED Indicators ...................................................................................................... 1-10
Serial Interfaces .......................................................................................................................... 1-10
Network Interfaces ..................................................................................................................... 1-11
Power Connection ............................................................................................................................. 1-11
Power Options ............................................................................................................................ 1-12
Power Failure ............................................................................................................................. 1-12
v
Chapter 2 Installation
WANsuite 7205 Components .............................. ...................... ........... ........... .......... ........... ..............2-1
Unpacking and Inspection .................................................................................................................2-1
Supplied Materials ........ ......................................... ...................... .............................. .. ....................... 2-2
Configuring the Unit’s IP Address ..................................................................................................... 2-2
Installation Wizard ....................................................................................................................... 2-2
Chapter 3 Web Server Interface
Acces si n g th e W eb S erver Inte r face ....... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ...........3-1
Layout of Interface Screens ......................................................................................................... 3-2
Unit Screen ....... ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ............................. 3-2
Interfaces ........... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ........................... 3-4
Network Screens ..........................................................................................................................3-4
Error Status and Alarm Thresholds Table ............................................................................. 3-6
Serial Screens ............................................................................................................................... 3-9
DTR Alarm Control and Status Table ................................................................................. 3-13
10/100 Ethernet Screen (IP Service Details) ............ ........... ........... .............................. ..............3-13
Supervisory Screen ..................................................................................................................... 3-15
DTR Alarm Control and Status Table ................................................................................. 3-16
Services Screen ................................................................................................................................. 3-16
Adding a Ser v i ce ..... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... .... 3-17
Service Detai ls Screen ........... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... 3-17
Interface Deta i l s But t o n ............. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. .........3-18
Type Details Button ............................................................................................................. 3-19
Delet e Se r v ice Button ................ .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. .........3-19
DS0 Monitor Details Screen ......................................................................................................3-19
DS0 Sta t u s and A la r m T ab l e ..... .. ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ....... 3- 2 0
Frame Relay Service Details Screen .......................................................................................... 3-23
Status and A larms Tab l e .......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 3-26

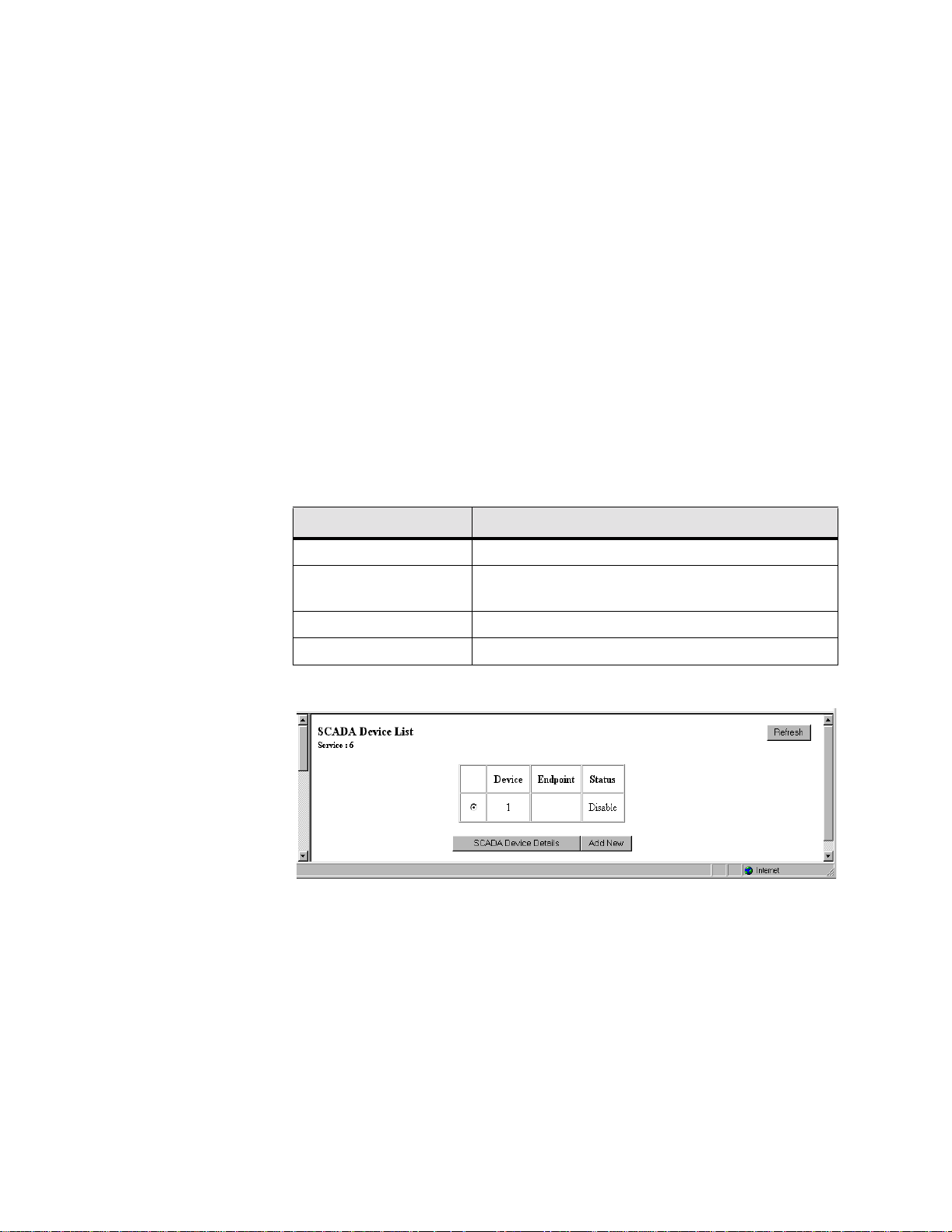

SCADA Details Screen ..................... .............................. ........... ........... ........... ........... ............... 3-28

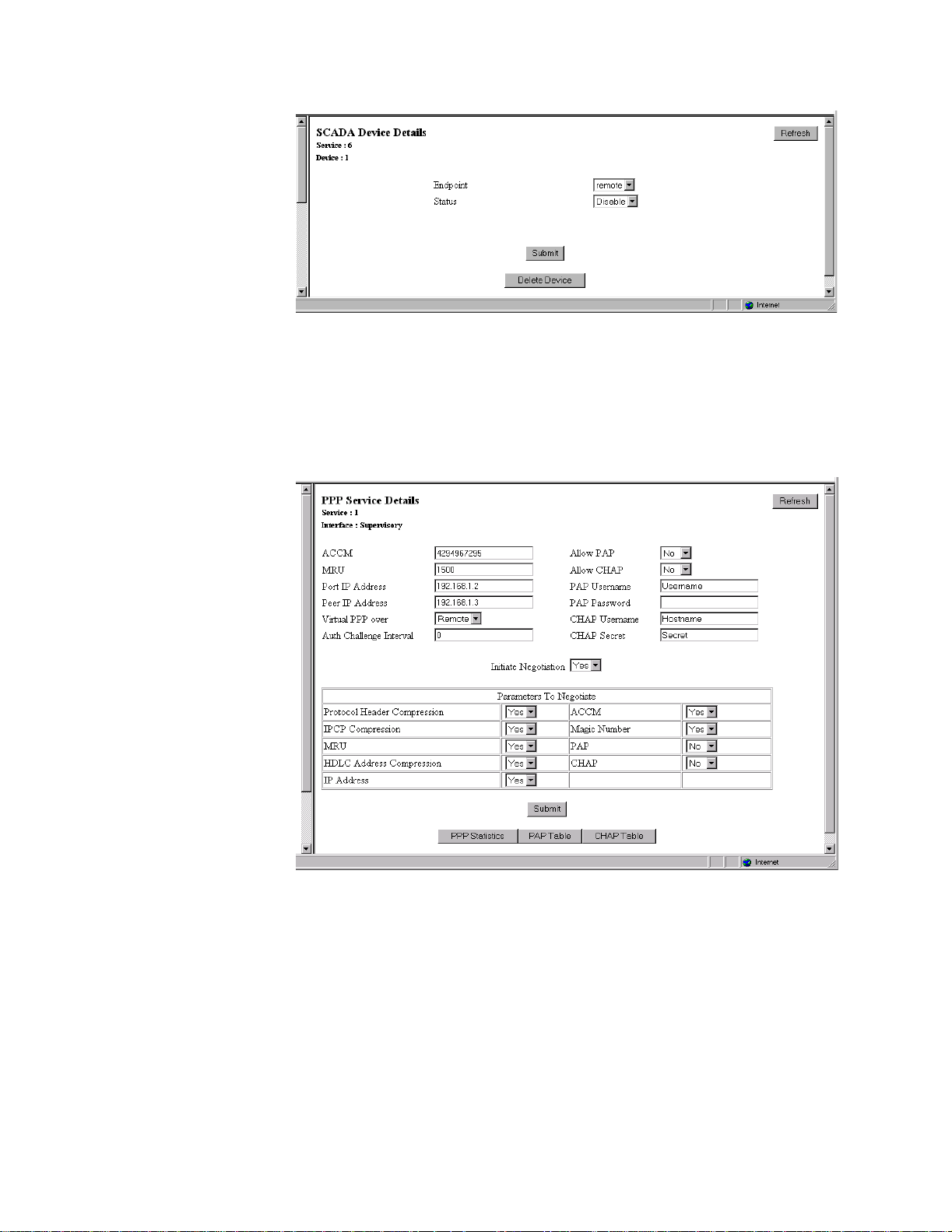

PPP Service Details Screen ........................................................................................................3-30
Param e t ers T o N eg o t i a t e .. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ....... 3-31
PPP Sta t i sti c s .... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ........... 3-32
PAP Table ............................................................................................................................ 3-34

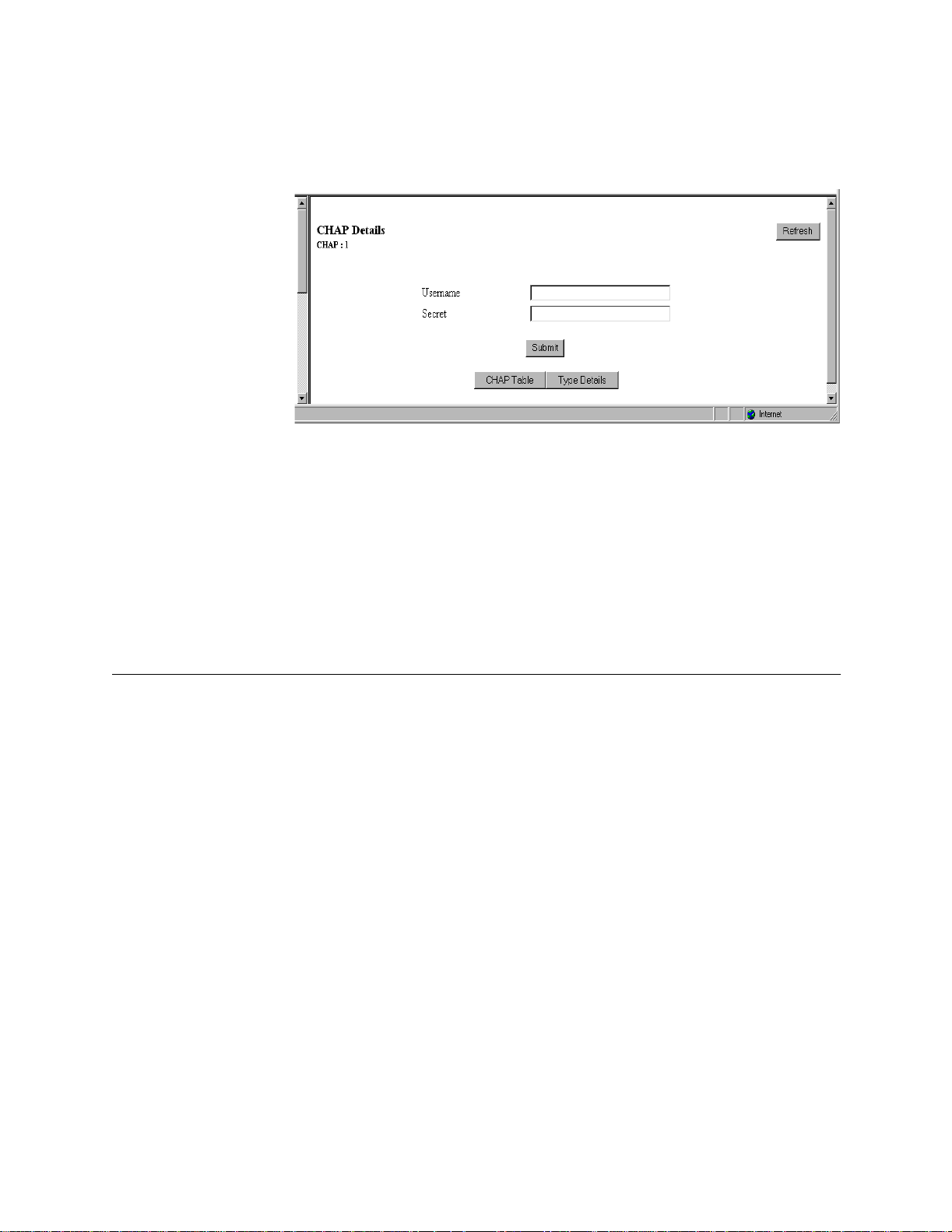

CHAP Table ........................................................................................................................ 3-35
IP Serv i ce D et ai l s Screen ...... .. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ....... 3-36
Applic ations ........ ....... ......... ......... ......... ....... ......... ......... ......... ...... ......... ......... ......... ......................... 3-36
Endpoint Table Screen ............................................................................................................... 3-36
Endpoint Details Screen ...................................................................................................... 3-37
Endpoint Service Details ..................................................................................................... 3-40
DLCI Details Screen ............................................................................................................3-40
Service Aware Screen ................................................................................................................ 3-44
Rule Co n fi g Sc reen .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ....... 3-45
Traffic Meter Statistics Screen ............................................................................................ 3-47
SNMP D et a i l s Scr een . .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... 3-48
vi WANsuite 7205
Diagnostics Screen ........ ...................... .......... ........... ...................... ............................................ 3-48
Test Details Screens ............................................................................................................. 3-50
Trap L og S c r een ...... ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ............. 3-53
Top Talkers Screen .................................................................................................................... 3-54
IP Gatew ay Scree n ........... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ............. 3-55
RIP Parameters .................................................................................................................... 3-56
OSPF Pa r a m e t er s . ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 3-56
Circuits Screen ..................................................................................................................... 3-57

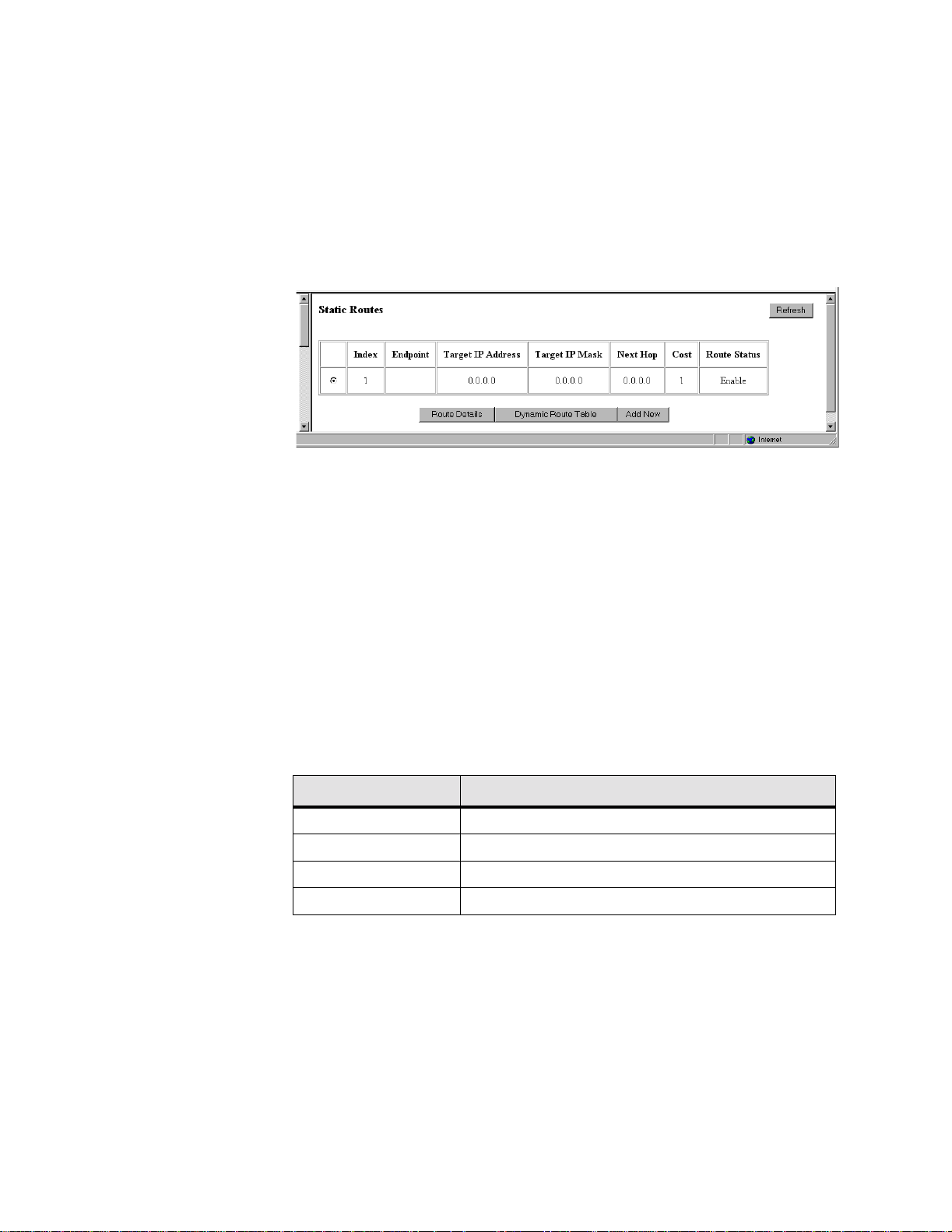

Static Routes Screen ............................................................................................................ 3-60
Static ARP Table Screen ..................................................................................................... 3-62
Trusted Neighbors Screen ...................... ...................... ........... .............................. ........... ... 3-64
Area Table Screen ...............................................................................................................3-65
Virtual Link Ta b l e Sc r e en ..... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. .. 3-67
TCP Server ................................................................................................................................. 3-69
TCP Server Screen ...............................................................................................................3-69
Netwo r k Add r e s s T ra n s l at i on (N A T ) ........ .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 3-7 0
NAT Details Screen .............................................................................................................3-70
Dynamic Host Configuration Protocol (DHCP) ........................................................................ 3-76
DHCP Server Details Screen ...............................................................................................3-77
HDLC Monitor Table Screen ..................................................................................................... 3-80
HDLC Monitor Details Screen ............................................................................................ 3-81
Bridge ........... ........... ......... ............ ........... ........... ......... ........... ............ ........... ......... .................... 3-84
Utilities ............................................................................................................................................. 3-88
Software Upgrade ....................................................................................................................... 3-88
Save/U pload ............................................................................................................................... 3-89
Password ....................................................................................................................................3-90
Log Out ...................................................................................................................................... 3-90
In-ban d Management .......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ...........3-91
Use of Connected Local Router ........................................................................................... 3-91
Use of Local WANsuite 7205 as a Gateway ........................... ........... .............................. ...3-91
Chapter 4 VT100 Interface
Acces si n g th e V T 1 0 0 In t er f a ce ..... .. ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ......... 4-1
Screen Co mpone n ts ...... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... 4-1
Cursor Co n t ro l s .......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... ............. 4-2
Field Types ...................................................................................................................................4-2
Menu Structure ............................................................................................................................. 4-3
System Screen ..................................................................................................................................... 4-4
New Pas s w o rd ................ .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. .................. 4-5
Mainte n ance Re se t ....... .. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. .................. 4-5
Save and Restart ........................................................................................................................... 4-5
Interfaces Scr e en ........ .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .................... 4-6
Network Config Screens .............................................................................................................. 4-6
Error Status and Alarm Thresholds Table ............................................................................. 4-8
Performance Screens ........................................................................................................... 4-10
Serial Screens ............................................................................................................................. 4-11
Ethernet (IP Details) Screen ....................................................................................................... 4-15
vii
Supervisory Config Screen ........................................................................................................4-16

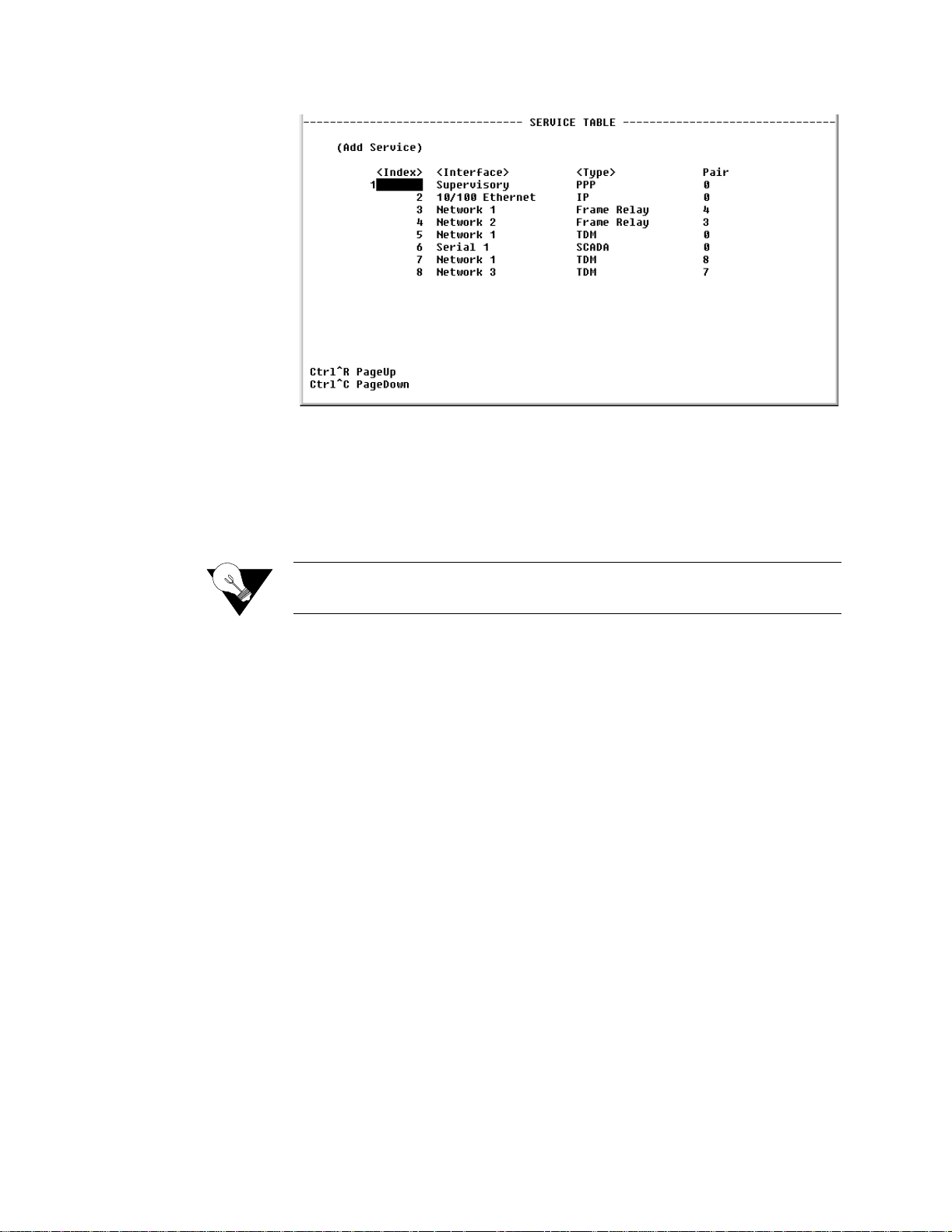

Service Table Screen ........................................................................................................................4-17
DS0 Monitor Details Screen ......................................................................................................4-19
DS0 Sta t u s and A la r m T ab l e ..... .. ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ....... 4- 2 0
Frame Relay Service Details Screen .......................................................................................... 4-22
SCADA Service Details Screen .......... .............................. ........... ........... .. ................... ........... ... 4-27
PPP Service Details Screen ........................................................................................................4-29
Param e t ers to N eg o t iate .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 4-31
PPP Sta t i sti c s .... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ........... 4-31
PAP Table ............................................................................................................................ 4-32
CHAP Table ........................................................................................................................ 4-33
IP Serv i ce D et ai l s Screen ...... .. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ....... 4-34
Applic ations ........ ....... ......... ......... ......... ....... ......... ......... ......... ...... ......... ......... ......... ......................... 4-34
Endpoint Table Screen ............................................................................................................... 4-34
Endpoint Details Screen ...................................................................................................... 4-35
Endpoint Service Details Screen ......................................................................................... 4-37
DLCI Details Screen ............................................................................................................4-38
DLCI Sta ti s t ic s Screen .. .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... ..4-41
DLCI Table Screen ..............................................................................................................4-42
Service Aware Screen ................................................................................................................ 4-43
Rule Co n fi g Sc reen .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ....... 4-43
Traffic Meter Statistics Screen ............................................................................................ 4-45
SNMP D et a i l s Scr een . .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... 4-46
Diagnostics Screen ........ ...................... .......... ........... ...................... ............................................ 4-46
Test Details Screens ............................................................................................................. 4-47
Trap L og S c r een ...... ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ............. 4-51
Top Talkers Screen .................................................................................................................... 4-51
IP Gatew ay Scree n ........... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ............. 4-53
RIP Parameters .................................................................................................................... 4-53
OSPF Pa r a m e t er s . ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 4-54
Circuit Table Screen ............................................................................................................ 4-54
Static Route Table Screen .................................................................................................... 4-57
Static ARP Table Screen ..................................................................................................... 4-59
Trusted Neighbors Screen ...................... ...................... ........... .............................. ........... ... 4-61
Area Table Screen ...............................................................................................................4-61
Virtual Link Ta b l e Sc r e en ..... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. .. 4-63
TCP Server ................................................................................................................................. 4-65
TCP Server Details Screen .................................................................................................. 4-65
Netwo r k Add r e s s T ra n s l at i on (N A T ) ........ .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 4-6 6
NAT Details Screen .............................................................................................................4-67
Dynamic Host Configuration Protocol (DHCP) ........................................................................ 4-73
DHCP Server Details Screen ...............................................................................................4-74
HDLC Monitor Table Screen ..................................................................................................... 4-77
HDLC Monitor Details Screen ............................................................................................ 4-78
Bridge ........... ........... ......... ............ ........... ........... ......... ........... ............ ........... ......... .................... 4-81
Appendix A Specifications
Network 1, 2, and 3 Interfaces ........................................................................................................... A-1
viii WANsuite 7205
Serial Interface(s) (Data 1 and Data 2) .............................................................................................. A-1
Management Interfaces ...................................................................................................................... A-2
10/100 Ethernet .................................... ...................... ........... .............................. ........... ............. A-2
Supervisory Port .......................................................................................................................... A-2
Diagnostics ........................................................................................................................................ A-2
Alarms ................................................................................................................................................ A-4
Power ................................................................................................................................................. A-4
Mecha nic al . ..... .... .. ..... .... ..... .. ..... .... ..... .. .... ..... .... ... .... ..... .... .. ..... .... ..... .. ..... .... ..... .. .... ..... ..................... A-4
Enviro n m e n t al ....... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ..................... A-4
Frame Relay Statistics Collected in 96 15-minute Intervals ............................................................. A-5
PPP Statistics Collected in 96 15-minute Intervals ........................................................................... A-5
Industry Listings ................................................................................................................................ A-6
Standa rds ............. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ....................... A-6
Ordering Information .........................................................................................................................A-6
Optional Equipment ...........................................................................................................................A-7
Connector Pin Assignments ............................................................................................................... A-8
Serial Interface Pin Assignments for DTE Mode (Packet Use Only) ........................................ A-8
Serial Interface Pin Assignments for DCE Mode ....................................................................... A-9
Ethernet Connection Pin Assignments ........................................................................................ A-9
Netwo r k 1 In t erf a c e Pi n As s i g n me n t s ... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ... A-10
Network 2 and Network 3 Interface Pin Assignments .............................................................. A-10
Supervisory Port Pin Assignments ............................................................................................ A-10
Appendix B SNMP Agent
Introduction .........................................................................................................................................B-1
SNMP Co n f i g u rat i o n P aramete rs .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ...........B-1
SNMP MIBs ....... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ........................B-1
SNMP T ra p Co n fi g u r at i o n . .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... ...........B-2
Generic MIB Loading Instructions .....................................................................................................B-2
ix
x WANsuite 7205
C
HAPTER
0
P
REFACE
This reference guide for the Verilink WANsuite 7205 intelligent integrated
access dev ice (I
and cabling. It is not a user’s guide containing step-by-step procedures. This
manual is designed to be used as a reference regarding commands, interface
ports, configuration parameters, and other information specific to your 7205
unit.
Scope
The WANsuite 7205 has been designed to fit into an AS2000 rack/shelf.
Where appropriate, the text refers you to a specific AS2000 manual for
greater detail.
Manual Organization
The chapters and appendices in this manual are arranged for quick reference
when you need it. You do not have to read previous chapters to understand
the subsequent chapters. Appendices are designed to complement the main
chapters.
• Chapter 1, "About the WANsuite 7205" – This chapter describes product
features and capabilities.
2
AD) describes unit features and specifications, configuration,
• Chapter 2, "Installation" – This chapter describes unit port conne ctions and
powering informatio n.
• Chapter 3, "Web Server Interf ace" – This chapter describes the menu screens
and configuration para meters accessed through the Web server interface.
• Chapter 4, "VT100 Interface" − This chapter describes the menu screens and
configuration parameters accessed through the VT100 interface.
• Appendix A, "Specifications" – This appendix defines the specifications for
the WANsuite 7205. In addition, this se ction provides ordering inform ation
and all connector pin assignments for the interfaces on the back of the
WANsuite 7205 unit.
Preface xi
• Appendix B, "SNMP Agent" − This appendix defines which Management
Information Base (MIB) fil es are supported by the WANsuite 7205 SNMP
agent. In addition, instr uctions are provided for loadi ng these MIB files into
most SNMP management stations.
Typog raphic Conv e ntions
The following table lists the conventions used throughout this guide.
Convention Description
A Notice calls attentions to important features or instruc tions.
A Caution alerts you to serious risk of data loss or other results that
may cause you or the unit trouble if the warning is not heeded.
A Warning alerts you to the risk of serious damage to the unit or
injury and possible death to the end user.
Related Verilink Documents
The Verilink manual AS2000, The Basics provides general information about
Verilink products and may be referred to for assistance:
Customer Service and Technical Support
Verilink provides easy access to customer support information through a
variety of servi ces. This section descri bes these services.
Support from Your Network Supplier
If assistance is required, contact your network supplier. Many suppliers are
authorized Verilink service partners who are qualified to provide a variety of
services, including network planning, installation, hardware maintenance,
application training, and support services. When you contact your network
supplier for assistance, have the following information ready:
• Diagnostic error messages
• A list of system hardware and softwar e, including revision levels
• Details about recent con fi guration changes, if applicable
Support from Verilink
xii WANsuite 7205
If you are unable to receive support from your network supplier or want to
contact us directly, Verilink offers worldwide customer support by telephone,
e-mail, and through Verilink’s Internet Web site.
Telephone
Customer support is available by telephone 24 hours a day, 7 days a week. To
speak directly with a Verilink customer service representative, you may dial
one of the following numbers:
•Sales and Marketing: 800-VERILINK (837-4546)
•Technical Support: 800-285-2755 (toll-fre e)
256-327-2255 (local)
You can request sales and marketing information or pose a technical support
question about your Verilink product by contacting us at the e-mail addresses
provided below. Verilink will respond to e-mailed requests for support during
regular business hours (8–5 CST, Monday–Friday).
•Sales and Marketing: info@verilink.com
•Technical Support: support@verilink.com
Internet
Visit Verilink’s Web site to access the latest Verilink product information,
technical publications, news releases, contact information, and more:
If this reference manual is revised to reflect code changes or other updates,
the most recent version will be posted to the Verilink Web site.
Returning a Unit to Verilink
If for any reason you must return your Verilink product, it must be returned
with the shipping prepaid, and pack aged to t he best commerci al stand ard for
electronic equipment. Verilink will pay shipping charges for delivery on
return. You are responsible for mode and cost of shipment to Verilink.
You must have a Return Material Authorization (RMA) number marked on
the shipping package. To obtain an RMA number, call Customer Service at
800-926-0085, extension 2282 or 2232. Products sent to Verilink without
RMA numbers will be returned to the sender unopened, at the sender’s
expense.
When calling Verilink for an RMA number, please have the following
information available:
• Model number and serial number for each unit
• Reason for return and symptoms of problem
http://www.verilink.com
• Purchase order number to cover charges for out-of-warranty items
• Name and phone number of per son we can conta ct i f we have quest ions about
the unit(s)
Preface xiii
The address for you to use when returning a unit to Verilink will be provided
when the RMA is issued. The standard delivery method for return shipments
is Standard Ground for domestic returns and International Economy for
international returns (unless otherwise specified).
xiv WANsuite 7205
Introduction
C HAPTER
1
CHAPTER 1ABOUT THE WANSUITE 7205
The telecommunications network service market is rapidly changing, where
network monitoring, control, and higher performance in packet processing are
not only expected, but demanded, at competitive price points. Verilink’s
WANsuite family is based on our innovative, next-generation WAN access
architecture − a high ly flexible and po werful arch itecture that ca n meet th e
needs of many different customers in many different applications. Because it
is so flexible, WANsuite products will continually evolve, offering our
customers cutting-edge features at competitive prices.
The WANsuite 7205 is a rack-mounted unit designed to occupy a single slot
position of the Verilink AS2000 rack or shelf. The AS2000 shelf has several
different variations: (1) a dual-line shelf that accomm odates tw o cards, (2) a
quint-line shelf that can accommodate up to five cards, and (3) a multi-line
shelf that can acco mmodat e up to 13 cards. A servic e aware E1/FE1
CSU/DSU, the WANsuite 7205 has three Network ports; two Serial ports
software-configurable for RS-232, EIA-530, V.35, or X.21 electrical
connections; an asynchronous Supervisory port; a 10/100Base-T Ethernet
interface; six s tatus L EDs, and t hree s ets o f tes t acc ess Ba ntam jacks . Capab le
of accommodating a wide range of network configurations, the WANsuite
7205 effectively combines voice, data, and network traffic over a single
transmission facility and works with non-proprietary network management
solutions.
The WANsuite 7205 boasts a built-in mini-dacs. This f eature enab les the un it
to switch or “groom” individual DS0s. You can groom any DS0 from any
interface into any time slot.This feature makes the WANsuite 7205 ideal for
applications that switch DS0s from one E1 onto two separate fractional E1
lines.
The WANsuite 7205 also monitors and measures utilization. W hether
running packet or TDM data, the WANsuite 7205 can measure the percent of
utilization on each network or serial interface. High and low-level alarms
notify network managers in advance that bandwidth may need to be
reallocated.
About the WANsuite 7205 1-1
TCP Server, a feature of the WANsuite product line, provides connectivity
to multiple endpoints by associating a TCP port with each endpoint while
reducing the number of physical connections at the central site to one
10/100Base-T Ethernet port.
Another feature of the WANsuite product line, IP Gateway enables IP p acket
routing throughout a LAN/WAN network architecture using static routing
configurations or dynamic routing protocols (Routing Information Protocol −
RIP 1 and RIP 2 − or Open Shortest Path First − OSPF).
RIP 1 and RIP 2 allow routers to exchange routing information. WANsuite
then uses this information exchange to build routing tables for IP Packet
routes. After building the routing tables, WANsuite periodically broadcasts
the contents to neighboring routers so that your network can choose the most
efficient rou tes available.
OSPF uses link-state routing algorithms to calculate routes based on the
number of routers, transmission speeds, delays, and route costs. Using the
OSPF protocol, WANsuite works with other routers in your
telecommunications fabric to dynamically change routing “on the fly” to make
use of the most efficient and cost-effective transit across your network.
Because IP Gateway enables WANsuite to route IP traffic either statically or
dynamically across your LAN/WAN architecture, your need for costly routers
is substantially reduced. WANsuite is a one-stop solution that can help you
meet the requirements of your many different applications.
DHCP uses a server-client architecture to assign IP addresses to PCs and
workstations on the LAN. The WANsuite 7205’s DHCP server dynamically
assigns these IP addresses, which can be either temporary or permanent, to
each PC or workstation (DHCP client). These IP addresses are "housed" on
the DHCP server. The flexibility to reassign IP addresses saves the end user
money by eliminating the need for a single IP address for each piece of
equipment on the LAN.
NAT e nables an enterprise to set up two sets of IP addresses − one set fo r
internal network use (or LAN traffic) and one set for external use (or Internet
traffic). This feature of the WANsuite 7205 provides a company with a layer
of security by eliminating outside access to internal IP addresses from the
Internet.
Bridging separate LANs together is another option for the IP traffic. Using
the IEEE Standard 802.1D Transparent Bridging specification, the
WANsuite 7205 can simplify your network architecture by allowing you to
bridge sep arate LAN s across a WAN so th ey operat e as a single LAN .
The WANsuite 7205 gives service providers and enterprise customers the
capability to m onitor end -to-end net work perfo rmance (with support for up
to 256 virtual circuits) as well as the capability to verify Service Level
Agreements (SLAs); isolate performance problems to the LAN, local loop or
frame relay network; determine appropriate bandwidth needs; and monitor
network trends to aid in future capacity planning.
1-2 WANsuite 7205
The unit’s built-in ServiceAware™ technology allows network managers to
maximize available WAN bandwidth and verify SLAs. This management
platform allows the end user to see network activity (performance) and
problems (diagnostics) on any permanent virtual circuit (PVC), access line, or
physical circu it.
Verilink’s FrameStart™ technology is standard with WANsuite 7205 and
benefits the initial installation of frame relay circuits by eliminating the
requiremen t for a frame rel ay test se t. Fram eStart ens ures that E1 circu it
status, signal quality, loopback code detection, access link condition, and the
various Layer 2 frame relay investigation and reporting features are available
and accura te.
All of WANsuite 7205’s installation, performance configuration, traffic
monitoring, alarm reporting, and diagnostic capabilities can be configured
through the unit’s embedded We b server interface (WANsight™) using
Microsoft
locally through the Ethernet port or the Supervisory port, or remotely through
the Network port. Especially advantageous is WANsuite’s advanced
monitorin g and co ntrol cap abilit y that gives network administrators the
ability to plan future capacity requirements. To extend the WANsuite 7205’s
functionality even further, Verilink offers an element management software
system for reporting and real-time diagnostics.
®
Internet Explorer™ . The W eb ser ver interfa ce can be accessed
Features of the WANsuite 7205
Performance
Historically, WAN access devices have tended to perform well as
single-function devices such as CSU/DSUs, but have not been optimized to
address higher level traffic issues such as service levels and integration.
Verilink's architecture and Web-based user interface work together to address
all access issues as services and ap plications , rather th an as circ uits and
protocols, for exceptional WAN management performance.
To further leverage its Web server interface, Verilink's new architecture also
allows firmware to be upgraded via the Web from a standard browser, with
password control, if desired.
NOTICE: Verilink recommends the use of Microsoft’s Internet Explorer 5.0 or
higher. If you use other Internet browsers to access the Web server
interface, screen elements will not display as described in this manual.
Mini-Dacs
The WANsuite 7205’s built-in mini-dacs lets the unit switch or groom any
DS0 from the primary Network 1 port to any of its interfaces. The mini-dacs
offers complete grooming independent of DS0 or time slot.
About the WANsuite 7205 1-3
Percent Utilization Reports
The WANsuite 7205 employs two methods for reporting percent utilization of
bandwidth. Both methods are required to accurately report utilization on voice
and data services.
The first of these methods is the DS0 utilization monitor, which reports
utilization of voice bandwidth as it is received from the Network ports.
Through the DS0 utilization monitor screens, you can configure idle DS0
patterns and set high and low utilization alarms.
The other method for reporting percent utilization is High-Level Data Link
Control (HDLC) monitoring, which reports utilization on synchronous data
services transmitted via the three Network or two Serial interfaces. HDLC
monitor screens also let you configure high and low utilization alarms.
The unit will report utilization alarms if DS0 or HDLC utilization stays high
for any given 15-minute period or at the end of any 24-hour period during
which utilization drops below the user-specified threshold. The WANsuite
7205 saves utilization statistics in 15-minute increments for 24 hours, and
each 24-hour period is summarized for up to 30 days.
Test Access Jacks
The three sets of Bantam jacks on the WANsuite 7205 provide local test
access for the following: Network In, Network Out, Network Monitor,
Equipment In, Equipment Out, and Equipment Monitor. This gives
technicians quick and easy access to Layer 1 diagnostics.
SNMP Management
With integrated SNMP in-band management, enterprise managers can now
manage Verilink WANsuite units and their integral CSU/DSUs as a single
unit. With only one LAN segment in the network, all Verilink WANsuite
platforms can be managed by SNMP. With self-learning functionality, these
platforms learn their frame rel ay environmen t and eliminate the need for
remote, trained personnel. Once an IP address has been established for a
properly connected remote unit, all configuration parameters may be
downloaded from the central site; no additional interaction is required at the
remote site to establish connectivity. WANs can be constructed using frame
relay or leased-line services. Verilink’s WANsuite 7205 allows any port to be
configured for any of its available service technologies through simple
software configuration. Network managers can now fine tune the enterprise
network for the lowest cost and highest performance.
Embedded Web Server
1-4 WANsuite 7205
An embedded Web server supplies a simple-to-use interface for configuration
and statistics collection, with a service table for mapping services to ports, an
endpoint table for configuring and monitoring service endpoints, and a user
table for traffic monitoring and control.
Optional Advanced Network Management
As an option for the WANsuite 7205, Verilink offers a network management
system based on RedPoint's NetVoyant™ software, which was designed to
provide IT professionals with the information required to make informed,
enterprise-wide capacity planning and investment decisions. NetVoyant is an
NT-based element managem ent sys tem that includes a n ODB C-co mpliant
database, CORBA IDLs for customization and flexibility, a real-time
diagnostics toolset, and extensive reporting and trending application support.
This solution employs an open-system, multi-vendor support approach for
network management, monitoring, and the collection of statistics from any
SNMP-based networking device including Verilink equipment already in the
field.
WANsuite extends the functionality of NetVoyant’s software by incorporating
customized configuration modules. This advanced network management
system is offered as an option for the WANsuite 7205. Please contact Verilink
for availability and pricing information.
About FrameStart Technology
The WANsuite 7205’s FrameStart technology ensures that frame relay service
is operational prior to installation and connection to other equipment.
FrameStart’s integral frame relay circuit installation and diagnostic tools help
reduce equipment and installation costs, simplify configuration setup, and
alleviate frame relay connection uncertainties − all in one unit.
WANsuite 7205 supports both FrameStart Install and Monitor modes as well
as Layer 2 statistics gathering and diagnostic capabilities that maximize
network availability and manage the growth of the network.
FrameSta rt Ins tall e nables step-by-step validation of network operations and
requires no data terminal equipment such as routers or FRADs. If a DTE
device is connected, operation is halted to perform installation diagnostics.
With FrameStart Install, you have the power to perform advanced tests
including the following:
• Local Managemen t Interface (LMI) Sou rcing
• End-to-end Integrity
• PVC Delay
• Network Receive Level
FrameSta rt Monito r com plements F rameSt art Instal l to moni tor real-t ime
network conditions nonintrusively when connected to real-world applications.
FrameStart Monitor diagnostics maintain and manage the activity of the frame
relay network from the host FrameStart unit. FrameStart Monitor also offers
the following:
• LMI Monitoring
• LMI Auto-Sourcing
• SOS Mode
About the WANsuite 7205 1-5
• New Circuit Installation
Flexible Mounting Options are available. The WANsuite 7205 comes as a
stand-alo ne unit o r as a rack -mounte d card i n a dual-li ne shelf. When
rack-mounted, the shelf provides redundant power with circuit breakers.
Quint-line shelf and multi-line shelf mounting options are also available.
WANsuite 7205 Overview and Advantages
Verilink’s WANsuite 7205 is an innovative, highly intelligent, software-based
WAN access device optimized for frame relay access. The WANsuite 7205
provides network managers with the tools necessary to monitor and
troubleshoot voice, data, and network transmission systems. The ability to use
the WANsuite 7205 as an IP Gateway greatly increases its flexibility while
reducing the customer’s networking costs. In addition, the WANsuite 7205
delivers valuable tools for the following:
• Measuring and reporting performance
• Verifying Service Level Ag reement s (SLAs)
• Managing network resources to ensure optimum performance
• Analyzing trends to aid in network planning
• Managing Web browser and/or in-band/out-of-band SNMP
WANsuite 7205 advantages include the following:
• Offers three Network ports, two Serial ports, and an Ethernet port − the
WANsuite 7205 is extremely flexible and adapts to numerous network
applications
• Provides quick and easy access to Layer 1 diagnostics via its three Bantam
test jacks
• Grooms DS0s from any interface − the WANsuite 7205’s built-in
mini-dacs allows DS0 switching independent of time slot.
• Measures utilization on Network and Serial interfaces − the WANsuite
7205 helps service providers or network managers optimize bandwidth
before problems arise
• Ensures a higher level of service − WANsuite 7205 acts as an expert frame
relay Service Level advisor for service providers and users.
• Lowers facility costs − WANsuite 7205's easy installation and
configuration cut down on maintenance and sparing costs.
• Reduces the need for costly route rs with its IP Gateway feature − WANsuite
handles all your networki ng needs.
Features Summary
• A powerfu l core a rchitec ture:
• 10/100Base-T Ethernet port for Management or IP Gateway
• Three Network ports
1-6 WANsuite 7205
• Dual Serial ports software-configurable for RS-232, EIA-530, V.35, or
X.21
• Supervisory port for local management via VT100
• Mini-Dacs
• DS0 switching independent of time slot
• Test Access Jacks
• Quick and easy access to Layer 1 diagnostics
• DS0 and HDLC Utilization Reports
• Configurable utilization thresholds
• High and low utilization alarms
• IP Gateway:
• Frame Relay or PPP
• 10/100Base-T Ethernet port
• Static routes
• Static Address Resolution Protocol (ARP)
• Dynamic routing protocols, including RIP 1, RIP 2, and OSPF
• Un-numbered Network
• Address Management: NAT and DHCP
• Programmable alarm thresholds
• Transparent Bridging
• Configurable Serial (Data) Port:
• Supports V.35, EIA-530, RS-232, and X.21
• Supervisory Control and Data Acquisition (SCADA):
• TCP Server allows multiple connections to TCP clients
• Asynchronous multicasting lets the WANsuite 7205 transmit identical
data to multiple endpoints
• A suite of performance monitoring tools:
• Monitoring capability for up to 256 virtual circuits (Data Link
Connection Identifiers, or DLCIs)
• E1/FE1 performance monitoring, including complete diagnostic
capabilities and test modes
• SLA monitoring and management
• Committed Information Rate (CIR) enforcement per DLCI
• Programmable alarm thresholds
• Management Interfaces:
• WANsight − an innovative, embedded, Web-based user interface for
remote configuration and real-time reporting via Web browser
About the WANsuite 7205 1-7
Front Panel
(Verilink recommends Microsoft Internet Explorer 5.0 or higher) that
decreases installation and configuration time for service employees,
simplifies troubleshooting and fault isolation of network problems, and
optimizes management of both TDM and frame-based services.
• VT100 or TELNET
• Local Supervisory port
• Ethernet port for management or IP routing
• Frame Relay Aware:
• Support for leased-line and frame relay services
• Layer 2 end-to-end visibility and control
• Embedde d frame re lay tes t set
• Layer 3 support for visibility beyond the network layer (up to 25
protocols)
• “Top Talk er” repo rts − lets you find out who’s generating the most IP
traffic on your LAN
The front panel of the WANsuite 7205 application module (Figure 1.1)
provides the following:
• Six LED status indicators
• A local RJ-11 Supervisory port
• Three sets of Bantam jacks for diagnostics
• Ejector handles for installing the module in a shelf slot
Figure 1.1
Front Panel of WANsuite 7205
1-8 WANsuite 7205
The front panel LED status indicators are defined in the table below:
Control/
Indicator
NET 1, NET 2,
and NET 3
SER 1
(DATA 1) and
SER 2
(DATA 2)
PWR/TEST
Function/Description
This indicator is off (not illuminated) when the port has not been configured.
The indicator lights red when th e E 1 lin k is do w n .
The indicator lights amber when the E1 link is up and at lea st one configured
protocol is not established.
The indicator lights green when the E1 link is up and all configured protoc ols
are esta blished.
NOTE: TDM is considered a proto col. It is established when ever the E1 link
is up.
Port in DTE Mode:
This indicator is off (not illuminated) when the port has not been configured.
The indicator lights red when DSR is not active and the configured protocol
is not established.
The indicator lights amber when DSR is not active or the confi gure d pro toc ol
is not established.
The indicator lig hts green when DSR is active and the configured protocol is
established.
DTR Alarm Enable d (Port in DCE Mode):
This indicator is off (not illuminated) when the port has not been configured.
The indicator lights red when DTR is not active and the configured protocol
is not established.
The indicator lights amber when DTR is not acti ve or the con figur ed p rotoc ol
is not established.
The indicator lights green when DTR is active and the configured protocol is
established.
DTR Alarm Disabl ed (Port in DCE Mode):
This indicator is off (not illuminated) when the port has not been configured.
The indicator lights green when the configured protocol is esta blished.
The indicator lights red when the configured protocol is not established.
This indicator lights green when power is applied to the unit.
The indicator lights amber in test modes (port looped or BERT
active).
Local Supervisory Port
The SUPERVISORY PORT, labeled on the front panel as LOCAL, is an RJ-11
female DCE connector configured for 8 bits, no parity, and 1 stop bit. Bit
rates are configured through the Web server interface or VT100 interface. The
local Supervisory port can be set to speeds of 1200, 2400, 4800, 9600, 19200,
38400, 57600, or 115200 bps. The initial default rate of the local Supervisory
port is 19200 bps.
On power-up, the Supervisory port sends out diagnostic messages at the bit
rate of 115.2 kbps until the Supervisory service acquires the Supervisory port.
These diagnostic messages can disrupt the connected device; however, you
can configure the unit to disable their transmission.
About the WANsuite 7205 1-9
NOTICE: For information on pinout assignments for this connector, refer to
page A-8. See Ordering Information on page A -6 for information on
cables for this connector.
Data Interface Module (Rear Panel)
The Data Interface Module (DIM) − or rear connector module − mate s wi th
the associated WANsuite 7205 module and connects it to the data equipment.
As shown in Figure 1.2, the rear panel of the DIM 7205 provides the
following:
•Two R S-232 DB-25 connectors
•T hree RJ-4 8C jacks
•One 8-pin m odular 10/100Base-T Ethernet port
10/100 Ethernet
The two DB-25 connectors are Serial data ports (labeled
2
), and the t wo RJ -48C jack s are Ne twork inter faces (l abeled NE T 3, NET 2,
and NET 1).
Figure 1.2
The WANsuite 7205 provides one 10/100 ETHERNET interfac e for IP
Gateway, SNMP, and Web browser access. This interface is an 8-pin modular
jack that complies with standard twisted-pair, 10/100Base-T requirements.
The 10/100Base-T cable is supplied by the end user. Refer to Ethernet
Connection Pin Assignments on page A-9 for pin assignments and cable
descriptions.
WANsuite 7205 Rear Panel
DATA 1 and DATA
Ethernet LED Indicators
There are two unlabeled indicator LEDs on either side of the 10/100 Ethernet
jack. The LED on the left side of the jack pulses amber to indicate data
activity (either transmit or receive). The LED on the right side of the jack
lights green to indicate that the link layer is operational.
Serial Interfaces
1-10 WANsuite 7205
The two SERIAL interfaces (labeled DATA 1 and DAT A 2 ) lo cated on the rear
of the unit are multi-protocol interfaces presented physically as DB-25
connections. The protocols supported by these interfaces are RS-232,
EIA-530, V.35, and X.21.
Cables that adap t the DB-25 interface to the 34-pin V.35 interface are
available. These cables are listed as optional equipment on page A-7 of
Appendix A. DB-25 to DB-25 cables also are available if your installation
needs req uire them . See Ordering Information on page A-6 for details. Refer
to Serial Interface Pin Assignments for DTE Mode (Packet Use Only) on
page A-8 and Serial Interface Pin Assignments for DCE Mode on page A-9
for Seria l interface pin ass ignments .
CAUTION: FCC rules require that interconnecting cables carrying high-speed
Network Interfaces
Labeled on the rear panel of the WANsuite 7205 as NET 1, NET 2, and NET 3,
the Network interfaces’ connections are standard RJ-48C, 8-pin modular jacks
that contain an automatic line build out (ALBO). This ALBO allows the unit
to be located a substantial distance away from the telco Network interface
with a receive signal level to −27 dB. To view their pinout assignments, refer
to Network 1 Interface Pin Assignments or Network 2 and Network 3 Interface
Pin Assignments on page A-10.
data be shielded appropriately in order to minimize radio frequency
interference.
Maximum suggested cable lengths for the connection from the unit to the
network are listed in the table below. Calculations are based on a cable
temperature of 70 °F, 0.083 µF / mi le capacitance, a 27-dB loss, an d a 100-Ω,
non-loaded, twisted-pair cable.
Cable Type
26-gauge PIC 6.8 4,400
24-gauge PIC 5.4 5,500
22-gauge PIC 4.2 7,100
19-gauge P IC 3.0 10,000
(PIC - Plastic Insulated Cable)
CAUTION: In accordance with FCC Rules, Part 68.218(b), you must notify the
Power Connection
No external power supply is required for the WANsuite 7205; power is
received from its AS2000 rack connection.
Loss per 1000 ft
(dB)
telephone company prior to disconnecting this product.
Max Cable L ength
(ft)
When power is applied to the unit, the front panel LED indicators flash for
approximately 10 to15 seconds as the unit initializes. The green
POWER LED
will remain illuminated as long as the unit receives power. This LED turns
amber when the unit is in test mode.
About the WANsuite 7205 1-11
Power Op ti o ns
Power Fa ilure
Three shelf options for mounting the WANsuite 7205 are described below:
•Multi-line shelf (MLS 2000 and 2200 series) holds 13 application
modules and 2 modular power supplies (AC or DC)
•Quint-line shelf (QLS 2500) holds five modules and contains an internal
AC or DC power supply. This shelf is a stand-alone unit.
•Dual-line shelf (DLS 2100) holds two modules and is powered by
external powers supplies. (Verilink offers a universal AC/DC power
supply, as well as an internal redundant 24-VDC power option.)
If the POWER indicator does not illuminate, check the rack power connections
and the primary AC circuit breaker.
The WANsuite 7205 provides non-volatile memory retention of the unit
configuration in case of a power failure. This feature allows the unit to
automatically restore normal service and retain pre-existing time and date
information following a power loss.
1-12 WANsuite 7205
C HAPTER
2
C
HAPTER
2
I
NSTALLATION
This chapter describes the contents of your WANsuite 7205 shipment and
provides information on connecting and installing the unit.
The WANsuite 7205 uses an “Installation Wizard” to help you automatically
install the unit quickly and correctly. Procedures for using this Installation
Wizard are also describe d in this c hapter.
For information on installing and replacing shelves, modules, and
supplies, refer to the Verilink manual AS2000, The Basics.
WANsuite 7205 Components
The complete WANsuite 7205 assembly consists of an application module
and a rear data interface module (DIM), together occupying a single shelf-slot
position accessible from the front and back of the Verilink AS2000 rack or
shelf. The DIM is installed from th e rear of t he shelf into the b ackplan e. The
WANsuite 7205 front module is installed from the front. The DIM is always
installed first and removed last; the WANsuite 7205 front module is installed
last and removed first.
Unpacking and Inspection
The WANsuite 7205 is shipped in cardboard cartons with foam inserts for
shock and vibration protection. When your shipment arrives, inspect the
shipping container and contents, and compare all items with those listed on
the packing list.
If the contents of the shipment are incomplete or if there is mechanical
damage or defect, notify the carrier and Verilink. (See Support from Verilink
on page xii.) If the shipping container or cushioning material is damaged,
notify the carrier and Verilink immediately and make a notation on the
delivery receipt that the container was damaged. (If possible, obtain the
signature and name of the person making delivery.) Retain the packaging
material until the contents of the shipment have been checked for
power
Installation 2-1
completeness and the unit has been checked both mechanically and
electrically.
Supplied Materials
The WANsuite 7205 ships with the following standard items:
• WANsuite 7205 unit
• E1 network cable
• Serial (Supervis ory) cable
• Verilink Documentation CD
For specific applications, see Optional Equipment on page A-7 for additional
cables and adapters. Contact Verilink Technical Support for part numbers or
further assist ance.
Configuring the Unit’s IP Address
The WANsuite 7205 can be configured and monitored through the Web Server
interface o r the VT10 0 interface, but the uni t must first b e configured with an
IP address. You can configure the unit’s I P address using the Verilink
Configuration Wizard, which is included on your documentation CD.
Installation Wizard
NOTICE: You may also access the Verilink Configuration Wizard on the
Verilink We b site: www.verilink.com.
To configure the IP address using the Verilink Configuration Wizard, follow
the steps listed below:
1 Using the supplied cable, connect the unit’s RJ-11 Supervisory port to a
COM port on your PC. (Take note of which COM port is connected.)
2 Insert the Verilink CD (provided with the WANsuite 7205) into your PC’s
CD-ROM drive.
3 Use Windows “Explore” to view the contents of the CD and select the
folder labeled “Utilities.” In this folder will be a file named
this executable fil e is the Verilink Configuration Wizard appli cation.
ipwiz.exe;
2-2 WANsuite 7205
Double-click on this file to launch the program. After the program is fully
launched, you will see the following screen:
4 Using the Tab key to move f rom fie ld to f ield, move the c ursor to the “COM
Port” field. Using the Spacebar, toggle between the available options until
the correct COM port is sho wn (COM1, COM2, COM3, or COM4). Be s ure
to choose the same COM port as the port to which the unit is connected.
5 By default, the “ Baud Rate” field will display 115 200 (bits per sec ond). For
the purpose of this installa tion, do not change the displayed baud rate from
its default. Proceed directly to the next step.
6 Using the Tab key again, move the cursor to the “IP Address” field and
enter the appropriat e IP address for the unit (xxx.xxx.xxx.xxx). If necessary,
repeat this process for the “Subnet Mask” and “Gateway Address” fields.
7 Next, move the cursor to the “Write To Unit” field and press the Enter key.
The program will prompt you to reset the unit.
8 To reset the unit, cycle the unit’s power (i.e ., disconnect the power supply
cable from the unit and then reconnect it). The Configuration Wizard will
then automatically download the configuration information to the unit.
9 Note the status messages displayed at the bottom of the Configuration
Wizard screen. When the download is complete, your PC will beep and the
status message bar will displa y “Finished.”
10 Finally, move the cursor to the “Exit” prompt and press Enter. The
Configuration Wizard pr ogram will close.
Installation 2-3
