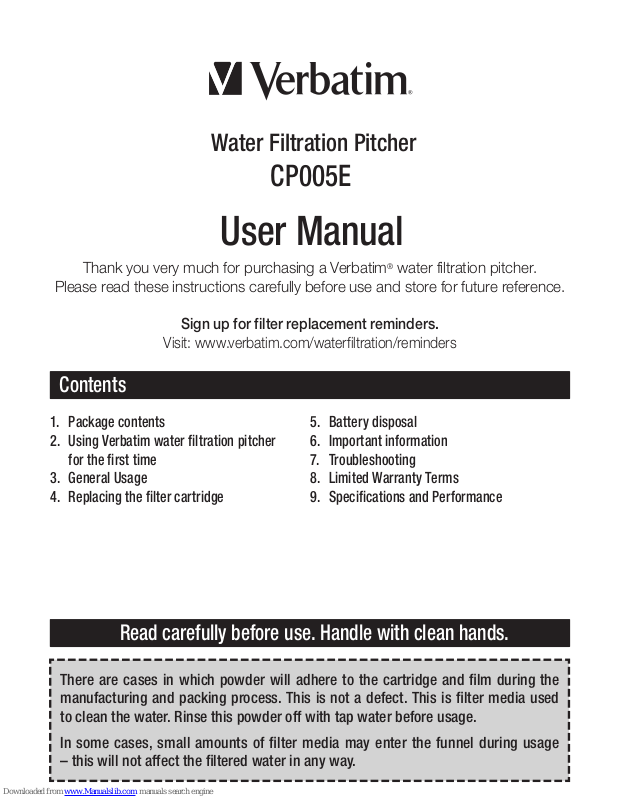

Water Filtration Pitcher
Thank you very much for purchasing a Verbatim® water filtration pitcher.
Please read these instructions carefully before use and store for future reference.
Sign up for filter replacement reminders.
Visit: www.verbatim.com/waterfiltration/reminders
1. Package contents
2. Using Verbatim water filtration pitcher
for the first time
3. General Usage
4. Replacing the filter cartridge
Read carefully before use. Handle with clean hands.
Contents
CP005E
User Manual
There are cases in which powder will adhere to the cartridge and lm during the
manufacturing and packing process. This is not a defect. This is lter media used
to clean the water. Rinse this powder off with tap water before usage.
In some cases, small amounts of lter media may enter the funnel during usage
– this will not affect the ltered water in any way.
5. Battery disposal
6. Important information
7. Troubleshooting
8. Limited Warranty Terms
9. Specifications and Performance
2
Air hole
O-ring
Water line
In the event of missing accessories or damage, please visit www.verbatim.com/support
or call Verbatim technical support. 1-800-538-8589 M-F 8:00am - 9:00pm EST.
Upon opening package, conrm that all
of the following items are included:
1. Package contents
2. Using Verbatim Water Filtration Pitcher for the rst time
Filter Cartridge
O-ring
Funnel
Hold the filter cartridge
above the O-ring.
Holding the lter cartridge above the O-ring,
remove from bag and peel off the protective lm.
Wash the pitcher, funnel and lid with diluted, mild kitchen detergent.
Rinse thoroughly.
Rinse with tap water.
Preparing the Filter Cartridge
Preparing the pitcher
Pitcher
Funnel
Lid with LED counter button
Filter
Cartridge
User manual
3
Insert lter cartridge into funnel and press into position.
Fill pitcher 2/3 with tap water.
Insert funnel into pitcher.
Let stand 20 minutes.
Pour out water that has collected in the funnel and pitcher.
Fill funnel to the water line with room temperature tap water
and allow to lter naturally.
Once water in the funnel has ltered, pour out water that
has collected in the pitcher.
Repeat last two steps twice more, for a total of 3 times.
Approximately 2/3rd
20min
4
3. General Usage
Water line
▲
Fill funnel to water line.
Do not fill past water line.
Failure to do so may result in unltered
water mixing with ltered water.
Attach the lid.
Allow water to lter completely before pouring.
Failure to
do so may result in unfiltered water mixing with filtered water.
Pitcher must remain upright to ensure proper ltering.
Pouring
Align lid with the grooves at top of pitcher. Slide lid forward until it clicks in place.
Upon installing a new cartridge, press and hold the counter button
for 2-5 seconds, until the lights flash.
To check the status of an installed cartridge, briefly press the counter button.
(About a second).
Approximately every three weeks, one light/bar will go out – when all the
lights are out, it’s time to change your filter.
Pour
Slide lid back to reveal spout
opening.
Slide lid forward to close
Return to refrigerator
Ensure that lid remains
closed when not in use.
Clean the pitcher, funnel and lid periodically. Wash the pitcher, funnel and lid with
a clean sponge soaked in diluted, mild kitchen detergent. Rinse thoroughly.
Replacement
5
4. Replacing the lter cartridge (CPC5E)
5. Battery Disposal
Pull upward to detach lter cartridge.
Dispose of used lter cartridges in accordance with local waste regulations.
Insert new lter cartridge and press into position. Follow installation instructions (pg.4)
The lter cartridge replacement period is approximately 3 months, however, this period
may vary based on the amount of water used, water quality and the temperature of
water ltered (colder water requires longer ltering). In general, use your lter counter
as a guide for replacement, but earlier replacement is recommended in the following
circumstances:
• When the odor or taste of chlorine is detected
• If the unit has not been used for a long period of time
The battery for the lter counter button has an approximate lifespan of 5 years.
Contains enclosed battery with perchlorate material-special handling may apply.
Dispose of appropriately when replaced.
CR Coin Lithium Battery contains Perchlorate Material - special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
For instructions to order a new lid, please visit www.verbatim.com/support
or call Verbatim technical support. 1-800-538-8589 M-F 8:00am - 9:00pm EST.
Do not use with water that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after the system.
6. Important Information
Please adhere to the following instructions.
6
Using Filtered Water
Store pitcher in the refrigerator at all times once water has passed through the lter cartridge.
Do not store ltered water at room temperature for long periods of time. Filtered water may be
stored in the refrigerator for future consumption but should not be stored longer than 48 hours.
STOP using pitcher immediately in the event it becomes damaged.
Do not use until all of the water in the funnel has been ltered.
Failure to do so may result in ltered water mixing with unltered water.
Do not use with water that contains high quantities of impurities.
Never place anything other than tap water, such as tea bags, juice or milk inside the pitcher.
Do not use water with a temperature higher than 95°F (35°C) or lower than 33°F (1°C) through
the lter. This system should only be used with cool or room temperature water.
Do not cover the air hole in the lter cartridge as this may result in extended ltering times.
Do not use ltered water for sh or other marine life.
Avoiding Damage to Pitcher
Do not heat.
• Failure to observe this may result in damage to the insulating material, etc.
• Never place the pitcher inside a microwave or any other type of oven.
Do not wash or dry pitcher in automatic dishwashers or dryers.
• Washing/drying in automatic dishwasher/dryer could result in malformation or
discoloration of pitcher or damage and deterioration of water ltering performance.
Do not place or store pitcher in locations subject to high temperatures including:
direct sunlight, parked cars, etc.
• Failure to observe this may result in damage to the insulating material and
deterioration of ltering performance and reduced lifespan.
Do not place pitcher in freezer.
Do not use strong cleansers or thinners to clean the pitcher, funnel or lid.
7
Problem Potential Causes Solution
Odors remain, or strange
taste
Is the lter cartridge properly
installed?
Ensure the lter cartridge is in
the correct position.
(2. Using Verbatim water ltration
pitcher for the
rst time)
Does the lter cartridge need to be
replaced?
Replace lter cartridge.
(4. Replacing the lter cartridge)
Filtering is extremely
slow
Is the lter cartridge properly
installed?
Ensure the lter cartridge is in
the correct position.
(2. Using Verbatim water ltration
pitcher for the rst time)
Is the lter cartridge air hole covered
or blocked?
Uncover or unblock the air hole.
Is the hollow ber membrane
clogged?
Replace lter cartridge.
(4. Replacing the lter cartridge)
7. Troubleshooting
8. Limited Warranty Terms – Water Filtration Products
The Verbatim Americas LLC separate and individual warranty obligations for its Water Filtration Hardware
and its Water Filter Cartridge products are limited to the terms set forth below.
“Water Filtration Hardware” is defined as any Verbatim water filter products excluding its replaceable
water filter cartridge component. “Water Filter Cartridge” is defined as the replaceable water filter
cartridge that is included with Water Filtration Hardware. Together or separately, they are also referred
to as the "Products”.
Verbatim warrants its Water Filtration Hardware to be free of defects in material and workmanship under normal use and
service for a period of two (2) years from the date of purchase. Verbatim warrants its Water Filter Cartridge to be free
of defects in material and workmanship for a period of thirty (30) days when used according to Verbatim’s instructions.
Verbatim’s sole obligation with respect to claims of non-conformance made within the warranty periods described above
shall be, at its option, to repair or replace any of the Products that Verbatim, in its sole discretion, determines to be
defective, subject to the procedure set forth below.
Verbatim’s warranty obligations hereunder are expressly conditioned upon (i.) the Products being properly installed, used
and maintained at all times by Customer; (ii.) the Products not being subject to unusual mechanical stress or unusual
plumbing or environmental conditions or acts of God; (iii.) the Products not being subjected to misuse, accident or any
8
unauthorized installation/deinstallation by Customer or other third party; (iv.) the Products not being altered or modified
in an unauthorized manner, unless approved in writing or otherwise performed by Verbatim and (v.) Customer promptly
installing all Product revisions that have been released for such Products by Verbatim throughout the warranty term.
Verbatim does not warrant that the Products will operate in any specific combination that may be selected for use by
Customer or that the operation of the Products will be uninterrupted or error free, or that all non-compliance or defects
will be remedied. Additionally, Verbatim shall have no warranty obligations for any failure of the Products to conform
to the applicable product specifications resulting from the combination of any Products with products not supplied
by Verbatim. If it is determined that any Products reported as defective or non-conforming by Customer during the
warranty period is not defective or non-conforming, Verbatim may, at its option, charge Customer for any labor provided
and expenses incurred by Verbatim in connection with such determination, at Verbatim’s then current rates.
Verbatim is not liable for labor charges, installation, or other incidental or consequential costs. In no event shall the
liability of Verbatim exceed the purchase price of the Products.
Verbatim shall not be responsible for unauthorized sale or misrepresentation by unauthorized third party resellers.
Verbatim warranties are not transferable with ownership. Products purchased by auction, yard sale, flea market or
purchased as demo units may not be covered under Verbatim’s warranties.
THE WARRANTIES OF VERBATIM AND REMEDIES OF CUSTOMER SET FORTH IN THIS SECTION ARE EXCLUSIVE AND
ARE GIVEN BY VERBATIM AND ACCEPTED BY CUSTOMER IN LIEU OF ANY AND ALL OTHER WARRANTIES, WHETHER
EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITATION, ALL WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ALL SUCH OTHER WARRANTIES BEING HEREBY EXPRESSLY AND UNEQUIVOCALLY DISCLAIMED BY
VERBATIM AND WAIVED BY CUSTOMER TO THE EXTENT ALLOWED BY LAW (AND TO THE EXTENT NOT WAIVABLE BY LAW,
ARE LIMITED TO THE TERM OF THE EXPRESS WARRANTY SET FORTH HEREIN).
VERBATIM IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
ANY BREACH OF WARRANTY OR CONDITION. VERBATIM SPECIFICALLY DOES NOT REPRESENT THAT IT WILL BE ABLE TO
REPAIR ANY PRODUCT UNDER THIS LIMITED WARRANTY. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. FOR EXAMPLE, SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THESE RESTRICTIONS MAY NOT APPLY TO YOU.
Return Procedure – US & Canada:
The Customer shall obtain a Return Merchandise Authorization (RMA) number from Verbatim prior to returning any
Products to Verbatim under this warranty by contacting Technical Support (see www.verbatim.com/support). The
Customer shall prepay shipping charges for Products returned to Verbatim for warranty service, and Verbatim shall pay
freight charges for the return of the Products to the Customer, excluding Customs duties or taxes, if any. All returns
require a dated original proof of purchase and a letter explaining the problem. Verbatim will not be responsible for items
returned without an RMA or improperly packaged. Replacement Products shall be new or like new in performance
and shall be warranted for the remaining duration of the warranty term of the non-conforming Products. All replaced
Products shall become the property of Verbatim. Any claims of defects not made within the warranty period shall be
deemed waived by Customer.
Return Procedure – All Other Countries:
Visit www.verbatim.com/support, where you will be directed to a local sales representative who will assist you with
the return. The Customer shall prepay shipping charges for Products returned to Verbatim for warranty service, and
Verbatim shall pay freight charges for the return of the Products to the Customer, excluding Customs duties or taxes,
9
NSF/ANSI Standard 42 – Aesthetic Effects
Influent Challenge Concentration Filter Effluent
Percentage
Reduction
Reduction
Requirement
Substance Actual NSF Target Average Maximum Overall
Chlorine taste
and odor
2.1 mg/L 2.0 mg/L + /-10% 0.05 mg/L 0.05 mg/L 97.5% ≥ 50%
NSF/ANSI Standard 53 – Health Effects
Influent Challenge Concentration Filter Effluent
Percentage
Reduction
Reduction
Requirement
Substance Actual NSF Target Average Maximum Overall
Cysts 370,000/L minimum 50,000/L 1.8 /L 7 /L >99.99% 99.95%
Influent Challenge Concentration Filter Effluent
Percentage
Reduction
Maximum
permissible
product water
concentrationSubstance Actual NSF Target Average Maximum Overall
Turbidity 10.5 NTU 11± NTU ND (0.1) 0.1 99.1% 0.5 NTU
if any. All returns require a dated original proof of purchase and a letter explaining the problem. Verbatim will not be
responsible for items returned in improper packaging. Replacement Products shall be new or like new in performance
and shall be warranted for the remaining duration of the warranty term of the non-conforming Products. All replaced
Products shall become the property of Verbatim. Any claims of defects not made within the warranty period shall be
deemed waived by Customer.
9. Specications and Performance
Model# CP005E
Model# CP005E
Maintenance according to the manufacturer’s instructions is critical for proper filter performance. Filter life should not
exceed 200 liters (52.83 gallons). If filtering time is notably increased, replace the filter earlier.
This system has been tested according to NSF/ANSI 42 and 53 standards by NSF International for reduction
of the substances listed above. The concentration of the indicated substances in water entering the system was
reduces to a concentration less than or equal to the permissible limit for water leaving the system, as specified in
NSF/ANSI 42 and 53.
The system conforms to NSF/ANSI 42 and 53 for specific performance claims as verified and substantiated by test
data. While testing was performed under standard laboratory conditions, actual performance may vary.
The use of this system shall comply with applicable state and local laws.
Please contact Verbatim technical support for details of where replacement filters are available.
1-800-538-8589 M-F 8:00am - 9:00pm EST www.verbatim.com/support
Working pressure (min/max): N/A
Capacity: 52.83 gallons (200 liters)
Service flow rate: N/A
Filtered water temperature (min/max): 33° F /95° F (1° C /35° C)
Electrical requirements: none
10
State of California
Department of Public Health
Water Treatment Device
Certicate Number
15-3179, 15-3181
Date Issued: August 12, 2015
33
Verbatim USA
1200 West W.T. Harris Boulevard
Charlotte, North Carolina 28262
USA
Tel. (704) 547-6500
Fax. (704) 547-6619
Verbatim Argentina SA
Irala 1950 1er piso
Capital federal (1644)
Buenos Aires Argentina
TEL/FAX. (+54911) 52742000
www.verbatim.com
• AMERICAS: USA Verbatim Americas LLC. Charlotte, NC
• EUROPE/ MIDDLE EAST/ AFRICA: Verbatim Ltd, Prestige House,
23- 26 High Street, Egham, Surrey, TW20 9DU, UK
• AUSTR
ALIA/ NEW ZEALAND: Verbatim Australia Pty Ltd,
Unit 6, 450 Princes Highway, Noble Park, Victoria, 3174 Australia
Manufactured by Mitsubishi Rayon Cleansui Co., Ltd.
14-1, Nihonbashi-Koamicho, Chuo-ku, Tokyo 103-0016, Japan
Tel. +81 - 3 - 3669 - 4750
15/09
Loading...
