Verbatim 98243 User Manual

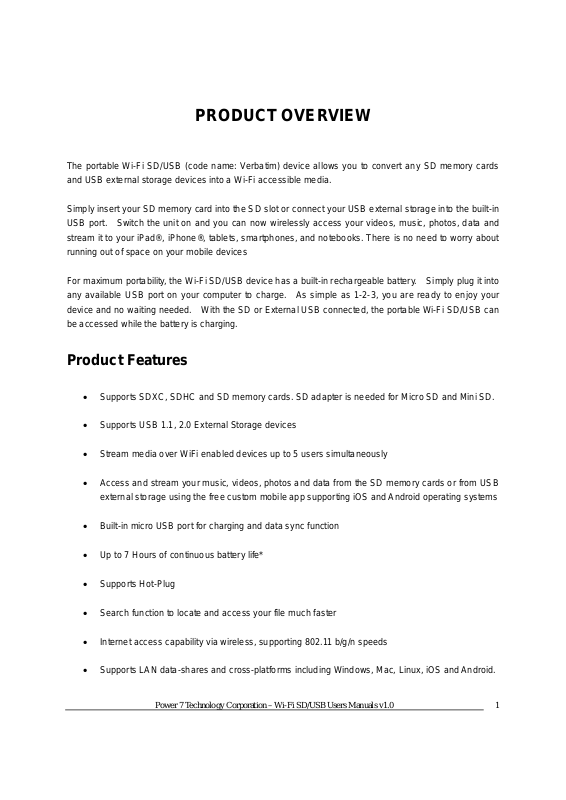

PRODUCT OVERVIEW

The portable Wi-Fi SD/USB (code name: Verbatim) device allows you to convert any SD memory cards and USB external storage devices into a Wi-Fi accessible media.

Simply insert your SD memory card into the SD slot or connect your USB external storage into the built-in USB port. Switch the unit on and you can now wirelessly access your videos, music, photos, data and stream it to your iPad®, iPhone®, tablets, smartphones, and notebooks. There is no need to worry about running out of space on your mobile devices

For maximum portability, the Wi-Fi SD/USB device has a built-in rechargeable battery. Simply plug it into any available USB port on your computer to charge. As simple as 1-2-3, you are ready to enjoy your device and no waiting needed. With the SD or External USB connected, the portable Wi-Fi SD/USB can be accessed while the battery is charging.

Product Features

• Supports SDXC, SDHC and SD memory cards. SD adapter is needed for Micro SD and Mini SD.

• Supports USB 1.1, 2.0 External Storage devices

• Stream media over WiFi enabled devices up to 5 users simultaneously

• Access and stream your music, videos, photos and data from the SD memory cards or from USB

external storage using the free custom m obile app supporting iOS and Android operating systems

• Built-in micro USB port for charging and data sync function

• Up to 7 Hours of continuous battery life*

• Supports Hot-Plug

• Search function to locate and access your file much faster

• Internet access capability via wireless, supporting 802.11 b/g/n speeds

• Supports LAN data-shares and cross-platforms including Windows, Mac, Linux, iOS and Android.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

• Support multiple NSA, including Samba / WebDAV

• Support multiple platform client tools, including Windows, Mac, Linux, iOS, and Android

*Battery life subject to normal usage conditions and configurations. *Minimum Hardware Requirement ：1GB Storage Space for SD Memory Card or Flash Drive

(100MB capacity will be used for temporary files)

A. To function as SD memory card reader.

Simply connect the device into the computer’s available

USB port. The device will automatically mount on your desktop or inside the “My Computer”.

The Wi-Fi SD/USB works as SD memory card reader and charges the internal battery

B. Wireless Mode. Wirelessly connect the Wi-Fi SD/USB to your existing wireless router to function as a wireless Internet pass-through to have access to the internet as illustrated below.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

1. Hardware and Accessori e s

The Power 7 Wi-Fi SD/USB Storage kit includes the following:

2 Product Parameters

2.1 Product Dimensions

Dimension：112mm (L) X 78mm (W) X 14mm (H)

2.2. Product Specification

CPU:

Model: Ralink RT5350

Frequency: MIPS24KEc 360MHZ Wi-Fi: Standard: 802.11 b/g/n,

Frequency: 2.4 GHZ

Speed: 72Mbps at 20MHz

150Mbps at 40MHz USB Interface：Micro USB 2.0 for data transfer and charging Battery: Capacity：3000mAh Charging current: supports 500mA, 800mA and 1.5A Power consumption:

A) SD Card Read/Write*：2W B) Stand-by (SD Sleep Mode): 1.5W C) Emission (EMI) Safety and Other Certifications: FCC (Class B) and CE

*Varies on SD card type.

2.3. Operating Temperature

The normal operating temperature of the device is between 5°C to 35 °C. Non-operating temperature is between 0° to 60°C.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

The operating humidity (non-condensing) is between 5% to 90% and non-operating humidity is 5% ~ 90 % (non-condensing).

3. Minimum Hardware Requirements

• Internet Connection

• PC Operating System Requirements

o Windows: XP/Vista/Windows 7 o Mac: OS X 10.6.0 and later o Others: Fedora 12 (Linux) and late

• PC Web Browser

o Windows: Supports Internet Explorer 7.0 and higher version o Mac: Supports Safari 3.0 and higher version o Others: Firefox 3.5 and higher version

• iOS: 4.0 and above

• Android: 2.3 and above

• Router or Switch

4. Product View

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

5. Device Interface

5.1 USB Interface： The built-in Micro USB 2.0 is for data transfer and charging the internal battery

when connected directly into the computer’s USB port or wall chargers.

5.2 USB Host Interface: The built-in USB 2.0 Host Interface for connecting any USB Mass

Storage device and for charging mobile devices such as smartphones, MP3 Players, and tablets.

5.3 SD Slot: Available SD slot to support SD, SDHC, and SDXC. SD adapter is needed to

support Micro SD and Mini SD.

5.4 Power Button: Switch on/off the device.

5.5 Reset Button: Reset the device to the Default Factory Settings.

5.6 LED Panel

Power LED:

LED Off: The device is switched-off or no power

Green Color

Steady Light: Battery is fully charged Slowly Blinking: Battery charging Blinking Fast: Device Shutting-Down

Red Color: Steady Light: Less than 30% available power

Blinking Fast: Will soon shut-down, must be charged immediately

Wi-Fi LED:

Blue Color:

Flashing: Starts the Initialization process

Steady Light: Initialization process completed

Ready to use

Wi-Fi signal is normal

LED Off: The device is switched-off or no power

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

Internet LED:

Blue Color: Good signal

No LED: No connection established

SD Read/Write LED:

Blue Color:

Flashing: Reading/Writing Data

Steady Light: Initialization process completed

Ready to use

6. Storage Installation

6.1 SD Memory Card

Note: Do not touch the exposed connectors on your SD memory card.

Installing the SD memory card is very simple. Locate the SD memory card slot. Simply insert the memory card as seen on the image below. Gently push the memory card all the way in until it locks into its place.

Press the power button to switch on the device. Wait for few seconds to complete the initialization process and your SD memory card is ready to use.

6.2 USB External Storage

Locate the USB port on the device. Simply insert the any USB Mass Storage device including Flash Drives, External Hard Drive and card readers into the USB port of the device as seen the image below.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

Press the power button to switch on the device. Wait for few seconds to complete the initialization process and your USB external storage is ready to use.

7. PC Client Software Installation

Our included Client Utility software is the only software that you will need to copy on your computer. This software utility allows you to easily search and look for your Wi-Fi SD/USB that is connected from your home network.

1. Copy the “AirStor” executable file on your PC and follow the on-screen instructions.

2. Once the copy is complete, double-click on the “AirStor” icon on your desktop to launch the

software utility.

8. Using Personal Computer

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

8.1. Connecting Wirelessly to PC

Switch-on the Wi-Fi SD/USB by pressing the power button at the front panel. Wait for few minutes until the Wireless LED remain lit. Enable the Wi-Fi feature on your PC and open the Wireless Network Connection. Select the WiFiSD-XXXX wireless connection (default wireless SSID: WiFiSD- XXXX) and enter the default password as 11111111. Once you have successfully connected to your Wi-Fi SD/USB, you may now run the “AirStor” to search for your device and complete the configuration process.

8.2. PC Client Login Utility

Double-click the “AirStor” icon on your desktop. The softw are utility will search all the connected devices in your network as seen on the screenshot below.

If you do not find the WiFiS D on t he list of de vic es c onnect ed in y our ne tw ork , click on th e “Ref resh ” butto n to refresh the device list.

Select the WiFiSD on the list, then click on the “Log In” button to enter the web interface as seen on the image below.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

Type the default User Name as admin and leave the User Password as blank. Click on the “Log In” button to access the Web Management Interface.

If you choose to click on the “My Storage” button, enter the admin login name and password to gain access to the Wi-Fi SD/USB. Once successfully logged-in, it automatically mount the storage area of the Wi-Fi SD/USB onto your desktop

8.3. Wi-Fi SD/USB Configuration using PC

Once your Wi-Fi enabled-PC is successfully connect to the Wi-Fi SD/USB, using the “AirStor” will allow you to access our built-in Web Management Interface and configure your device.

1. During the initial setup, our Wizard will automatically run and will guide you thr ough the

step-by-step process on configuring the Wi-Fi SD/USB as seen on the screenshot below. You

may cancel this process by clicking on the “X” at the top right corner of the window. If you

cancel the Wizard, it will keep the factory default settings of your Wi-Fi SD/USB.

2. Click on the “Next” button. By default, the Wired Access is selected.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

Wireless Access. Connecting the Wi-Fi SD/USB to another wireless device to have the internet access.

Selecting the Wireless Access

1. SSID. Enter the SSID name or click on the “Rescan” button to automatically search for the

available wireless network connections.

2. Password. Enter the correct password to join the wireless network connection selected.

3. IP Address. Select either DHCP or Manually assign an IP address

a. By selecting DHCP, the host will provide an IP address automatically to connect to the

internet

b. By selecting Manual, you have to manually assign an IP address to connect to the

internet

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

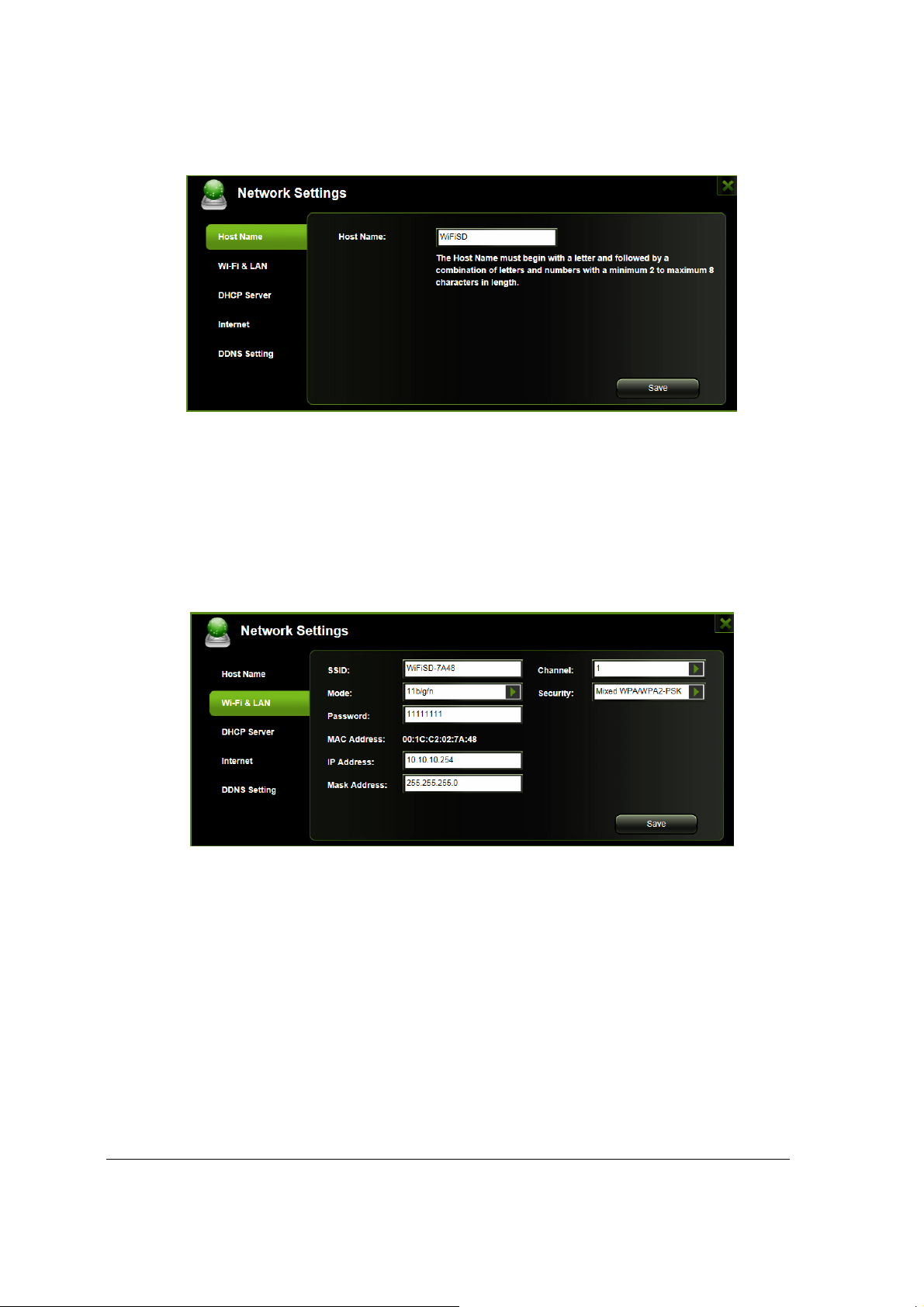

3. Click on the “Next” button. The next step is to configure the Wi-Fi Disk.

D) SSID： Enter the combination of letters and numbers only. 32 characters is the

maximum allowable SSID length

E) Channel： The default setting is set to Aut o. There are 14 available channels to

choose from.

F) Modes: The default setting is 11b/g/n. You can also manually set the modes to

11Mbps (802.11b), 54MBPS (802.11G), and 150Mbps (802.11n ).

G) Security: The default setting is Mixed WPA/WPA2-PSK. WPA-PSK and WPA2-PSK

are also available.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

H) Password： The default password is set to 11111111. I) IP Address： The default IP address is set to 10.10.10.254 with subnet mask of

255.255.255.0. The IP address can be changed.

4. Click on the “Next” button. The next step is to change the admin default password. Click on the

“Next” button once the password has been modified. You may click on the “Skip” button to keep the

default password.

5. Click on the “Finish” button to complete and save the changes made.

The system will start rebooting. This process will take approximately 5 minutes as seen on the

image below .

The step-by-step wizard can be canceled at anytime. Click on the “X” located at the top right of

the window as seen on the image below. Click on the “OK” button to exit or “Cancel”.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

9. Using Mobile Devices

9.1. iOS Client App Installat i on

1. Click on the “App Store” icon on the iOS device as seen on the image below. Search and locate

the free “AirStor” app and follow the on-screen installation inst ruc tio ns .

2. Once the installation process has been completed, the “AirStor” app can be found on the desktop

as seen on the image below.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

9.2. Wirelessly connecting your iPhone/iPad

1. Turn-on the Wi-Fi SD/USB. Wait for few minutes to complete the initialization process. The

blue Wi-Fi LED on the device should remain solid indicating that the initialization process has

been completed.

2. Click on the “Settings” icon on the iOS device as seen on the screenshot below.

3. Click on the “Wi-Fi”. Inside the Wi-Fi Networks, the “WiFiSD-XXXX” should appear on the list.

Click on the “WiFiSD-3932” as seen on the image below. The “3932” part of the SSID is the last

4 digits of the device MAC Address . Enter the default p assword (11111111) and click on the “Join”

button.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

Once the “WiFiSD-XXXX” is selected, a check mark will appear before the SSID and the Wi-Fi

logo will appear after the device name on the top left of the display.

9.3. iOS User Login

1. Click on the “AirStor” icon to launch the app as seen on the image below.

2. Enter admin as the user name and the password that you assigned during the config uration

process. The password is only required during the first login. The device remembers the

password and there is no need to enter it again afterward.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

3. Once the password has been entered correctly, you will be automatically connected into the

“My WiDisk”. The “My WiDisk” is the Wi-Fi SD/USB Storage.

As seen on the screenshot above, the SD Memory Card and the USB Flash Disk are both mounted on the desktop.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

9.4. Android Client App Installation

1. Click on the “Play Store” icon on the desktop as seen on the image below. Search and locate the

free “AirStor” app and follow the on-screen installation instructions.

2. Once the installation process has been completed, the “AirStor” app can be found on the desktop

as seen on the image below.

9.5. Wirelessly connecting your Android devices

1. Turn-on the Wi-Fi SD/USB. Wait for few minutes to complete the initialization process. The

blue Wi-Fi LED on the device should remain solid indicating that the initialization process has

been completed.

2. Click on the “Settings” icon on your desktop as seen on the screenshot below.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

3. Switch the Wi-Fi to ON position. Inside the Wi-Fi networks, the “WiFiSD-XXXX” should

appear on the list. Click on the “WiFiSD-3932” as seen on the image below. The “3932” part

of the SSID is the last 4 digits of the device MAC Address. Enter the default pass word ( 11111111)

and click on the “Connect” button.

4. The word “Connected” will appear under the SSID name of which is an indication that the

Android Device is connected to the Wi-Fi SD/USB.

9.6. Android User Login

1. Click on the “AirStor” icon to launch the app as seen on the image below.

2. Enter the Admin password that you assigned during the configuration process. The

password is only required during the first login. The device rememb ers the pa ssword and there is

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

no need to enter it again the second time you login.

3. Once the password has been entered correctly, you will be automatically connected into the

“My WiDisk”. The “My WiDisk” is the Wi-Fi SD/USB Storage.

As seen on the screenshot above, the SD Memory Card and the USB Flash Disk are both mounted on the desktop.

10. Basic Functionality

10.1. iOS Device Client

Once you have successfully connected to the Wi-Fi SD/USB, by default, you will be inside the “My WiDisk”. The “My WiDisk” is the Wi-Fi SD/USB and the “My Device” is the device that you are using to access the Wi-Fi SD/USB. Few buttons that can be found inside th e Main Screen as listed below.

My Device Main Screen View folders and iPad (or iPhone) folder are available to easily organize your files inside the My Device.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

– By default, the Documents folder, Music folder, Photos Folder, Videos

My WiDisk Main Screen View

– the WiFiSD_Volume1 and USBDisk_V olume1 can be seen on the desktop.

Home Button – back to the main screen.

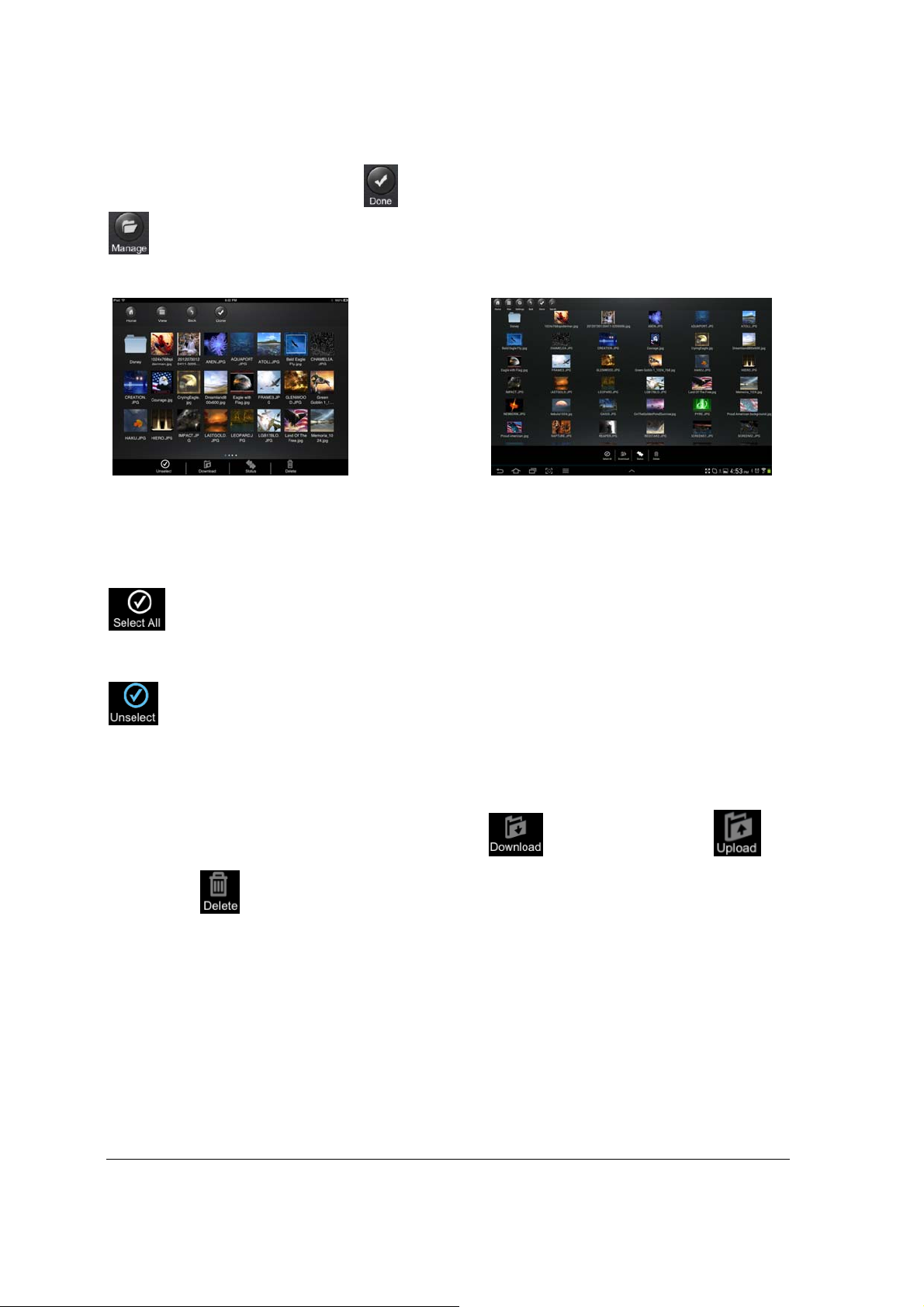

View Button - change to List or Thumbnail view.

Power 7 Technology Corporation – Wi-Fi SD/USB Users Manuals v1.0

+ 46 hidden pages
