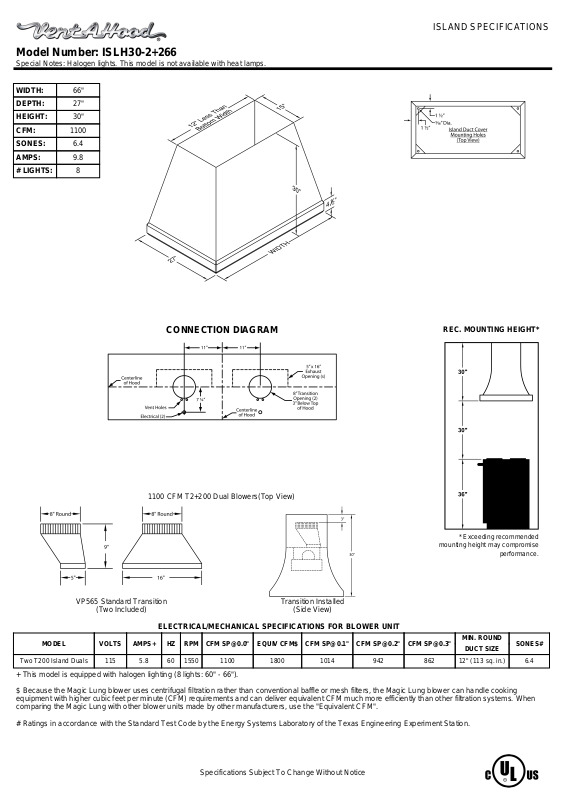

Vent-A-Hood ISLH30-2 266 SPECIFICATIONS
Model Number: ISLH30-2+266
Special Notes: Halogen lights. This model is not available with heat lamps.
WIDTH: 66"
DEPTH: 27"
HEIGHT: 30"
CFM: 1100
SONES: 6.4
AMPS: 9.8
# LIGHTS: 8
ISLAND SPECIFICATIONS
1100 CFM T2+200 Dual Blowers(Top View)
VP565 Standard Transition
(Two Included)
CONNECTION DIAGRAM
REC. MOUNTING HEIGHT*
* Exceeding recommended
mounting height may compromise
performance.
Transition Installed
(Side View)
ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT
MODEL VOLTS AMPS+ HZ RPM CFM SP@0.0" EQUIV CFM$ CFM SP@0.1" CFM SP@0.2" CFM SP@0.3"
Two T200 Island Duals 115 5.8 60 1550 1100 1800 1014 942 862 12" (113 sq. in.) 6.4
+ This model is equipped with halogen lighting (8 lights: 60" - 66").
$ Because the Magic Lung blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung blower can handle cooking
equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems. When
comparing the Magic Lung with other blower units made by other manufacturers, use the "Equivalent CFM".
# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.
Specifications Subject To Change Without Notice
MIN. ROUND
DUCT SIZE
SONES#
