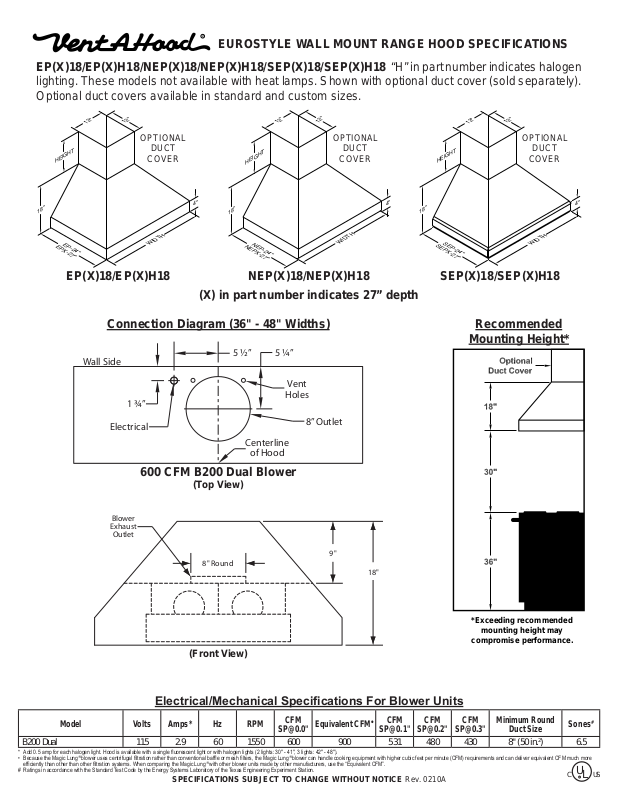

EUROSTYLE WALL MOUNT RANGE HOOD SPECIFICATIONS

EP(X)18/EP(X)H18/NEP(X)18/NEP(X)H18/SEP(X)18/SEP(X)H18 “H” in part number indicates halogen lighting. These models not available with heat lamps. Shown with optional duct cover (sold separately).

Optional duct covers available in standard and custom sizes.

OPTIONAL

DUCT

COVER

EP(X)18/EP(X)H18

NEP(X)18/NEP(X)H18

SEP(X)18/SEP(X)H18

(X) in part number indicates 27” depth

Connection Diagram (36" - 48" Widths)

Recommended

5 ½”

5 ¼”

Mounting Height*

Wall Side

Vent

1 ¾”

Holes

Electrical

8” Outlet

Centerline

of Hood

600 CFM B200 Dual Blower

(Top View)

Blower

Exhaust

Outlet

8" Round

18"

*Exceeding recommended

mounting height may

compromise performance.

(Front View)

Electrical/Mechanical Specifications For Blower Units

Model

Volts

Amps*

RPM

CFM

Equivalent CFM•

CFM

Minimum Round

Sones#

SP@0.0"

SP@0.1"

SP@0.2"

SP@0.3"

Duct Size

B200 Dual

115

2.9

1550

600

900

531

480

430

8" (50 in.2)

6.5

* Add 0.5 amp for each halogen light. Hood is available with a single fluorescent light or with halogen lights (2 lights: 30" - 41", 3 lights: 42" - 48").

• Because the Magic Lung® blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more

efficiently than other than other filtration systems. When comparing the Magic Lung® with other blower units made by other manufacturers, use the “Equivalent CFM”.

# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Rev. 0210A
