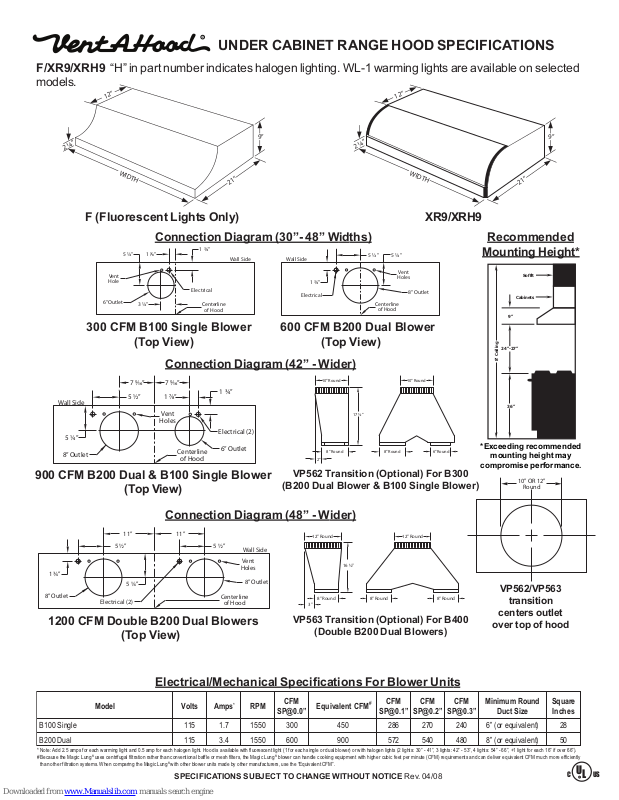

Vent-a-Hood XRH9, F Specifications
UNDER CABINET RANGE HOOD SPECIFICATIONS
F/XR9/XRH9 “H” in part number indicates halogen lighting. WL-1 warming lights are available on selected
models.
12”
12”
9”
2 ¼”
WIDTH
21”
F (Fluorescent Lights Only) XR9/XRH9
Connection Diagram (30”- 48” Widths) Recommended
1 ¾”
Electrical
Centerline
Wall Side
of Hood
Vent
Hole
6” Outlet
1 ⁄”5 ¼”
3 ¼”
300 CFM B100 Single Blower 600 CFM B200 Dual Blower
(Top View) (Top View)
Connection Diagram (42” - Wider)
Wall Side
5 ¼”
8” Outlet
7 ⁄”
5 ½”
7 ⁄”
1 ⁄”
Vent
Holes
Centerline
of Hood
1 ¾”
Electrical (2)
6” Outlet
900 CFM B200 Dual & B100 Single Blower
(Top View)
2 ¼”
WIDTH
Wall Side
1 ¾”
Electrical
10” Round 10” Round
17 ½”
8” Round
2”
5 ¼”5 ½”
Vent
Holes
8” Outlet
Centerline
of Hood
8” Round 6” Round
VP562 Transition (Optional) For B300
(B200 Dual Blower & B100 Single Blower)
9”
21”
Mounting Height*
Soffit
Cabinets
9”
24”-27”
8’ Ceiling
36”
*Exceeding recommended
mounting height may
compromise performance.
10” OR 12”
Round
Connection Diagram (48” - Wider)
11” 11”
5 ½”
1 ¾”
8” Outlet
5 ¼”
Electrical (2)
1200 CFM Double B200 Dual Blowers
(Top View)
Electrical/Mechanical Specifications For Blower Units
Model
B100 Single
B200 Dual
*
Note: Add 2.5 amps for each warming light and 0.5 amp for each halogen light. Hood is available with fluorescent light (1 for each single or dual blower) or with halogen lights (2 lights: 30” - 41”, 3 lights: 42” - 53”, 4 lights: 54” - 66”, +1 light for each 16” if over 66”).
#
Because the Magic Lung
than other filtration systems. When comparing the Magic Lung
®
uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently
Volts Amps RPM
115
115
®
with other blower units made by other manufacturers, use the “Equivalent CFM”.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Rev. 04/08
5 ½”
Centerline
of Hood
1.7
3.4
*
Wall Side
Vent
Holes
8” Outlet
1550
1550
12” Round 12” Round
16 ½”
3”
8” Round
8” Round 8” Round
VP563 Transition (Optional) For B400
(Double B200 Dual Blowers)
CFM
SP@0.0”
300
600
Equivalent CFM
450
900
#
SP@0.1”
CFM
286
572
CFM
SP@0.2”
270
540
CFM
SP@0.3”
240
480
VP562/VP563
transition
centers outlet
over top of hood
Minimum Round
Duct Size
6” (or equivalent)
8” (or equivalent)
Square
Inches
28
50
U
CUS
R
L
