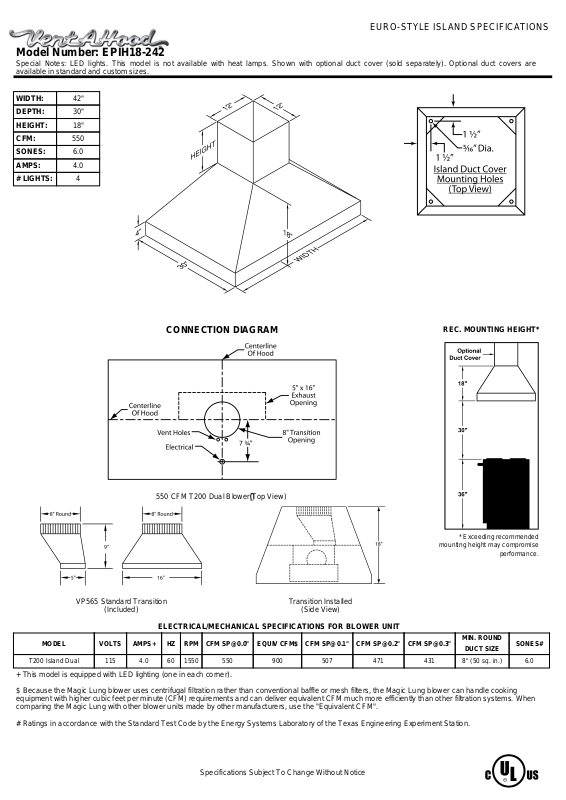

Vent-A-Hood EPIH18-242 SPECIFICATIONS

EURO-STYLE ISLAND SPECIFICATIONS

Model Number: EPIH18-242

Special Notes: LED lights. This model is not available with heat lamps. Shown with optional duct cover (sold separately). Optional duct covers are
available in standard and custom sizes.

WIDTH: 42"
DEPTH: 30"
HEIGHT: 18"
CFM: 550
SONES: 6.0
AMPS: 4.0
# LIGHTS: 4

550 CFM T200 Dual Blower(Top View)

VP565 Standard Transition

(Included)

CONNECTION DIAGRAM

REC. MOUNTING HEIGHT*

* Exceeding recommended

mounting height may compromise

performance.

Transition Installed

(Side View)

ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT

MODEL VOLTS AMPS+ HZ RPM CFM SP@0.0" EQUIV CFM$ CFM SP@0.1" CFM SP@0.2" CFM SP@0.3"

T200 Island Dual 115 4.0 60 1550 550 900 507 471 431 8" (50 sq. in.) 6.0

+ This model is equipped with LED lighting (one in each corner).
$ Because the Magic Lung blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung blower can handle cooking

equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems. When
comparing the Magic Lung with other blower units made by other manufacturers, use the "Equivalent CFM".

# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.

Specifications Subject To Change Without Notice

MIN. ROUND

DUCT SIZE

SONES#
