USER MANUAL
MONCOLHA9
9.2” TFT LCD MONITOR WITH REMOTE CONTROL
9.2” TFT LCD-SCHERM MET AFSTANDSBEDIENING
MONITEUR LCD-TFT 9.2’’ AVEC TÉLÉCOMMANDE
MONITOR LCD-TFT 9.2’’ CON MANDO A DISTANCIA
9.2” TFT LCD-MONITOR MIT FERNBEDIENUNG
GEBRUIKERSHANDLEIDING
NOTICE D’EMPLOI
MANUAL DEL USUARIO
BEDIENUNGSANLEITUNG
2
MONCOLHA9 VELLEMAN
3
MONCOLHA9 – 9.2” TFT LCD MONITOR WITH REMOTE CONTROL
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the MONCOLHA9! Please read the manual thoroughly before bringing this device into service. If
the device was damaged in transit, don't install or use it and contact your dealer.
2. Features
• 9.2” TFT LCD monitor
• Full remote control
• 2 audio/video inputs
• 2 built-in speakers for stereo sound
• OSD
• PAL/NTSC encoding system
• Stereo 3.5mm headphone jack
• Low power consumption
• Audio/video input control
• Comes with: remote control, cables, table stand, earphones, car adapter plug and this manual
3. Technical Specifications
Display Mode TFT Active Matrix System (16:9) – new panel
Screen Size 9.2”
Active Area 203 x 122mm
Viewing Angle left, right: 45° / top: 35° / down: 10°
Resolution 800 (H) x RGB x 480 (V)
Backlight cold cathode filament tube
Video Input Signal 1.0Vpp / 75Ω (composite video signal)
Audio Input Signal 0.5W / 8Ω @ 300mW input
Power Supply
Monitor 10.5~15VDC +/- 10% / 700mA max. (use PS1210R, not incl.)
Remote Control 1 x 3V CR2025 battery (incl.)
Power Consumption < 700mA
Built-in Speaker 2W / 16Ω
Operating Temperature -5°C to 50°C
Storage Temperature -20°C to 60°C
Dimensions 240 x 174 x 30mm
Weight 1.5kg
MONCOLHA9 VELLEMAN
4
4. Safety Instructions
• The conductor of the vehicle must not be disturbed by the monitor pictures and sound while driving to ensure
personal security and the security of the passengers.
• Always check the polarity when wiring to avoid damaging the unit and/or vehicle.
• Do not open the housing of the monitor. Contact your local dealer for service and maintenance.

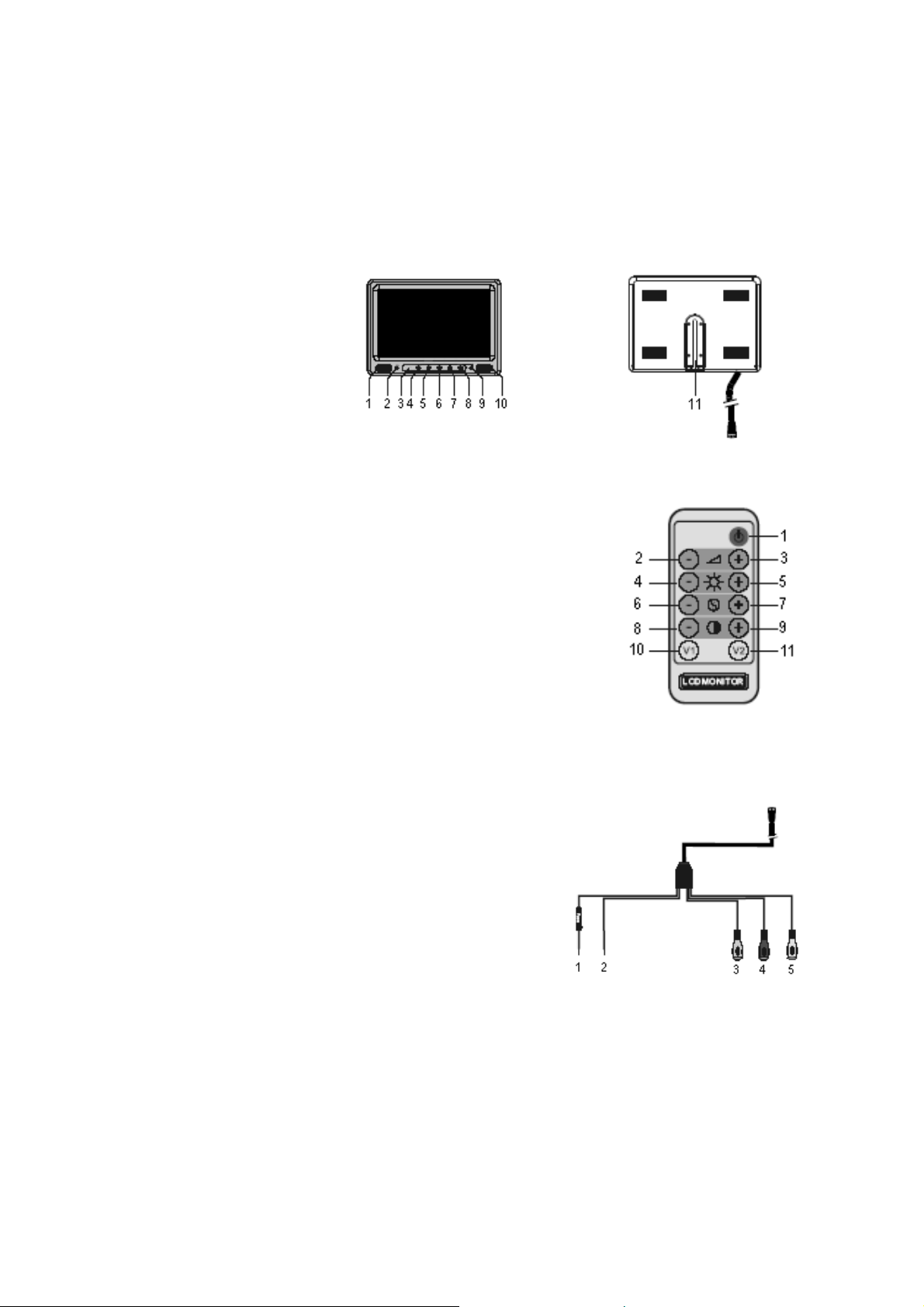

5. Front Panel Description
1. Speaker
2. Audio/video input (AV2)
3. IR sensor
4. POWER button
5. Menu
6. Adjust down
7. Adjust up
8. AV1/AV2
9. Headphone input jack
10. Speaker
11. Sliding bracket type I
6. Remote Control Description
1. Power on/off 7. Colour +
2. Volume – 8. Contrast –
3. Volume + 9. Contrast +
4. Brightness – 10. Video input 1
5. Brightness + 11. Video input 2
6. Colour –
REMARK:
OSD: volume, brightness, contrast, colour, load default (Y / N)
7. Wiring
1. +12V
2. Negative ground (black)
3. RCA audio input L (white)
4. RCA audio input R (red)
5. Video input AV1 (yellow)
The information in this manual is subject to change without prior notice.
