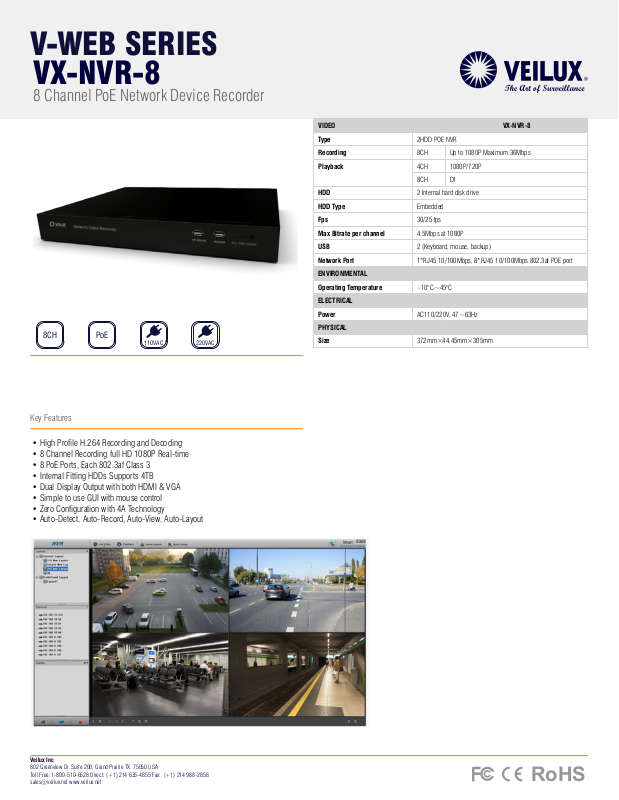

Veilux VX-NVR-8 Specsheet

V-WEB SERIES

VX-NVR-8

8 Channel PoE Network Device Recorder

8CH PoE

110VAC 220VAC

VIDEO VX-NVR-8

Type 2HDD POE NVR

Recording 8CH Up to 1080P Maximum 36Mbps

Playback 4CH 1080P/720P

8CH D1

HDD 2 Internal hard disk drive

HDD Type Embedded

Fps 30/25 fps

Max Bitrate per channel 4.5Mbps at 1080P

USB 2 (Keyboard, mouse, backup)

Network Port 1*RJ45 10/100Mbps, 8*RJ45 10/100Mbps 802.3af POE port

ENVIRONMENTAL

Operating Temperature -10°C~45°C

ELECTRICAL

Power AC110/220V, 47~63Hz

PHYSICAL

Size 372mm×44.45mm×305mm

Key Features

• High Profile H.264 Recording and Decoding

• 8 Channel Recording full HD 1080P Real-time

• 8 PoE Ports, Each 802.3af Class 3

• Internal Fitting HDDs Supports 4TB

• Dual Display Output with both HDMI & VGA

• Simple to use GUI with mouse control

• Zero Configuration with 4A Technology

• Auto-Detect, Auto-Record, Auto-View, Auto-Layout

Veilux Inc

802 Greenview Dr. Suite 200, Grand Prairie TX. 75050 USA
Toll Free: 1-800-510-6528 Direct: ([phone] Fax: [phone]
[e-mail] www.veilux.net

RoHS
