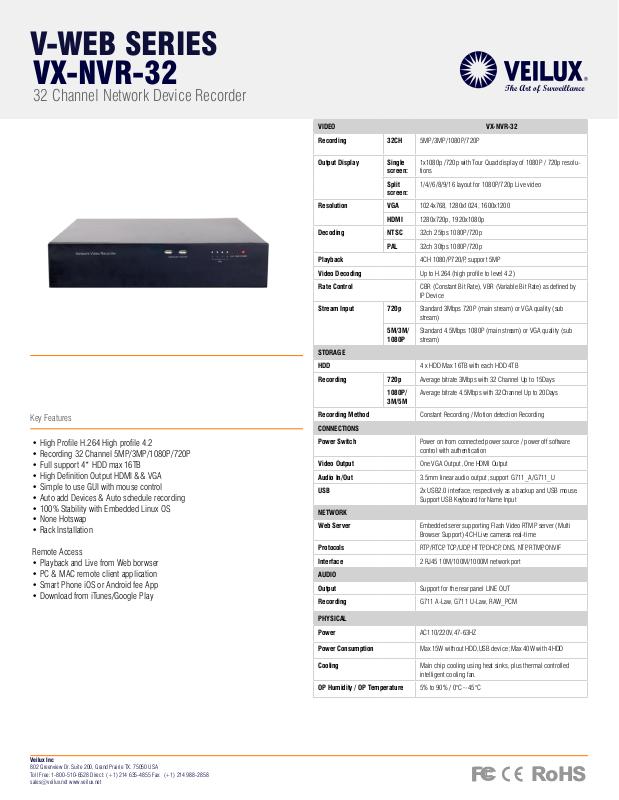

Veilux VX-NVR-32 Specsheet

V-WEB SERIES

VX-NVR-32

32 Channel Network Device Recorder

VIDEO VX-NVR-32

Recording 32CH 5MP/3MP/1080P/720P

Key Features

• High Profile H.264 High profile 4.2

• Recording 32 Channel 5MP/3MP/1080P/720P

• Full support 4* HDD max 16TB

• High Definition Output HDMI && VGA

• Simple to use GUI with mouse control

• Auto add Devices & Auto schedule recording

• 100% Stability with Embedded Linux OS

• None Hotswap

• Rack Installation

Remote Access

• Playback and Live from Web borwser

• PC & MAC remote client application

• Smart Phone iOS or Android fee App

• Download from iTunes/Google Play

Output Display Single

screen:

Split
screen:

Resolution VGA 1024x768, 1280x1024, 1600x1200

HDMI 1280x720p, 1920x1080p

Decoding NTSC 32ch 25fps 1080P/720p

PAL 32ch 30fps 1080P/720p

Playback 4CH 1080/P720/P, support 5MP

Video Decoding Up to H.264 (high profile to level 4.2)

Rate Control CBR (Constant Bit Rate), VBR (Variable Bit Rate) as defined by

Stream Input 720p Standard 3Mbps 720P (main stream) or VGA quality (sub

5M/3M/
1080P

STORAGE

HDD 4 x HDD Max 16TB with each HDD 4TB

Recording 720p Average bitrate 3Mbps with 32 Channel Up to 15Days

1080P/
3M/5M

Recording Method Constant Recording / Motion detection Recording

CONNECTIONS

Power Switch Power on from connected power source / power off software

Video Output One VGA Output ,One HDMI Output

Audio In/Out 3.5mm linear audio output ,support G711_A/G711_U

USB 2x USB2.0 interface, respectively as a backup and USB mouse.

NETWORK

Web Server Embedded serer supporting Flash Video RTMP server (Multi

Protocols RTP/RTCP, TCP/UDP, HTTP, DHCP, DNS, NTP, RTMP, ONVIF

Interface 2 RJ45 10M/100M/1000M network port

AUDIO

Output Support for the rear panel LINE OUT

Recording G711 A-Law, G711 U-Law, RAW_PCM

PHYSICAL

Power AC110/220V,47-63HZ

Power Consumption Max 15W without HDD,USB device ;Max 40W with 4HDD

Cooling Main chip cooling using heat sinks, plus thermal controlled

OP Humidity / OP Temperature 5% to 90% / 0°C~45°C

1x1080p /720p with Tour Quad display of 1080P / 720p resolu­tions

1/4//6/8/9/16 layout for 1080P/720p Live video

IP Device

stream)

Standard 4.5Mbps 1080P (main stream) or VGA quality (sub
stream)

Average bitrate 4.5Mbps with 32Channel Up to 20Days

control with authentication

Support USB Keyboard for Name Input

Browser Support) 4CH Live cameras real-time

intelligent cooling fan.
